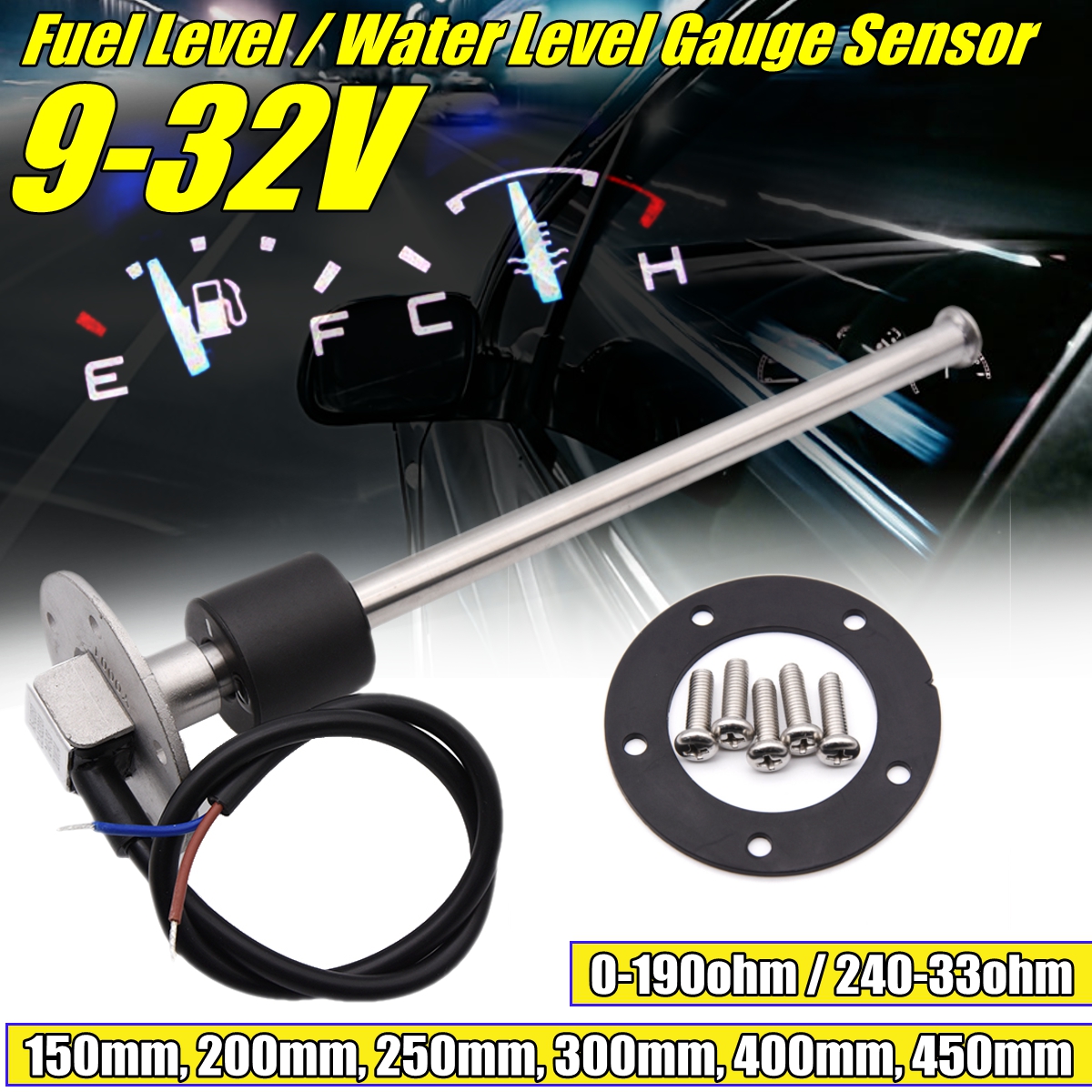

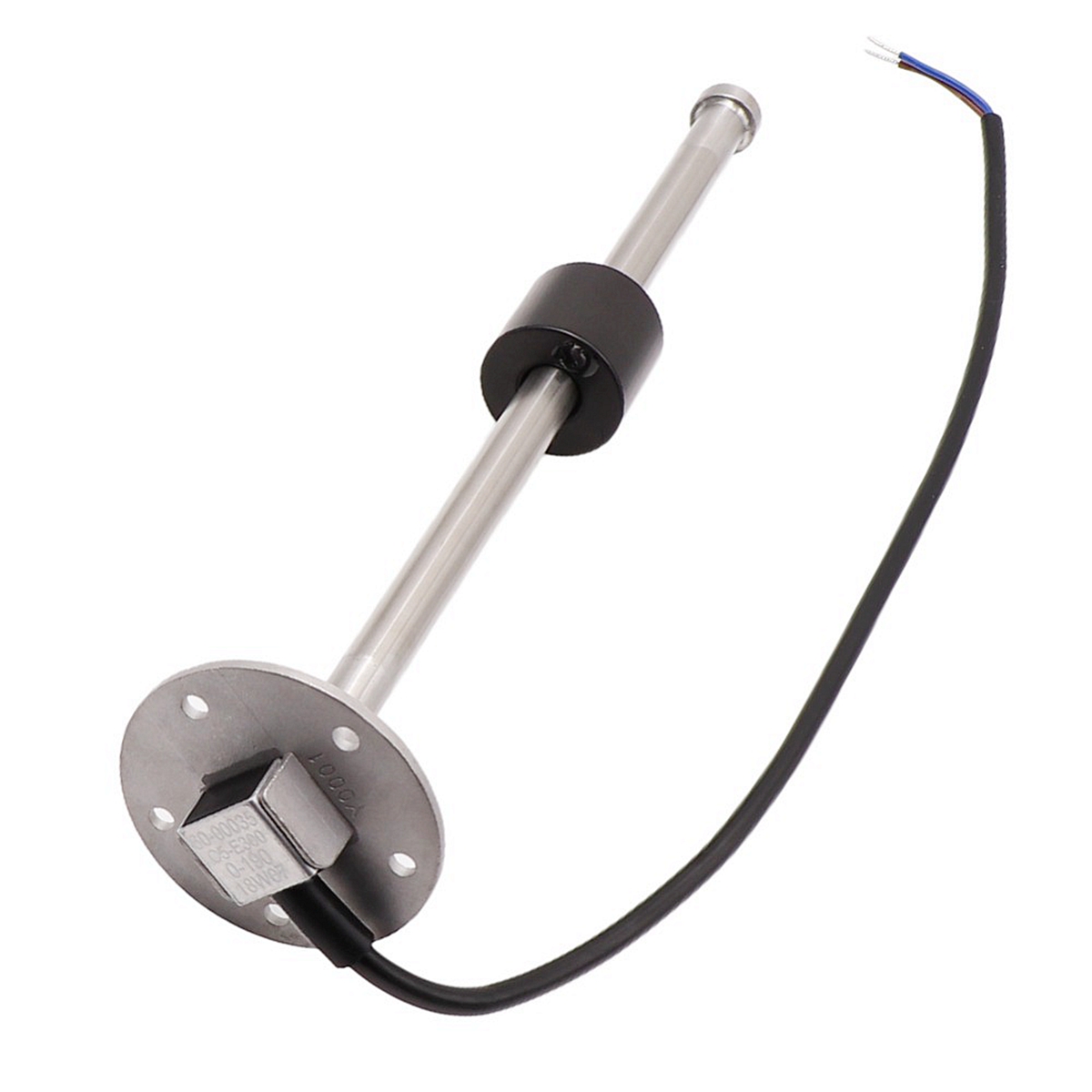

9-32V Fuel Level Meter Gauge Water Level Gauge Sensor Sender Unit 0-190 ohm/ 240-33 ohm For Yacht Boat Marine
$26.99
- Product Code: ED0017109
- Availability: In Stock
- Ex Tax: $26.99
Available Options
Feature:
1.Be suitable for all kinds of Fuel Level Gauge / Water Level Gauge with same signal
2.Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
3. IP67 waterproof and dustproof grade
4. With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
Specification:
Level Sensor Support |
Fuel Level Gauge / Water Level Gauge |
Working Voltage |
9-32V(12V/24V) |
Protection Rank |
IP67 |
Level Sensor fit for Diesel & Gasoline Engine | |
Material |
Stainless steel |
Resolution range |
21 mm |
Assembly |
Standard 5 holes |
Operating temperatures |
- 40 to 85 |
Rated current for alarm switch |
500mA |
Operating temperatures |
- 40 to 85 Celsius |

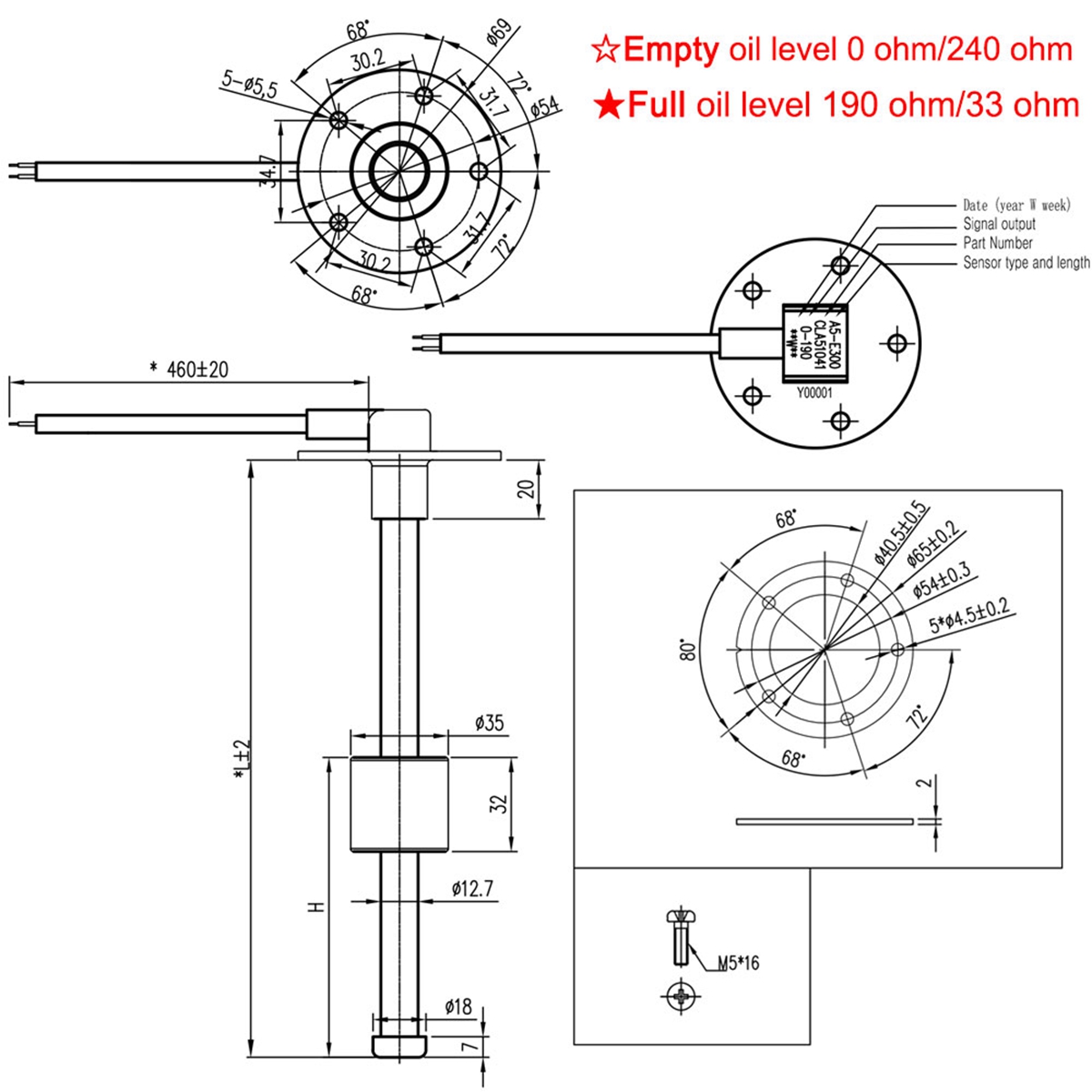

Mounting |
5 pieces of M5 screws and 2 mm thick gasket |
Output signal |
Type 2:0~190 ohm (Standard European) / Tyle 1: 240~33 ohm (Standard American) |

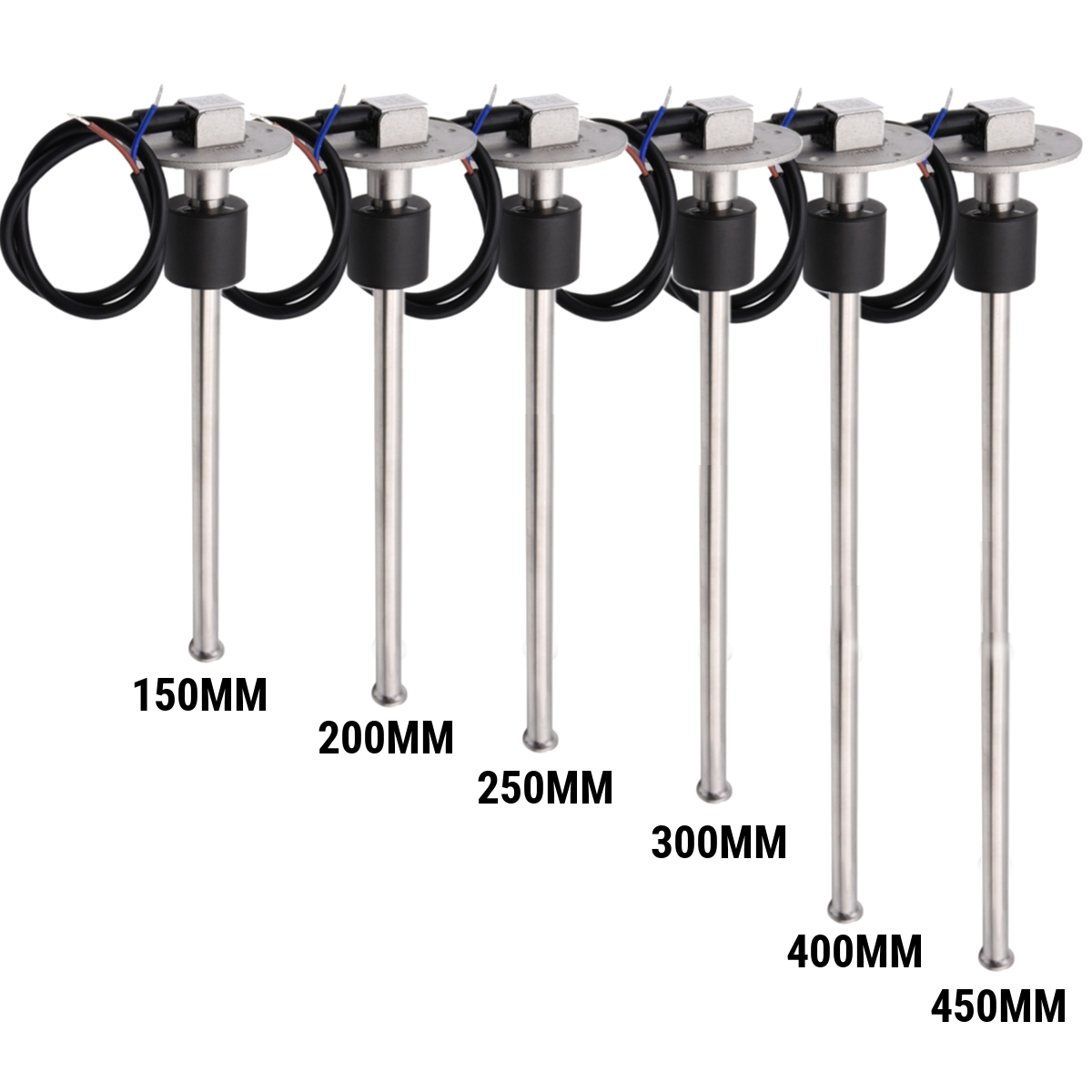

Sensor Length |
150mm, 200mm, 250mm, 300mm ,400mm, 450mm |

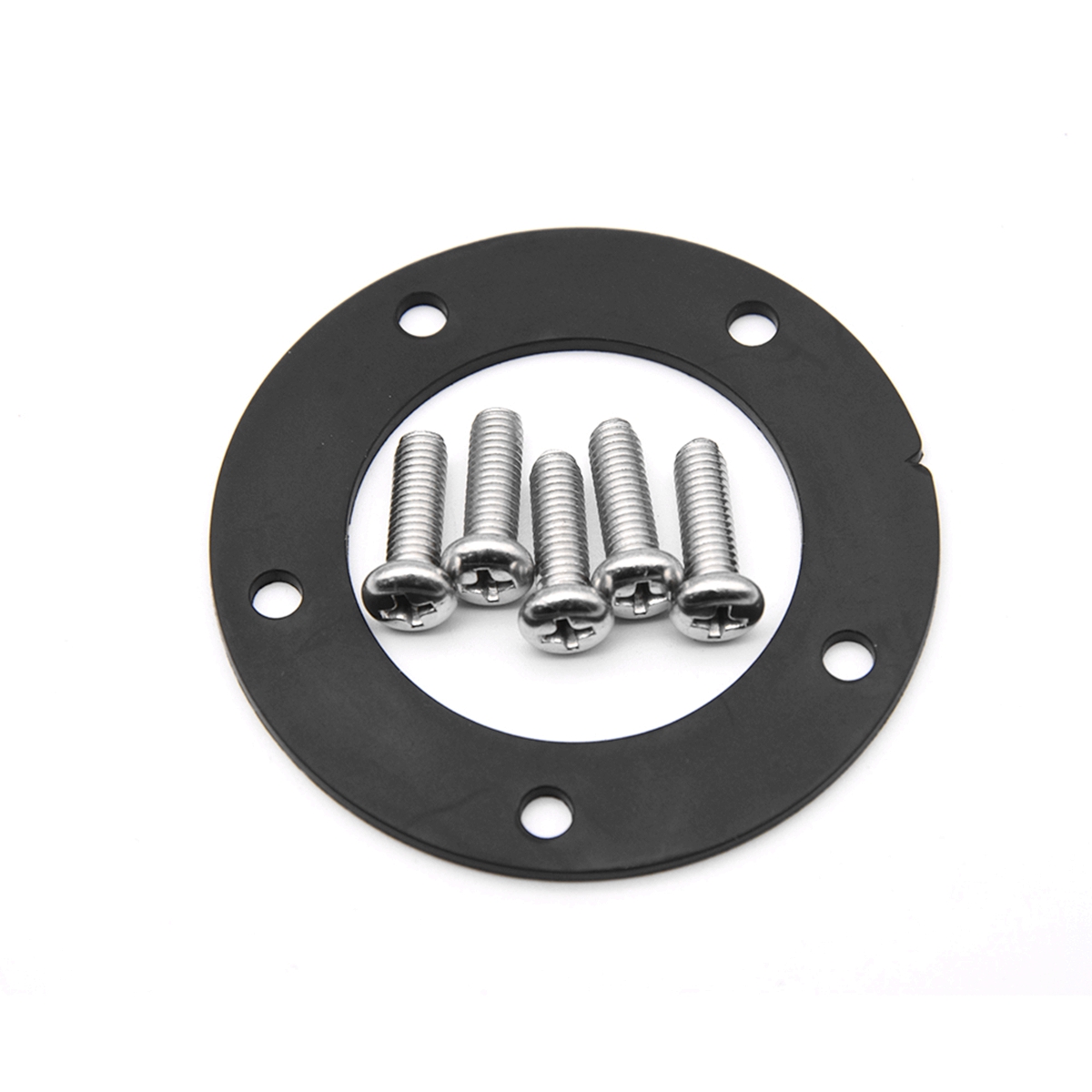

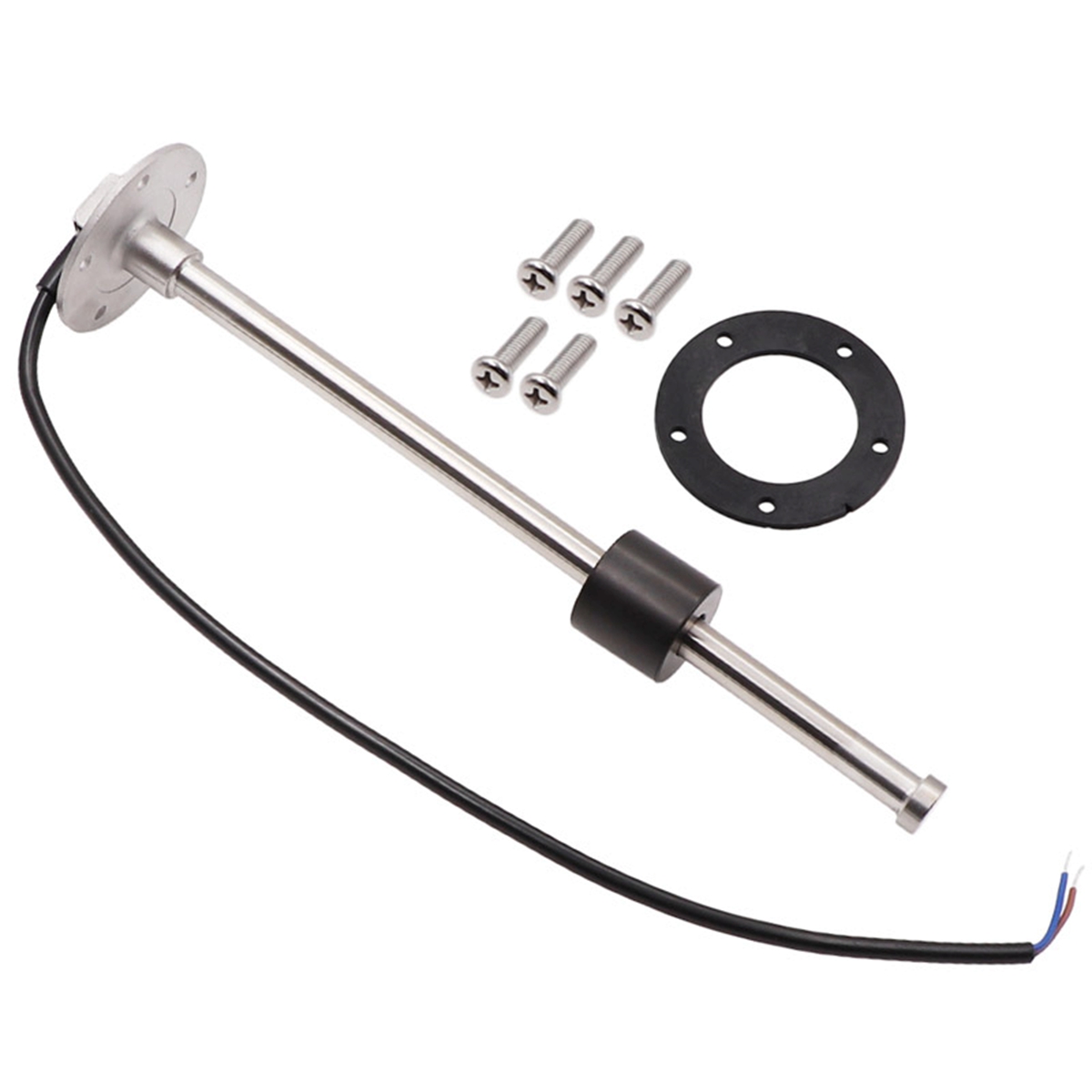

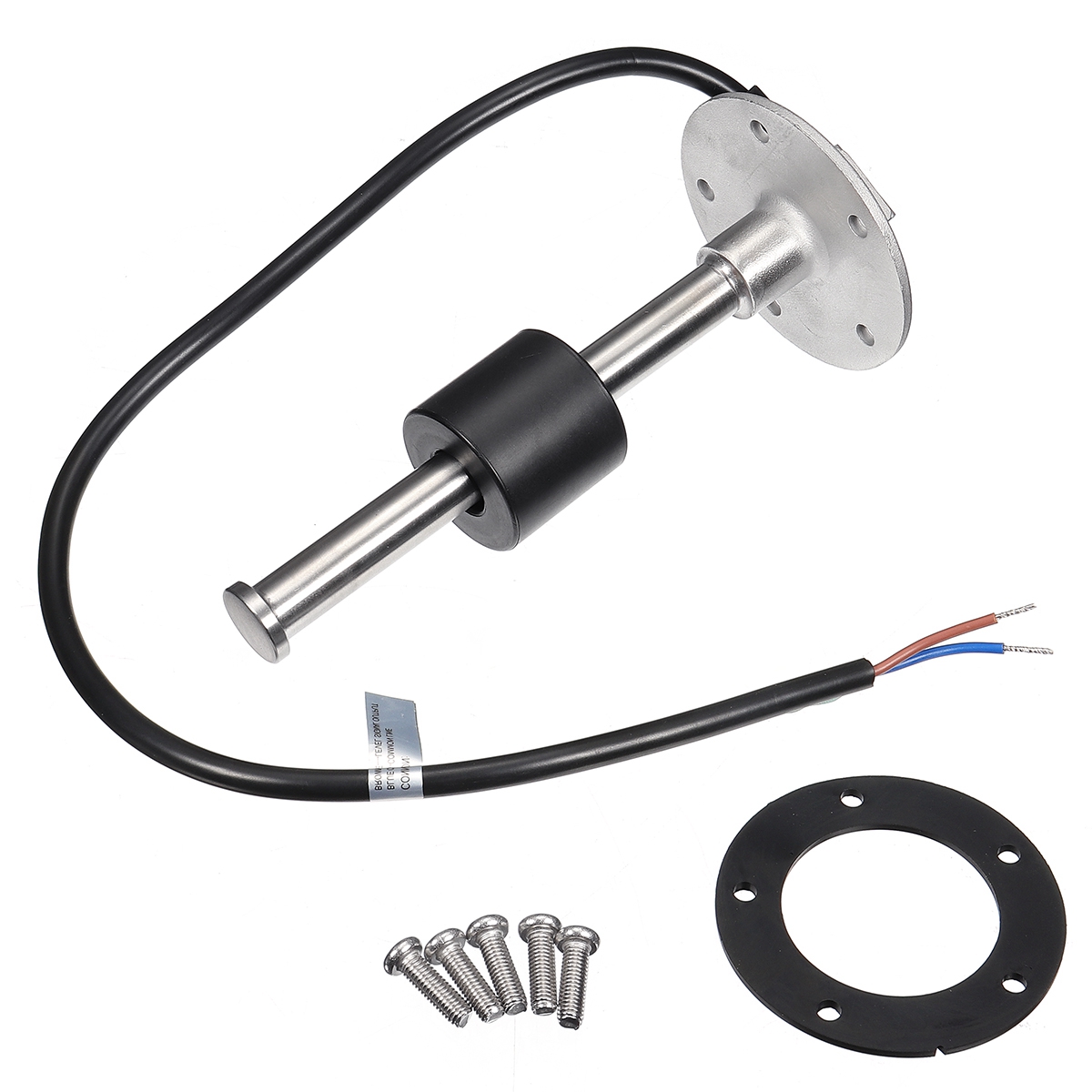

Package Included:
1 X |
Sensor |
1 X |
Gasket |
5 X |
Screws |
