Battery Tester Results:

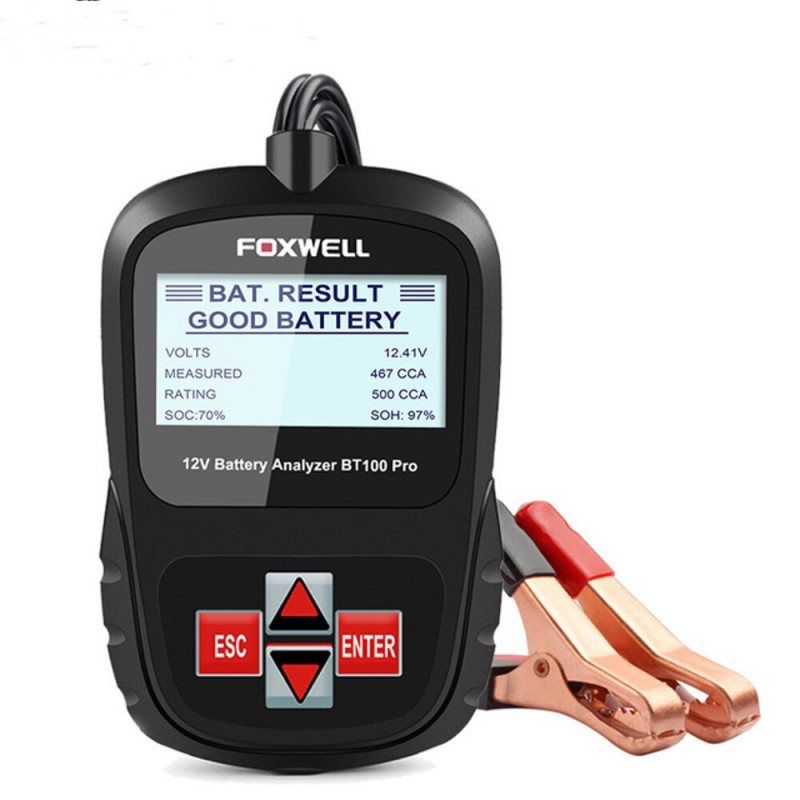

GOOD BATTERY: The battery is in good condition.
GOOD-RECHARGE: The battery is in good condition but low current. Fully charge the battery and return it to service.
CHARGE & RETEST: Fully charge the battery and retest. Failure to fully charge the battery before testing may result in inaccurate results. If you still get CHARGE & RETEST message after you fully charge the battery, replace it.
REPLACE BATTERY: The battery is almost dead or the connection between the battery and battery cable is poor. Replace the battery and retest; or disconnect the battery cables and retest the battery using the out-of-vehicle test before replacing it.
BAD CELL-REPLACE: The battery may be damaged such as broken cell or short circuit. Replace the battery and retest.
1. Multiple applications of passenger cars and light trucks.
2. Battery tests rated from 100 to 1100CCA.
3. Testing of various types of flood-regular stacks, AGM flat plate, AGM spiral and gel batteries.
4. Tests of various classification systems-CCA, CA, MCA, JIS, SAE, DIN, IEC, EN.
5. Test the batteries in the car directly-no need to remove the battery detects bad cells.
6. Fast and accurate test result show in few seconds.
7. Does not emit light, heat or ignition, or discharge the battery-keeps operation safe for all levels of compensation users automatic temperature.

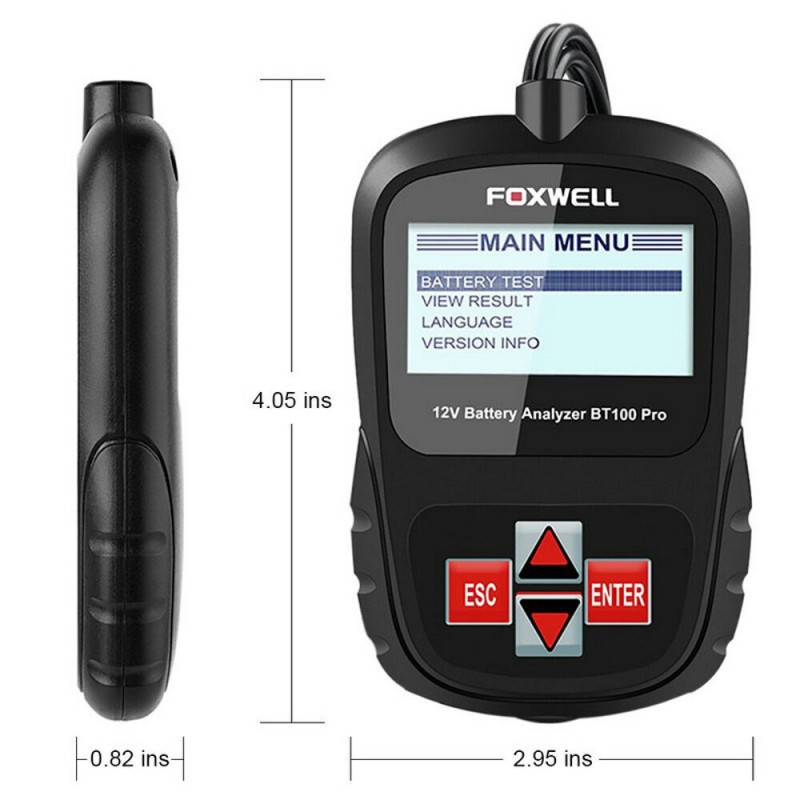

8. Extremely easy to use with large backlight LCD display and menu-driven operation.
9. Multilingual menu and test results.
Specification:
BT100 Support Functions:
☛Battery Voltage Test
☛Battery CCA & AH Capacity Test
☛Battery Internal Resistance Test
☛Battery SOC & SOH Display
☛Battery Health Analyzer
Specification:
Brand: Elecdeer
Model: BT100 PRO
Operating temperature: -20 to 60 ° C (-4 to 140 ° F)
Storage Temperature: -20 to 70 ° C (-4 to 158 ° F)
Battery rating: 100-1100CCA
Standard support: CCA, CA, MCA, JIS, DIN, IEC, SAE, EN
Menu Languages: English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Dutch, Turkish

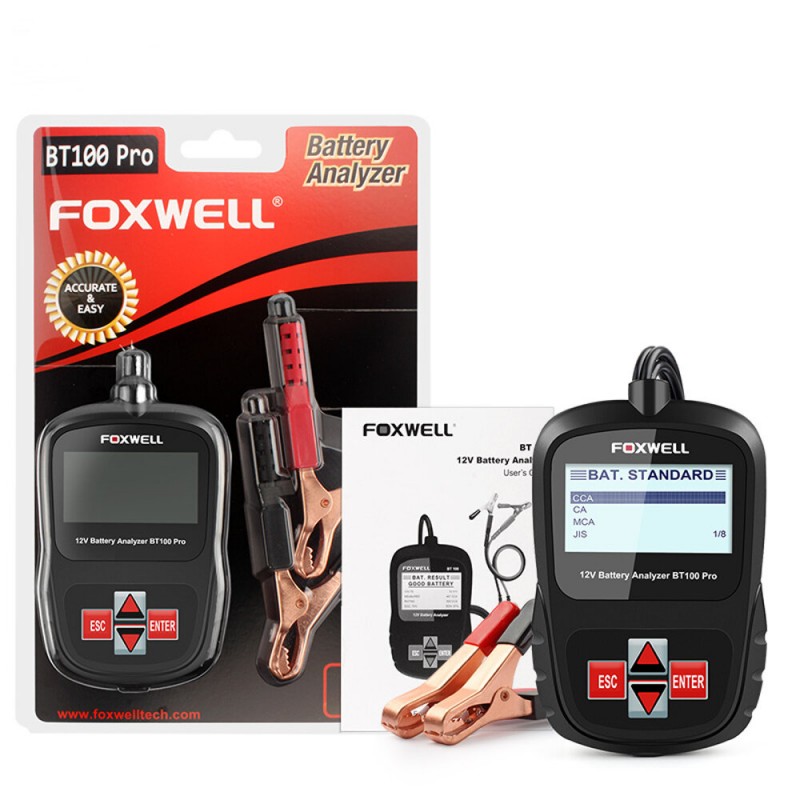

Package Included:
1 X Car Battery Tester

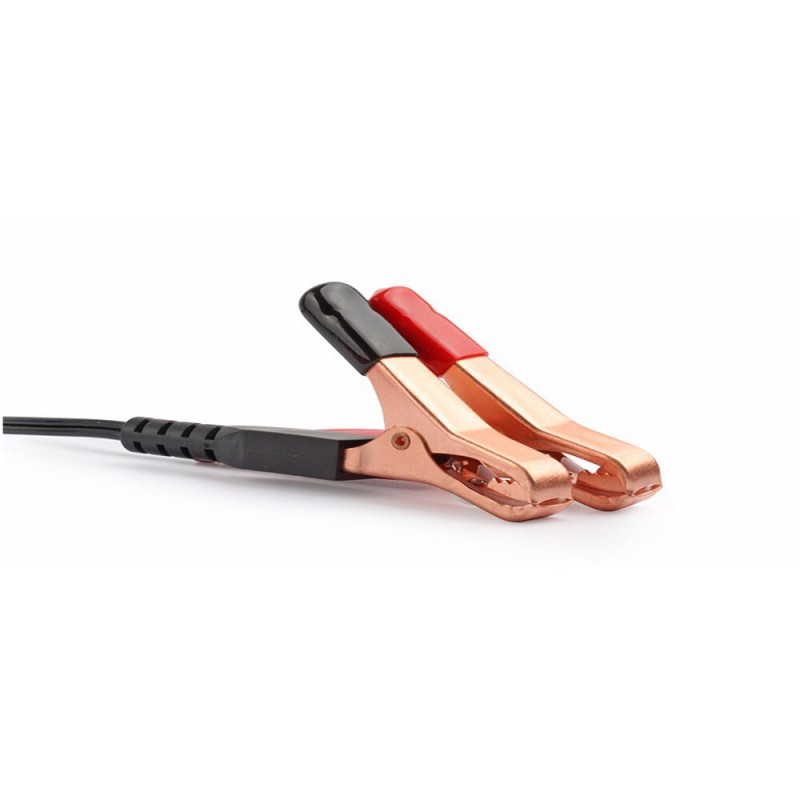

1 X Test Cable
