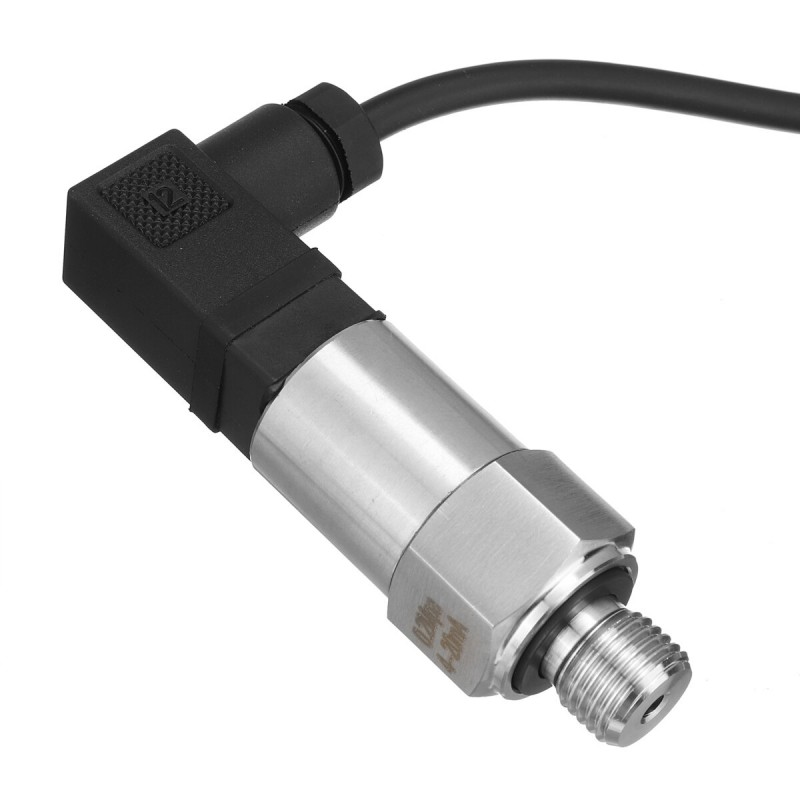

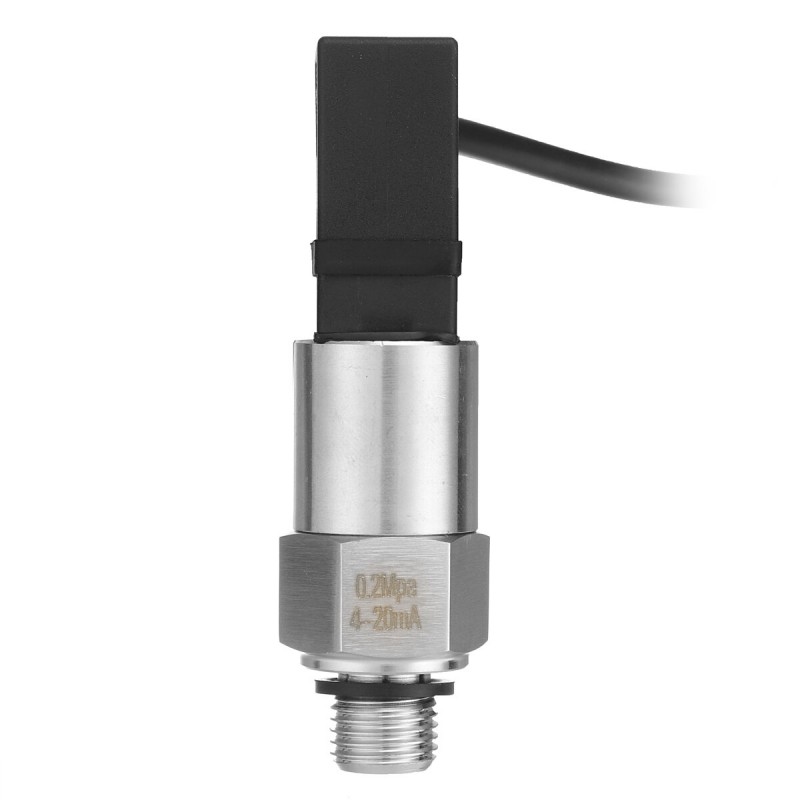

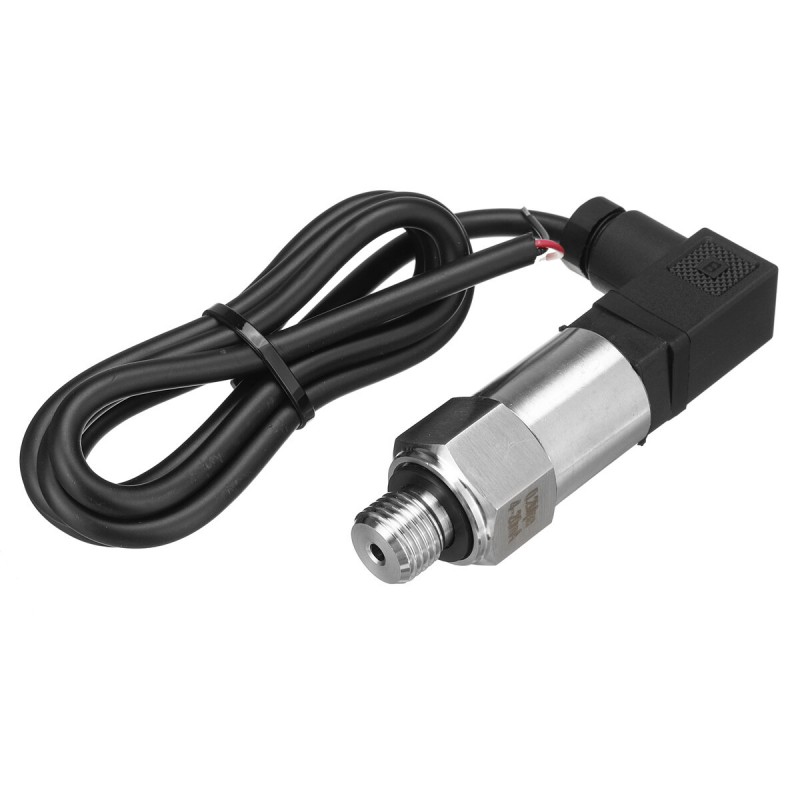

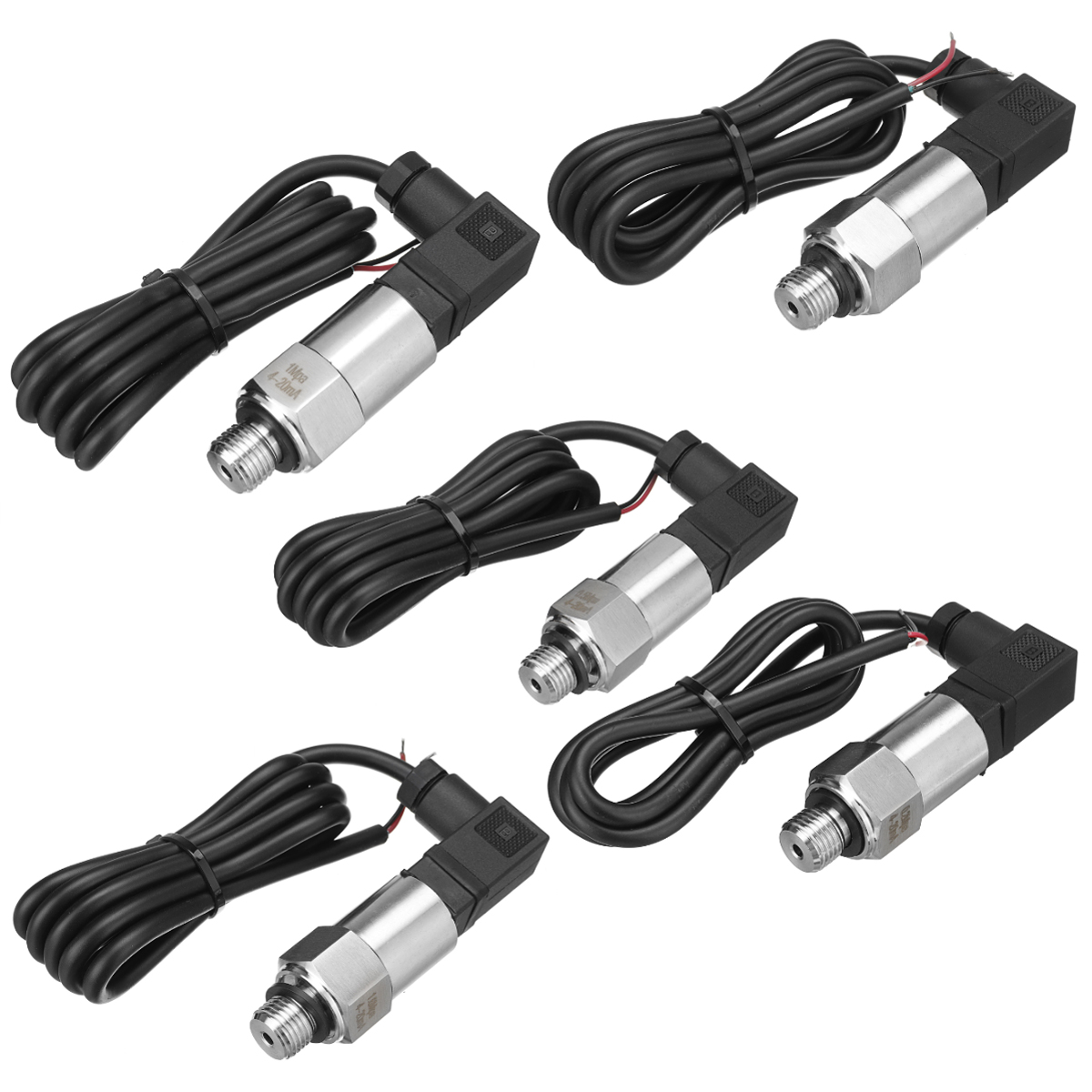

0-1.6MPA G1/4 Pressure Transmitter Transducer 4-20mA Output For Water Gas Oil

$25.99

  • Product Code: ED0017506
  • Availability: In Stock
  • Ex Tax: $25.99

Available Options

Tags: Pressure Transmitter Transducer

0-0.2MPA #1

0-0.5MPA #2

0-1MPA #3

0-1.2MPA #4

0-1.6MPA #5


Feature:

1.Precision compensation technology design, sensitive components, stable and reliable.

2.Light weight and small dimension, convenient to install and operate.

3.It has complete surge voltage protection function.

4.Widely used in oil tank, gas tank and diesel tank to detect oil, fuel, diesel, gas, water or air pressure.

Specification:

Product Name

Pressure Transmitter Transducer

Material

Stainless Steel & Rubber

Color

Black&Silver

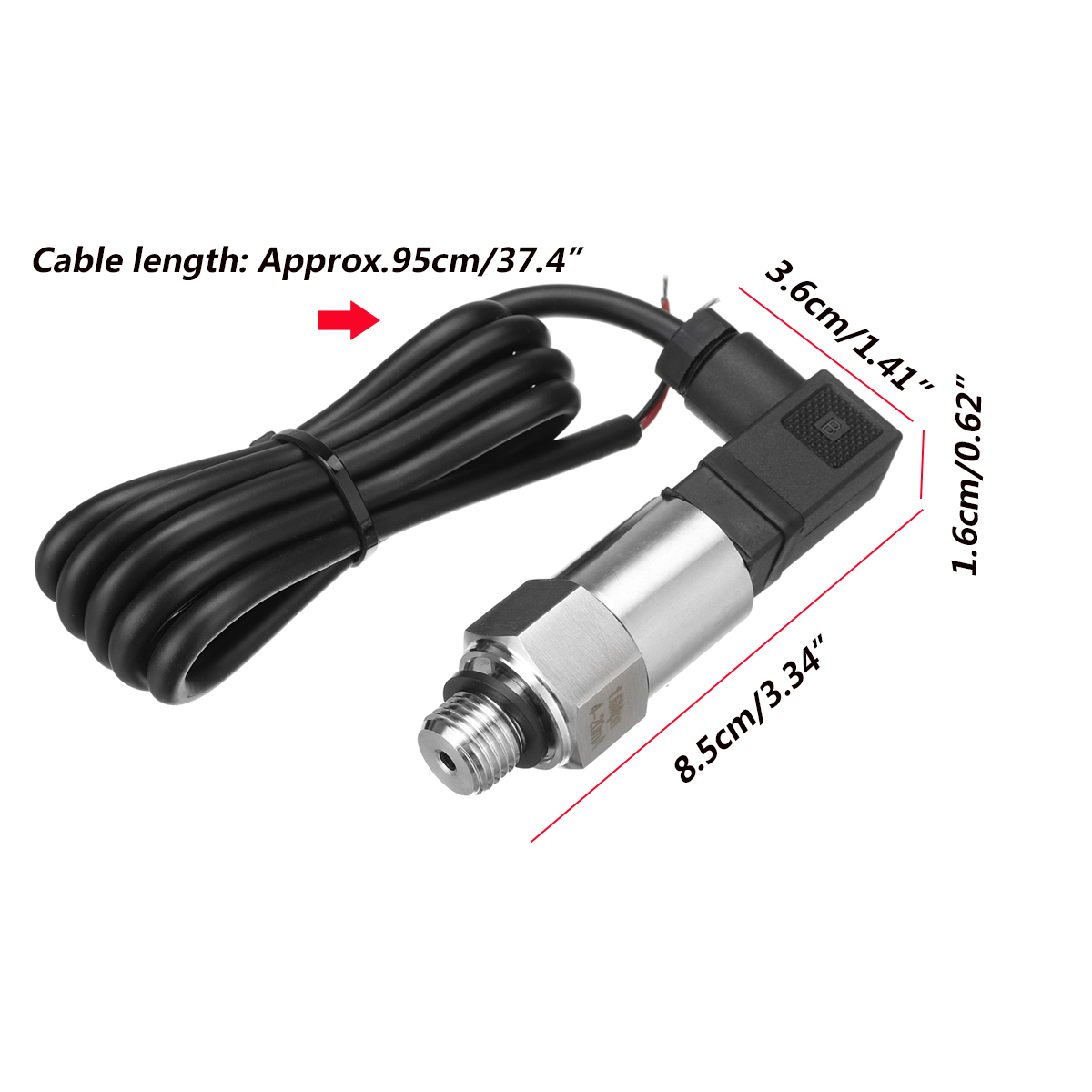

Size

8.5cm/3.34inx3.6cm/1.41inx1.6cm/0.62in

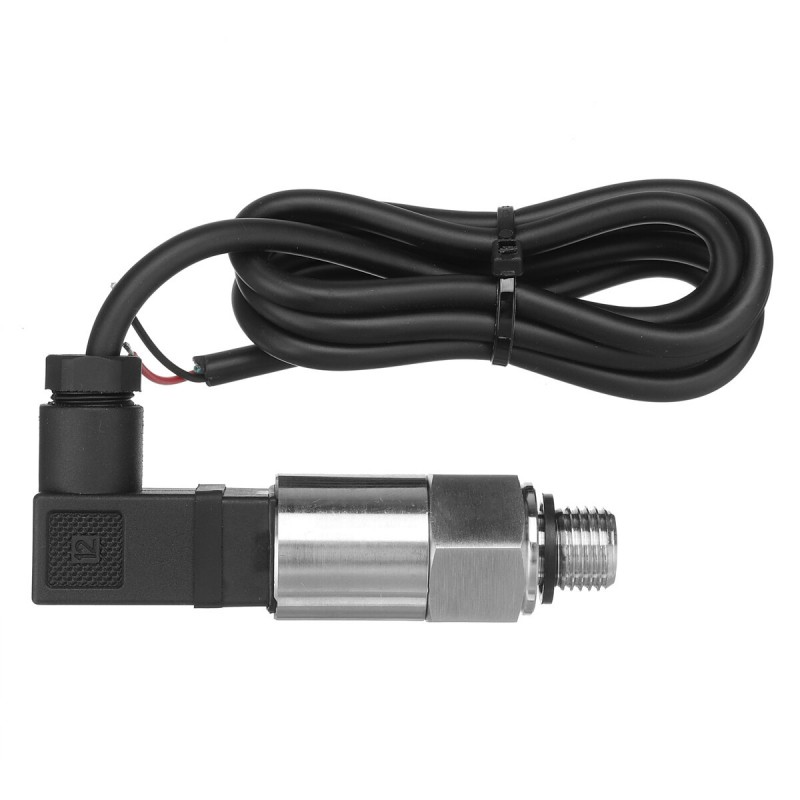

Cable Length

Approx. 95cm/37.4in

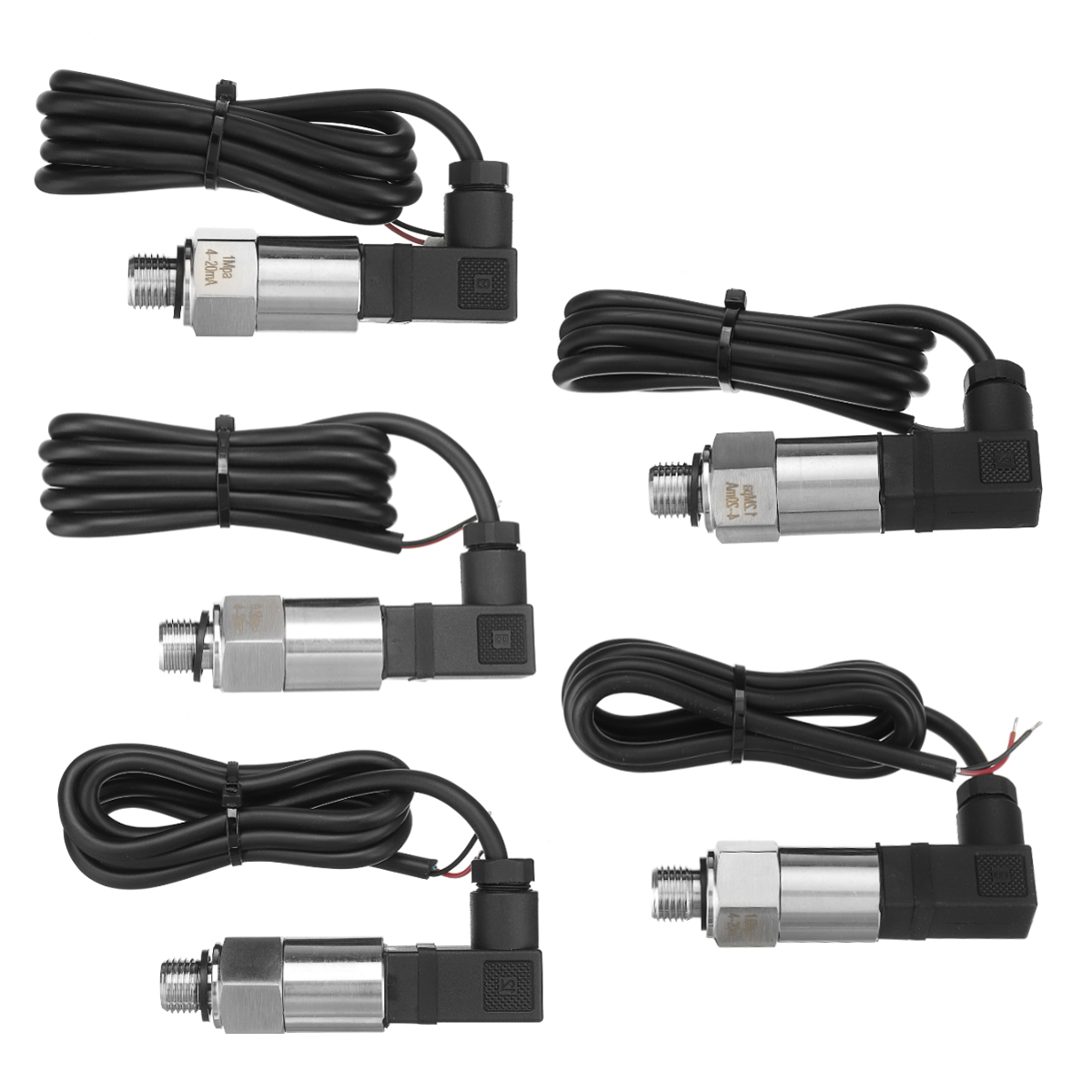

Optional Pressure Range

0-0.2MPA / 0-0.5MPA / 0-1MPA / 0-1.2MPA / 0-1.6MPA

Output Signal

4-20mA

Power Supply

24VDC

Comprehensive Precision

0.5%FS

Overload Capacity

2-4 times

Using Temperature Range

-40 to 110C

Pressure Medium

Non-corrosive liquid or air

Temperature Effect on Zero

Typical:0.02%FS/C;Maximal: 0.05%FS/C

Temperature Drift on Sensitivity

Typical:0.02%FS/C;Maximal: 0.05%FS/C

Shock Resistance

1000g

Pressure Connection

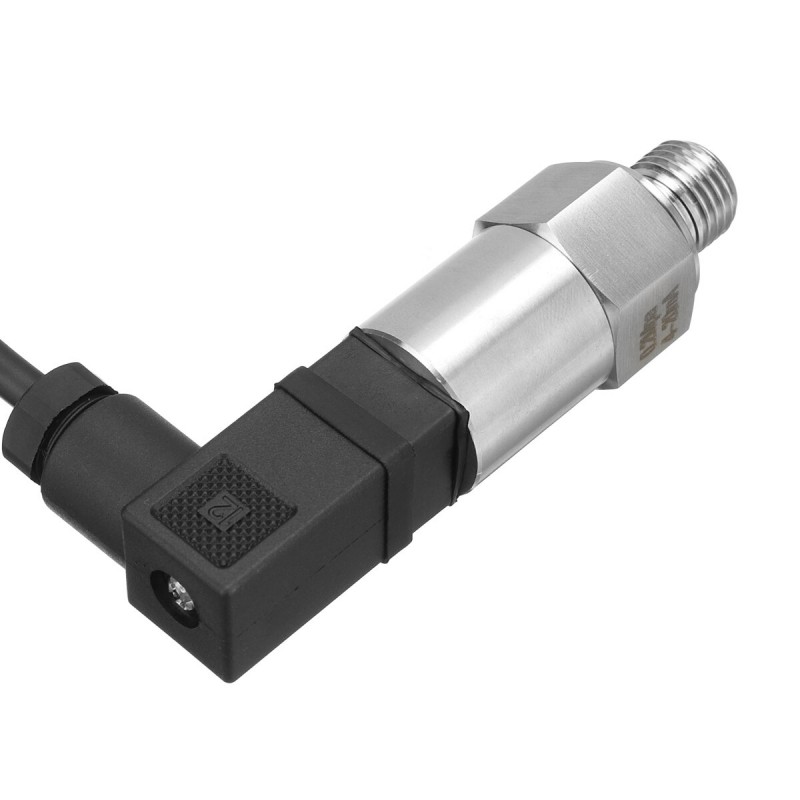

DIN type

Blas Proof Class

ExiaIICT6

Long-term Stability

less than 0.1%FS/year;

Defend Grade

IP68

Pressure Connection

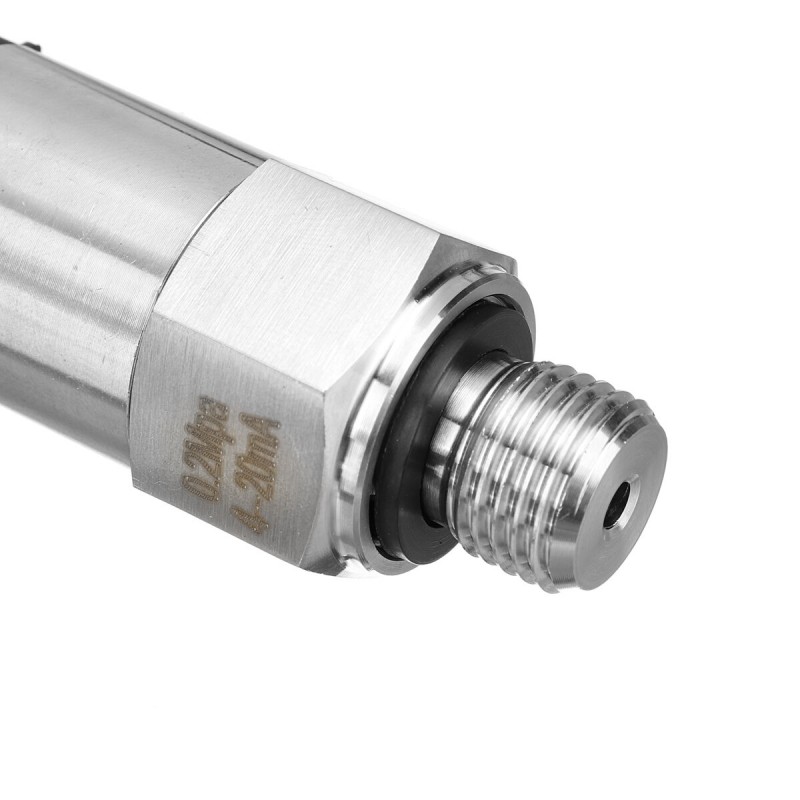

G1/4

Cable Connection

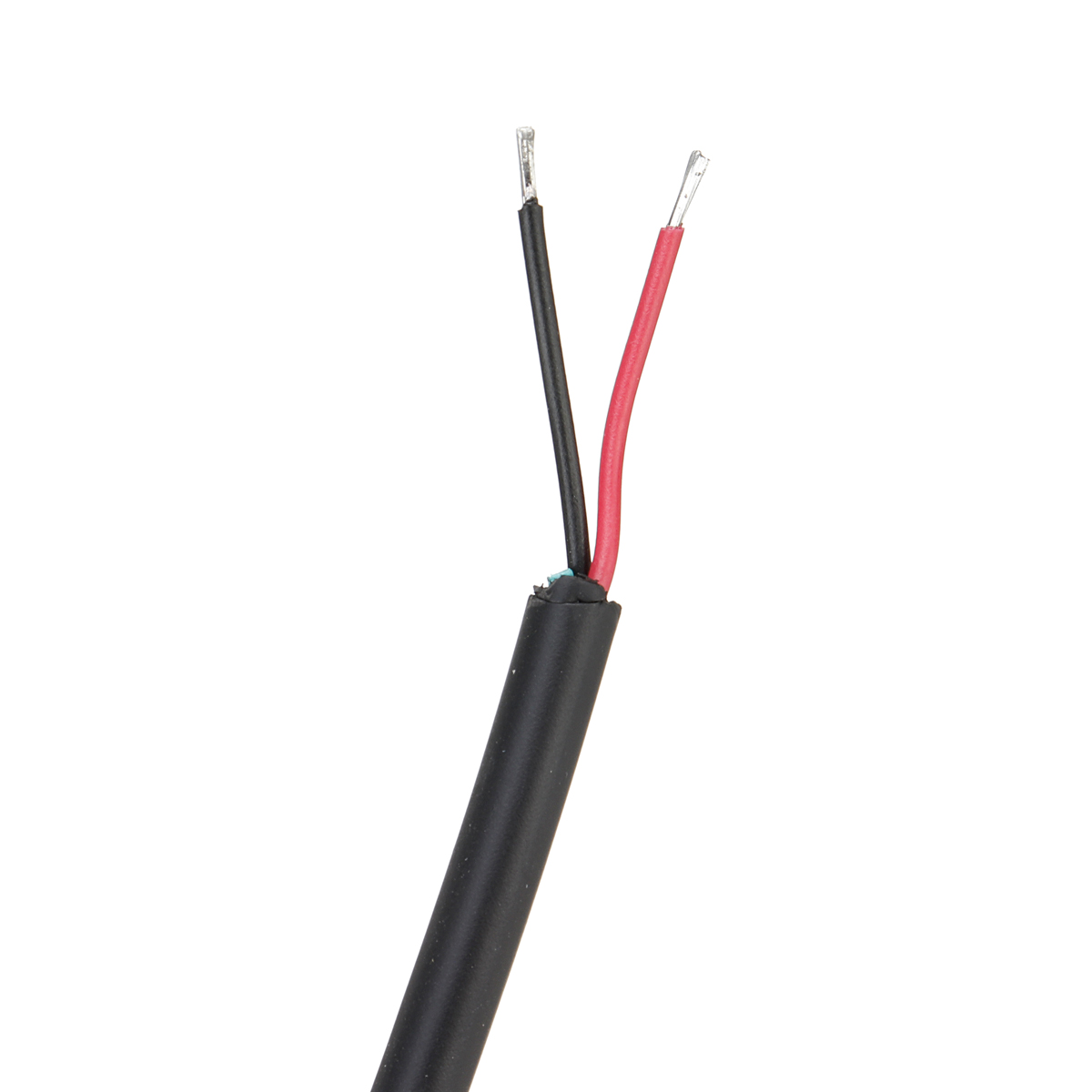

Red(IN+); Black(GND); Green(OUT)

Applications:

1.Air compressor and pump

2.Liquid pressure and air pressure system

3.Energy resources and water treatment system

4.Refrigerating equipment

5.Automatic detection system

6.Locomotive brake

7.Environmental protection field

8.Agriculture application and mechanical automation

Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)

3.There are no instructions included in this kit.If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.

Package Includes:

1 X

Pressure Transmitter Transducer
