0688 Wireless Rear View Infrared Camera and 7 Inch Monitor Display

$94.35

  • Product Code: ED0001040
  • Availability: In Stock
  • Ex Tax: $94.35
Description:

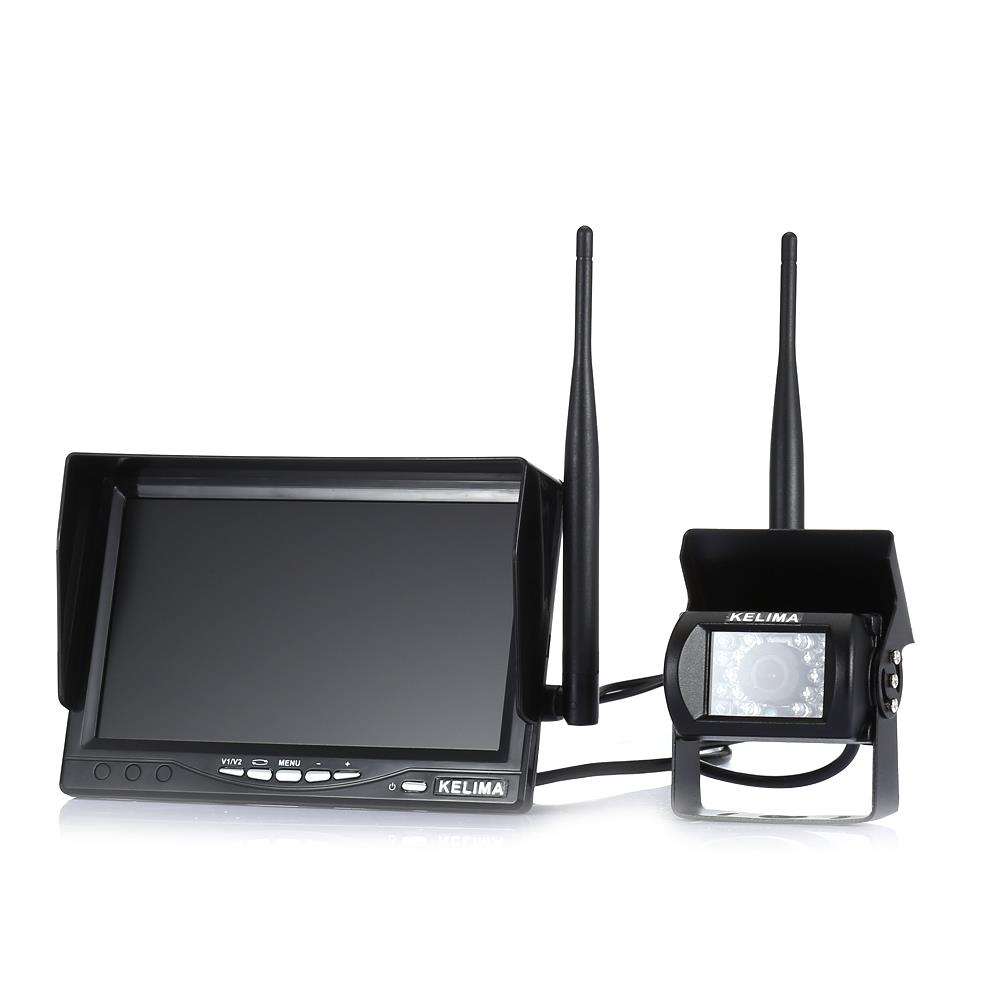

1. Easy installation, 7-inch TFT high-definition screen with two inputs, AV1 channel support cable AV2 support wireless.
2. Waterproof camera with 18 infrared lights night vision and CMOS sensor can be used for vehicle / truck / van / caravan / trailers
/ campers / boats.
3. Using 2.4G wireless transmitter and receiver, launch distance of about 50 - 80 meters, with a reverse scale line, obstacles are at
a glance when reversing.
4. Monitor video input can be switched, you can wire it for rear view by powered with reverse lights or full-time view by powered with
ignition fuse / cigarette lighter / radio / running lights.
Parameter:

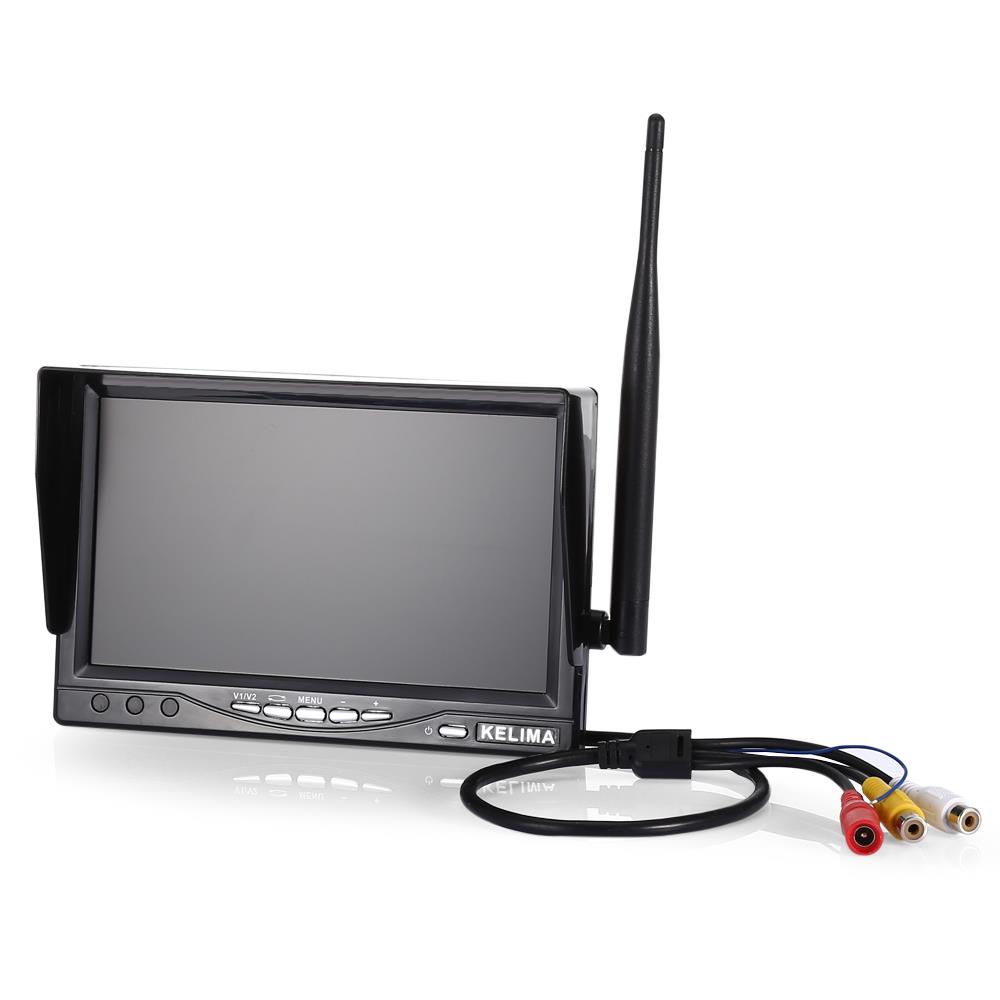

7 inch Monitor:
Resolution: 800 x 480
System: PAL / NTSC auto
Video: 2 video inputs

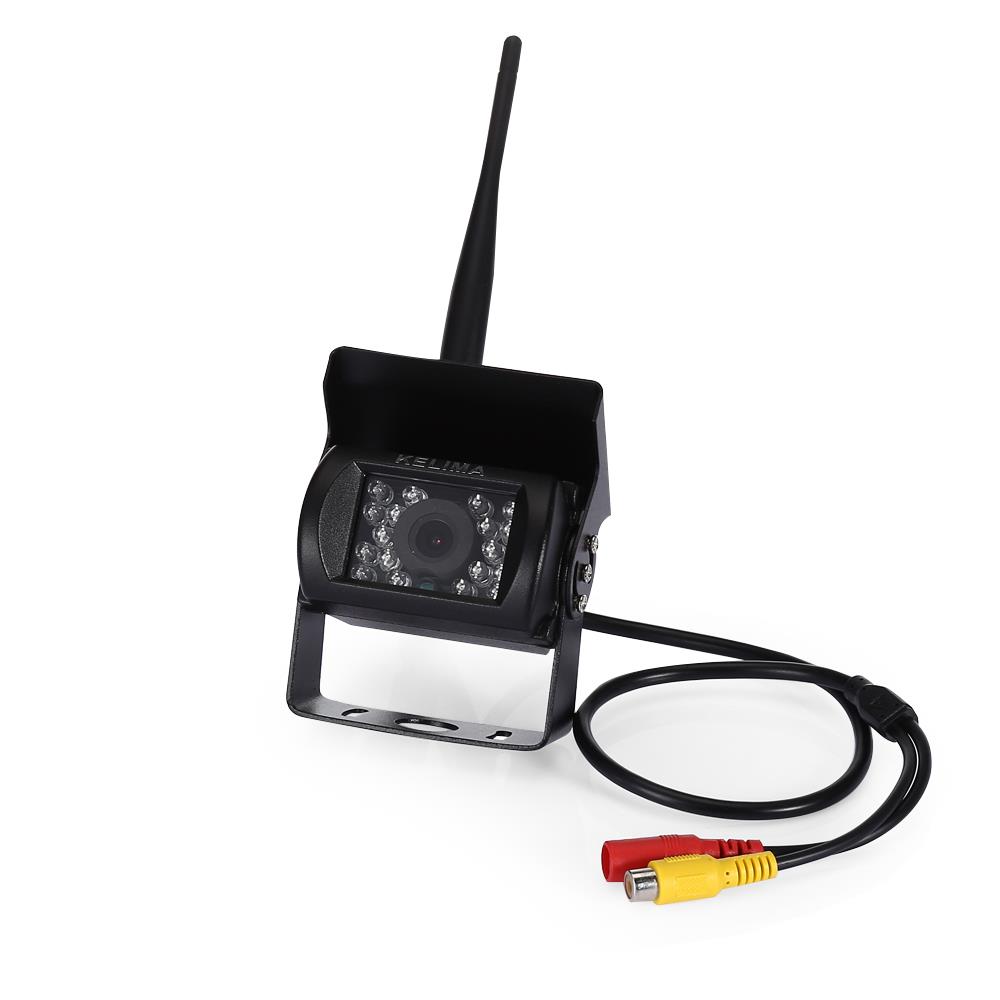

Rear View Camera:
Image sensor: PC7070
Effective pixels: 648 x 488 pixels
Resolution: 480 TV lines
Operating temperature: -20 - 75 Deg.C
Night vision distance: 5 - 10m
2.4Ghz wireless launch distance: 50 - 100m

Specification:

Brand Elecdeer
Type Rear View Camera
Model 0688
Display screen TFT
Waterproof level IPX5
Power Cable Length 2m
Night vision Yes
Lens angle 120 degree
LED Quantity 18
Video format NTSC,PAL
Minimum Illumination 0.1LM
Display Resolution 800 x 480
Aspect Ratio 16:9
Video Input AV1 / AV2
Power Supply 12 - 24V
Power 5W
Product weight 0.0391 kg
Product size 18.00 x 12.00 x 5.00 cm
7.09 x 4.72 x 1.97 inches

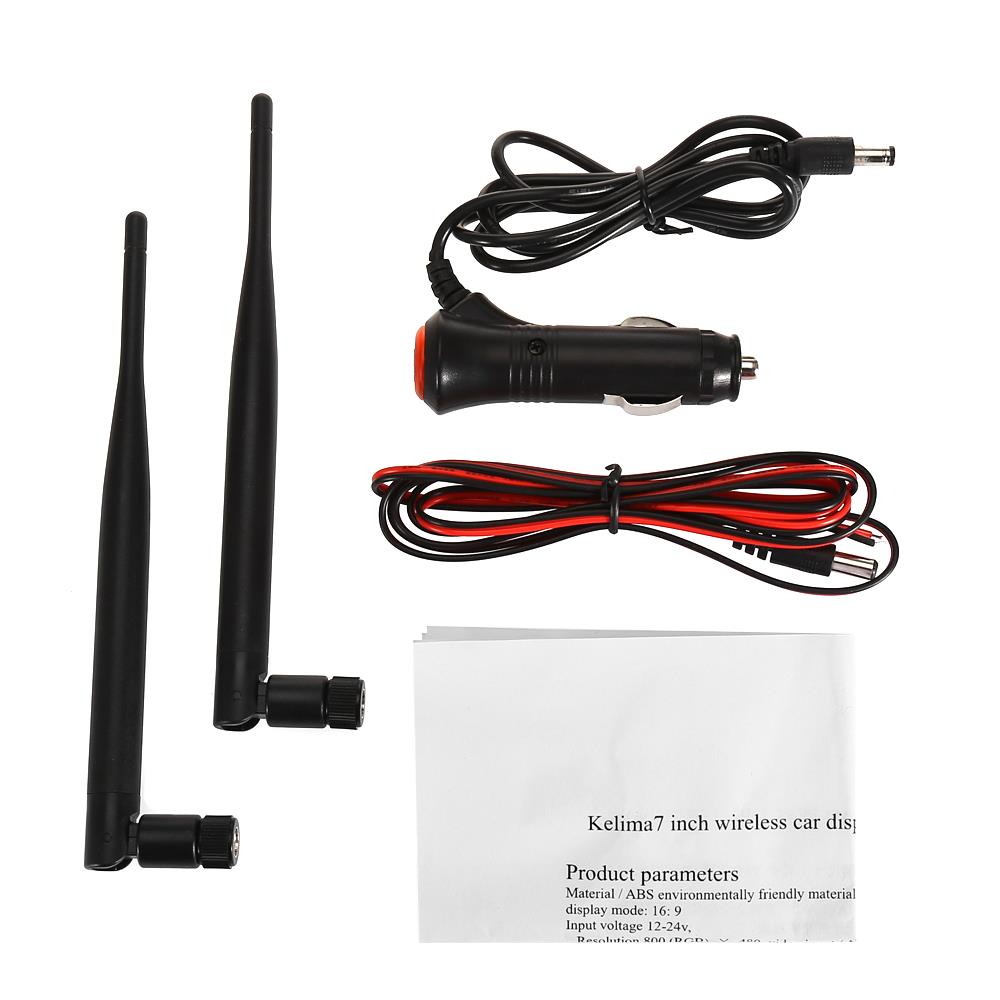

Package Included:
1 X 7 Inch Monitor
1 X Reverse Camera
1 X AV Cable
1 X Power Cable
2 X Antenna
1 X Car Charger

1 X User Manual
