12V 2 Inch Boost Car LED Gauge Meter Smoke Lens Universal
$14.60
- Product Code: ED0016686
- Availability: In Stock
- Ex Tax: $14.60
12V 2 Inch Turbo Boost Car LED Gauge Meter Smoke Lens Universal
Description:
Smoke tint lens during the day,clear and bright LED display during the night.
Add a racing look and feel to your ride,High quality and light weight.
Condition:100% New in Box & Good Quality.
Power:DC(10-15V) 12V Professional.
Red LED illuminated needles.
LED super white display.
Diameter:2"/52mm.
It will always change colors.
Attach Nylon Pressure Line To Fit On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .Route Line Through Grommets To Engine Compartment .
Note:Easy Installation With Users Manual In English,Professional installation is Highly Recommended.
Installation:
Gauge May Be Mounted In 2"/52mm Dia holes Or In Auto Gauge Custom Mounted Panels .Secure Gauge With Mounting Clamps Supplied.
Drill 3/8" Dia .Holes And Install Rubber Grommets Where Pressure Or Vacuum Line Passes Through Sheet Mental Such As Firewall.
Attach Nylon Pressure Line To Fit On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .Route Line Through Grommets To Engine Compartment .Connect Line To Pressure port On Engine By Using 1/8" Adaptor Ferrule And Compression Nut For Turbo And Prossure Gauge Or 1/8" Adaptor And Fitting For Vacuum Gauge.
Start Engine And Thoroughly Check Installation For Leaks.
Twist In Light Socket Assembly And Connect One Wire(Yellow) To Dash Lighting Circut Or Other 12V Power Source And The Other Wire(Black) To A Good Ground.

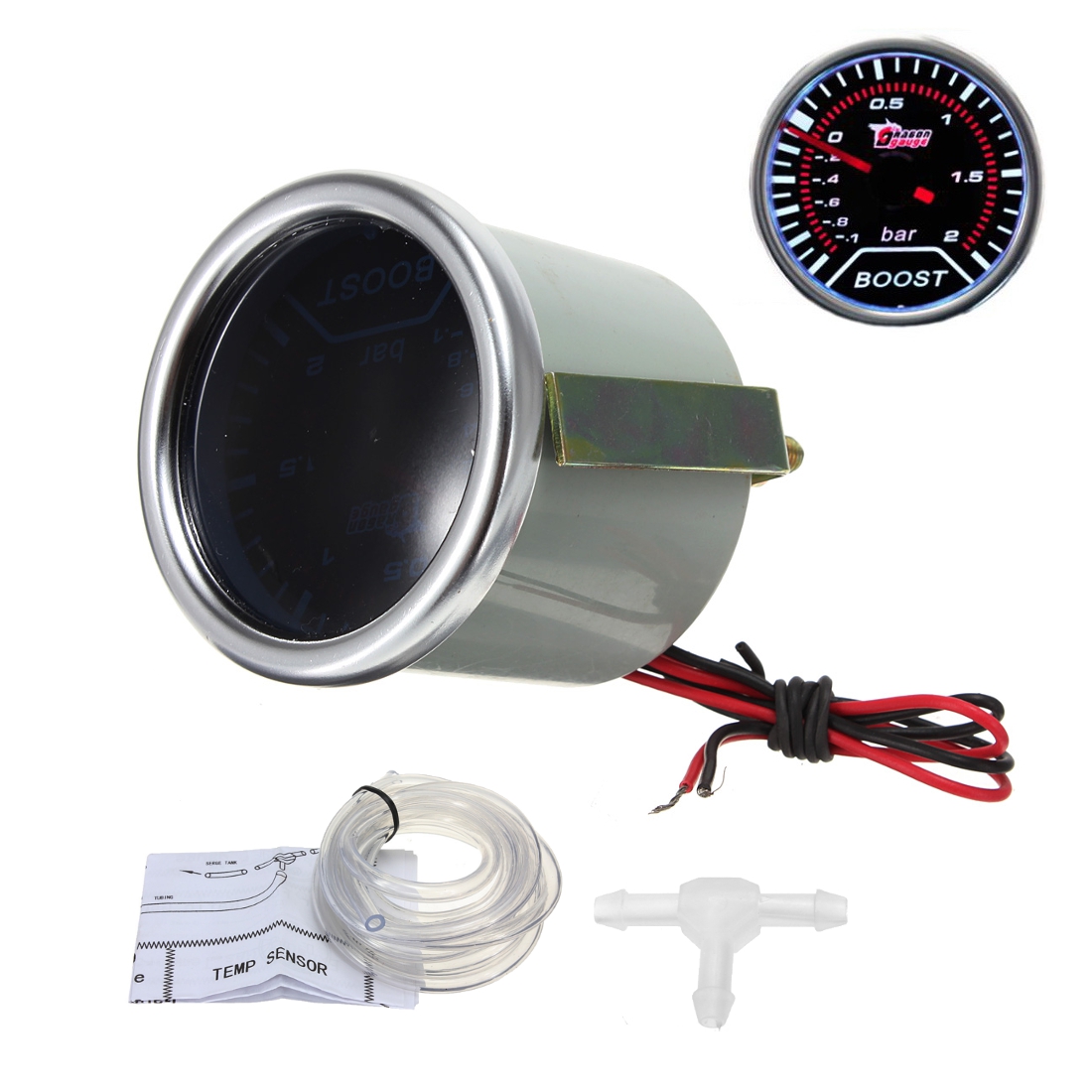

Package included:
1 x Turbo Boost Gauge

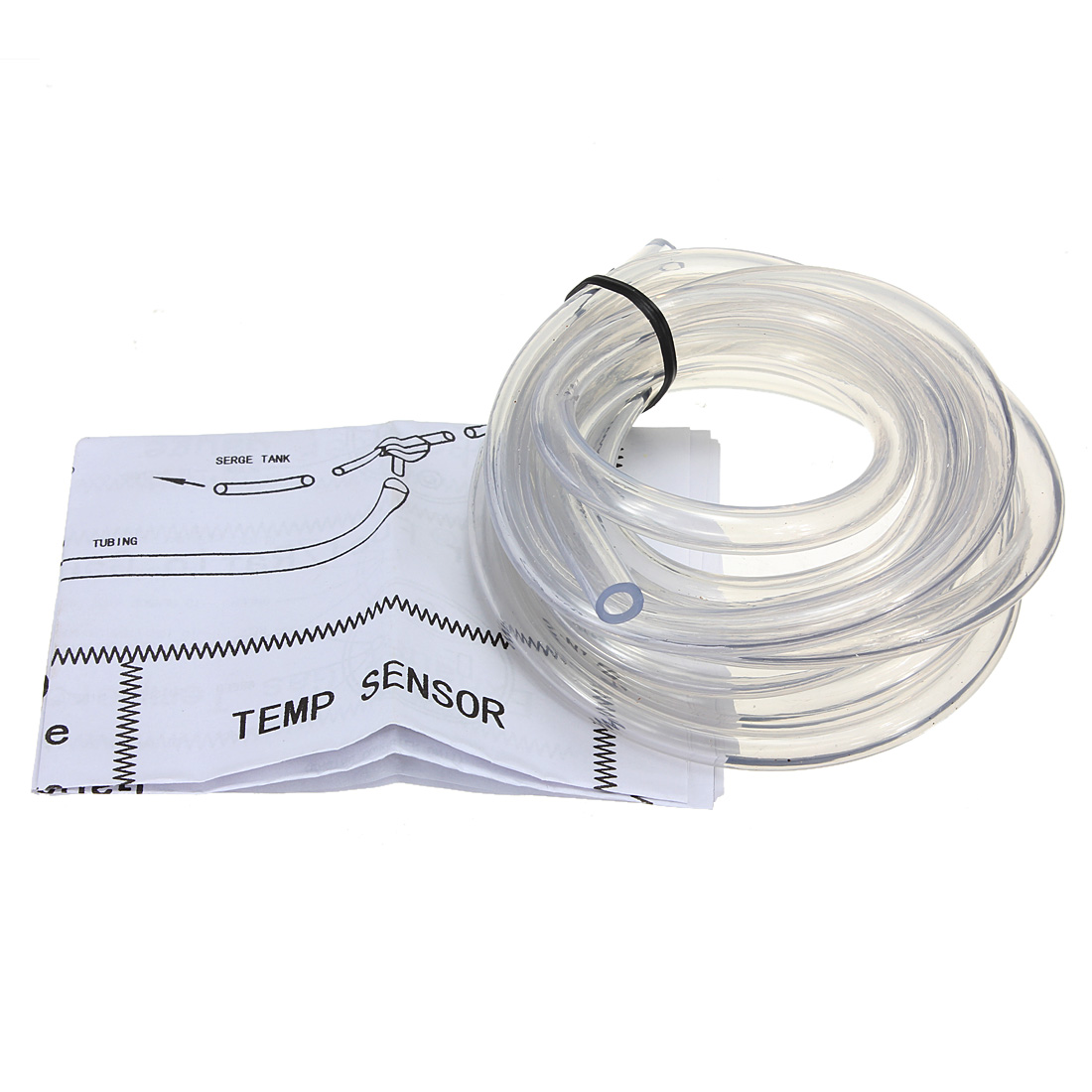

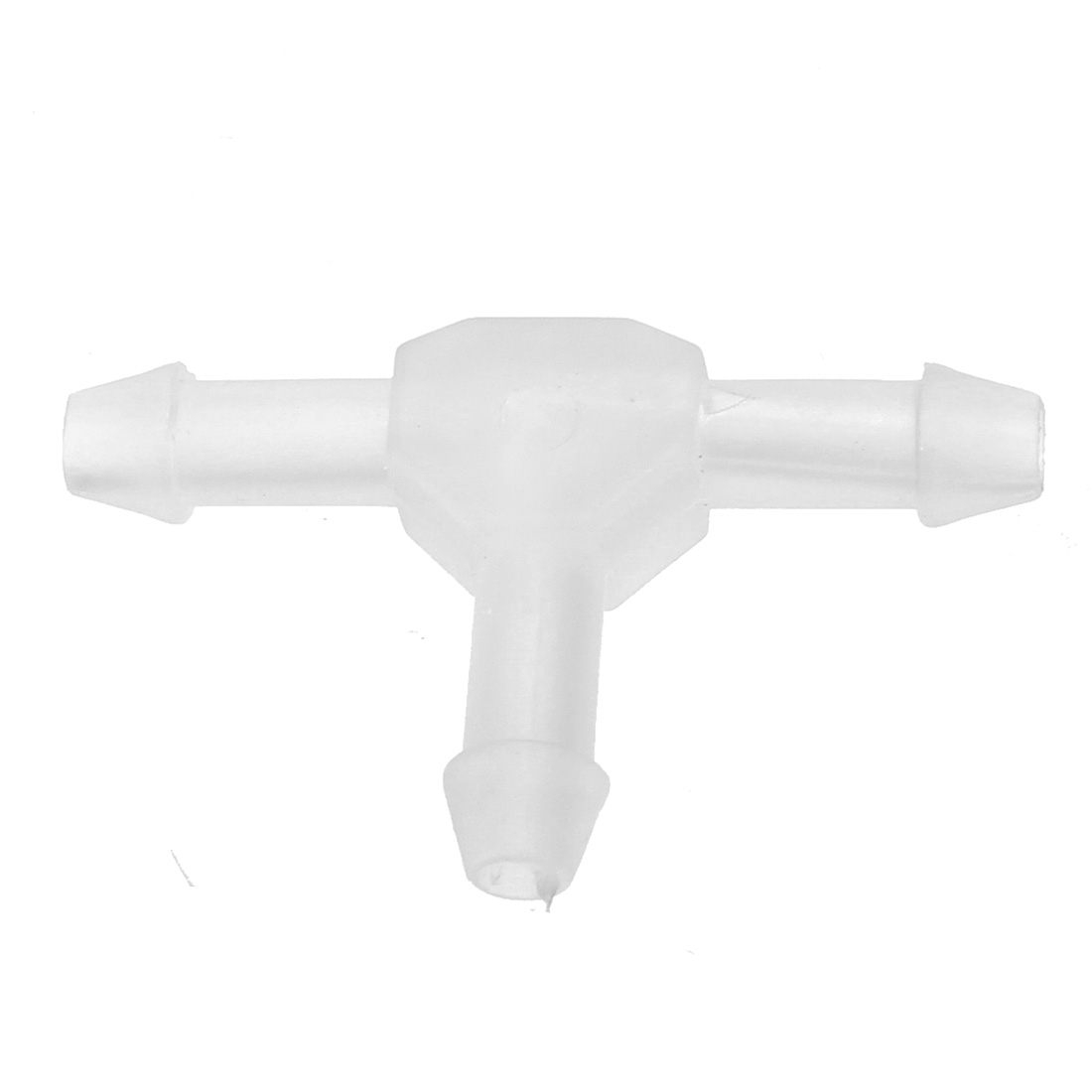

1 x Nylon Pressure Line(1.84m) With One Adaptor
1 x Users Manual In English
,
,
,
,
,
,
