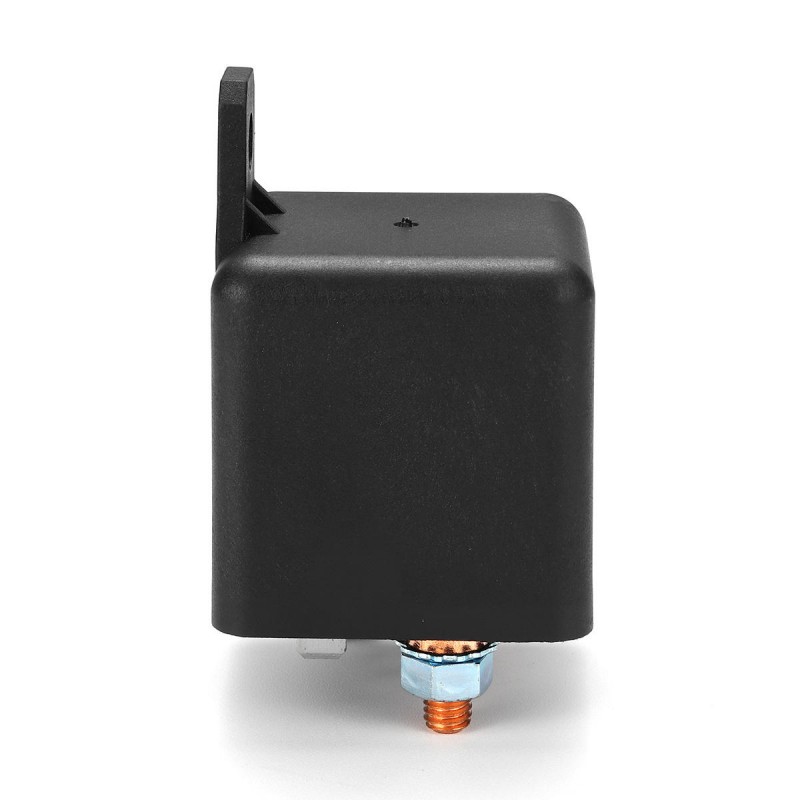

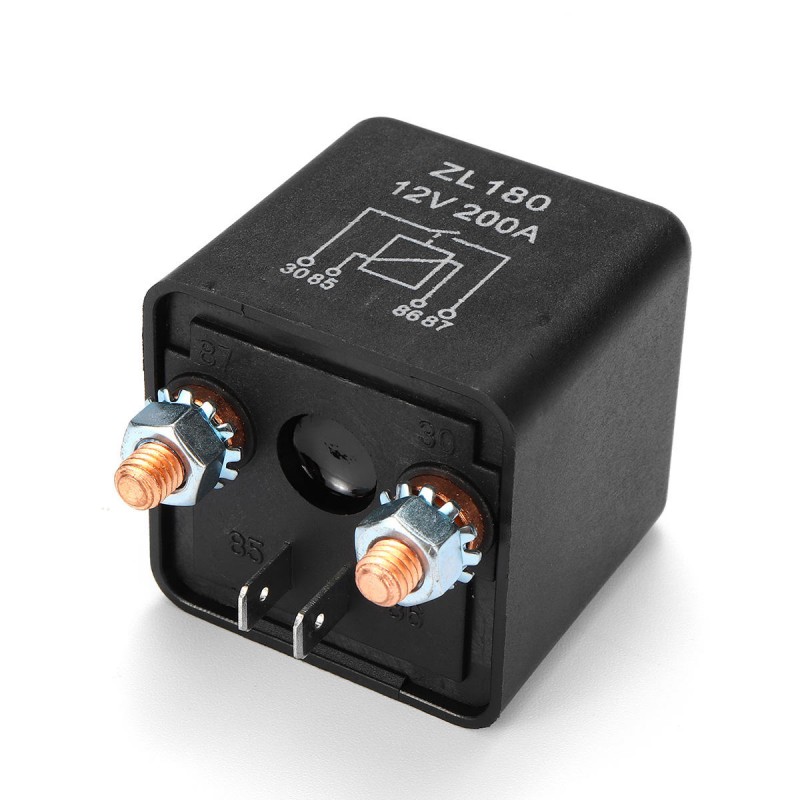

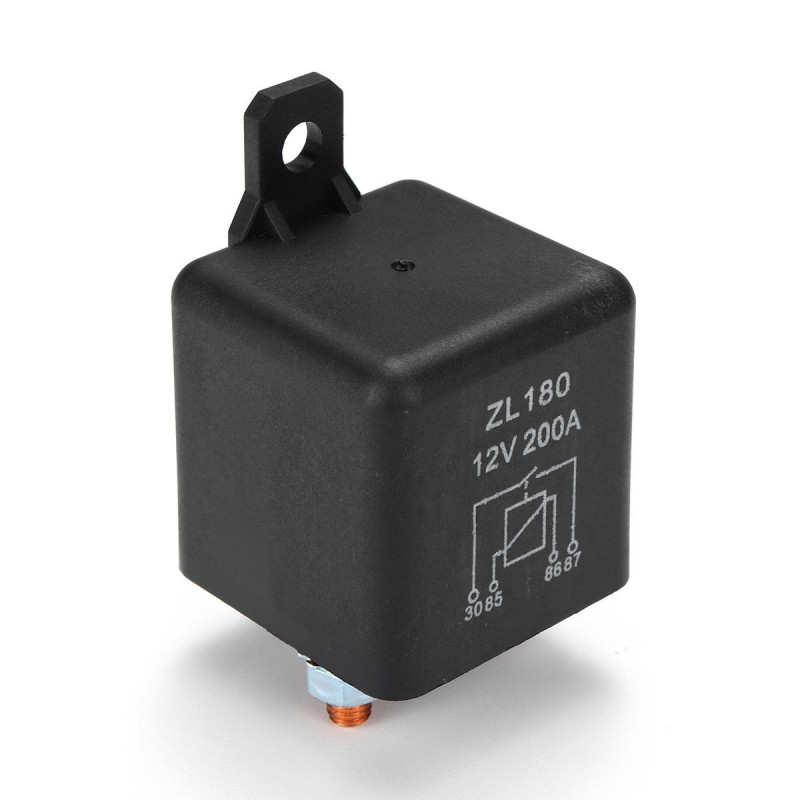

12V 200A Heavy Duty Split Charge Starter Relay Car Truck Boat Van with Teminal
$13.47
- Product Code: ED0008405
- Availability: In Stock
- Ex Tax: $13.47
Feature:
1. High 200A coil capacity- able to handle those high current applications with ease, Heavy duty make or break (on/off) relay.

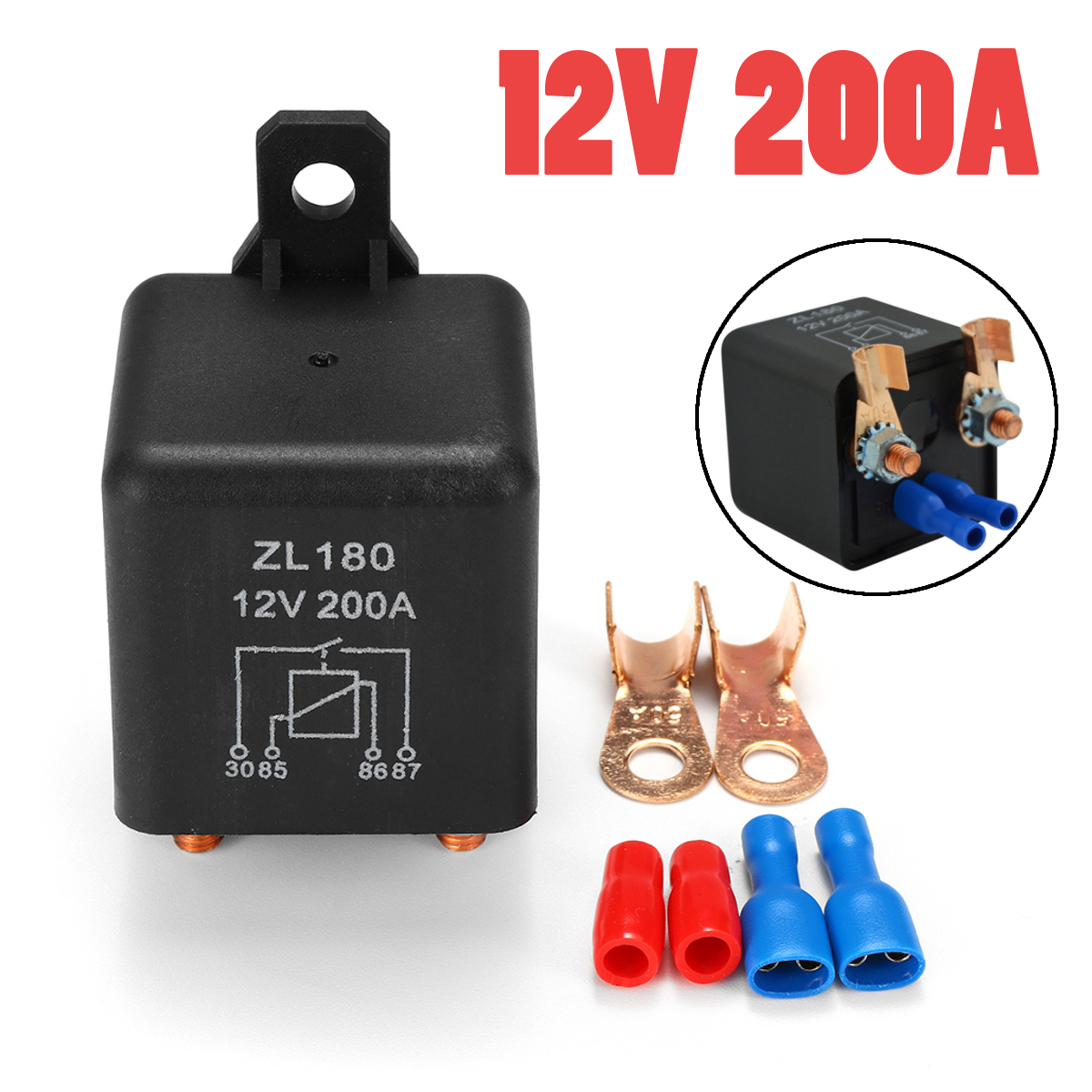

2. With 2pin footprint + 2 terminal accessories, Hundreds of uses include- starter kills, domelight supervision, trunk release, polarity change, power door lock/actuator control.
3. Durable & Firm & Stable Contact Load: High Power Ideal for universal 12V applications.
4. Vinyl install tools, building tools, industry tools, advertisement film install, mobile screen protective film install.

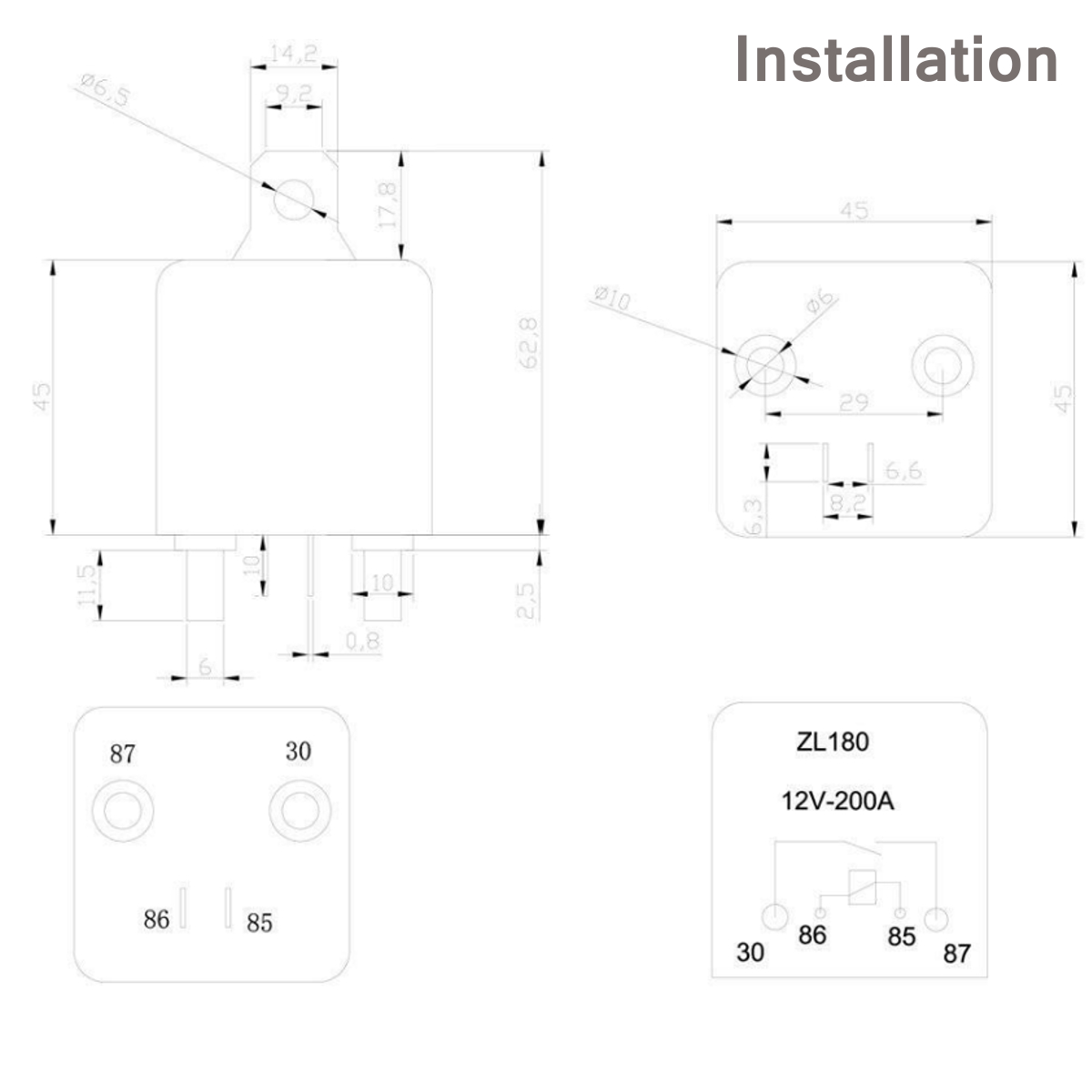

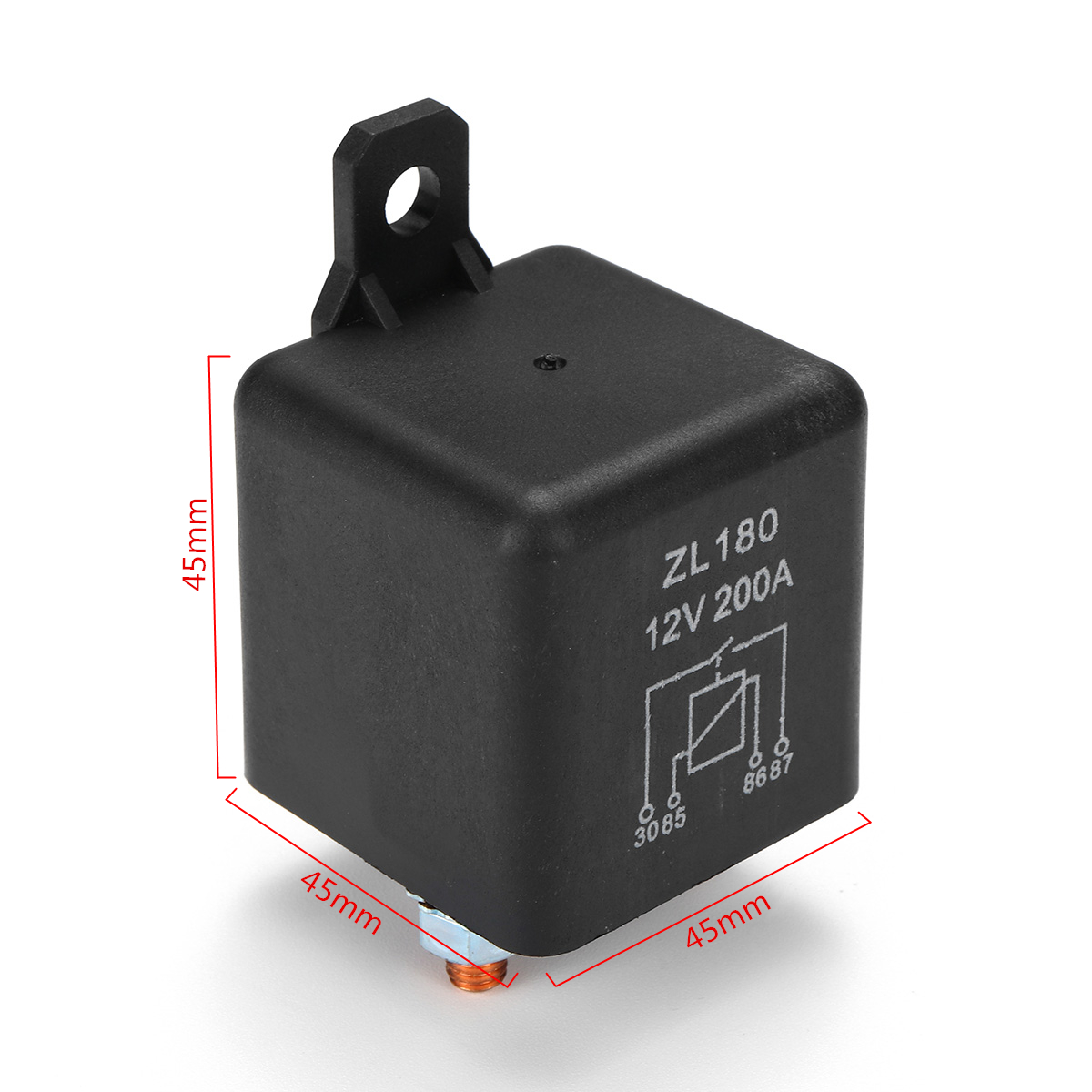

5. Size: Approx. 45x45x45mm/1.77x1.77x1.77"
Contact Data:
Contact Material: AgSnO12
Contact Form: Normal Open
Contact Ratings: No: 200A 14/28VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 500A (5ms)
Max Switching Voltage: 75VDC
Max Switching Power: 2000W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations
Coil Specification:
Nominal Voltage(VDC): 12V/24V
Coil Resistance (4.8W/2.4W): 30/60
Max Operate Voltage (VDC): 6.0~8.0
Mix Release (VDC): 1.2~3.6
Max Applicable Voltage (VDC): 15.6
Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE
Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 15ms
Release Time: 10ms
Package Included:

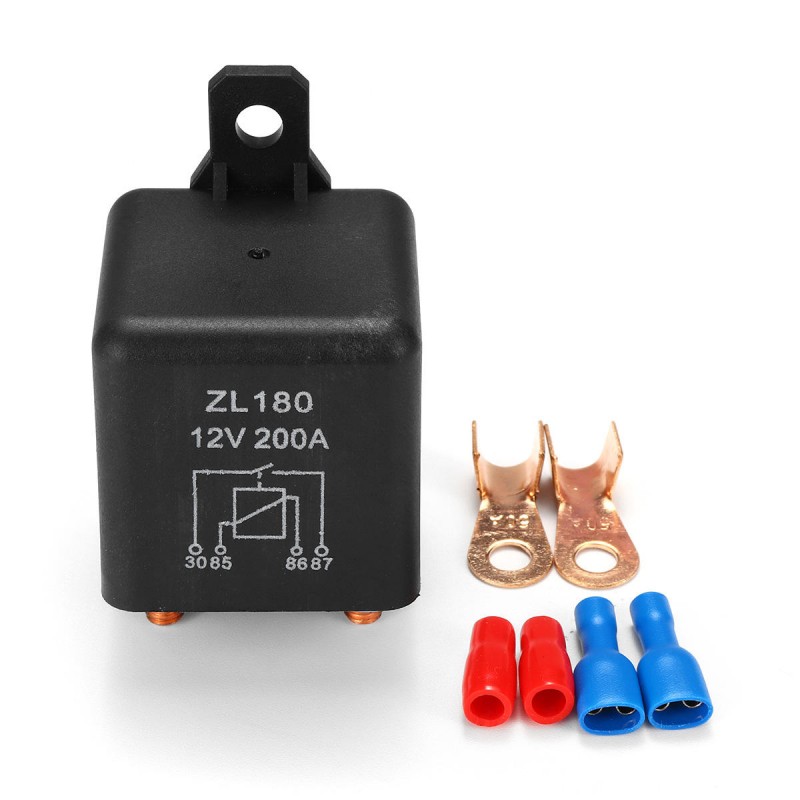

1 X Car Starter Relay
