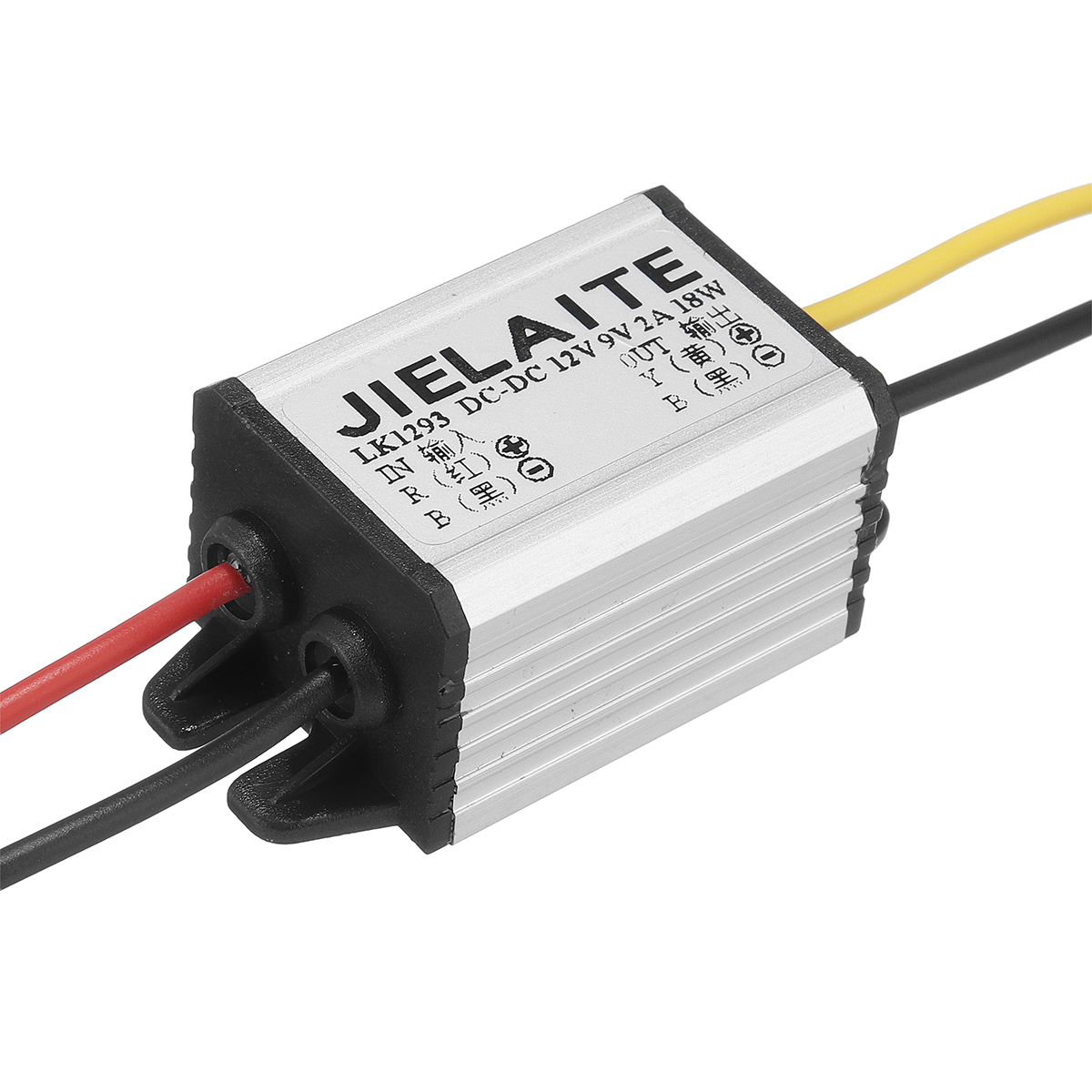

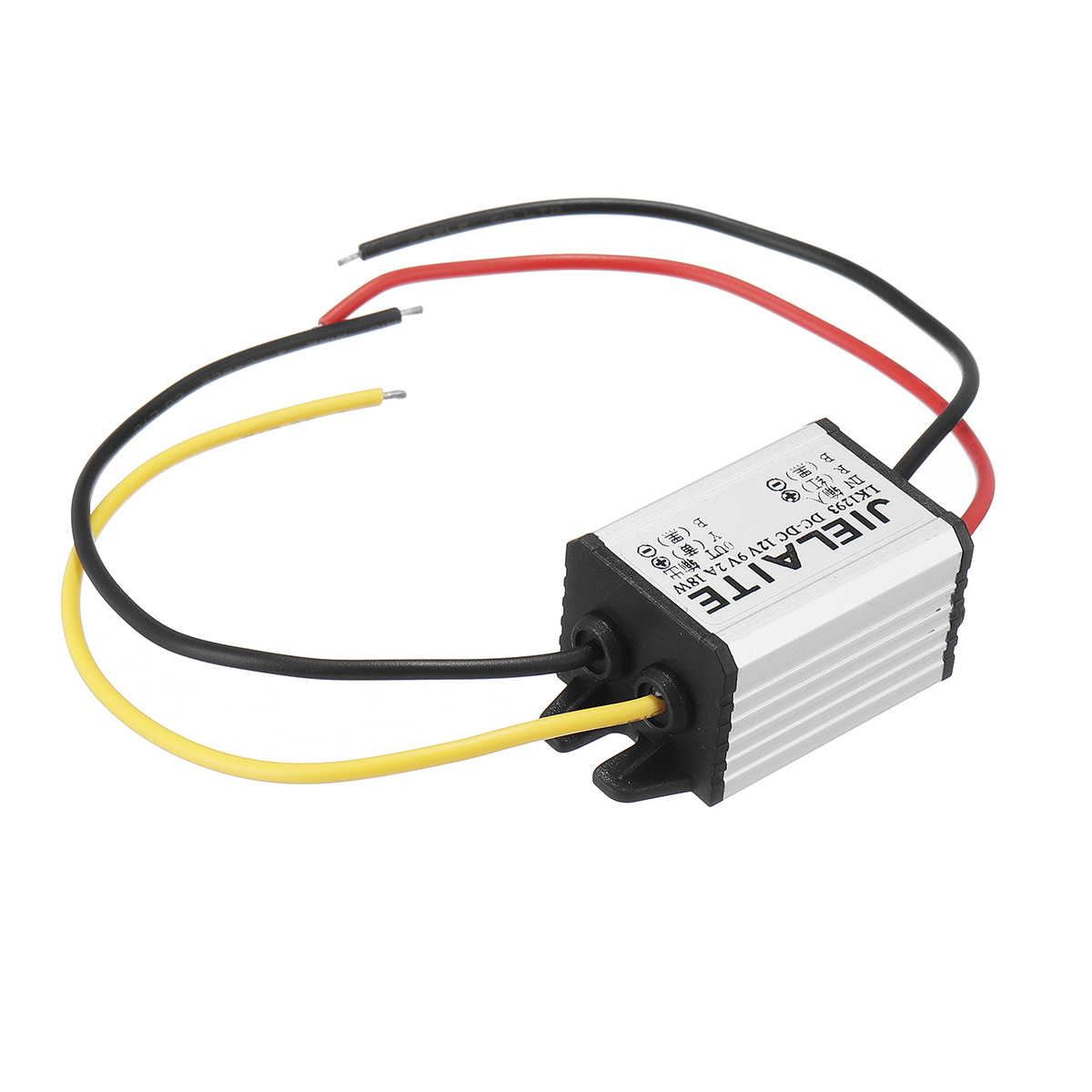

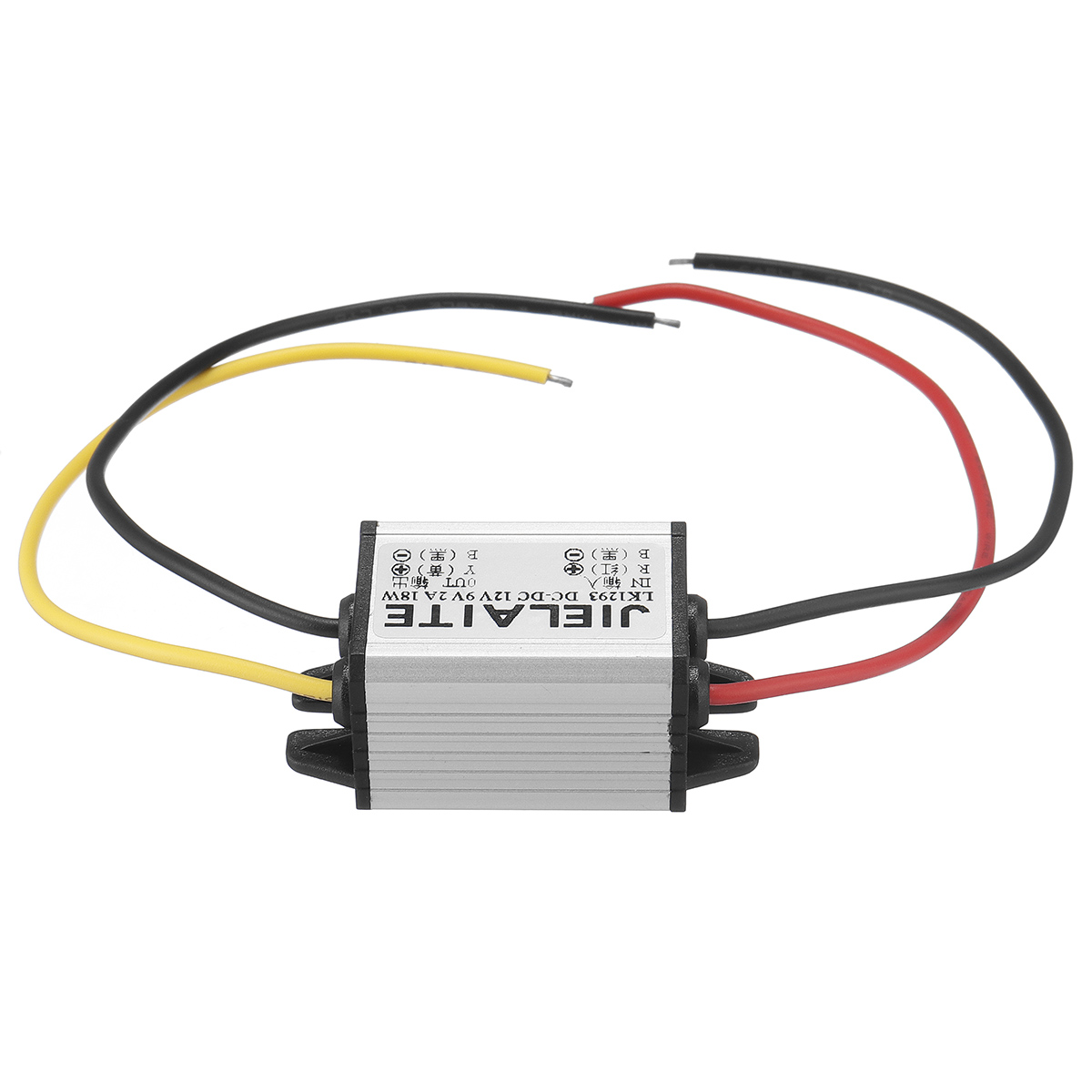

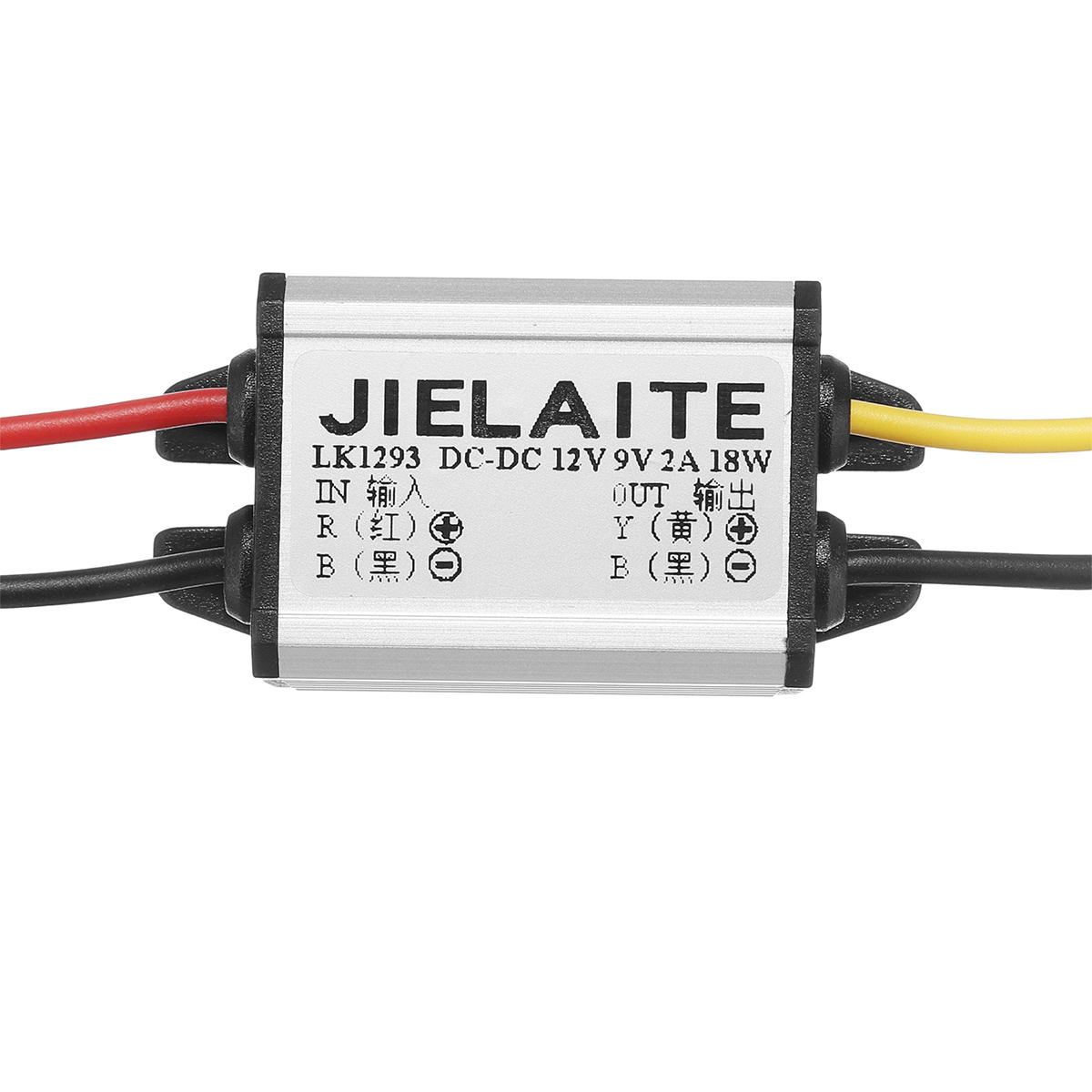

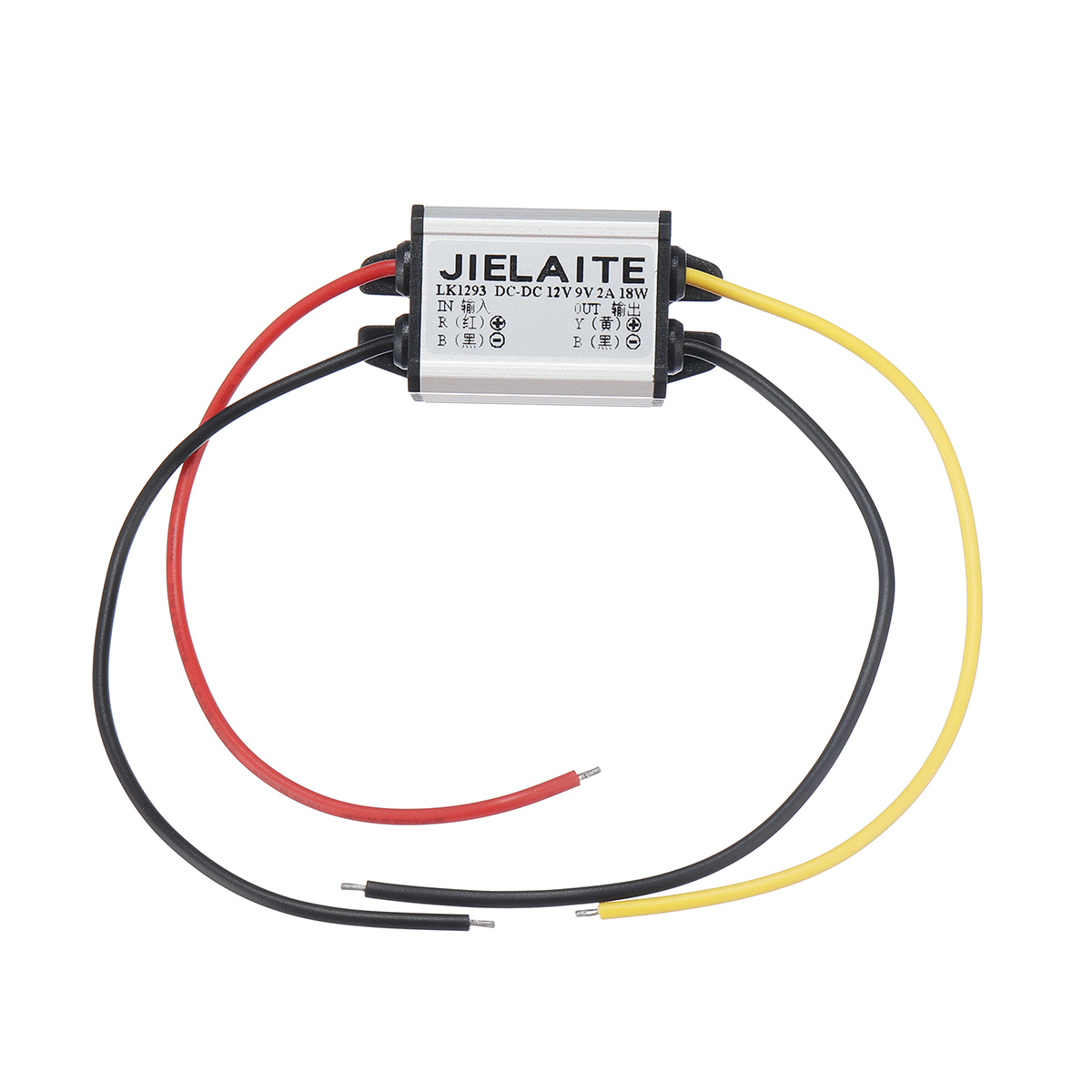

12V to 3A 3V / 3.3V / 3.7V / 5V / 6V / 2A 9V DC-DC Step-Down Module Car Adapter

$6.05

  • Product Code: ED0000907
  • Availability: In Stock
  • Ex Tax: $6.05

Available Options

Tags: Car

Features:

-The rectification loss at the output of the switching power supply is reduced, thereby increasing the conversion rate and reducing the heat generated by the current itself.

-It adopts high-quality high-conductivity organic silicone sealing technology, and is internally sealed with a heat-conductive epoxy resin.


Specification:

Model Number: D74980

Product Name: Power Supply Module Buck Converter

Material: Plastic & Aluminum Alloy

Main Color: Silver

Size: 33mm x 23mm x 20mm (LxWxH)

Input Voltage:12V (8V-23V)

Output Power: 3V 9W/3.3V 10W/3.7V 11W/5V 15W/6V 18W/9V 18W

Output Voltage: 3A 3V/3A 3.3V/3A 3.7V/3A 5V/3A 6V/2A 9V

(Please let us know the Voltage you’d like.You can leave the message on your Paypal note to tell us.)

Output Current(Max): 3A

Output Power: 15 (W)

Work Efficiency: 96 (%)

Soft-Start Time: 500mS

Output Ripple:50mV (MAX) 20M-Bandwidth

Dynamic Response Speed: 5% 200uS

Operating Temperature: -20 to +80 (°C) (°C)

Quantity: 1pcs


Module Nature: non-isolated step-down DC-DC power supply


Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)

3.There are no instructions included in this kit.If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.


Package Included:

1 X Module
