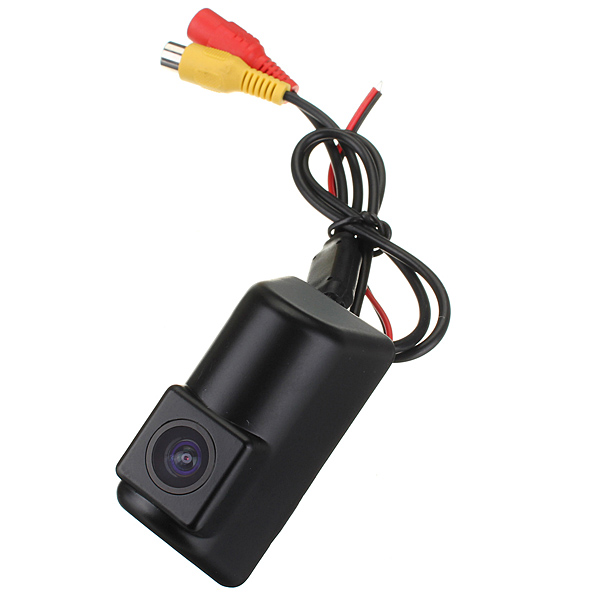

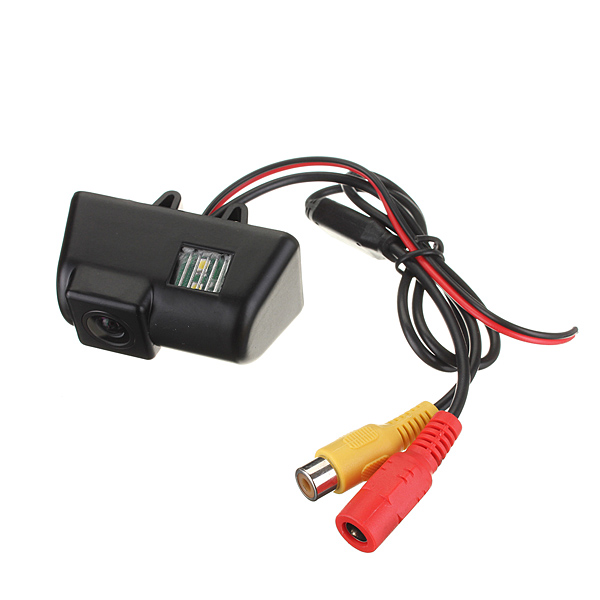

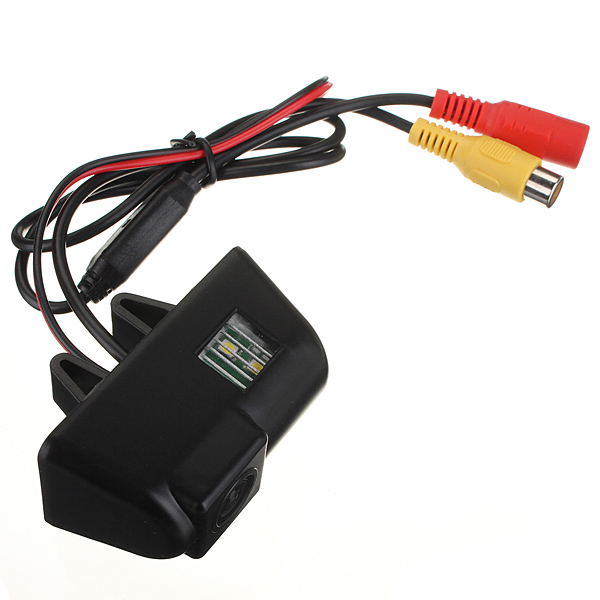

170°CCD Image Reversing Rear View License Plate Camera For Ford
$22.58
- Product Code: ED0001009
- Availability: In Stock
- Ex Tax: $22.58
170°CCD Image Reversing Rear View License Plate Camera For Ford
Feature:
With waterproof function, durable
Easy install and simple operation
High clear CCD camera read out, high-definition and wide viewing angles
Ensure your safe driving , avoid any vehicle accidents
Specification:
Dimension: Approx. 60mm x 30mm x29mm
Video Color: Colorful
Effective Pixels : 580X540
Resolution : 420TV lines
Lens Angle: 170°
Minimum illumination. <0.5 BLC: Auto
Operation Temperature: -20°C+80°C RH95%
Storage Temperature: -30°C+80°C
Working Power (DCV): 12V
Current Consumption: 90mA Max
Installation Guide:
1.Take out your stock license plate light at the back of your car
2.Fix the camera to where the stock license plate light was
3.Connect the built-in license plate light of the camera to where the stock
license plate light was connected to get the power
4.Connect the power of the camera to your reverse lights - red wire to
positive and black wire to negative
5.Connect the video cable of the camera to the extension cord
6.Connect the extension cord to your car monitor
7.You will see the images when your car is in reverse shift.
Fitment:
Ford Transit /Transit Connect

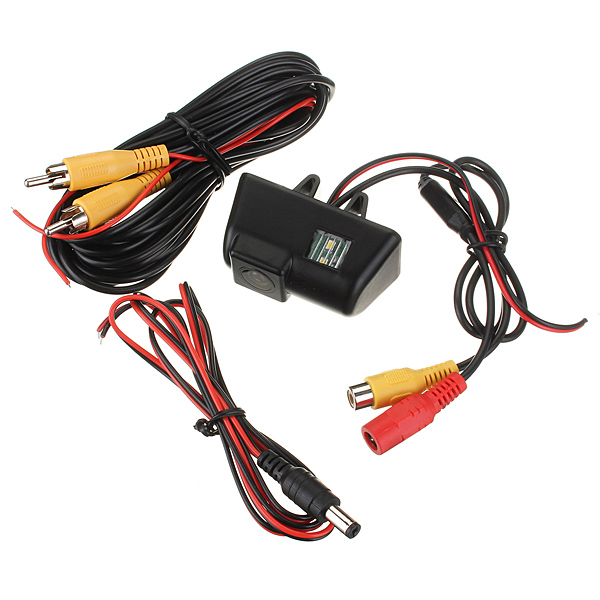

Package Included:
1 X CCD Car Rear View Camera
1 X 5M Video Cable
1 X Power Supply Cable
