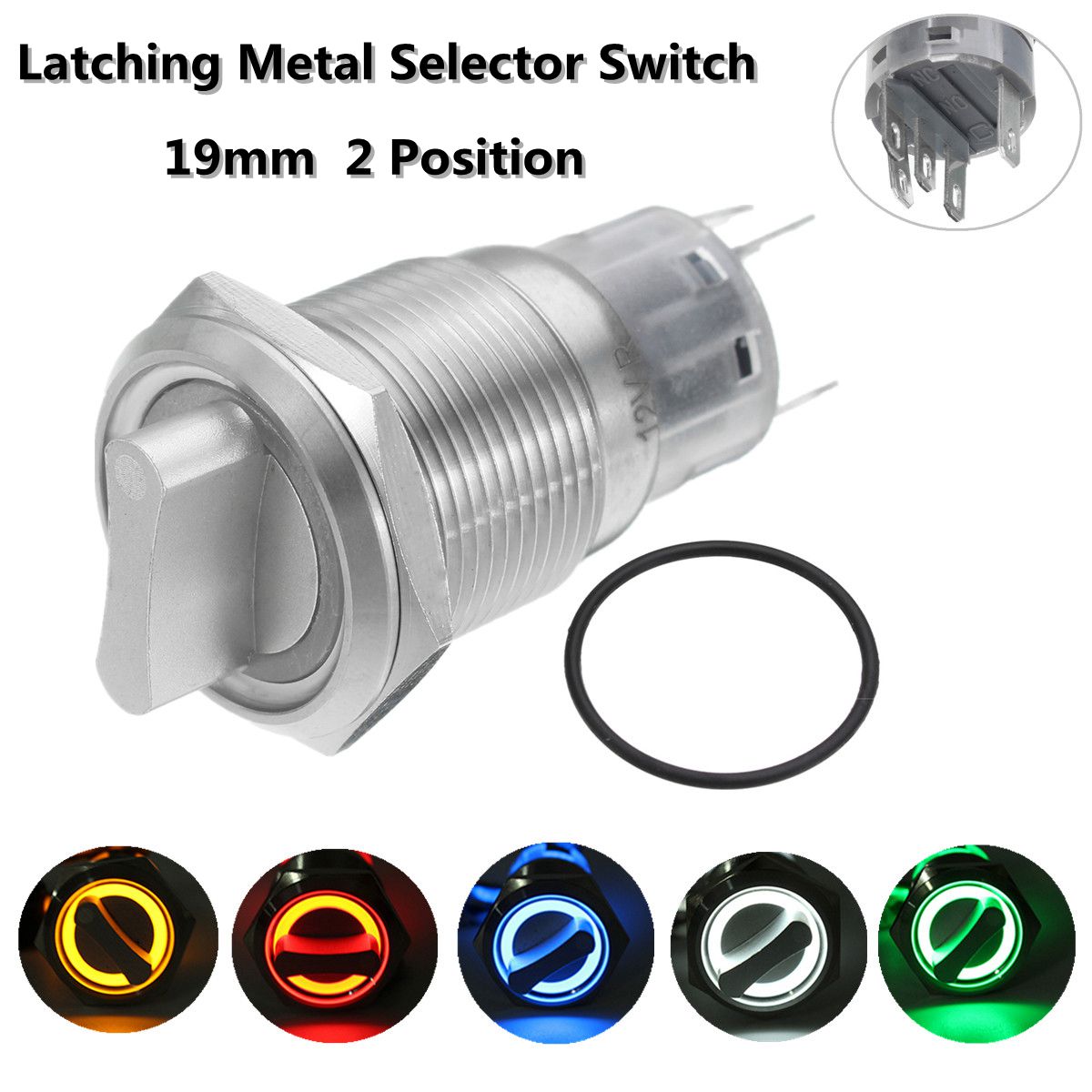

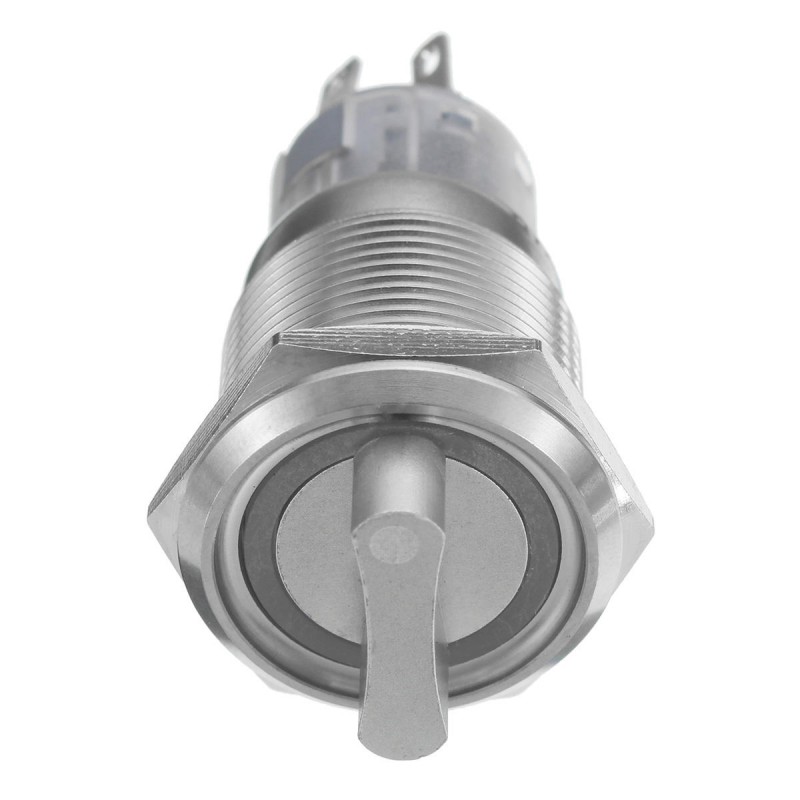

19mm 2 Position 12V Waterproof Stainless Steel Latching Metal Selector Switch
$10.99
- Product Code: ED0015012
- Availability: In Stock
- Ex Tax: $10.99
Available Options
Description:
Rated PI67 waterproof.
May be exposed to heavy rain, splashes, etc. without damage.

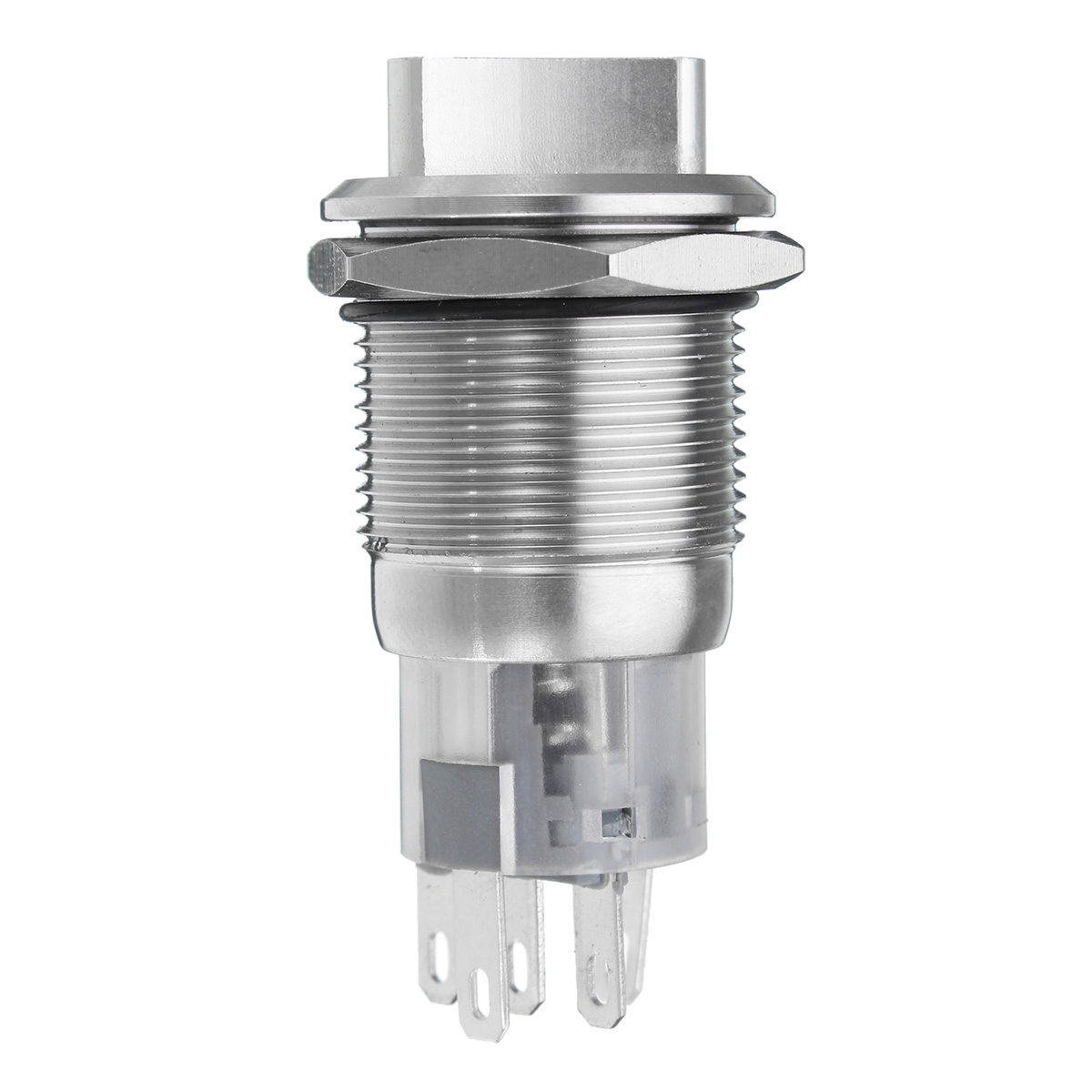

This Metal selector switch is suitable for 19mm diameter mounting hole.
Used widely for circuits control in electromagnetic starter, contactor, relay and other electric circuits.
Specification:
Model : 759541

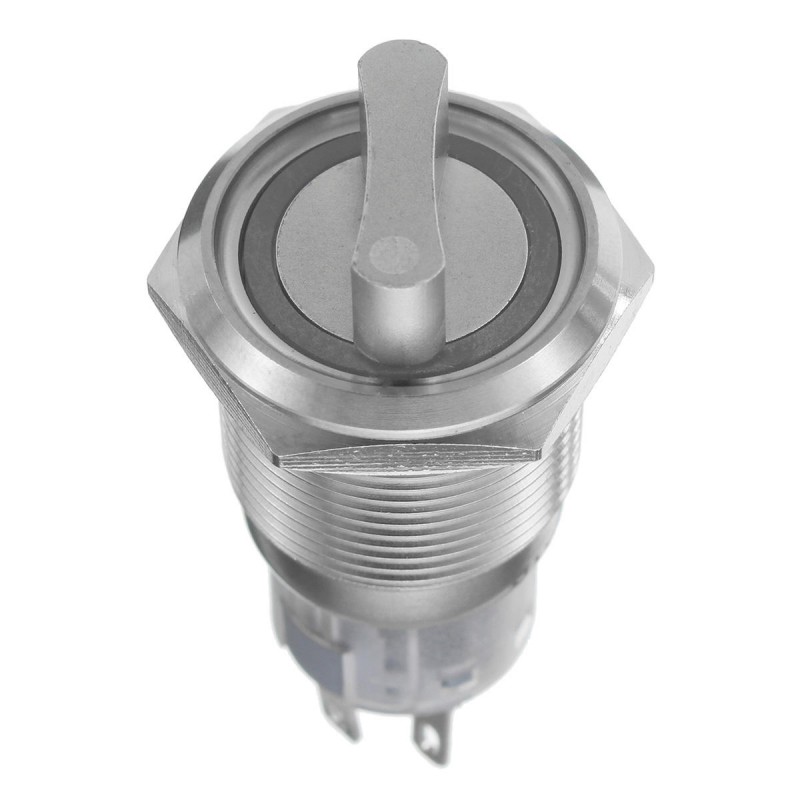

Product Name : Metal selector switch
Material : Stainless steel
Voltage : 12V
Waterproof : IP67
Operating Humidity: 45 to 85%RH

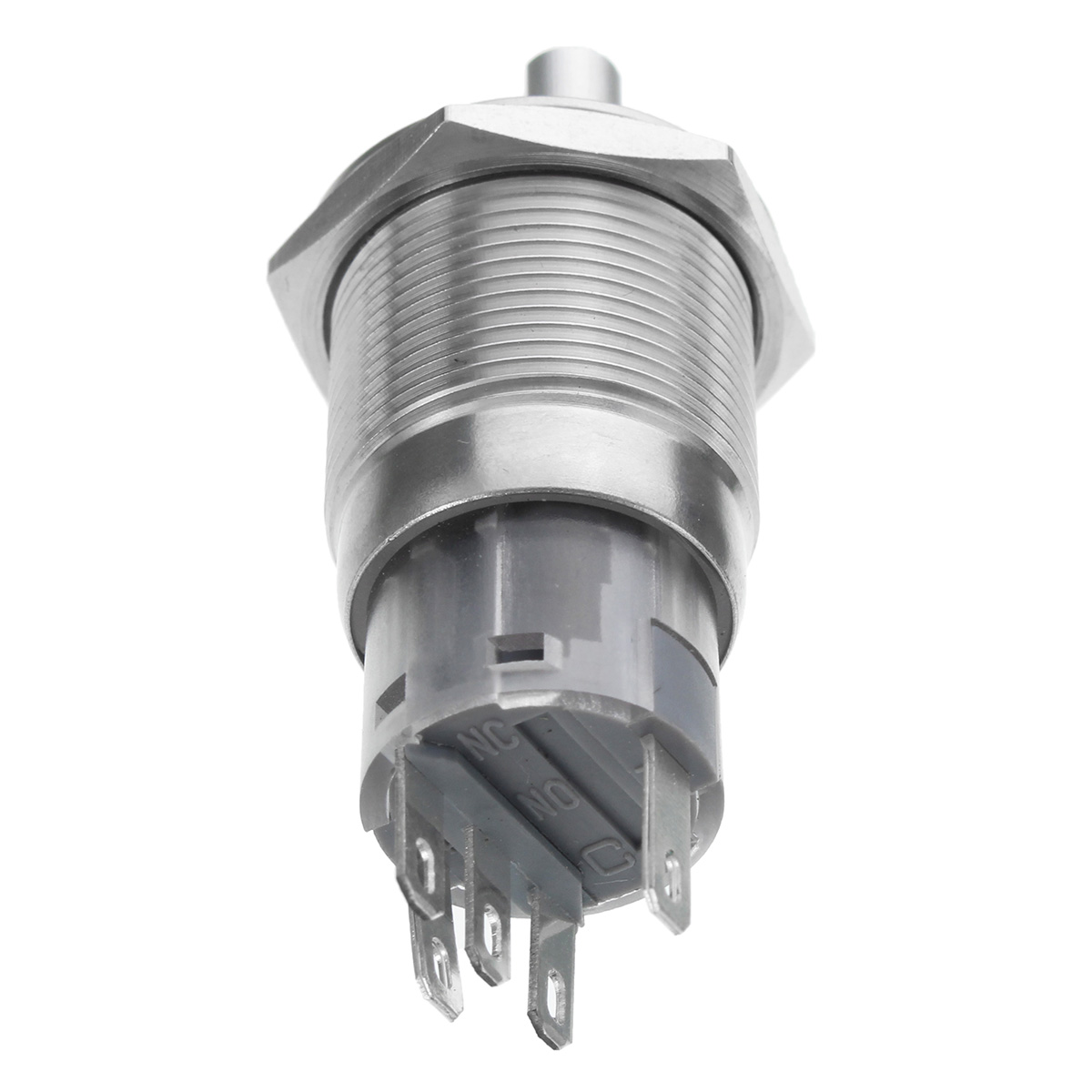

Terminal Quantity: 5
Contact Resistance: 50Mohm Maximum
Operating Temperature: -25C to +55C
Contact Type: 1NO+1NC
Oeperation Type: Latching

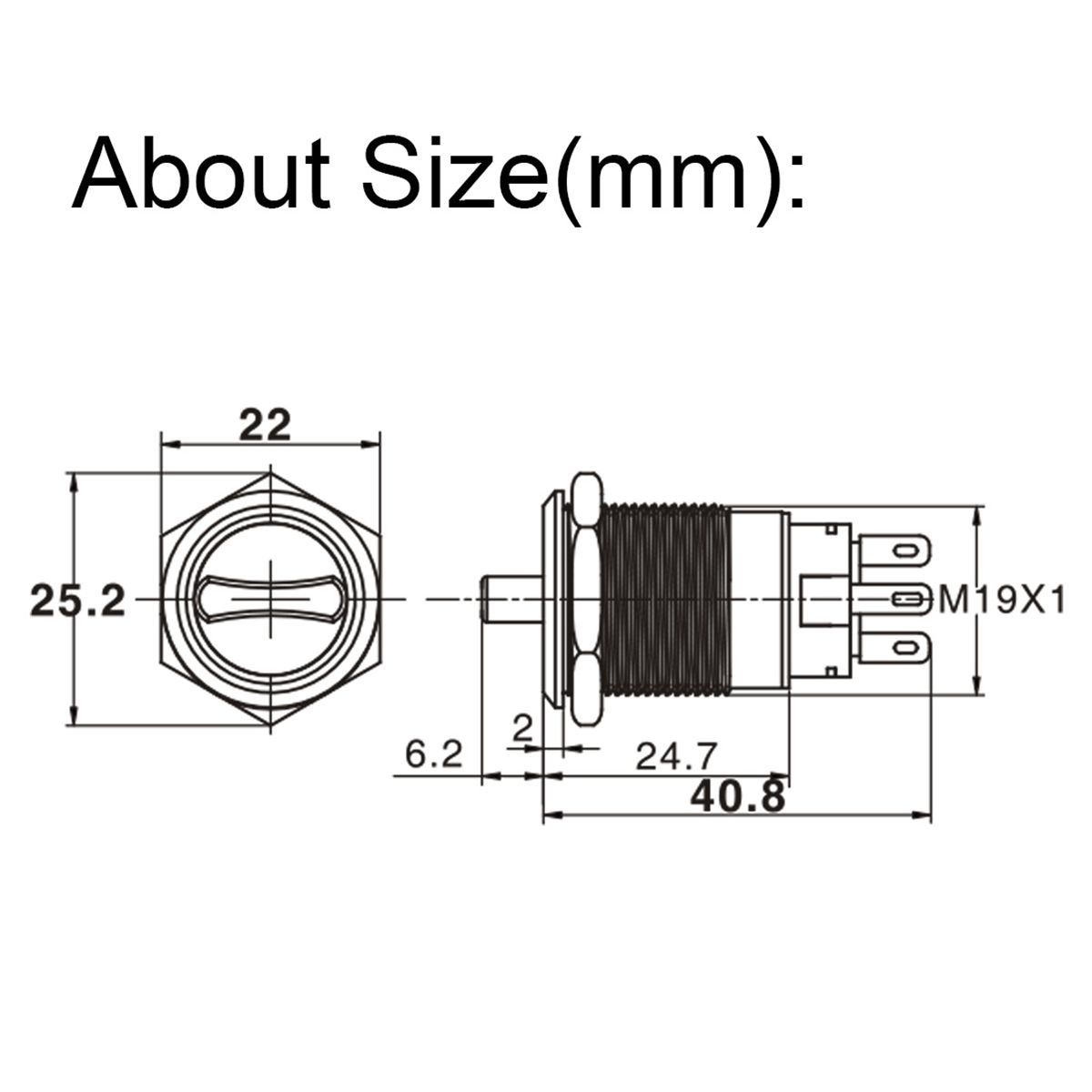

Total Size: 46 x 25mm/1.81" x 0.98"(L*Max.D)
Thread Diameter: 19mm
Mounting Cut Hole: 19mm
Max Switch Rating: 5A/220VAC

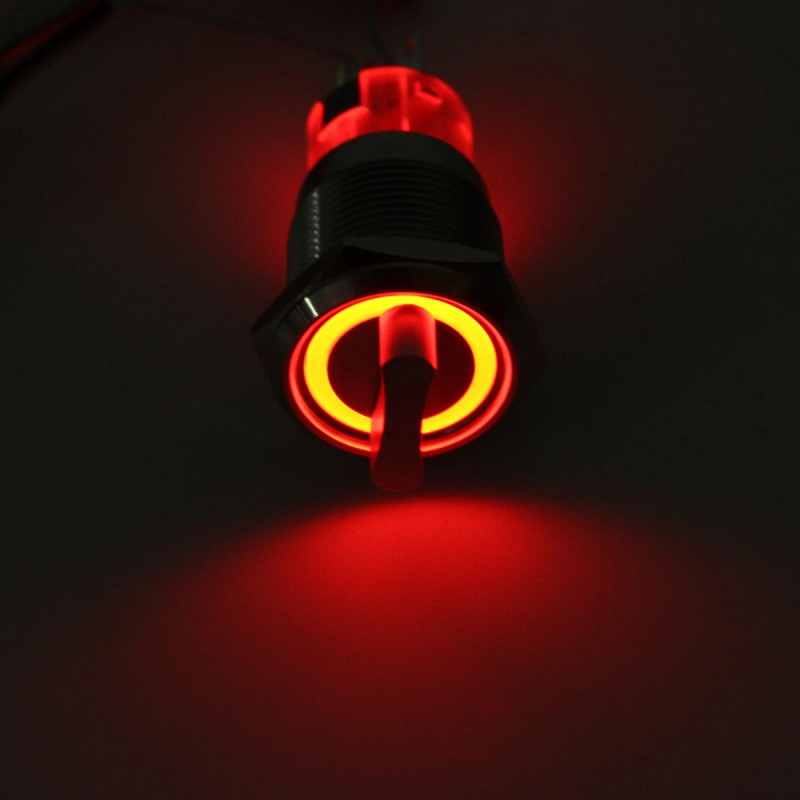

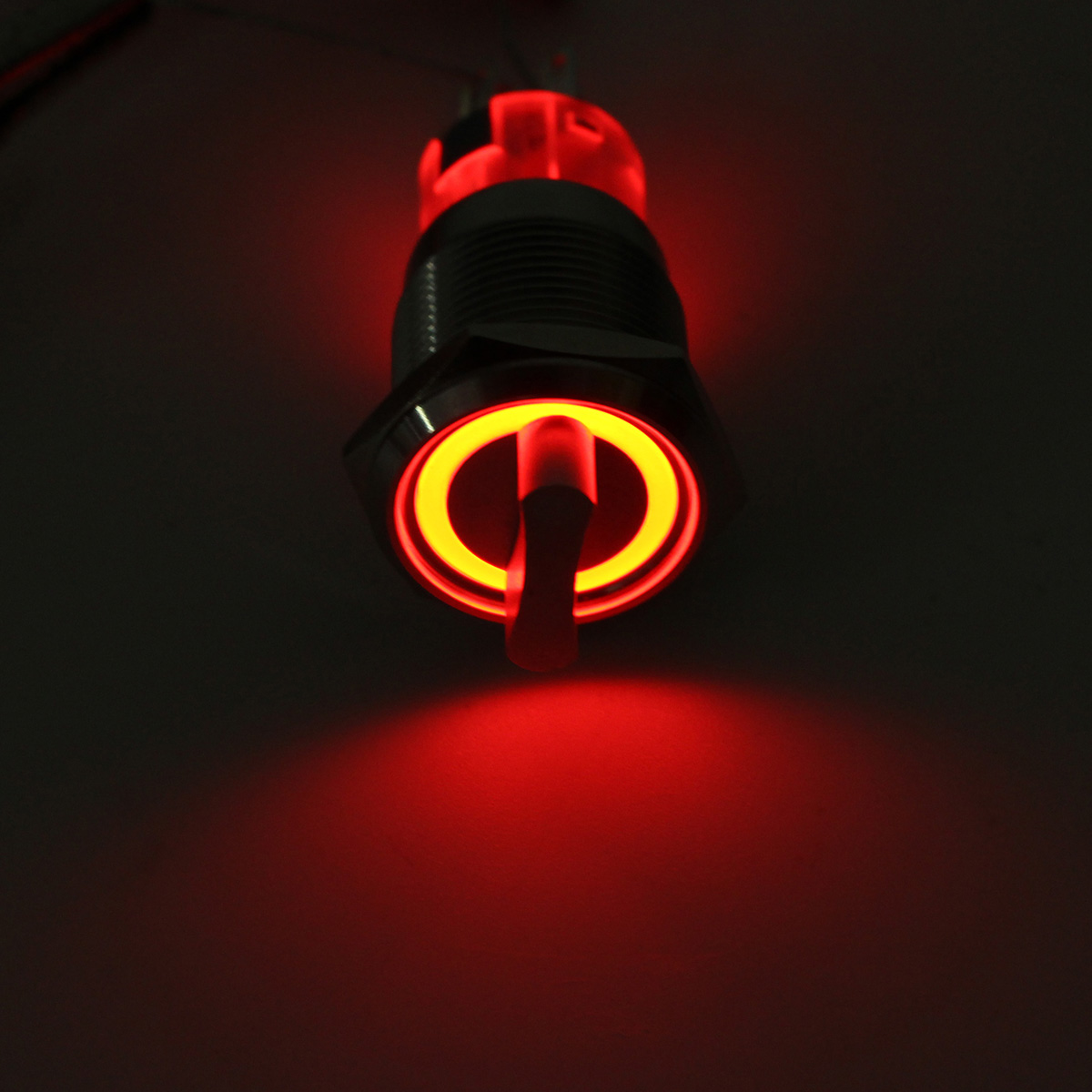

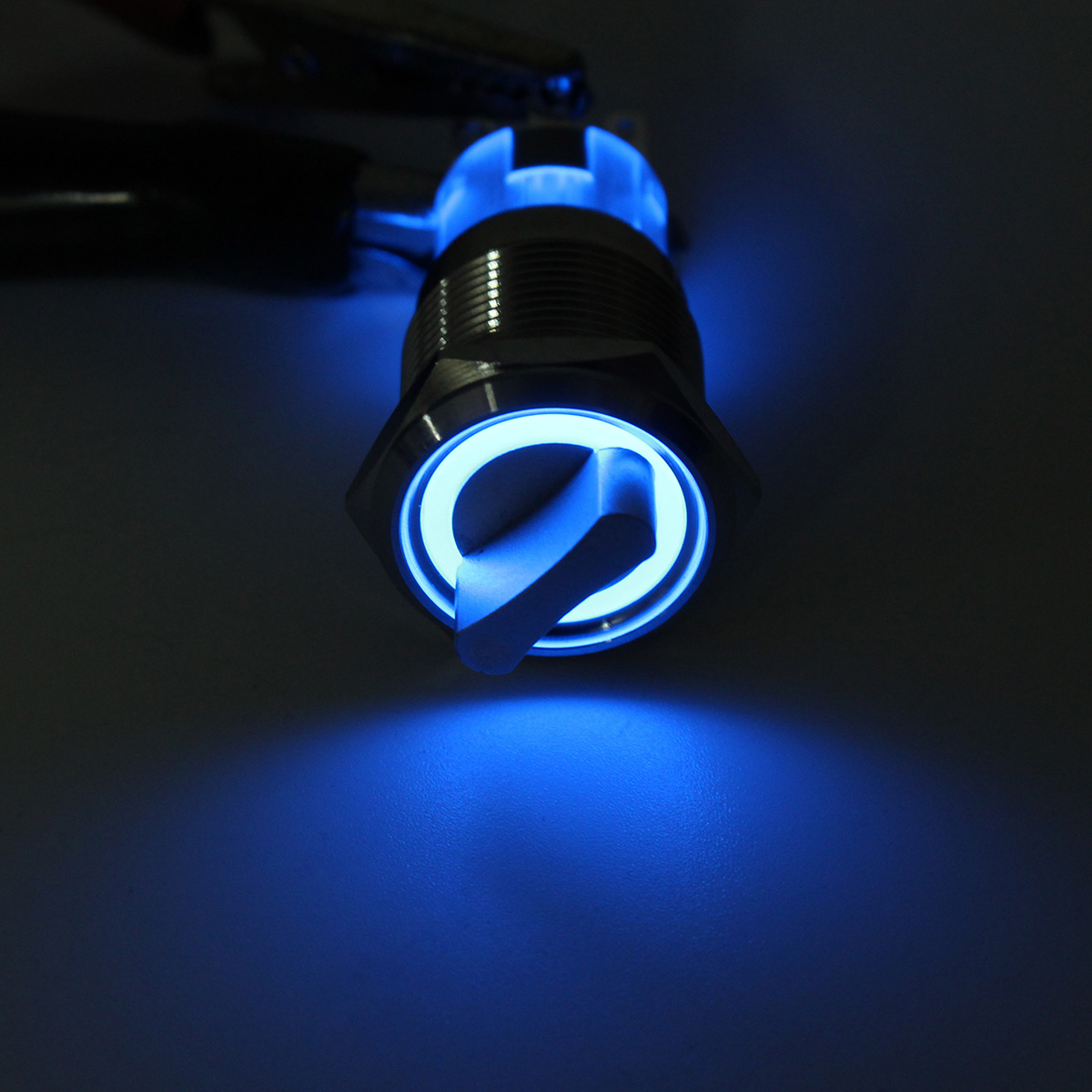

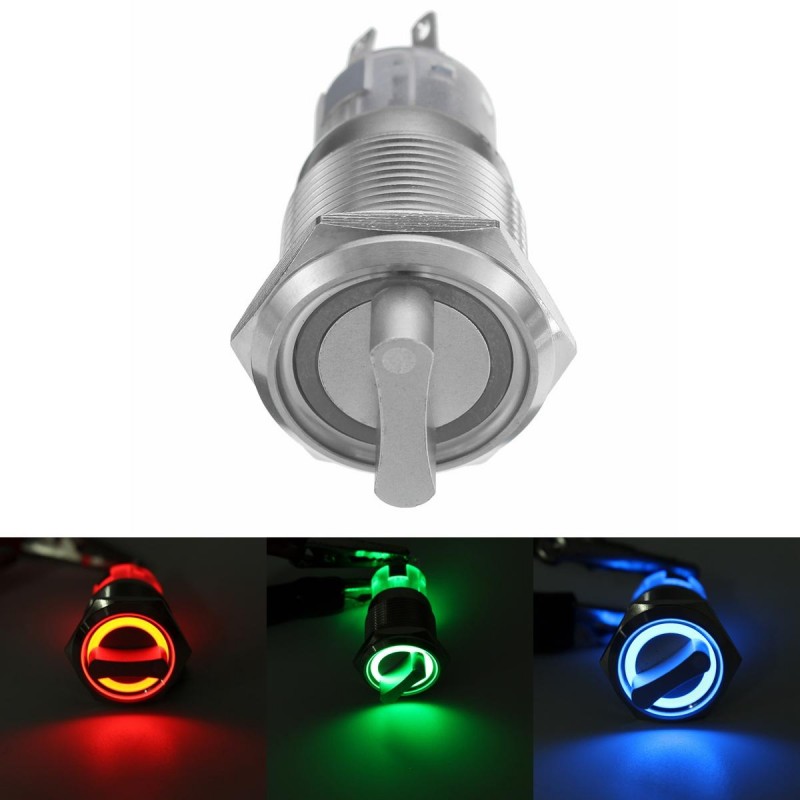

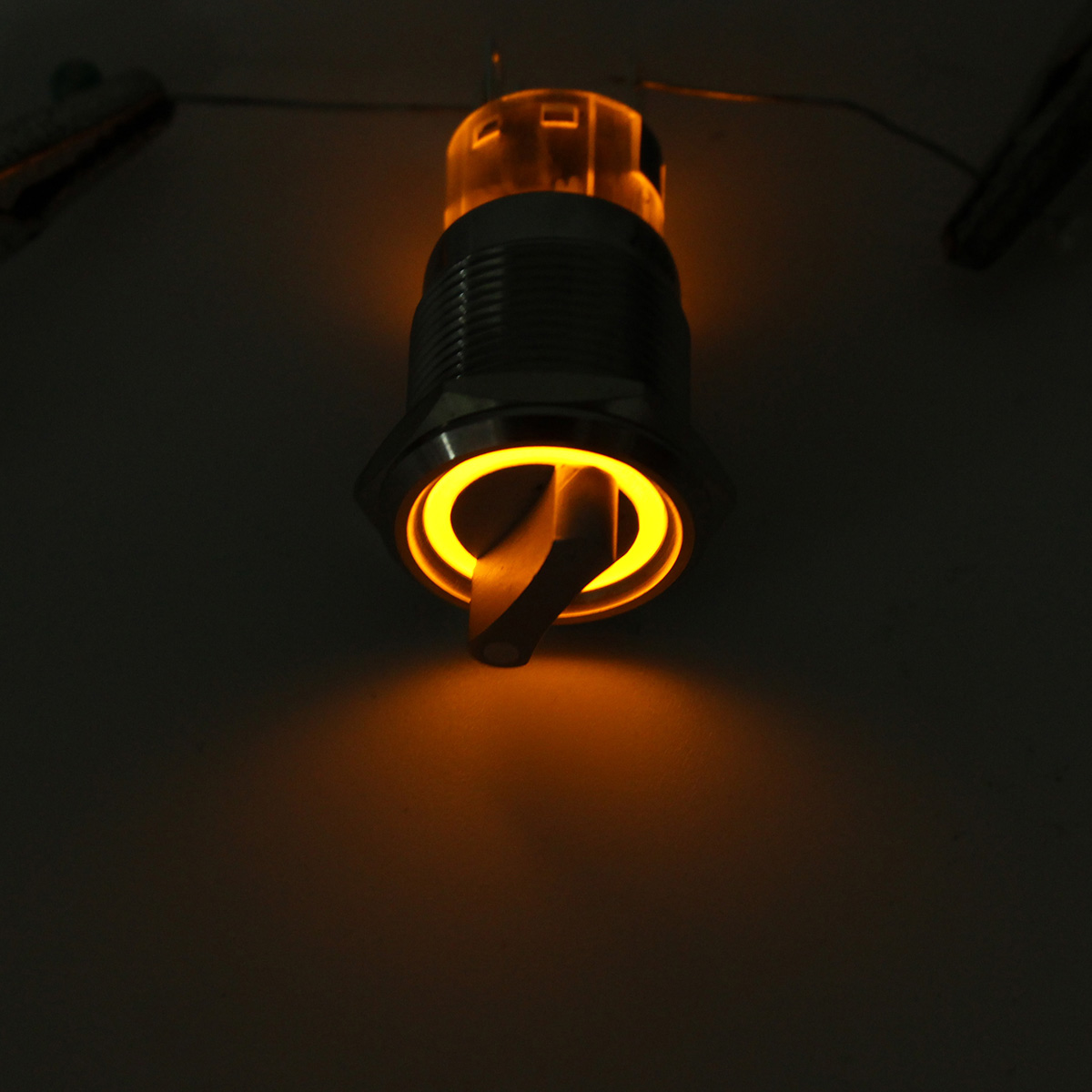

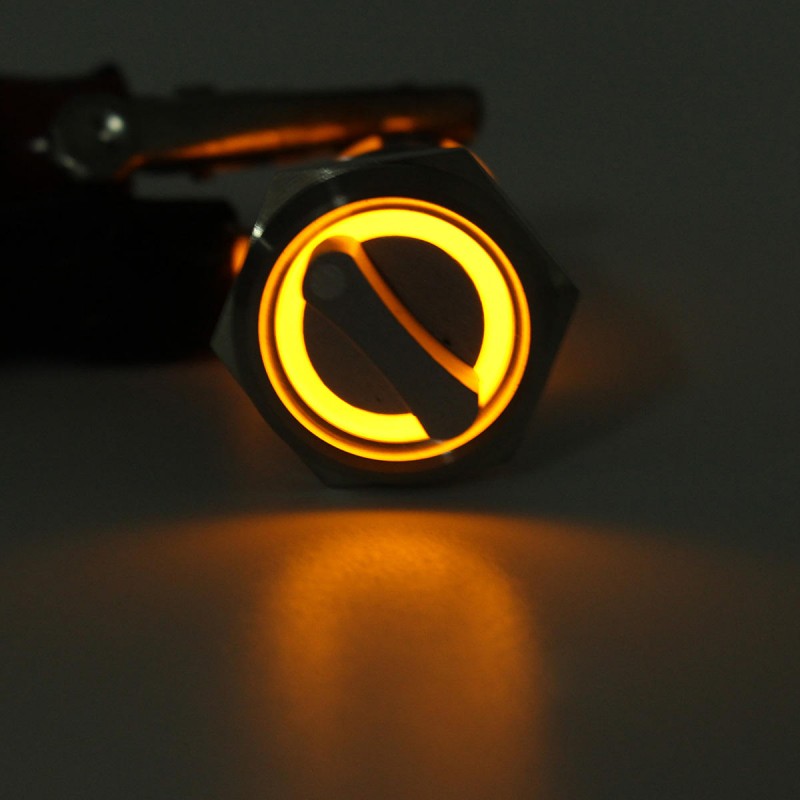

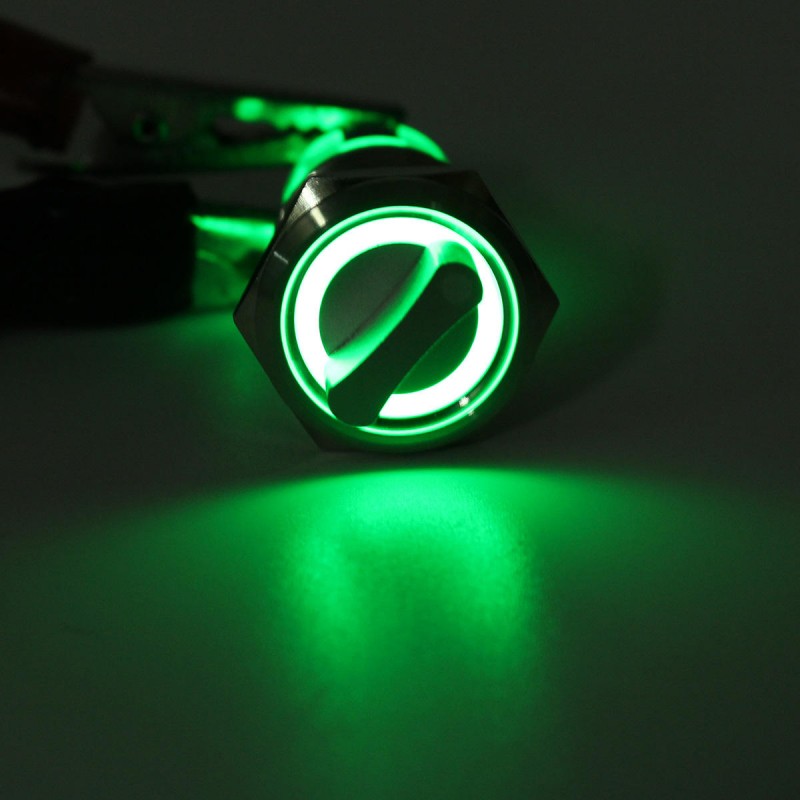

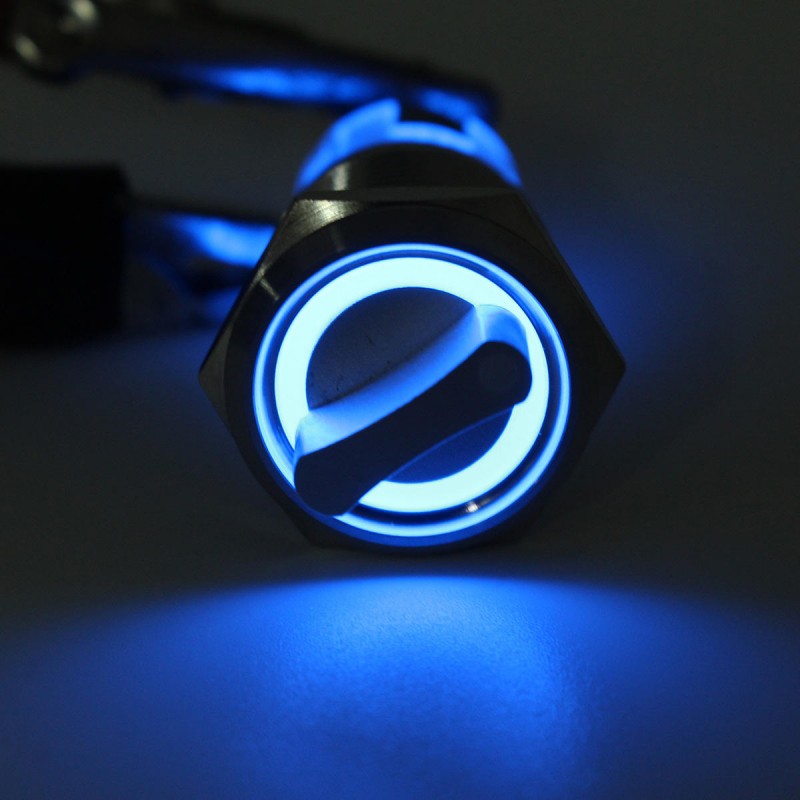

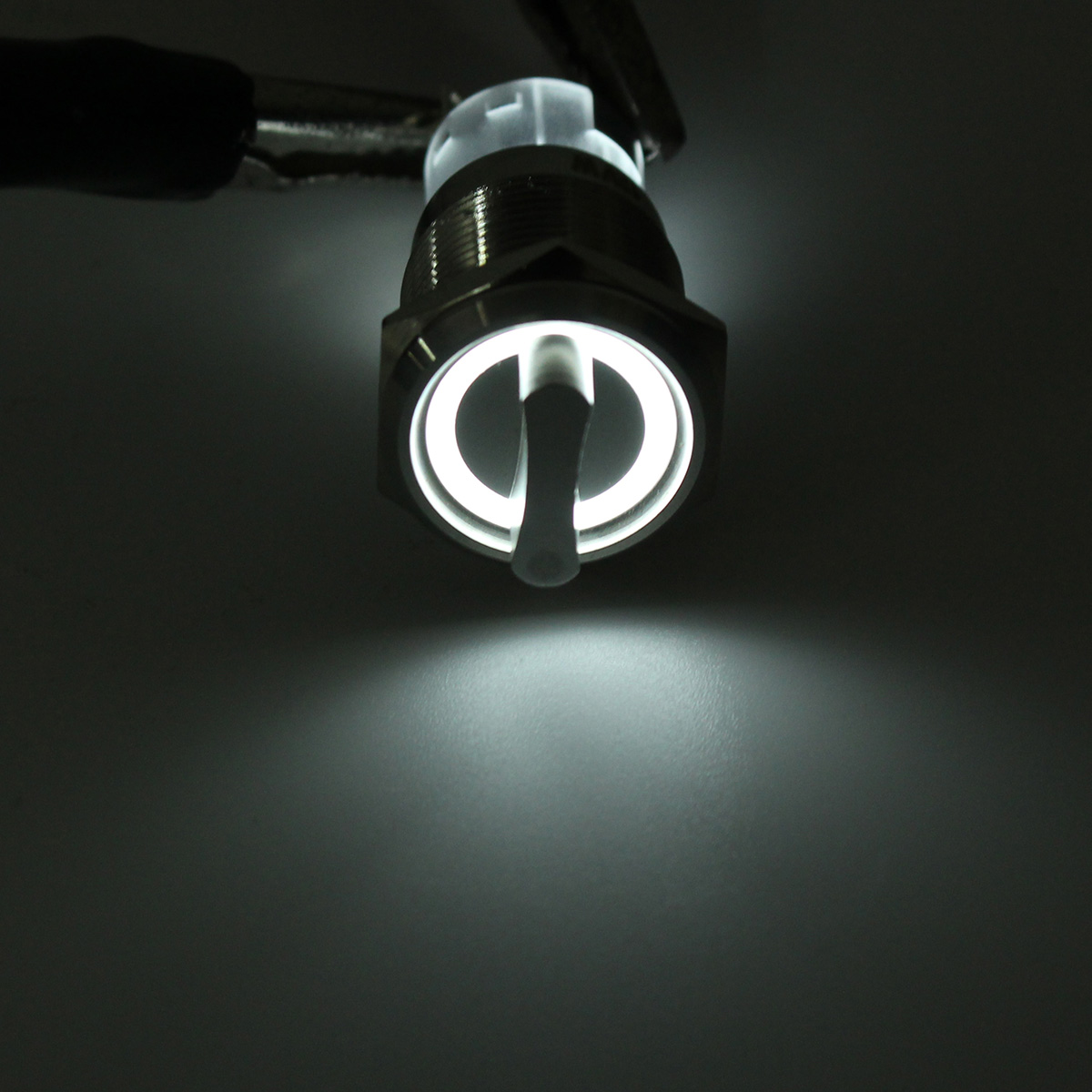

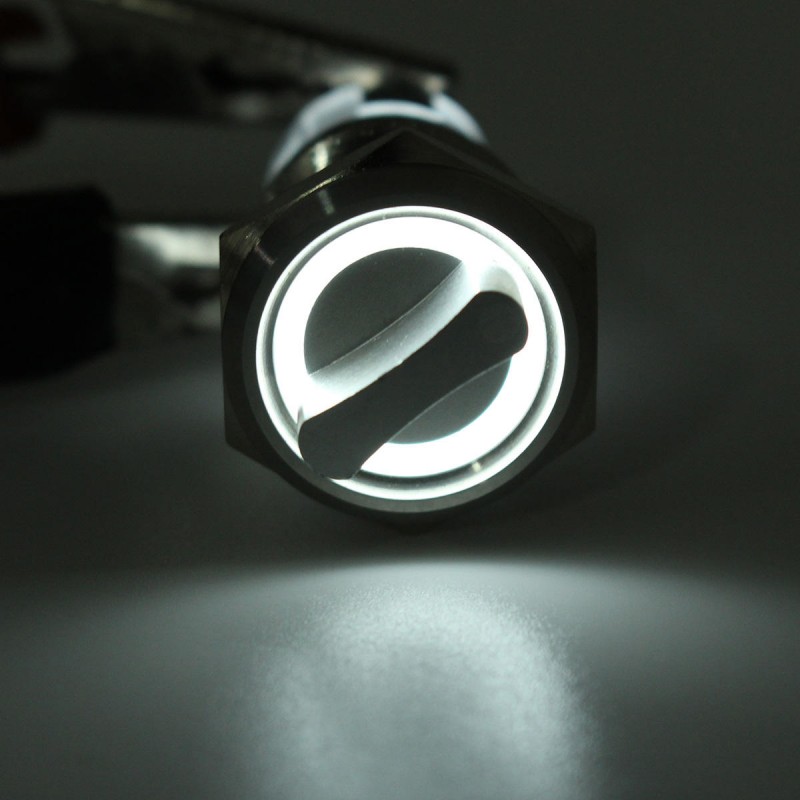

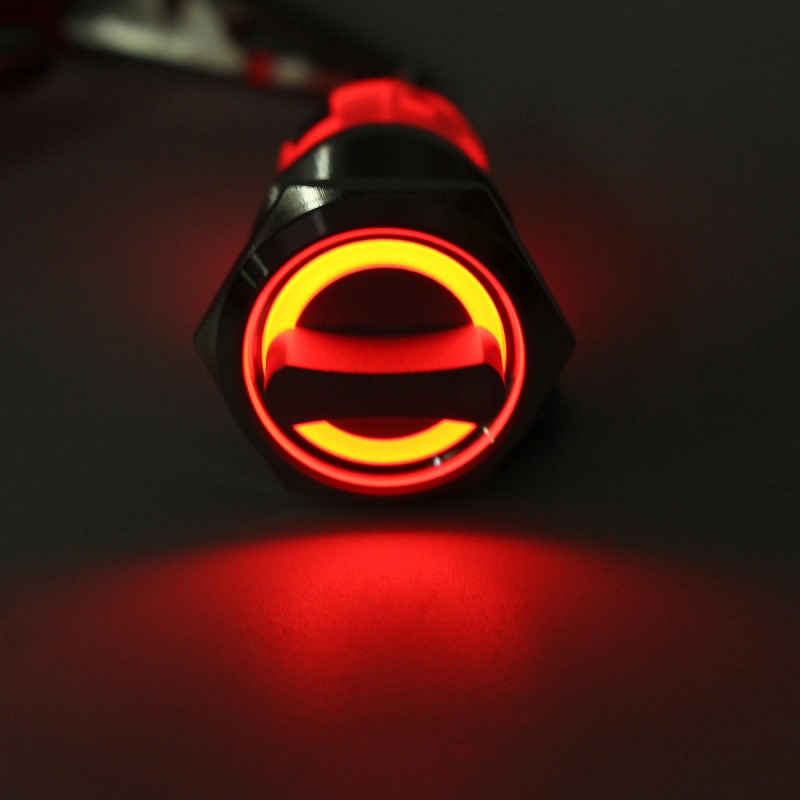

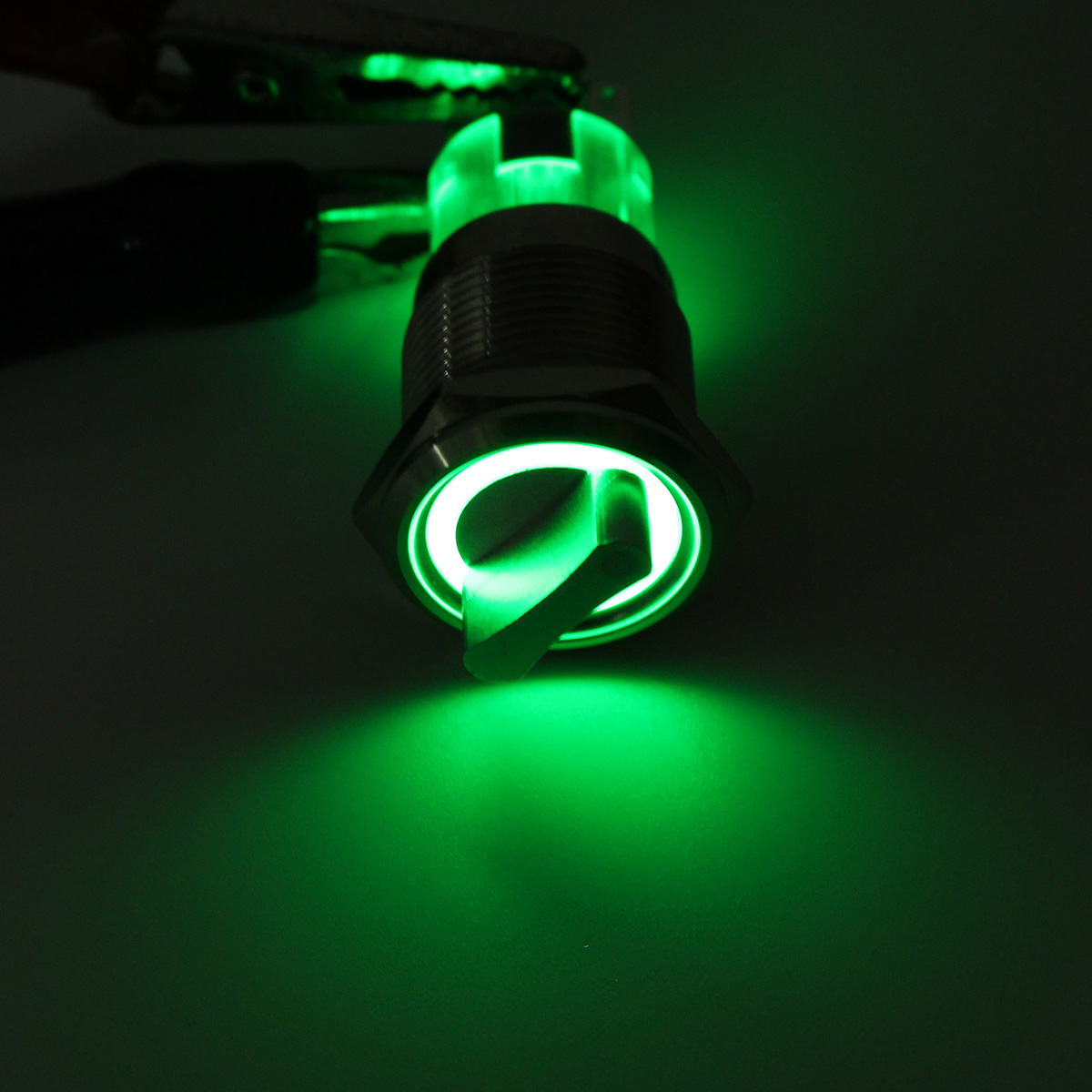

Light color : Red / yellow / white / green / blue
Note:
1.We provide clear pictures ,measurement where possible.Please check as much as possible to make sure the item the one that you need.
2.The actual item maybe has slight color distinct with listing image due to different computer screens ,thanks for your understanding.
3.The size of item is manual measurement,please allow 0.5-1inch difference.(1inch=2.54cm)
4.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

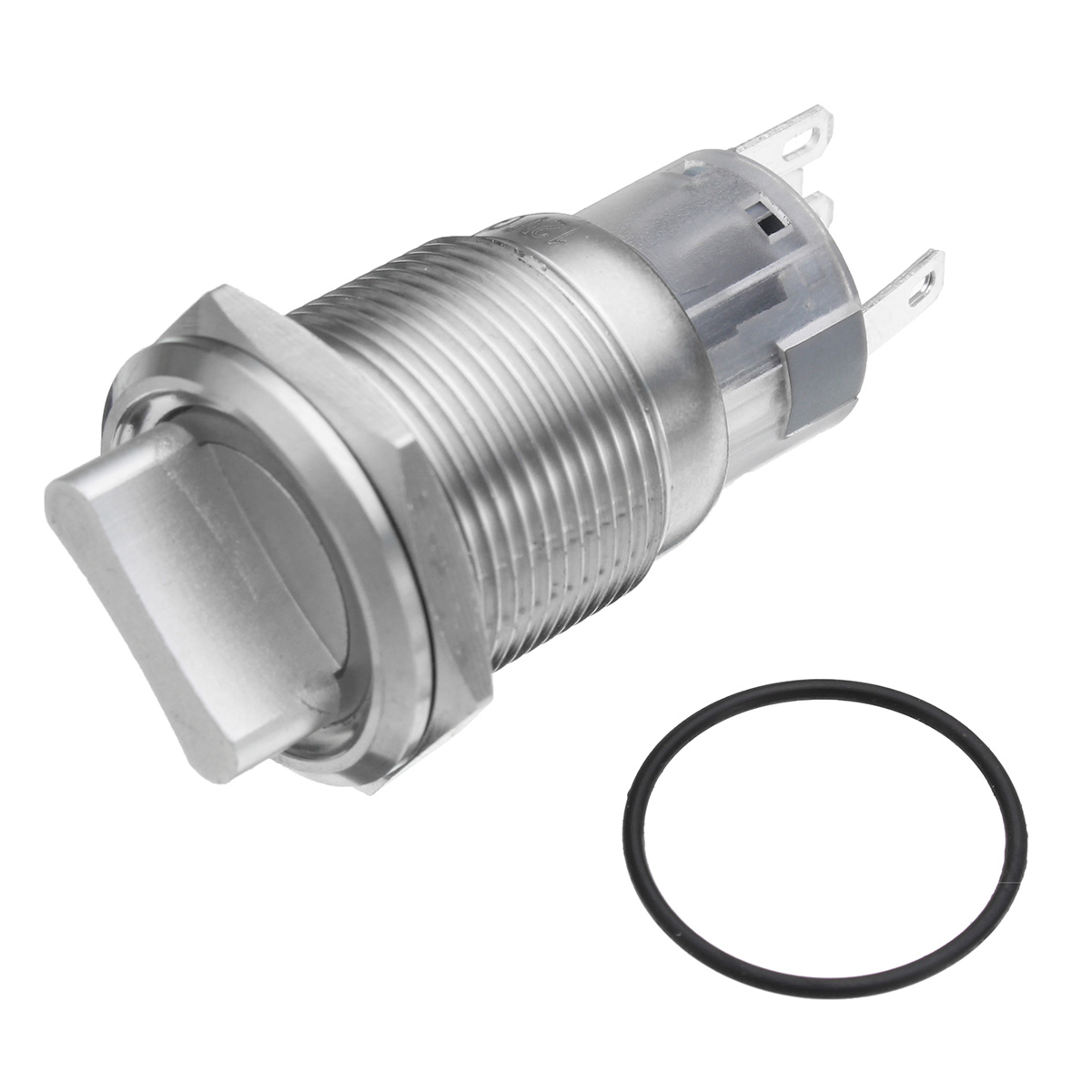

Package Included:
1 X Metal Selector Switch
1 X Rubber O-ring
