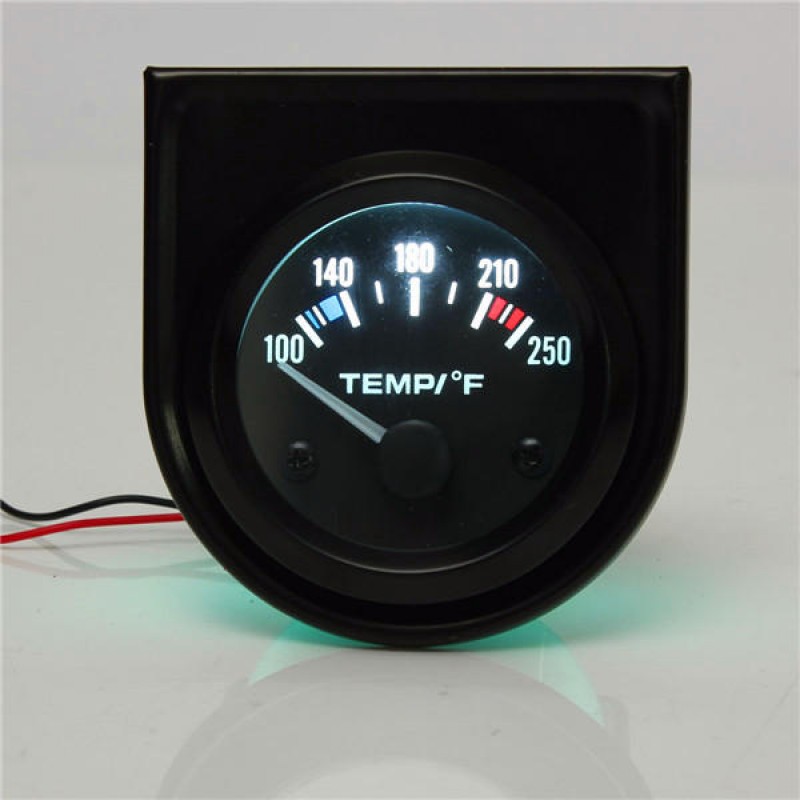

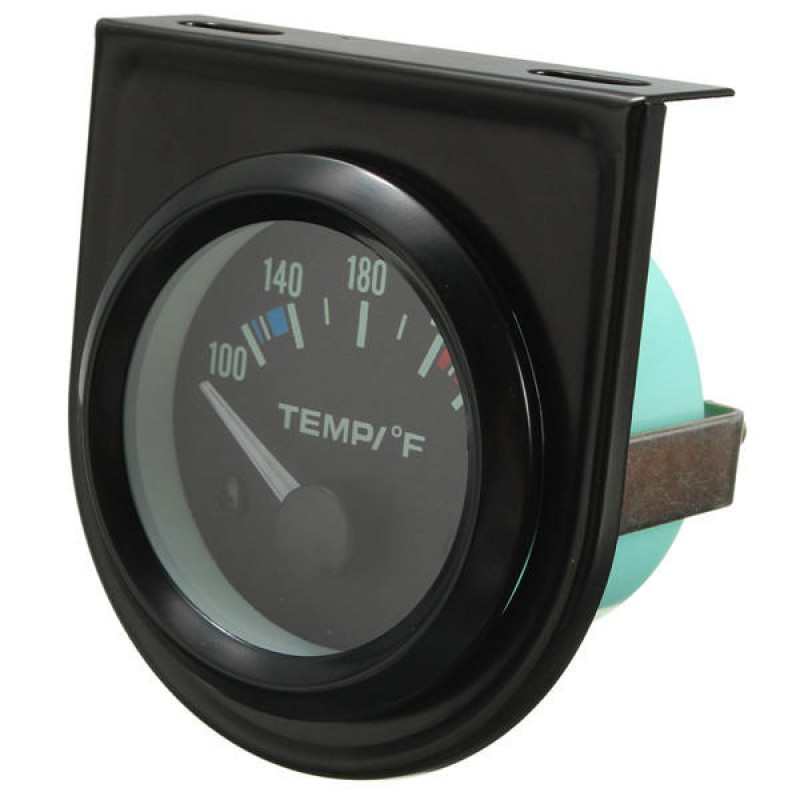

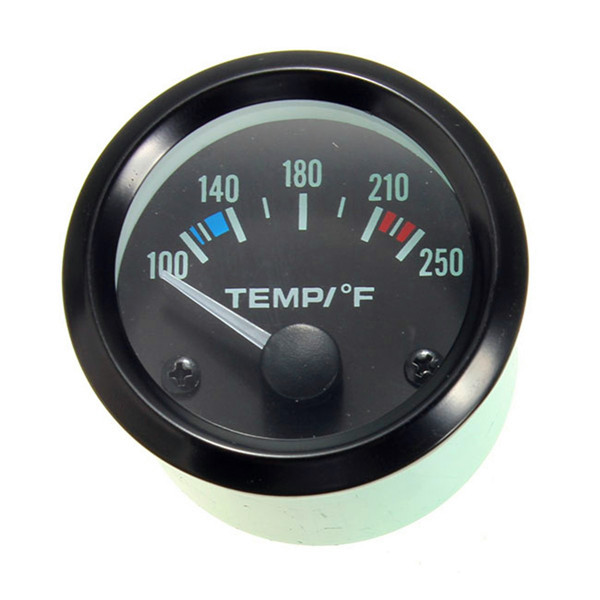

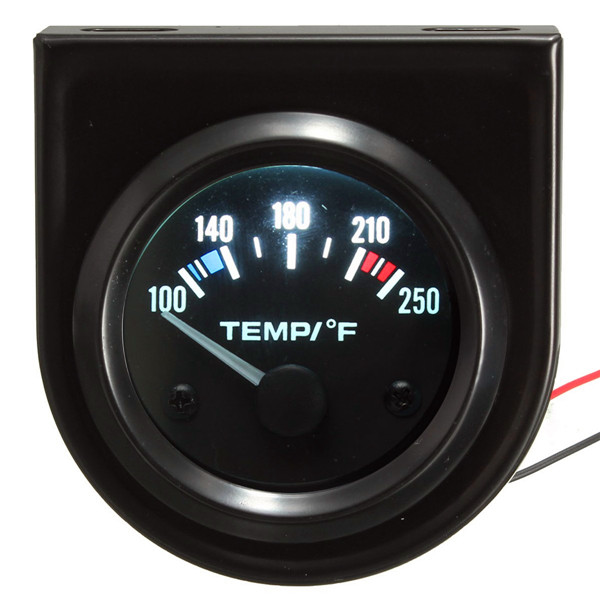

2 Inch 52mm 100-250 Degree F Car Auto Water Temperature Gauge Backlight 12V

$7.99

  • Product Code: ED0002157
  • Availability: In Stock
  • Ex Tax: $7.99
2 Inch 52mm 100-250 Degree F Car Auto Water Temperature Gauge Backlight 12V

Description:
1.The temperature gauge can be installed to masure either water or oil temperature.
It can alert you,usually before the dash warning light would, to a problem that may
cause a break down that would result in costly repair.
2.A higher than normal water temperature reading indicates a low coolant level,loose
or missing fan and /or water pump belt, a plugged or leaking radiator, a wom water pump,
or incorrect ignition timing. A lower than normal water temperature reading indicates a defective thermostat.

Feature:
-2 inch water temperature gauge with backlight.
-Scale from 100°F to 250 °F.
-Suitable for 12 volt systems.
- Mounting directly in 2 inch hole.
-Air-core meter moverment.
-Come with black metal panel and 'U" bracket for add-on or replacement purpose.
-For all water cooled engines with sender thread connection.

How to connect:
Red wire lead for + volt supply to internal lamp; Black wire to system ground

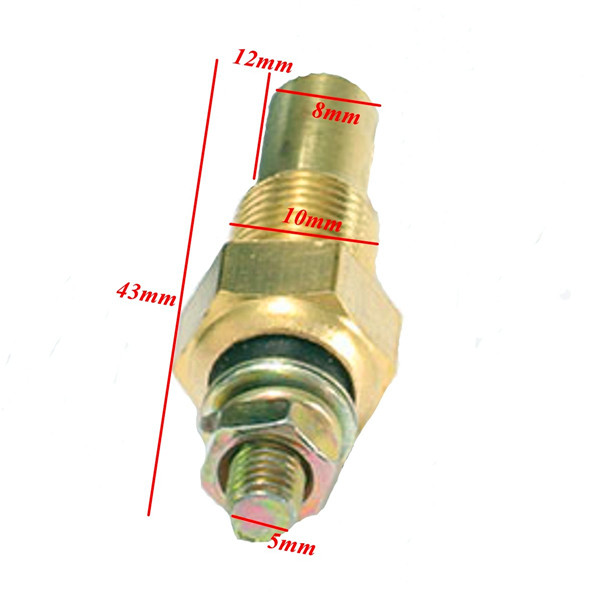

S Threaded terminal for connecting sensor wire
+ Threaded terminal for connecting + volt supply
- Threaded terminal for connecting system ground
Pls remember that the sensor is automatically connected to system ground when installed.
If installing where the body of the sensor is not tied to system ground, it will be necessary to
hook up a ground to the body of the sensor element.

Note:
1.All you will need is 18 gauge stranded wire to make the necessary connections.

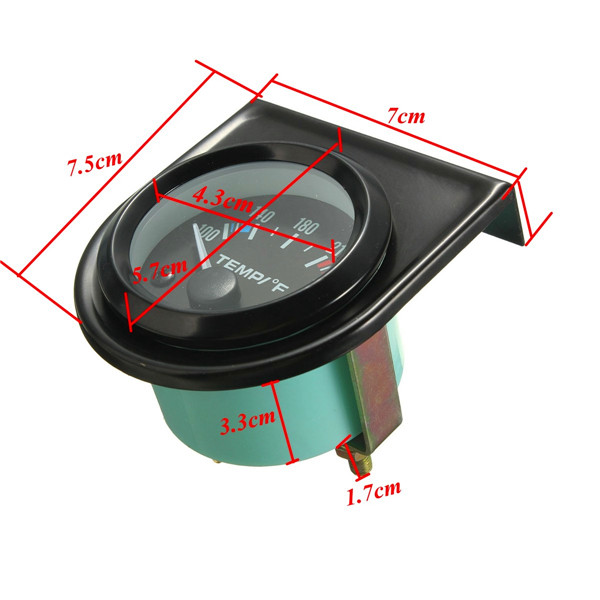

2.Hole diameter is 2 inch.
3.Meter OD is 2 3/16 inch.
4.Meter depth from front of panel to the end of the mounting studs is 2 inch.

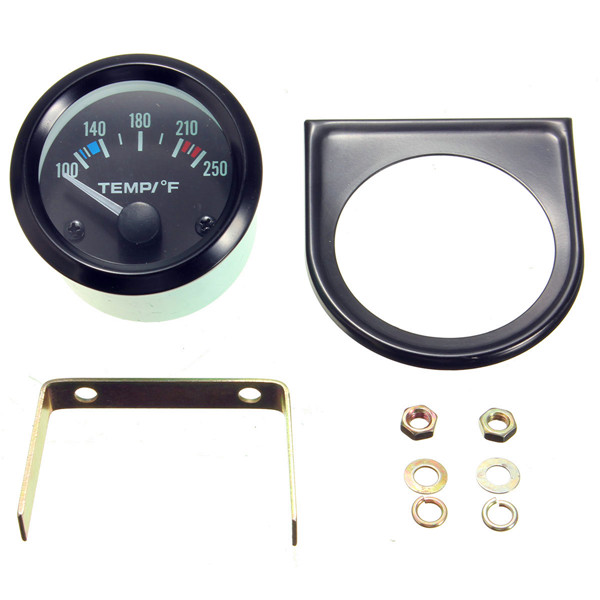

Package Included:
1 x Water Temperature Gauge
1 x Mounting Screw
1 x Manual
