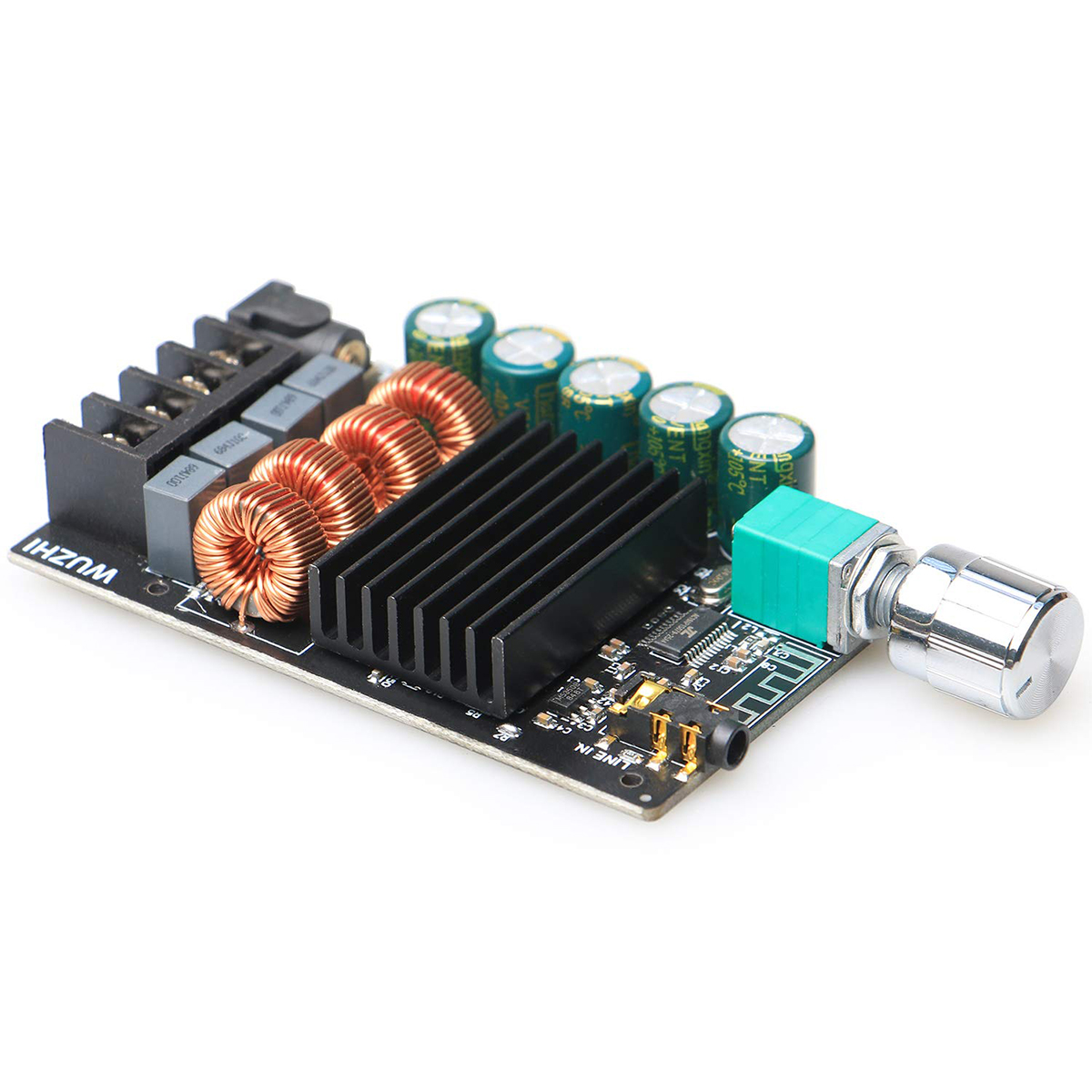

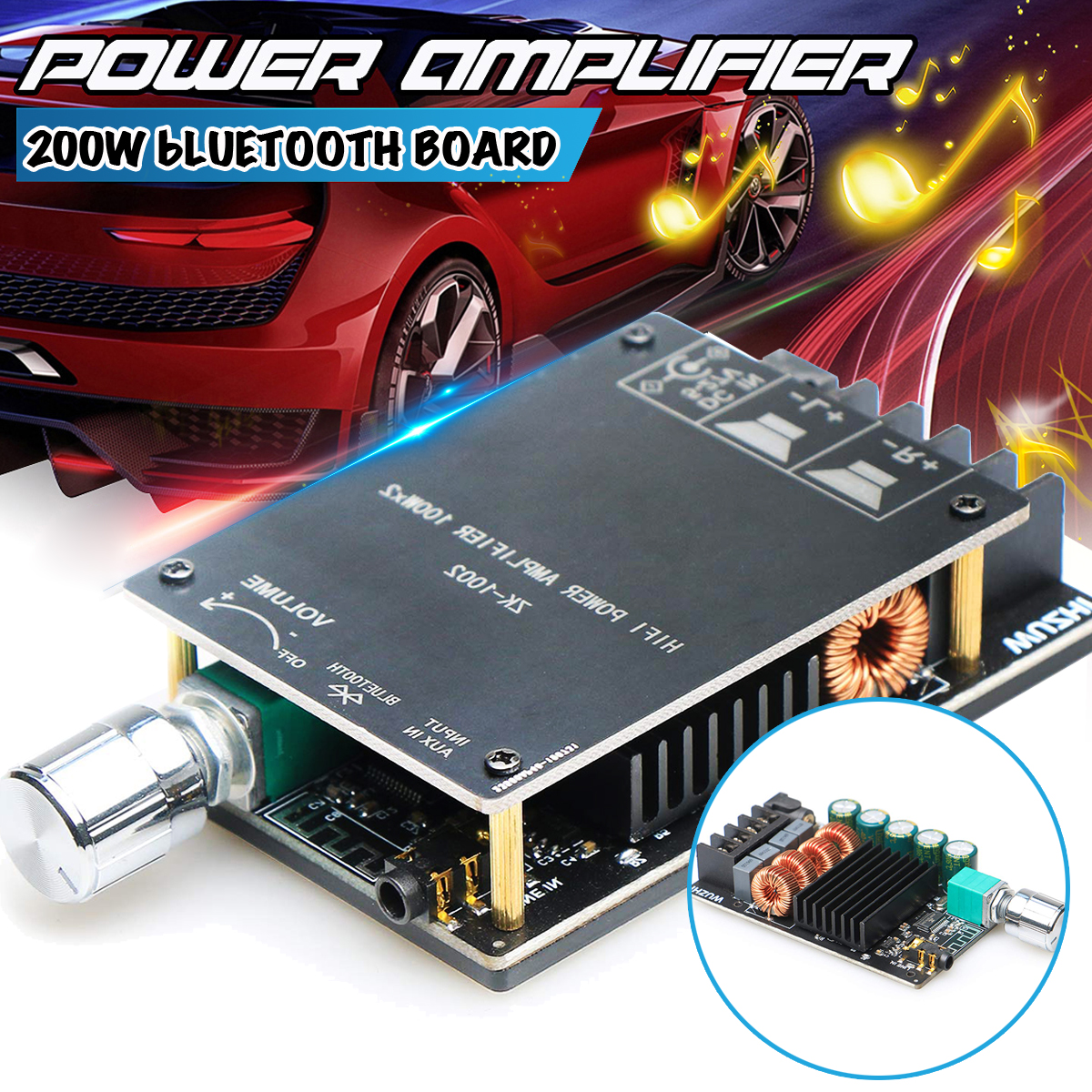

200W bluetooth Amplifier Board Dual Channel TPA3116 Audio Amp Board with LC Filter

$14.99

  • Product Code: ED0002556
  • Availability: In Stock
  • Ex Tax: $14.99

Tags: Amplifier

Item Specifics:
Type: Two-channel bluetooth 5.0 power amplifier board
Input voltage: DC 5-27V
Amp Chip:TPA3116
Output impedance:4~8 Ω Speaker
Output power: 100W*2
Current: ≥3A
Filter: LC filter
bluetooth version: BT 5.0
Audio input: bluetooth, AUX
Number of channels: 2 channels

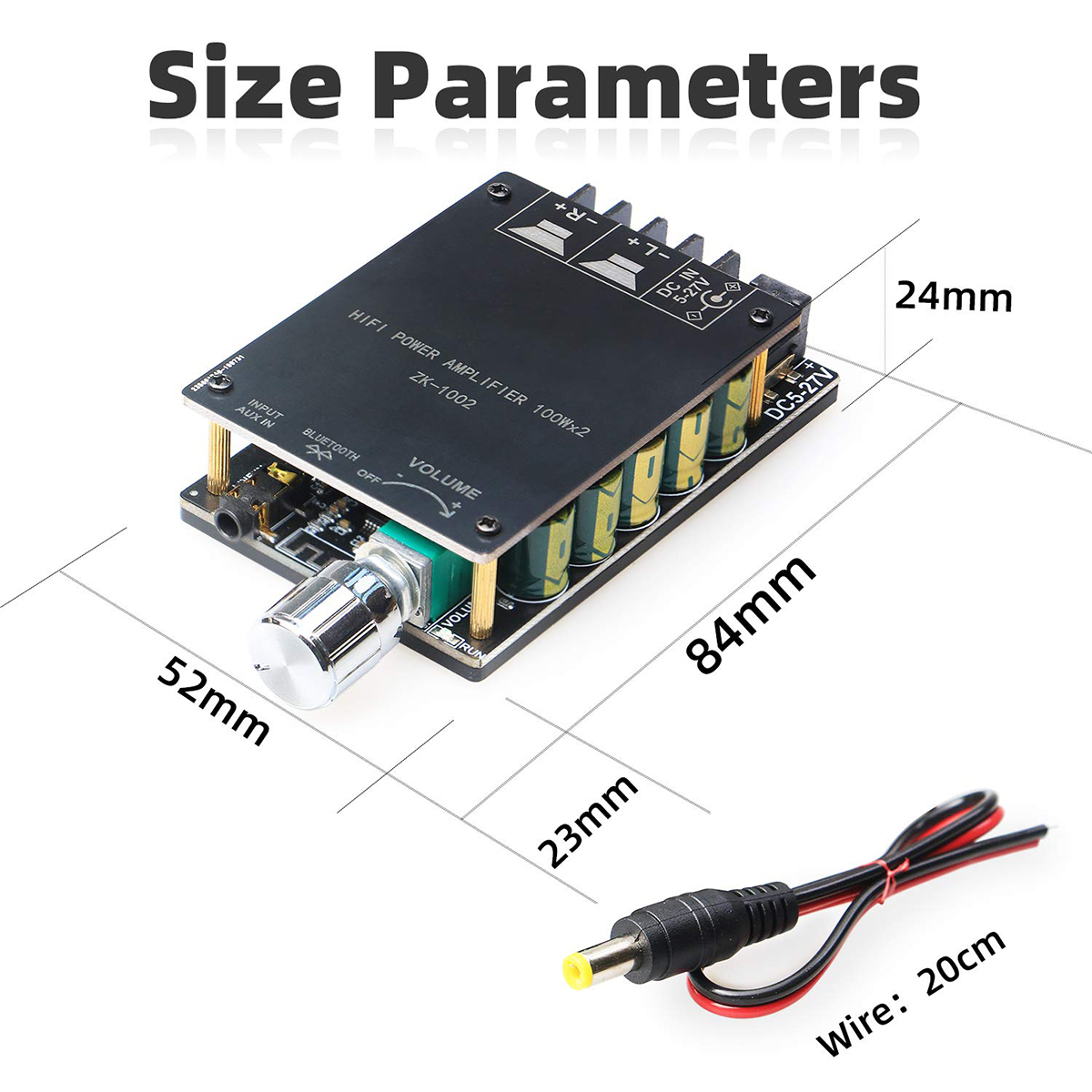

Size: 107*52*24mm / 4.2*2*0.9inch
bluetooth transmission distance: 15 meters
Support Format: FLAC/APE/MP3/WMA/WAV
Protection mechanism: Overvoltage, Undervoltage, Excessive, DC detection, Short circuit protection
Features:

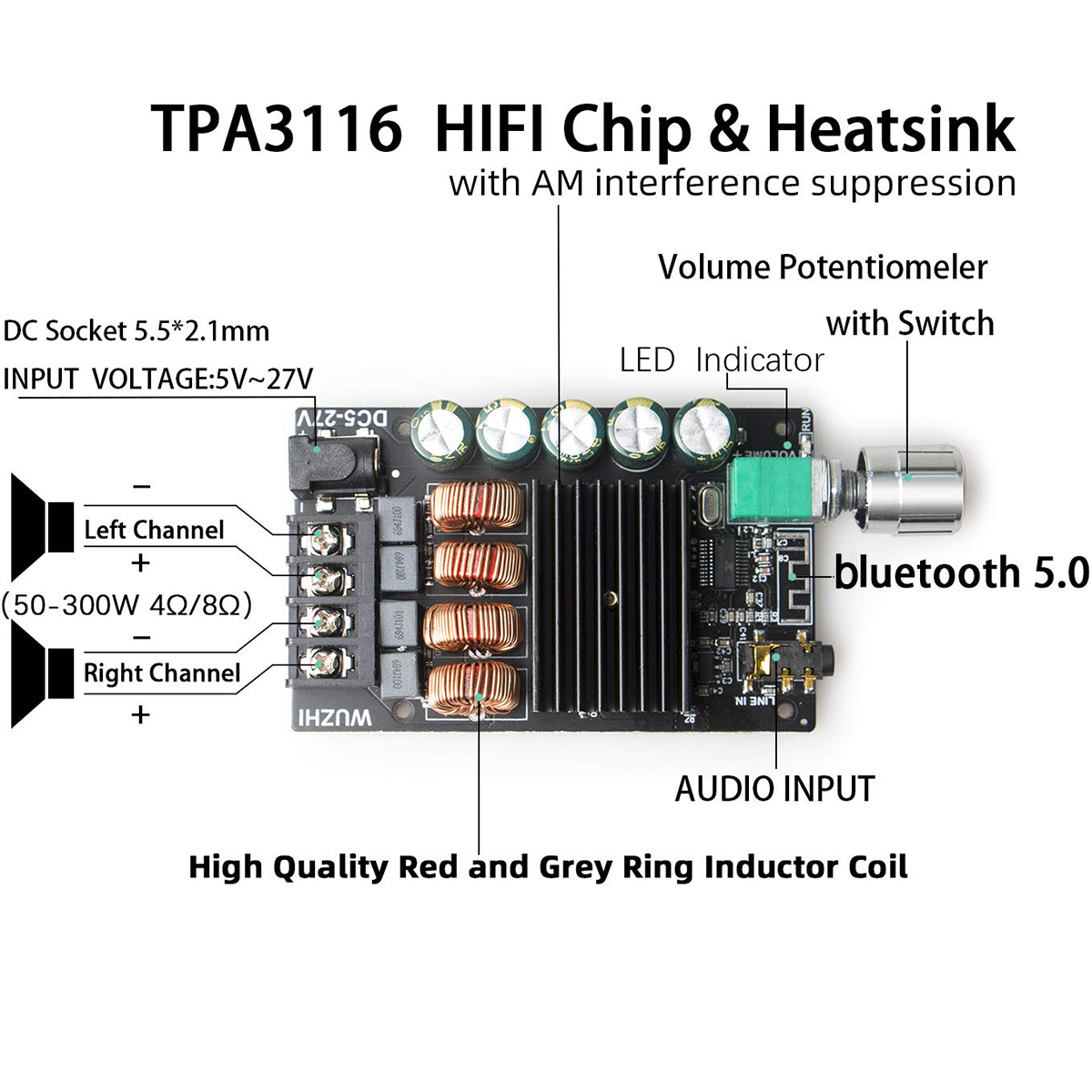

--CHIP: TPA3116with AM interference suppression function, 100w+100w output power, wide voltage input: 5V-27V, can Be powered by 9V/12V/15V/18V/24V. Adapter speaker 4-8Ω (50w-300w)
--Two Audio Iput Ways: User Can Directly Connect with Wireless bluetooth 5.0, or Choose the Headphone (Line in) Way

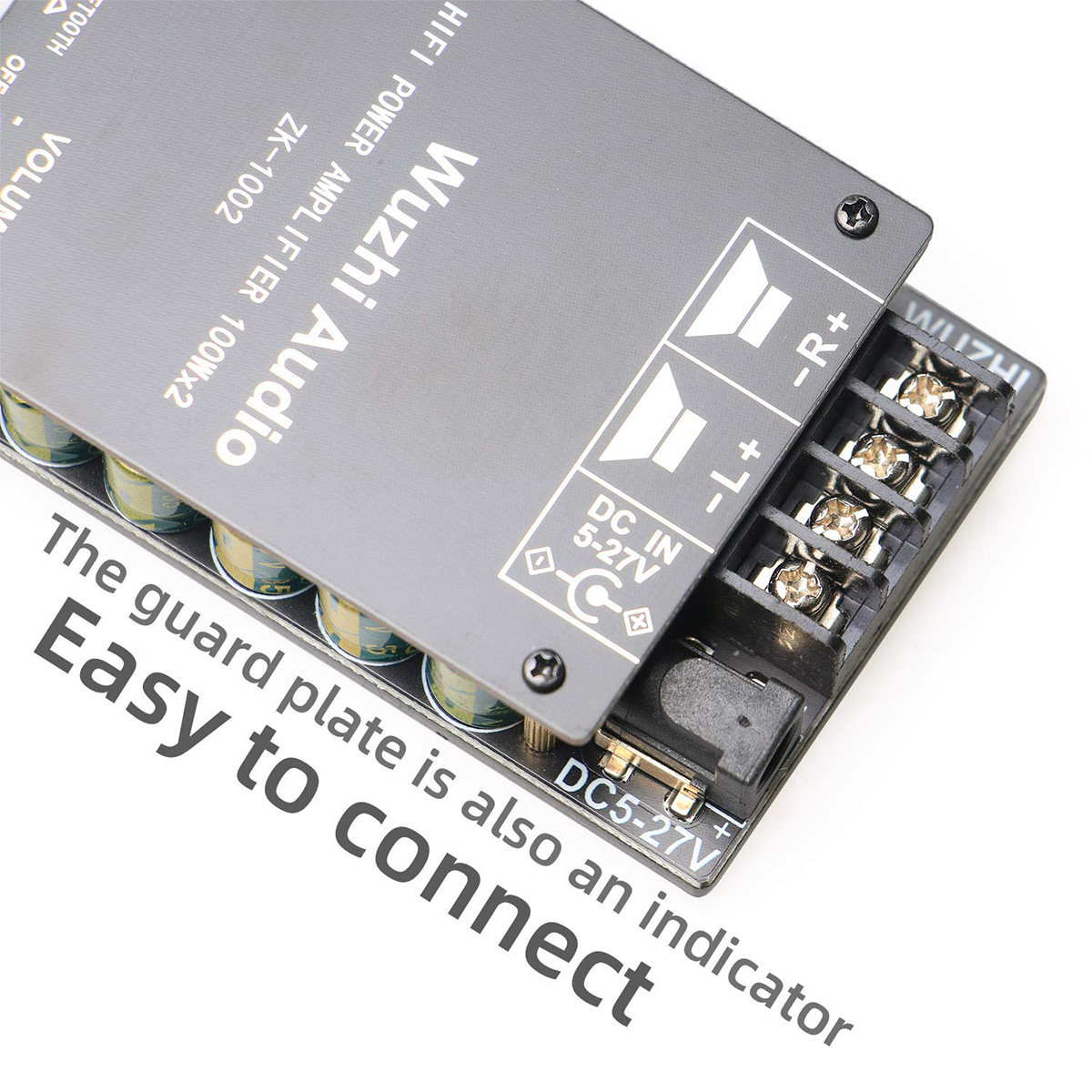

--Easy Installation and Short Start-up Sound: The illustration of each interface is printed on the protective plate, making it easy to install even without instructions. The sound of the amp board to start and connect to Bluetooth is short rather than not a woman's voice.
--Protective Function: This BT Amp Is Designed with Protective Case, Reverse Connection protection, Over-voltage Protection, Under-voltage Protection, Over-heat Protection, Short-circuit Protection
-- Please use a power adapter with sufficient power to connect the amp board, otherwise the sound will be distorted. And make sure the AMP board is away from the wifi signal.
Tips and tricks:
To have enough output power if the audio input is sufficient and the power supply voltage and current are sufficient. The power supply voltage is higher and the relative power will be larger. The speakers with different impedances will have different output power. In the case of sufficient voltage and current, the larger the ohms of the horn, the smaller the relative sound power.

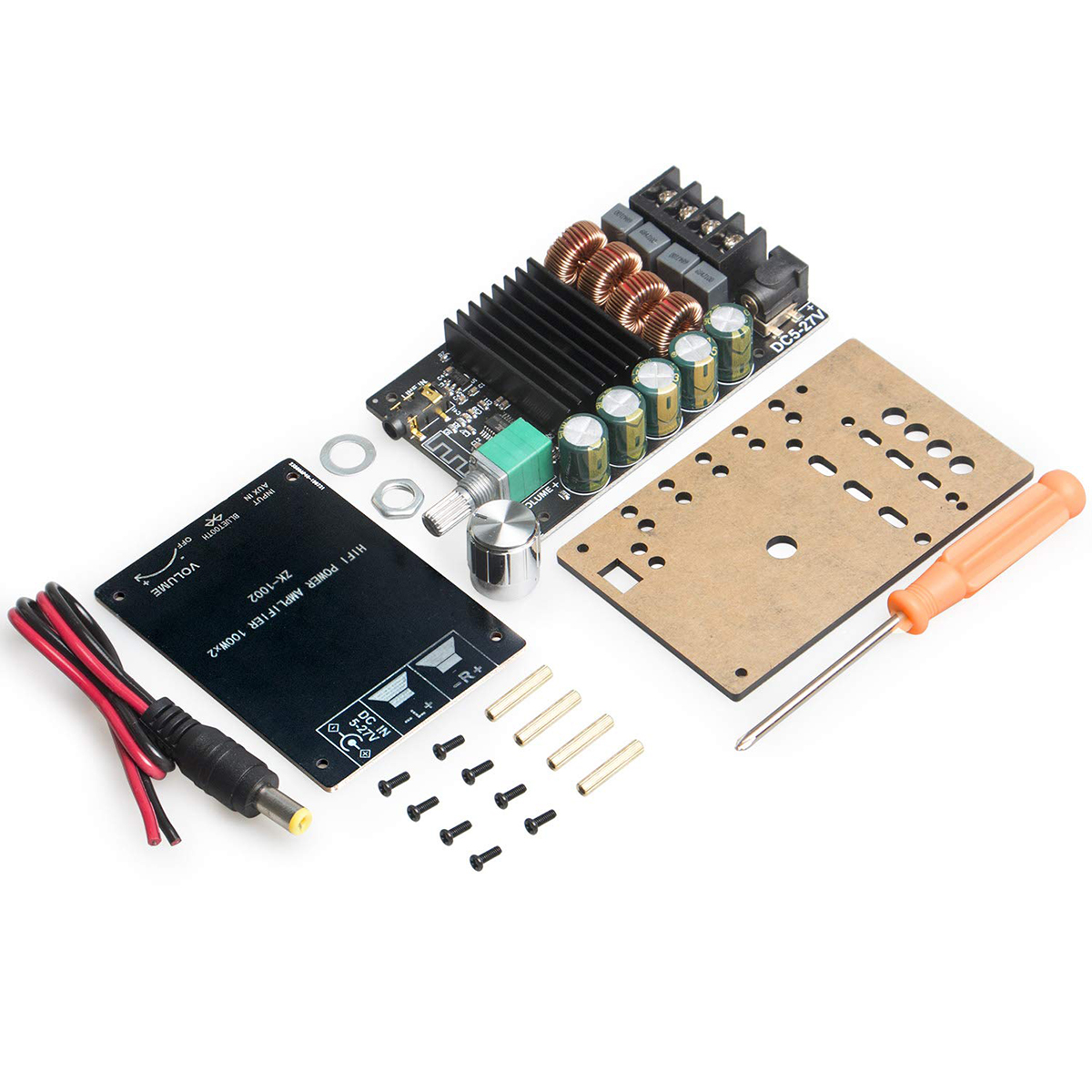

Package Included:
1x 200W bluetooth Amplifier Board
Note:
1.Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.
2.The colors may have different as the difference display, please understand.
