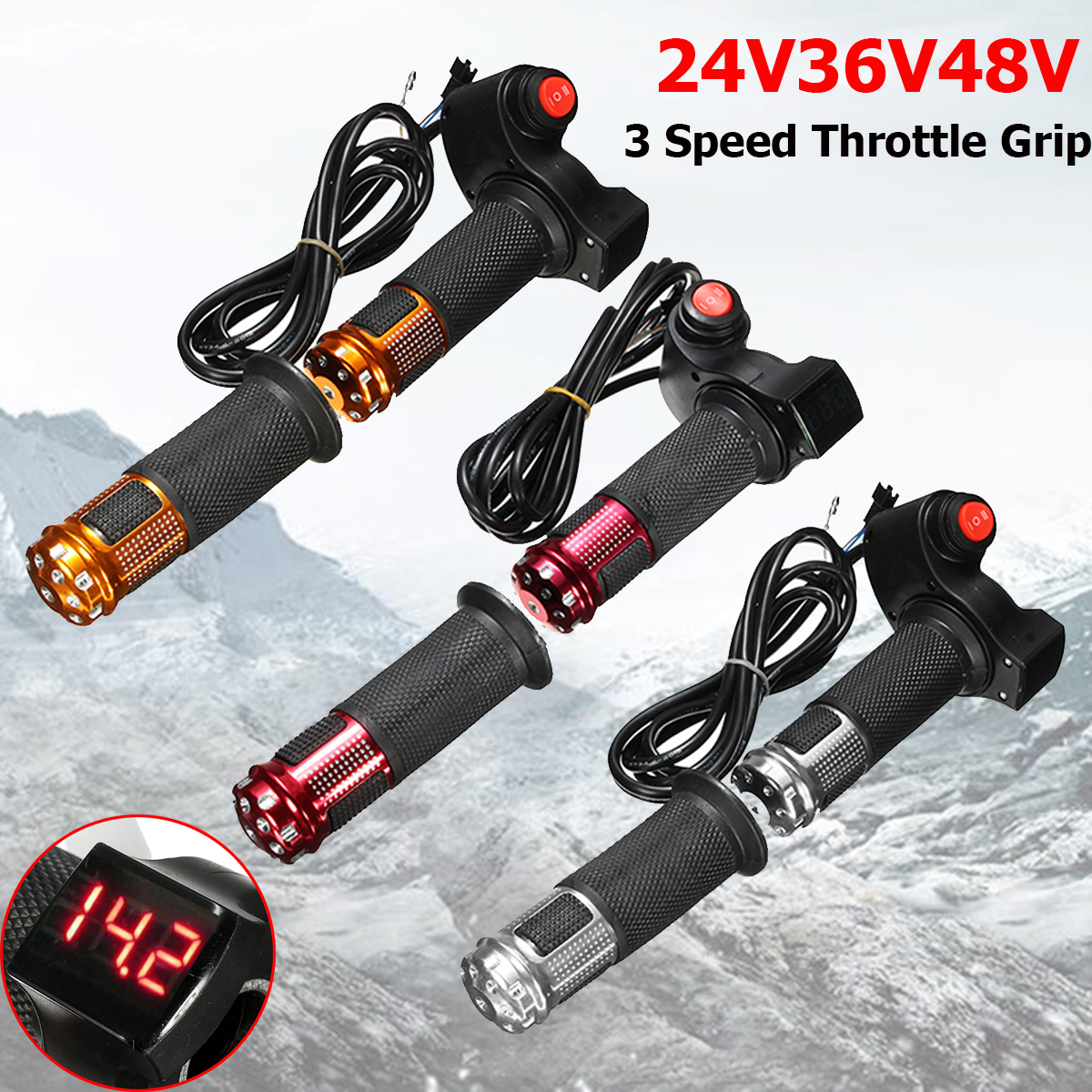

24V 36V 48V 3 Speed E-bike Scooter Throttle Grip Handlebar LED Digital Meter
$18.99
- Product Code: ED0016197
- Availability: In Stock
- Ex Tax: $18.99
Available Options
Description:
Suitable for 12v-99v E-bike
Fit for 22mm diameter Handlebar

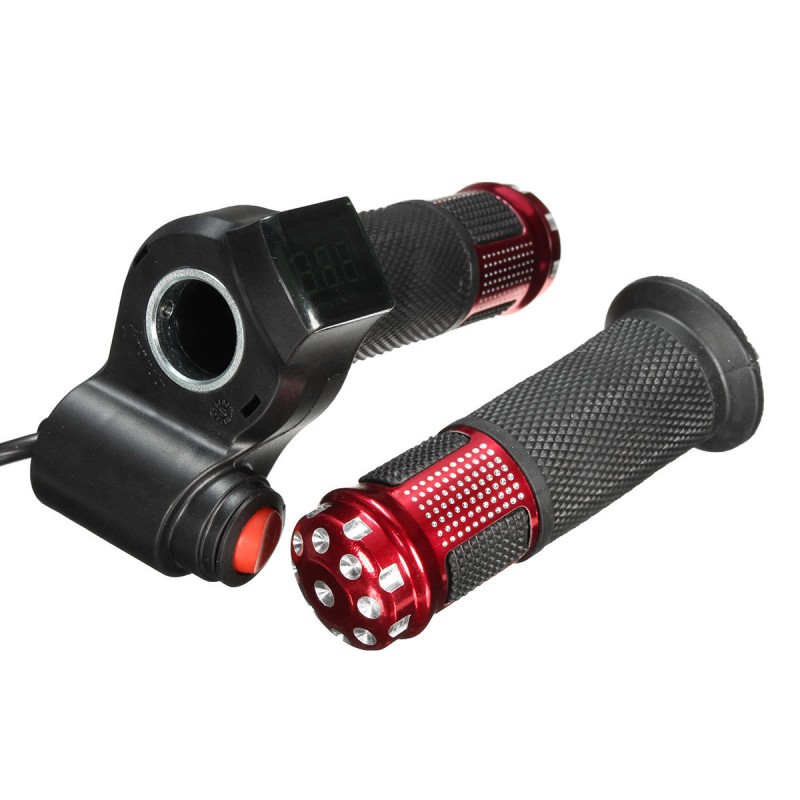

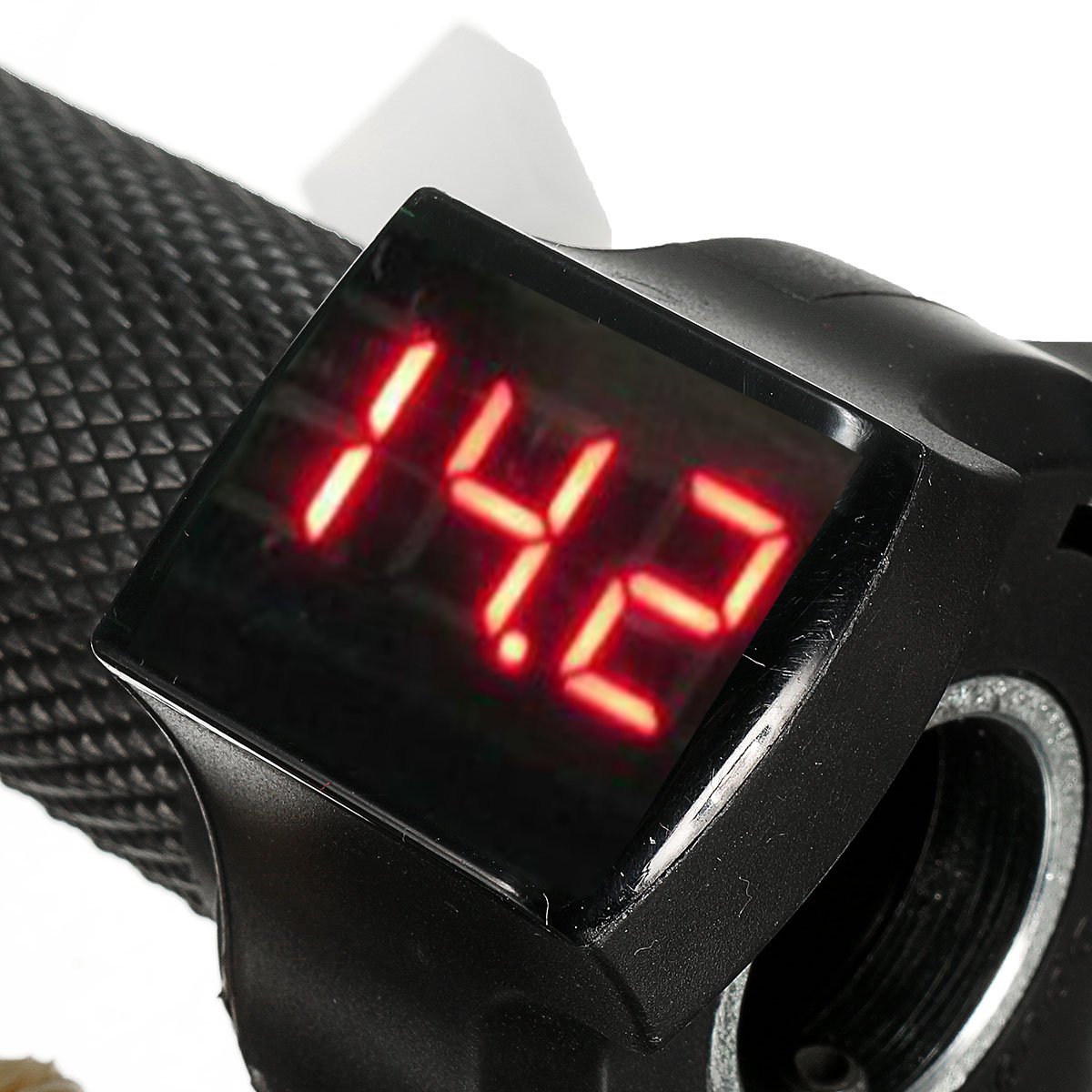

This Throttle grip using digital display battery voltage display the remaining battery power,
regardless of lithium batteries, lead acid batteries, aqueous batteries, dry batteries,
below 100V electric vehicles can be used, it can automatically identify the voltage, real-time display.
Specification:

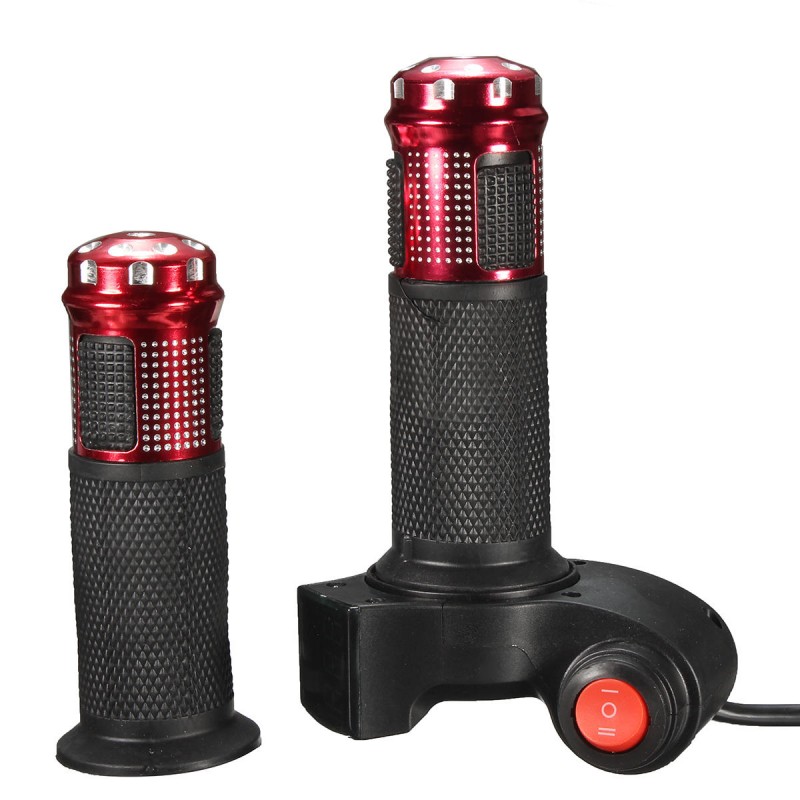

Name: E-bike Throttle Grip
Model: 536926

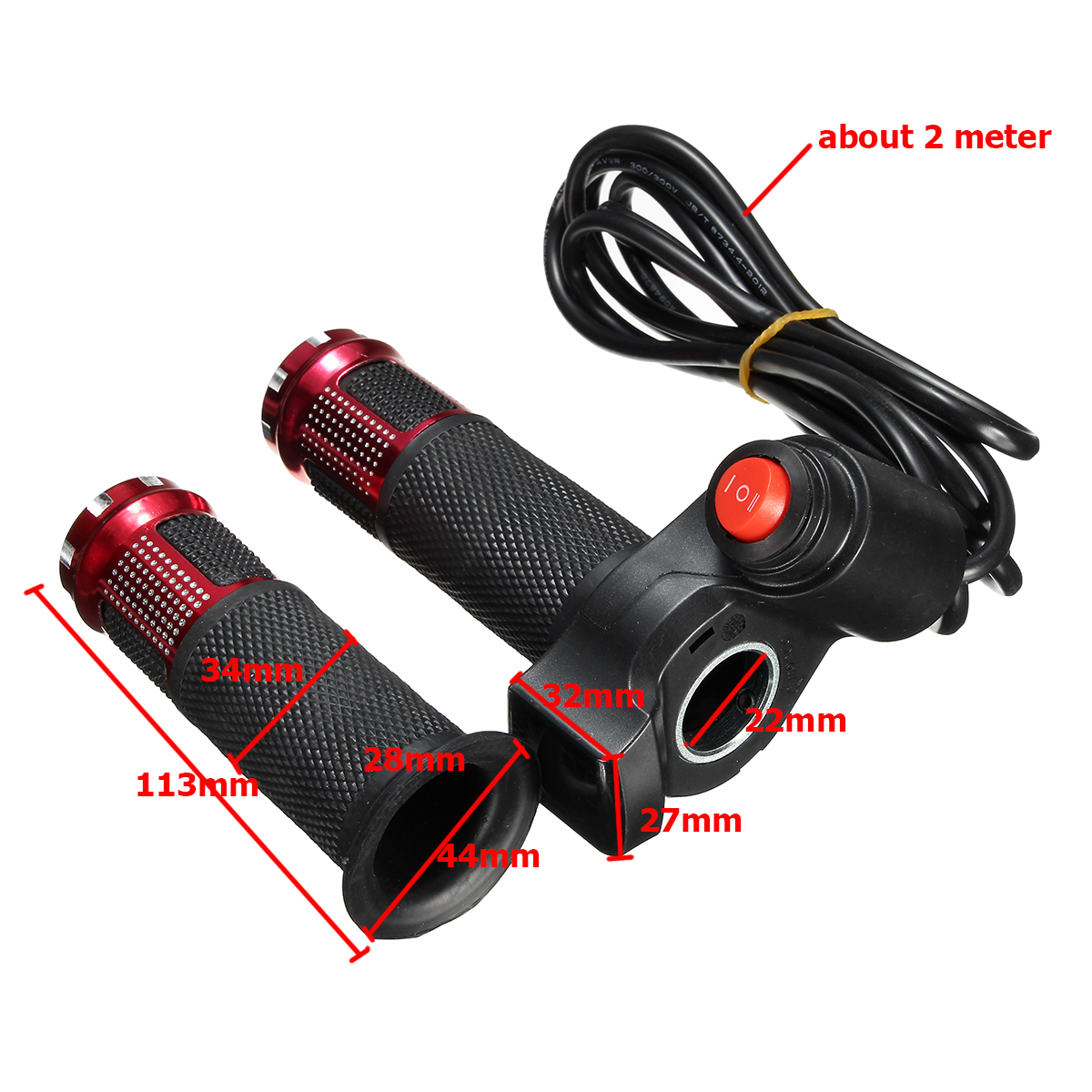

Product Size: 113x 34mm(length * dameter)

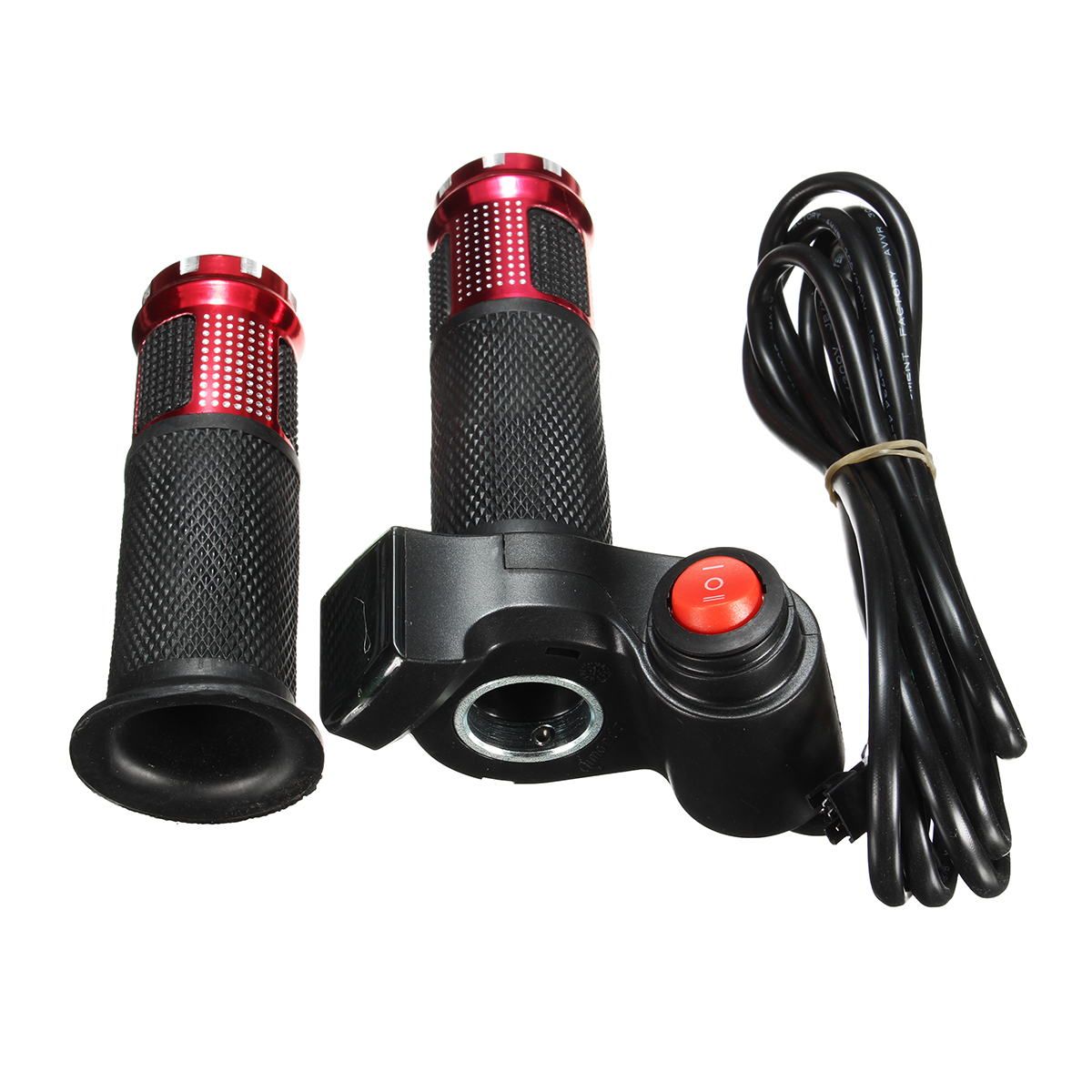

Cable Length: About 2 meter

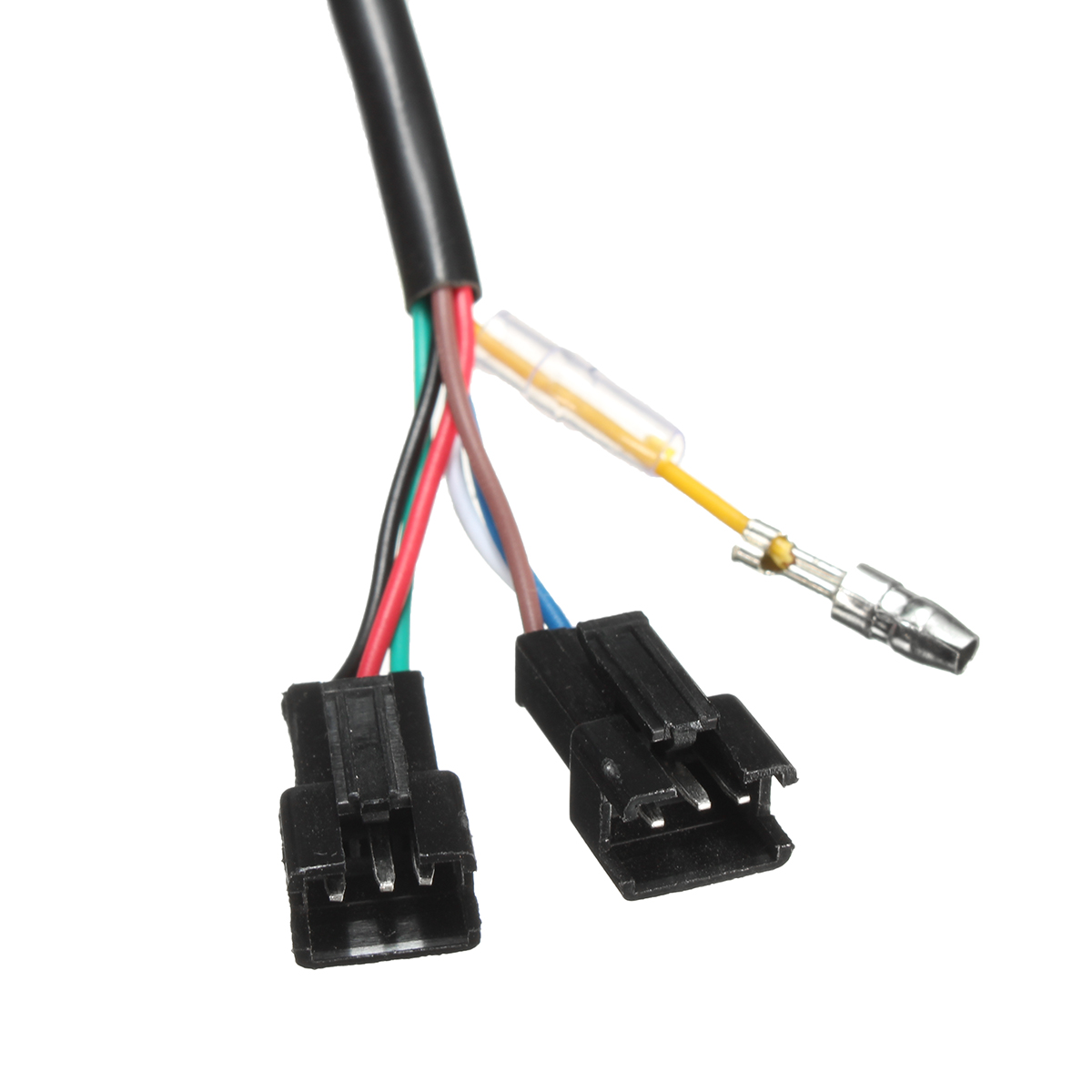

Yellow Wire: Power + 24v / 36v / 48v
Red Wire: +5v
Green Wire: Signal
Black Wire: -
Blue Wire: I/O button, such as light,horn
White Wire: I/O button, such as light,horn
Switch: Red button
Note: Please don't link wrong wire!!!
Maximum voltage indicates fully charged. Low voltage indicates the battery runs out.
Before the minimum voltage necessary to charge the battery
24V electric car, the maximum voltage of about 29V, the lowest of about 21V (charge)
36V electric car, the maximum voltage of about 42V, the lowest of about 29V (charge)
48V electric car, the maximum voltage of about 54V, the lowest of about 39V (charge)
Installation method:
Speed to the red, black, green three lines, which the red line is the positive pole (the controller must be
Transferred to the line of the positive pole line can not be wrong, remember!), The black line is to turn the
Negative, the green line is to turn the signal line, a separate yellow is connected to the battery positive line.
Note:
When installing the non professionals, please pay attention to the line order, can not be connected to the
Wrong line, otherwise it is very easy to cause the burning of Holzer and LED tube
Package Included:

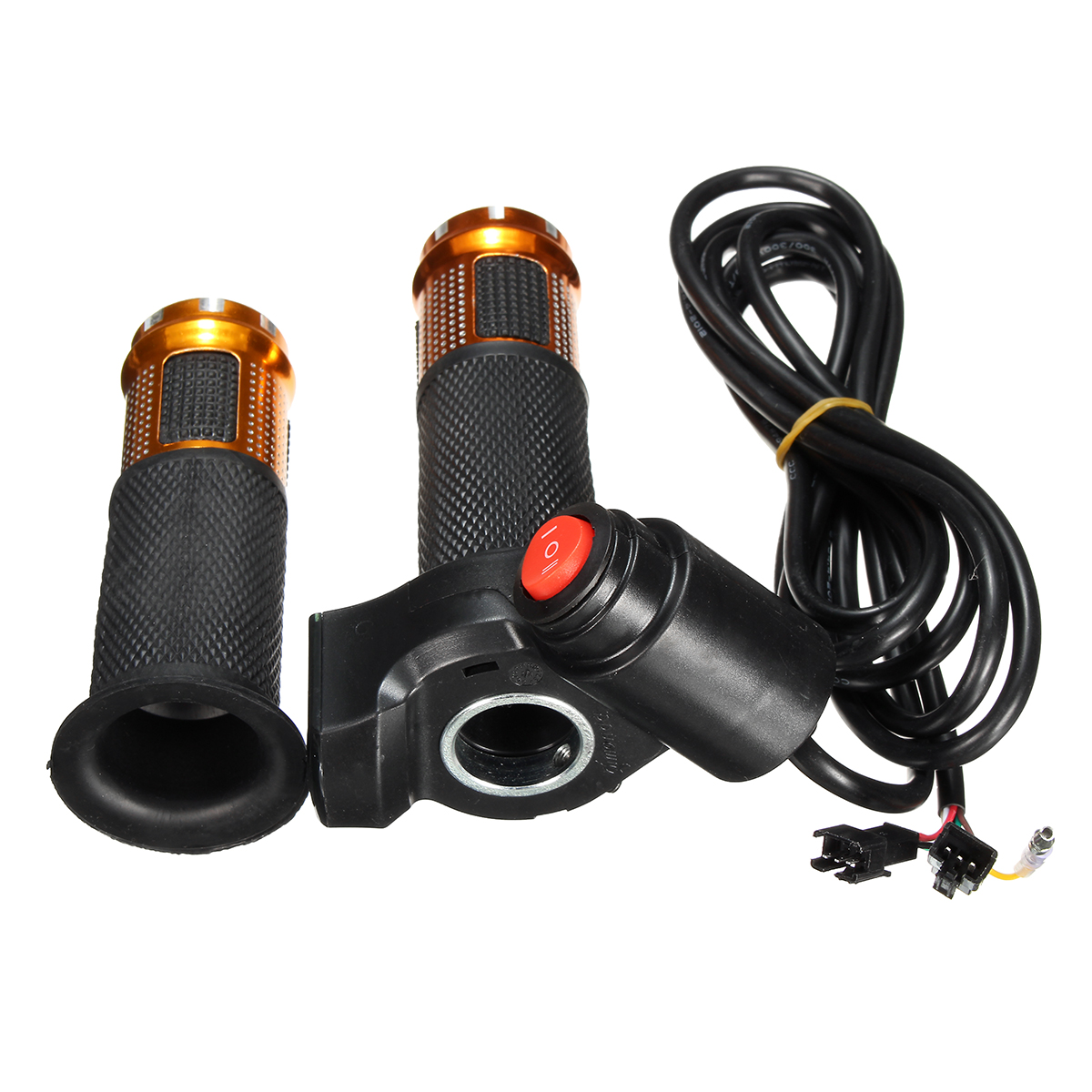

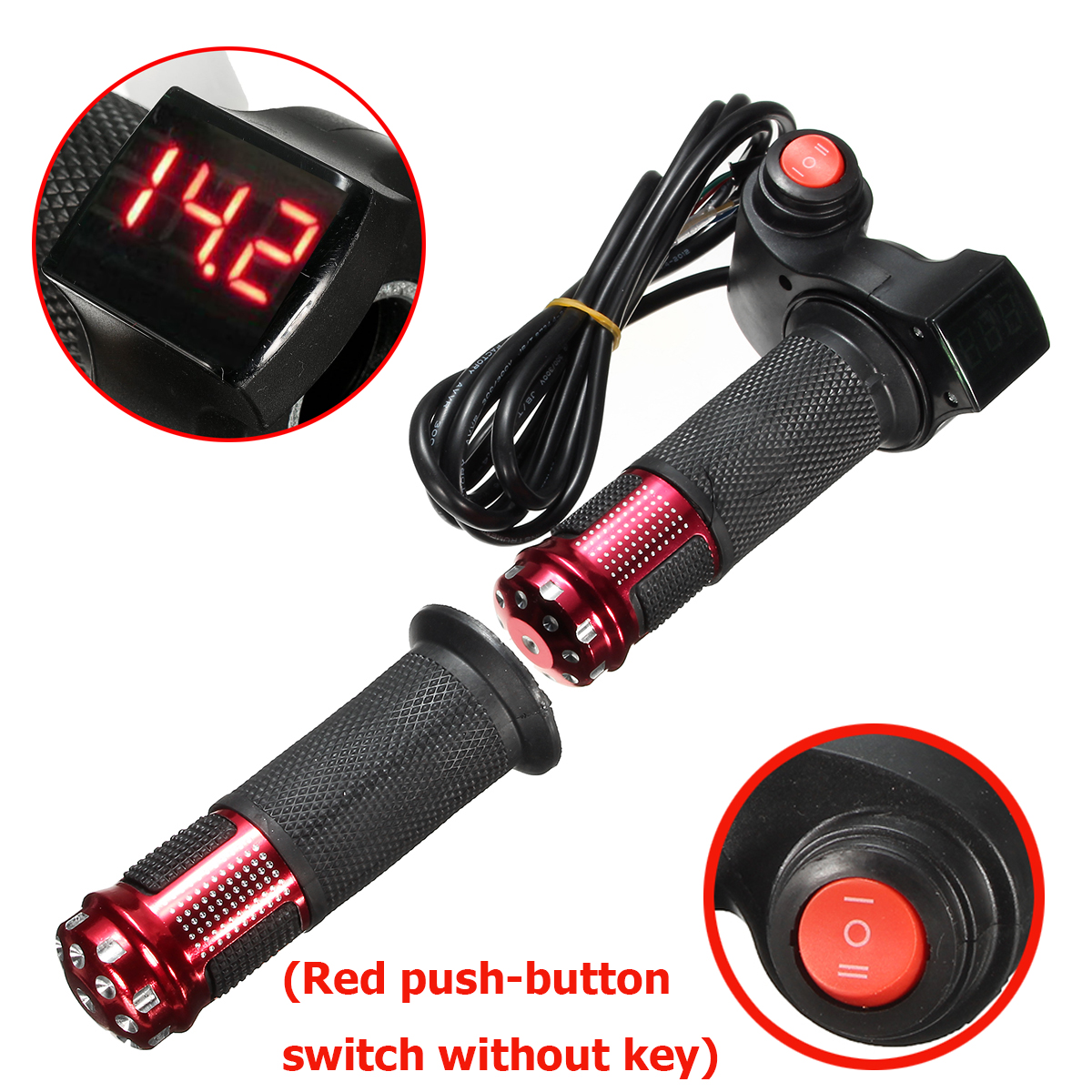

2 X EBike Throttle Grip(Red push-button switch without key)
,
,
,
,
,
,
,
,
,
