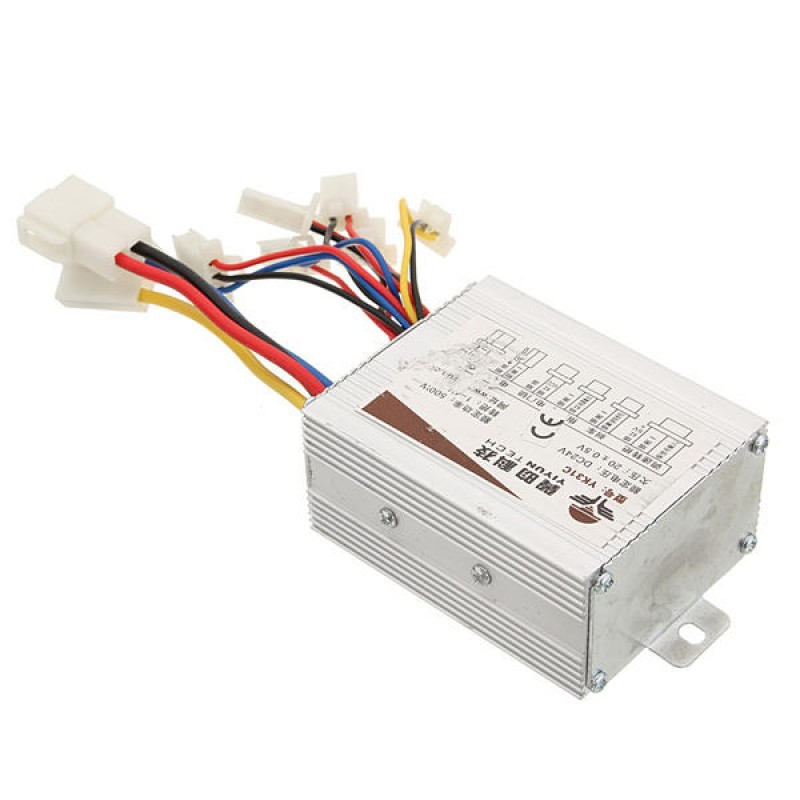

24V 500W Motorcycle Brush Speed Controller & Scooter Throttle Twist Grips
$37.99
- Product Code: ED0016432
- Availability: In Stock
- Ex Tax: $37.99
Description:

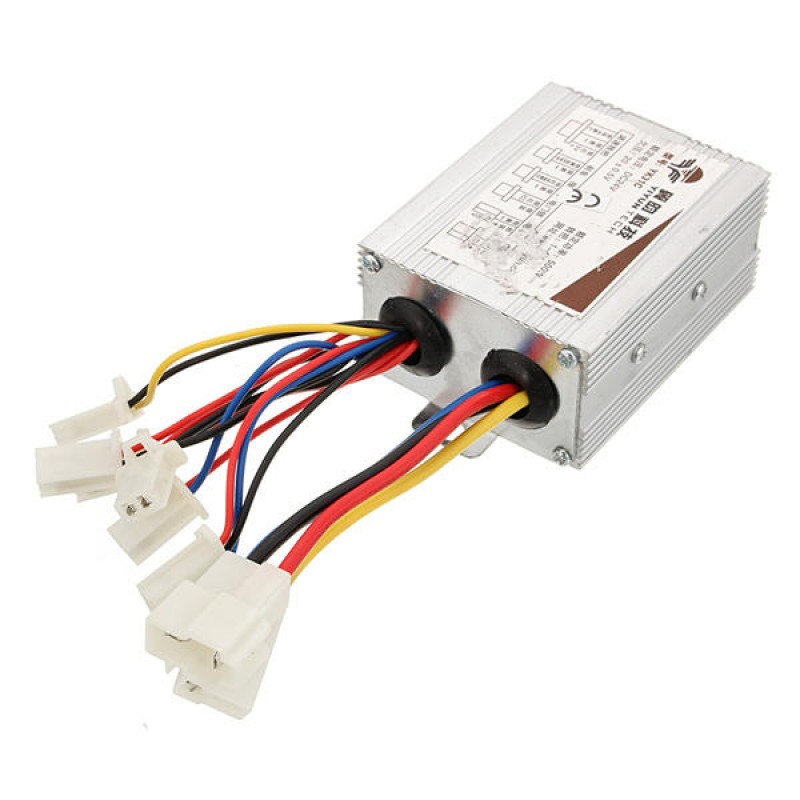

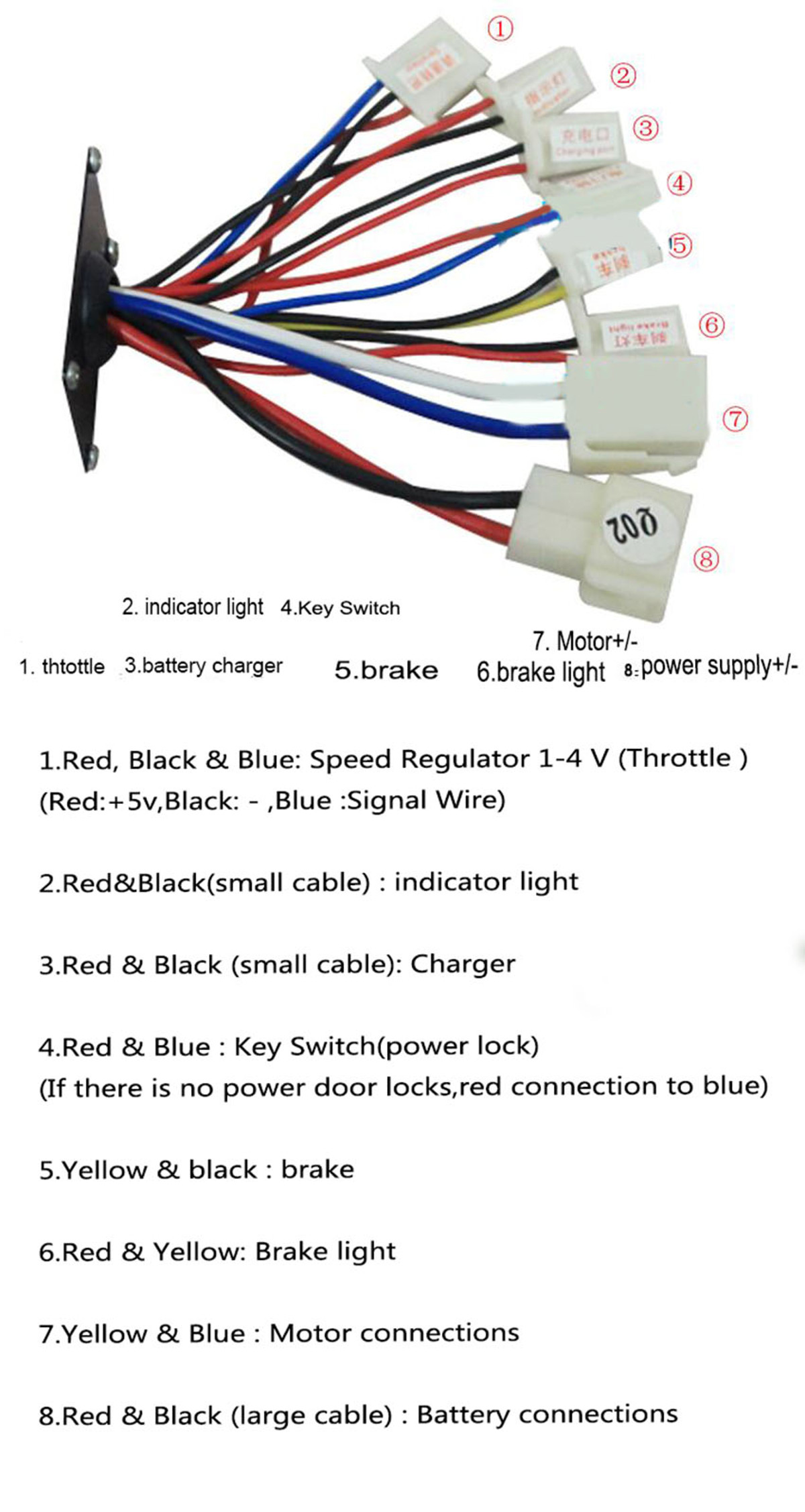

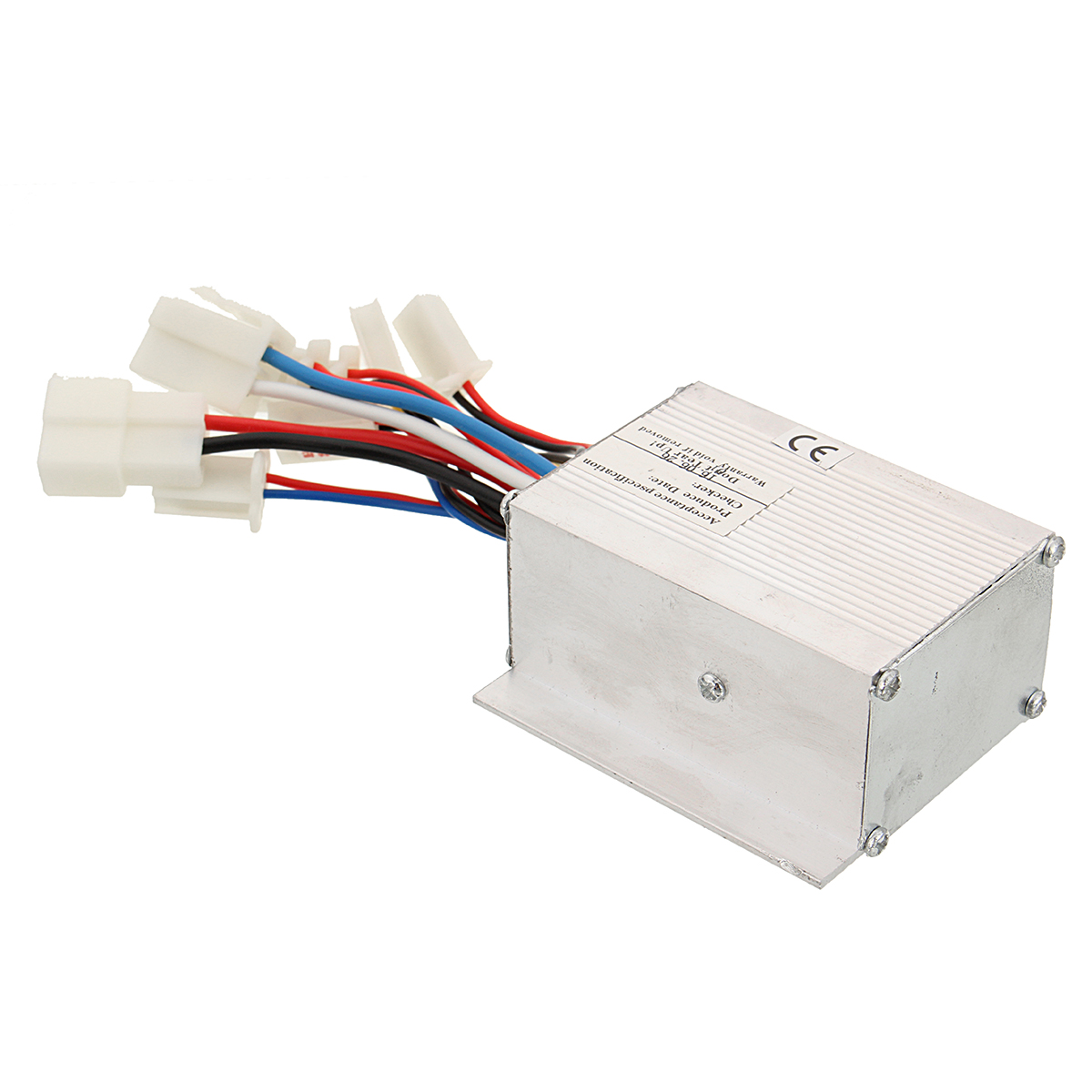

Controller Wires Interface Definition
Battery :Thick Black (Power Negative) /Thick Red (Power Positive)
Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive)

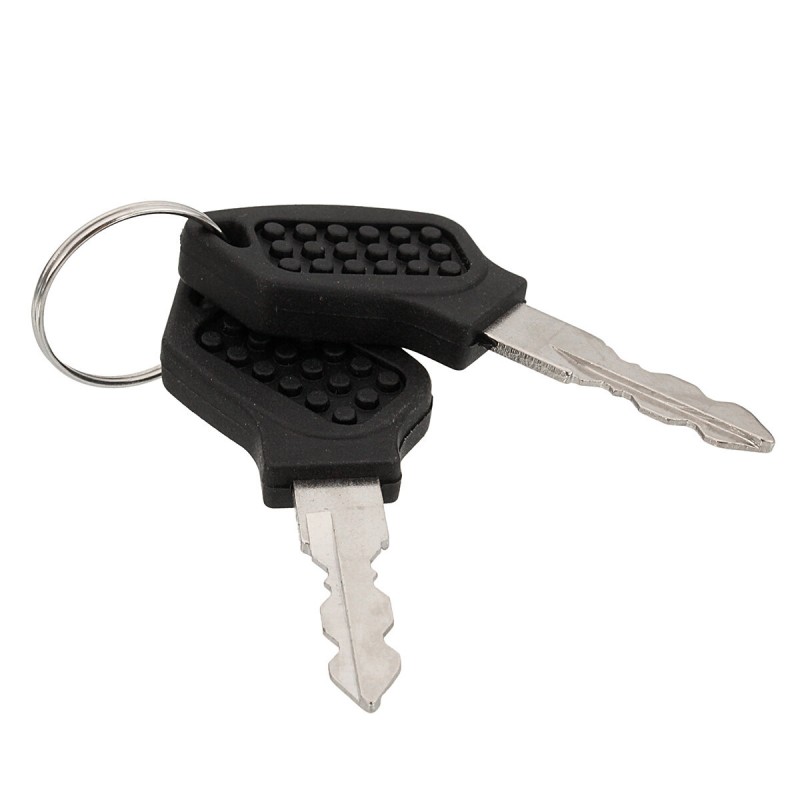

Ignition Switch :Thin Red(VCC)/Thin Blue
Indicator : Thin red (Indicator power output) /thin black (indicator negative)
Brake :thin yellow (Brake signal)/thin black(Negative Power)
Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)
Charge Port : Thin red (charge input power Positive) /thin black (Power negative)
Brake Light: Thin red (power Positive) /thin black (Power negative)
Specification:
|

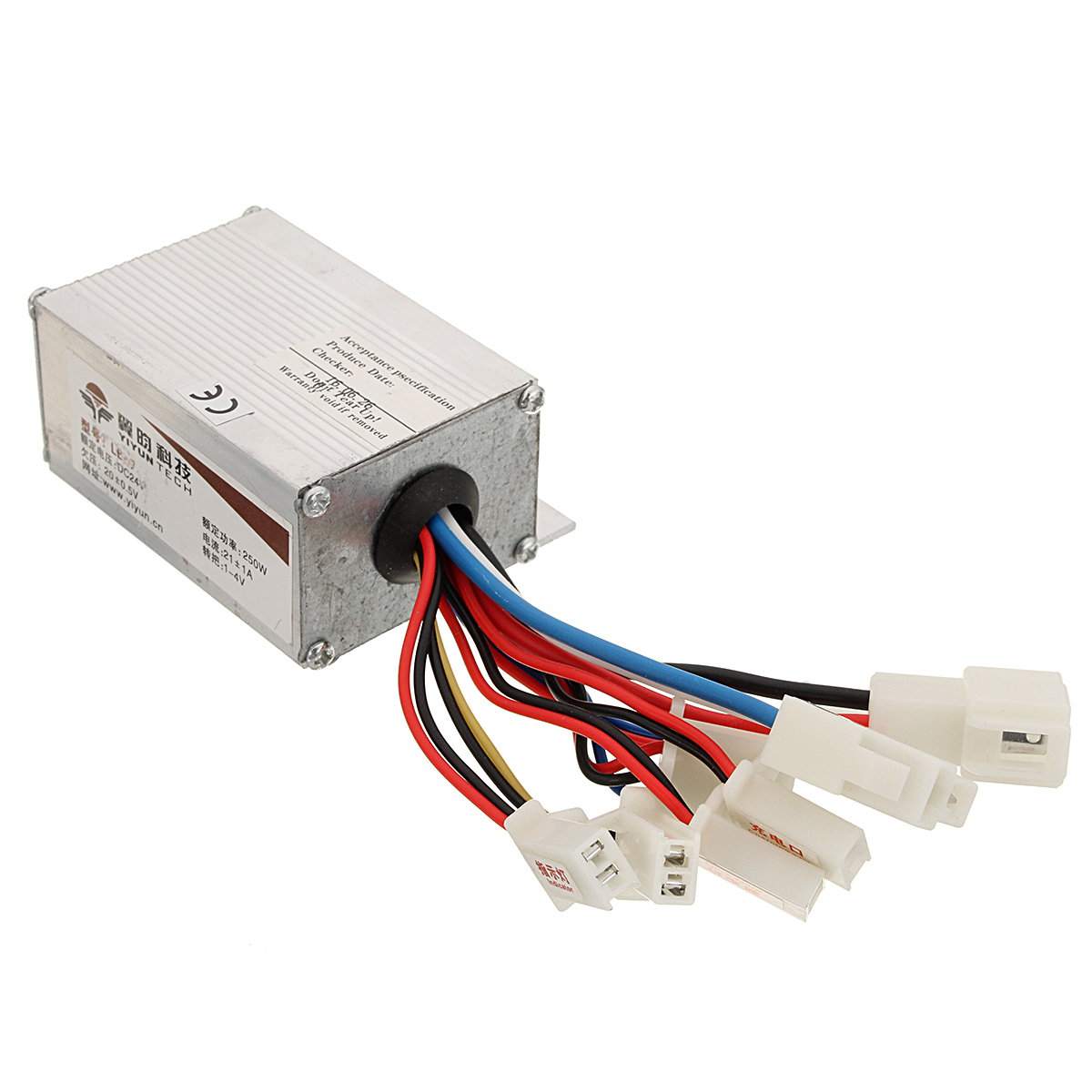

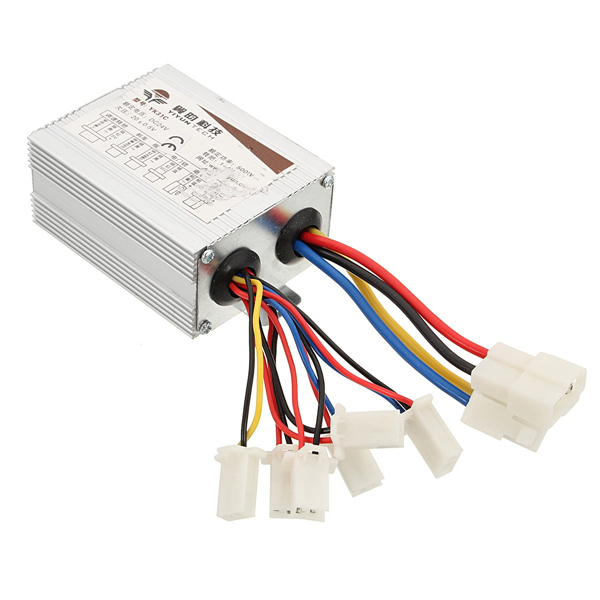

Brushed Controller |
|

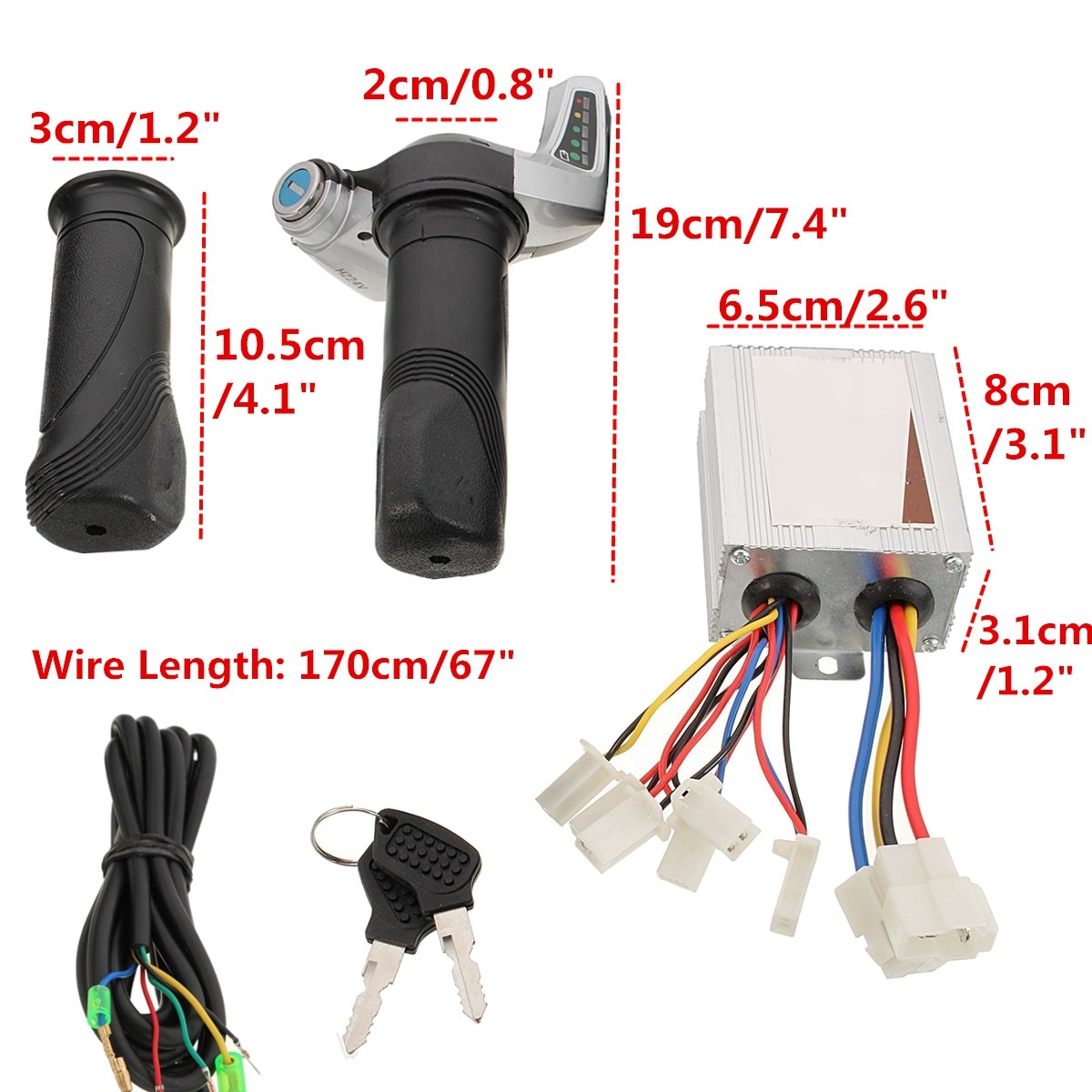

| Size: Size | (Length x Width) 8cm x 6.5cm / 3.1" x 2.6" |
|
Motor brushed controller |
for Electric bicycle & scooter |
|
Rated voltage |
dc 24 v |
|
Current limit |
28A |
|
Rated power |
500 w |
|
matching motor |
dc brushed motor |
|
Under Voltage Protection |
20V |
|
Handlebar |
|
|
Size |
(Length x Diameter)10cm x 2cm / 3.9" x 0.8" |
|

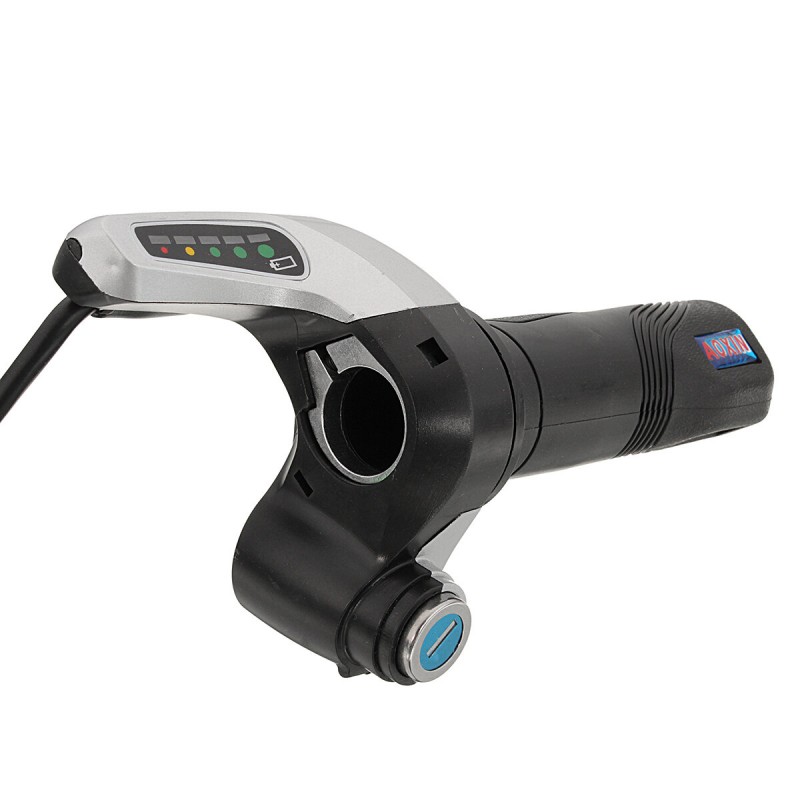

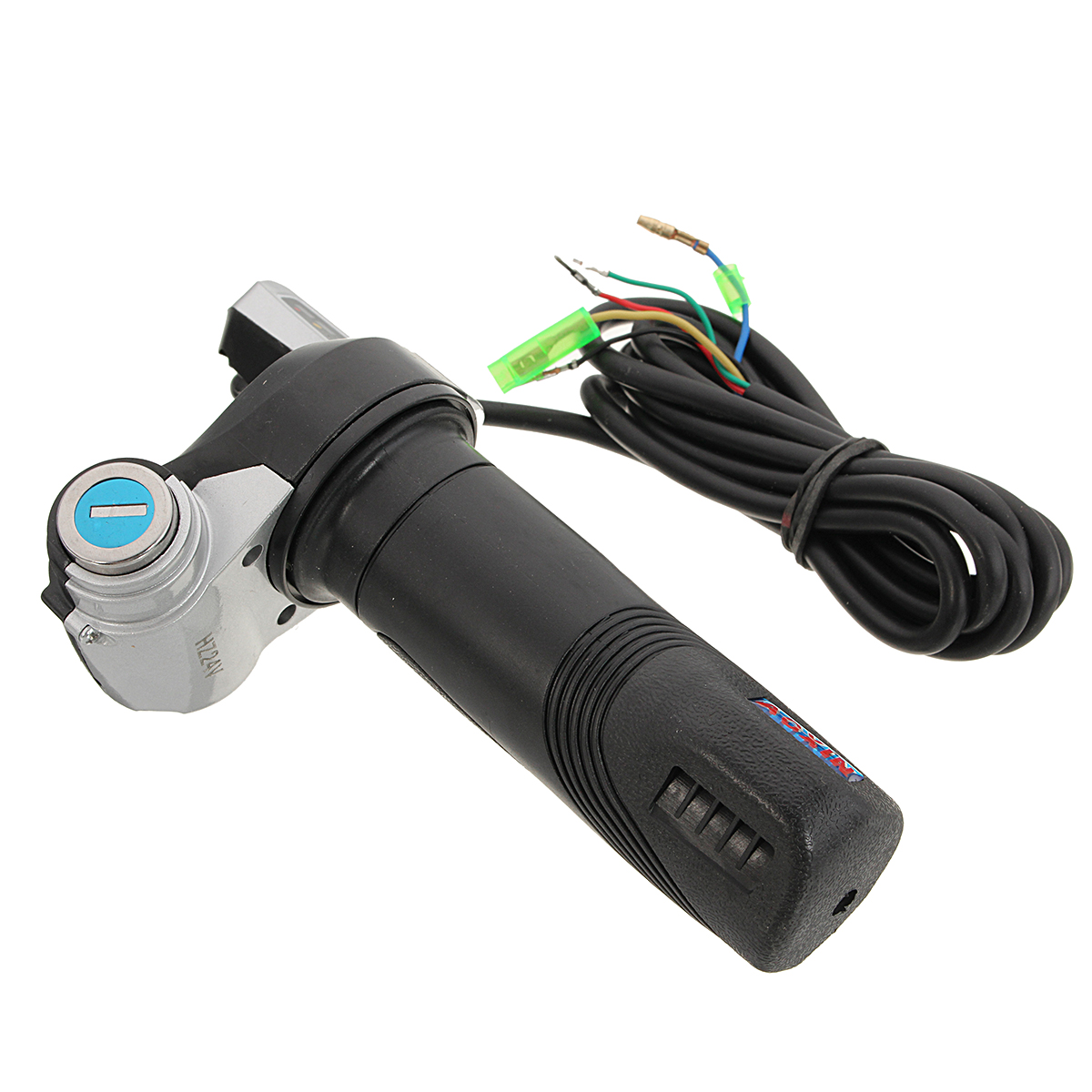

Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator. |
|
|
Throttle Works Voltage: |
DC5V |
|
Speed Adjusting Signal |
0.8V~4.3V |
|
Power display Voltage |
DC 24V |
|
Power display: |
|
|
Normal |
23V above, 3 Led Green |
|
Half |
23V ~ 20V, Led Yellow |
|
Empty |
20V or less, Led Red |
|
Rotation angle |
0 °~ 70 ° |
|
Working temperature |
-20 ℃~ +50 ℃ |
|
Fit |
standard 7/8 inches(22.2mm) handle bars |
|
Cable length |
approximately 59 inches (1.5m) |
|
Qty |

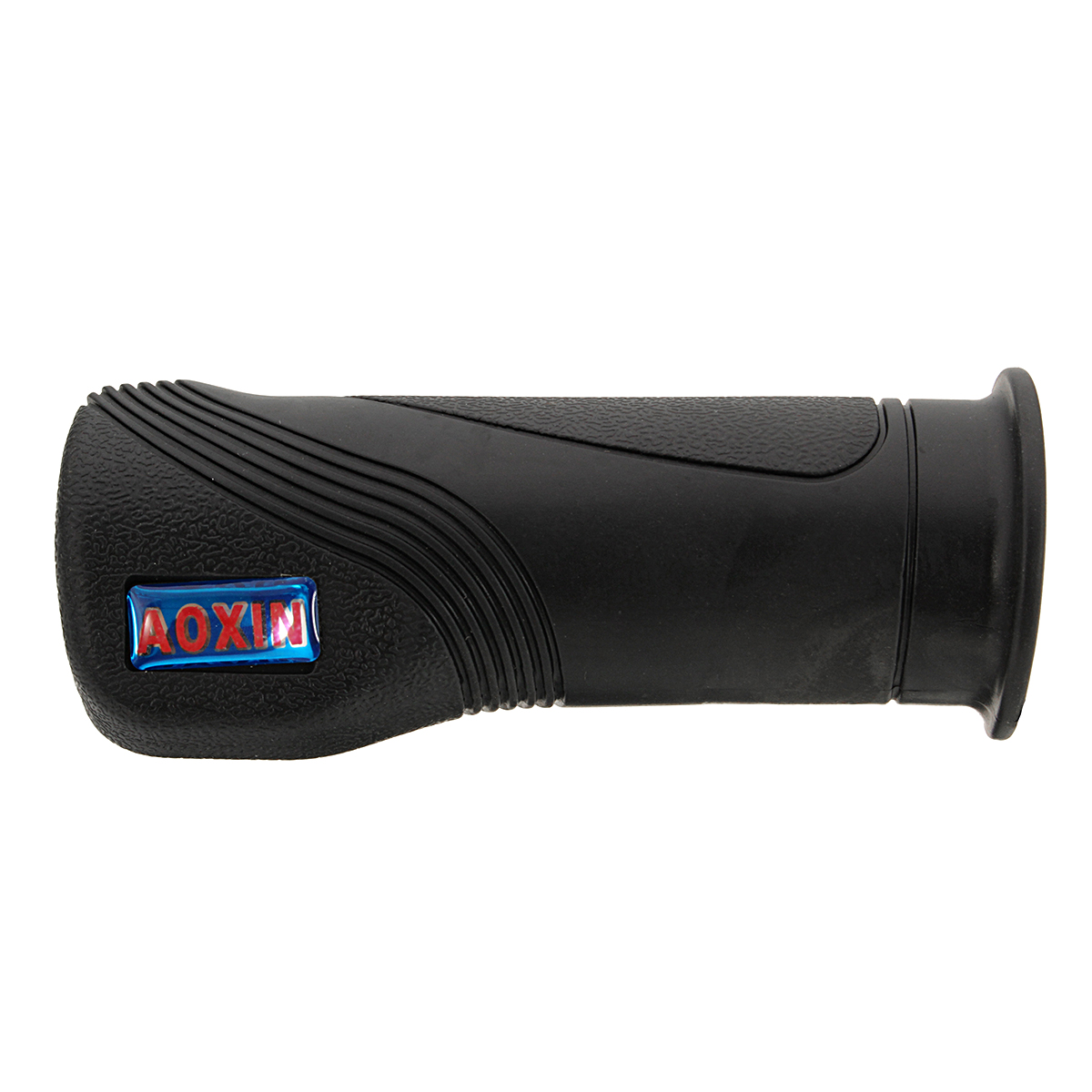

2PCS (1 Twist throttle grip and 1 normal grip (matching thumb grip) ) |

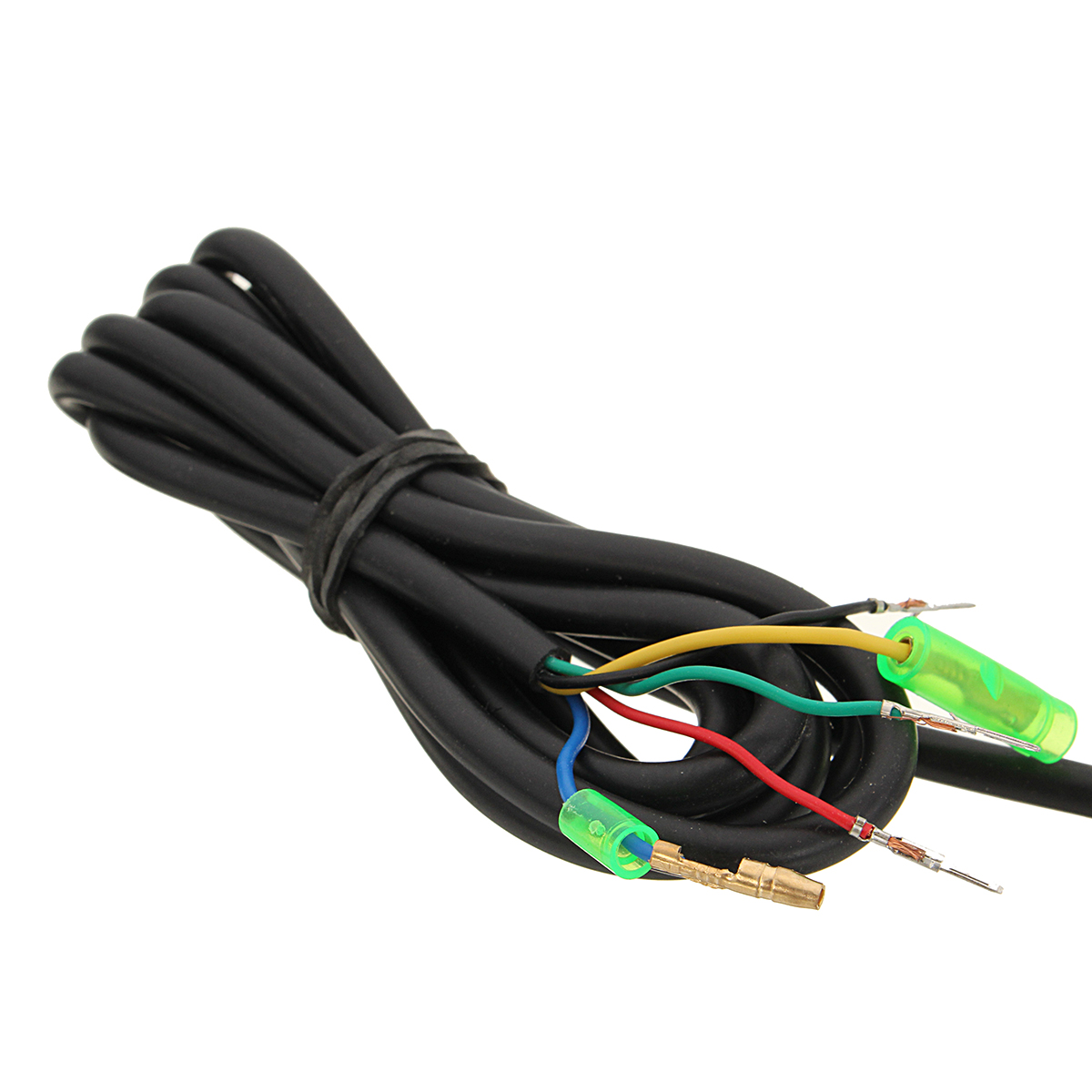

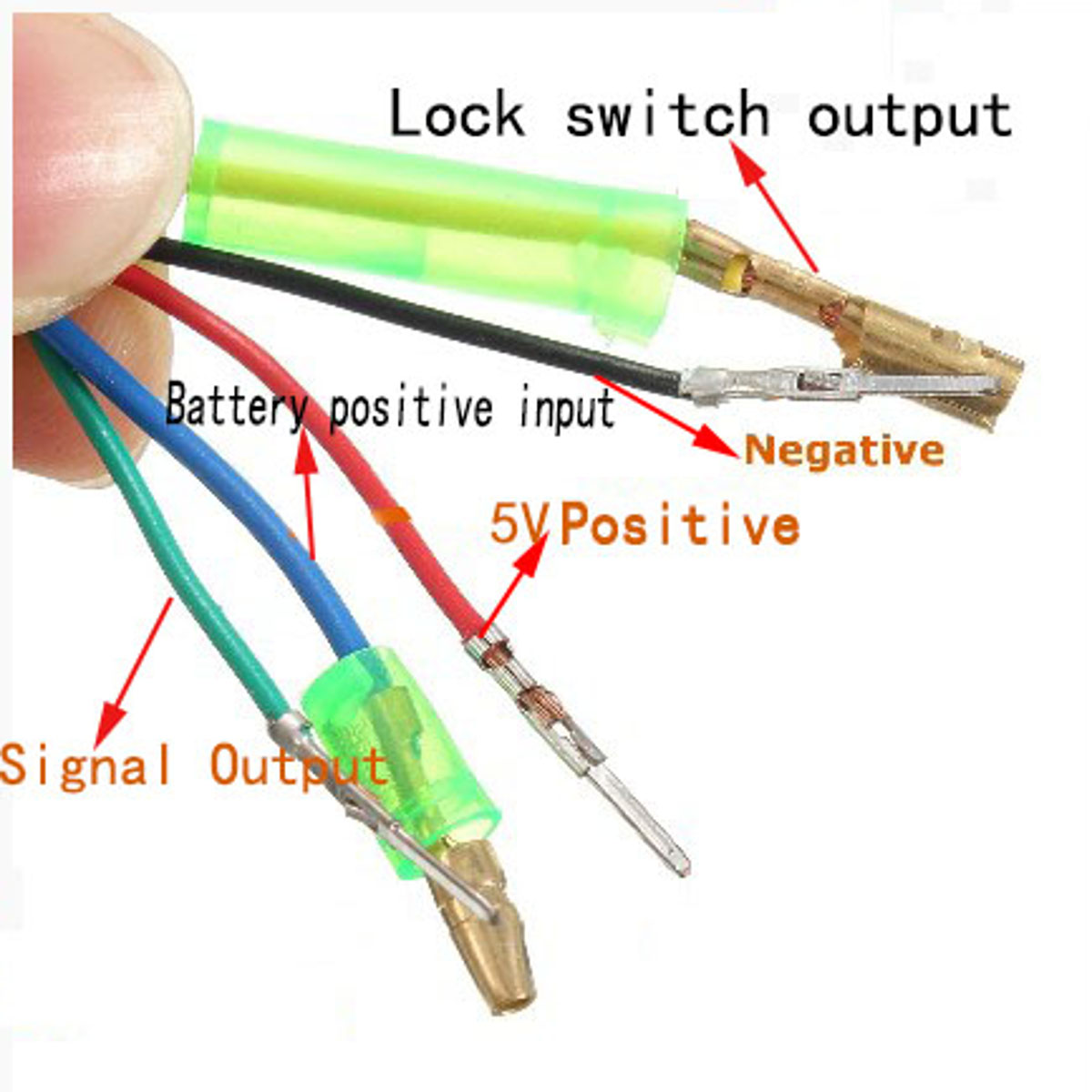

Throttle Wiring Diagram:
Throttle Controller Description
Red connects to Red Voltage 4.3 to 5.0 Volts
Blue connects to Black or Yellow Ground
Green connects to Green, Blue or White Speed Adjusting Signal (0.8 to 4.3 Volts)
Yellow connects to Power positive Power display
Note:
1.Please allow 1-3cm error due to manual measurement.Pls make sure you do not mind before you bid.
2.The color may have different as the difference display, pls understand.

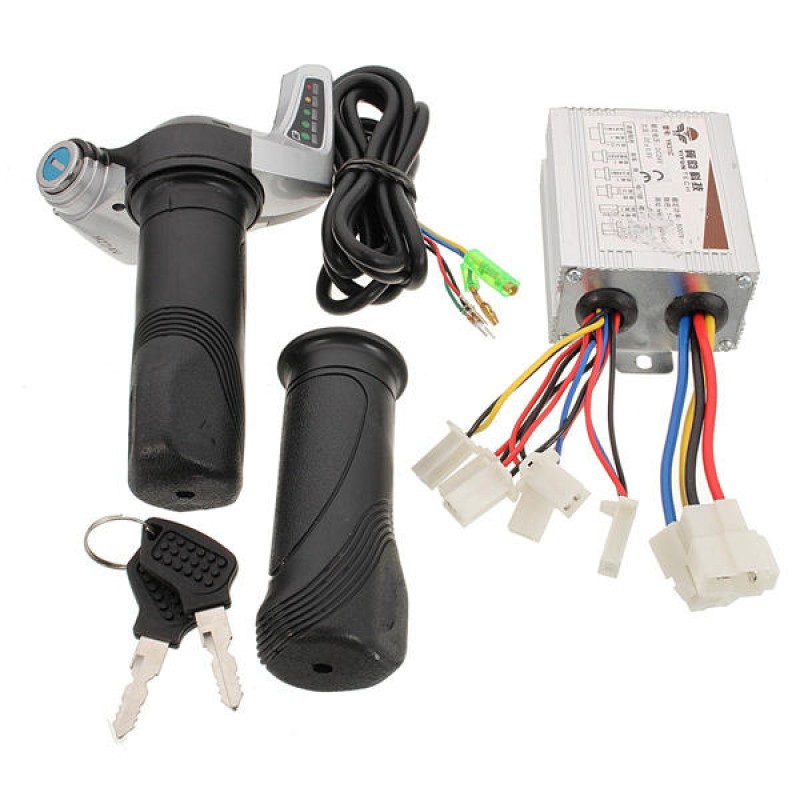

Package Included:
|
1 X |
24V 500W Motor Brushed Controller |
|
1 X |
Throttle Grip (With One Normal Grip) |
