24V36V48V250W350W BLDC Motor Speed Controller LCD Display For MTB E-Bike Scooter Model A

$68.99

  • Product Code: ED0021329
  • Availability: In Stock
  • Ex Tax: $68.99

Available Options

Description:
Model A is for customers who like pedal assistance more
Called pedal assist 5 gears controller and LCD meter sets
General introduction
Adjust the 1:1 assistance power, each gear has different max output power, 0 gear-shut down assistance, (only mechanical work) . 1-5 power rate
1 gear 20% speed
2 gear 40% speed
3 gear 60% speed
4 gear 80% speed
5 gear 100% speed

Under each gear the no-load speed will be full.
Unique power assistance gear design, can adjust the power without limit the speed.
Use the power supply reasonably, and extend the range, provide different power according to different road condition,
make your riding very comfortable. The other competitive products has power assistance gear but to adjust the speed only,
never considered controlling the current, that waste the power and miss-stepping will happen.
Unique low power mode design will control the discharging when power is low.
The battery will be easily damaged when power is low. When you are riding, if power is low, that will appear ‘stop-and-go’. This model has low power control mode to solve this phenomenon to protect your battery and make your riding comfortable.
Can adjust speed limit-use the spin button to adjust the max rotate speed of motor accurately.

Controller Function Brief Introduction:

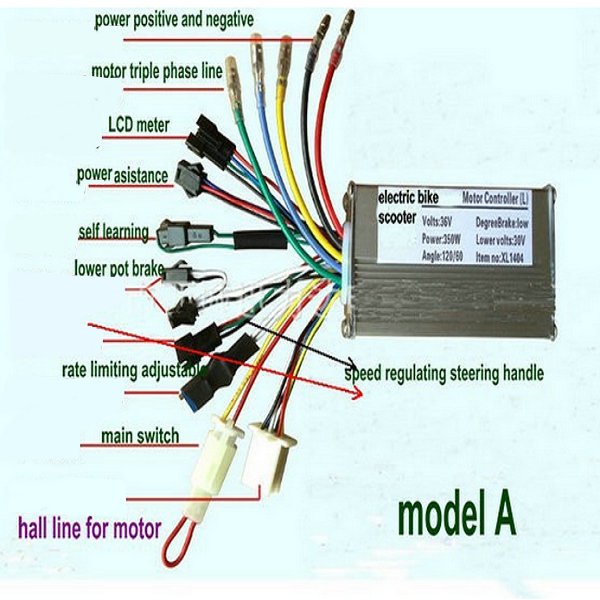

1. Speed control handlebar throttle: can connected with common handle bar, potentiometer, pedal accelerator,
default start stationary state: green signal wire has 0.8v voltage, when reach to 1v, bike moves, and reach to 3.4v,
bike reach to full speed, if 3.6-4.2v, bike will not move.
2. Brake and cut off power-low level brake, connect with brake handle switch, after the operation of mechanical brake,
cut off signal into controller, the controller is cut off power.
3.Speed limit adjustable-adjust the motor maximum rotating speed at any rate by turning button,
mainly used to adjust bike top speed, or rotative speed difference of two motors.
4.1:1 power assistance –this function mainly used on pedal electric bike, (which with assistance sensor and Magnetic encoder on pedal axis),
pulse signal of different frequency is sent by pedaling harder or slower, the controller push motor turing

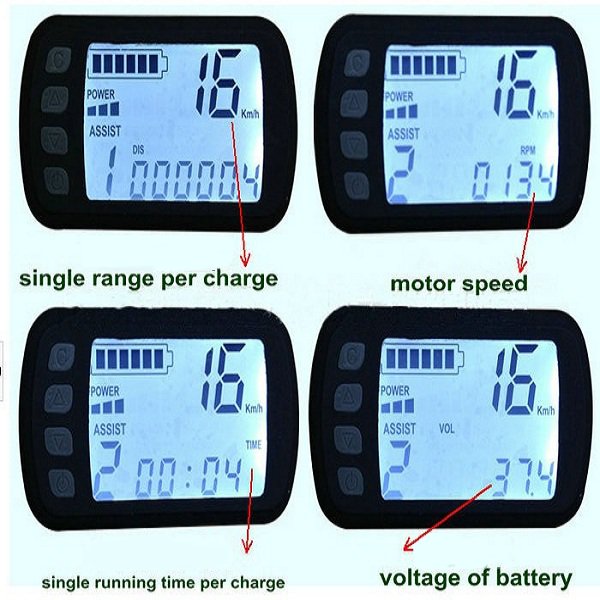

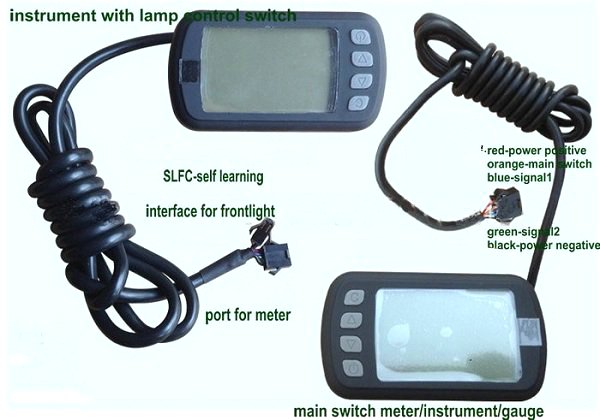

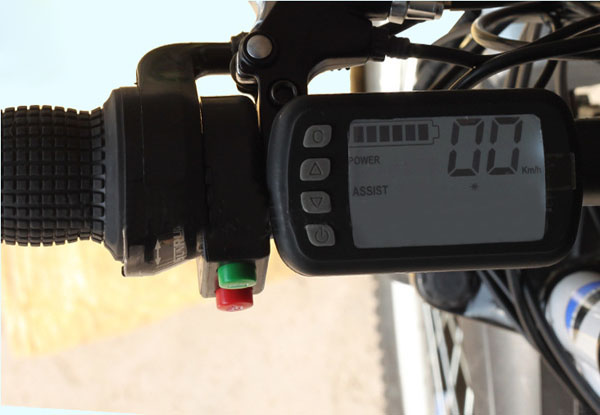

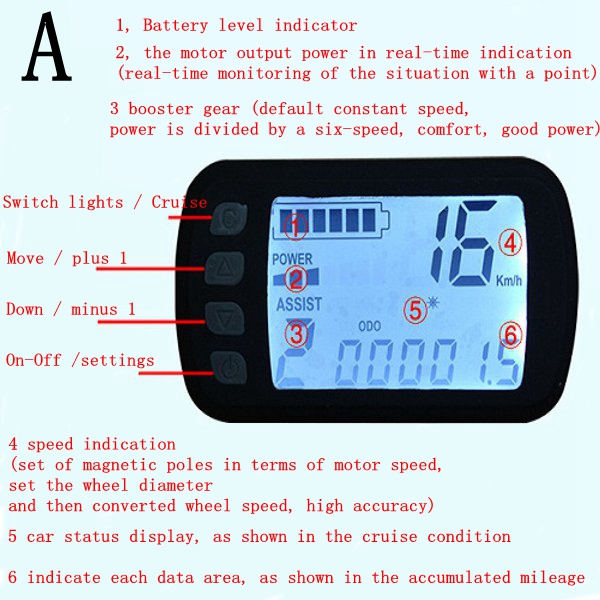

5.Led meter-has function bellow: indicate battery level, output power, speed, assistance gear adjust and indicate,
singe range, cruise, failure, historical range, running time, wheel rotating speed…
6.Self learning- connect power cable, motor phase wire, hall wire, main switch wire, handle bar wire, learning wire,
switch on power and bike lock, the motor will start to work. If the turning direction is right, please cut off learning wire.
The learning is finished. If direction is opposite, please cut off learning wire, the motor will switch direction automatically, work 2-3 seconds, cut off learning wire, the learning is finished.( attention please !cut off learning wire after learning)
7.Cruise- default setting : keep bike rung at a speed for 6 seconds , it will start automatic cruise .
if u need manual button to control, can be connected directly, if you donot need cruise, just disconnect the connector .
8.The main switch default setting-short circuit. Connect and power on it will work. If bike has key lock, take off the short circuit connector, will be ok.
If bike with battery level indicator, connector the indicator with yellow wire.
9.Other functions can be made to order. Such as start at non-0 gear, reverse, burglar alarm and so on

Controller Software Function Introduction:
1.Match with various brushless motor, such as high speed motor, differential motor, wheel hub motor,
ebike deceleration clutch motor, and other motors that commonly used on ebike, scooter, e car and so on
2.Start no noise, from 0 to full speed need only 1.5 seconds.
3.Self checking-timely monitor the working state of each part of ebike
4. Intelligently indentify motor phase angle, can choose manually
5.Brake and power off, when take mechanical brake, i.e. handler bar brake, will stop to supply power to motor
6.Temperature control protection
7.Intelligently manage battery system
8.Overload protection
9.A strong start toque
10.Intelligently control the voltage and current during EABS
11.Timely control phase current
12.Overrun monitor-make sure the bike will not be started if handle bar did not work good
13.Overvoltage protection , low power protection,
14.Double mode
15.Phase loss protection, protect battery, prolong battery life.

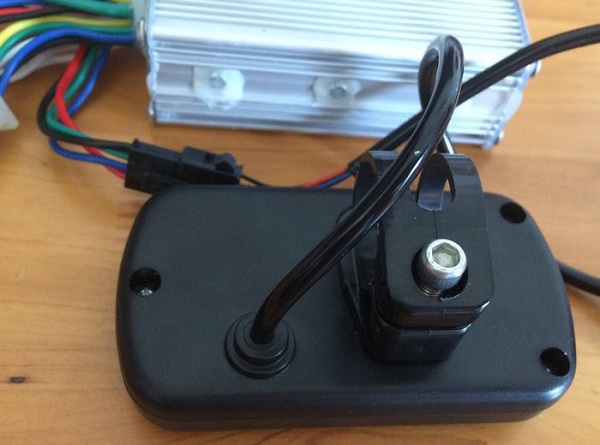

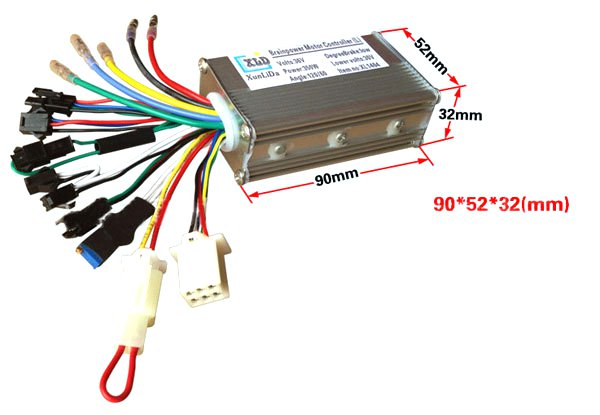

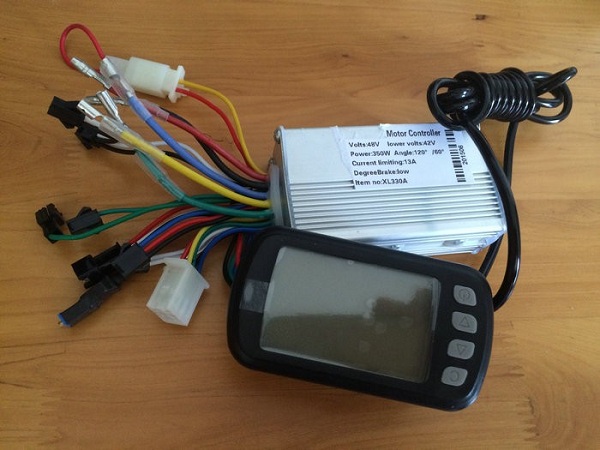

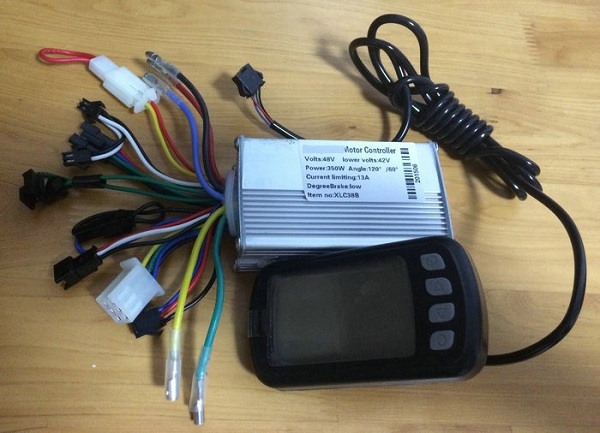

Specification:
Model: A
Rated Working Voltage: 24v /36v /48v
Rated Power: 250w-350w
Max Current: 10A-15A(default setting 13A)

Battery Undervoltage Protecting Point: 20V/31V/42V
(If need we can adjust this)
Adaptive Motor Phase Angle: 60º /120º

Application:
1.Fit for different battery: lead-acid, Li-Fe battery, LNCMO battery Li NiCoMn O2, and so on.
For different material there is different under voltage protecting point.
2.Fit for DC brushless geared motor <350w, and gearless motor, and high speed motor and so on

Advantages For This Controller:
1.Soft-undervoltage: the current falls automatically when the battery voltage is not enough.
This prolong the range and make you a more comfort riding
2.Automatically indentify motor phase and angle. You can learn with debug wire. operation method: connect power cable,
main switch wire, motor wire, hall wire, handle bar wire, learning wire, switch on power and bike lock,
the motor will start to work. If the turning direction is right, please cut off learning wire. The learning is finished.
If direction is opposite, please cut off learning wire, the motor will switch direction automatically, work 2-3 seconds, cut off learning wire, the learning is finished.( attention please !cut off learning wire after learning)
3.Dual mode. can work with motor with or without hall. Start no noise.
When motor hall work normally, controller work with hall mode. When motor hall damaged, controller can intelligently test it and change to no-hall mode and keep on work. (other controller if not double mode, cannot work if motor hall damaged)
