3.5HP 2 Stroke Outboard Motor Boat Engine WaterlAir Cooling System
$452.99
- Product Code: ED0020543
- Availability: In Stock
- Ex Tax: $452.99
Description:
Two strokes 3.5 hp and 3.6 hp are controlled by the handle, which is operated by the clutch.
There is no Neutral, only idle mode or low speed mode
There is no Neutral, only idle mode or low speed mode
What you will receive is our new version of this boat engine

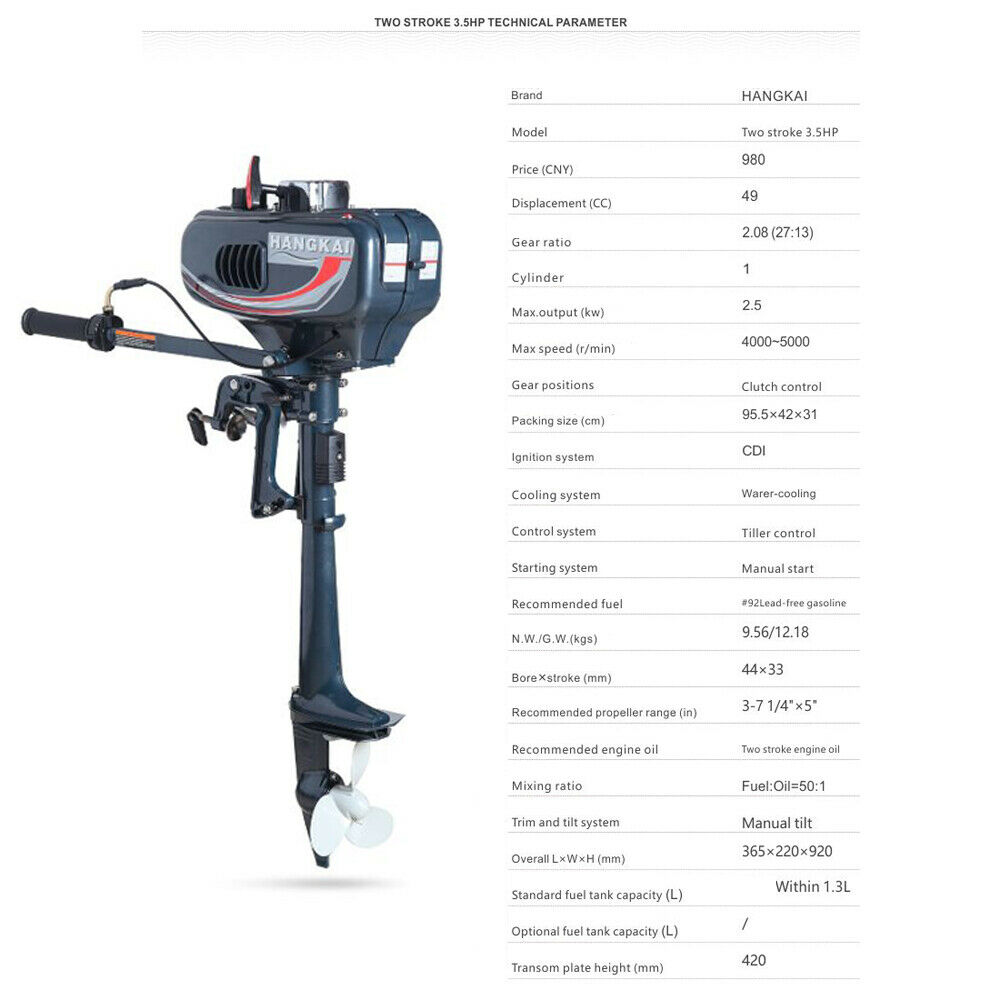

Specification:

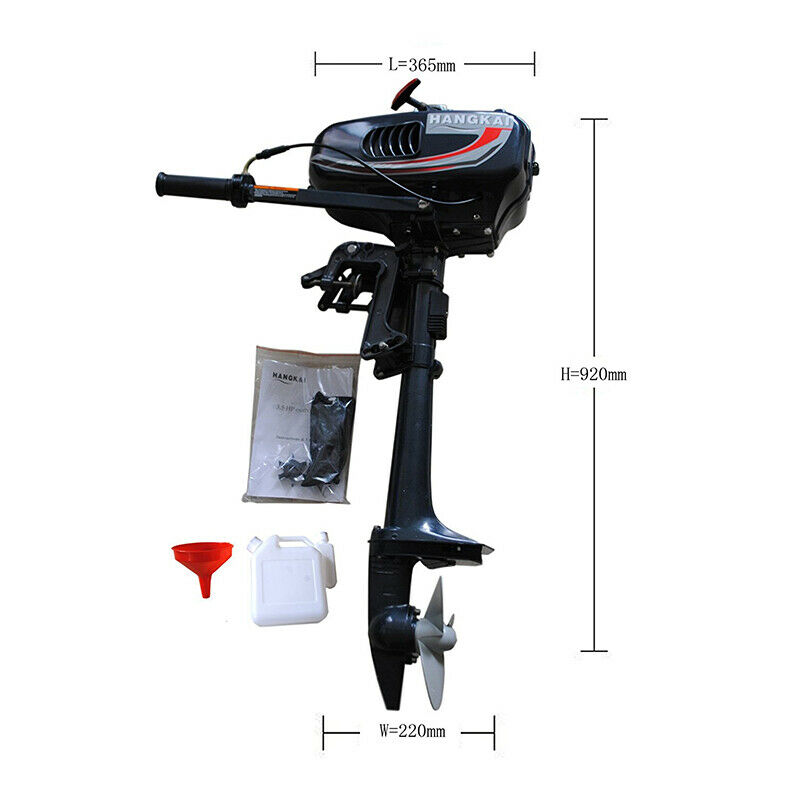

| Overall length |
92CM |
| Overall widteh |
36.5cm |
| Overall height |
22cm |
| Transom height |
42cm |
| Full throttle perating range |
4000-5000r/min |
| Maximum output |
2.5kw(3.5HP) |
| Speed |
12km/h(four people) |
| Type |
2-stroke |
| Ignition system |
CDI system |
| Starting system |
Manual start |
| Staring carburetion system |
Choke start] |
| Propeller mark |
7-1/45-A(inch) |
| The engine and the propeller ratio |
2:1 |
| Recommended fuel |
Regular unleaded gasoline |
| Fuel to oil ratio |
35:1 (Please be suject to this version, and disregard the manual about this point) |
| Gear ratio |
27/13 |
| Short shaft |
40cm |
Note:

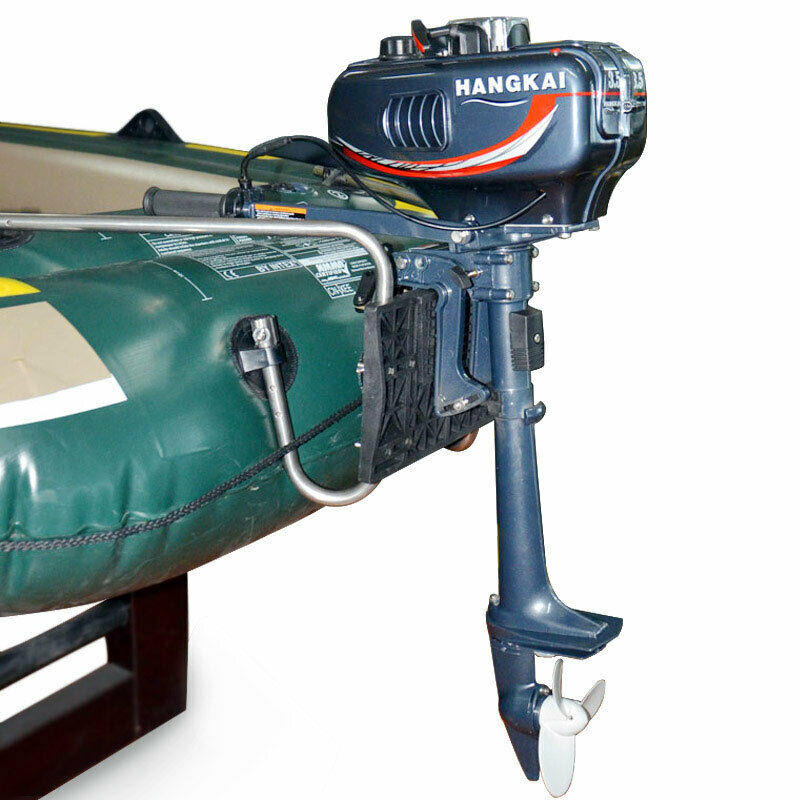

When at normal cruising,the appearance of the seventh picture. Falling back the boat,

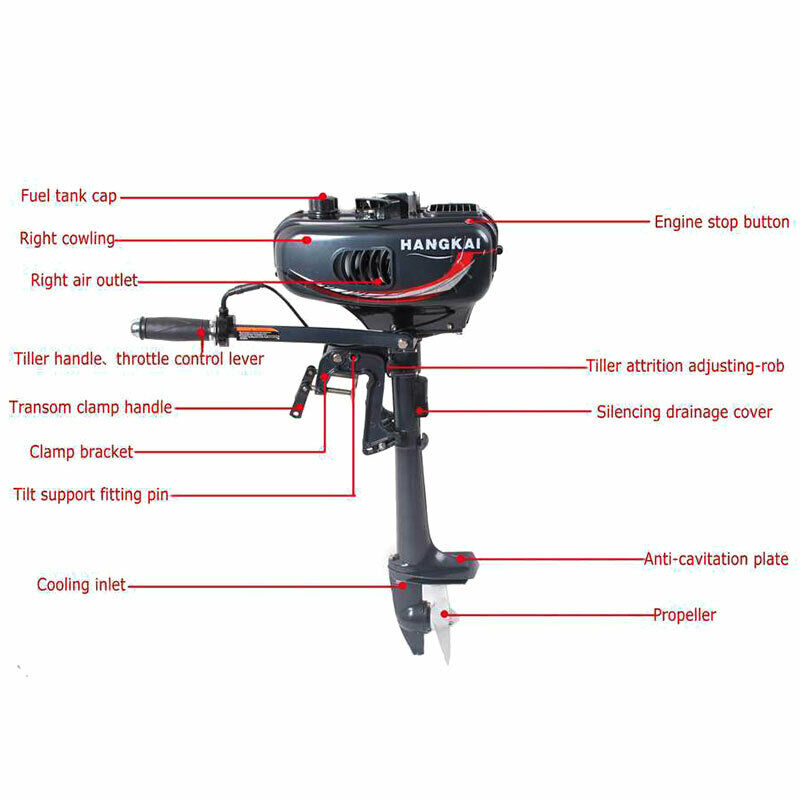

the appearance of the outboard motor likes the eighth picture . Falling back the boat,
you should drive slowly otherwise the boat will not stable. The outboard motor backet can revolve 360. Only in
the appearance of the outboard motor likes the eighth picture . Falling back the boat,
you should drive slowly otherwise the boat will not stable. The outboard motor backet can revolve 360. Only in
simple let the engine revolve 180 and the operation handle face back,the boat can fall back to drive.
Announcements:
After in the sea water or turbid water cruising
1.Use the fresh water cleaning the outboard motor
2.With the moderate SPREED circulating the engine,cool off the water down with fresh water.
3.Before completely running out cooling water,don't put the outboard motor outside.
Otherwise the water cam pass the exhaust port to enter the
Otherwise the water cam pass the exhaust port to enter the
air cylinder, from that will cause the engine breakdown.
4.The engine should deposit in the aridity and ventilated well place,avoid exposing directly in the sunshine.
5.Before the long term storing,you should run out of the gasoline in the fuel tank.
Note:
Please add gear oil to the gears before use the motor and replace gear oil after the run-in period (10hours).
(if you do not know how to handle this, please contact with us )
(if you do not know how to handle this, please contact with us )
Warning:
Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.
Don't do the following will avoid cylinder Scoring:
1, start the motor on bank
2, use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately ,

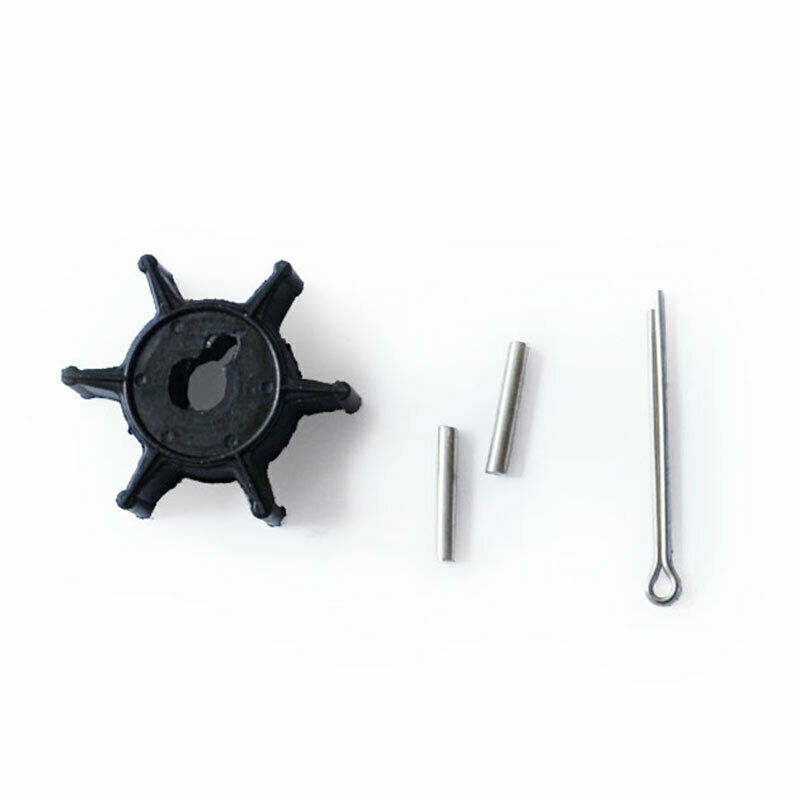

then check the impeller of Water pump or check if the water outlet has been blocked.
then check the impeller of Water pump or check if the water outlet has been blocked.
Package Included:
| 1 X |
Boat Engine |
