36/48V 17A 350W Brushless Electric Bicycle Scooter Standard Square Wave Controller KT Series Motor Conversion Kit

$46.99

  • Product Code: ED0021428
  • Availability: In Stock
  • Ex Tax: $46.99

Tags: Brushless Controller

  • Voltage: 48V,36V
    Precise details>>

    Specification:

    Name

    Controller for brushless motor

    Maximum current

    17±1A

    Rated voltage

    DC36/48V

    Speed set

    1-4.2V

    Rated current

    8A

    Brake input

    Low-Level

    Low voltage protection

    DC30/40±0.5V

    Applicable motor power

    36V/48V 350W

    Controller dimension

    About 9.8*6.5*3.8cm

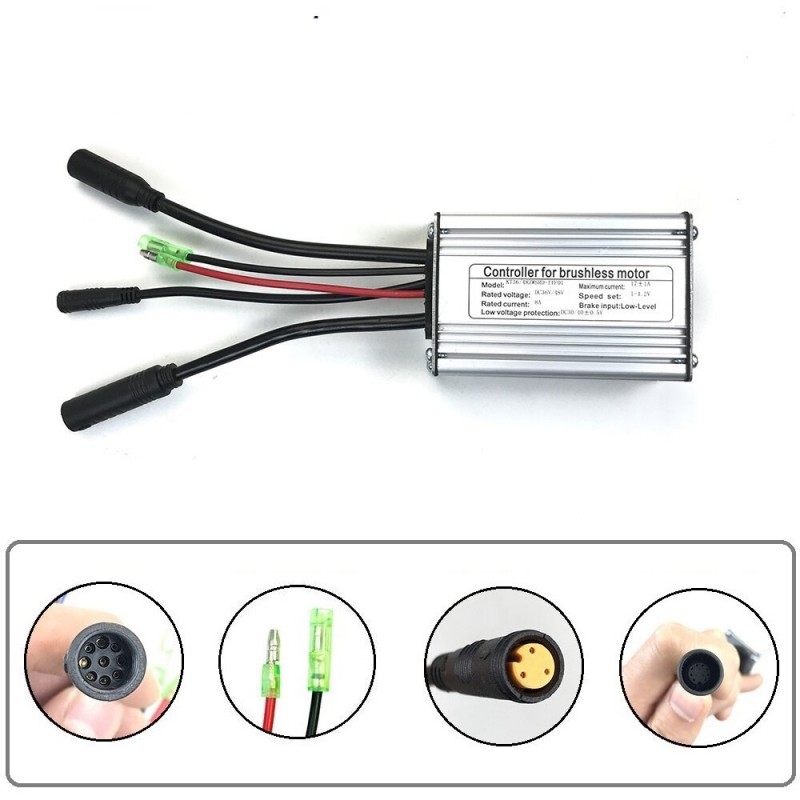

    Controller outlet:

    Motor wiring

    Power wiring

    One for four wiring

    Power supply positive and negative wiring

    ATTENTION:

    1.KT controller only can be compatible with KT display(They have the same communication protocols). Please make sure that your system is KT system.Waterproof connector is so special that we have no way to promise it is complete compatible(because of the line sequance). Please check if your motor cable is Julet waterproof plug before you place the order.

    2.Please contact us if you are not sure which is right for you or have further questions by message.

    3.If you ordered it without discussing ,we reject sales return because of the matching things. I hope you could understand, thanks !

    Package Included:

    1 X

    Controller


    3648V-17A-350W-Brushless-Electric-Bicycle-Scooter-Standard-Square-Wave-Controller-KT-Series-Motor-Co-1789047

    3648V-17A-350W-Brushless-Electric-Bicycle-Scooter-Standard-Square-Wave-Controller-KT-Series-Motor-Co-1789047

    3648V-17A-350W-Brushless-Electric-Bicycle-Scooter-Standard-Square-Wave-Controller-KT-Series-Motor-Co-1789047
