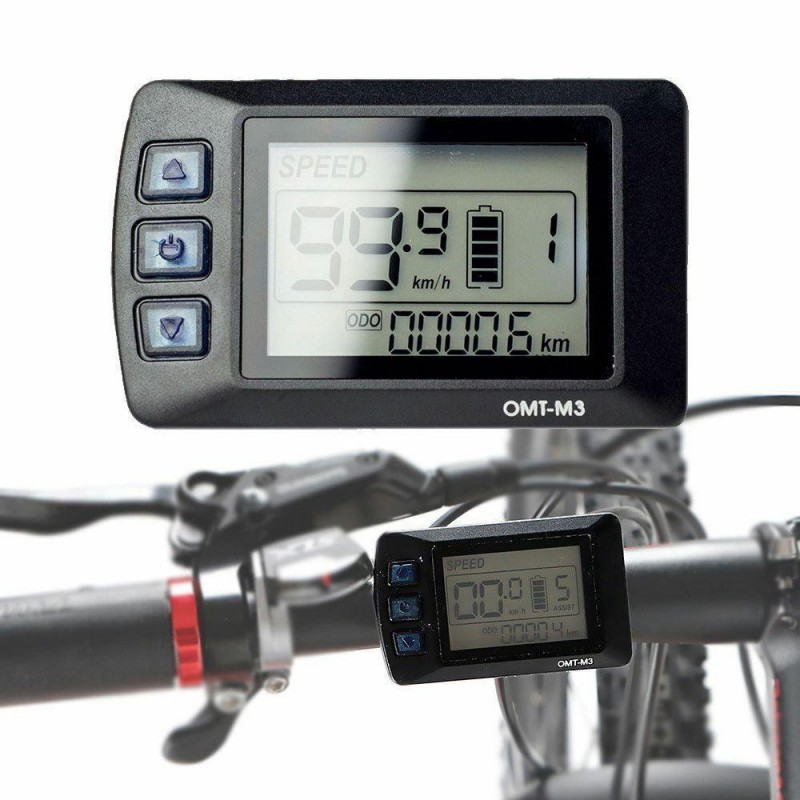

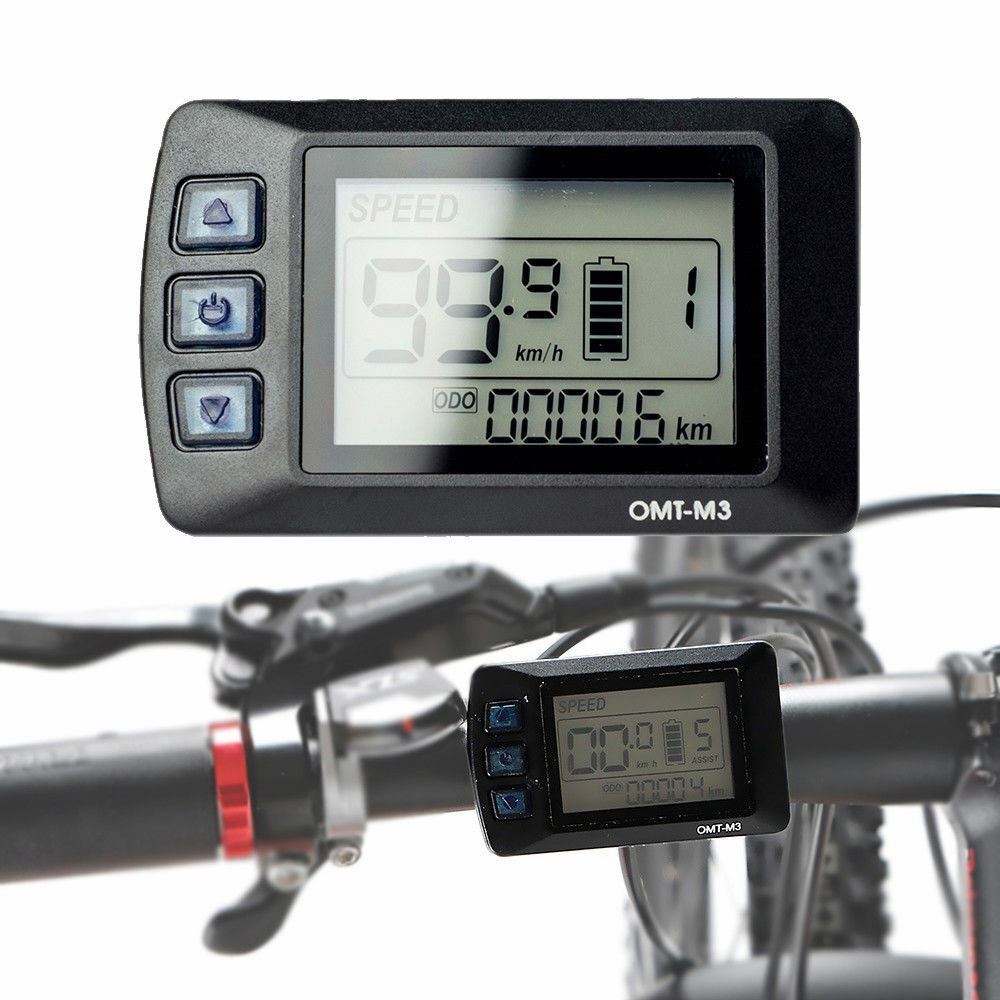

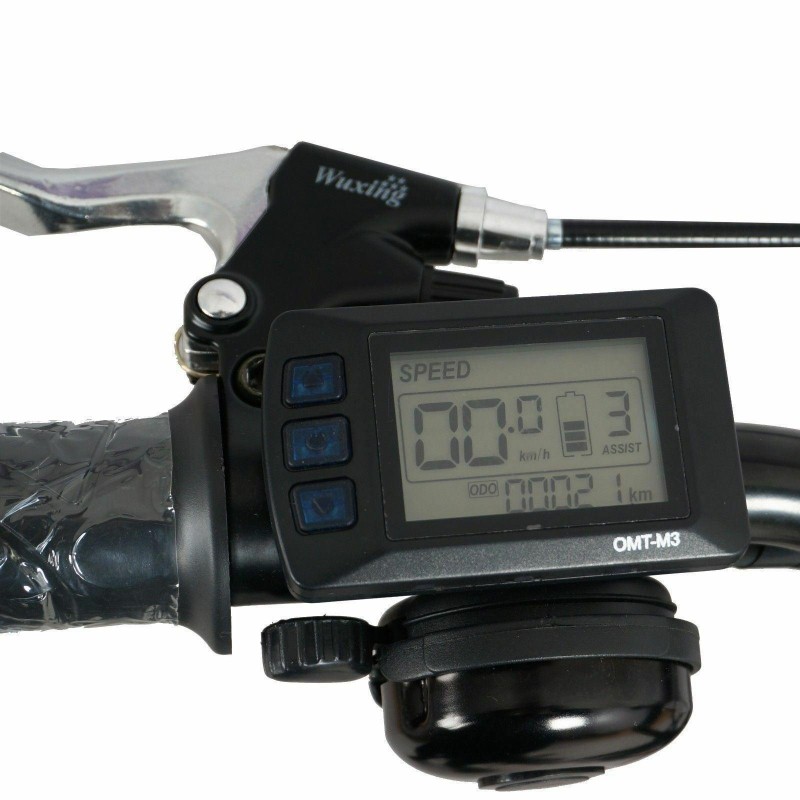

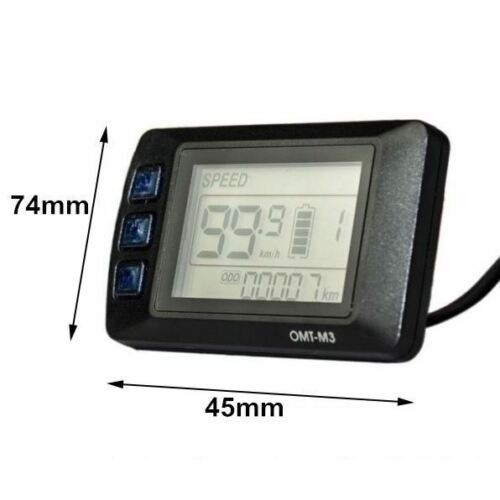

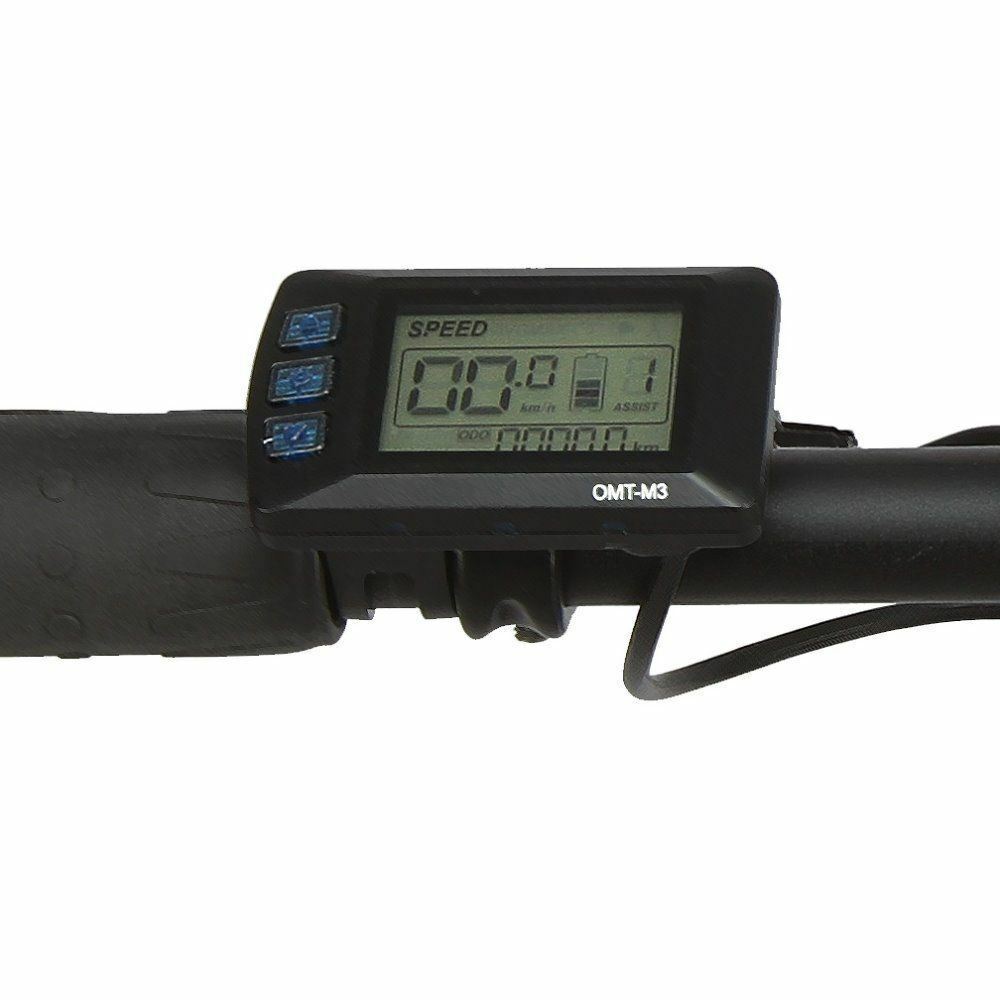

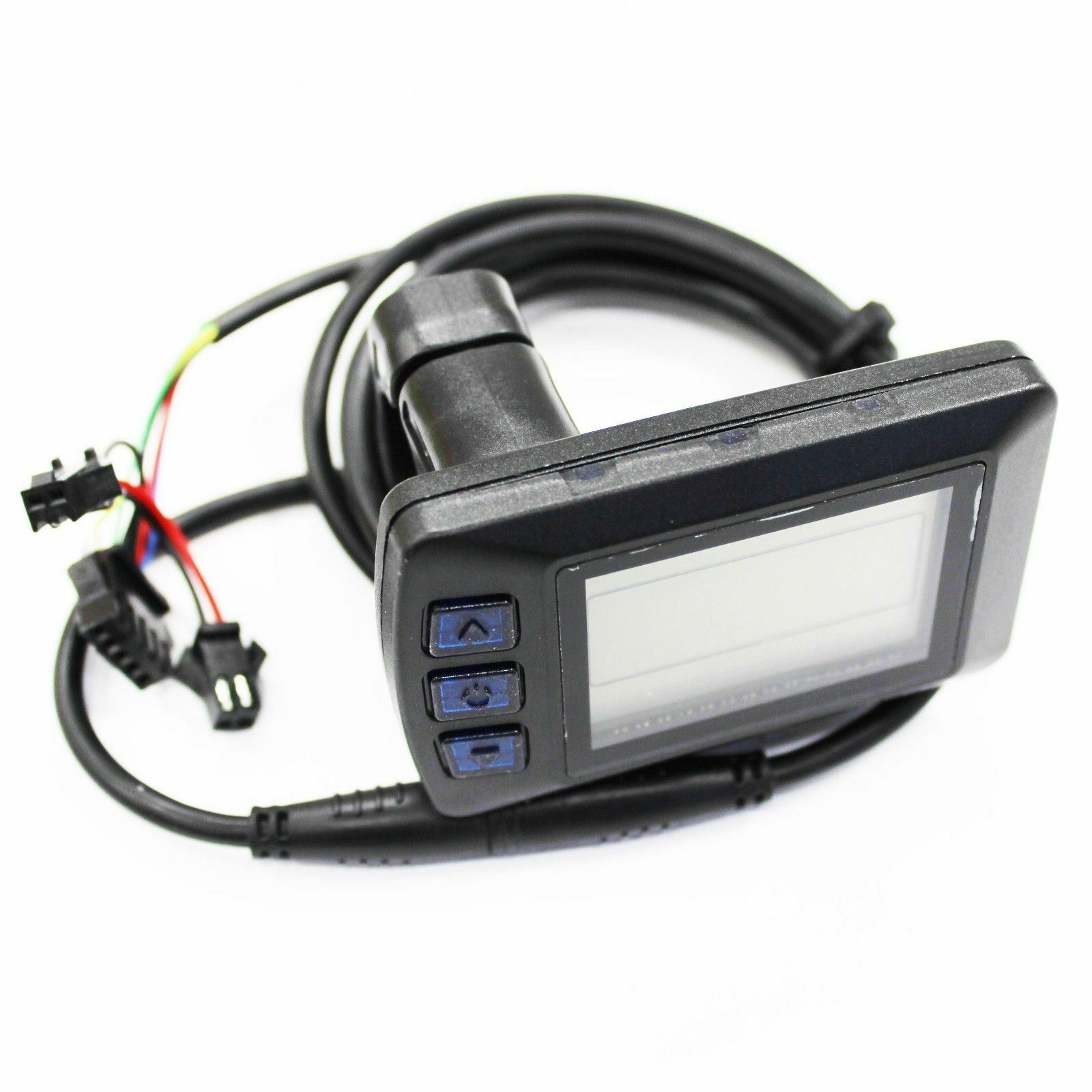

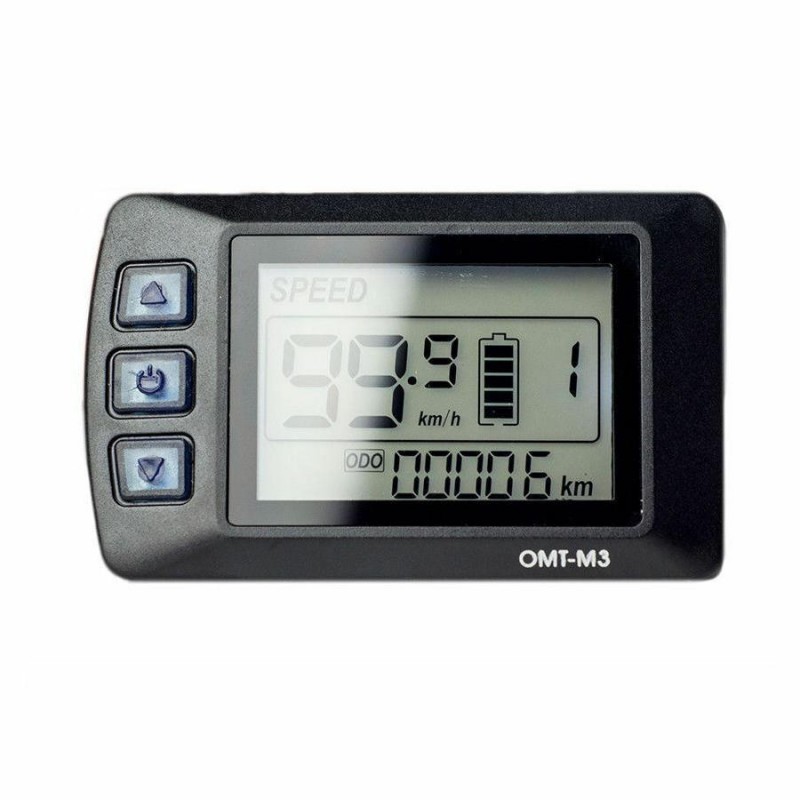

36V 250W OMT-M3 LCD Display Meter For EBike Electric Bicycle Bike Scooter
$45.99
- Product Code: ED0021393
- Availability: In Stock
- Ex Tax: $45.99
Description:
Material: Case&Cover&Press button:ABS
Material: Case&Cover&Press button:ABS
LCD window: PMMA

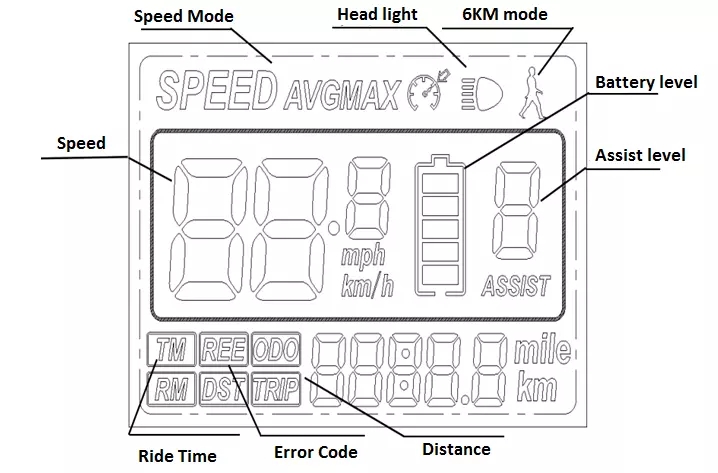

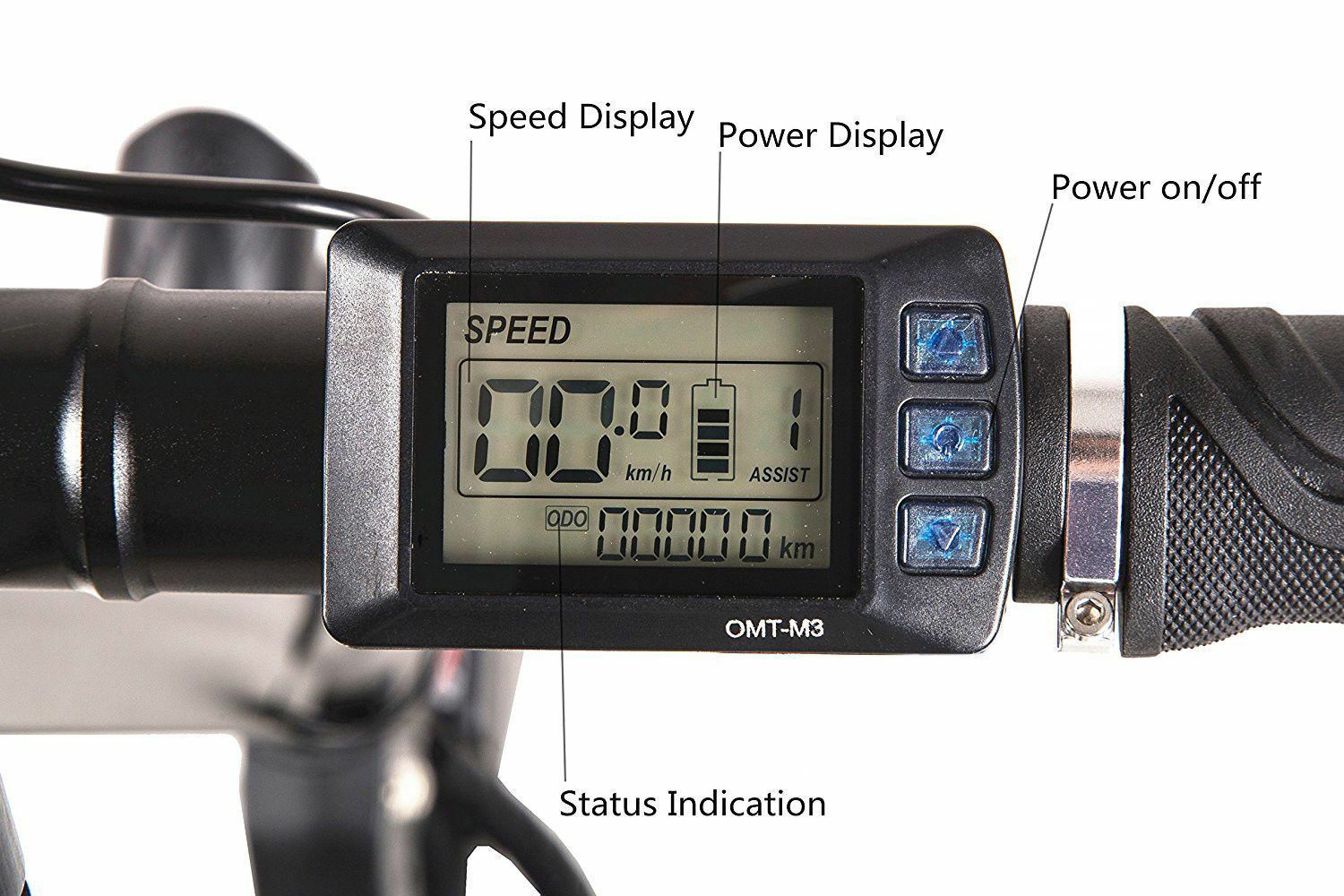

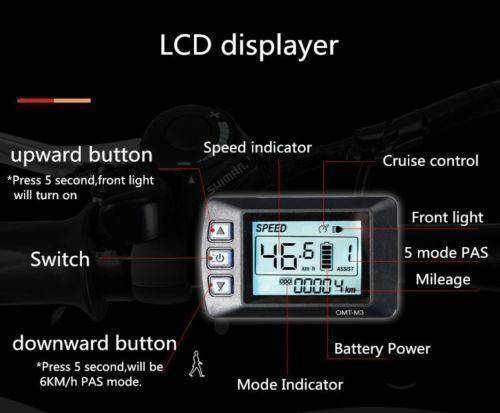

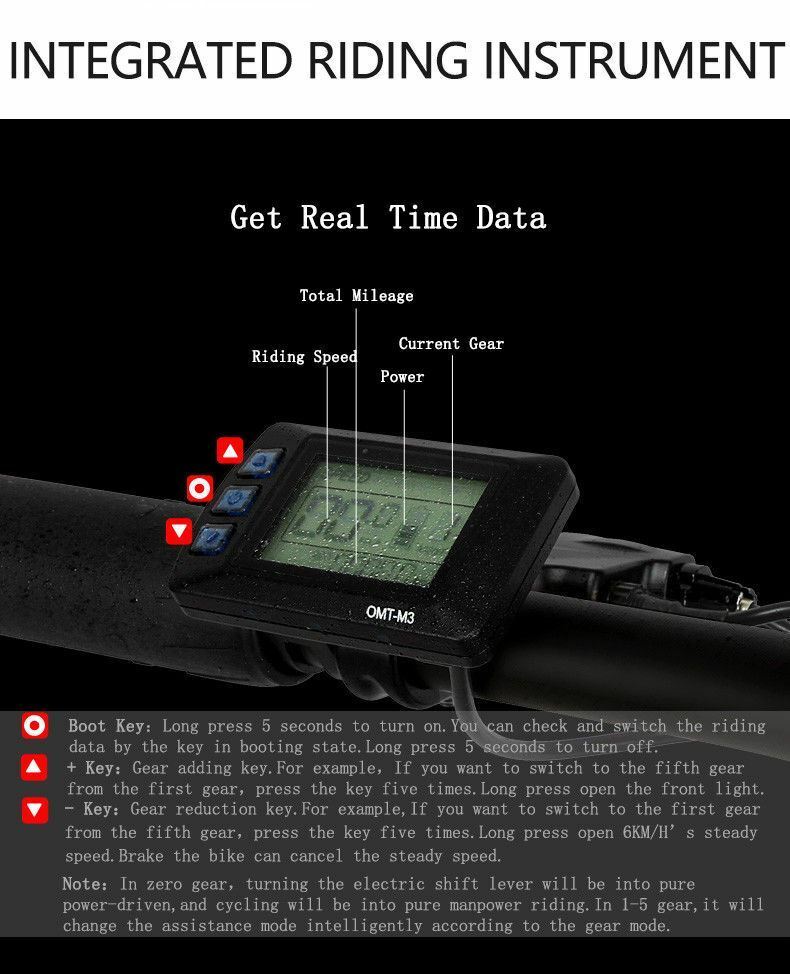

Function:
1: UART communication
2: SPEED-Max/Average/Real time
3: ODO/TRIP Distance
4: Kmh/MPH
5: PAS level
6: Battery level indicator
7: Head light control
8: ERROR CODE
9: PARAMETER SETTING
10:Back light adjustment
11: 6KM mode

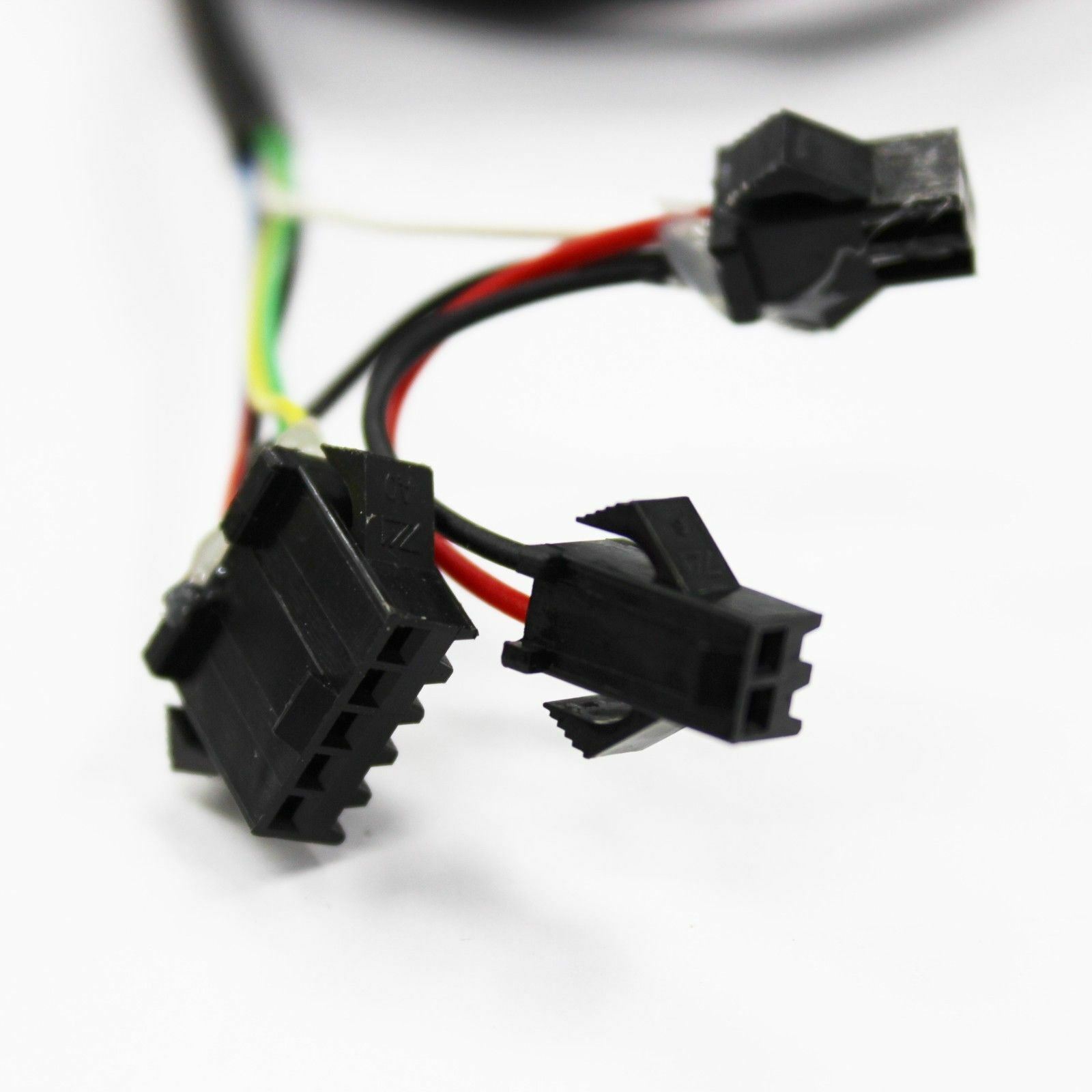

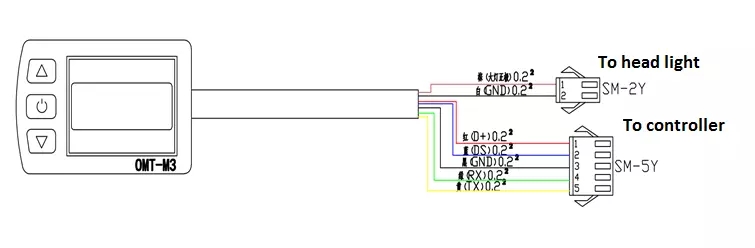

Red:Power supply-VCC
Blue:Electronic lock-DS
Black:GND
Green:Data RXD
Yellow:Data TXD
BROWN:Head light(+) -DD
White:Head light(-)-GND
Remark:Connectors and Wire color could be customized
Note:
PLEASE NOTE ITEM FITS 36V ELECTRIC BIKE ONLY
PLEASE NOTE ITEM FITS 36V ELECTRIC BIKE ONLY
Package Included:
1 X 36V 250W LCD Display Meter
