36V 500W Brushed Controller With Throttle Twist Grips 7/8 inch 22mm For Electric Scooter Bicycle
$38.99
- Product Code: ED0015902
- Availability: In Stock
- Ex Tax: $38.99
Description:
Motor brush controller for electric bicycle & scooter
Fits standard 7/8 inches(22.2mm) handle bars
Cable length is approximately 59 inches (1.5m)

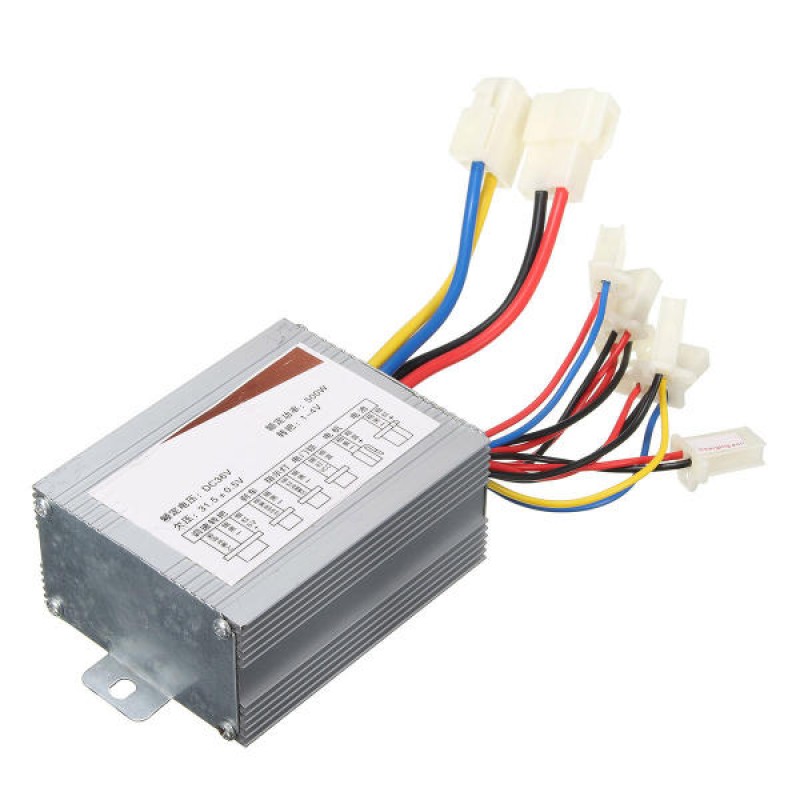

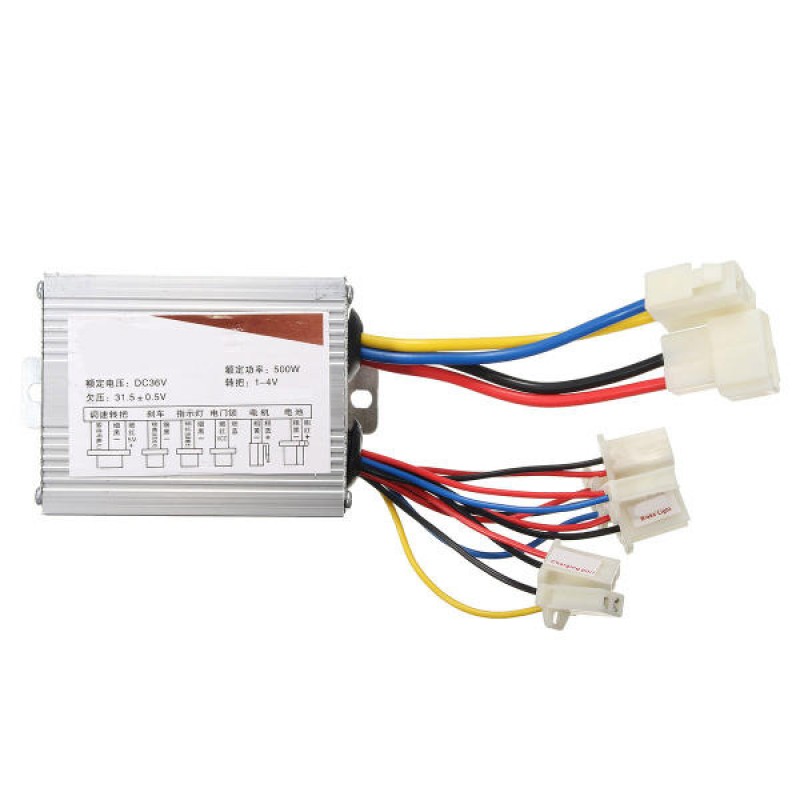

Specification(Controller):
Motor brush controller for electric bicycle & scooter
Fits standard 7/8 inches(22.2mm) handle bars
Cable length is approximately 59 inches (1.5m)
Specification(Controller):
Material: Aluminum
Size: 80 x 60 x 40mm
Voltage: 36V
Rated power: 500 watts
Under Voltage Protection: 31.5±0.5V
Current Limit: 27±1A
Usable Motor: 36V 500W
Operating Conditions: -25--45
Function: This item suitable for electric bike & scooter

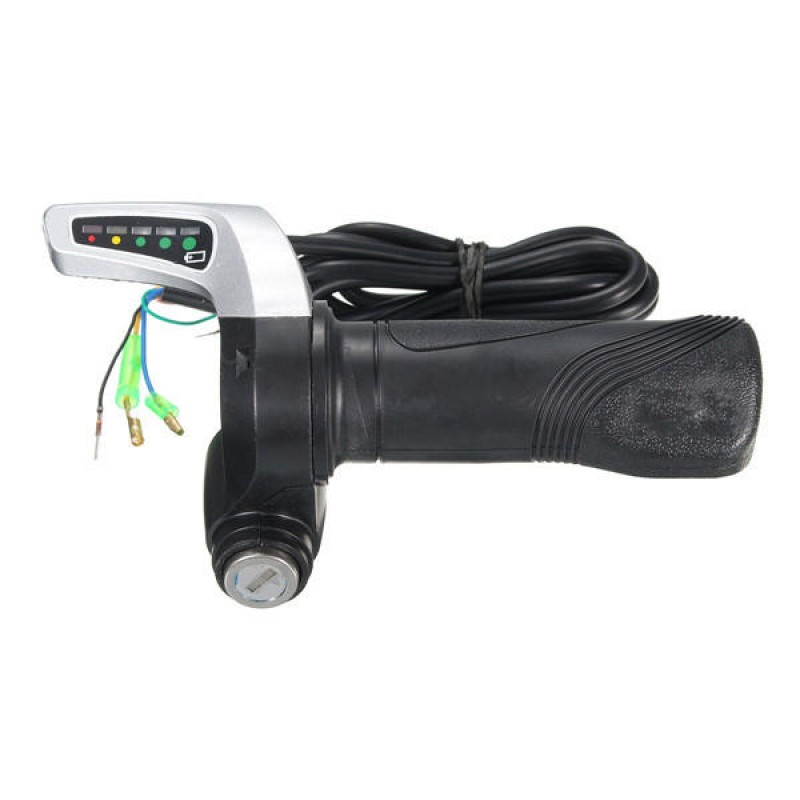

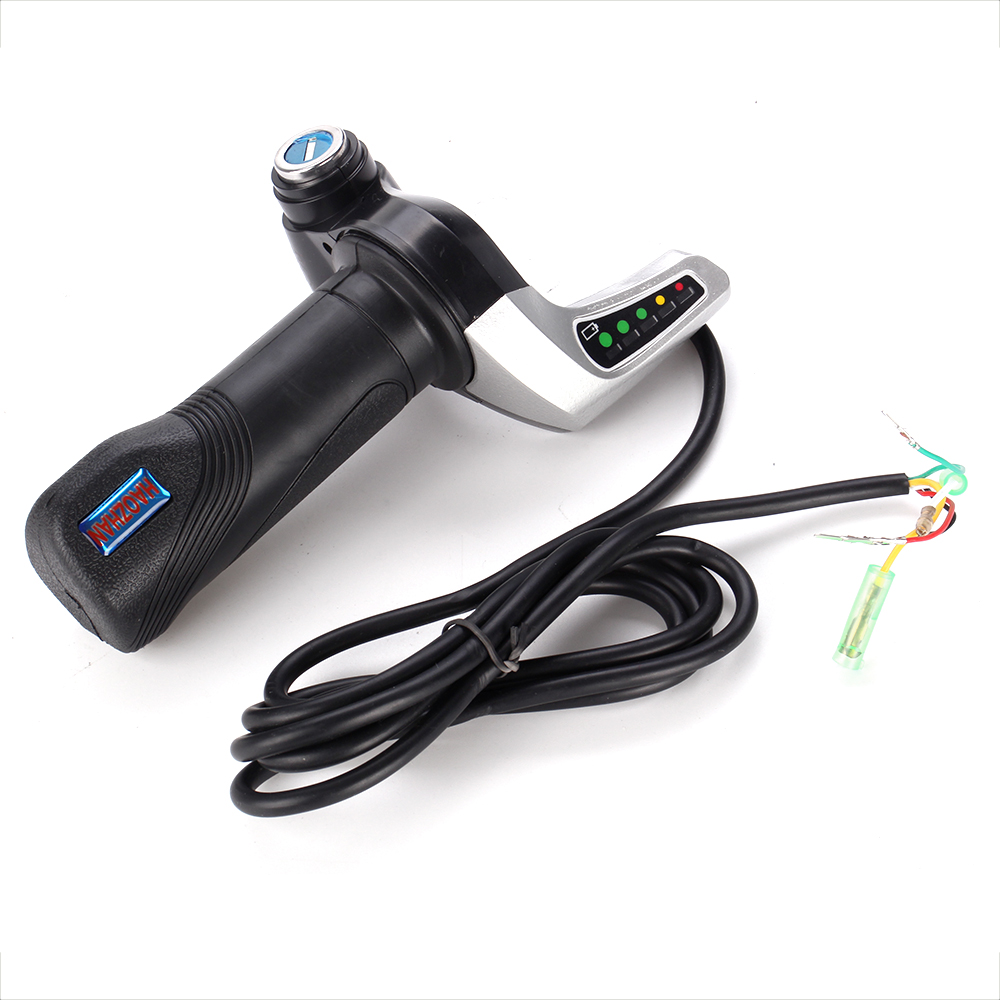

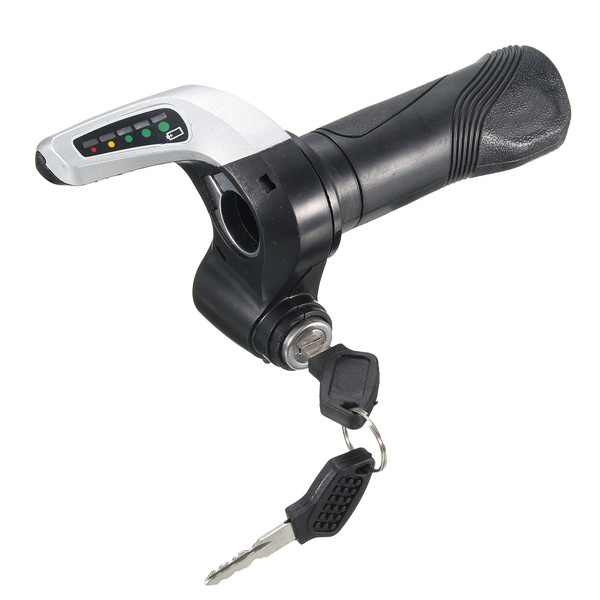

DC 36V Throttle Twist Grips:
Electric bike scooter twist throttle accelerator with power display, 5Led battery indicator.
Throttle Works Voltage: DC5V
Speed Adjusting Signal: 0.8V-4.3V
Power Display Voltage: DC 36V
Power Display:
Normal: 35V above, 3 Led Green
Half: 35V ~ 32V, Led Yellow
Empty: 32V or less, Led Red
Rotation Angle: 0 °~ 70 °
Working Temperature: -20 ~ +50

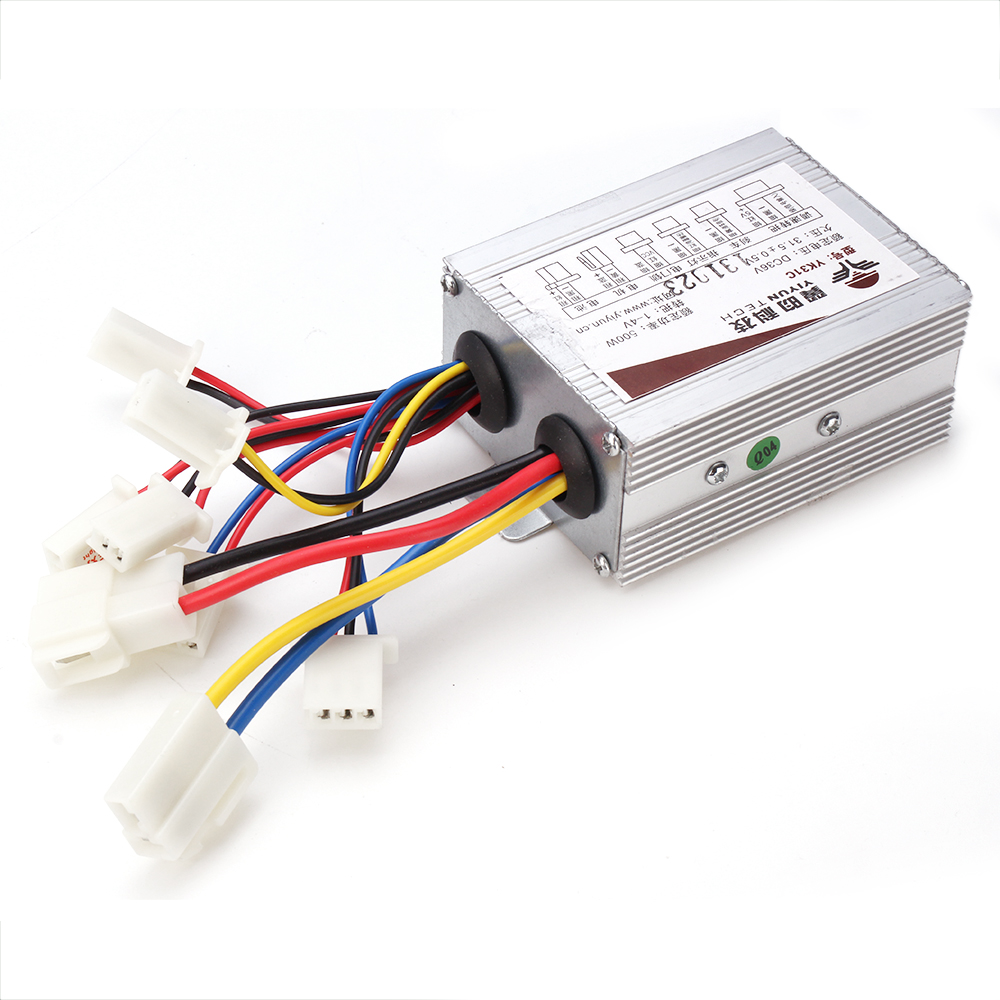

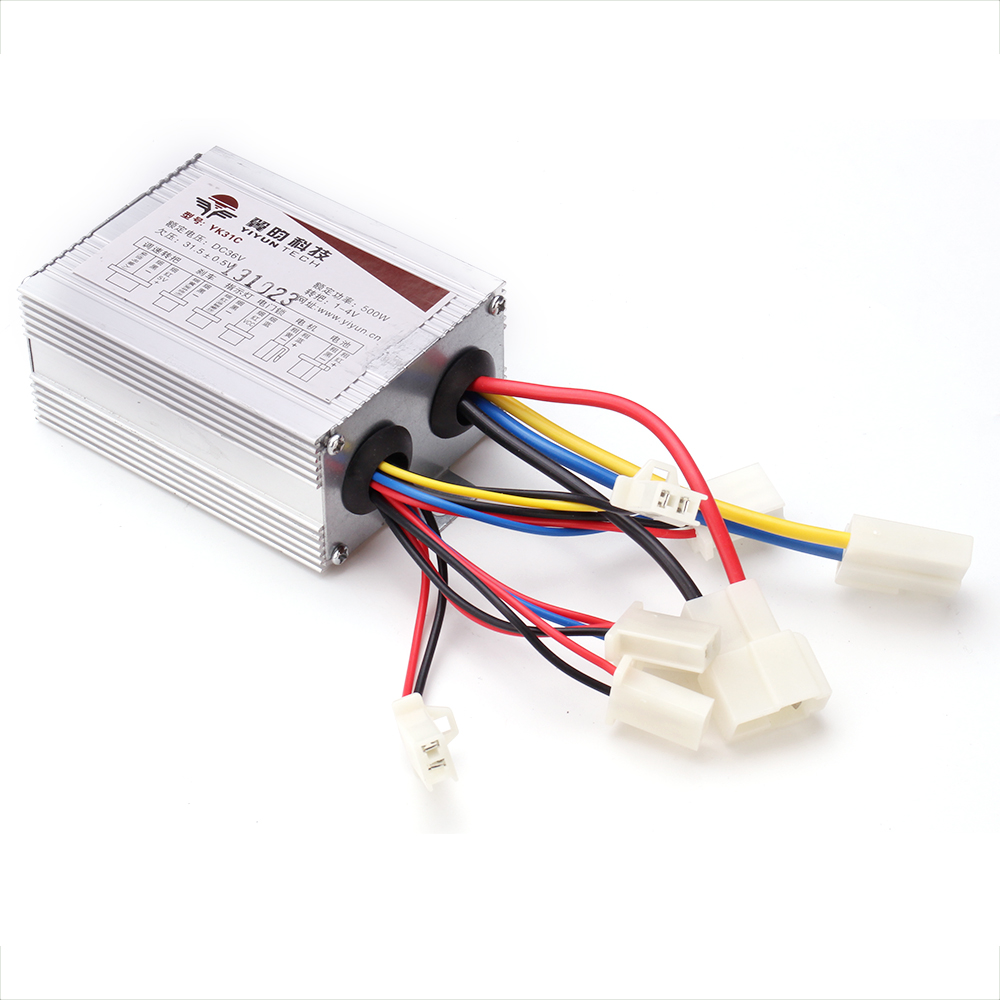

Controller Wiring:
Thick black/thick red - power negative/power positive (battery)
Thick yellow/thick blue - motor negative/motor positive (motor)
Thin red/thin blue - VCC (Ignition switch)
Thin red/thin black - Indicator power output/indicator negative (indicator)
Thin yellow/thin black - Brake signal/negative (brake)
Blue/thin black/thin red - Speed handlebar Signal input/negtive/5V positive (speed governor)

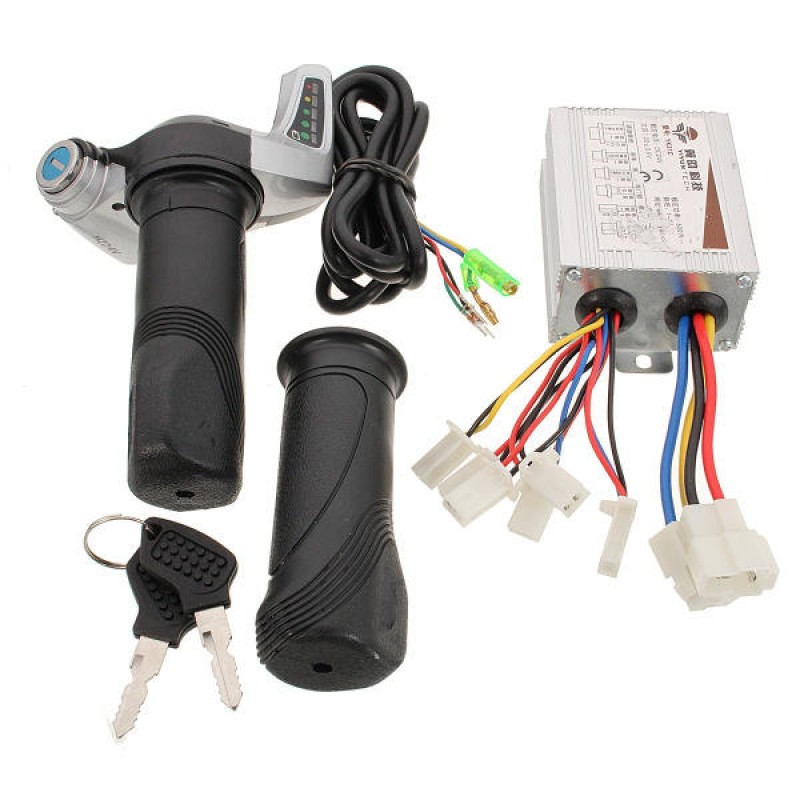

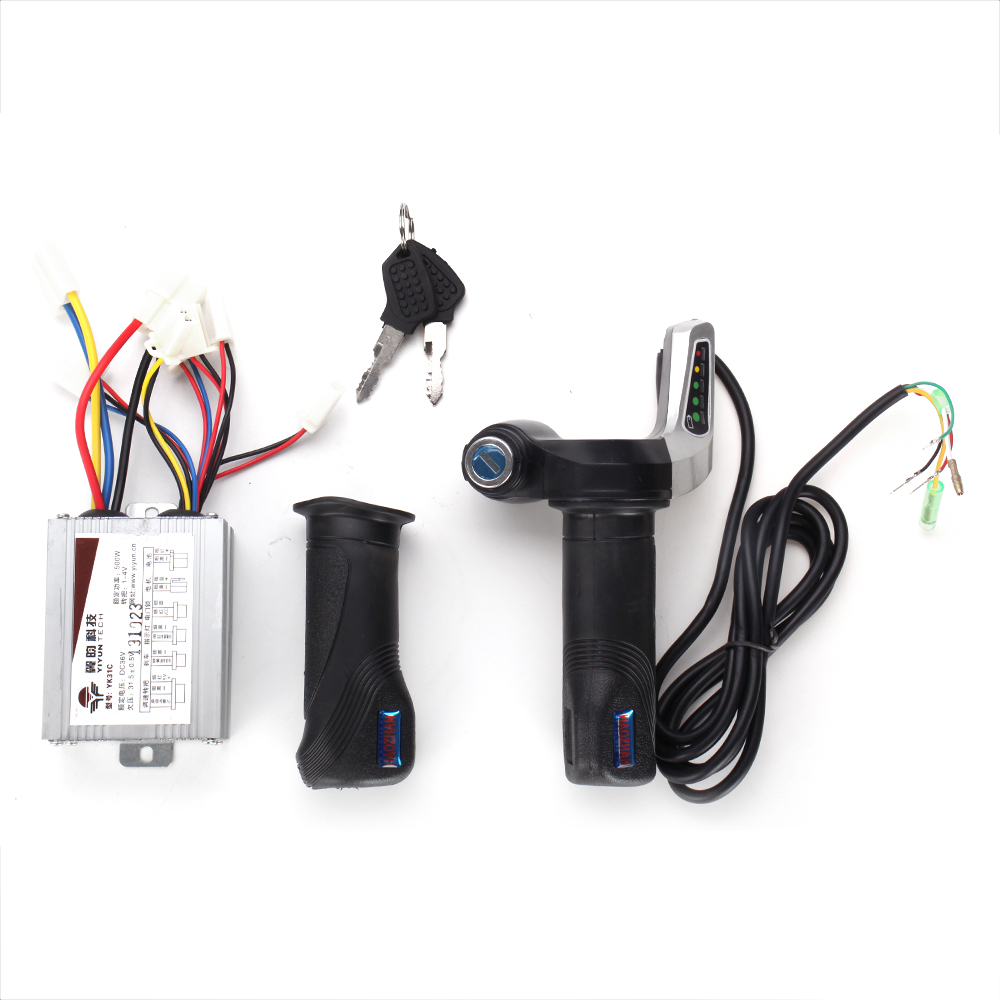

Package Included:

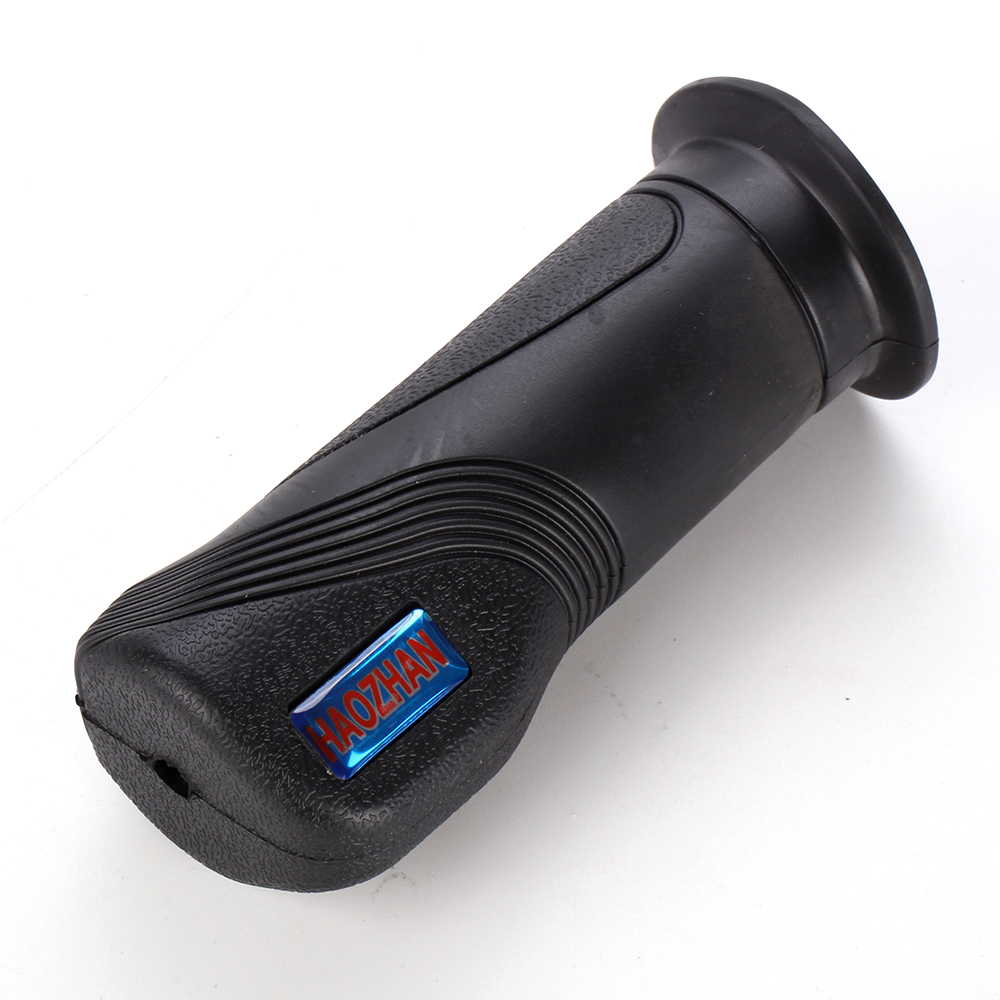

1 X 36V Throttle Grip With Normal Grip
1 X 36V 500W Controller
1 X Black Terminal Ends
Package Included:
1 X 36V Throttle Grip With Normal Grip
1 X 36V 500W Controller
1 X Black Terminal Ends
