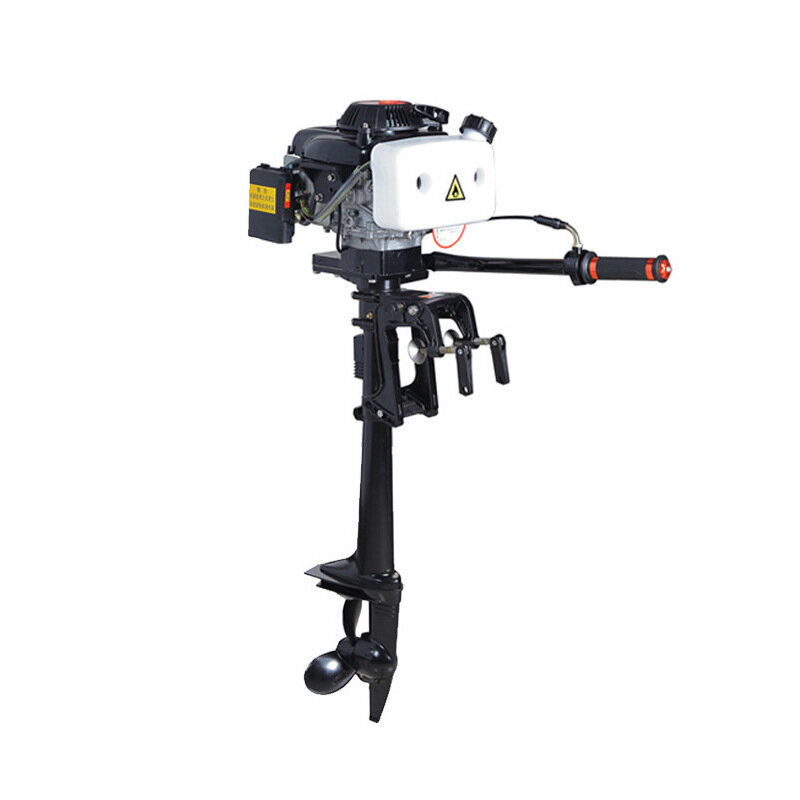

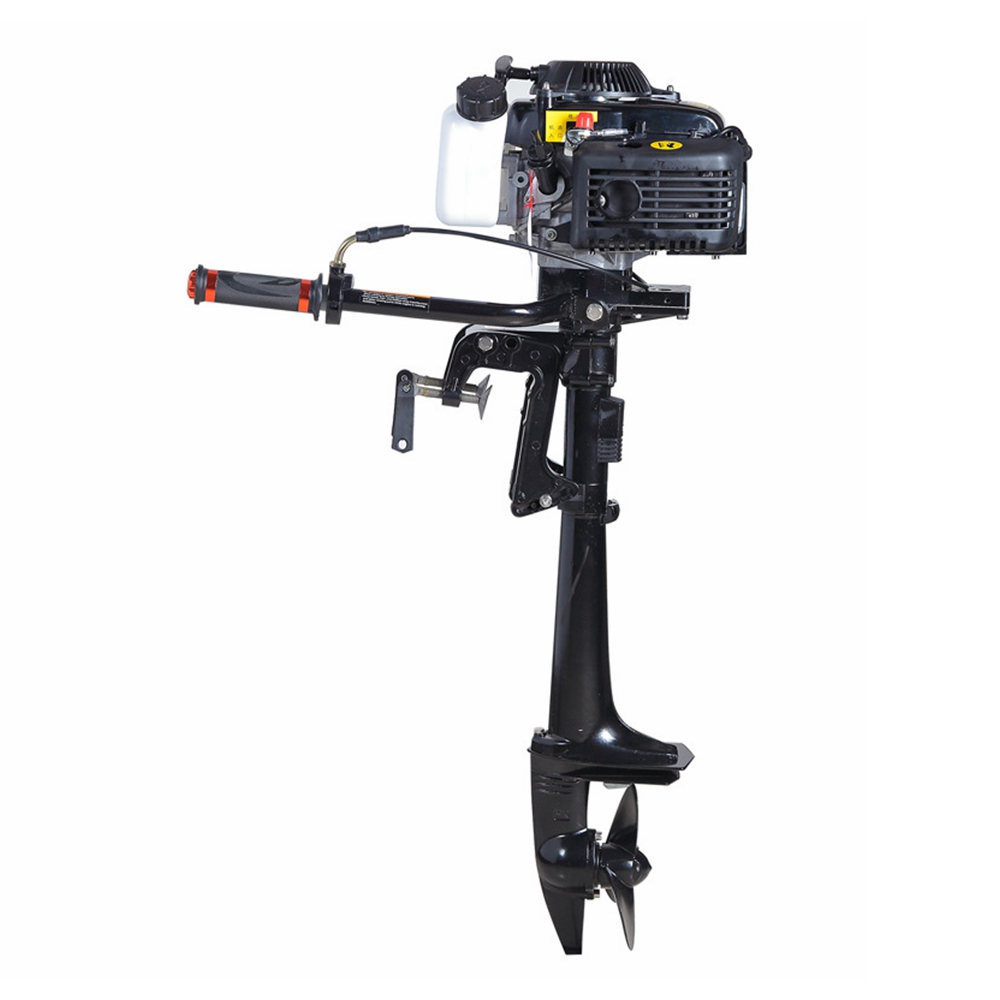

4 Stroke 4HP Outboard Boat Engine Boat Motor Air Cooling System

$438.99

  • Product Code: ED0020532
  • Availability: In Stock
  • Ex Tax: $438.99
Specification:
Displacement
55CC
Transmission ratio
2.08 (27:13)
Number of cylinders
1
Shift
clutch
Full throttle perating range
4500-5500r/min
Maximum output
2.9kw
Type
2-stroke
Ignition system
CDI system
Starting system
Manual start
Staring carburetion system
Choke start
Contorl System
Tiller control
The engine and the propeller ratio
2:1
Recommended fuel
Regular #92 unleaded gasoline
Tilt tilt system
manual tilt
Standard mailbox
built-in 1.4L
Adapted stern plate height
440 mm
Short shaft
40cm
Overall length
85.5CM
Overall widteh
36.5cm
Overall height
22cm
Transom plate height
42cm
Bore x stoke
44mm*33mm

Announcements:

After in the sea water or turbid water cruising

1.Use the fresh water cleaning the outboard motor

2.With the moderate SPREED circulating the engine,cool off the water down with fresh water.

3.Before completely running out cooling water,don't put the outboard motor outside.

Otherwise the water cam pass the exhaust port to enter the

air cylinder, from that will cause the engine breakdown.

4.The engine should deposit in the aridity and ventilated well place,avoid exposing directly in the sunshine.

5.Before the long term storing,you should run out of the gasoline in the fuel tank.

Note:

Please add gear oil to the gears before use the motor and replace gear oil after the run-in period (10hours).

(if you do not know how to handle this, please contact with us )

Warning:

Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.

Don't do the following will avoid cylinder Scoring:

1, start the motor on bank

2, use the motor when it stop coming out of water

Even if you want test the motor, it should be done in the river!

When there is no water coming out from the motor,please stop using it immediately ,

then check the impeller of Water pump or check if the water outlet has been blocked.

Package Included:

1 X
Boat Engine
