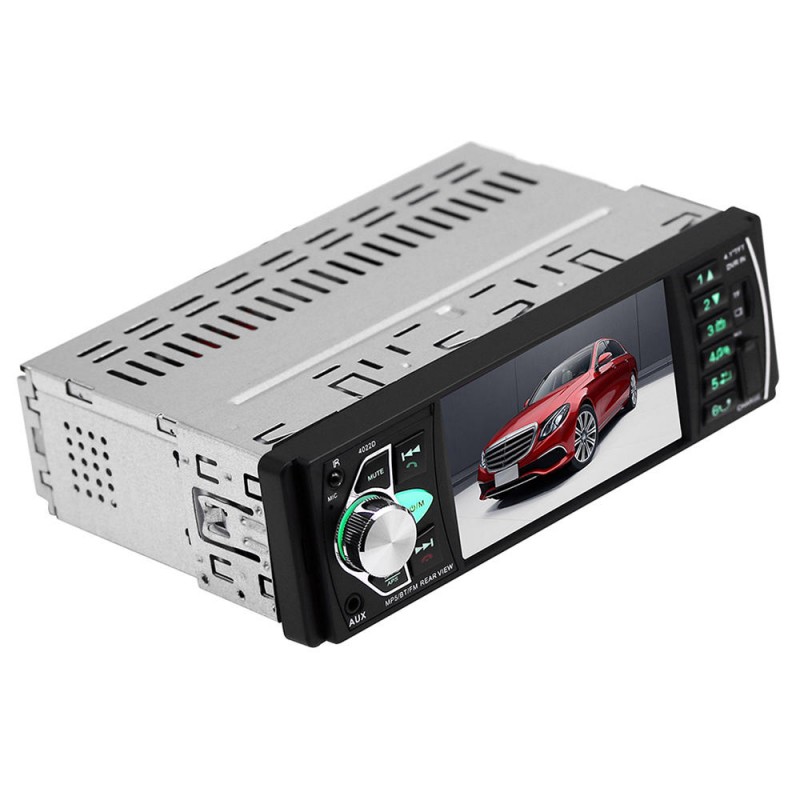

4.1 Inch 1 Din Car Radio Auto Audio MP5 Player bluetooth Handsfree USB AUX Steering Wheel Control with 12 LED Backup Camera
$54.97
- Product Code: ED0002334
- Availability: In Stock
- Ex Tax: $54.97
Q1.Why the car radio can't turn on ?
1>Please check the Voltage of car radio :DC 12V
2>When you test this car radio, you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
3>Replace the same type of insurance to test the car radio.
Note: Please msut use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.
Q2.Why the car radio will show "No Signal" when we reversing?
>Please check if the camera's line is properly connected to the car radio.
>Note:The video port of rear camera must insert the "CAMIN" port of car radio.
Q3.Why the car radio will show time after we turn off this?
>That time clock is a function for the car radio ,that can't be removed.In fact that car radio had been turn off,it save the time are more convenience for people to see,
>If you didn't need this,you need to unplug the power positive and negative.
Q4.Why haven't sound in car radio when playing the music?
>1.When you are not using our original audio cable, please check if your audio cable is suitable for our camera.
>2.Please check if there is any collision between the lines.
>If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is also no sound when the power cord touches the speaker cable.
>If the problem still here,please use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound.
Features:
- 4.1 inch digital TFT screen
- With SD / MMC card slot, with USB 2.0 port
- bluetooth 2.0, support hands-free calls
- 2 way video output(one for video output, one for rear view video output), 1 way audio output
- Support high capacity TF card, Max support 32G memory card
- Display song words and names
- With rear camera function, the best backup camera eliminate dangerous blind spots. Protect your car around of kids and little pets.
- Remote controller are powered by one CR2025 batteries
-Support high definition FM audio function and 18 stations preset, bluetooth, steering wheel control,
Specifications:
System: Wince
Model: 4022D
Radio Size: 18.8*5.8*11.4cm
Remote Size: 8.5*4*0.6cm
Steering Wheel Controller Size: 8.1*3.5*2cm
Working Voltage: DC 10.8V-14.8V, only for 12V vehicles
Decoding chip: All wisdom C500
Screen size: 4.1 inches
Screen Type: Full color TFT display screen
Screen Resolution: 800*480 resolution

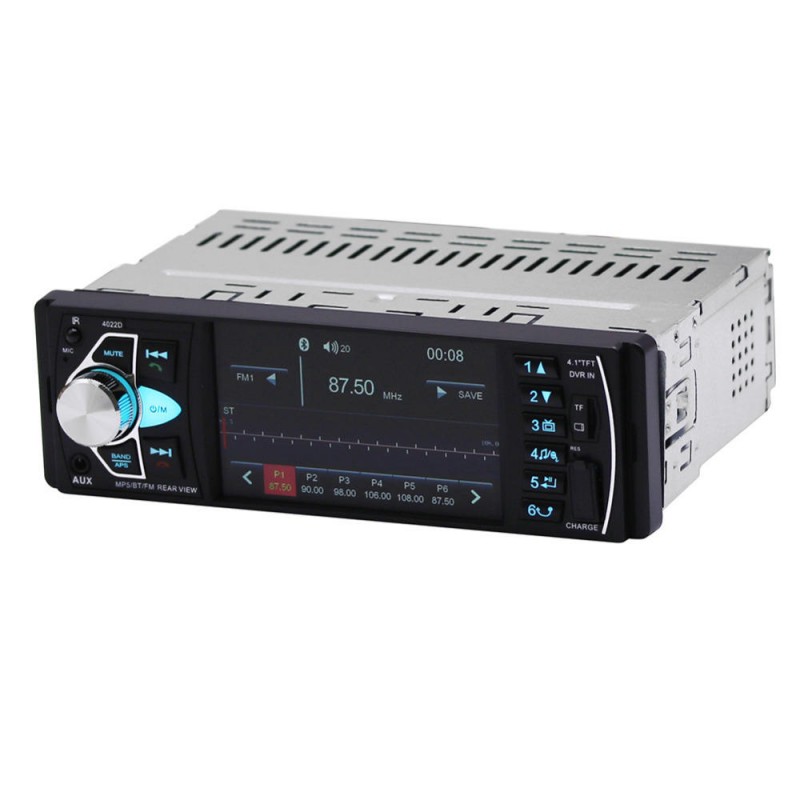

Radio band: FM single band FM1, FM2, FM3, FM: 87.5M-108M
Radio chip: QN8035
SD card slot: TF card, max support 32G

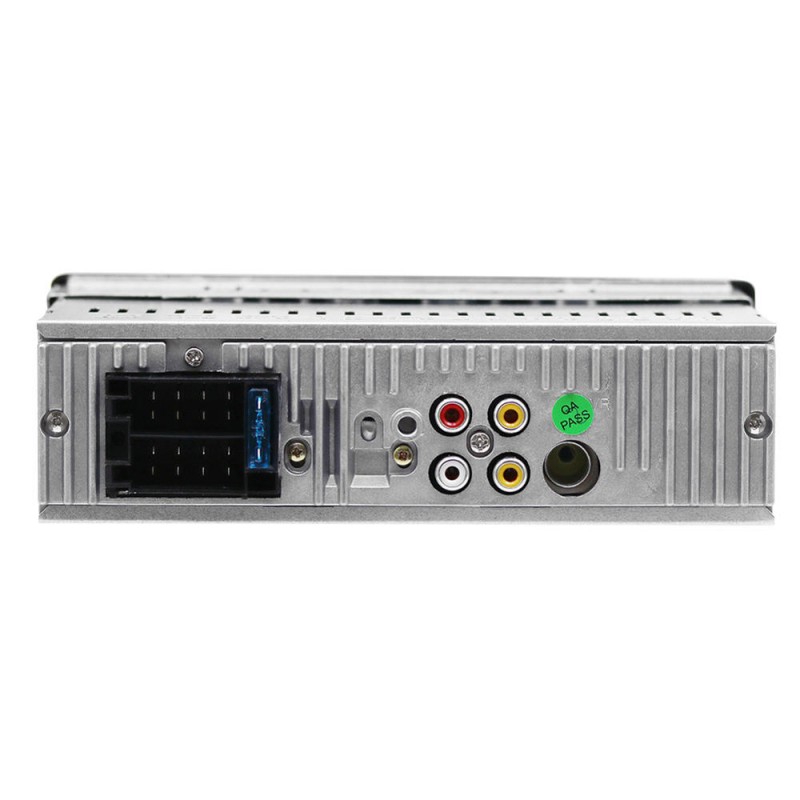

Plug type: ISO universal plug
Supported audio formats: MP3/WMA/WAV/OGG/FLAC/APE/ACC
Supported video formats: RM/RMVB/MP4/FLV/MKV/3GP/MPEG/DVIX/XVID/DTA/VOB/AVI
Image Format: JPEG/BMP/GIF/TIF
Sound Non-blance: ≤2dB
Channel Separation: ≥56dB
Language: English

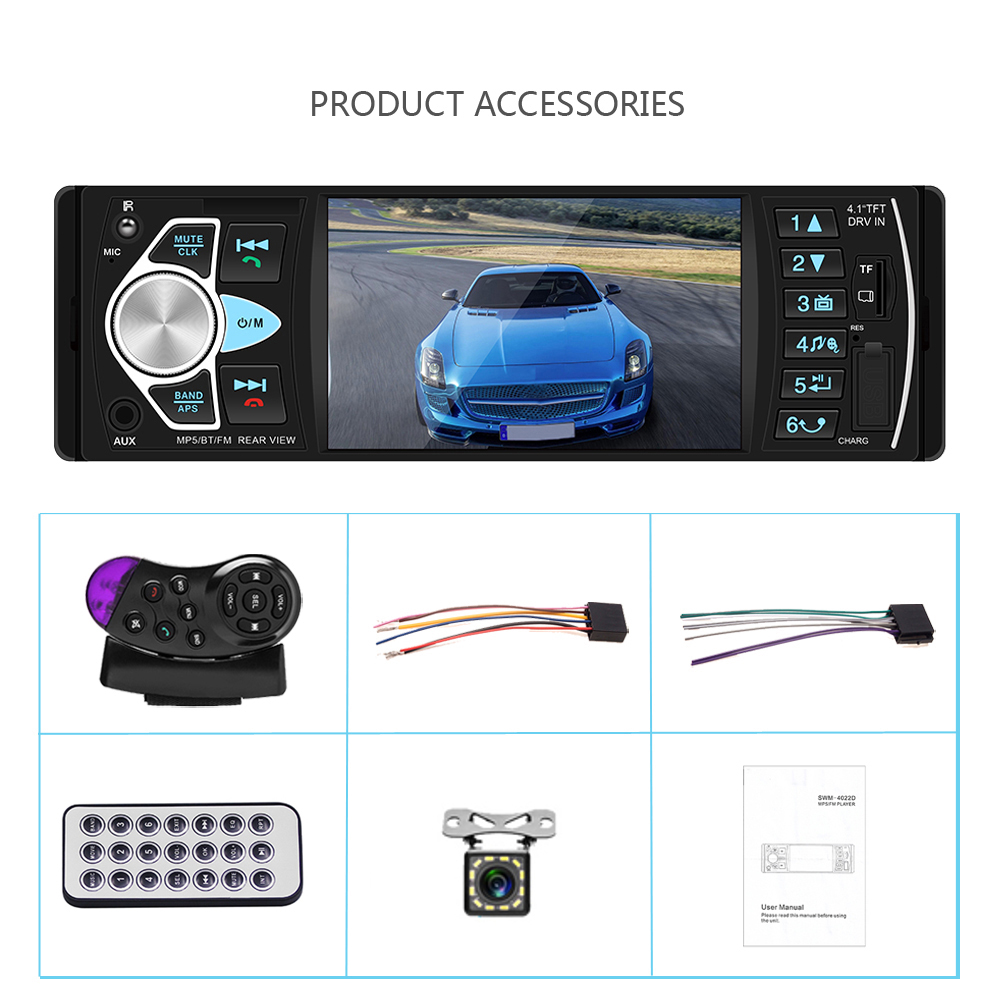

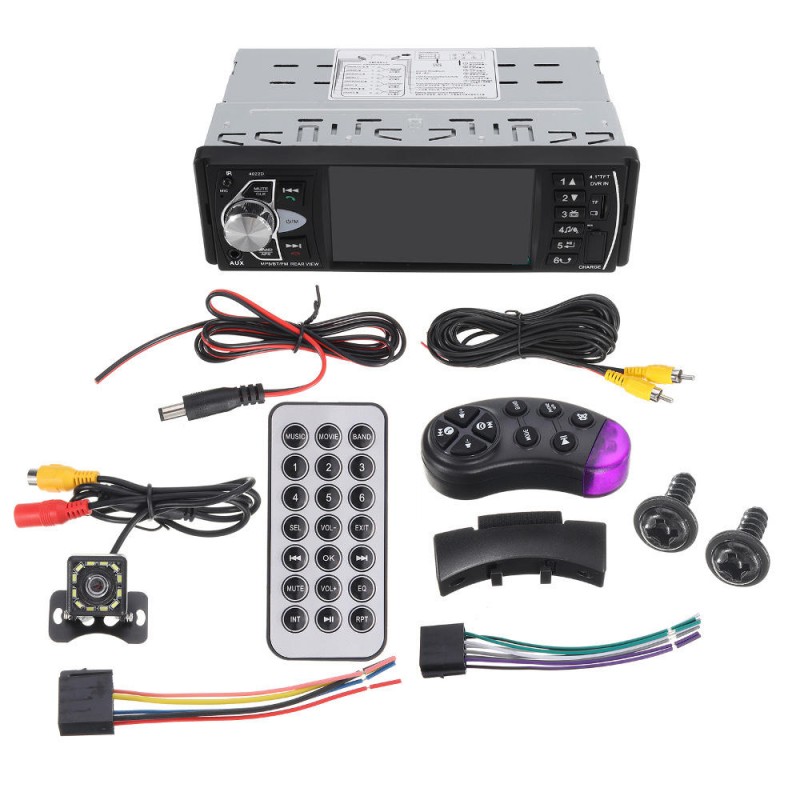

Pakage Include:
1* 4.1 Inch Car Radio
1* 12LED Rear Camera with cable
1* Remote Controller(need one CR2025 battery, inlcuded)
1* Wheel Controller(need two AAA battery, not included)
1* Power Cord
1* Cable
2* Screws
1* User Manual
