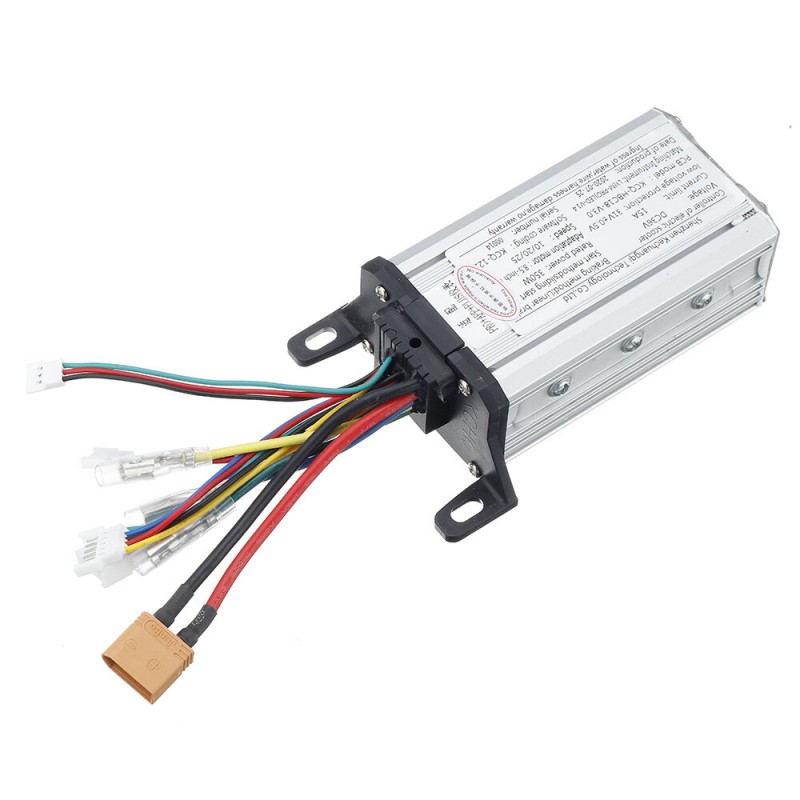

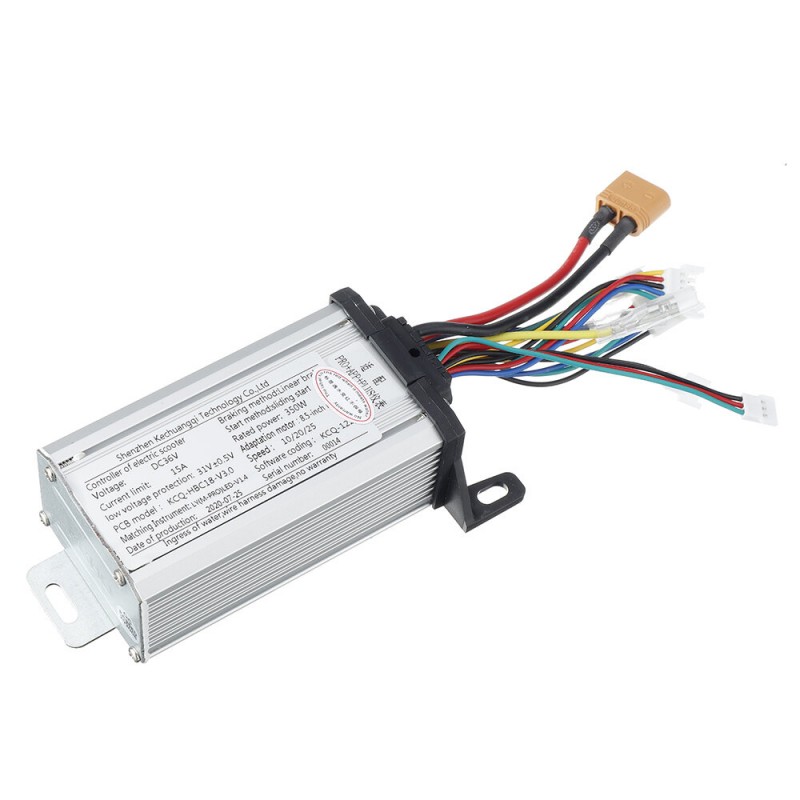

42V 350W 15A XT60 Motor Controller+Dashboard+Front/Rear Light For Scooter Electric Bicycle E-bike

$39.99

  • Product Code: ED0021408
  • Availability: In Stock
  • Ex Tax: $39.99

Available Options

Description:

Ultra-quiet, motor torque ripple is minimized to achieve no noise, no vibration and comfortable

operation.Based on the Field Oriented Control (FOC) algorithm, the controller has high conversion efficiency,

which can effectively reduce controller temperature rise and extend battery life.


Specification:

Operating Voltage
Minimum:31V, Typical:35V, Maximum:45V
Low Pressure Stop:
Minimum:30.5V, Typical:31V, Maximum:31.5V, Remarks:The last cell flashes red
Motor Current Limit
15±1A
Quiescent Current
30uA
Ambient Temperature
Minimum:-30℃, Typical:35℃, Maximum:80℃
Rated Power
350W
Overvoltage Protection
45V
Stall Protection Delay
2 seconds
Sleep Time
10 minutes
Phase Angle
120°
Output Waveform
Sine wave
Motor matching
8.5 inches 15 pairs of poles Hall motor
Shell Waterproof Rating
Ordinary waterproof

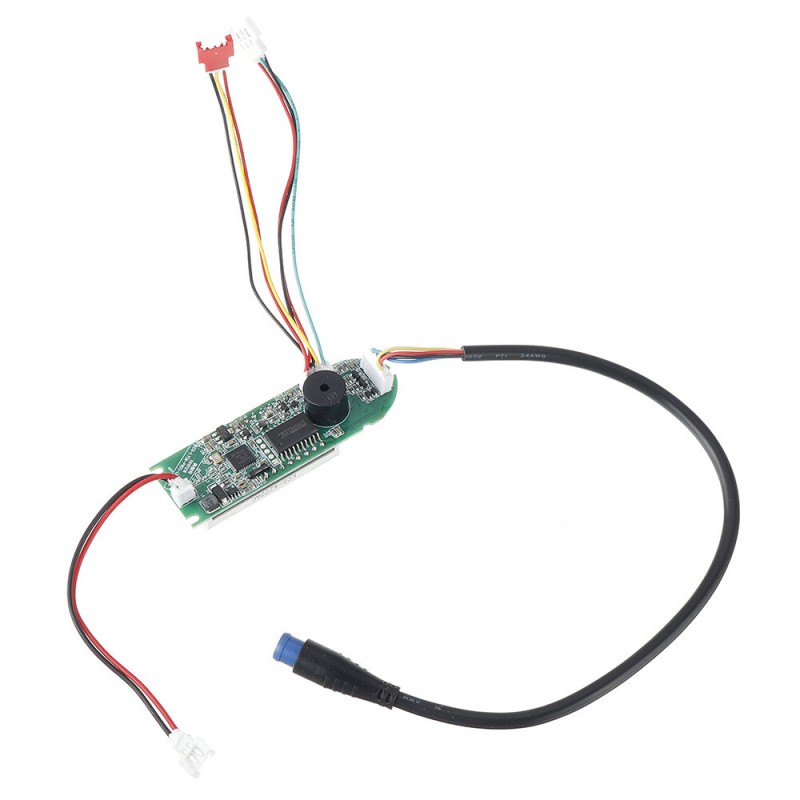

Instrument Matching
PRO meter
Motor Driven
FOC vector algorithm
Shell Size
118mm×48mm×32mm
Housing Material
Aluminum


Features:

1.Power on/off: Short press 0.5 second/power on, long press 2 seconds to shut down。

2.Cycling mode:Non-zero start mode (that is, press the accelerator to start when the sliding speed

reaches 3KM/H); zero start mode (turn the accelerator bar to start the motor in a stationary state).

3.Speed gear: 1 files 10KM/H, 2 files20KM/H, 3 files 25KM/H. Click to switch the gear (with memory

function, the default is the gear used before the last shutdown).

4.Electronic brake: Compatible with power-off brake and linear Hall brake.

5.Taillight:The light is always on and the brake flashes.

6.Constant speed cruise mode: 1.Fixed-speed cruise function turned on:When the accelerator

speed control is stabilized in the riding mode, the cruise mode is automatically entered after 6

seconds. (Press the brake, accelerator, switch gear, you can exit the cruise mode). 2. Fixed-speed

cruise function turned off:No cruise was allowed during the ride.

7.Self-learning: first power on, run at no-load speed and keep the handlebar for 3 seconds, then

release the handlebar for 5 seconds. After the motor drive stops, the motor parameters can be

learned and saved automatically.

8.MOS tube breakdown protection: Before or when the controller is powered on, the D and S poles

of the upper arm or lower arm of a phase MOS tube are short-circuited, the controller stops driving

and has no output. You need to power on again after troubleshooting to work normally


Power Display:

1) Voltage 38.2V-42V The first second third fourth fifth lights are always on

2) Voltage 36.6V-38.2V The first second third fourth light is always on

3) Voltage 34.5V-36.6V The first second third lights are always on

4) Voltage 32.8V-34.5V The first second light is always on

5) Voltage 31.5V-32.8V The first light is always on

6) Voltage 30-31.5V The last grid flashes

7) Turn-off of motor with voltage below 31V


Error Code:

1) "E1" Motor Hall failure

2) "E2" MOS

MOS fault or motor phase line short circuit fault

3) "E3" Brake failure

4) "E4" Handlebar failure

5) "E5" Undervoltage protection

6) "E6" Instrument/control communication failure

7) "E7" Overvoltage protection

8) "E8" Controller op amp failure

9) "E9" Stall protection

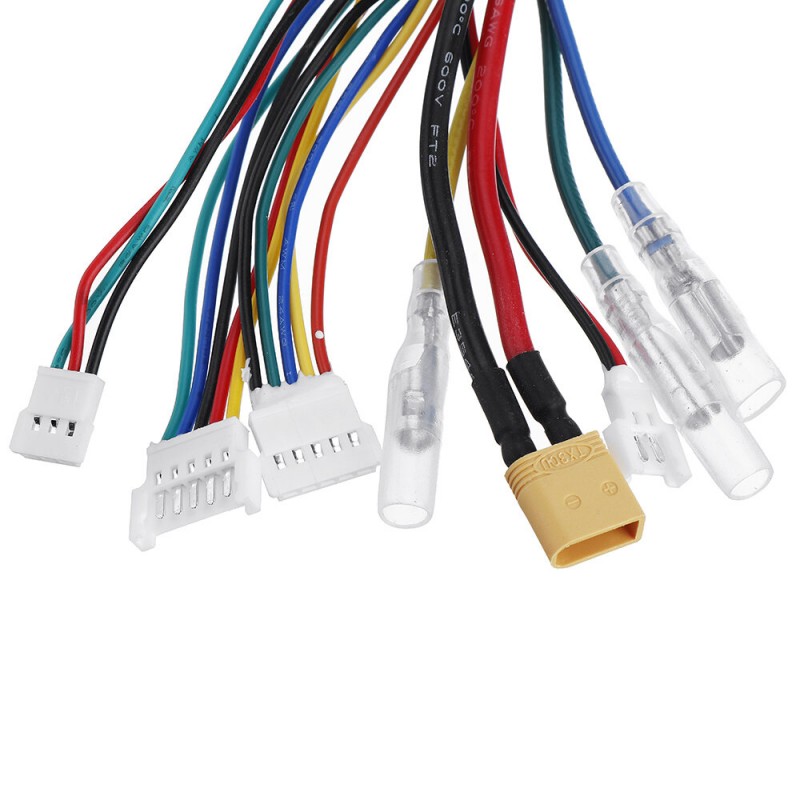

Wiring Port Diagram:

Power cord: big black red line

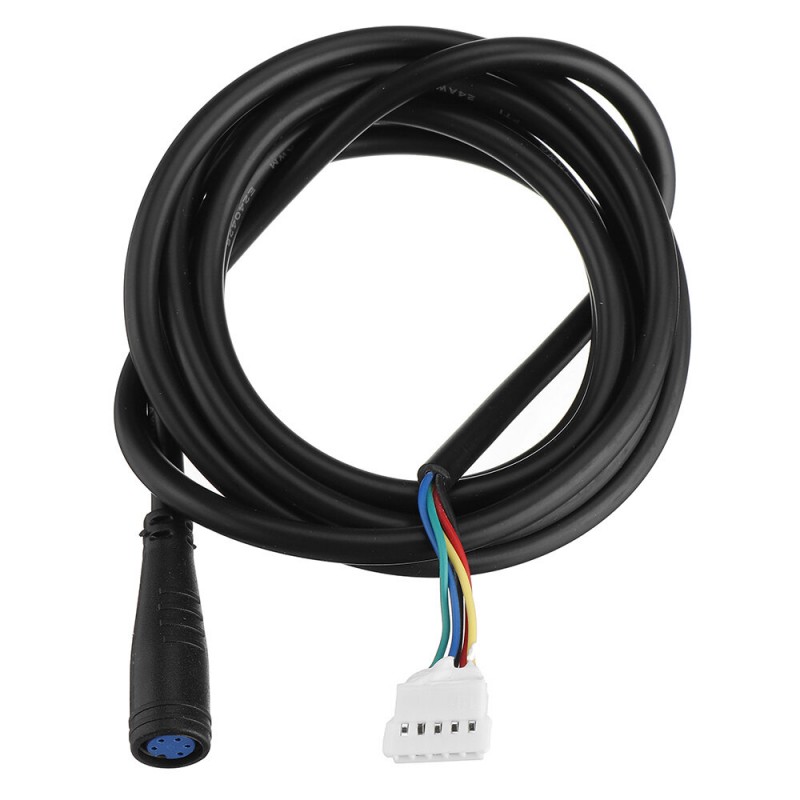

Motor wire: blue wire/green wire/yellow wire

Hall wire: red wire/yellow wire/blue wire/green wire/black wire

Tail light wire: small red wire and black wire

Software Burning line: green line/red line/black line

Communication line: green line/blue line/black line/red line/yellow line

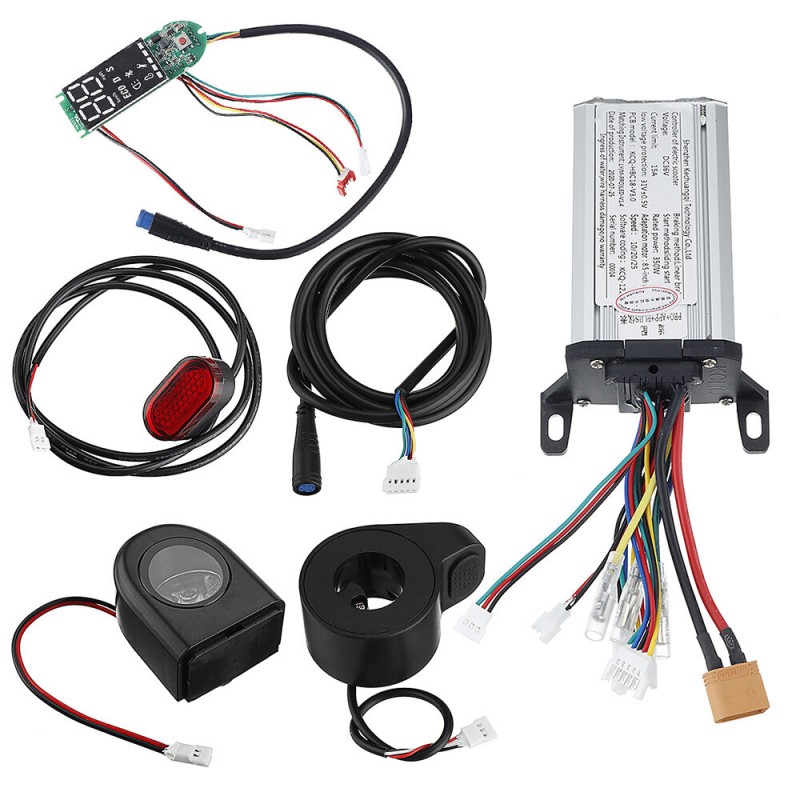

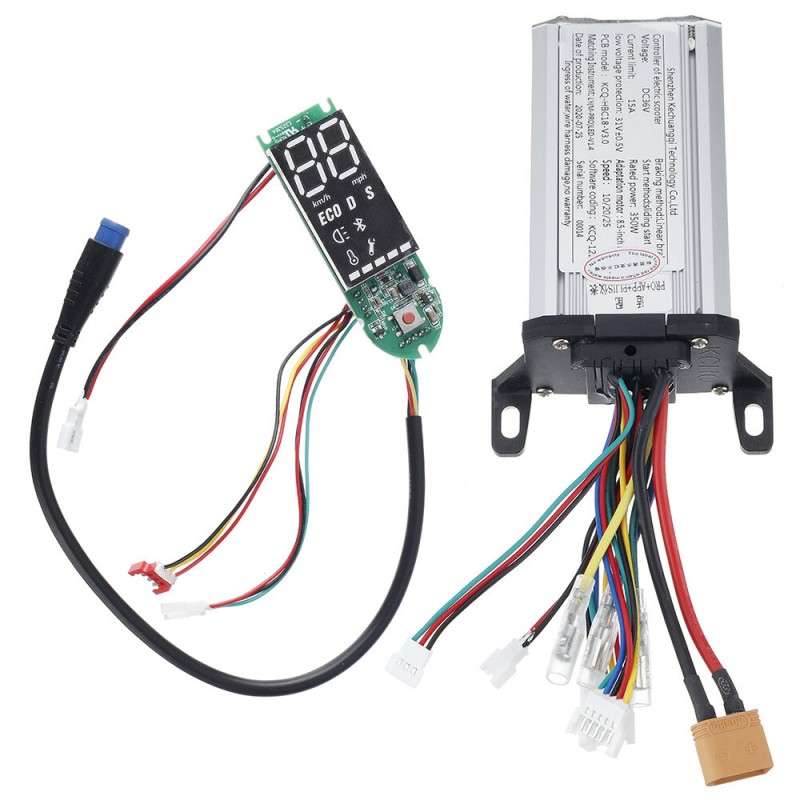

Package Included:

Type 01#
1 X
Controller
1 X

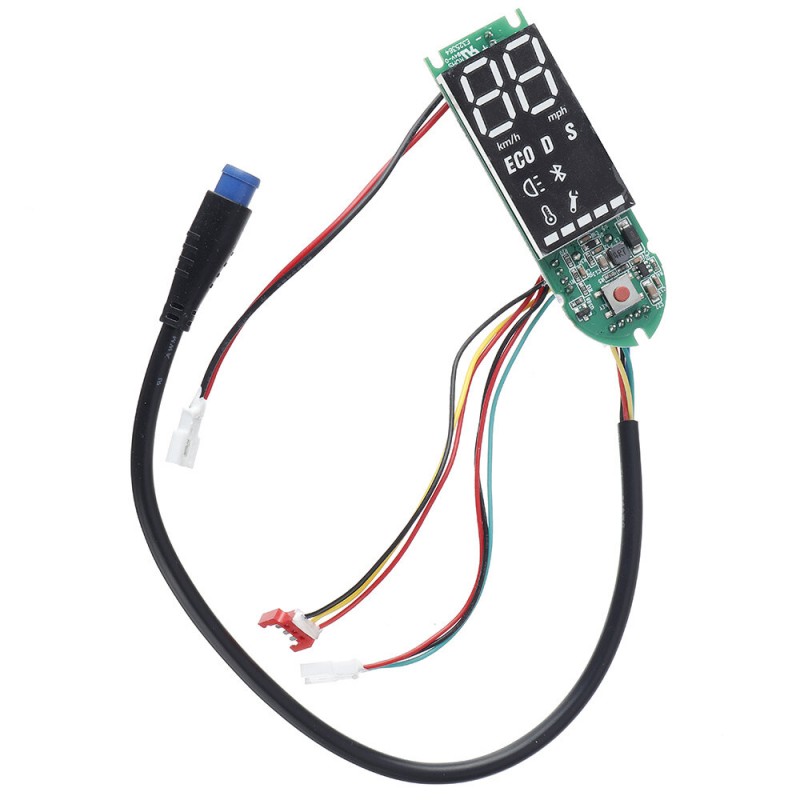

Dashboard
1 X
Accelerator
1 X

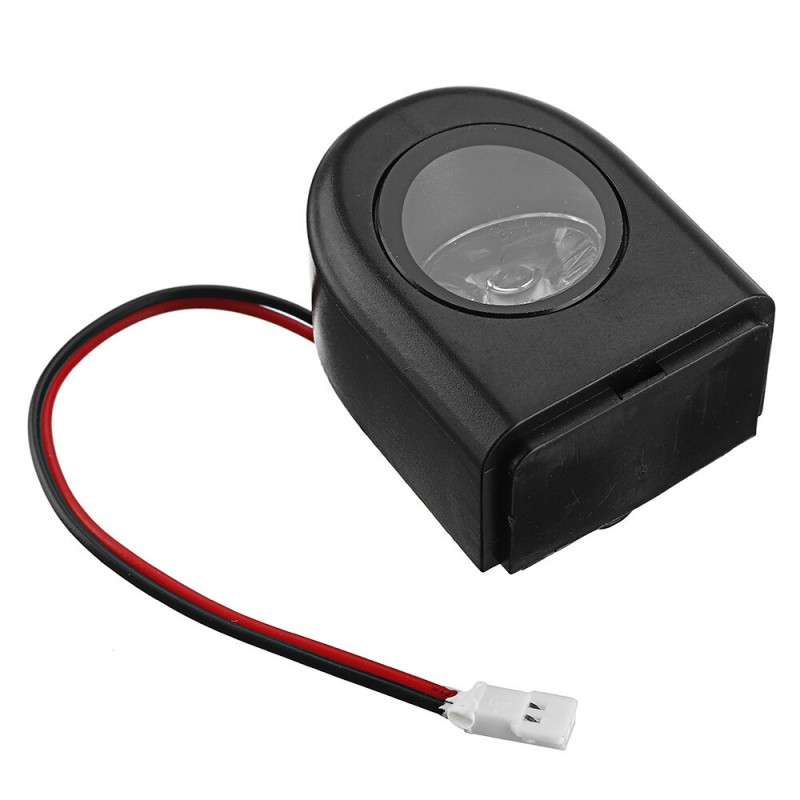

Front Light
1 X

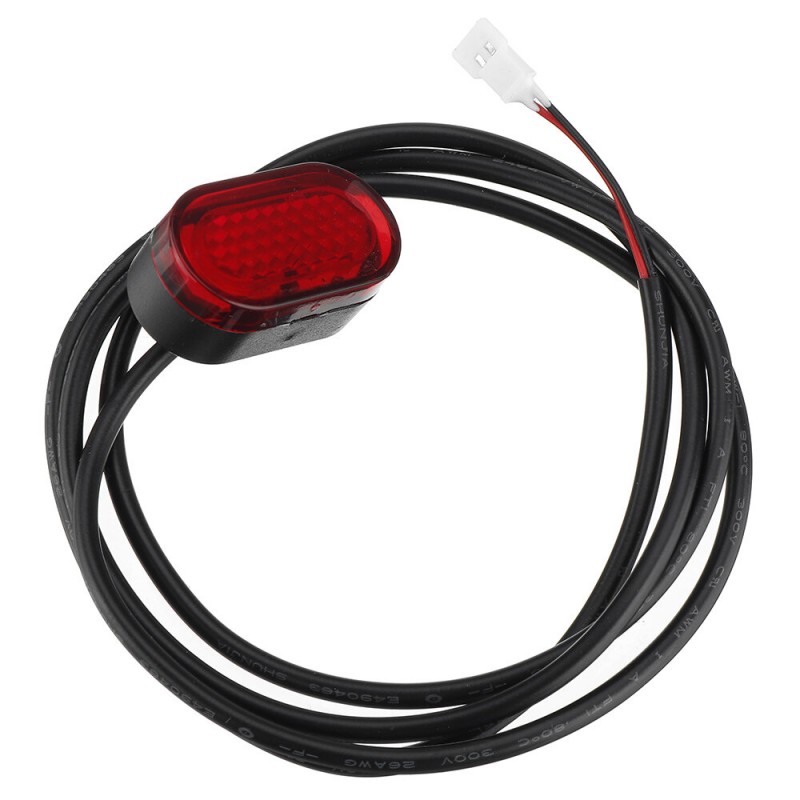

Rear Light
1 X
Waterproof Wiring


Type
02#
1 X
Controller
1 X
Dashboard
