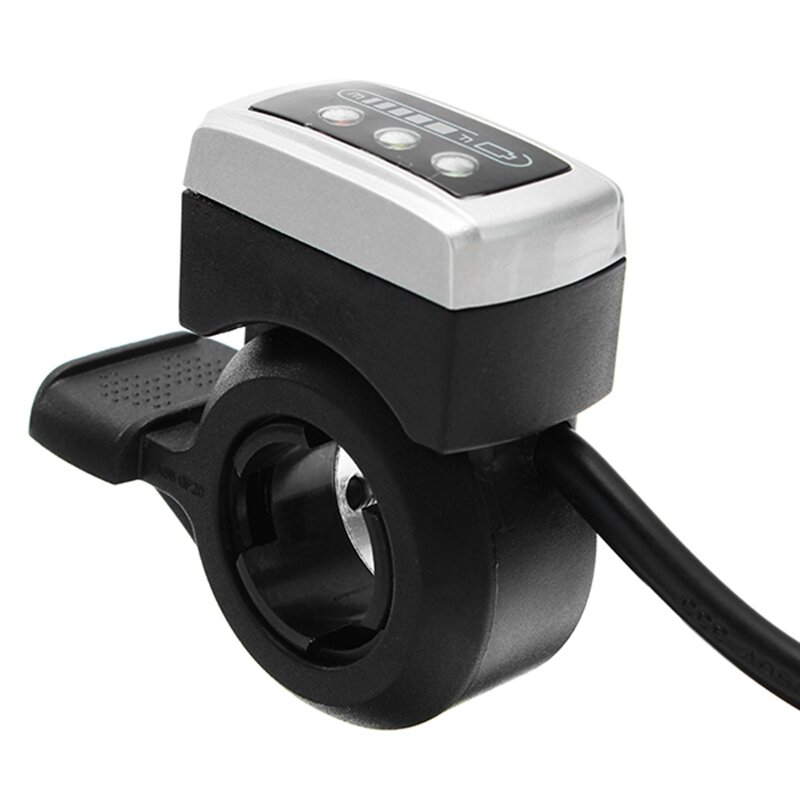

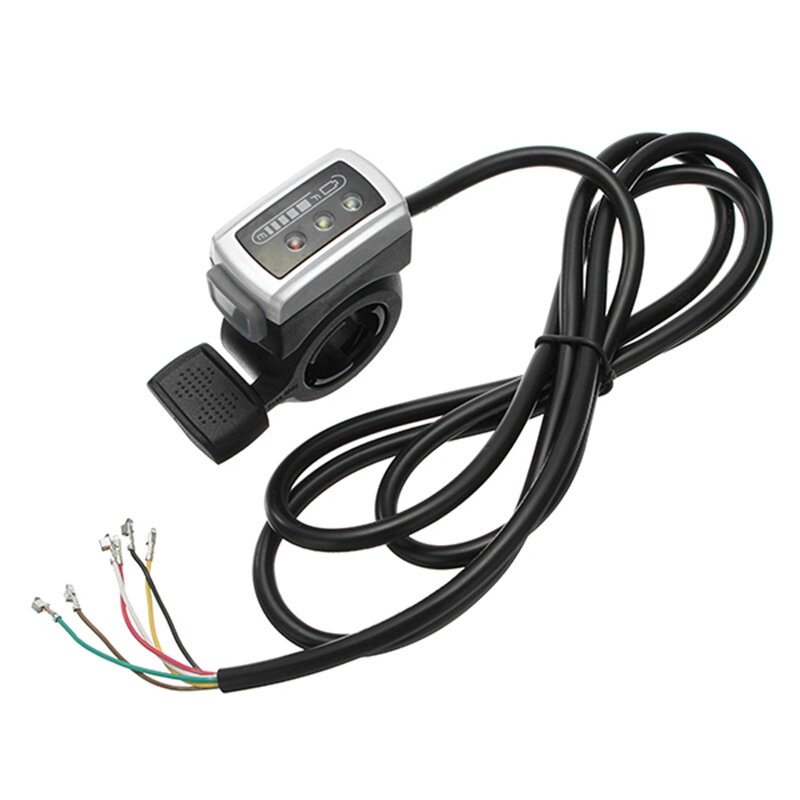

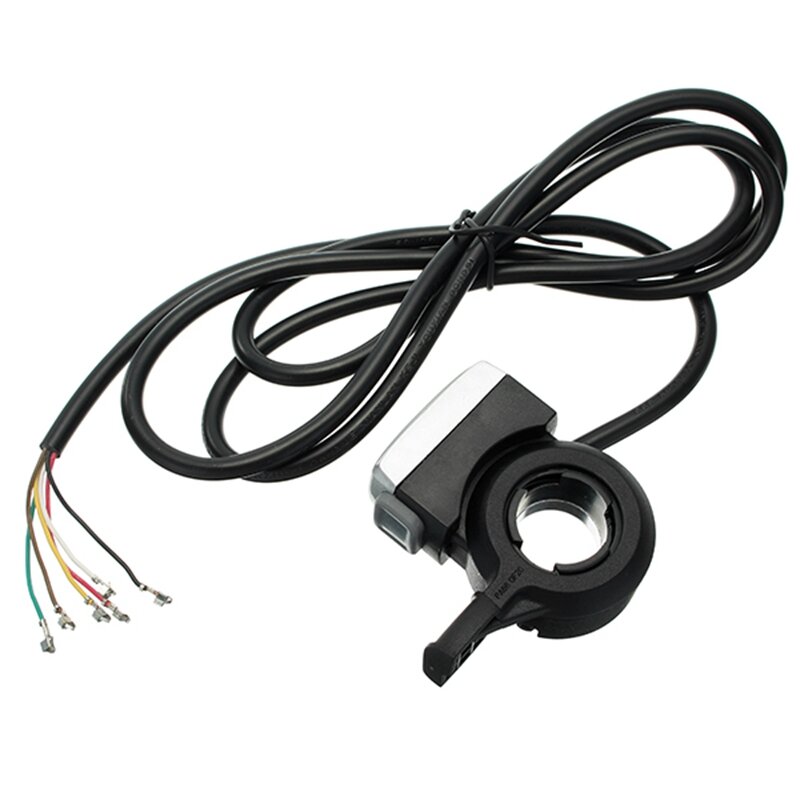

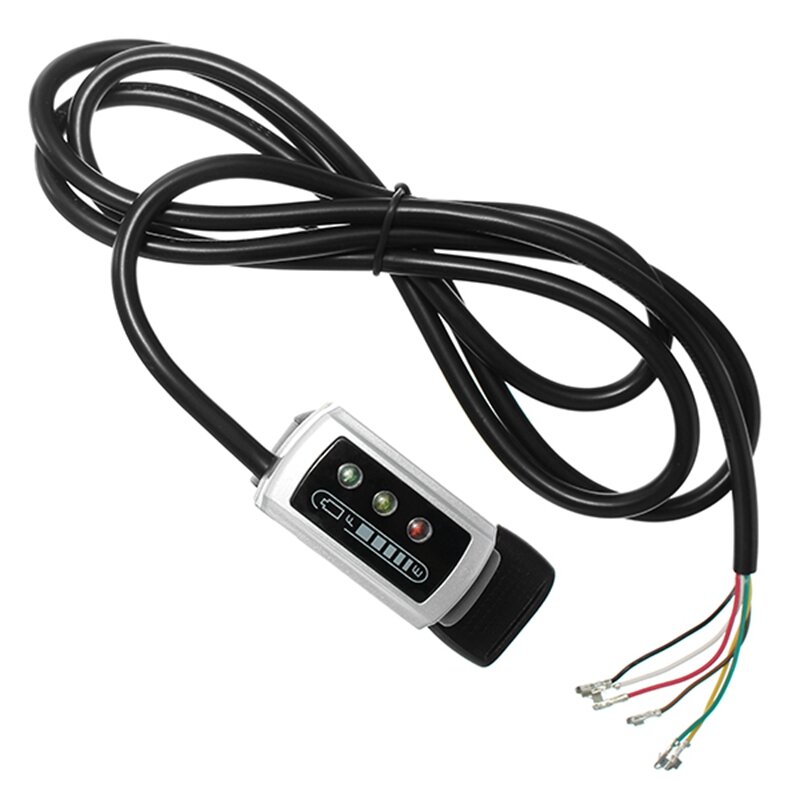

7/8 Inch Electric Bike Handlebar Speed Battery Indicator Thumb Scooter Throttle With Self Lock
$16.99
- Product Code: ED0021352
- Availability: In Stock
- Ex Tax: $16.99
Available Options
Specification:
| Material |
Plastic PA66 GF20 |
| Cable Length |
Approx. 160cm / 62.9inch |
| Battery Indicator Voltage |
24V / 36V / 48V |
| Adjust speed Working Voltage |
5V |
| Adjust speed Output Voltage |
0.8-4.3V |
| Rotation angle |
0°---70° |
| Operation temperature |
-40℃ ~ +80℃ |

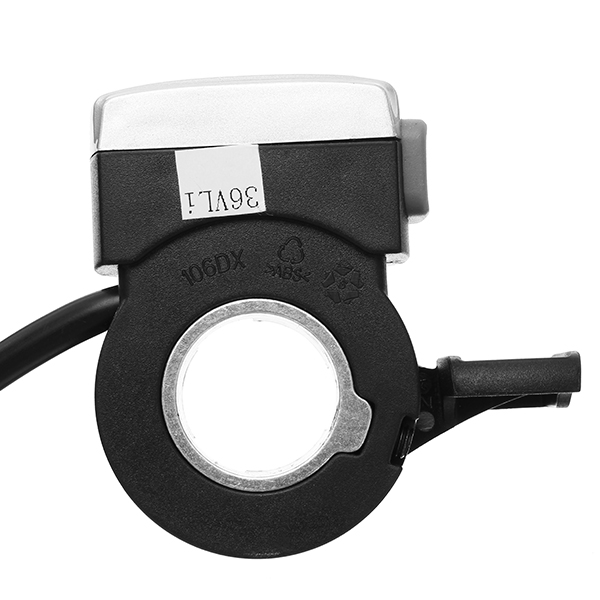

| Fitment | Fit for Handle bar is 22mm or 7/8 Inch Electric bicycle, Electric Scooter, MTV |
Function:

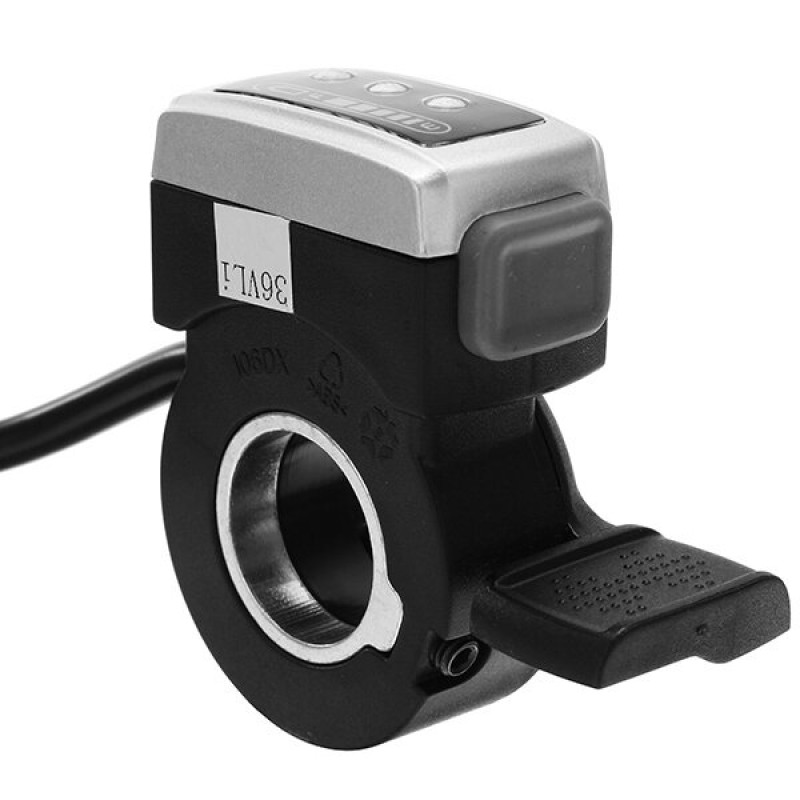

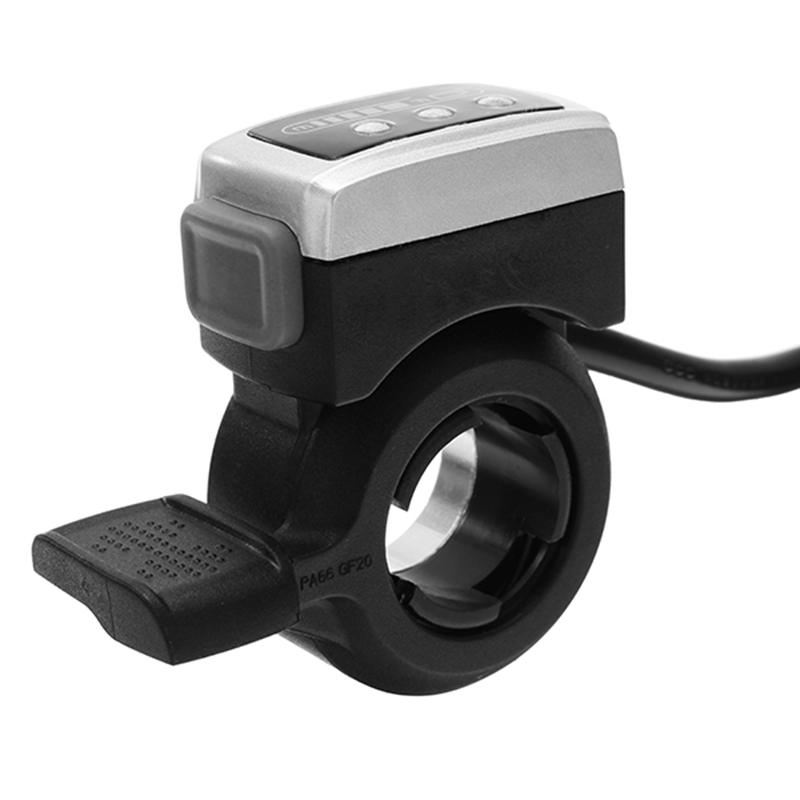

Battery Indicator(Green,Red,Yellow) + Self-Lock (The Red Button) + Adjust Speed (The Black Button)

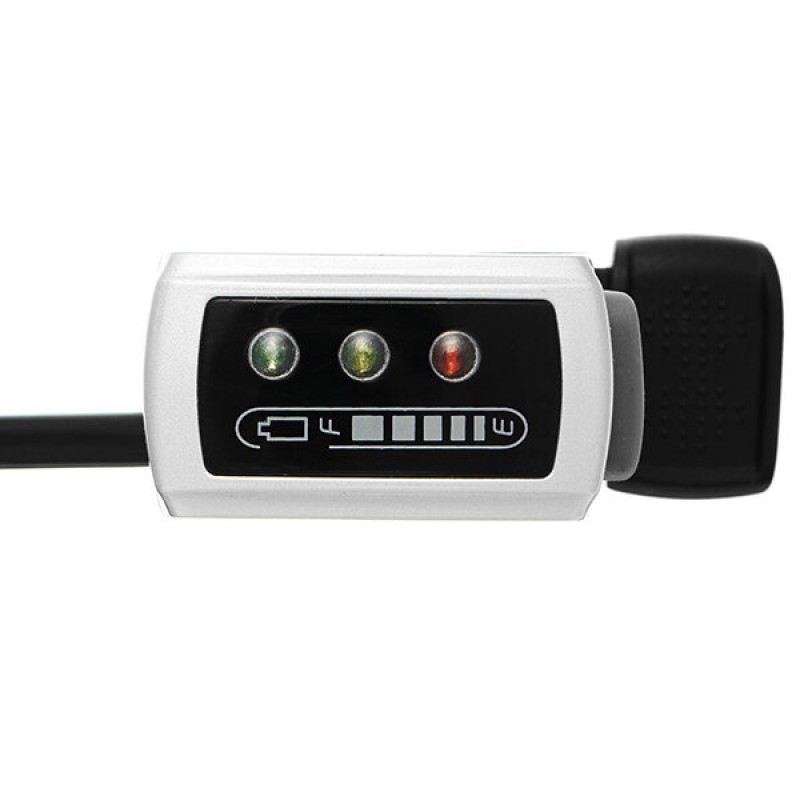

Green Light =High Power
Yellow Light=Half Power
Red Light=Empty Power

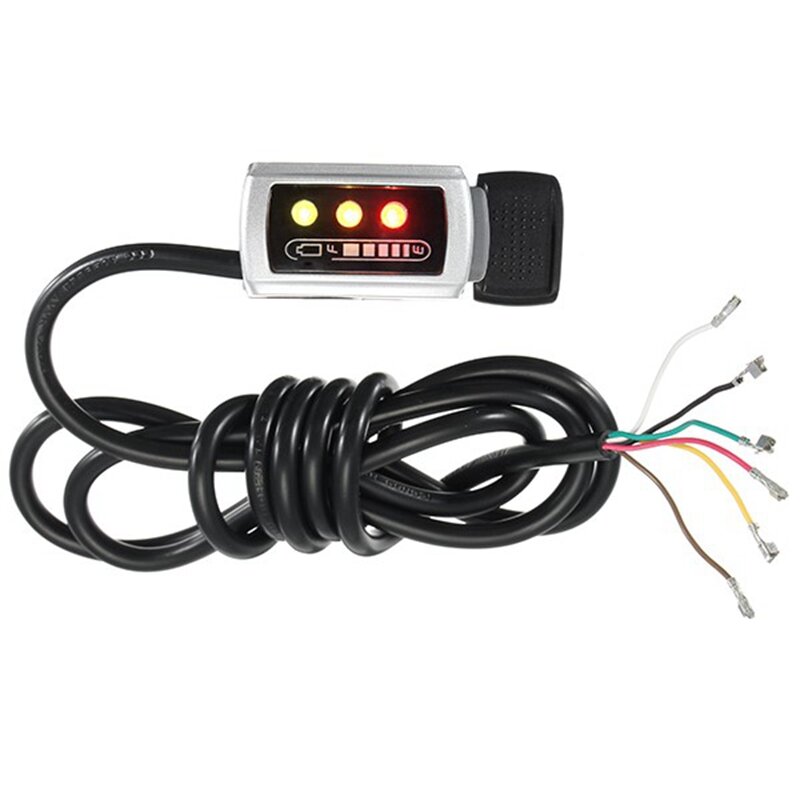

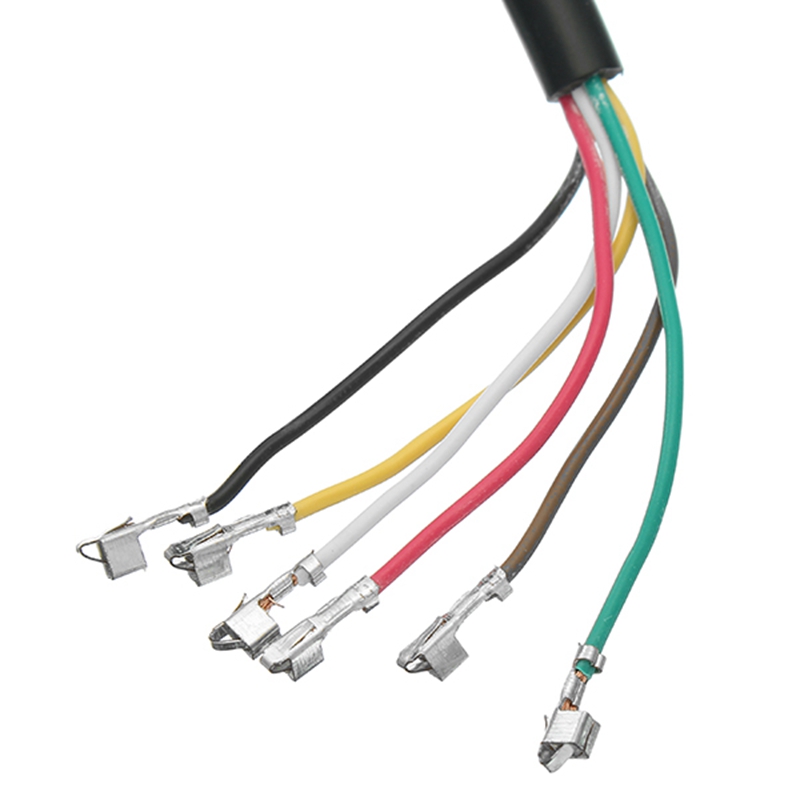

Red ,Black and White wire--- Adjust speed
Green wire----Positive (Battery Indicator,
Yellow and coffee wire---Self-Lock/Switch on or off
Adjustable-Speed Button can be fit for this function,but your bike need to have this function. Cruise / Low Gear / High Gear /
Reversing Lamp switch / run at full speed Automatically / Handlebar Switch on or off / Low battery Keep working
Note:
Do Not touch the Adjustable-Speed Button before installation, because if you touch the Adjustable-Speed Button
before installation, the inside springs may be taken out, this item can not be used.
Package Included:
1 X Handlebar with Battery Indicator
