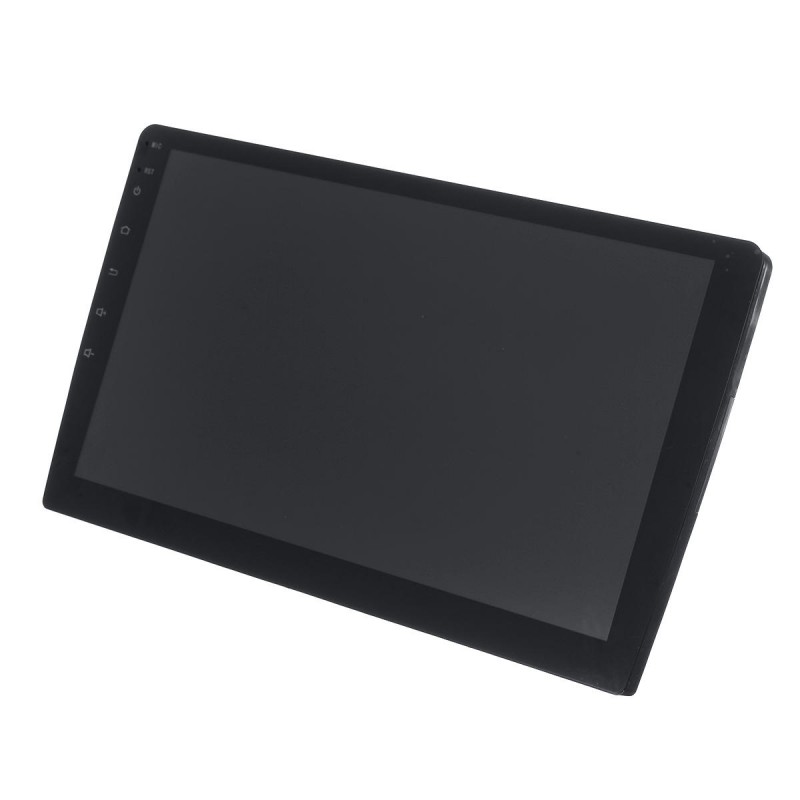

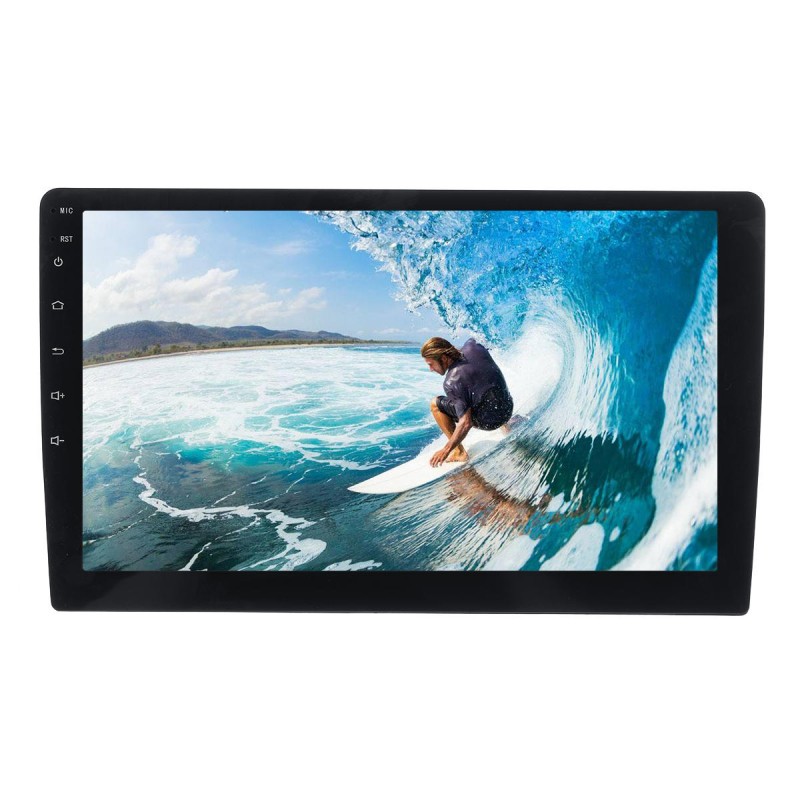

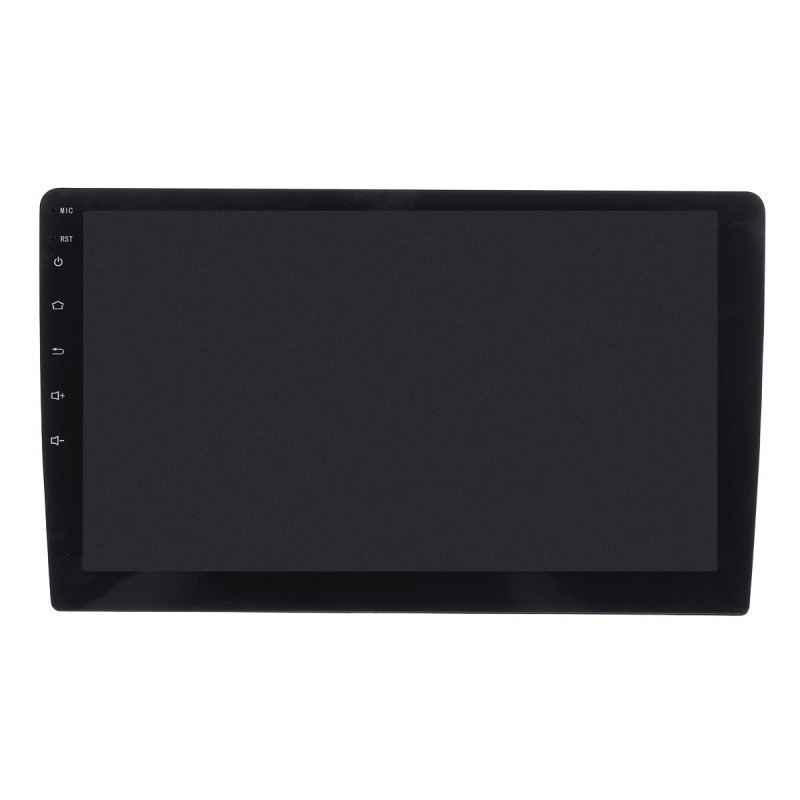

9 Inch 2 DIN Car MP5 Player Quad Core 1+16G Stereo Radio IPS Touch Screen bluetooth FM DAB DVR
$79.99
- Product Code: ED0002326
- Availability: In Stock
- Ex Tax: $79.99
Installation video: https://www.elecdeer.com/image/catalog/download/rar/1KrvmvRVmTvkmVVt2VoixYzvDsP76b2hg.rar
Specification:
Power Supply: DC 12V
Max. Current: 10A
Screen Size: 9 inch
Unit Size: 2 DIN
Size: 251*146mm
Unit Size: 2 DIN
Size: 251*146mm
System:
Operation System: C200S(not Android system)
CPU: Quad Core CPU Processor 1.3GHz
ROM: 16GB
RAM: 1GB
USB port, support 32GB USB Stick
System Parameter:
Video Decoding: All Format
Operate System: C200S
Start-up Time: Basic is about 5S, Most is about 25S
Working Temperature: -20°C-----+70°C
Storage Temperature: -30°C-----+80°C
Standby Current: <10MA
Working Voltage: 10.8~14.8V

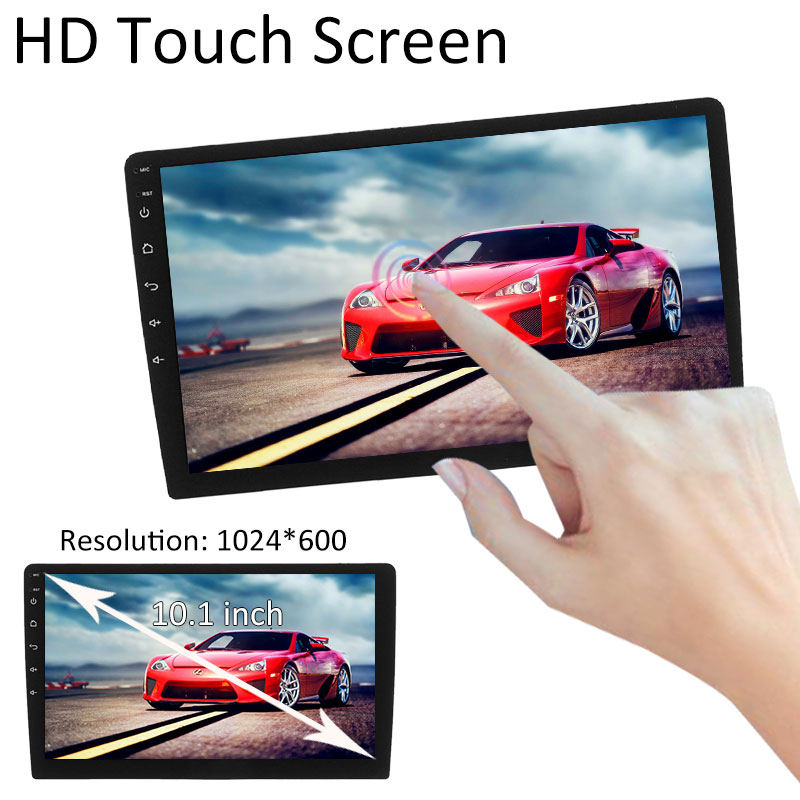

Screen Type: Digital Capacitive Touchscreen
Display:
IPS Touch Screen: Yes
Capacitive or Resistance Screen: Capacitive
Built-in Clock and Calendar: Yes, show real time and can use network-provided time
Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
Change Apps-Icon Position: Yes
Audio:
Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
Record: MP3, WMA
Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
Audio IC: Top Global Cirrus IC, independent audio decoding
SNR: Noise rations:=90dB

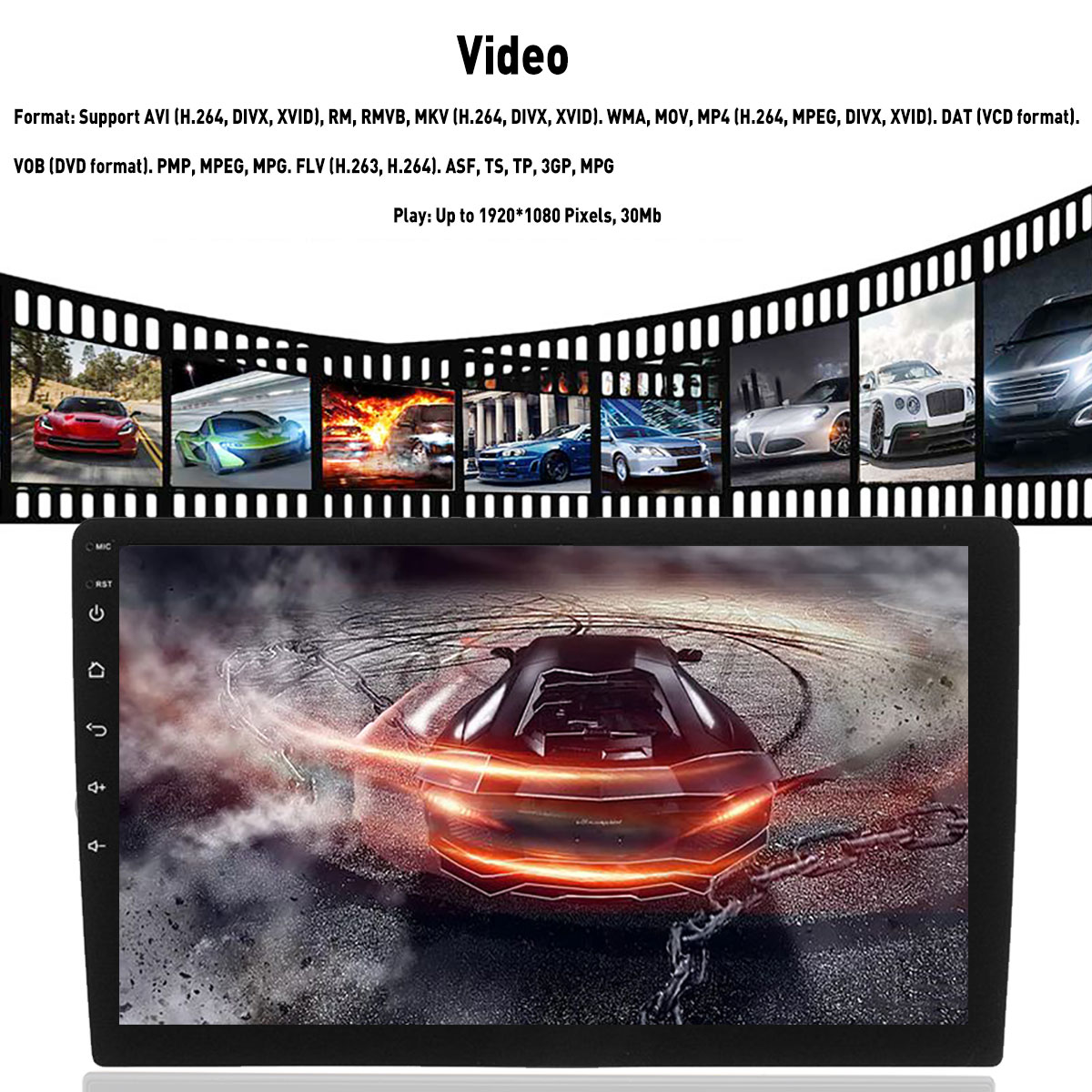

Video:
Format: Support AVI (H.264, XVID), RM, RMVB, MKV (H.264, XVID). WMA, MOV, MP4 (H.264, MPEG, XVID).
DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing
internet video directly (while downloading)
DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing
internet video directly (while downloading)
Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot

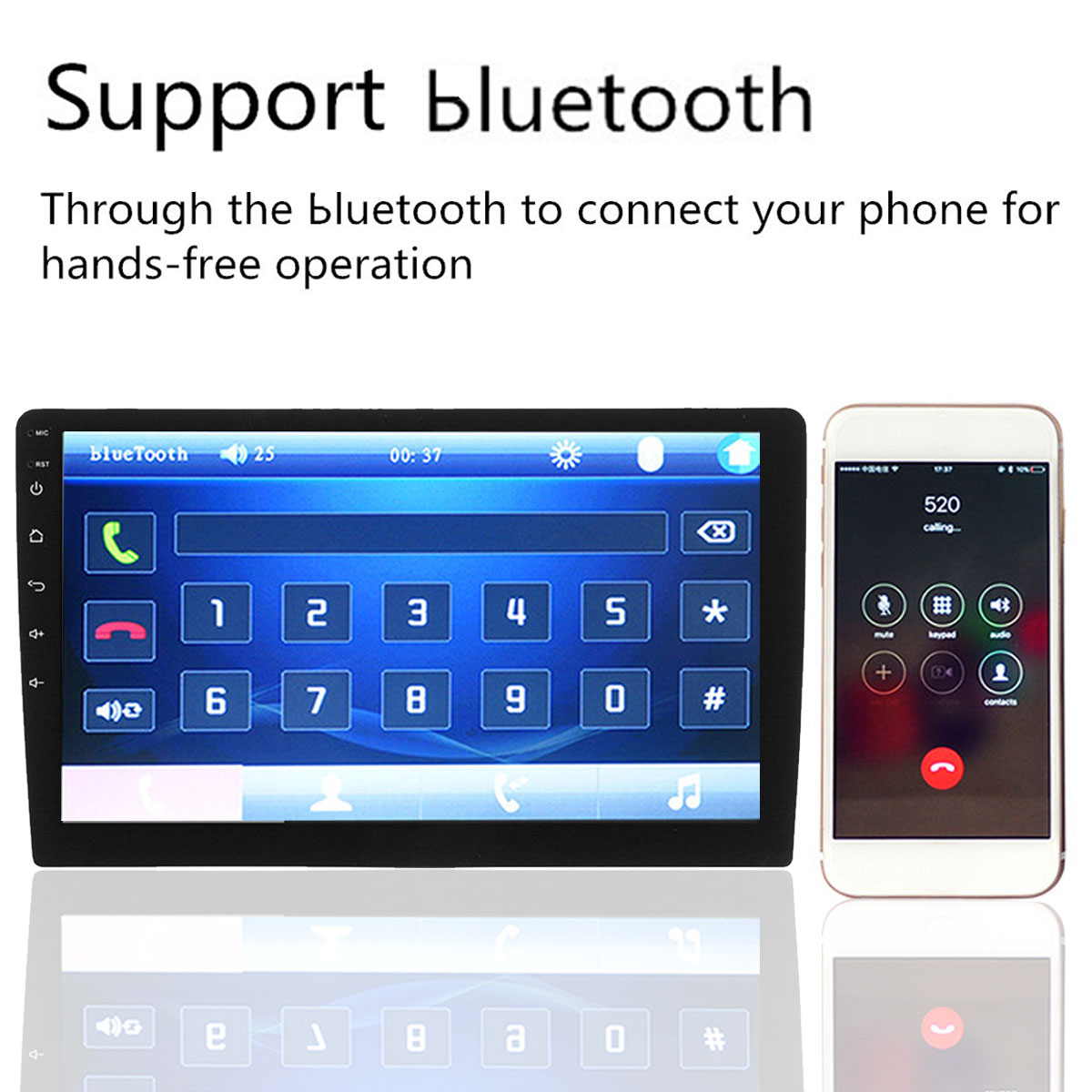

bluetooth:
Hands Free: Yes
A2DP (bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
bluetooth Music Control: Yes, play/pause/previous/next
PB-Download: Yes, can download phonebook from mobile to this unit
PB-Search: Yes, can use the first letter to search contact member in PB-Listings
Calling Records: Yes, Dialed Call, Received Call, Missed Call
Setup: Auto Answer, Auto connect, Device name

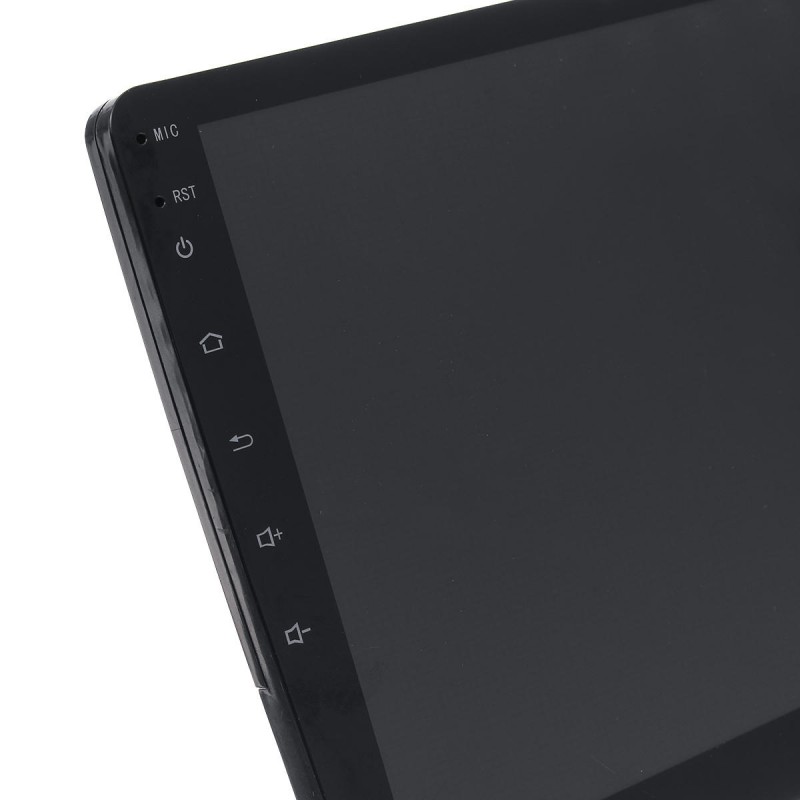

Built-in Microphone: Yes, on the front panel

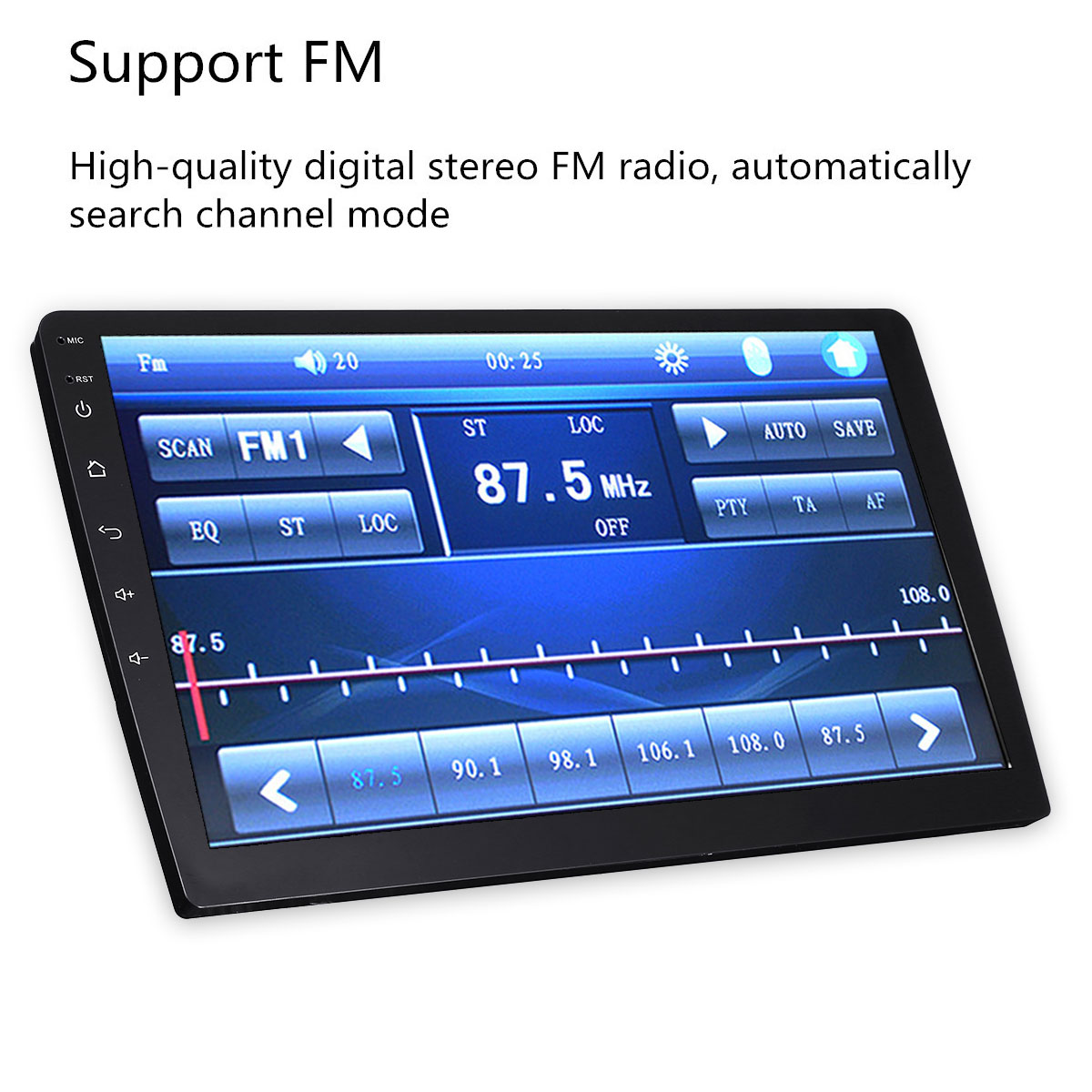

Radio:
FM: 87.5-108MHz
FM Increment: 0.05MHz(EU)/0.1MHz(US)
FM Area: Europe/USA1/USA2/Japan/Russia
Preset Stations: 30(FM 3*6, AM 2*6)
USB:
Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box/Smartphone
Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
Touch Music Title to play directly: Yes
DVR:
Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
Support HD CCD Camera: Yes
Play recorded Video directly: Yes
Storing Position: Nand Flash/USB Storage can be changed
DAB(+)-IN:
Support(DAB+ BOX NEED TO BUY SEPARATELY)
DTV-IN:
Built-in Digital TV Tuner: No
External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box
Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function
Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function
Additional:
Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, PPT, Support 4096*4096 Pixels
Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery
APK Installer: Support Android Package installer
Support Torque Pro(OBD2 &Car): Yes, you can connect a bluetooth OBD2 Scanner Tool to use this function

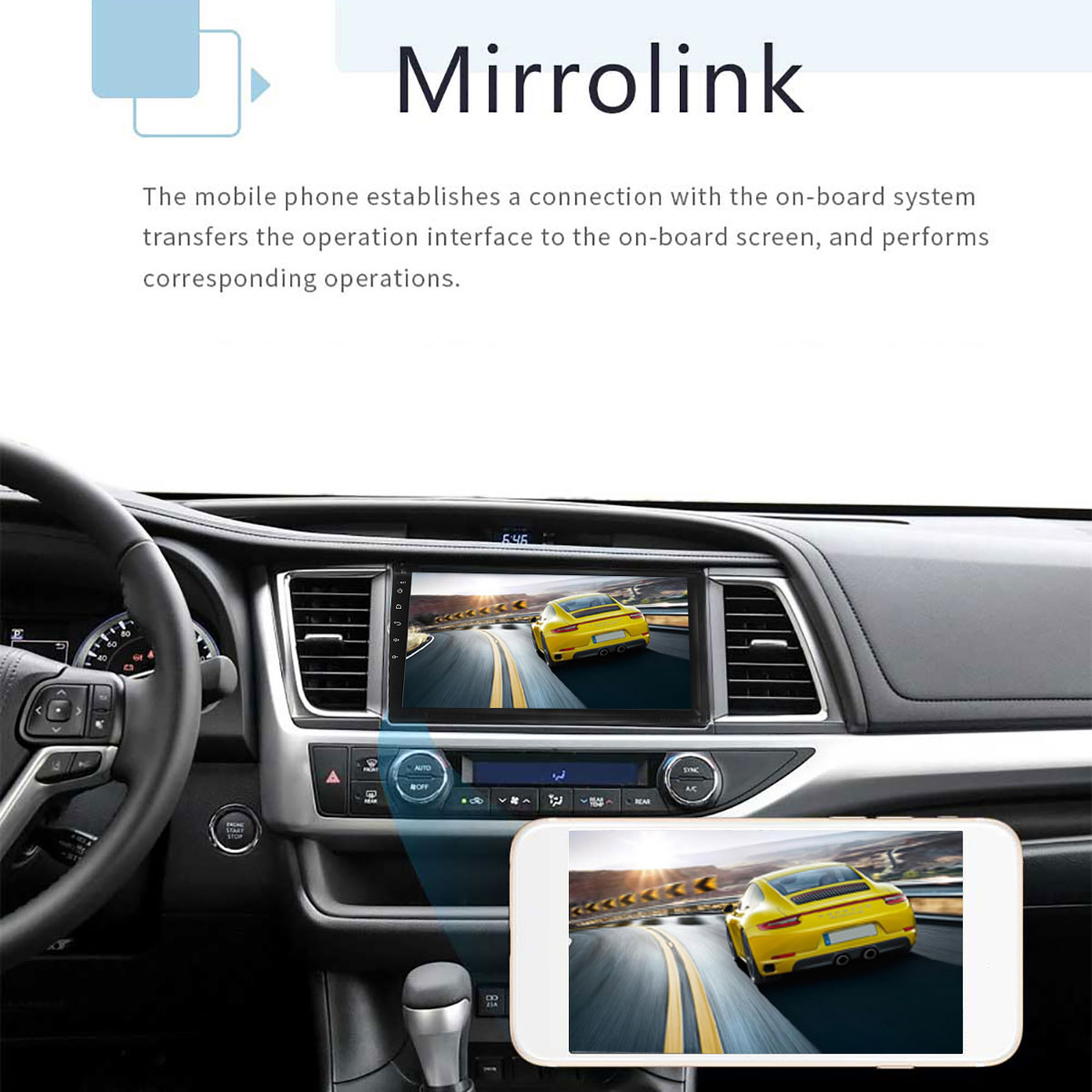

Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone
Support TPMS: YES (Not Included, you can us to buy it together)

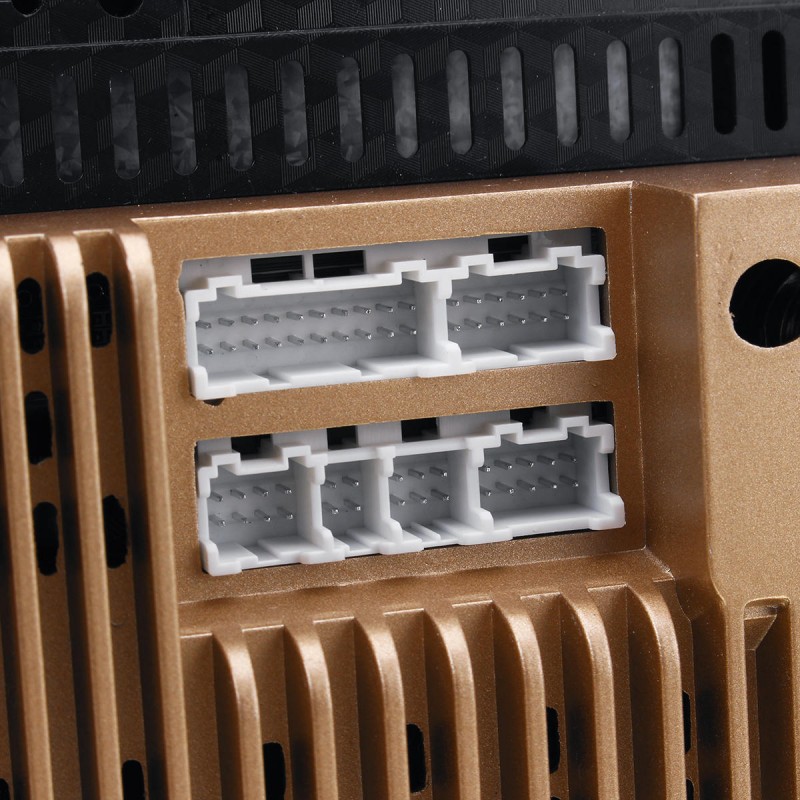

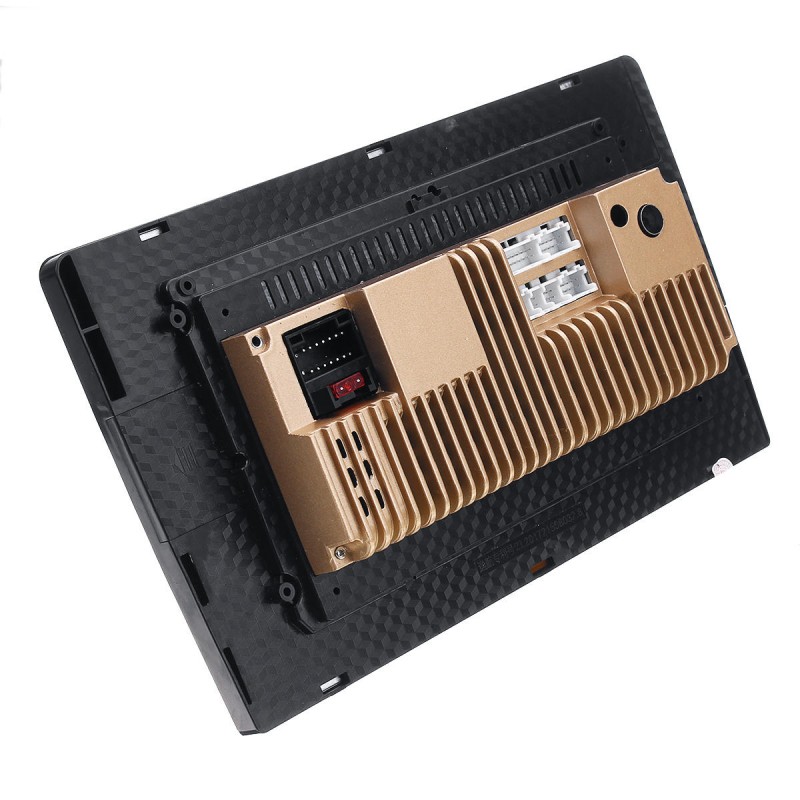

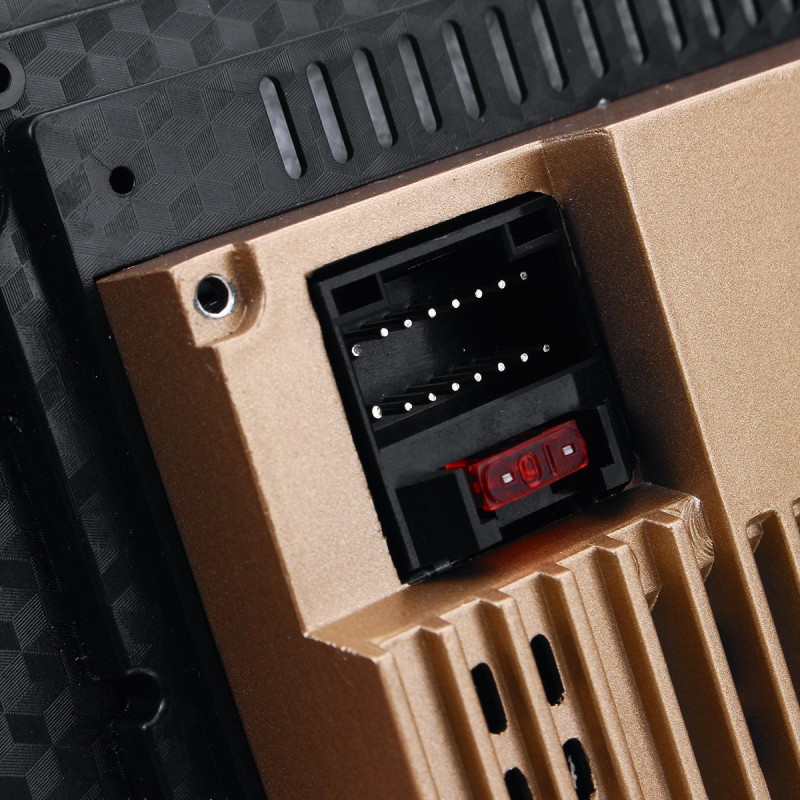

Input:
AUX Video In
Rear-View Camera Video In
AUX Audio In: R/L
DTV Box In
DAB+ Box In
Car DVR In
Output:
Video Out
Audio Out: LF, LR, RR, RF
Surround Stereo Out: 4*50W
Subwoofer Out
Features:
1. bluetooth function (answer/ call, bluetooth music player)
2. Support driving recorder(DVR)
3.Touch screen
4. FM radio
Note:
1.Note: This product does not contain shell.Shell need to be purchased by yourself.
2.Before buying, you need to measure the size and check if it matches the product size. If it does not match, you need to
purchase the bracket separately.
purchase the bracket separately.

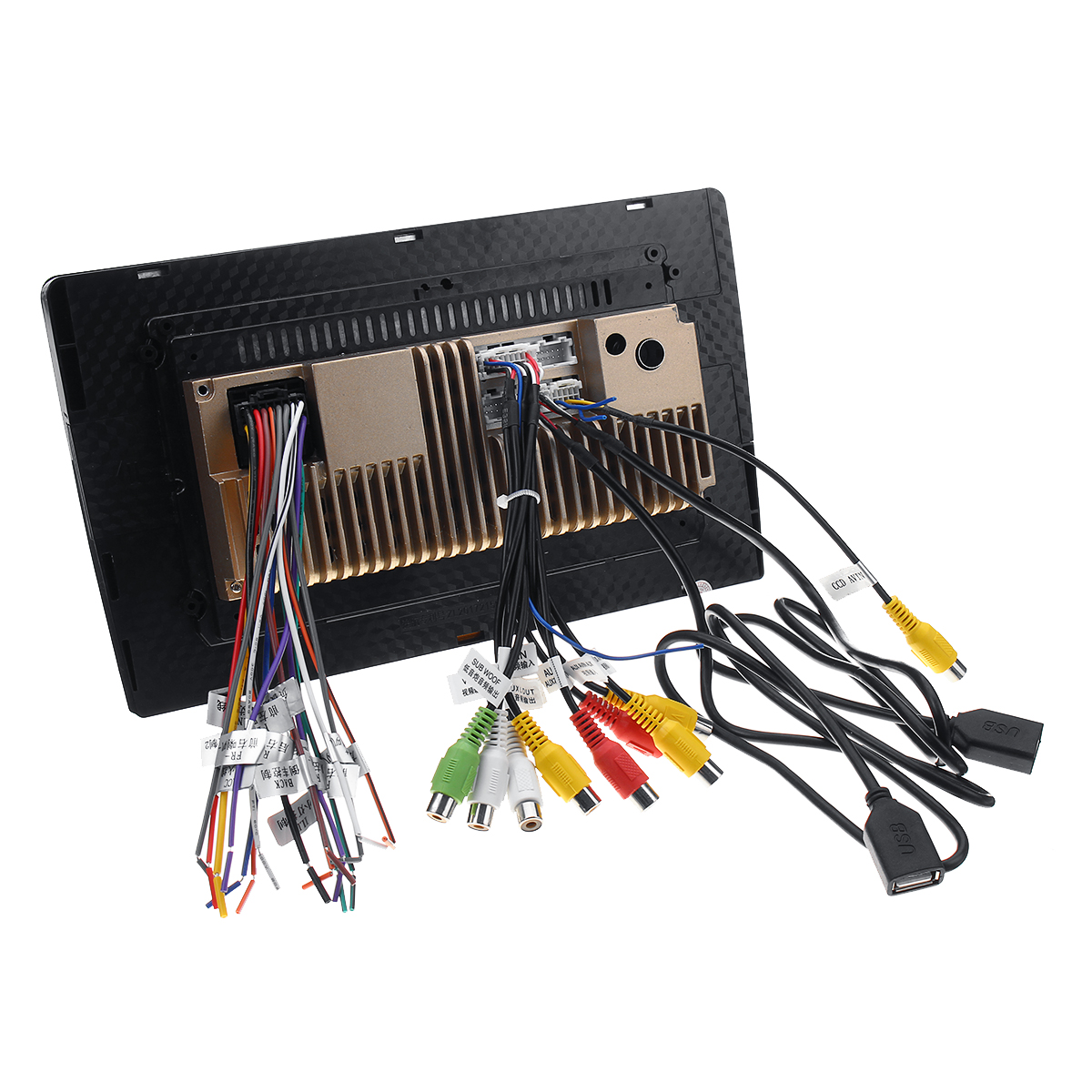

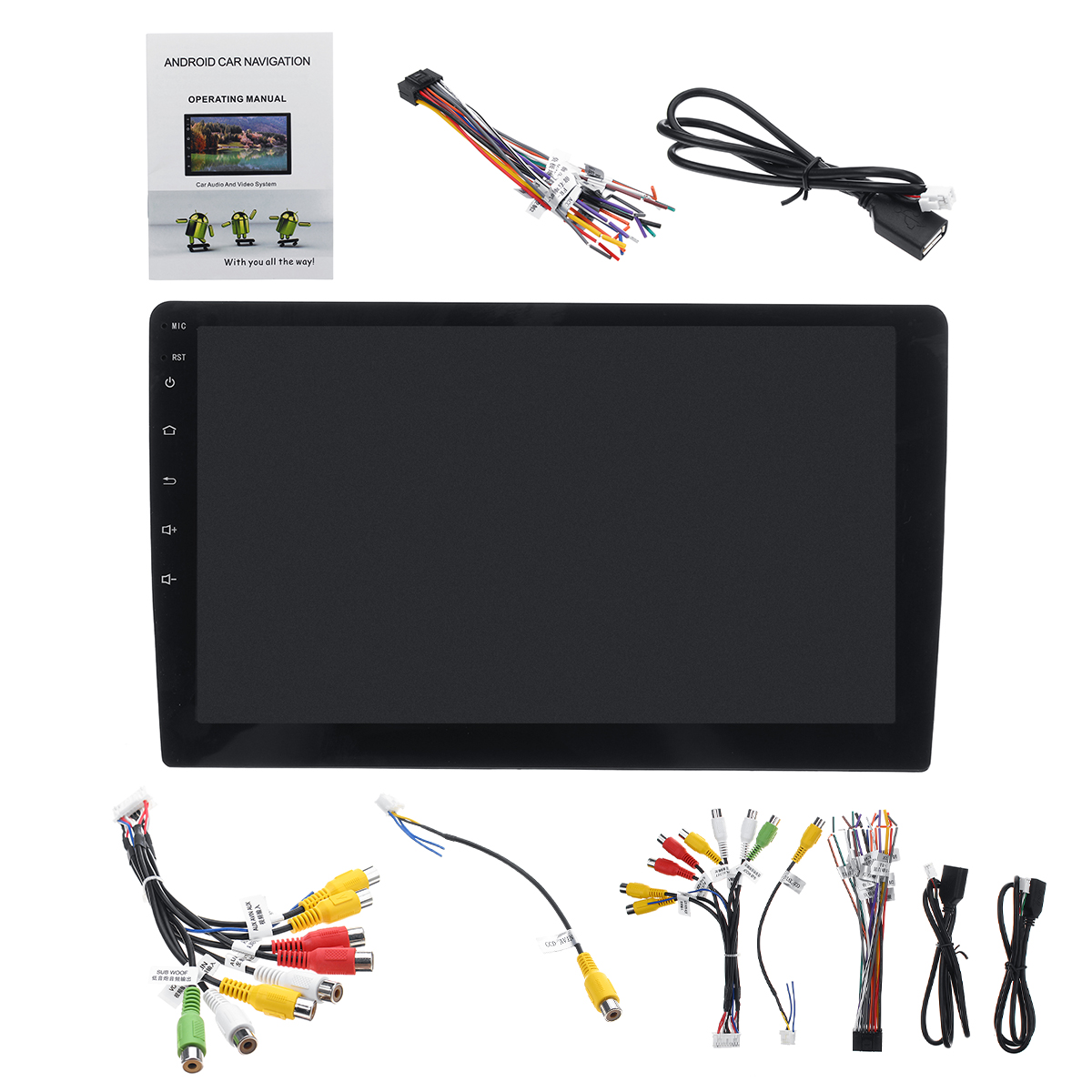

Package included:
1 x Car MP5 Player
2 x USB Cable
1 x Power Cable
1 x RCA Cable
1 x Camera Input Cable
