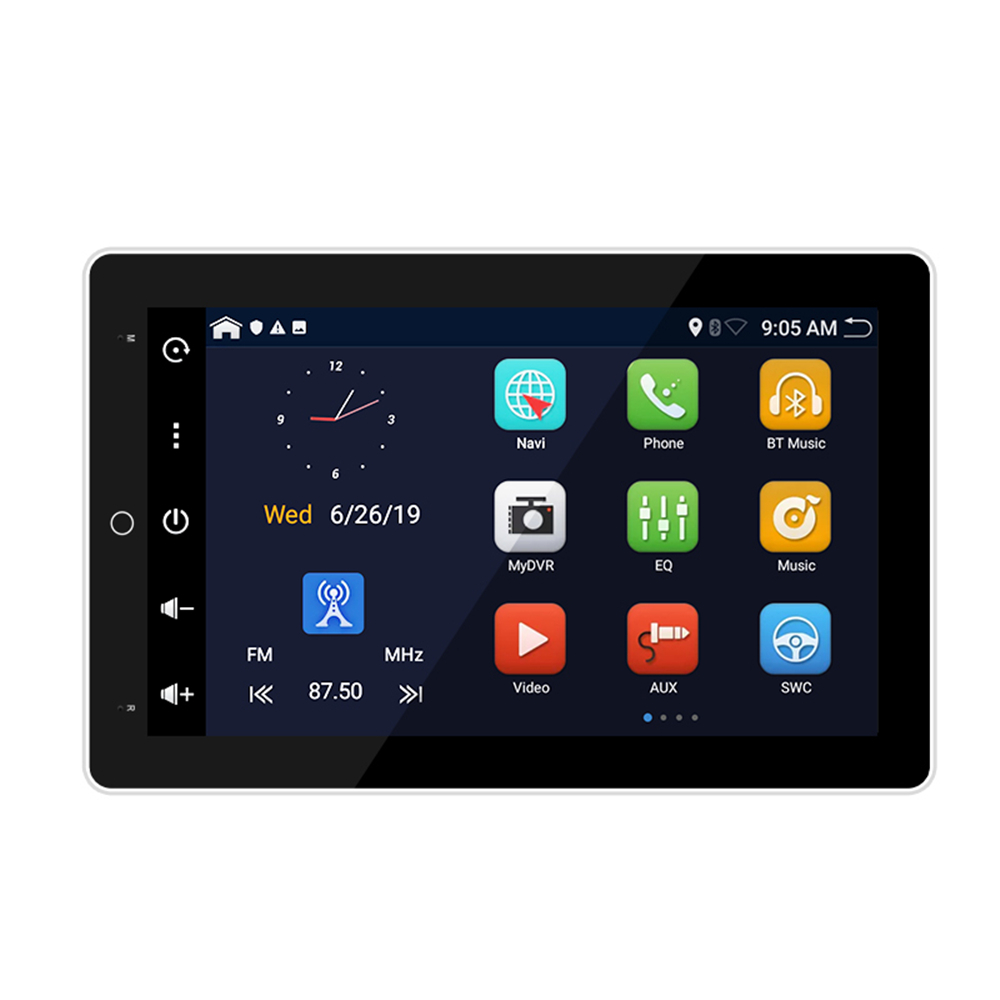

9.7 Inch For Android 8.1 Car Stereo Full-automatic 1DIN Rotable Touch Screen Quad Core 2+32G FM AM Radio GPS WIFI 4G RDS Support Split Screen
$235.99
- Product Code: ED0002364
- Availability: In Stock
- Ex Tax: $235.99
Specification:
Brand: Elecdeer
Model: YH-1634
Main Processors: ALLWINNER
Model: YH-1634
Main Processors: ALLWINNER
System: For Android 8.1
Operation mode: Capacitive screen multi-touch
CPU: Quad Core
RAM: 2GB DDR4
ROM: 32GB EMMC
CPU: Quad Core
RAM: 2GB DDR4
ROM: 32GB EMMC
Screen size: 9.7 inch
Installation Space: 1 DIN
Installation Space: 1 DIN
Screen resolution: Maximum support 1920*1200(you can install a 1920*1200 screen on it, the actual resolution is 1024*600)
Theme: Free wallpaper replacement, support dynamic wallpaper
Radio: TDA7786, support FM, AM, RDS
Navigation: google map/waze/sygic and so on, support map built-in/external, support navigation split screen function
AUX: A set of AV inputs
DTV: External DVB-T (Support, Not included), supporting square control and touch control mode to control DTV
USB: 2-way back USB
DAB: External (Support, Not included)
bluetooth: Supports phone book, call removal and hand-free function, call recording, bluetooth music playing. Support
only one bluetooth device to connect this uint.
only one bluetooth device to connect this uint.
DVR: CVBS and USB
Phone interconnection: Support USB/WIFI connection
Phone charging: 1A phone charging current
Steering wheel control: Support original car steering wheel learning
Rear view: Reversing the car automatically switches the video, the screen starts quickly: ≤1.5S
Handbrake control: Can control whether the handbrake is functioning by setting the host
TFT image output: Supports mirror video of CVBS output TFT
Internet access: 3G/4G dongle or WIFI
User software download: Web application download, install, uninstall
Working environment temperature: -20 °C ~ +70 °C
Output power: 4x45W high power output TDA 7388
RCA Output: No Video Output; 3 Channel Audio Output: Front-Left, Front-Right, Overweight Bass Special Output
Language :
Support: English, Japanese, Spanish, Italian, French, German, Portuguese, Russian, Arabic, Turkish, jewish, Vietnamese, Thai,
Chinese Simplified, Chinese Traditional, etc. (Default language English)
Support: English, Japanese, Spanish, Italian, French, German, Portuguese, Russian, Arabic, Turkish, jewish, Vietnamese, Thai,
Chinese Simplified, Chinese Traditional, etc. (Default language English)
Input method: Handwriting
Video function:
Video format: DVD, MPEG1-4, DVIX, AVI, MKV, AVI, RMVB, FLAG and other video formats
Format resolution: Support 4K video
Audio function:
Music format: MP3, WMA, AAC, APE and other audio formats,automatic identification ID3 and album display
DAB+:
Support DAB+, but you need to buy a DAB+ box and DAB+ antenna to start the function.
DAB+:
Support DAB+, but you need to buy a DAB+ box and DAB+ antenna to start the function.
Picture function:
Picture format: JPEG/BMP
Thumbnail display: support
E-book function:
E-book format: TXT
Phone Mirror Link:
for Android phone: via WIFI or USB connection
for IOS phone: via WIFI connection
Not Support:
Phone Mirror Link:
for Android phone: via WIFI or USB connection
for IOS phone: via WIFI connection
Not Support:
External microphone, front USB charging port, front SD Card
Note:
1.Note: This product does not contain fascia dash frame panel and CANBUS box. Some special vehicles need a specific fascia and
CANBUS box to fit it.
CANBUS box to fit it.
2.Before buying, you need to measure the size and check if it matches the product size. If it does not match, you need to purchase
the fascia panel separately.
the fascia panel separately.

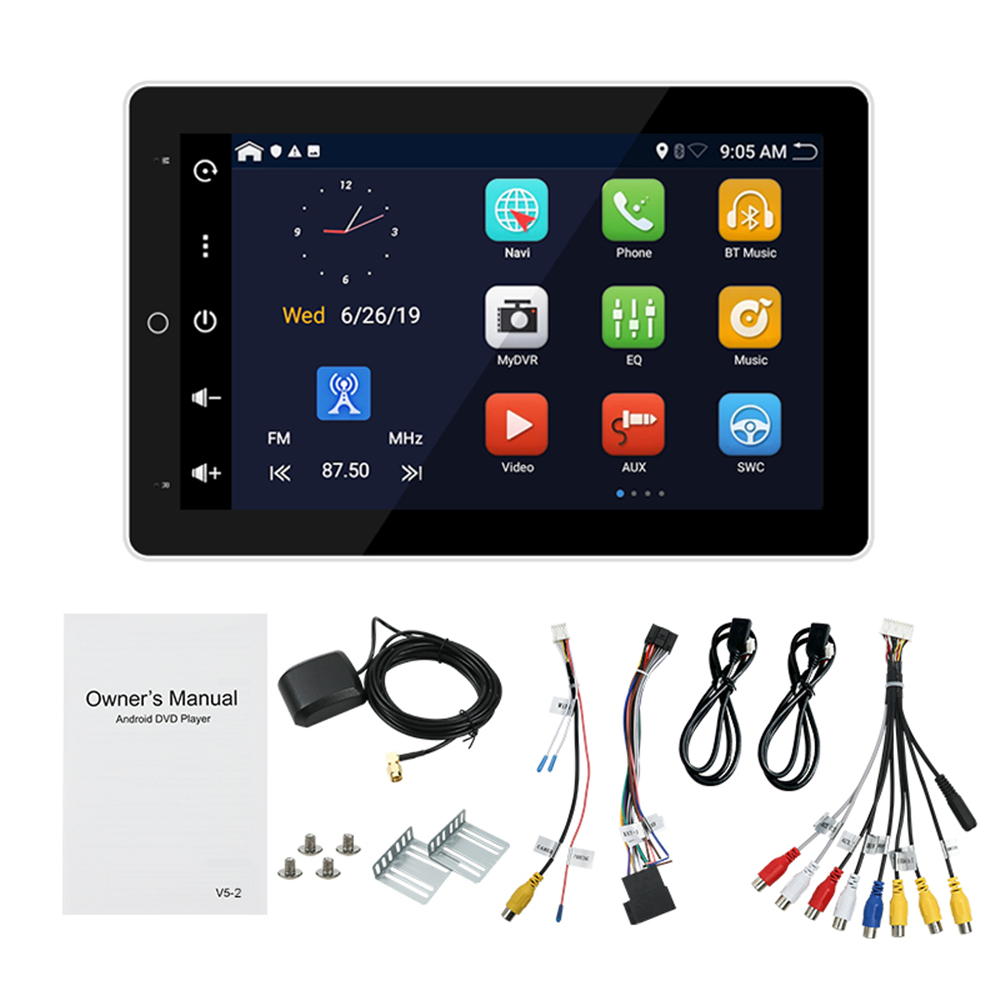

Package included:
1 X 9.7 Inch Car Player
1 X Power Socket
1 X RCA Cable Socket
1 X Rear Camera Cable
1 X Rear Camera Cable
1 X GPS Antenna
2 X USB Cable
1 X Set of Loading Brackets
1 X Set of Loading Brackets
1 X User Manual
