| Main chip | HuaWei Hisilicon Hi3556V200 |

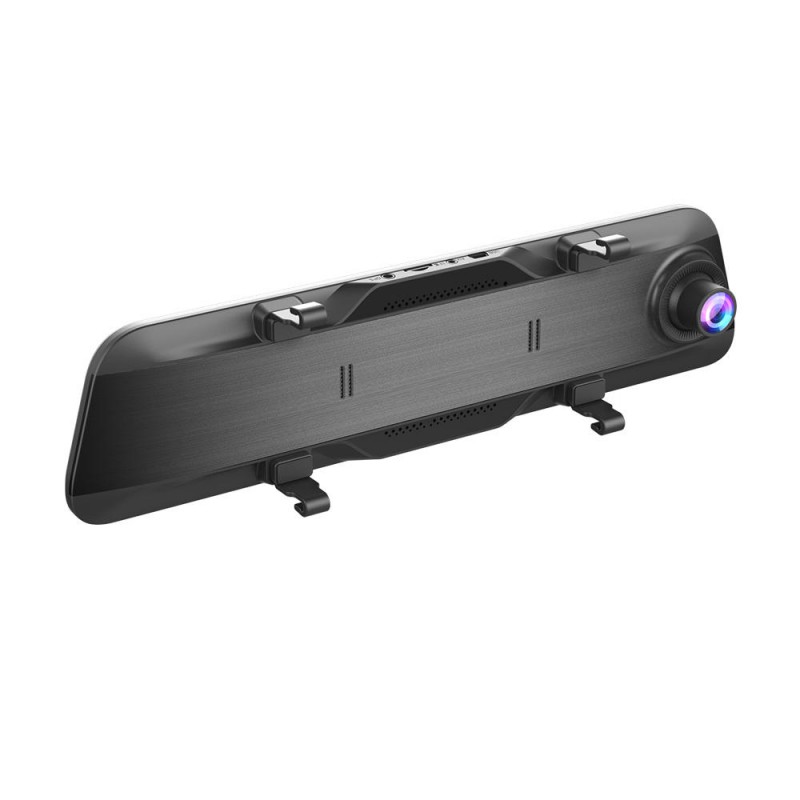

| Main camera | Sony IMX335 |

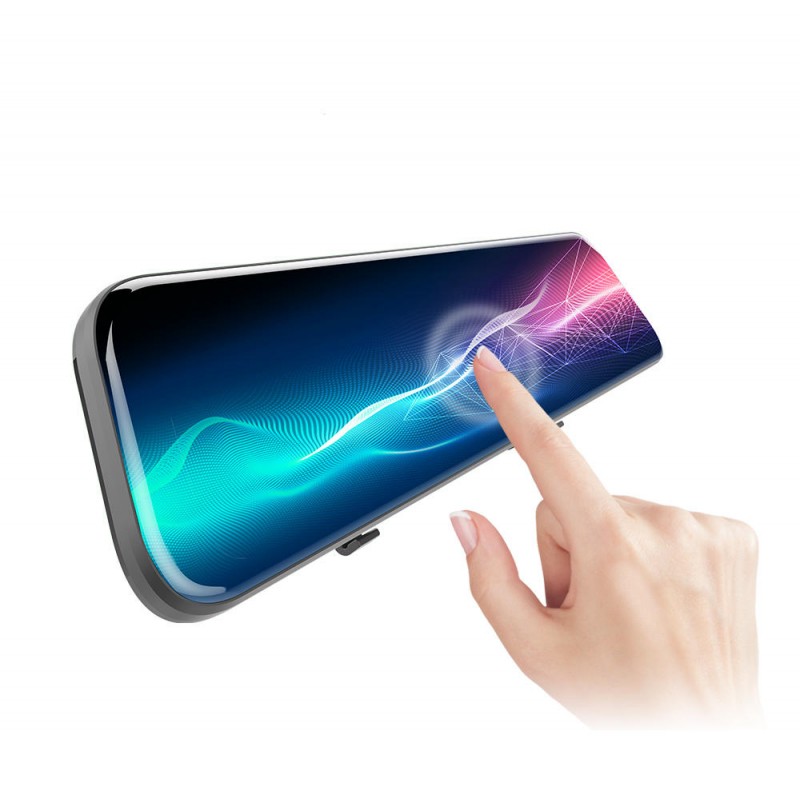

| Display | 11.66 inch IPS (380*1920) 40pin RGB interface |
| Battery | DC 3.7V 500mA rate battery |
| Adapter Input | DC12V-24V Output: DC5V2.8A (optional parking line for 24-hour monitoring, with ACC, with low voltage protection) |
| Video format | H.264H.265 (MP4) before 2560x1440@25fps 1920x1080@25fps |
| Picture format | JPG format Front 2560x1440 , Rear 1920x1080 |
| TF card | Class10 high speed card Maximum support 64GB |
| Replace the special back clip | Support |
| Rear recording | 1080P AHDTVI PALNTSC |
| Time-lapse video | support One second, one frame, one second, two frames, one second, three frames |
| Parking monitoring | support |
| Gravity sensing | support |
| Motion detections | support |
| Rear view | support |
