Auto LCD Car Parking 8 Sensors Rear Front View Kit
$52.40
- Product Code: ED0000831
- Availability: In Stock
- Ex Tax: $52.40
Feature:
1.How does the 8-sensor system work:
While braking, all 4 front sensors will be active. While reversing, 2 front & 4 rear sensors and LCD monitor will be active.

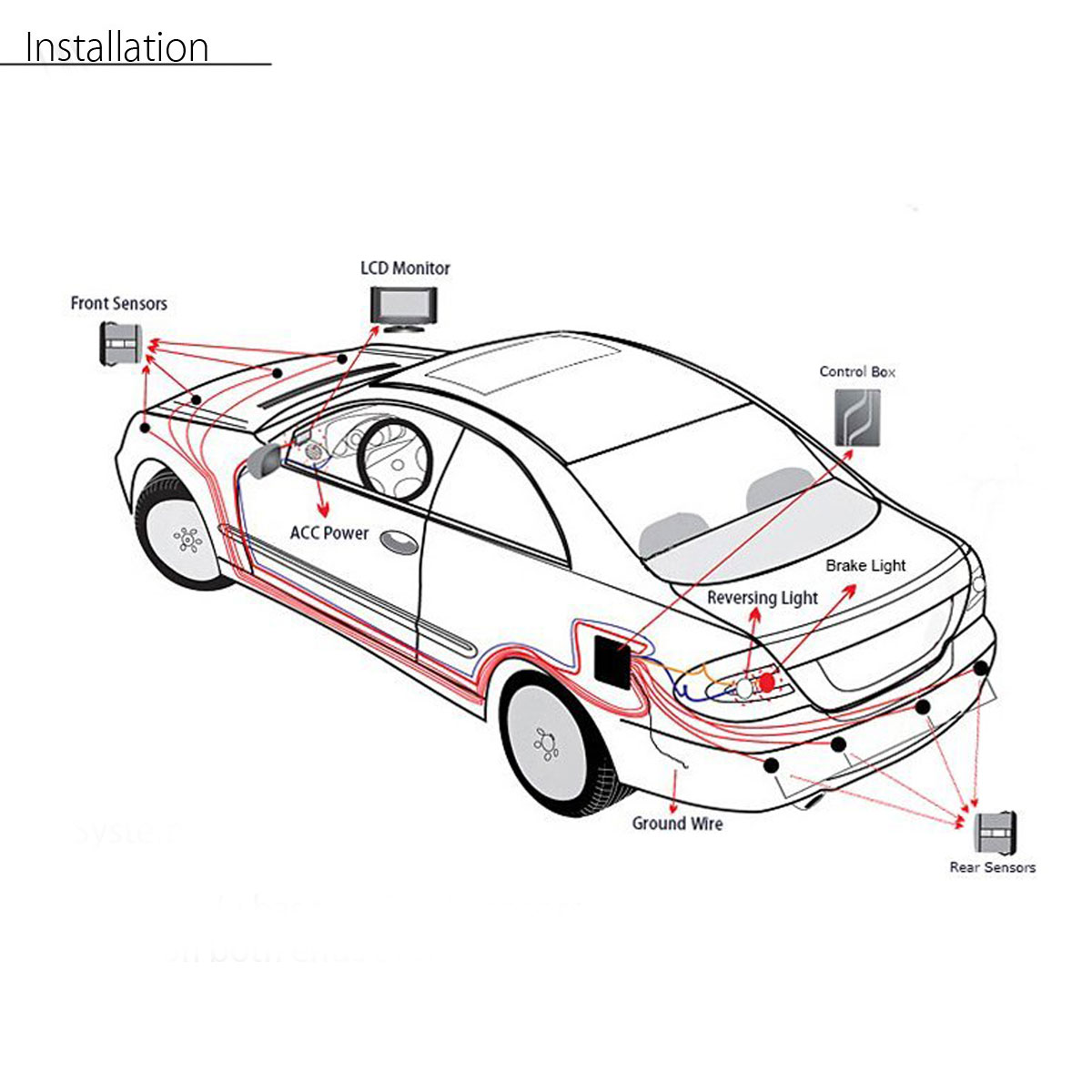

2.Wires Connection:
Red-ACC, White-Foot brake wire, Yellow-Reversing wire 12V, Black-Ground.
3.Notice:
For safety reasons, while braking, only the sensors sense obstacles, the LCD monitor will be active.
Try to keep the sensors at the same level.
In order to avoid detecting the ground, please keep the sensor and the ground has a distance of 19.6~23.6 in (21.6 in suggested).
Please always keep the arrow (back of each sensor) up while installing.
The Control Box should be mounted on side of the car trunk.
Specification:
Product Name: LCD Display Car Parking Sensor 8 Rear Front View Reverse Backup Radar System Kit
Model: 634508
Control Box Color: Black
Sensor Color: Silver
LED Display Size: 10.5x6x4cm
Sensor Cable Length: 230cm
Sensor:8 sensors, front and rear monitoring
Front Sensor Detection Range: 0.98~3.28 ft
Rear Sensor Detection Range: 0.98~7.54 ft
Rate Voltage: 12V
Operating Voltage Range: 9~16V
Rate Current: 20~200mA
Detecting distance: 0 - 2.5m
Ultrasonic Frequency: 40KHz
Working Temperature: -30~7°C
Display Working Temperature: -20~60°C
Sound Mode: Silent, Buzzer
Package Included:

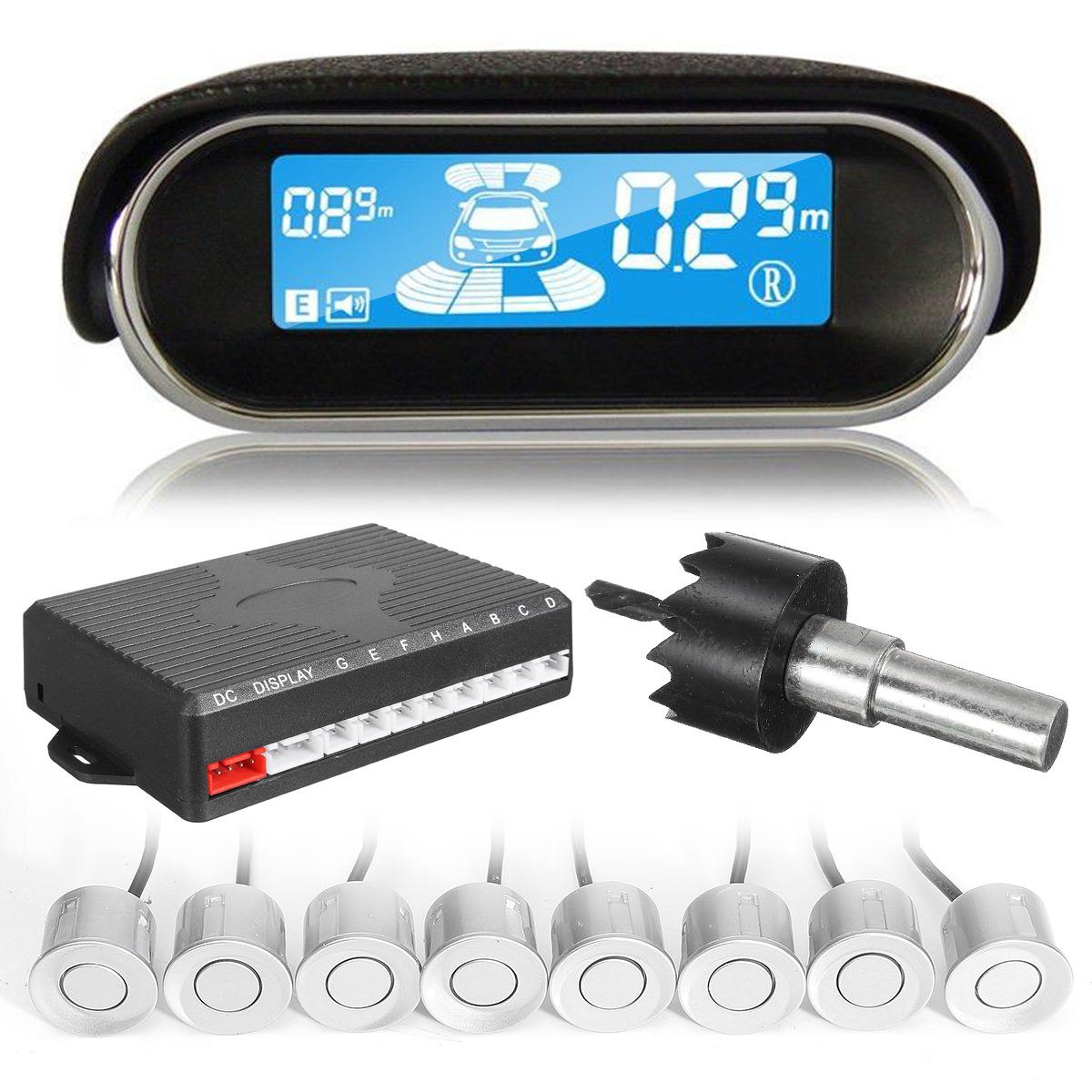

1 X Main Control Box 1 X LED Display 8 X Parking Sensor
1 X Power Cable 1 X Hole Saw 1 X User Manual
