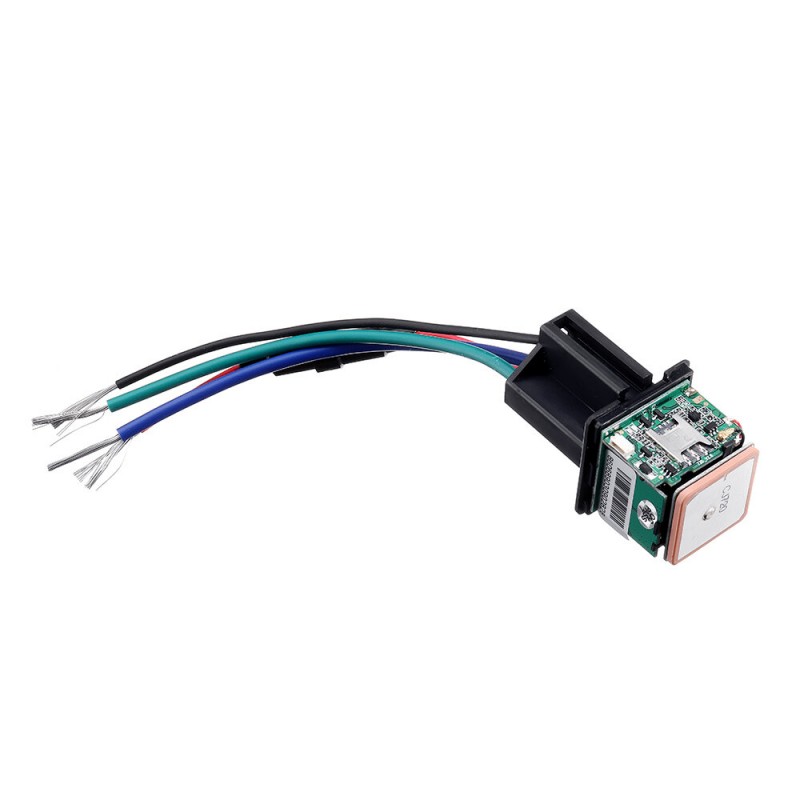

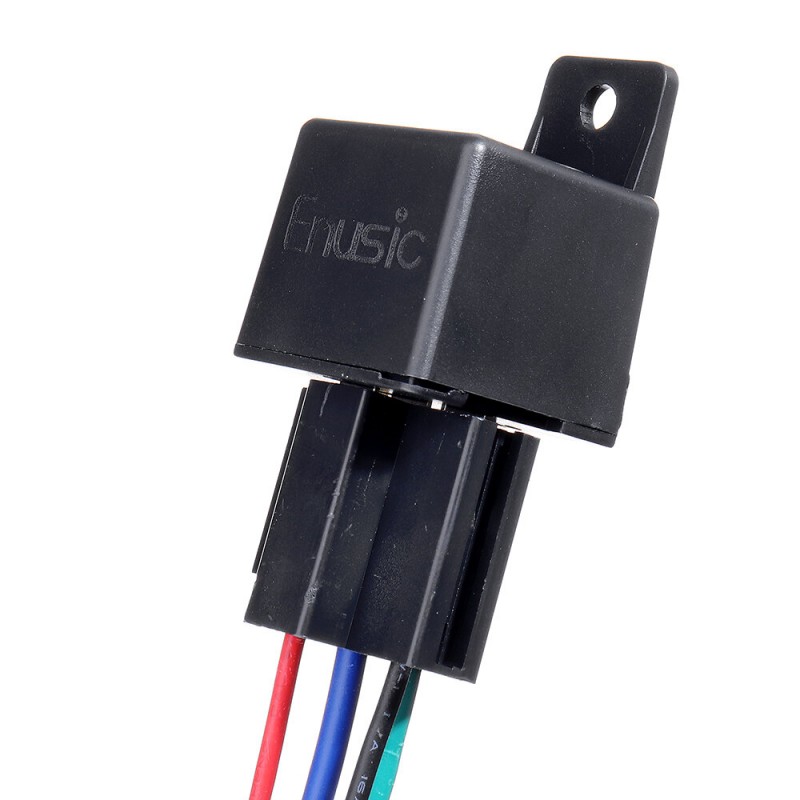

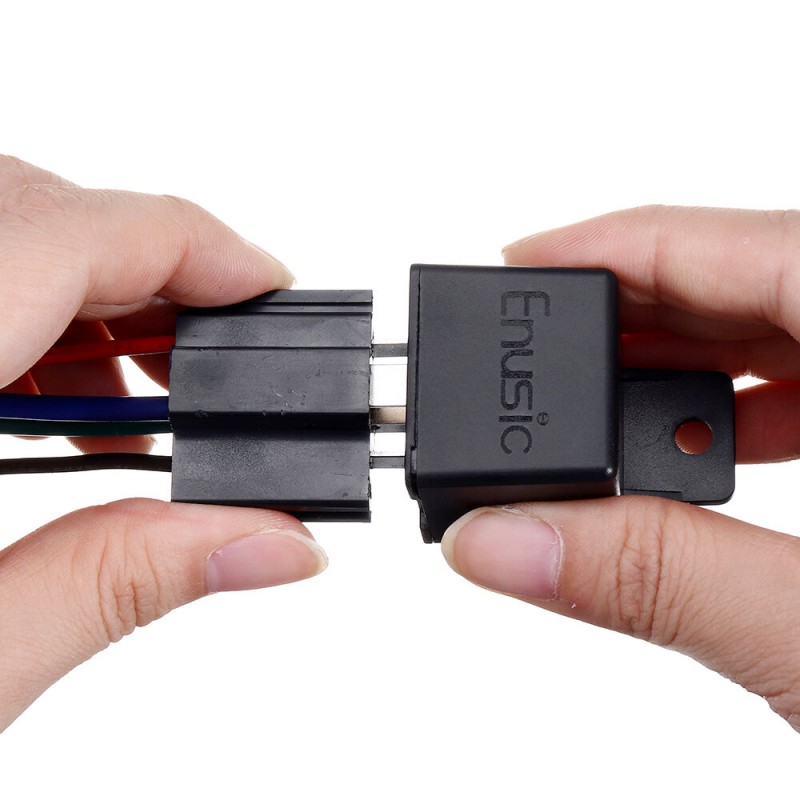

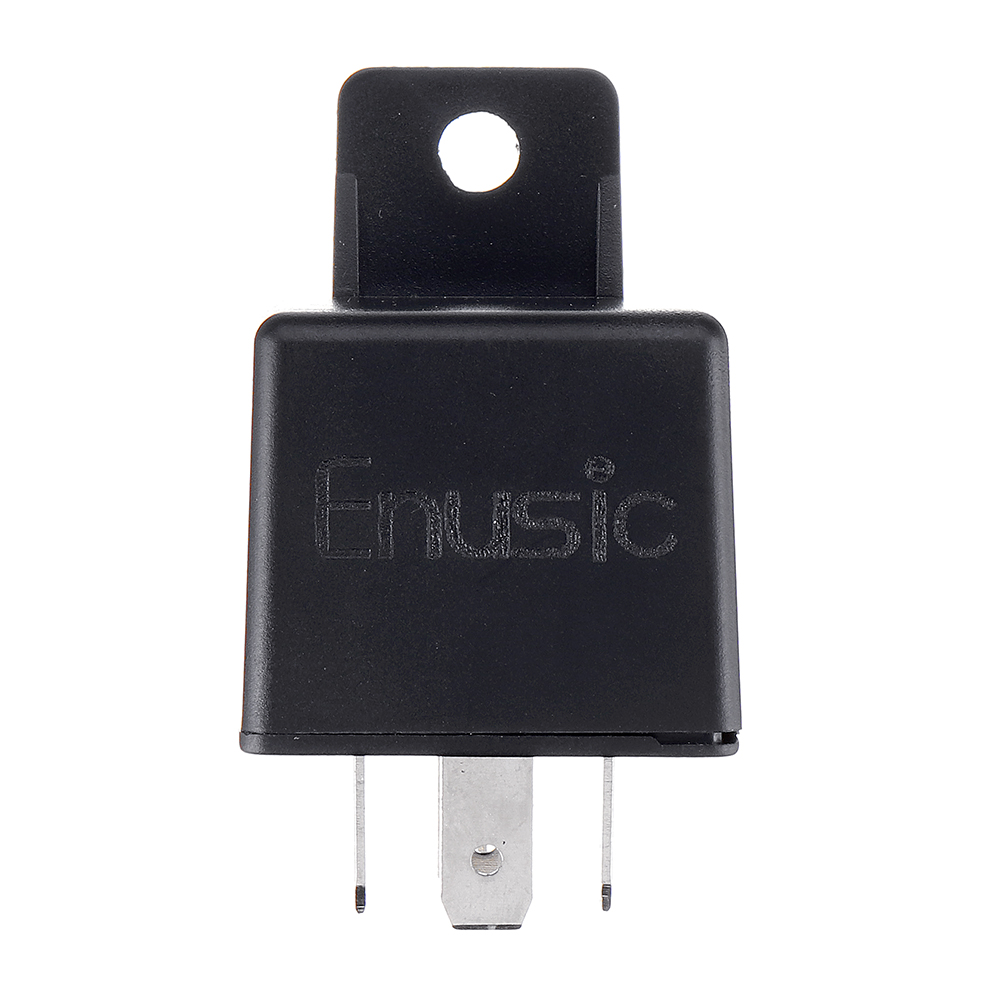

CJ720 Global Version Relay GPS Tracker Real Time GSM Locator Anti-theft Cut off Fuel Power System Function
$33.99
- Product Code: ED0021238
- Availability: In Stock
- Ex Tax: $33.99
Description:
GPS and Russian GLONASS dual-mode positioning
◆ Real-time tracking ◆against pseudo base-station&detect
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Main power cut off alert ◆ Geo-fence
◆ History Route ◆ Cut and resume Fuel Pump remotely ◆ AGPS locating
Functions and Product parameters (Relay GPS Tracker CJ720/ Off petrol and electricity)
Specifciation:
| Terminal size |
31x 31x 57mm |
| System Language |
Chinese/English |
| Net Weight |
50g |
| Backup Battery |
3.7V 100mAh |
| Network |
GSM/GPRS, |
| Network Band |
850/900/1800/1900Mhz |
| Support |
4-frequency GSM 850/900/1800/1900 MHz which can work worldwide |
| GPS module |
MTK2503 |
| GPS sensitivity |
-159dBm |
| GPS position accuracy |
10m |
| First positioning time |
Cold start 45-120 seconds |
| Warm start |
35 seconds |
| Hot start |
1 second |
| Operating voltage |
10-50V input |
| Battery |
Built-in lithium battery 3.7V 110mAh |
| Storage temperature |
-40°C to +85°C |
| Operating temperature |
-20°C to +55°C |
| Humidity |
5% - 95% Non-solidified |
| Power Consumption |
The power consumption is about 40 mA at work, and 1 mA at sleep. The instantaneous current of the fuel and electricity part is up to 45A. |
Special Note:
FUEL Pump line search
Need professionals.
Or auto mechanic repair shop to help find.

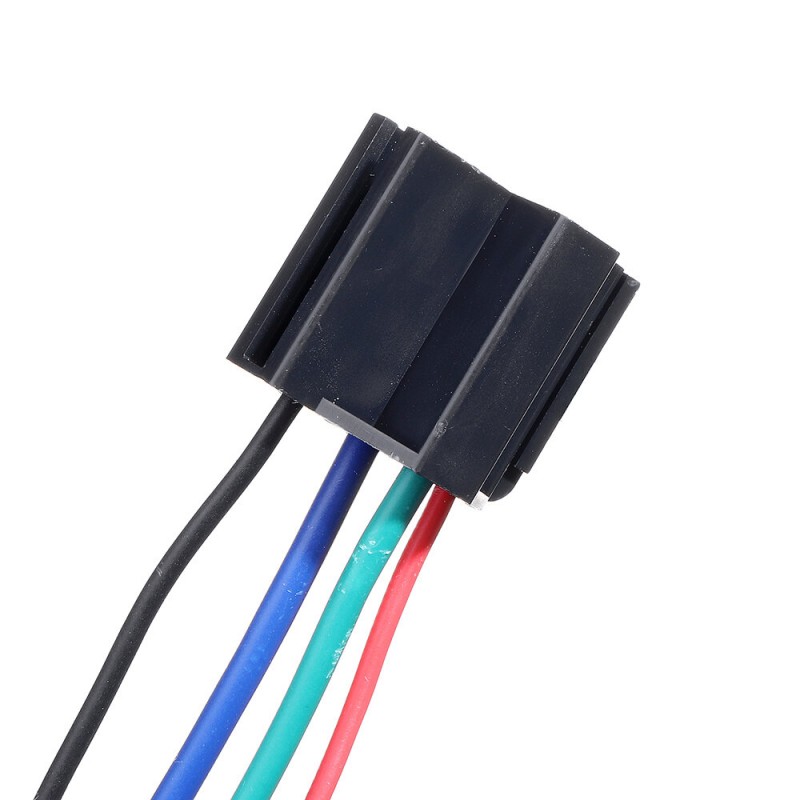

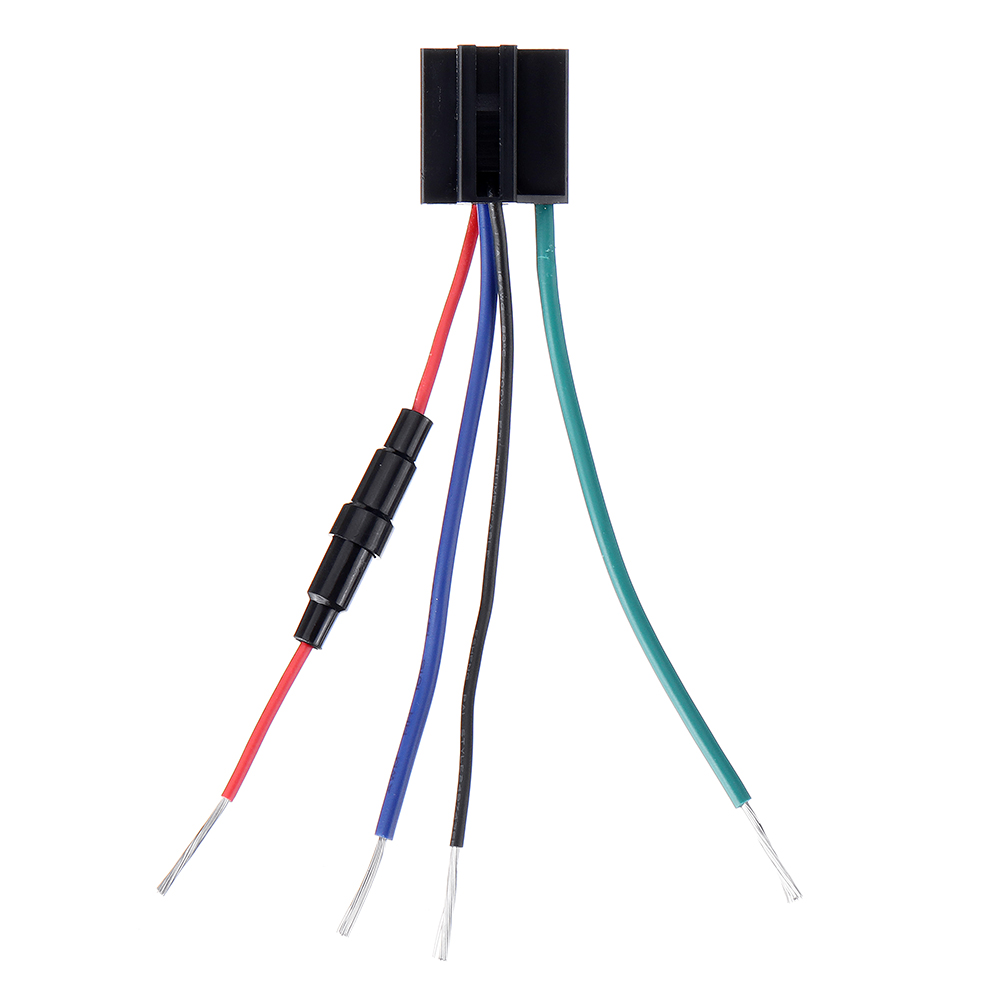

Power supply, Fuel Pump cut control line
(1) The standard power supply of this equipment is 10V-50VDC, the red line is the positive pole of the power supply,
and the yellow (black) is the negative pole of the power supply;
when installing the negative pole of the power supply, please select the grounding or grounding separately,
and do not share with other ground lines;
and the yellow (black) is the negative pole of the power supply;
when installing the negative pole of the power supply, please select the grounding or grounding separately,
and do not share with other ground lines;
(2) The Fuel Pump cutoff control line (green/blue line) is connected to the Fuel Pump line.
Send Command
How to use:

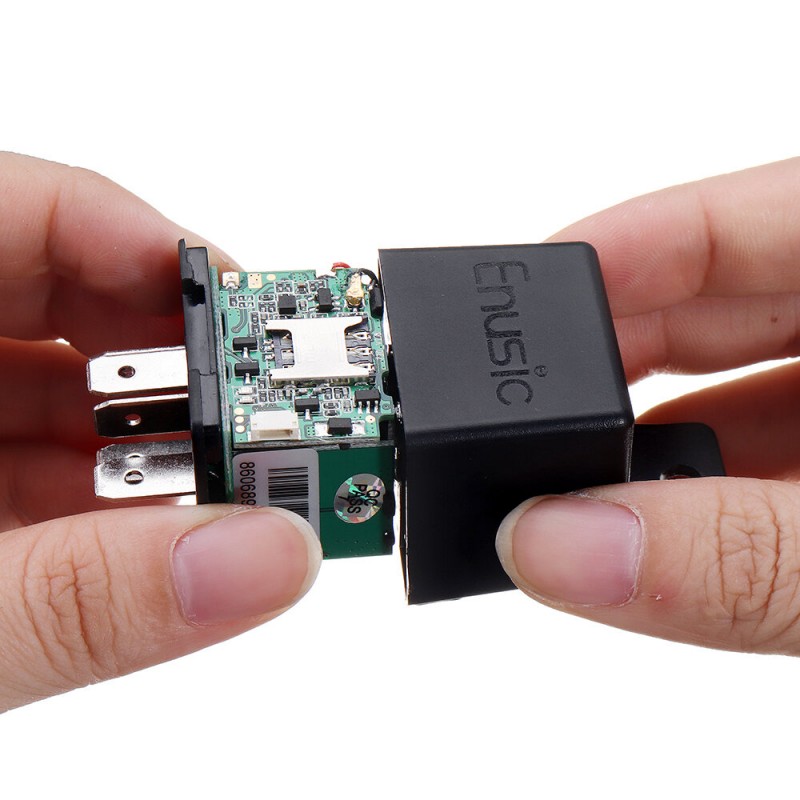

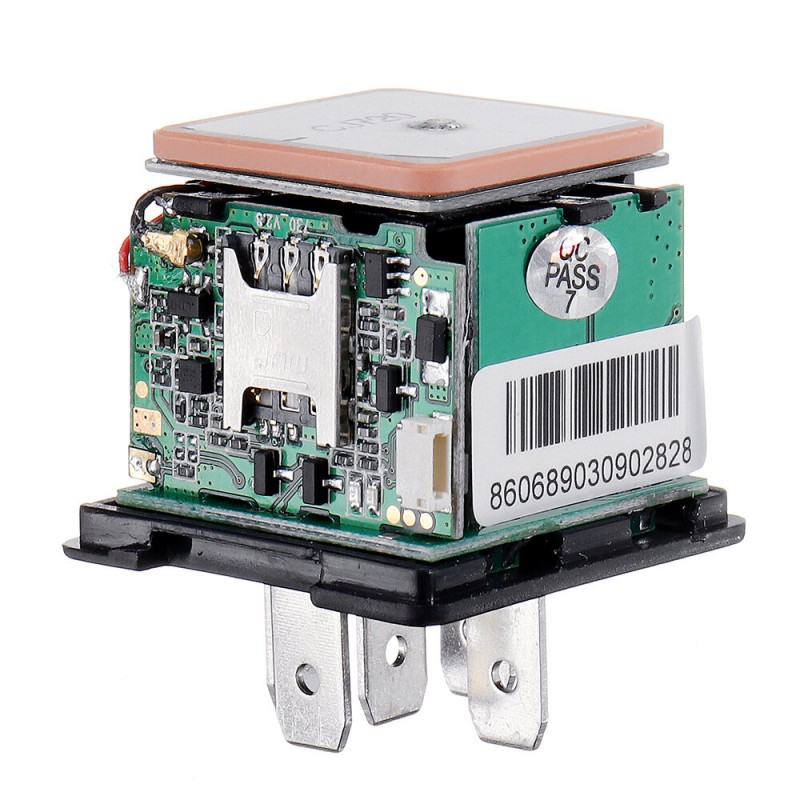

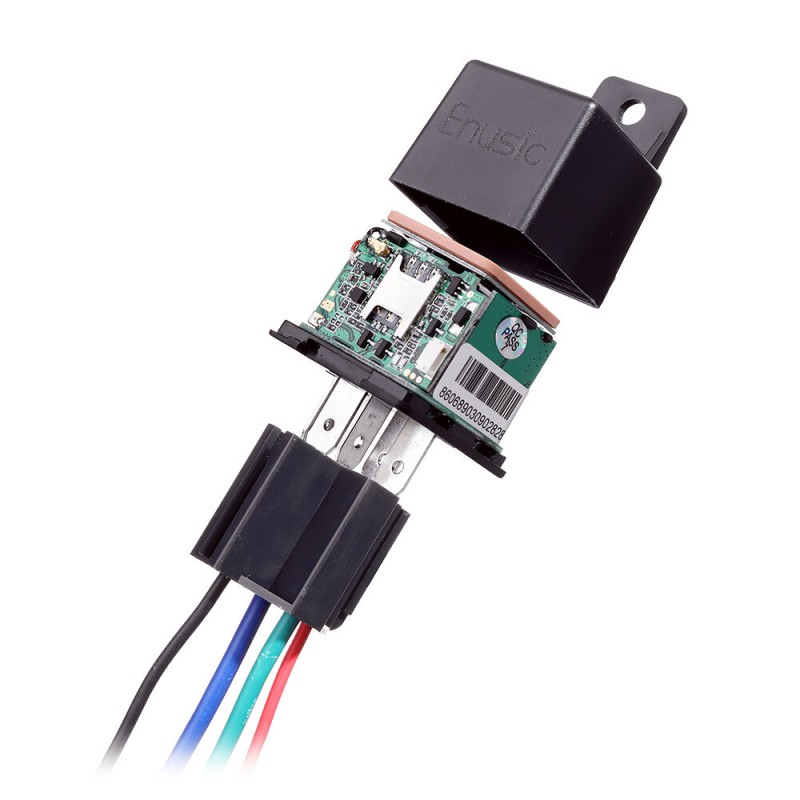

1. opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up
(blue light flashes, green light flashes,)
(blue light flashes, green light flashes,)
2.Set APN: APN123456 CMNET
(please use your local APN instead of CMNET,if you do not know the APN content,you should contact your SIM card supplier)
(please use your local APN instead of CMNET,if you do not know the APN content,you should contact your SIM card supplier)
3. Set admin number by sending a SMS command to the SIM card inside device
For example: admin123456+86186******(+86186*****should be youe phone number)
4.Connect cable follow the picture,(Fuel Pump cut test wiring video: https://img.elecdeer.com/ed/download/video/FiUN5nbAVMA.mp4)

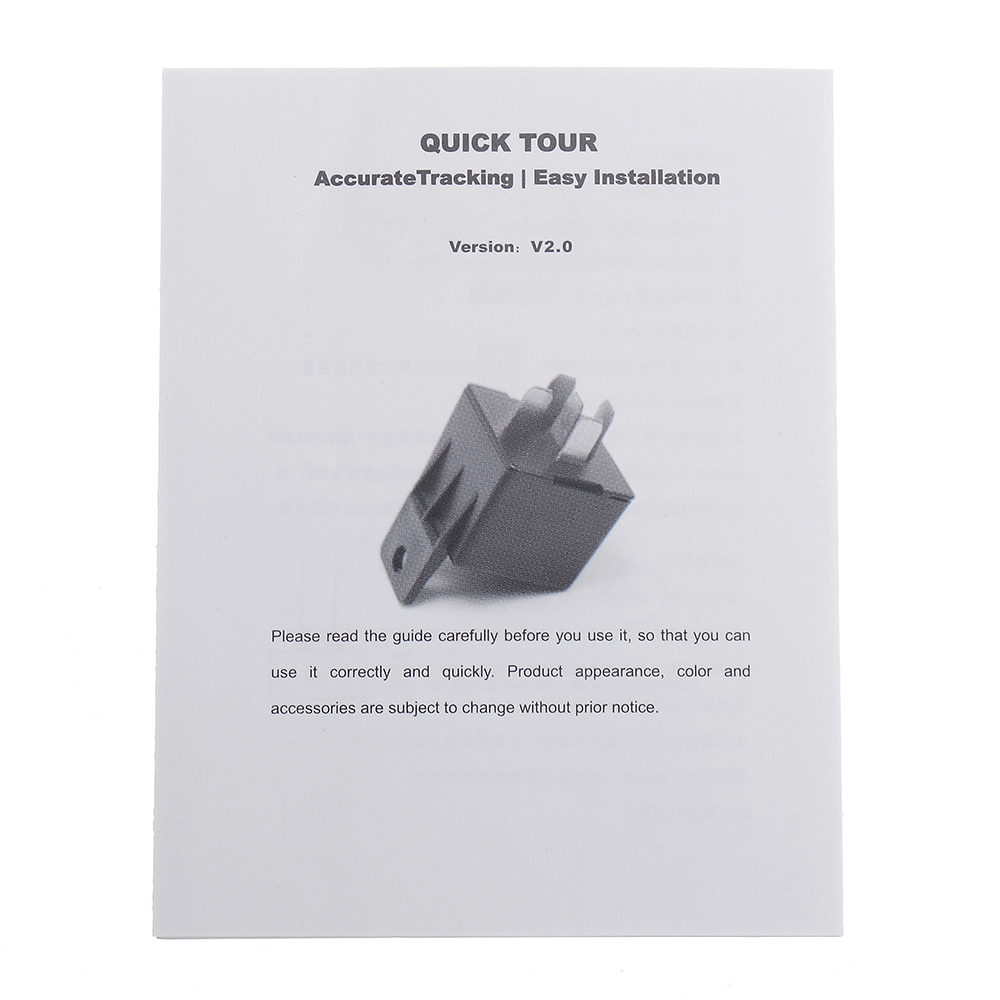

User Manual:
https://www.elecdeer.com/image/catalog/download/doc/20190814025004SKUD05342.doc
Package Included:
| 1 X |
Relay GPS Tracker |
| 1 X |
Manual |
