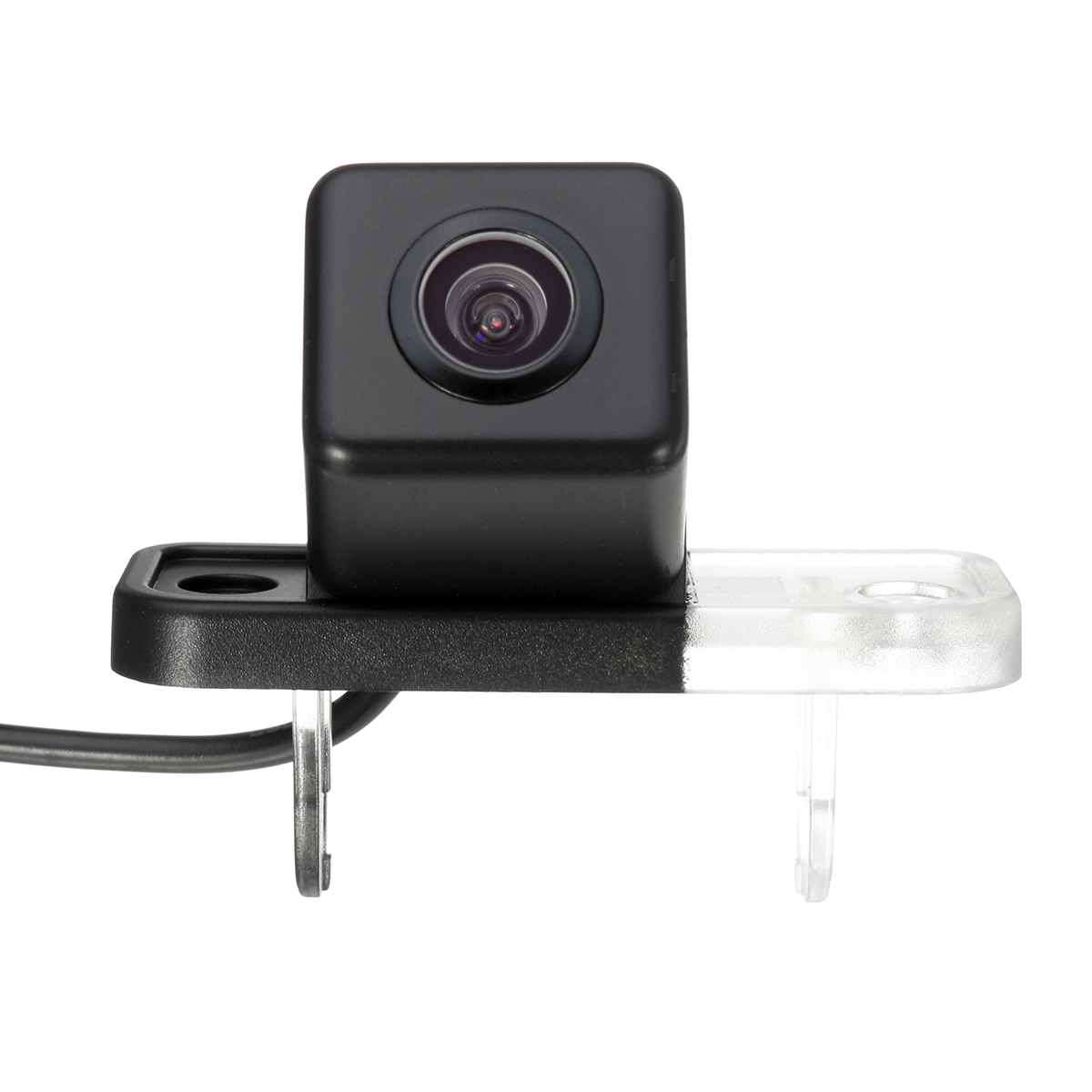

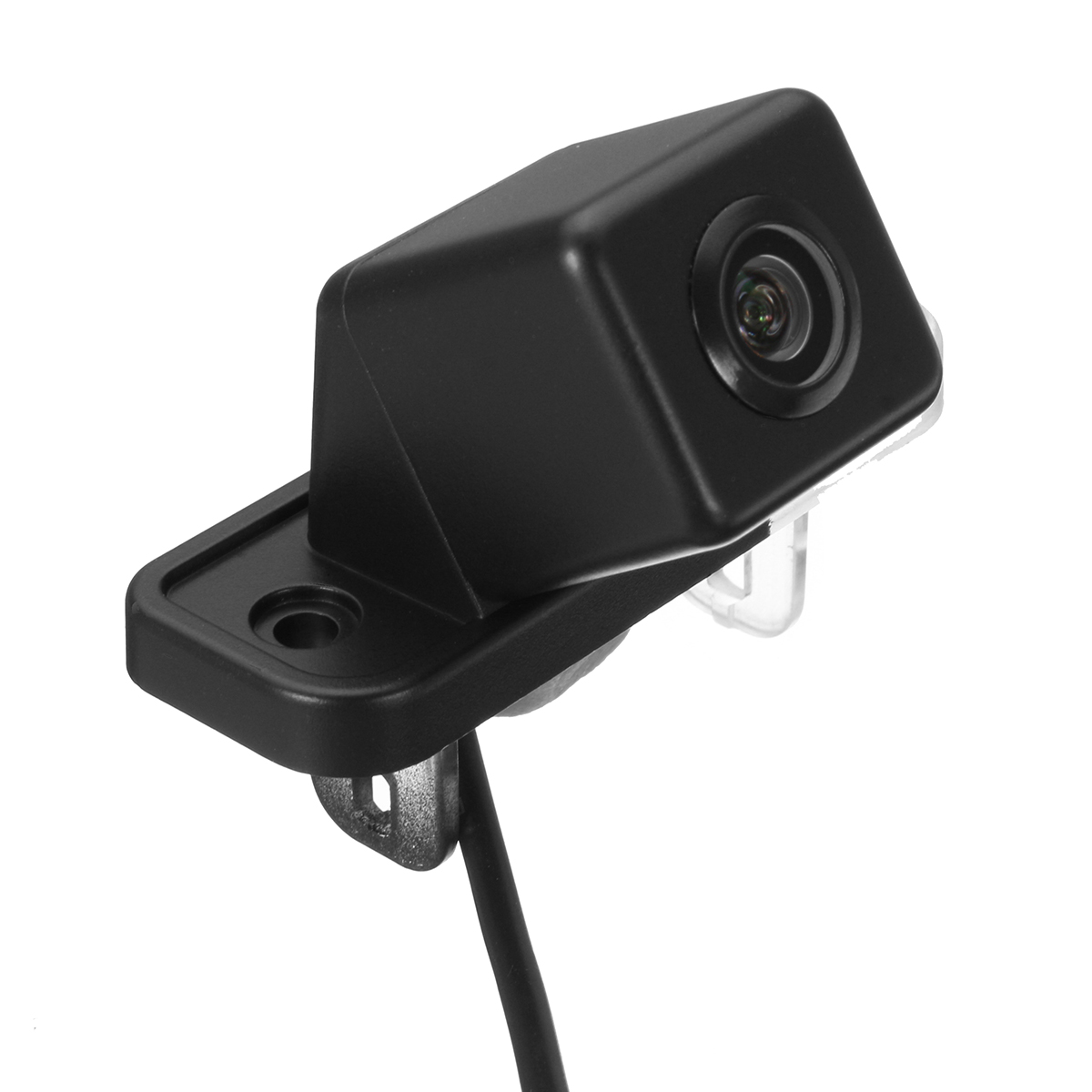

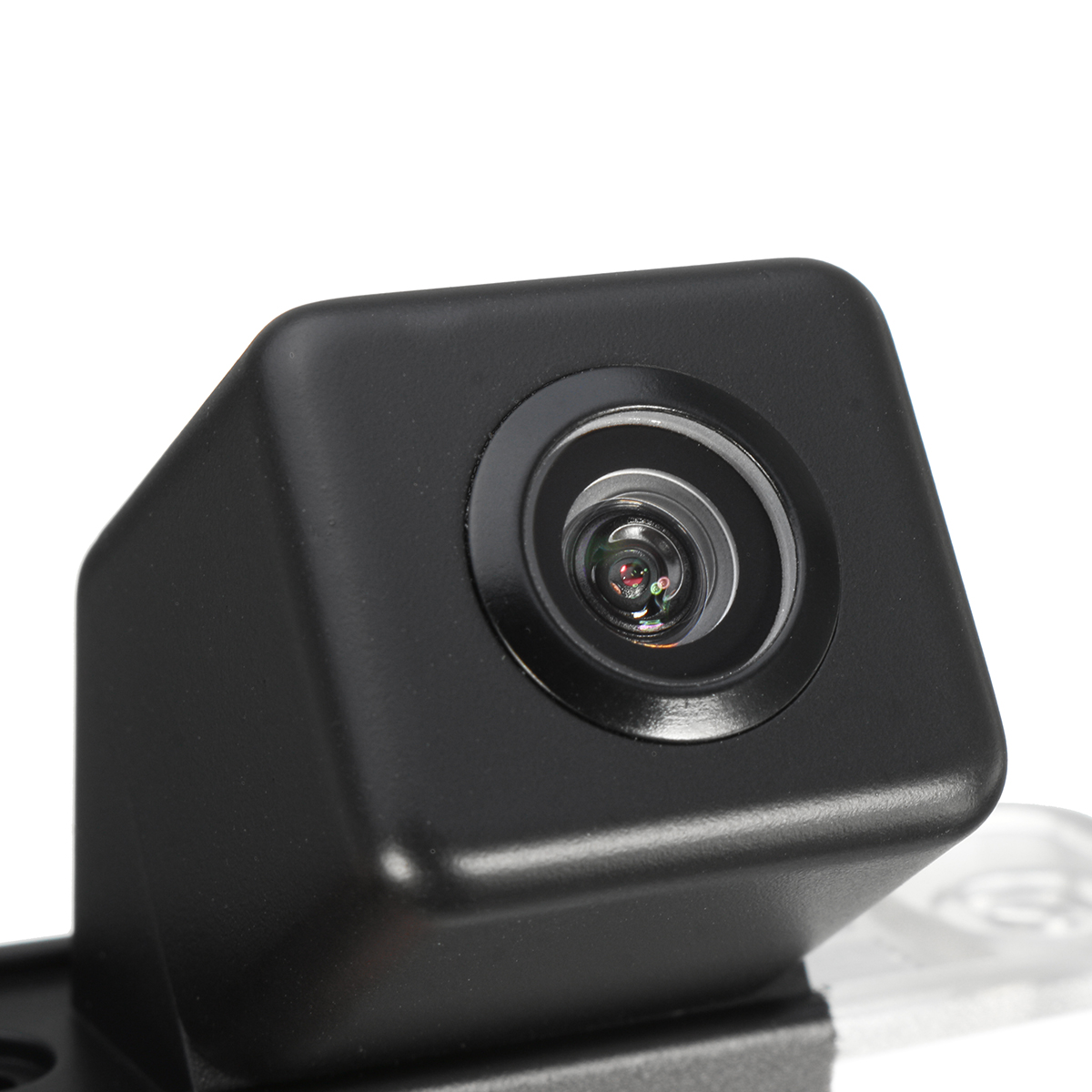

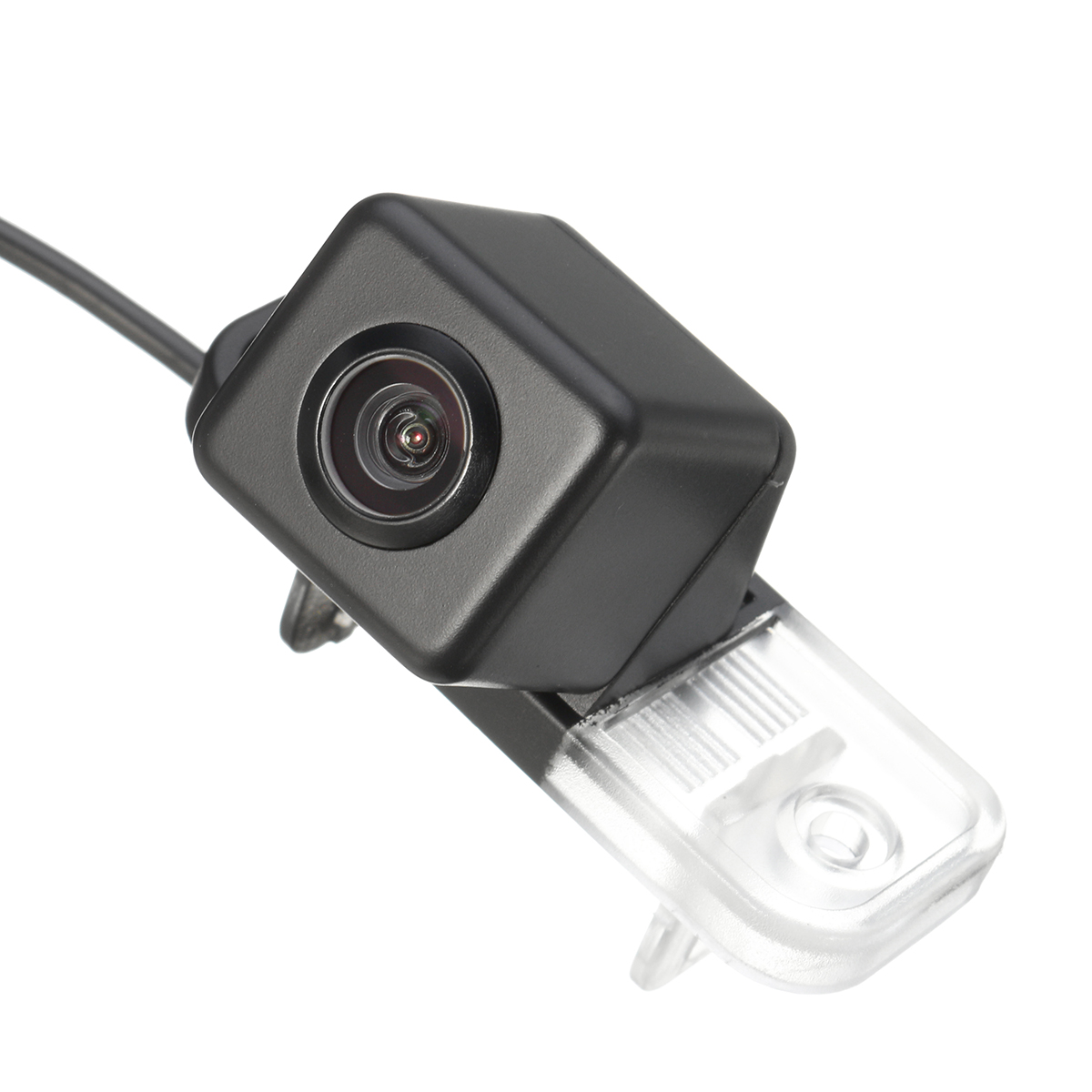

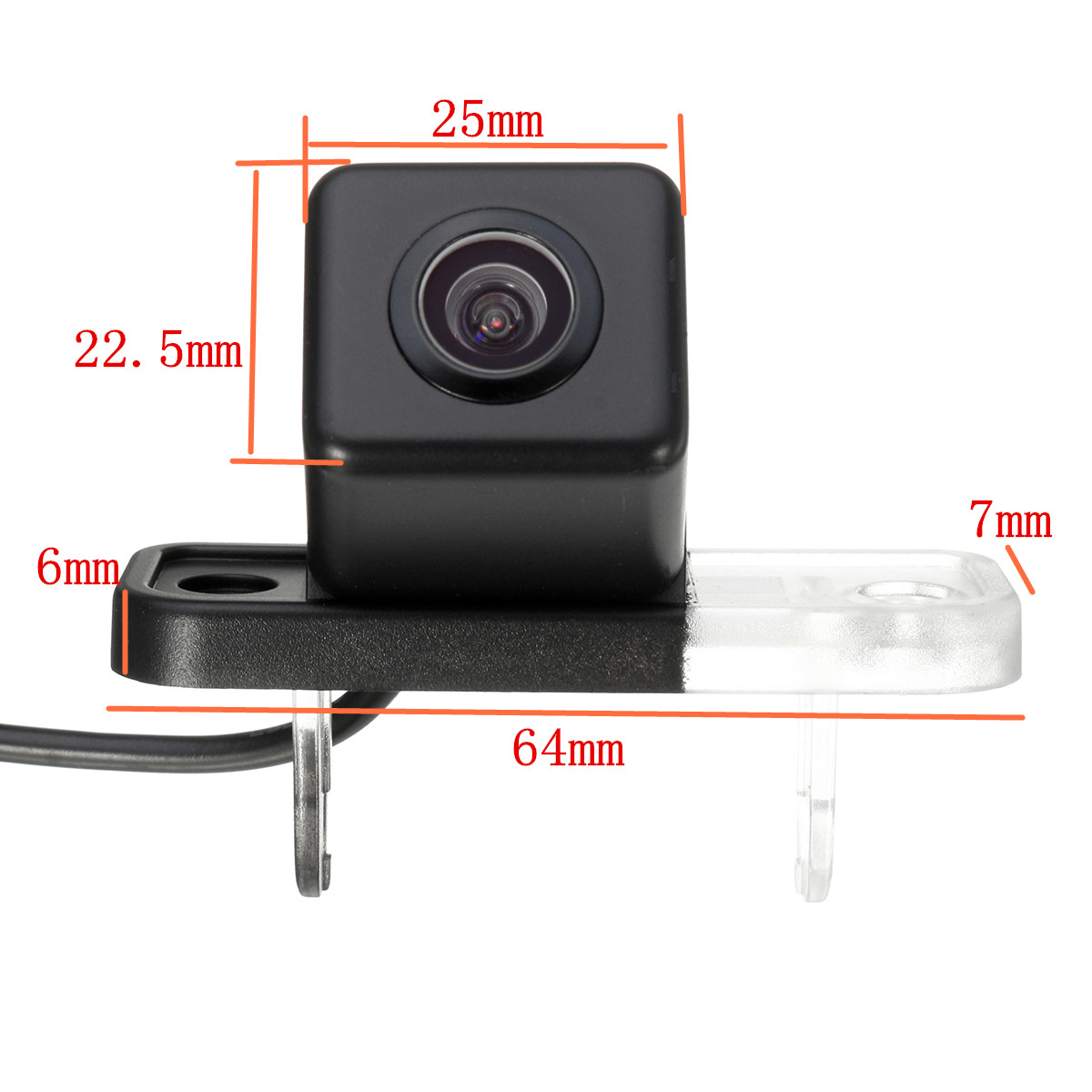

Car Wireless CCD Reverse Rear View Camera For Mercedes C-Class W203 W211 CLS
$28.17
- Product Code: ED0001075
- Availability: In Stock
- Ex Tax: $28.17
Feature:
1.Take one minute get your camera become a wireless camera.
2.Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation).
3.Connects to rear-view camera and front video screen.
Installation:
1.Take out your stock license plate light at the back of your car.

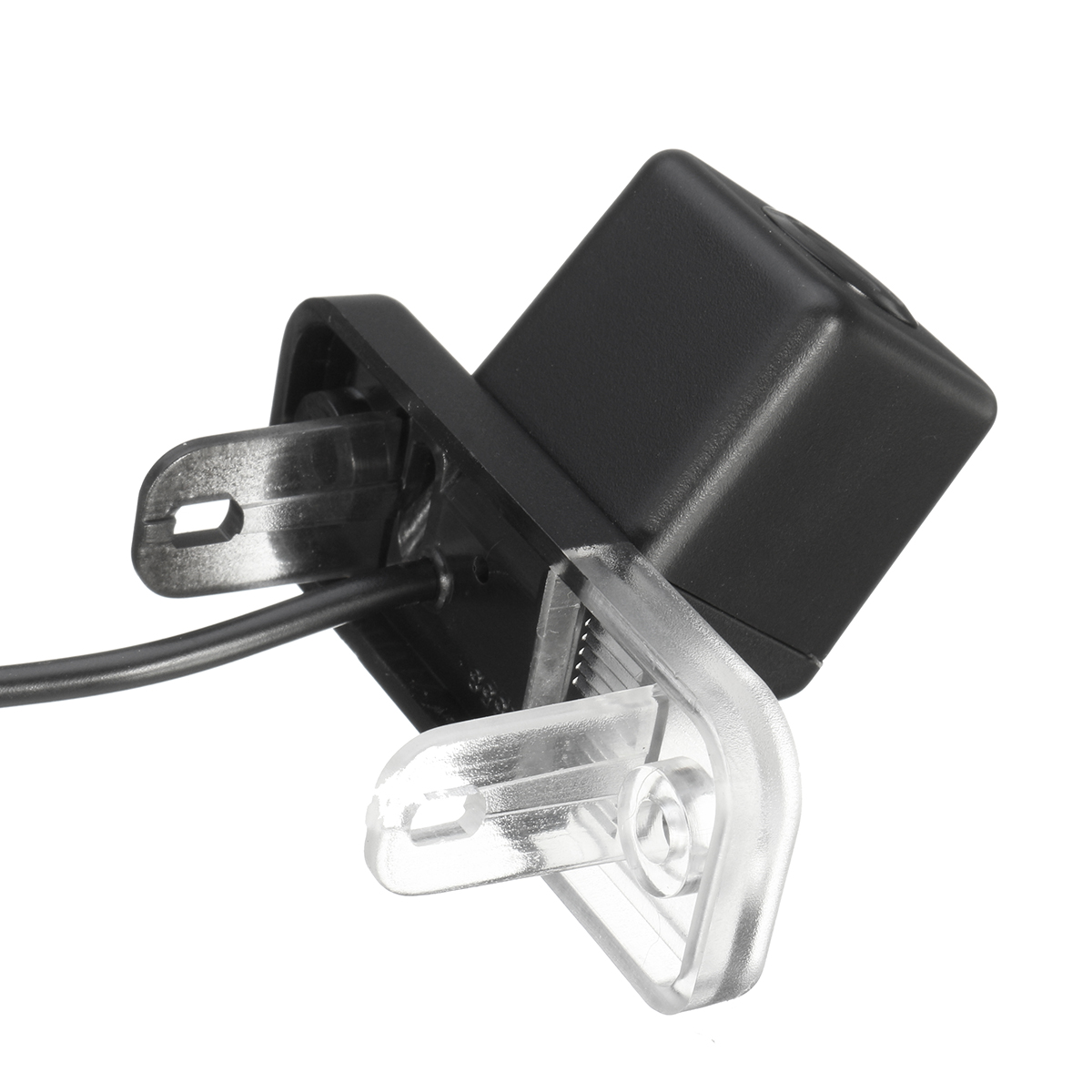

2.Fix the camera to where the stock license plate light was.
3.Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power.

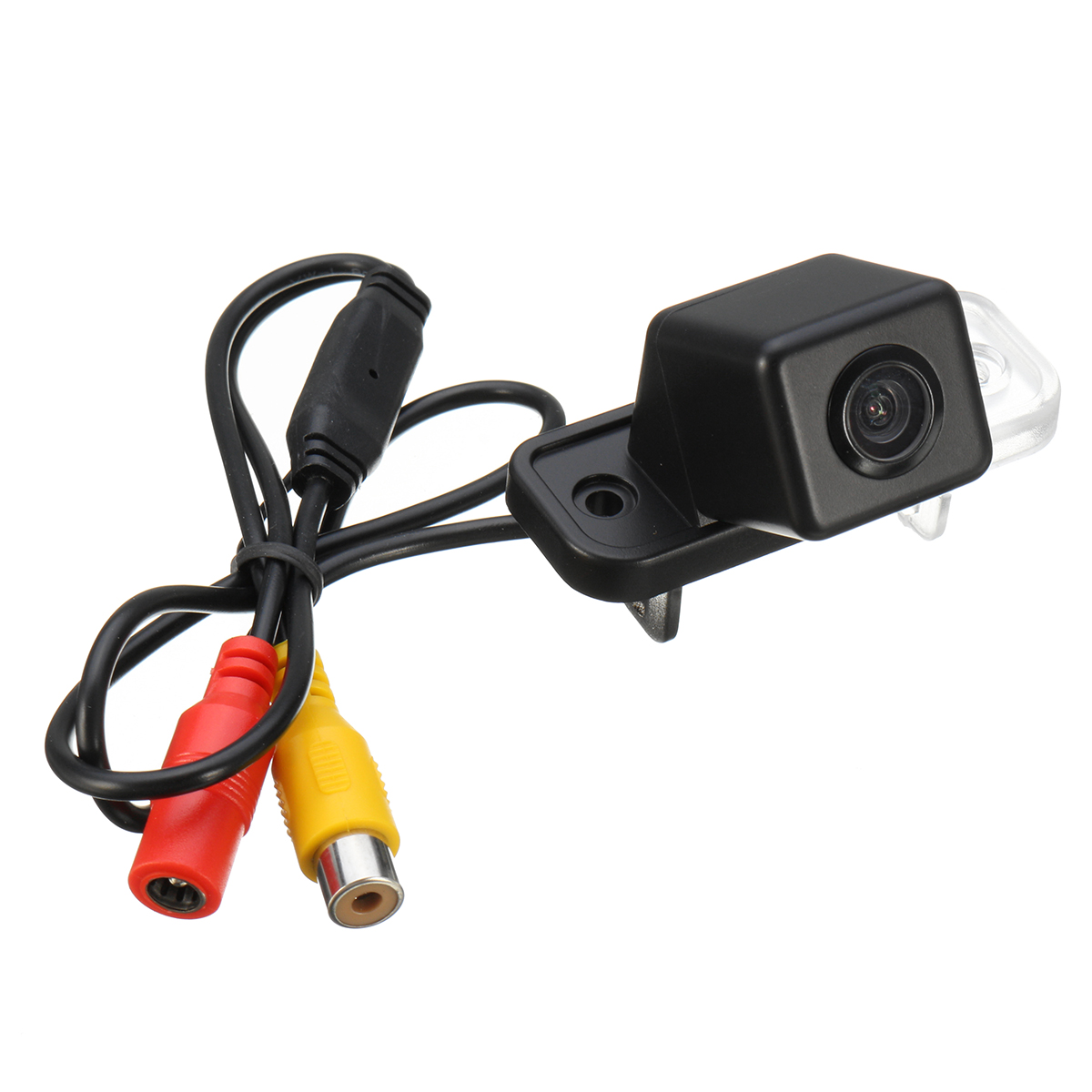

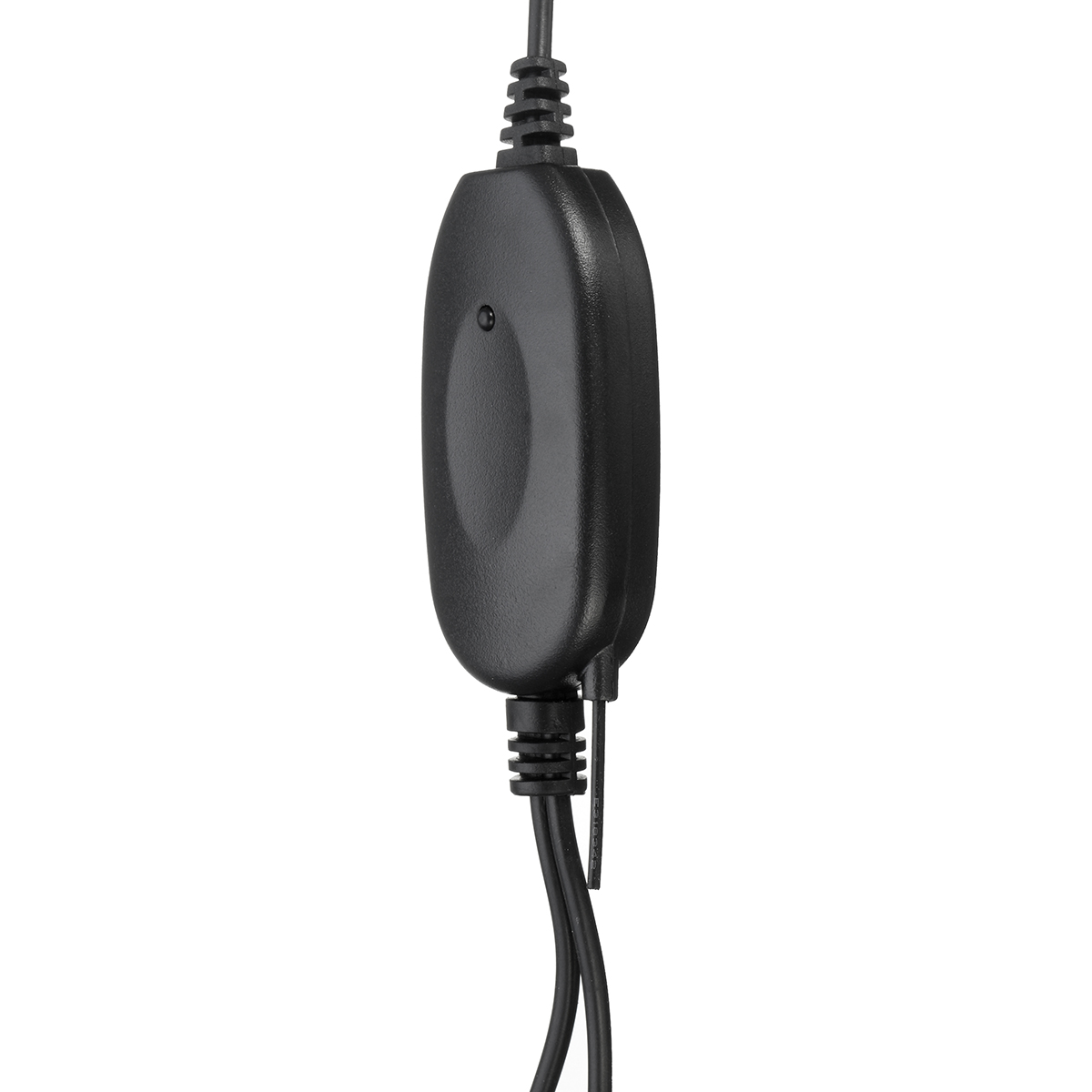

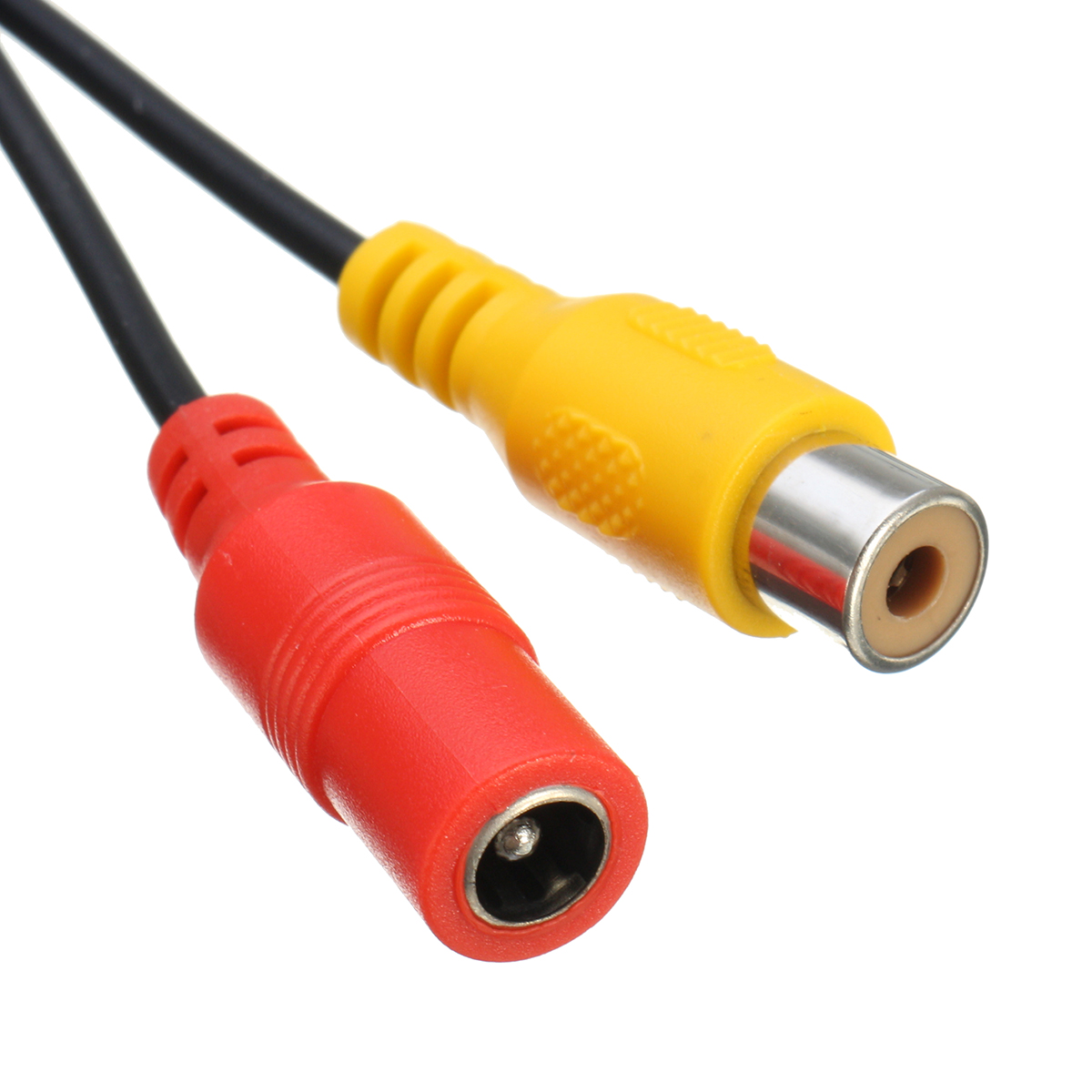

4.Connect the wireless module (transmitter) to your camera via the two cables - yellow plug for AV output and black plug for power.
5.Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative.
6.Connect the wireless module (receiver) to your car monitor - yellow plug for AV input.
7.Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative.
8.You will see the images when your car is in reverse shift.
Fitment:
For Mercedes Benz C-Class W203 E-Class W211 / CLS-Class W219
Package Included:
Specification:
1.Take one minute get your camera become a wireless camera.
2.Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation).
3.Connects to rear-view camera and front video screen.
Installation:
1.Take out your stock license plate light at the back of your car.
2.Fix the camera to where the stock license plate light was.
3.Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power.
4.Connect the wireless module (transmitter) to your camera via the two cables - yellow plug for AV output and black plug for power.
5.Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative.
6.Connect the wireless module (receiver) to your car monitor - yellow plug for AV input.
7.Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative.
8.You will see the images when your car is in reverse shift.
Fitment:
For Mercedes Benz C-Class W203 E-Class W211 / CLS-Class W219

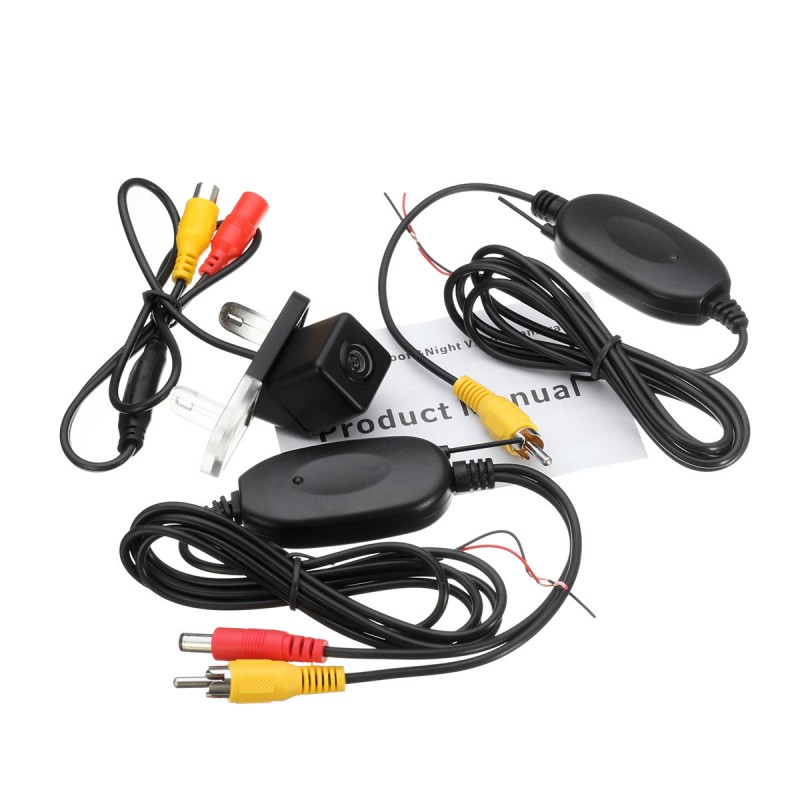

Package Included:
| 1 X CCD Sensor Reverse Camera | 1 X 2.4 Ghz Transmitter |
| 1 X 2.4 Ghz Receiver |
Specification:
| Product Name | CCD Sensor Reverse Camera |
| Image sensors | 1/3" color sharp CCD |
| TV System | NTSC default & PAL request |
| Minimum illumination | <0.5 |
| BLC | Auto |
| White Balance | Auto |
| Working Power (DCV) | 12V |
| Video Color | Colorful |
| Sync System | Internal |

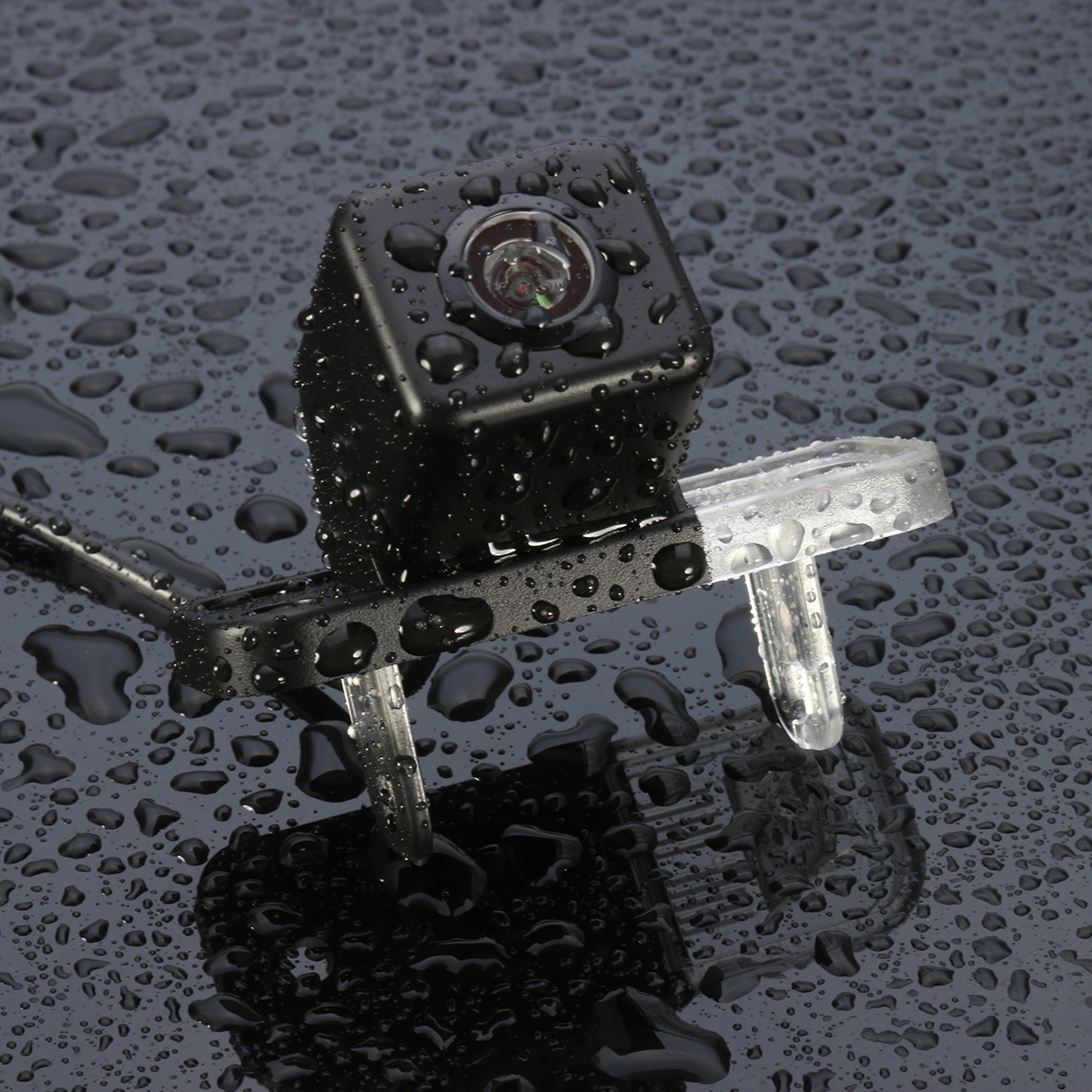

| Waterproof Class | IP67IP68 |
| Effective Pixels | 648x488 |
| Resolution | 480TV lines |
| Video Output | 1.0Vp-p,75Ω |
| Electronic Shutter | 1/60(NTSC)-1/10000S |
| S/N Ratio | Better Than 48db |
| Lens Angle | 170° |
| Operation Temperature | -20°C~80°C RH95% MAX |
| Storage Temperature | -30°C~85°C RH95% MAX |
| Current Consumption | No more 150mA |
| Horizontal Sync Frequency | 15625KHZ |
| Work Range | Up to about 50m(Hollowness) |
| Transmitter/Receiver Cable Length | 1.5m |
| Weight | 160g |
| Package Box Size | About 120mm*80mm*65mm(L*W*H) |
| Application | Fit all RCA composite video connections |
