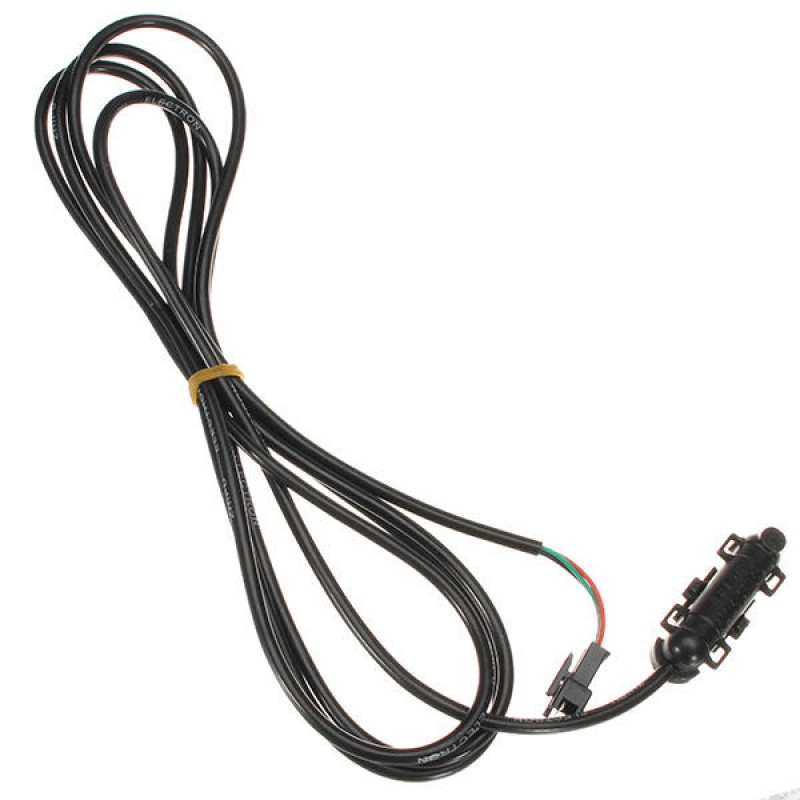

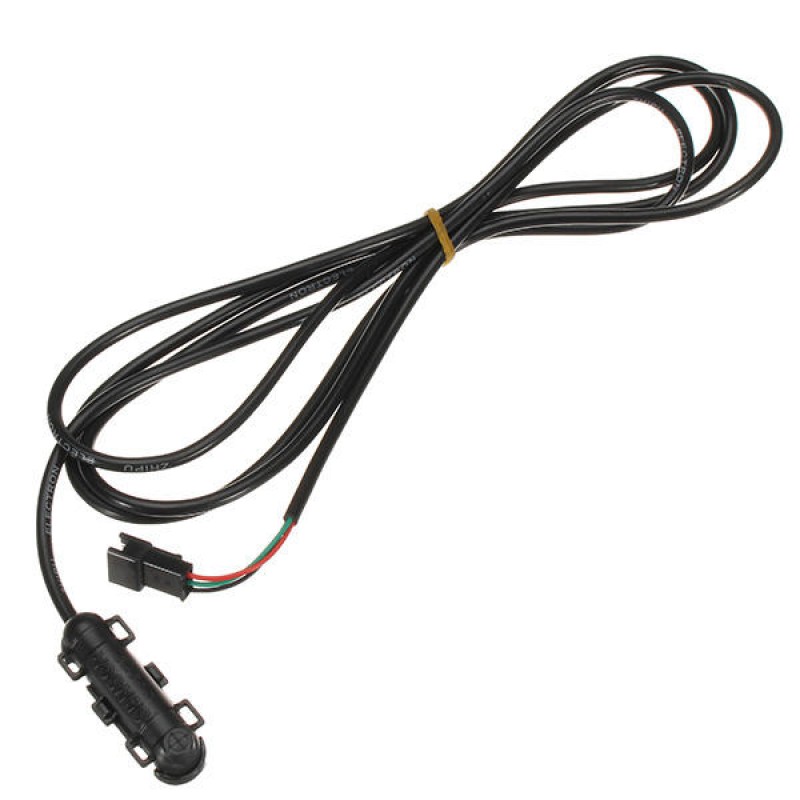

External Speed Sensor Hall For Controller Of Electric Bike Scooter Mtb Pedal Scooter Conversion Part
$8.67
- Product Code: ED0021246
- Availability: In Stock
- Ex Tax: $8.67
Description:
External speed sensor hall for controller of electric bike scooter mtb pedal scooter conversion parts speed testing hall sensor
External speed sensor hall for controller of electric bike scooter mtb pedal scooter conversion parts speed testing hall sensor
this is conversion parts for electric bike, scooter and tricycle and so on

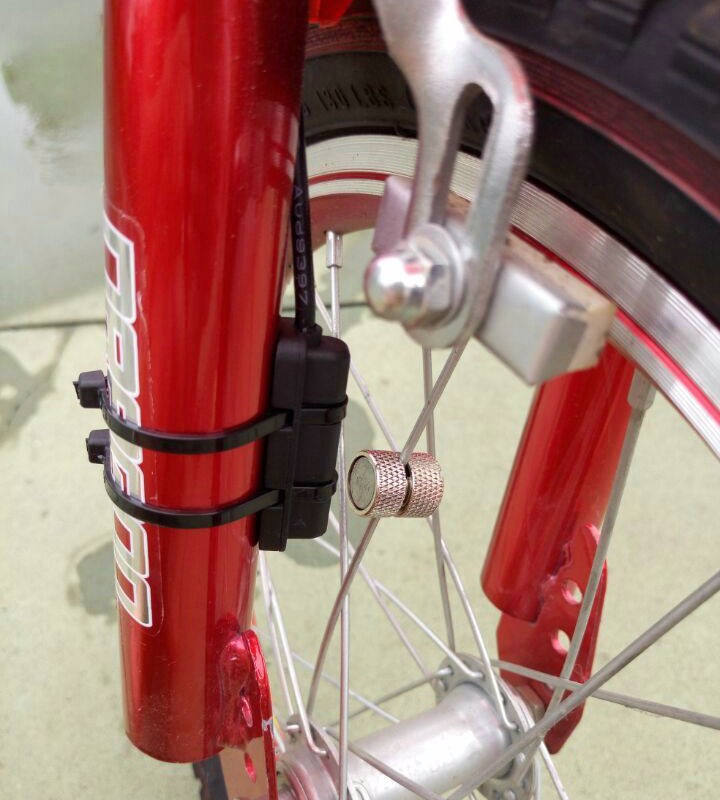

See install position

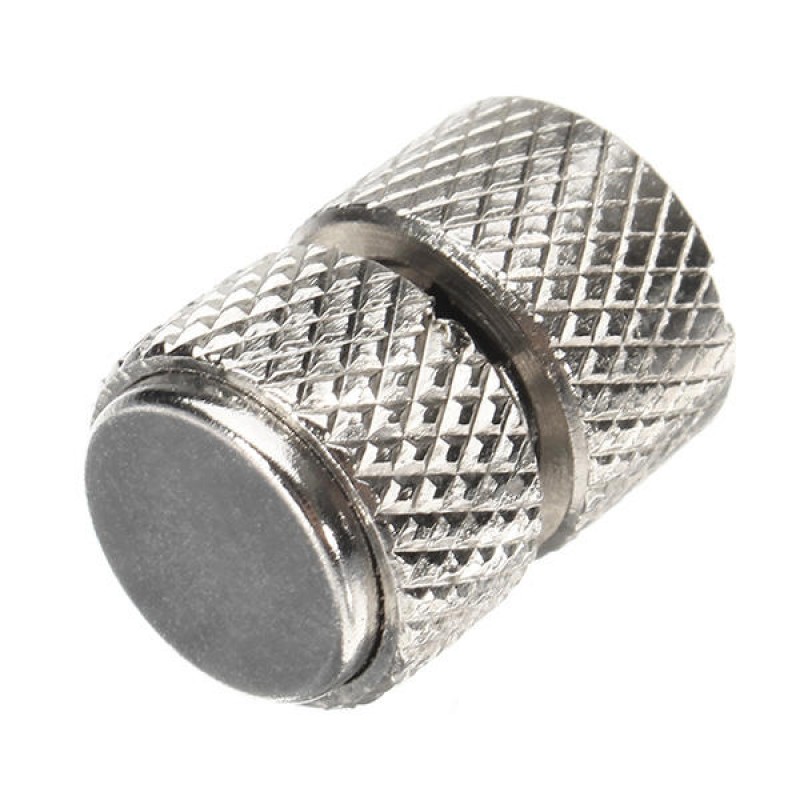

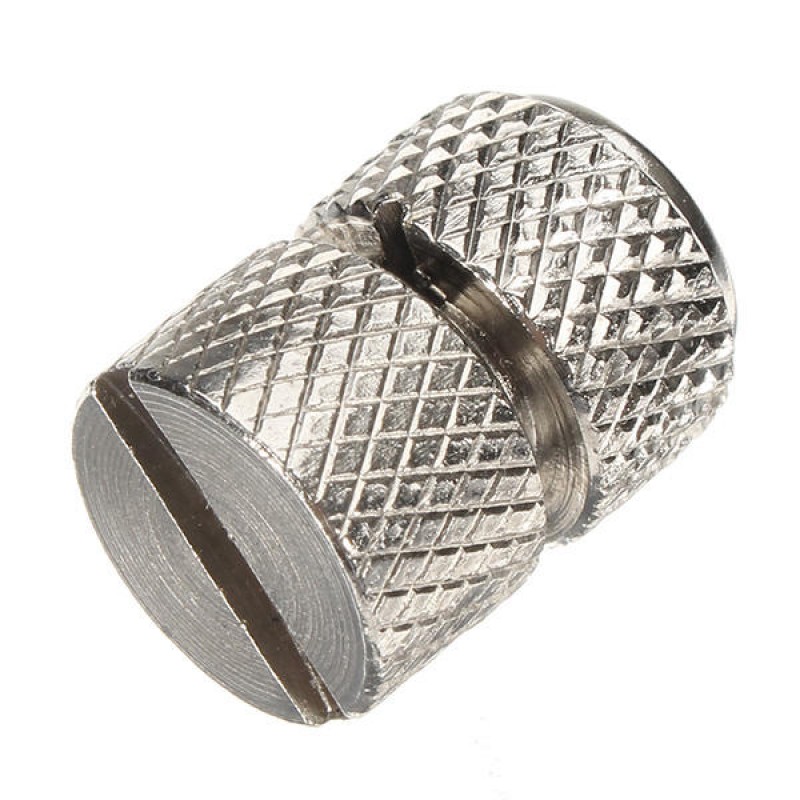

Plastic part on fork, magnetic head on spokes.
Geared Motor:
Display donot indicate speed and odometer when cruise or coasting you can choose this one .
Display donot indicate speed and odometer when cruise or coasting you can choose this one .

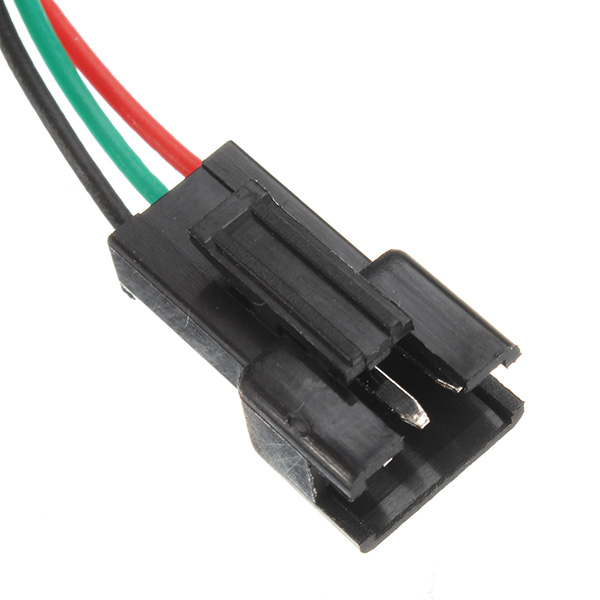

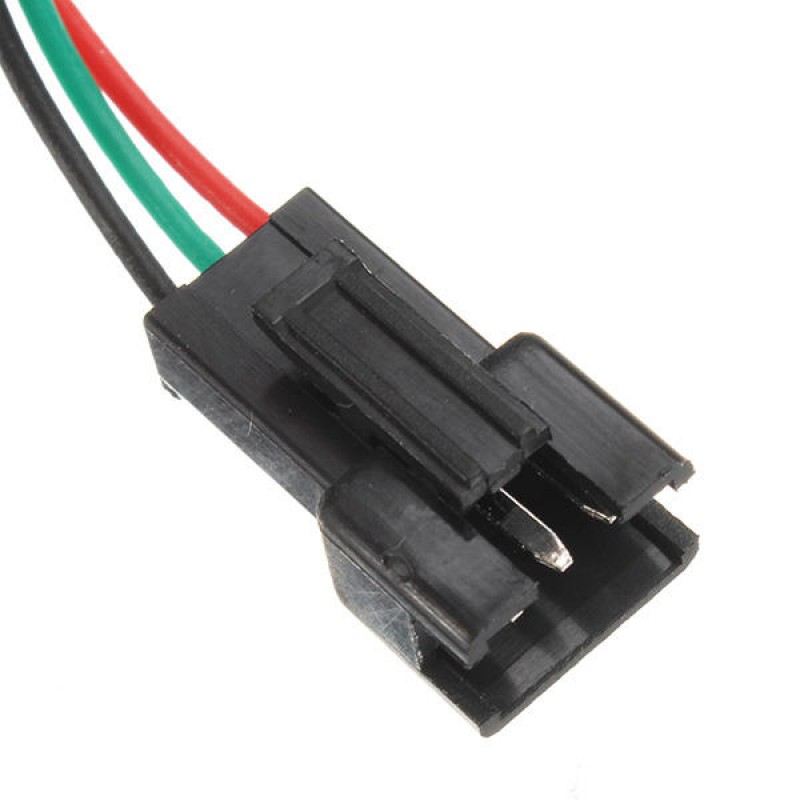

Red--+5v
Yellow/black--negative
Blue/green--hall signal
It is used to provide sampling signal for lcd/led display of electric bike, so that display can test bike speed. as long as bike is moving,
display will can indicate speed especially when you use a gear motor, and motor takes hall sensor signal ,
display will can indicate speed especially when you use a gear motor, and motor takes hall sensor signal ,

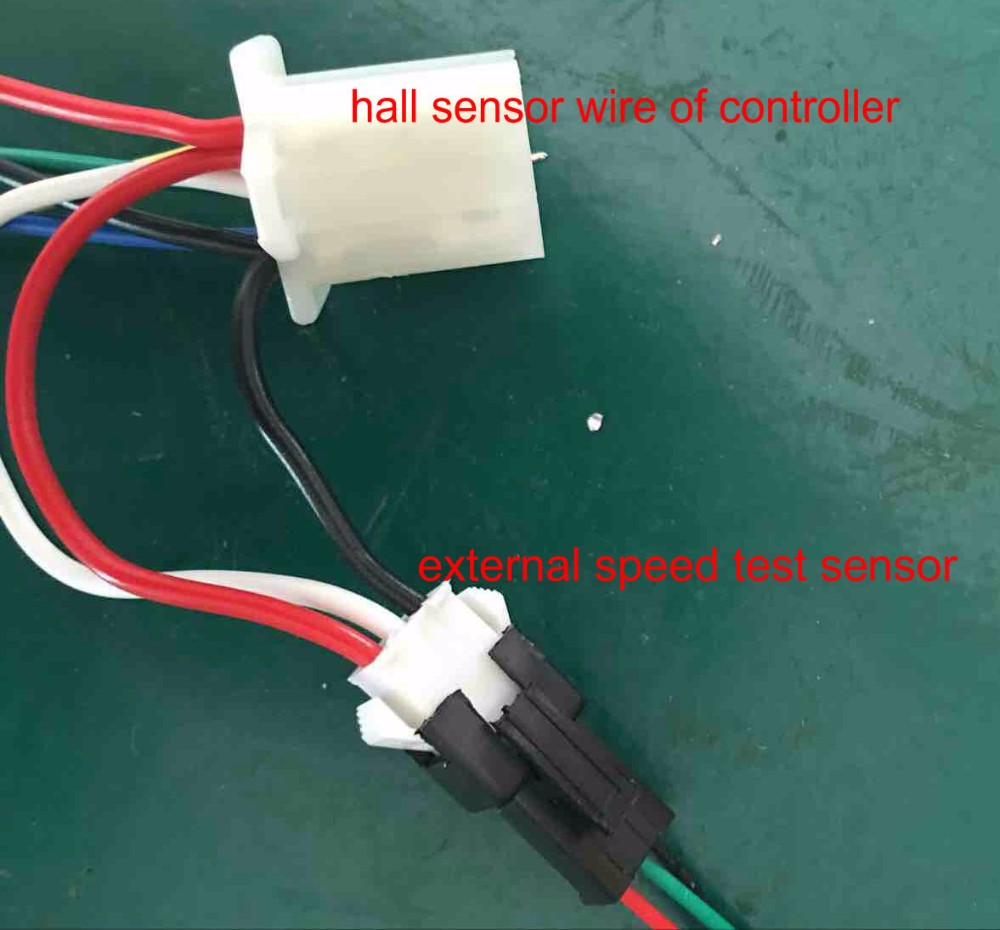

Make 3 wire and connector --red white and black --from controller , and connect this sensor, and should set DISPLAY P3 to zero
Specification:
Sensor type: switch type sensor
Application: Should work with ebike, mtb, used to test speed , to make display more accurate when indicating speed.
Note:

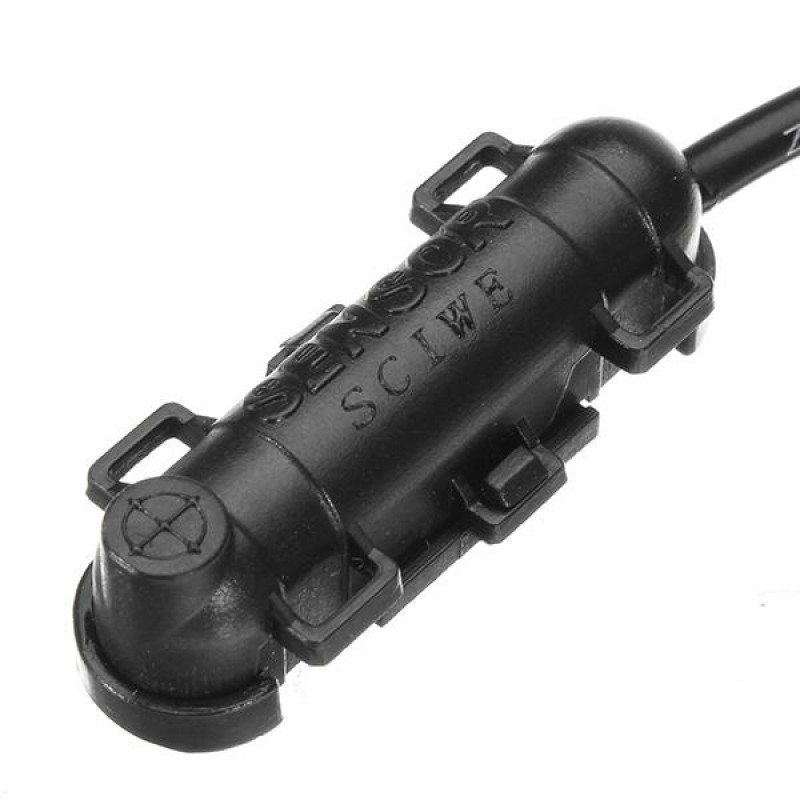

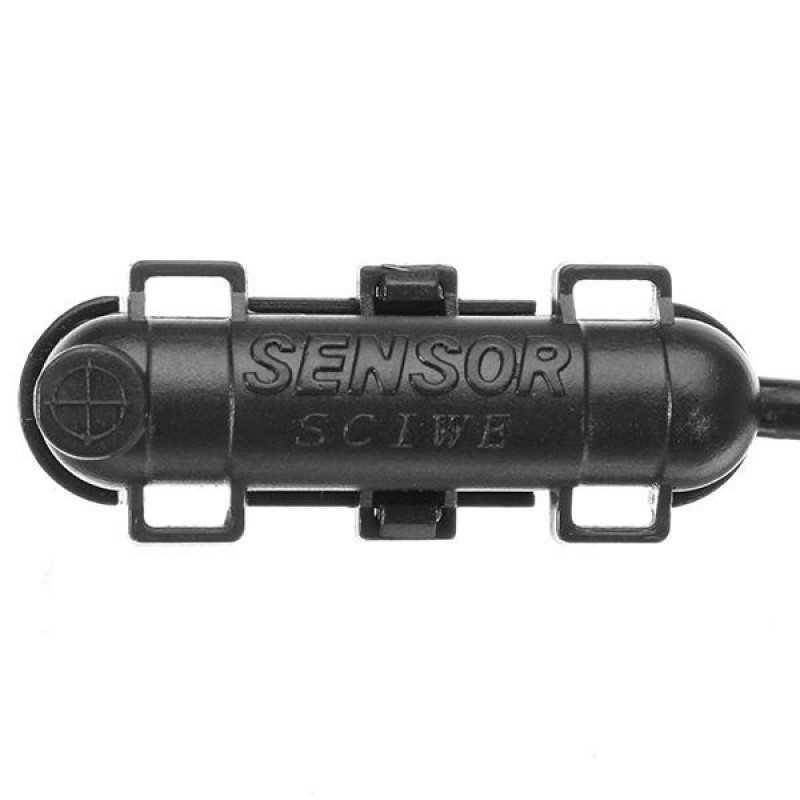

please make magnetic head aim to the triangle part of sensor
Package Included:

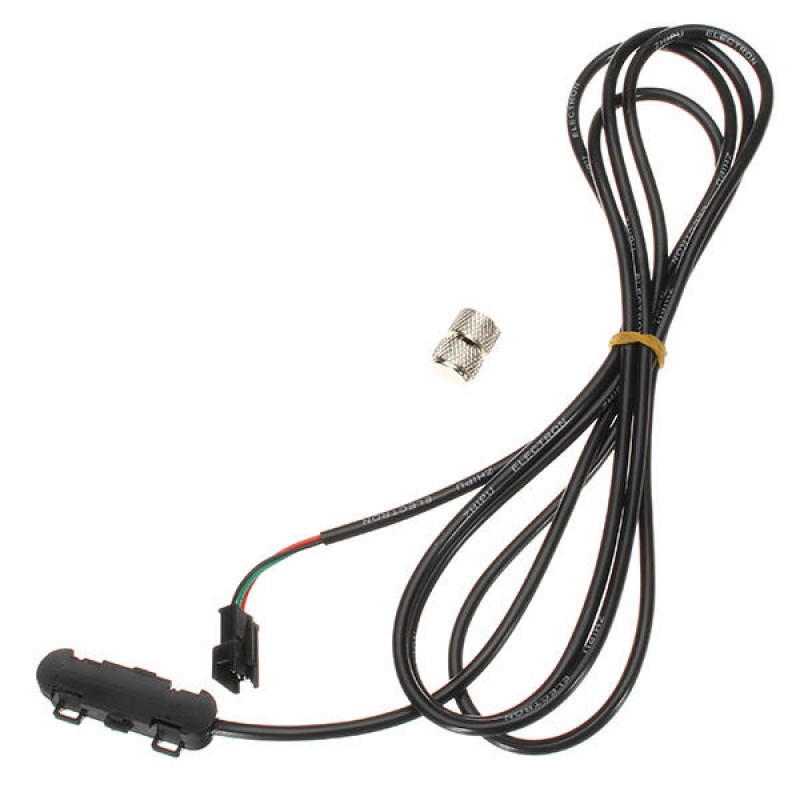

1 X External Speed Sensor Hall
Package Included:
1 X External Speed Sensor Hall
,
,
,
,
,
,
,
