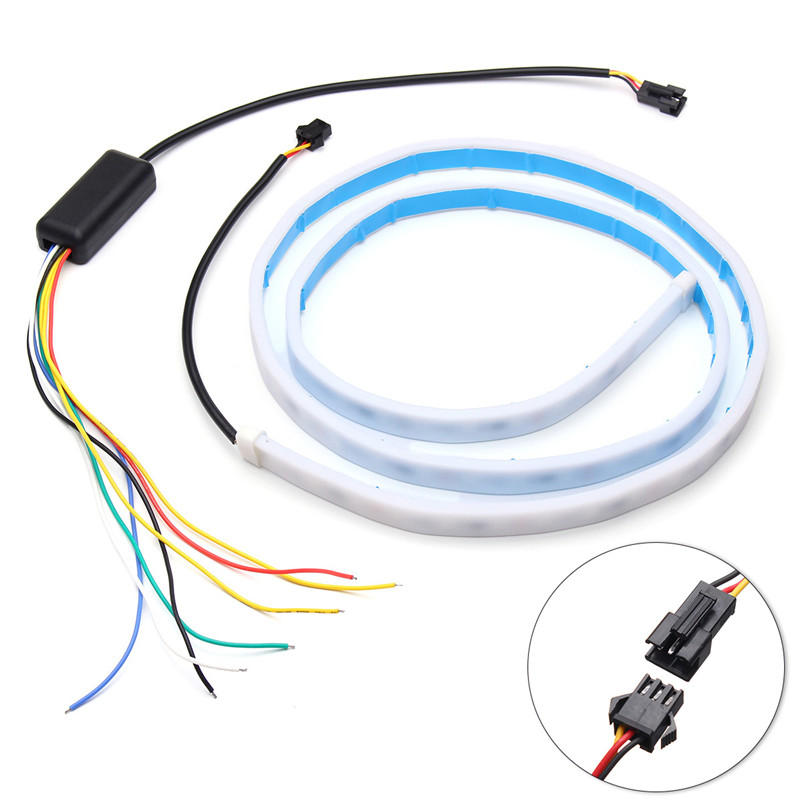

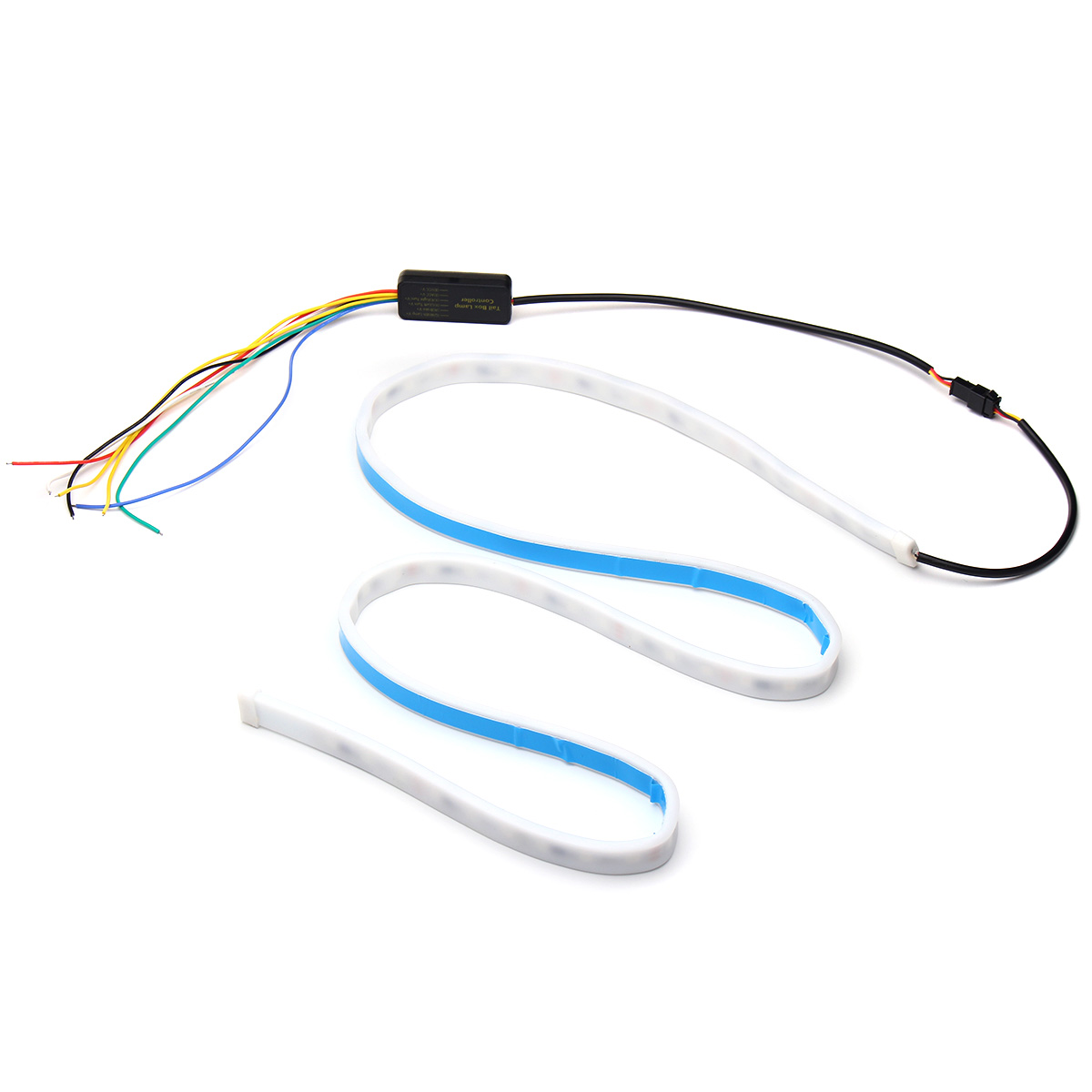

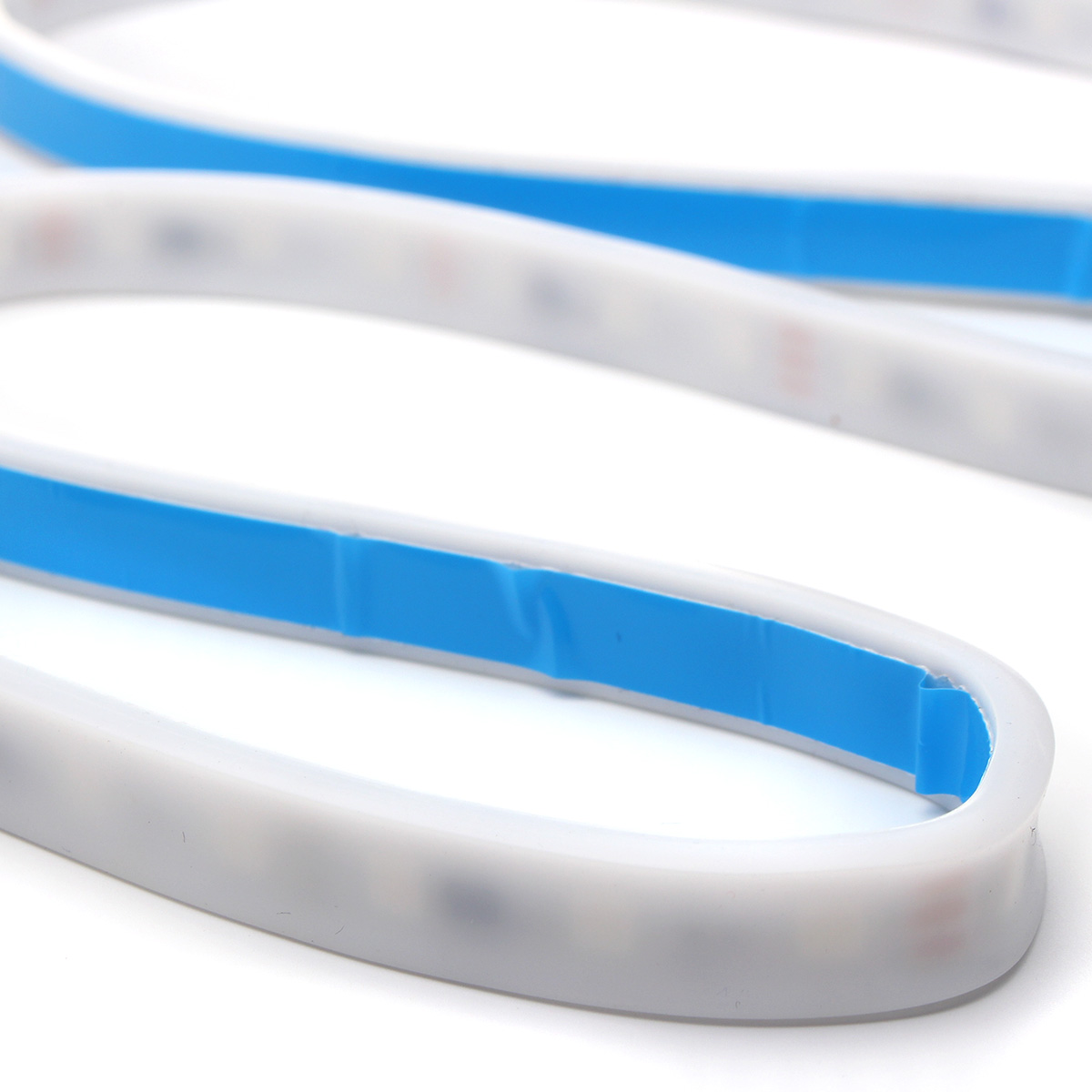

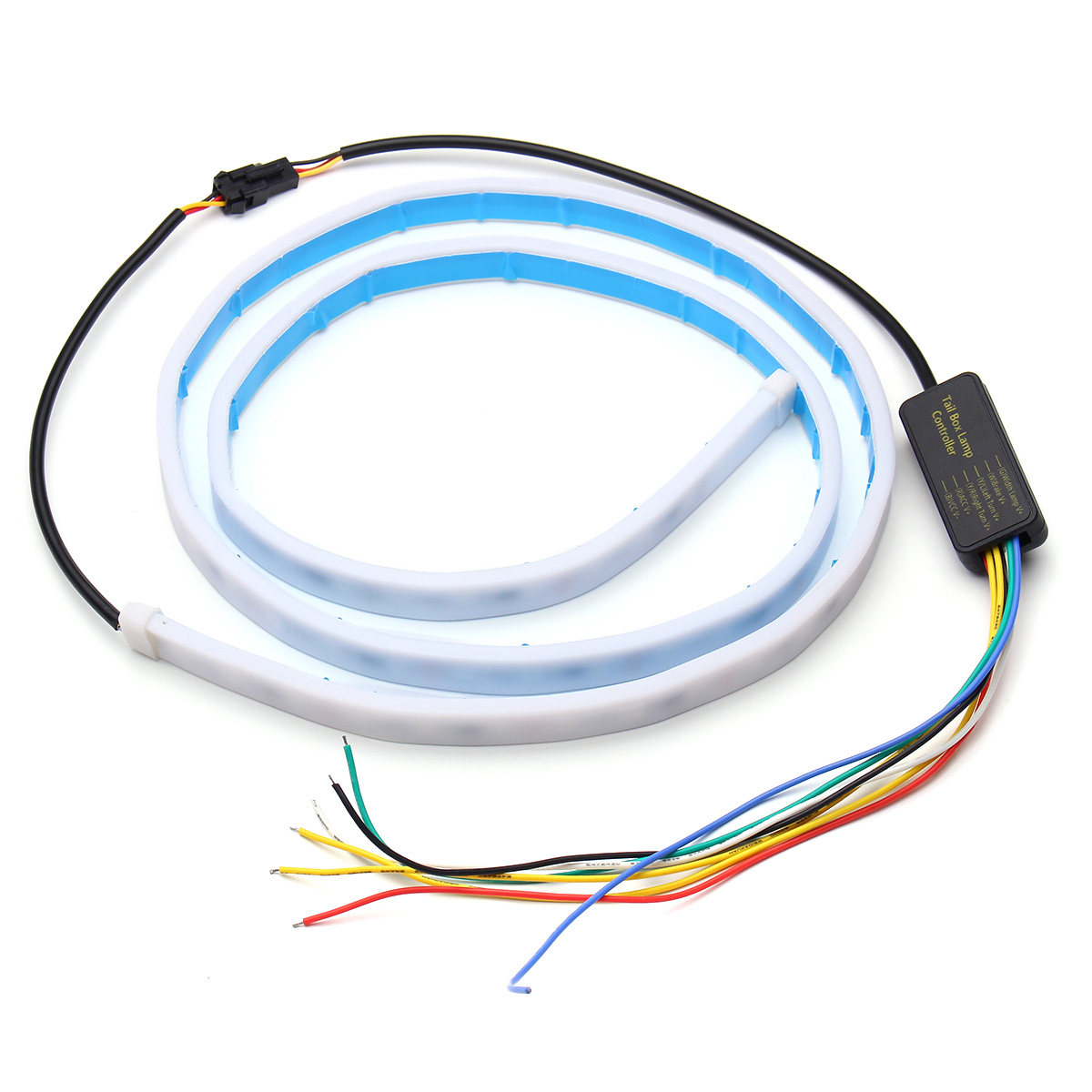

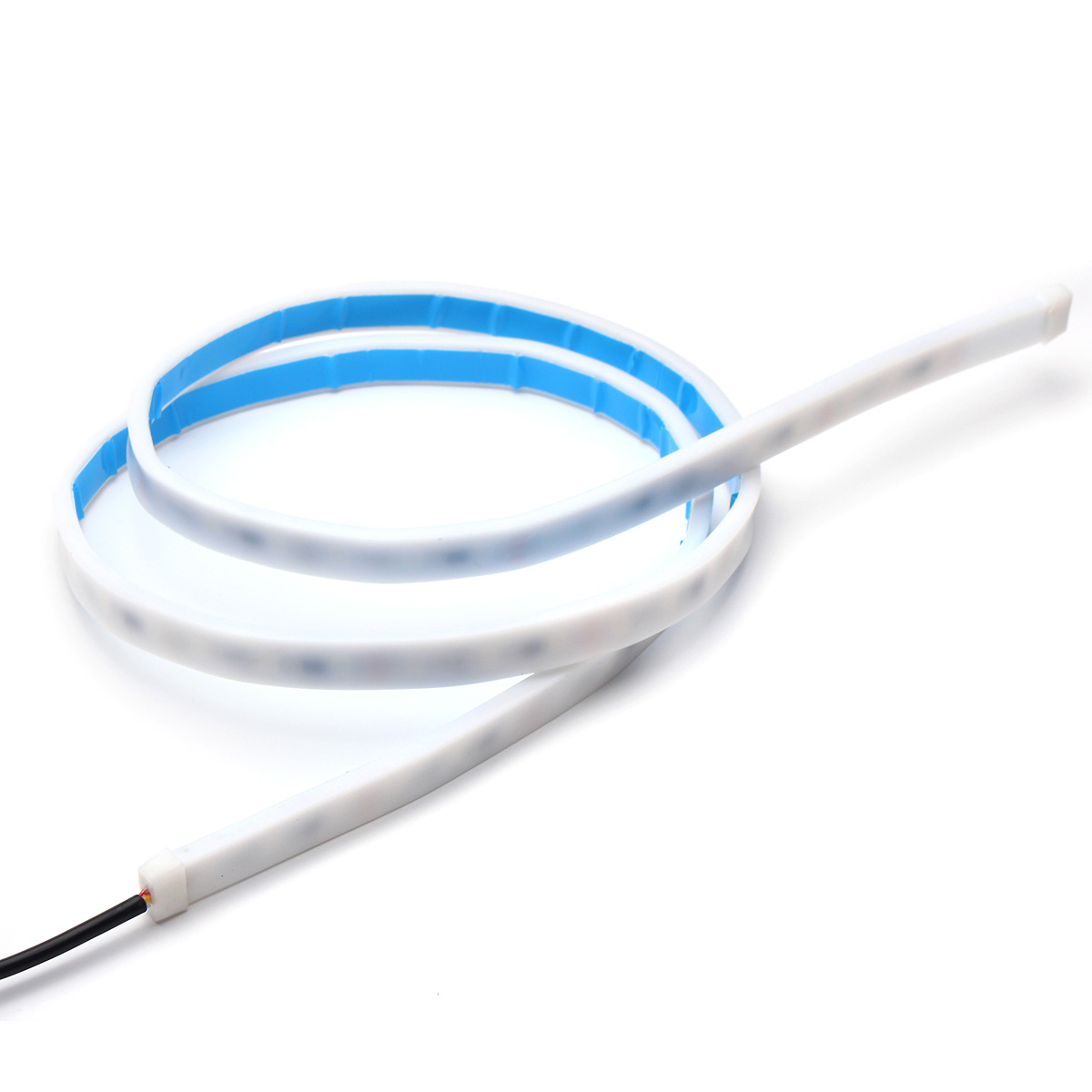

Flow LED Car Vehicle Rear Trunk Tailgate Turn Signal Lamp Tail Brake Light Strip
$8.39
- Product Code: ED00012027
- Availability: In Stock
- Ex Tax: $8.39
Specification:
Length: 120cm
Width: 1.3cm
Thickness: 0.5cm
Item type:
Daytime Running Lights Lights/
Rear Lights/Luggage Compartment Light/Tail Lights,etc
Voltage: DC12V
Led Number: 5050 72LED
Current: 250MA
Power: 5W
Lumen: 1080LM
Light Source: LEDs strips
Color: White,Yellow,Red,Ice blue
This strip is universal, it can be used for all cars.
Used for medium models, senior models, luxury models, sedan models
Features:

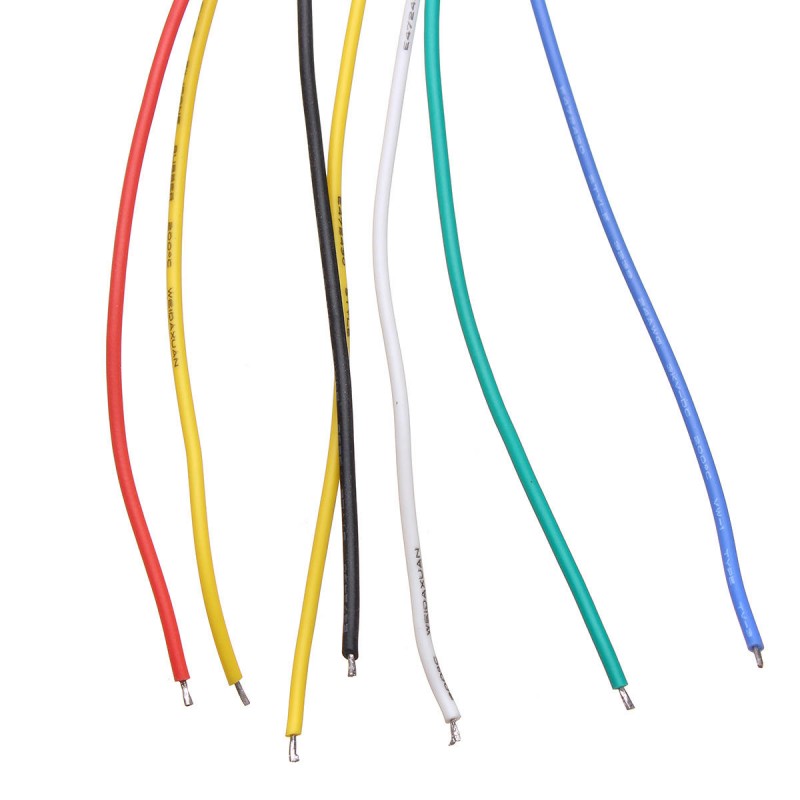

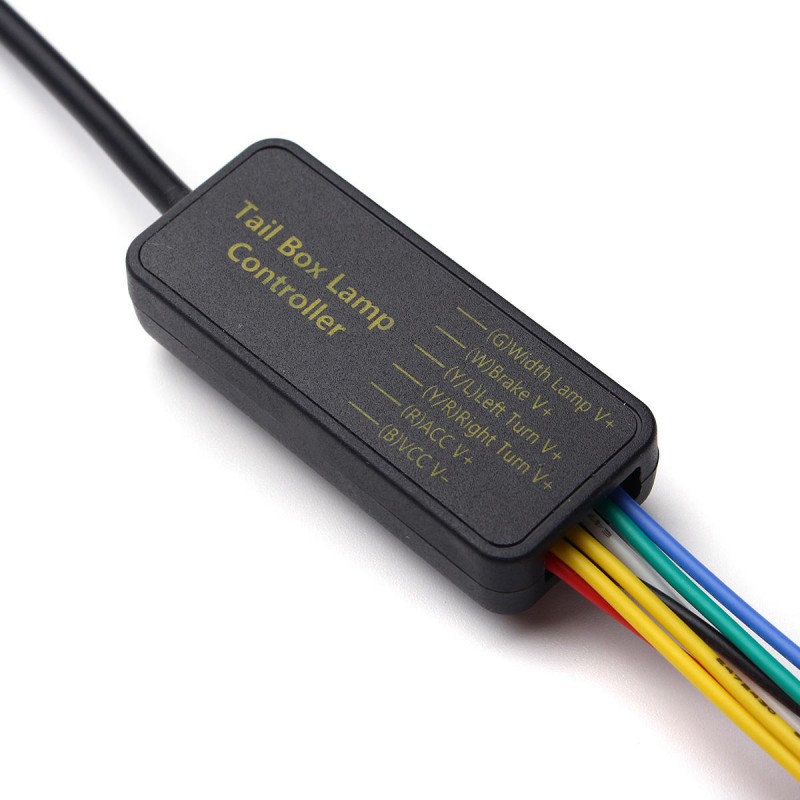

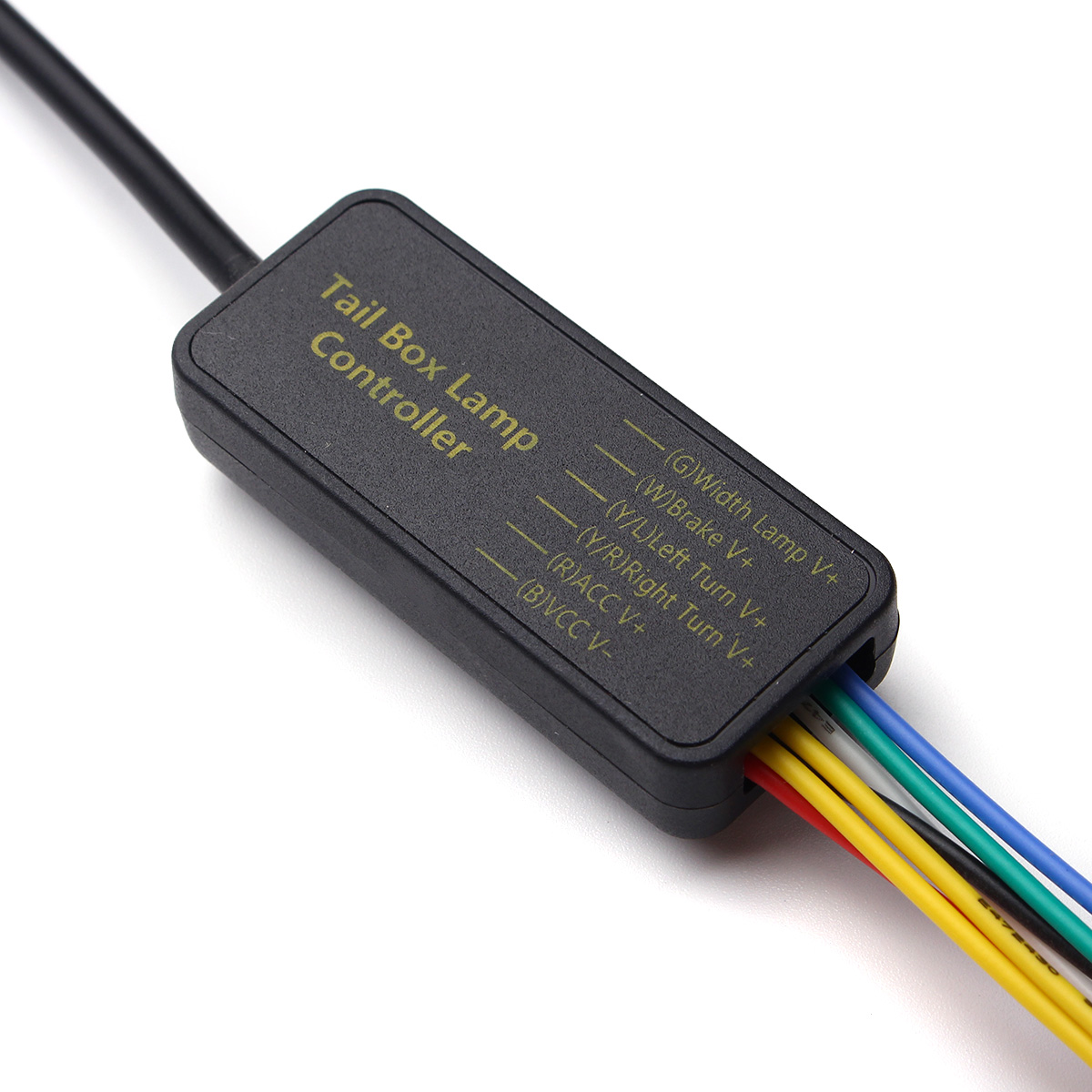

There are 7 lines for the input of the product controller:
Red line for positive car battery, black line for the car battery negative .
1. Green line: Blue light when connecting to ACC.
2. White line: Light on highlights red when connecting to brake light.
3. Blue line: Light mode on yellow color 25% brightnedd from streamer from left to right
When the right connection lights up.
4. Yellow line: Light mode on yellow color 25% brightnedd from streamer from right to left
When the right connection lights up.
5. Blue line: Light on highlights white when reverse gear.
6. When double flash warning occurs, yellow light streamer mode from center to both sides at the same time and same speed, it is to highlight red color in the middle.
7. Light mode on red by steam when the brake and rotation function is lit at the same time.
Tip:

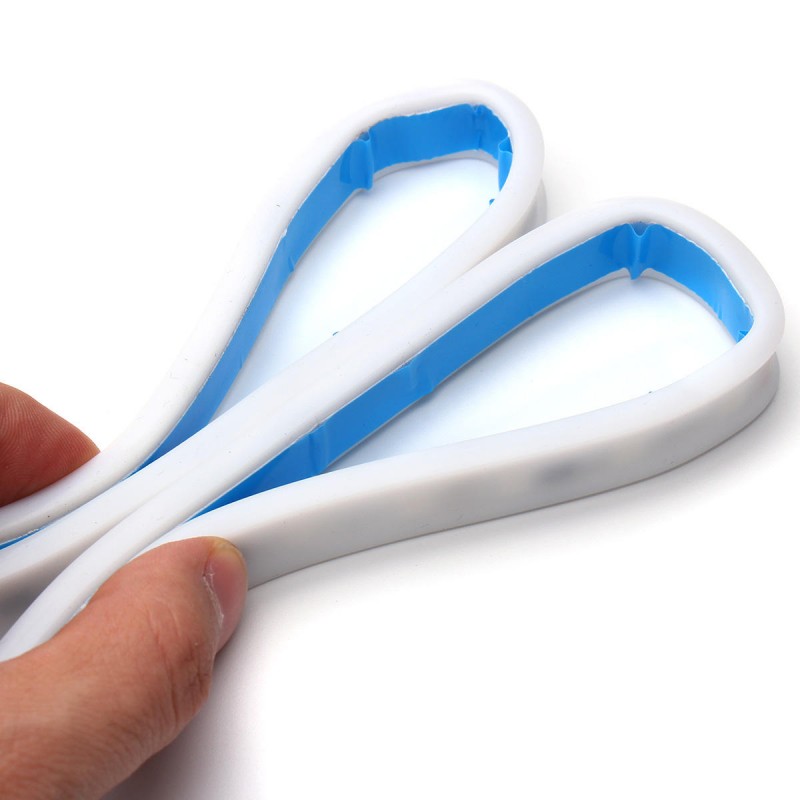

-This led trunk tail light can not be 90 degree bended.
-This led trunk tail light can not be 90 degree bended.
-If you do not need one of the 4 colors, you do not connect the wire, then the light will not be lightening.
-For example, if you do not connect the green wire, the blue light will not be lightening.
Package included:
1 X LEDs strips
