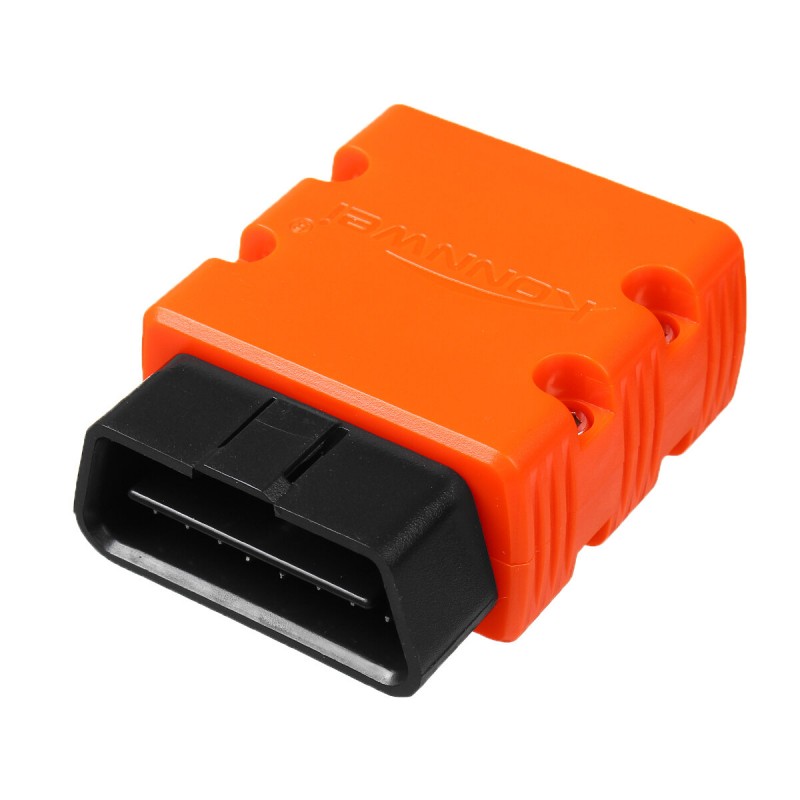

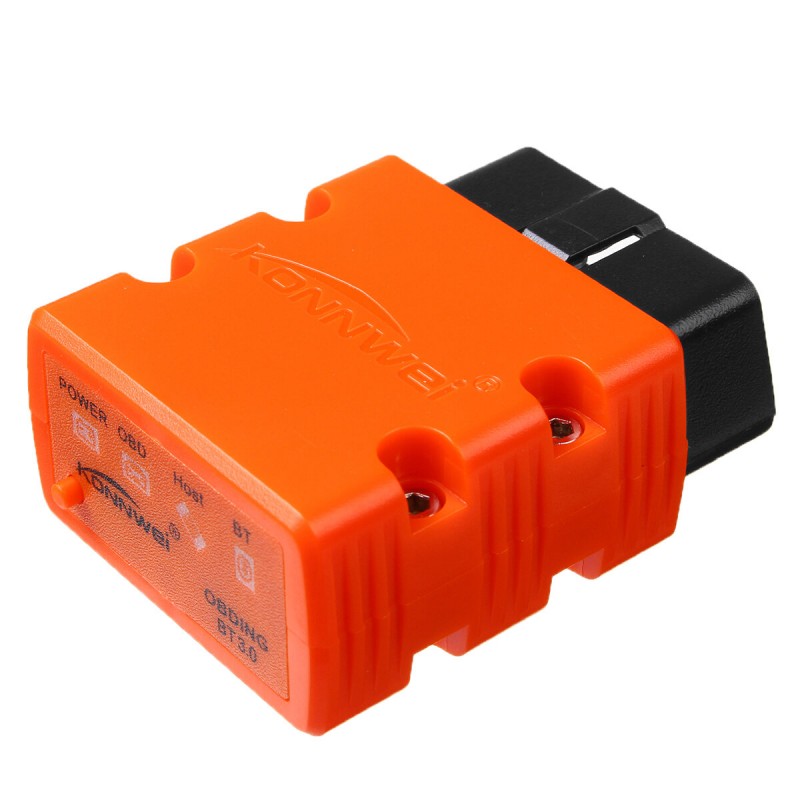

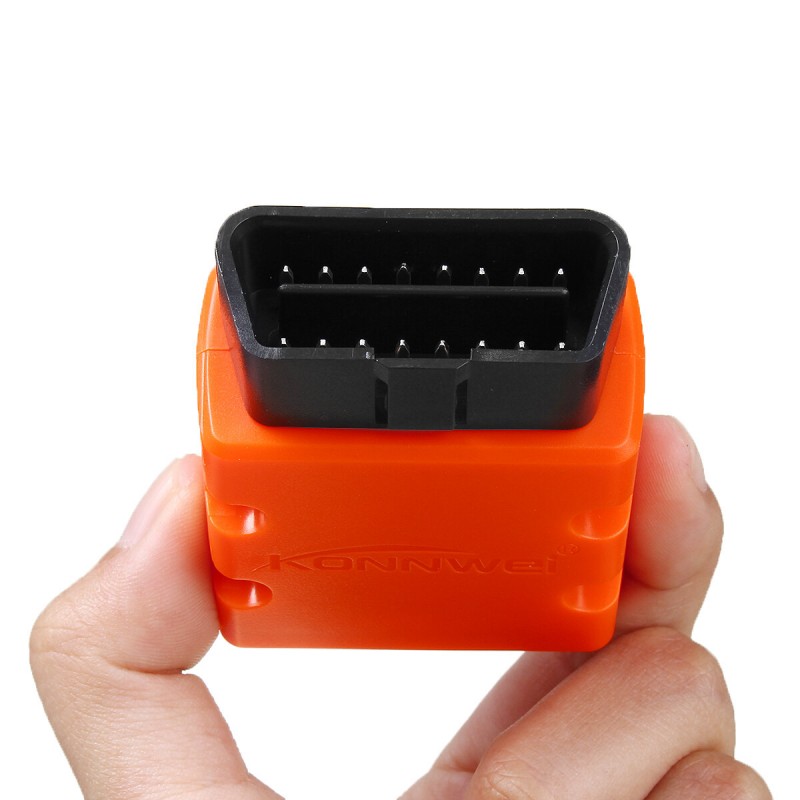

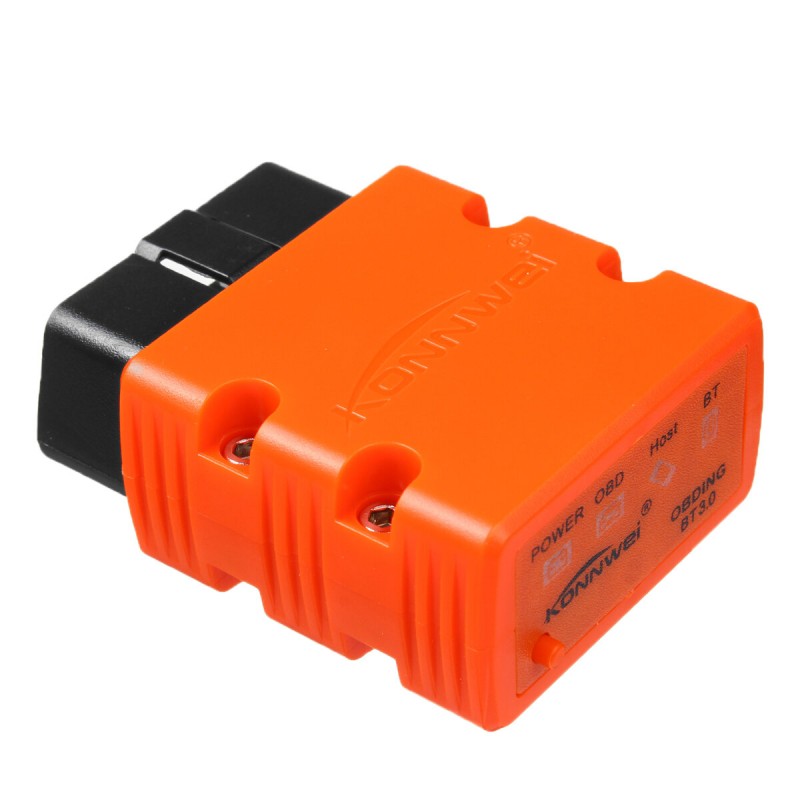

KW902 ELM327 V1.5 Car OBD2 Scanner bluetooth Diagnostic Tool OBDII Code Reader For Android Phone

$17.97

  • Product Code: ED0006594
  • Availability: In Stock
  • Ex Tax: $17.97

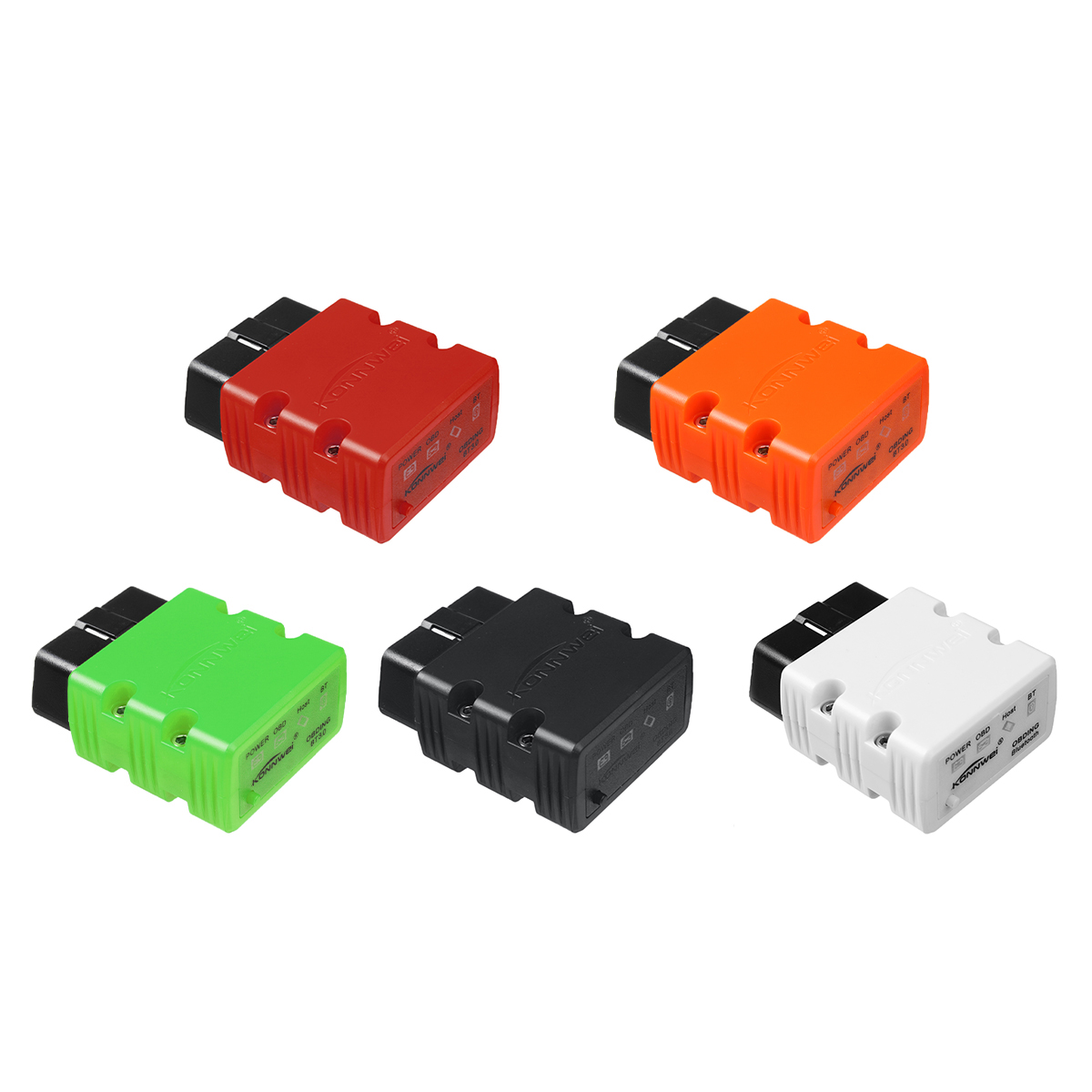

Available Options

Tags: Car Diagnostic Scanner

Applicable Vehicles:

1996 or newer model year vehicle made in the United States:
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2004 or newer model year vehicle made in the European Union:
Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault after 2009 year, doesn't support Clio 2
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
2008 or newer model year vehicle made in the Asian car makes:
Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota
Warm Notice for Special car models:
For Lada/ VAZ/ UAZ car makes, please don't purchase If your car is before 2006.
For Ssangyong car makes, please don't purchase If your car is before 2008.
For Renault - Dacia - For Logan car model, please don't purchase If your car is before 2009.

With kw902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.


Specifications:

* Brand: Elecdeer
* Model Number: KW902

* Version: bluetooth Version For Android Phone

* Supply voltage(VDD):12V

* Work temperature range: -20 ~ +70℃

* Storage temperature range:-40 ~ +125℃

* RF sensitivity(Basic Rate): -85db

* Modulation Mode:GFSK

* Frequency Range:2402 ~ 2480MHZ

* Transmission Range:10M

* bluetooth Profile:SPP

* UART Params:38400,8,n,1

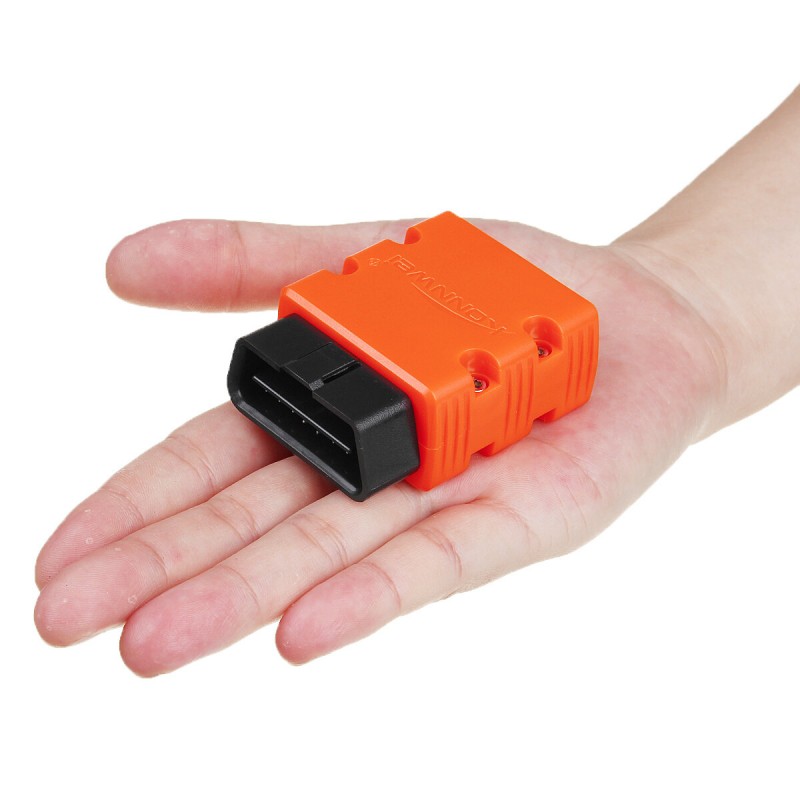

* Small size, compact structure. Plug and never unplug

* Stable wireless connection

* No wires or batteries (adapter is powered by the diagnosis size sockets)

* Stop communication, wait half an hour, auto sleep

* Supports all OBDII protocols

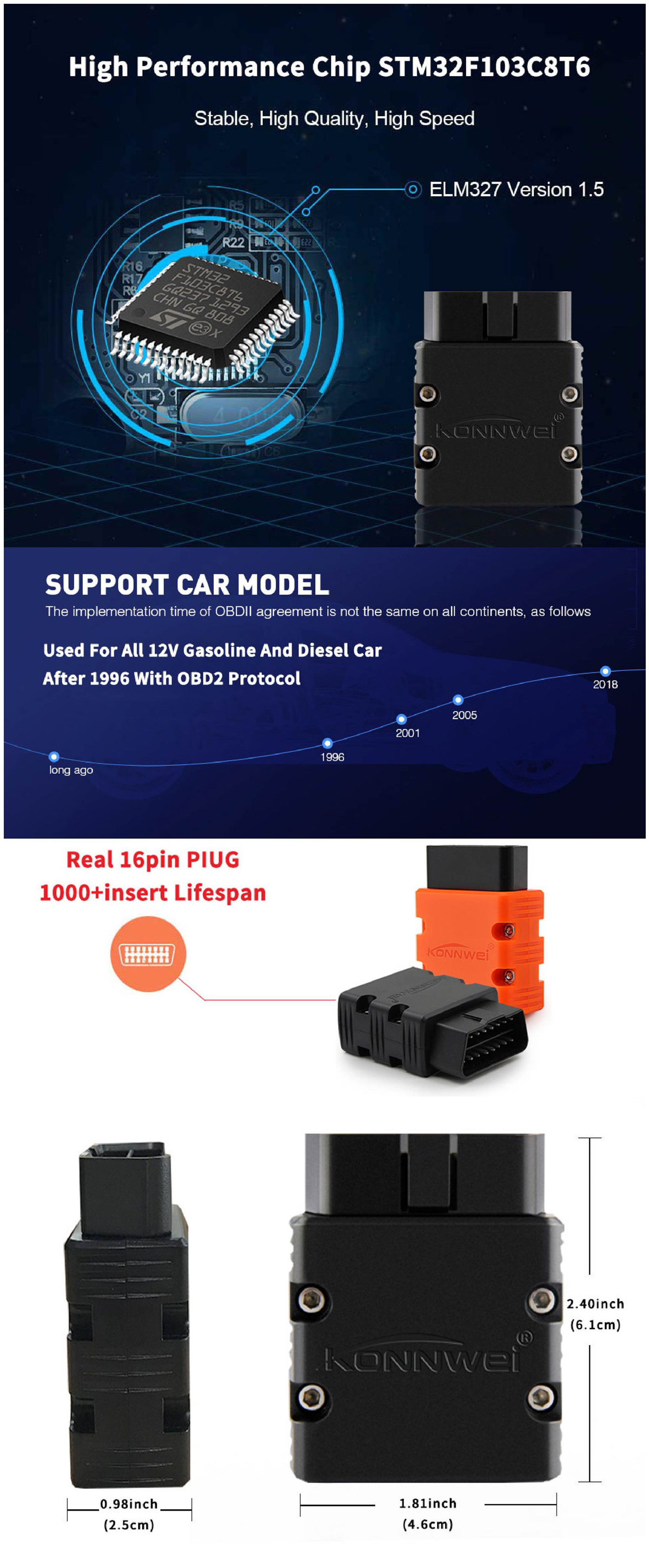

* The adapter uses the fastest and most reliable ARM chips


Features:

* Small size, compact structure. Plug and never unplug

* Stable wireless connection via bluetooth 3.0.

* No wires or batteries (adapter is powered by the 12V Vehicles battery)

* 30 Minutes without communication, it will automatically go to sleep mode.

* Ultra low cumsumption in sleep-mode, less than 10MA

* Supports ALL OBDII protocols, widest coverages

* The adapter uses the fast communication mode and most reliable PIC18F25K80 chips, up to 30PID/S.

* True ON-OFF button, you can press button to turn off the elm if not in use.

* Default settings(user adjustable).

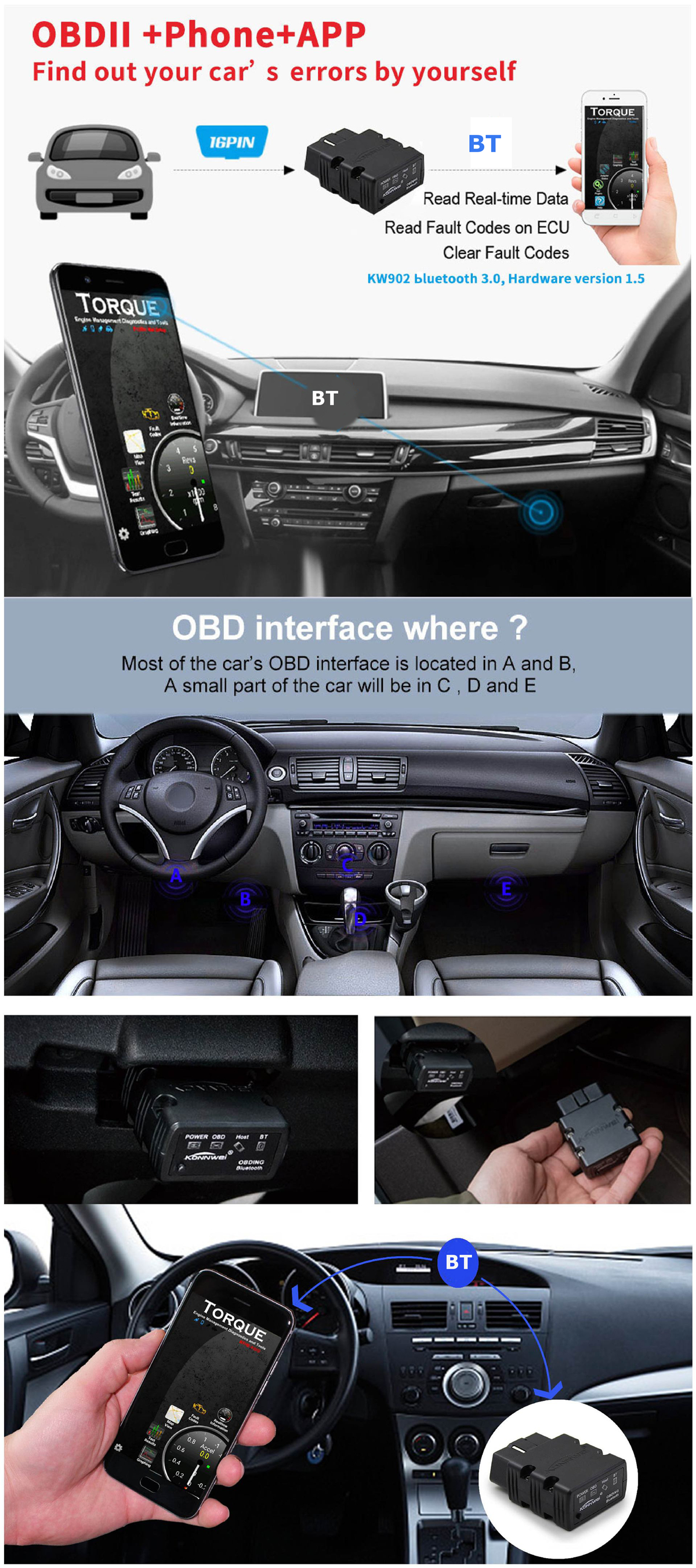

Functions:

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

* Record various parameters, display graphics in real time, and more.


KW902 scantool is a high-quality automotive scanning tool, supports all OBD-II protocols :

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

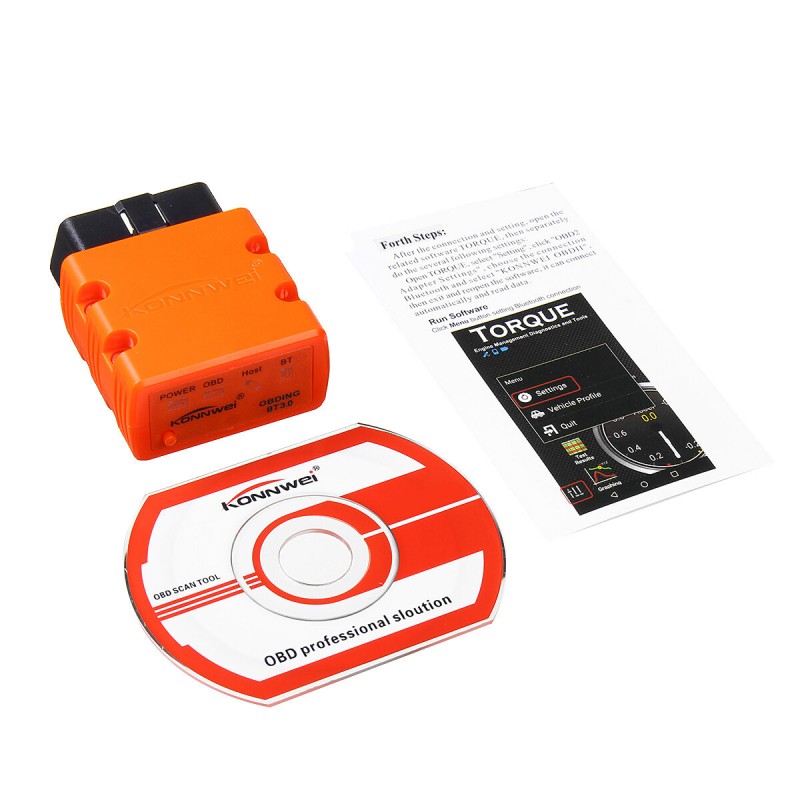

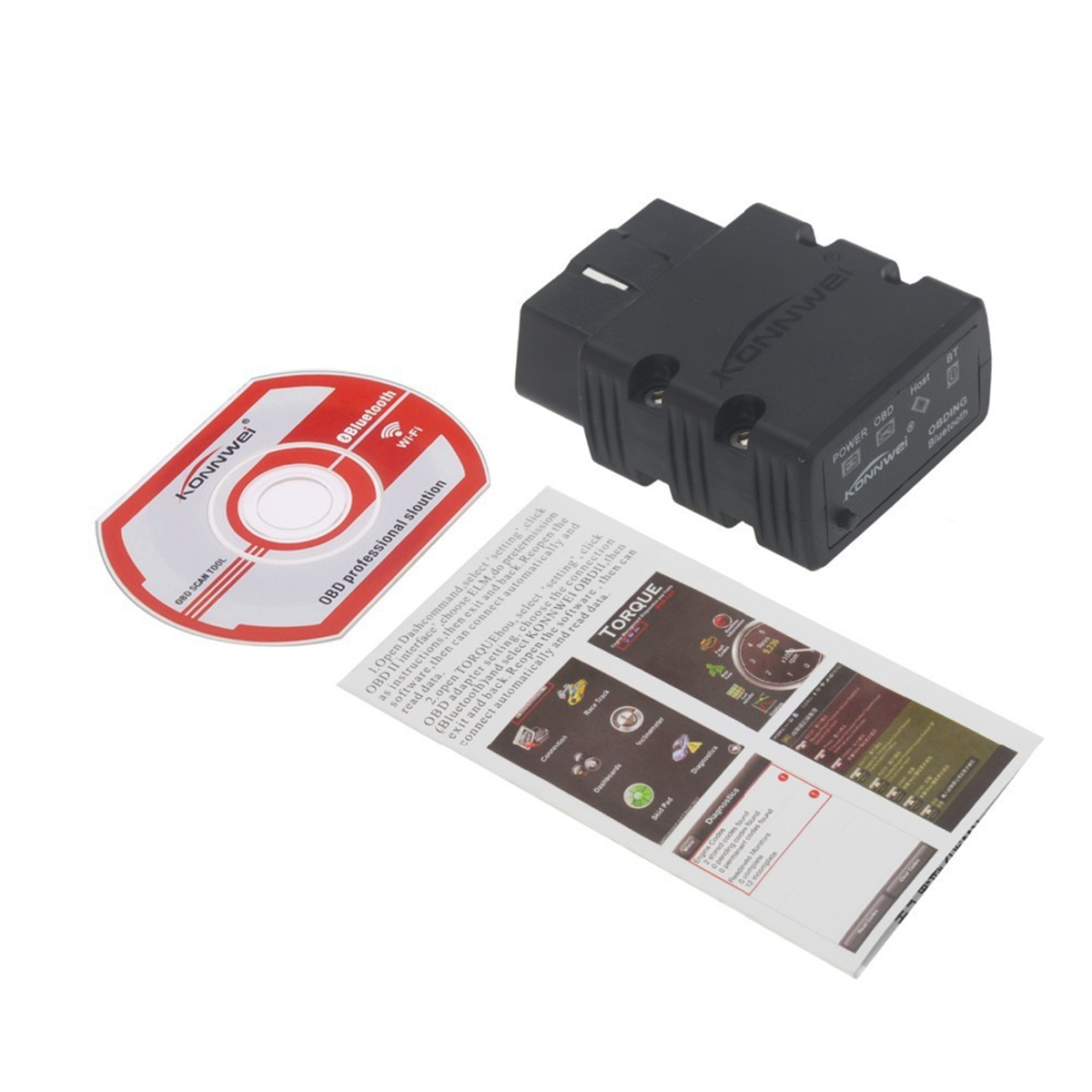

Package Included:

1* bluetooth OBD2 Scanner

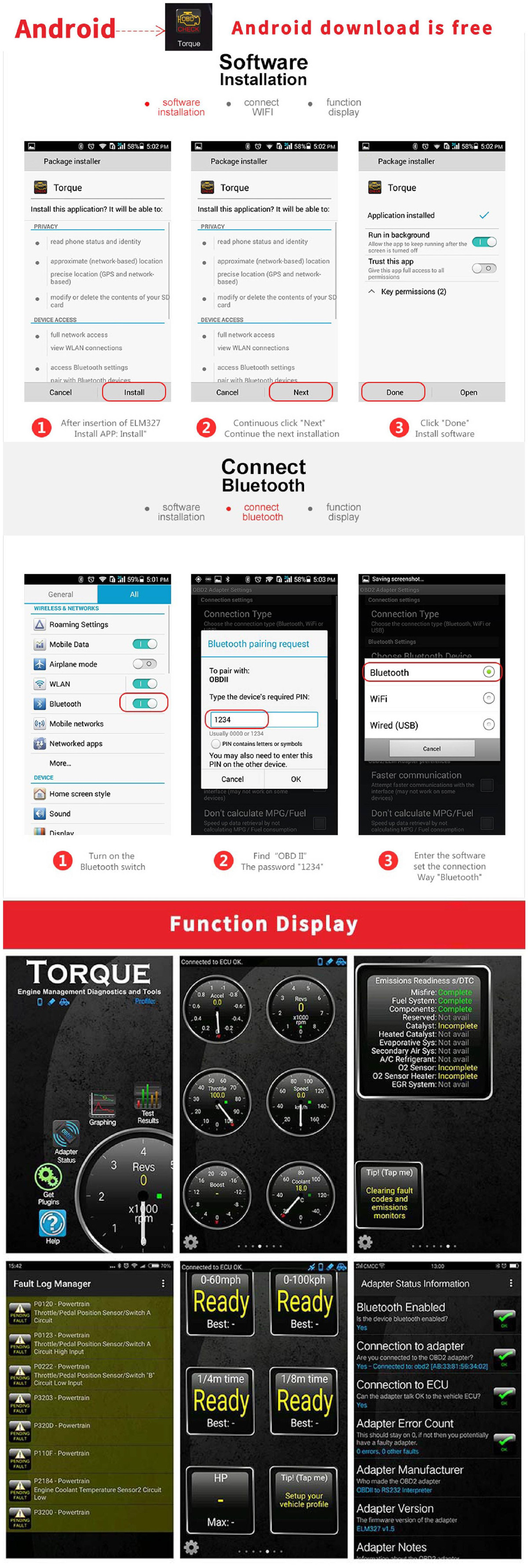

This ELM327 is bluetooth version for android system cellphones only. If you need the IOS version, please refer to KW902 wifi version: ID: 1461010
