M100 Motorcycle Scanner Diagnostic Tool 12V Battery Tester OBD OBD2 Moto Scan Code Reader SD Card Color Display

$399.99

  • Product Code: ED0018430
  • Availability: In Stock
  • Ex Tax: $399.99

Tags: Diagnostic Tool 12V Battery Tester OBD OBD2


Description

1.M100 Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions.

2.It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

3.It allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

4.The tool shows live data, displays ECUdata, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

Features

Ø Handheld operation, convenient and flexible to use

Ø Support for SD cards to store data and upgrades

Ø Reserved CAN bus interface

Ø 3.2-inch color screen, clear display

Ø Dynamic data with numerical and waveform

Specification

Function

Read system information

Read data stream

Read fault code

Erase fault code

Freeze data

CO idle speed adjustment

Actuators test

ABS system test

Trouble shooting guidance

Tire pressure system test

Anti-theft system test

Battery detection and diagnosis

Diagnostic data link to computer print

Power

DC10-15V

Operating Current

250mA

Storage temperature

-10 to 85

Operating temperature

0 to 70

Humidity

<90%

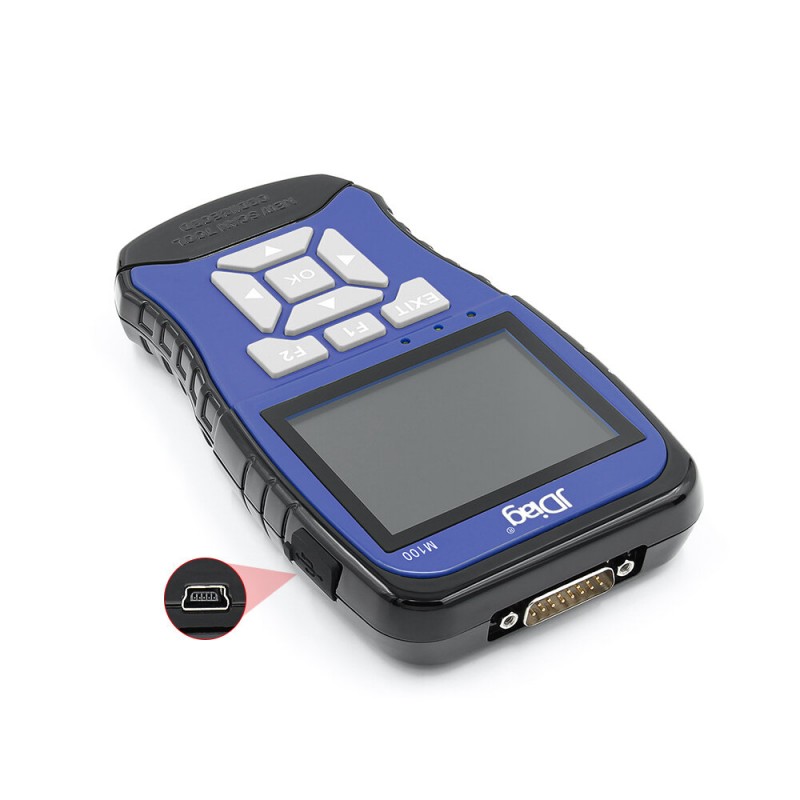

Upgrade Ports

USB port

Support Motorcycle List

For OBDII,For AEON ,For APPRILA,For BENELLI ,For HARTFORD,For HONDA ,For KAWASAKI ,For KTM ,For KYMCO,For PGO ,For PIAGGIO,For SUZUKI,For SYM,For VESPA,For YAMAHA. etc

Support Multi Languages

English , Chinese, Thai, Indonesian, Vietnamese, Spanish

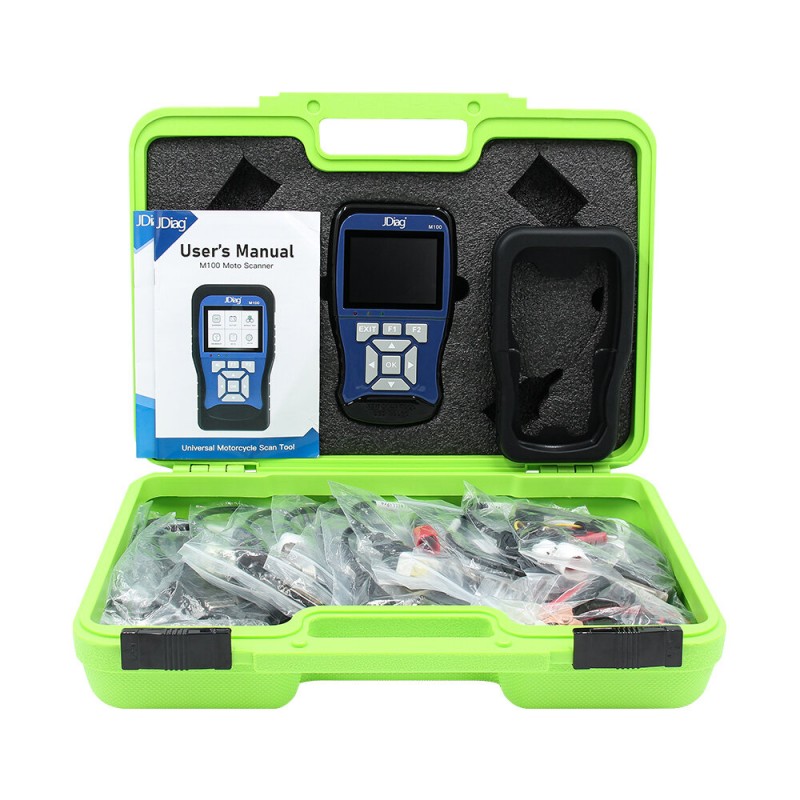

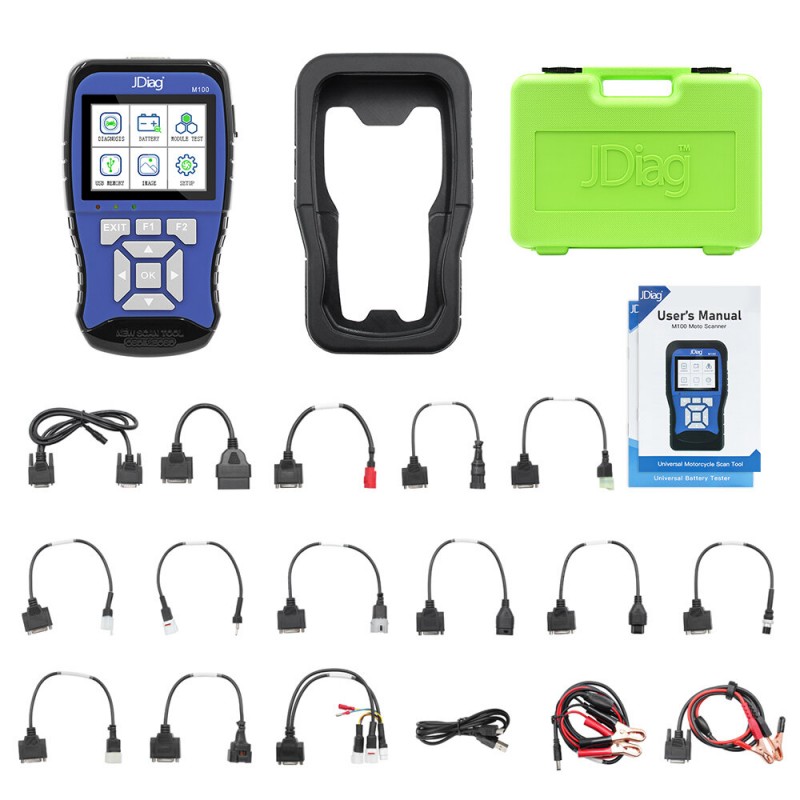

Package Included

Scan Tool main unit

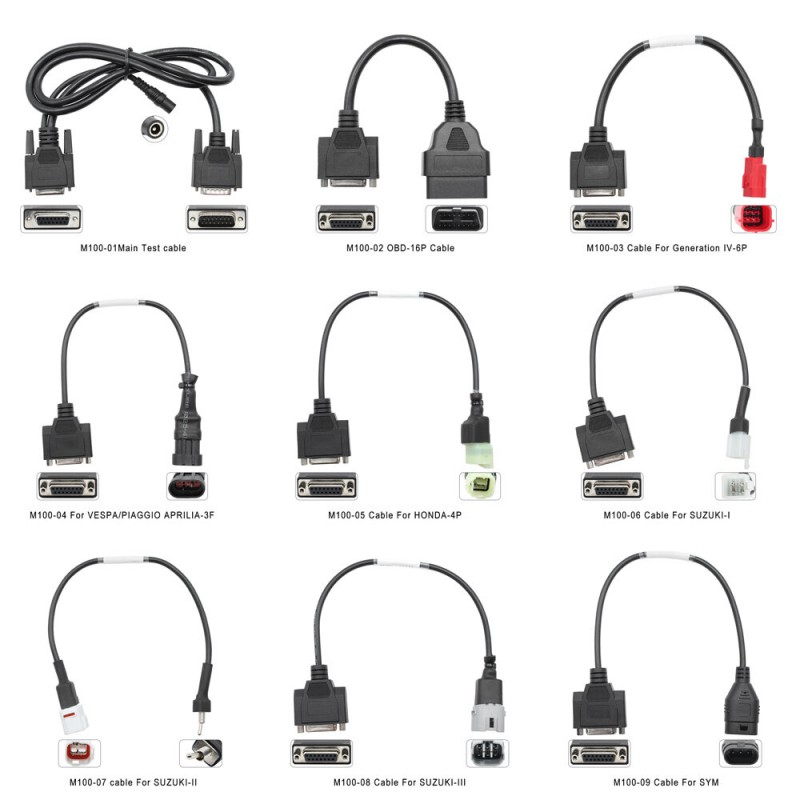

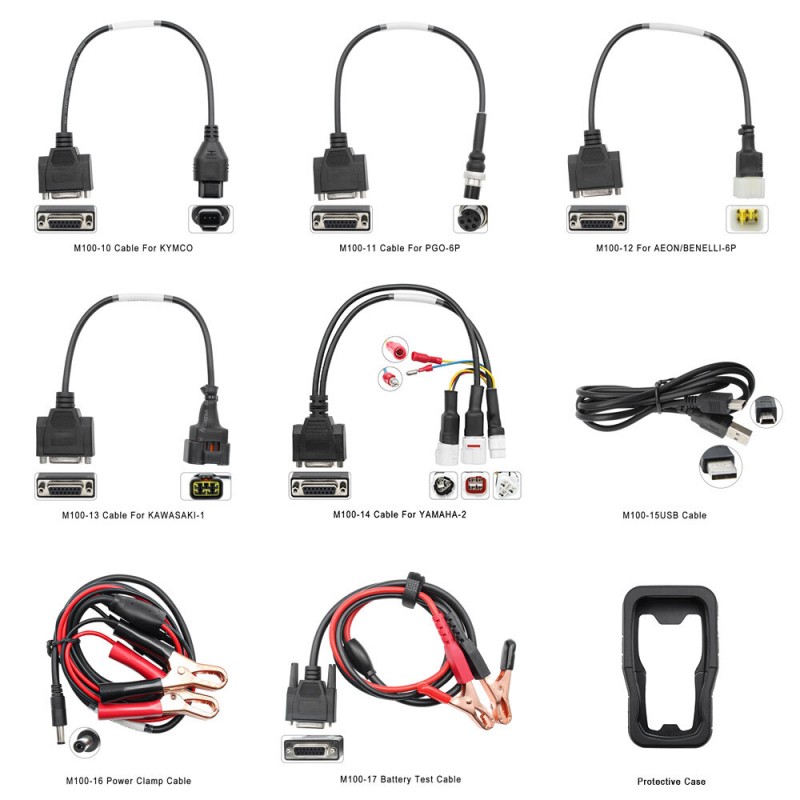

Test cables

USB Cable

User Manual

Protective ABS Toolbox
