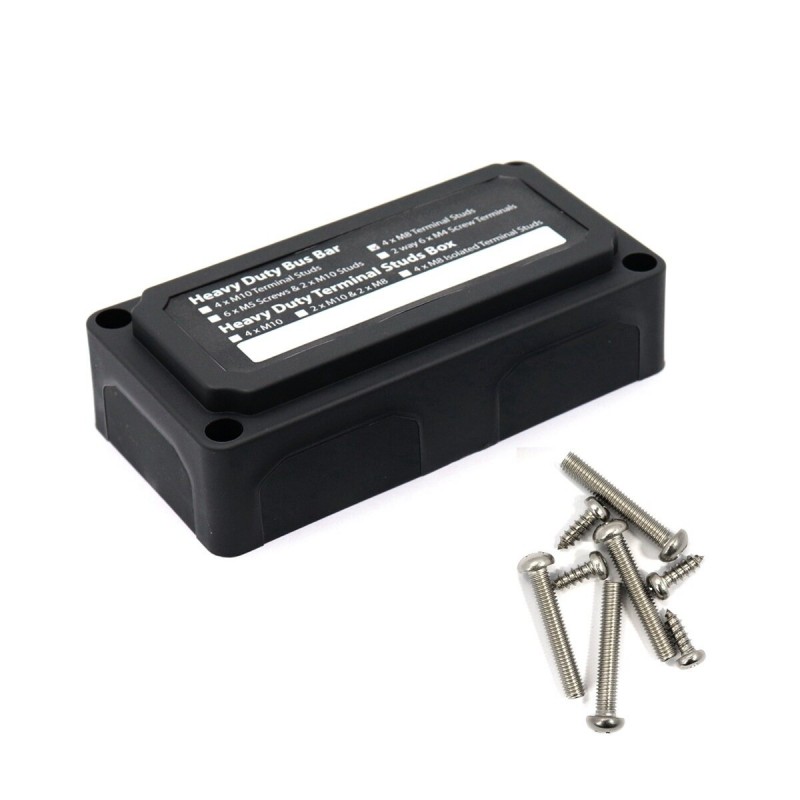

M8/M10 Heavy Duty Bus Bar Terminal Studs Box DC 48V 300A Busbar Universal For Car Boat Caravan RV
$33.98
- Product Code: ED0009580
- Availability: In Stock
- Ex Tax: $33.98
Available Options

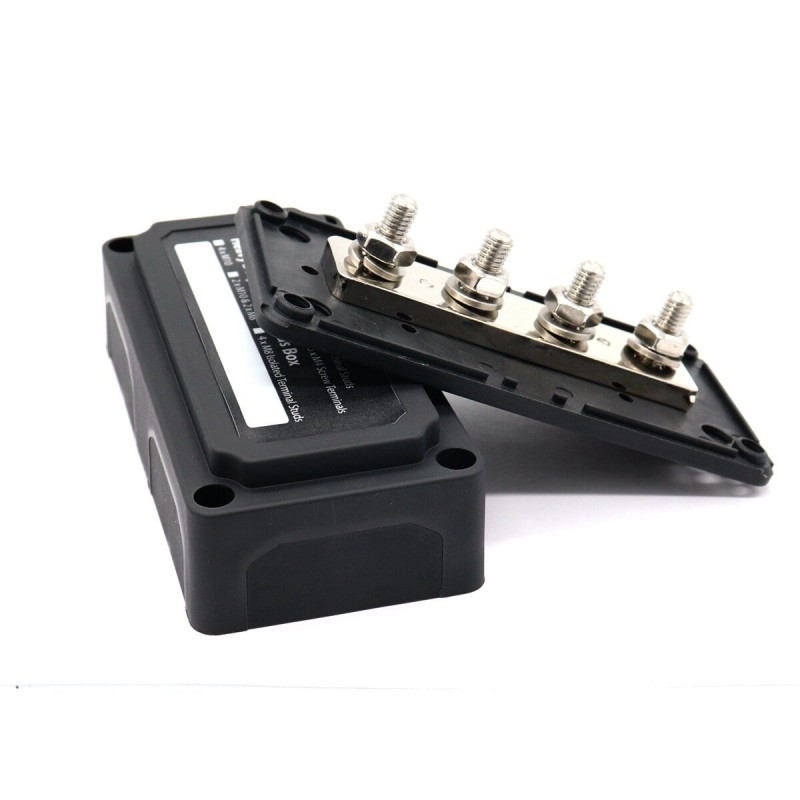

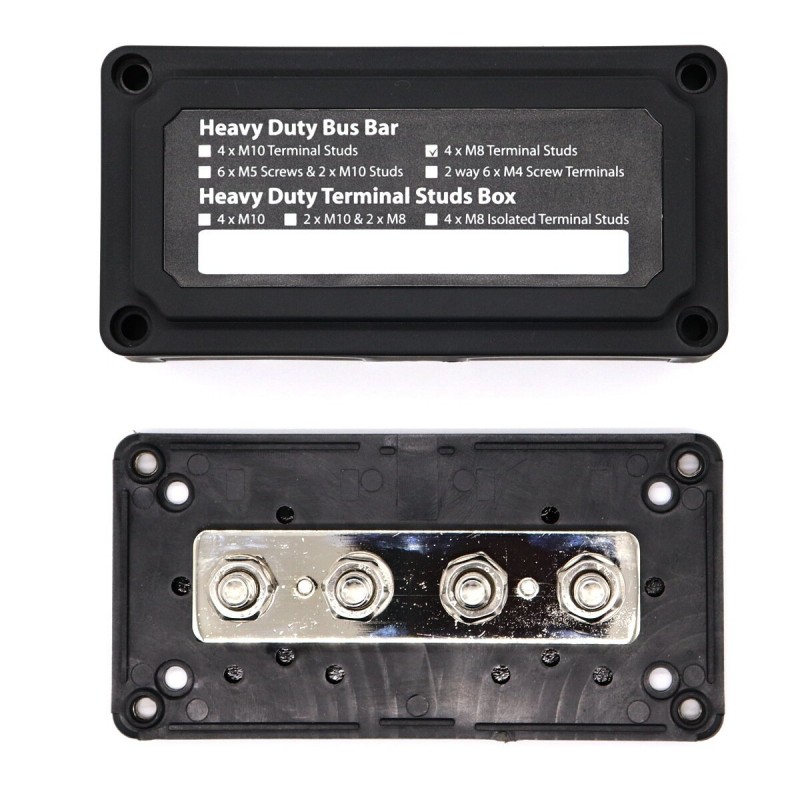

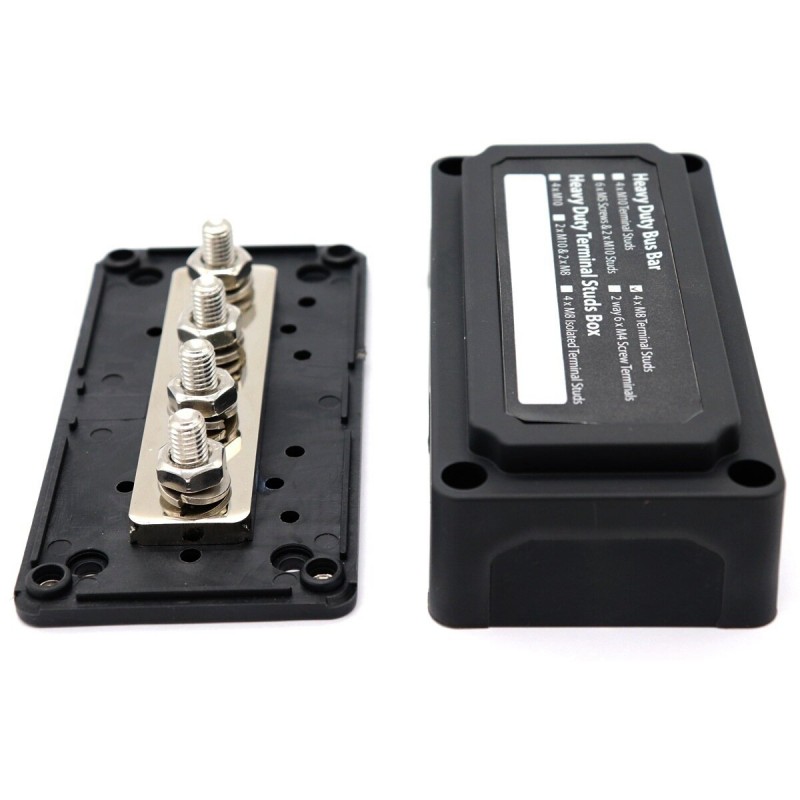

Heavy-Duty Module Design Bus Bar Box with 4 Terminal Studs
Features:
1.Highest amperage rated bus bar (300A) with M8/M10 terminal studs.
2.Module box design for easy wiring configurations.
3.Glass Fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability.
4.Removable windows for unobstructed wiring.
5.Blank write-on space on the top allows easy labeling for each branch.
Specification:
Product Name: Heavy-Duty Bus Bar
Base & Cover Material: Nylon, Glass Fiber reinforced
Bus Material: Brass, Nickel plated
Max Operating Voltage: DC 48V
Max Continuous Amp: 300A
Terminal Stud Size: 4x M8/M10
Dimensions (L x W x H): 138 x 69 x 44.5mm
Product use:
1. M8/M10 in the middle is connected to the negative electrode of the device, M8/M10 at both ends is connected to the negative electrode of the battery.
2. Collect small currents from each device, such as 3A 5A 10A 8A, etc. Integrate a thick wire to sink a large current within 300A To the battery.
Package Included:
1* Busbar Box
4* Terminal Studs
