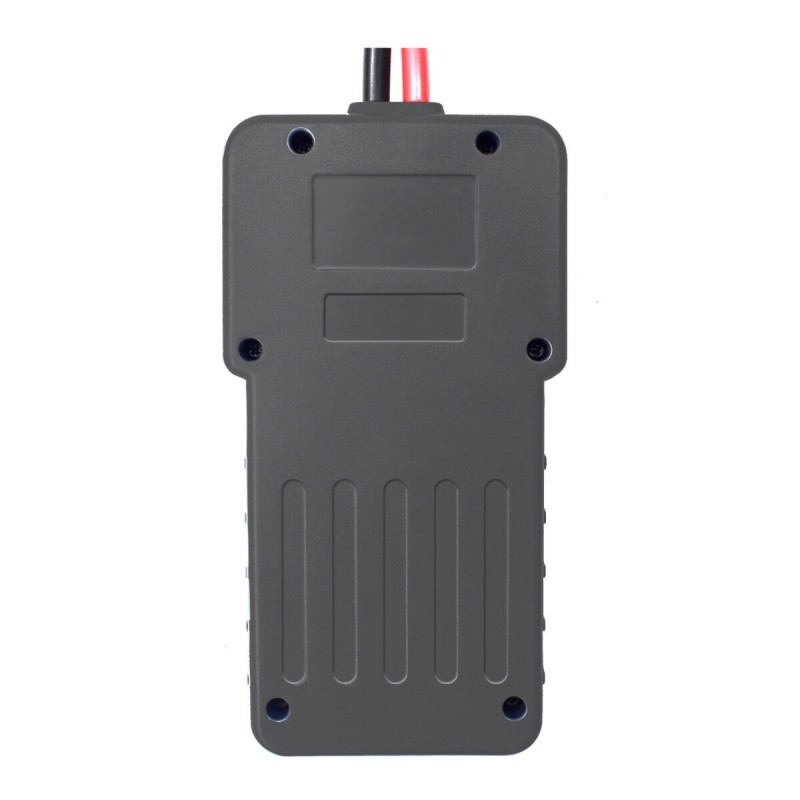

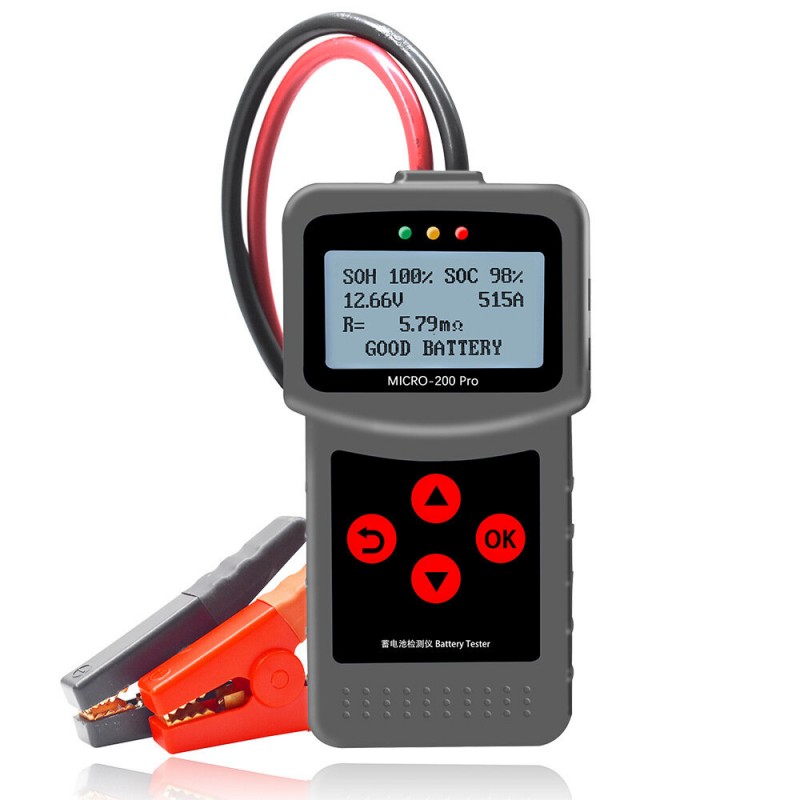

Micro-200 Pro 12V Car Motorcycle Battery Tester Digital Battery Analyzer Cranking Charging System Test
$43.99
- Product Code: ED0007494
- Availability: In Stock
- Ex Tax: $43.99
Available Options
Feature:
1.12V Motorcycle & Car Battery Test
2.12V & 24V battery system test.
3.Condutance technology,simple,fast,accurate.
4.Vehicle charging system test.
5.Vehicle starting system test.

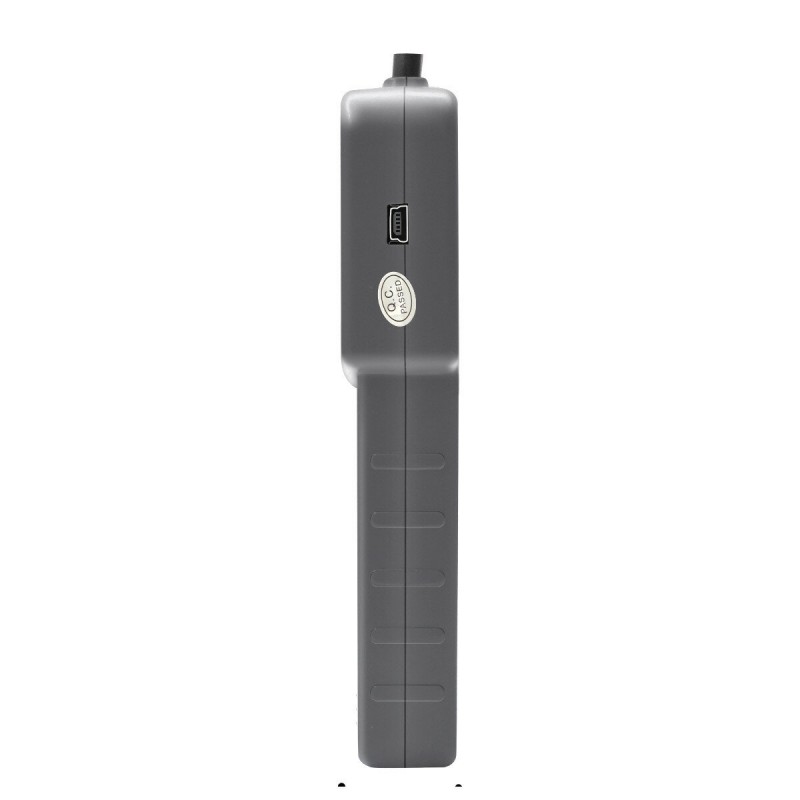

6.USB interface which can connect computer to print the result.
Specification:
Main Function: |
Digital Battery Tester |
Measure Standard & Measure Range: |
CCA 40-2000 BCI 40-2000 CA 40-2000 MCA 40-2000 JIS 26A17—245H52 DIN 40-1400 IEC 40-1400 EN 40-2000 SAE 40-2000 GB 3-220Ah |
Working Environment Temp: |
-20℃-50℃(-4F---122F) |
Special Test Clip： |
Double conductor Kelvin clamp |
Housing Material： |
Acid-resistant ABS plastic |
Cell Measure Range： |
3AH-220AH |
Voltage Measure Range： |
7-30VDC |
Application: |
Motorcycle Battery & Car Battery &Truck Battery |
Multi-Language model:
（Version A）Asia version: English, Russian, Japanese, Korean
（Version B）European and American version: English, French, Spanish, Italian, German
（Version C）Nordic version: English, Finnish, Dutch, Norwegian, Swedish,Danish
How to use:

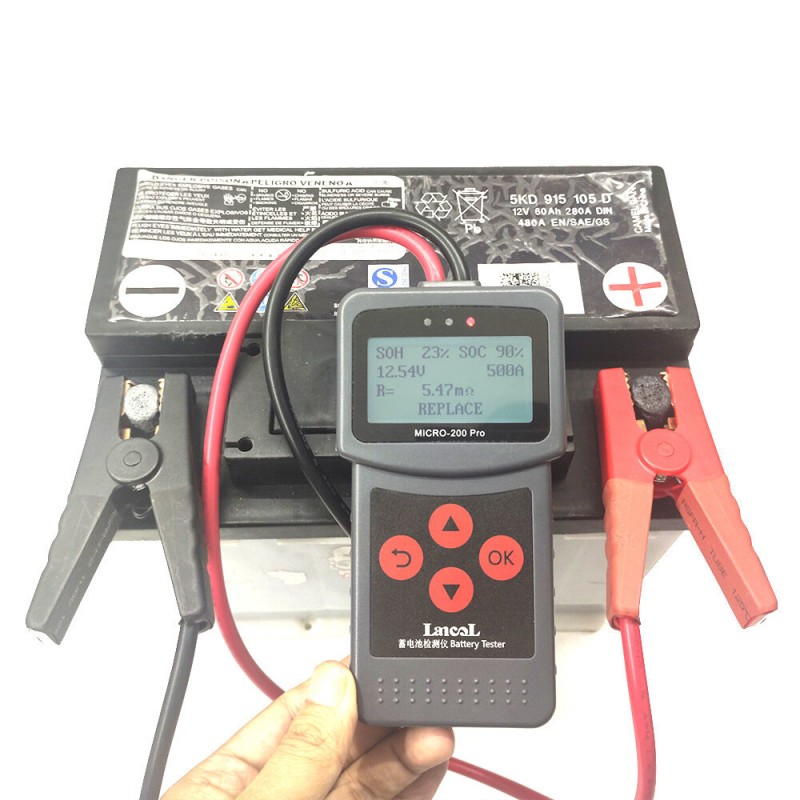

1.Connect the red test clamp with battery anode and the black one with cathode, the tester will power on automatically. Voltage battery below 7.0VDC can’t be tested properly, then press OK key to continue.
2. According to the tester, you can press UP/DOWN key to choose:
① Battery Test
② Cranking Test
③ Charging Test
④ Review Data
⑤ Print Data
⑥ Language
3. LED Display :
Red light: reminder to replace
Green light: Good Battery
Yellow Light: Low voltage
Package Included:
1 X Digital Battery Tester |
1 X USB Cable |
1 X User Manual |
