Pro ELM327 V2.1 Wifi Car OBDII EOBD Diagnostic Scanner Tool OBD2 Code Reader Adapter 16Pin Interface For Android/IOS
$28.08
- Product Code: ED0007325
- Availability: In Stock
- Ex Tax: $28.08

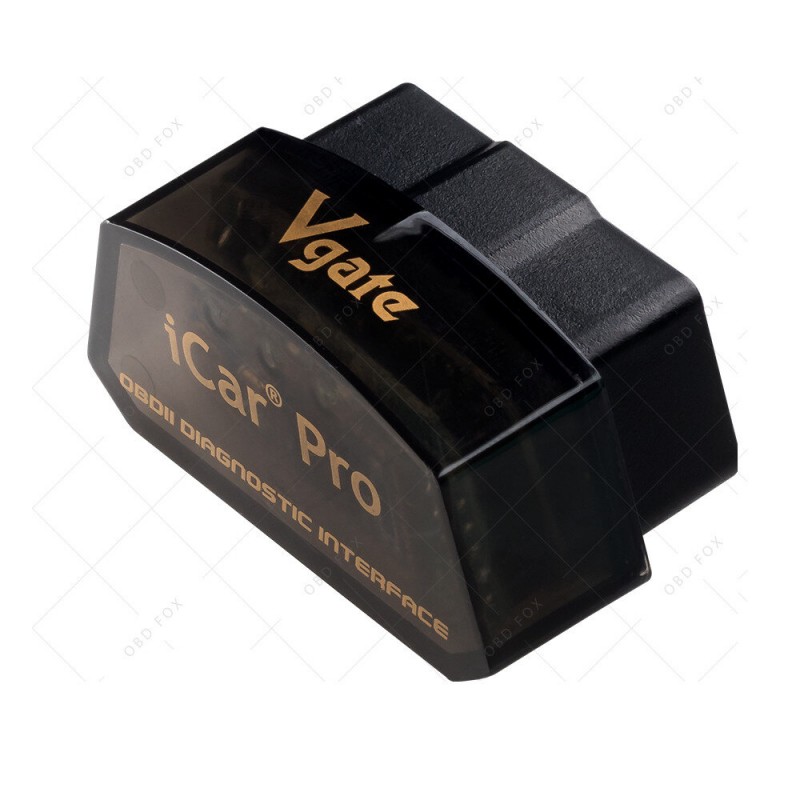

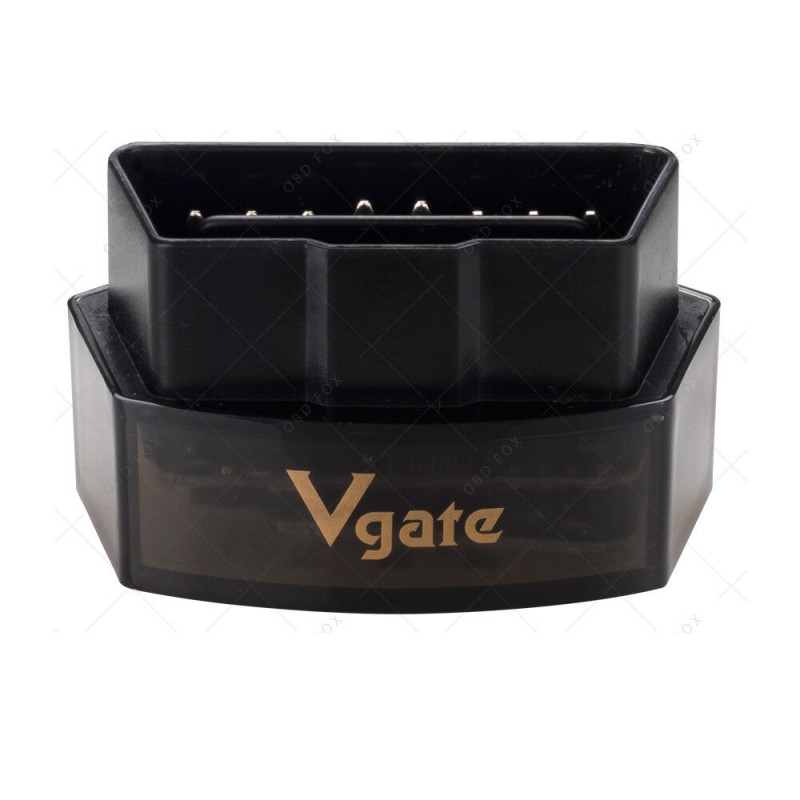

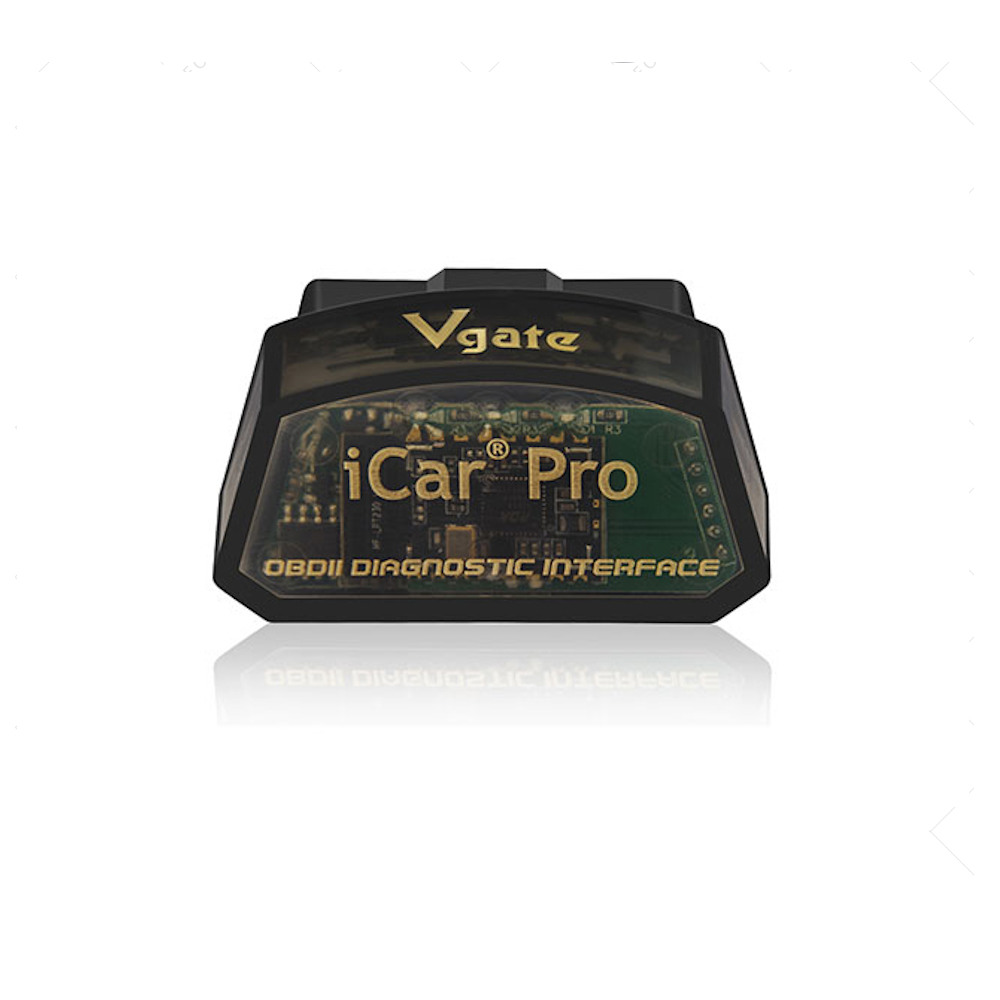

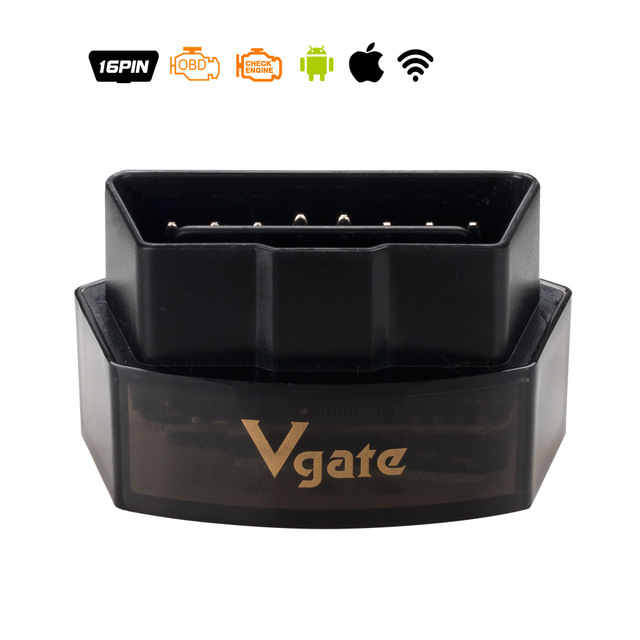

Vgate iCar Pro ELM327 V2.1 Wifi Car OBDII EOBD Diagnostic Scanner Tool OBD2 Code Reader Adapter 16Pin Interface For Android/IOS

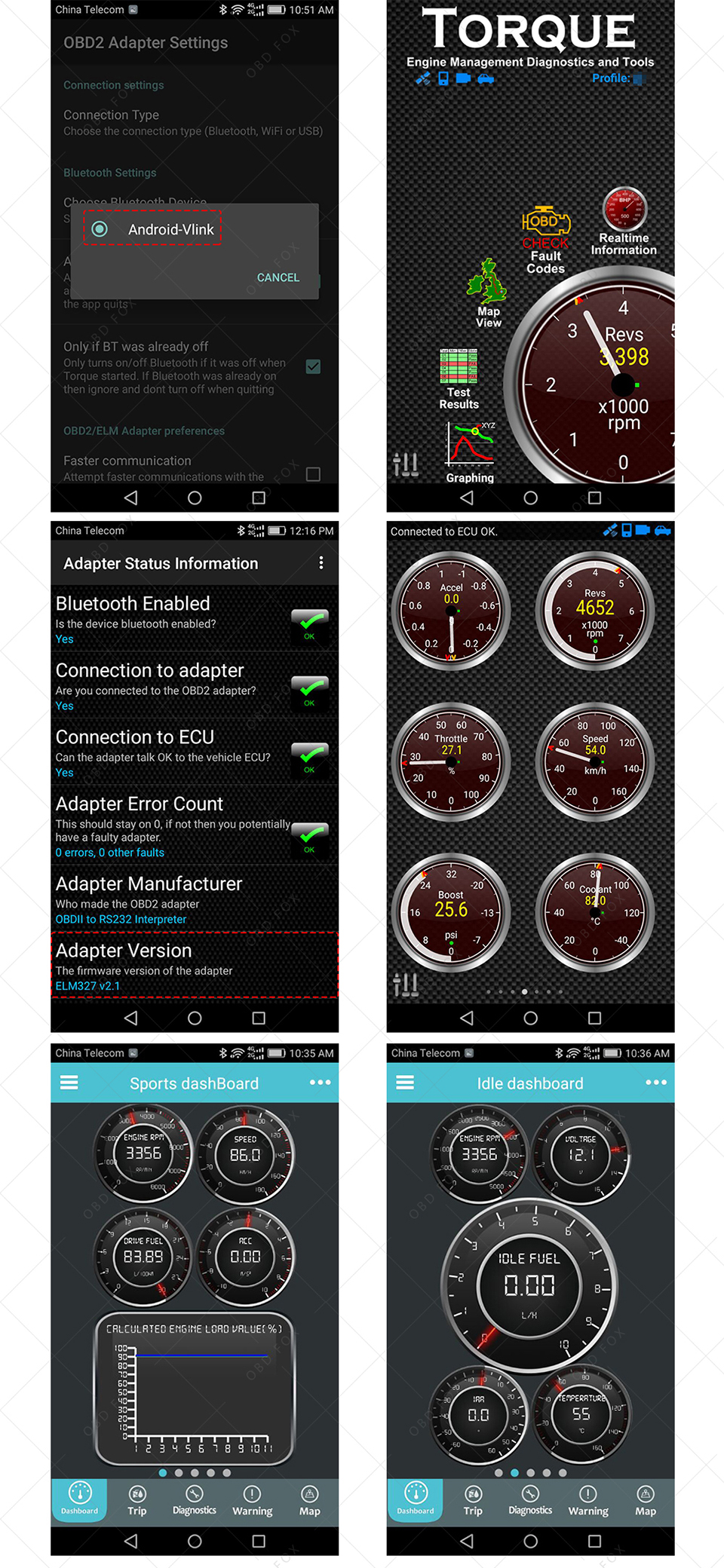

Vgate iCar Pro OBD-II adapter is a powerful car diagnostic tool. It is compliant with full OBD II/EOBD specifications. Various wireless connection modes* to connect your smartphone or pad. It reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption.It support a variety of OBD II apps.
Electrical specification:
Supply Voltage:11.5V-15V
Supply Current:<200Ma
Standby Current:<30Ma ( TONWON Pro =<3Ma )
Operating Temperature: -40C--85C
Operating Humidity :5%--95%RH Non-Dewfall
Vgate iCar OBD II adpater is a high-quality automotive scanning tool, supports all OBD-II protocols :
SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO9141-2(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250* Kbaud)
USER1 CAN(11*bit ID,125* Kbaud)
USER2 CAN(11*bit ID,50* kbaud)
*default settings (user adjustable)

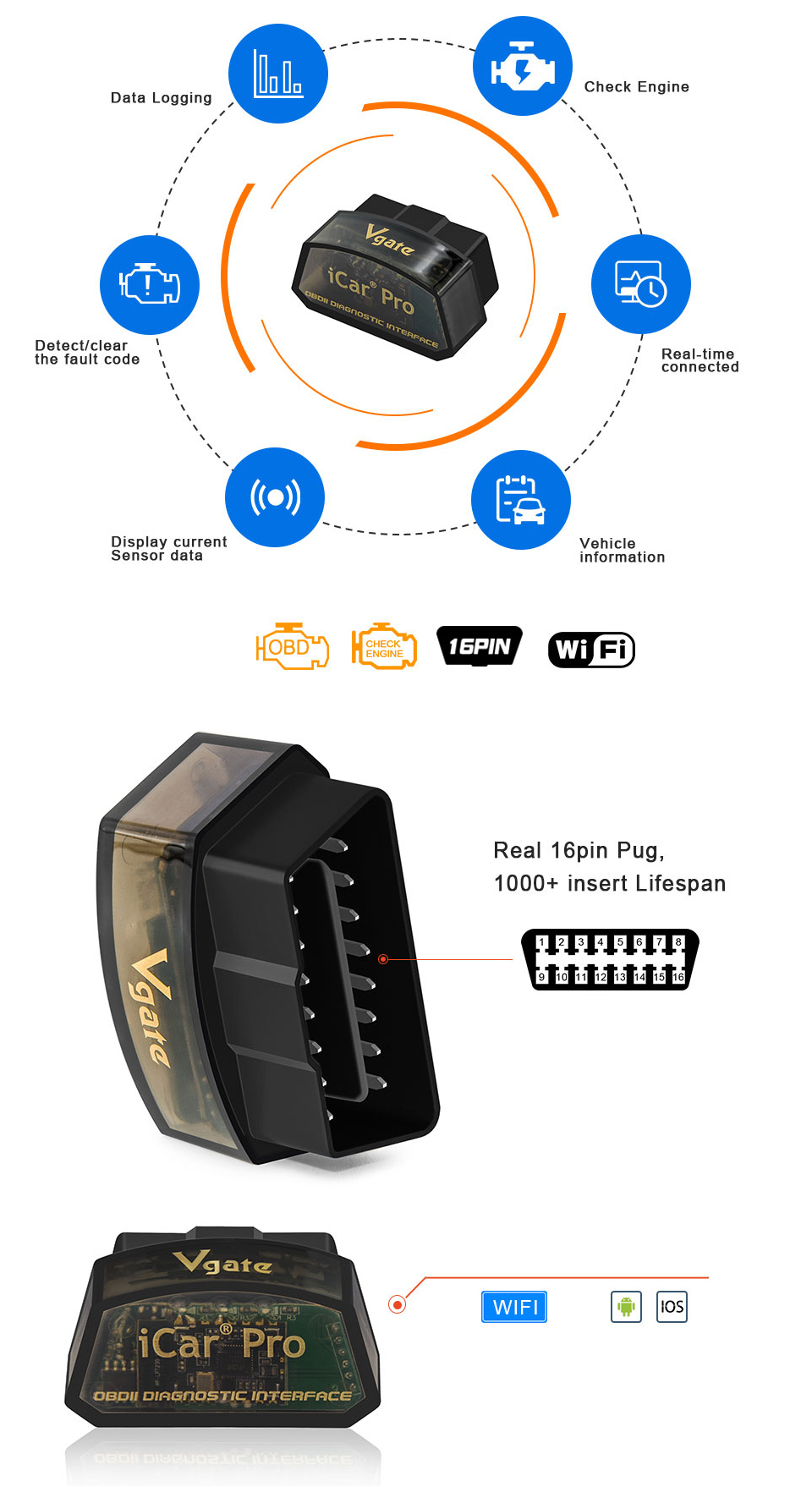

Features:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
-Clear trouble codes and turn off the MIL ("Check Engine" light)
-Engine RPM
-Calculated Load Value
-Coolant Temperature
-Fuel System Status
-Vehicle Speed
-Short Term Fuel Trim
-Long Term Fuel Trim
-Intake Manifold Pressure
-Timing Advance
-Intake Air Temperature
-Air Flow Rate
-Absolute Throttle Position
-Oxygen sensor voltages/associated short term fuel trims
-Fuel System status
-Fuel Pressure
-Many others
Vehicle Coverage:
Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrocars from 2001 and diesel cars from 2003/2004 in Europe)
Note:

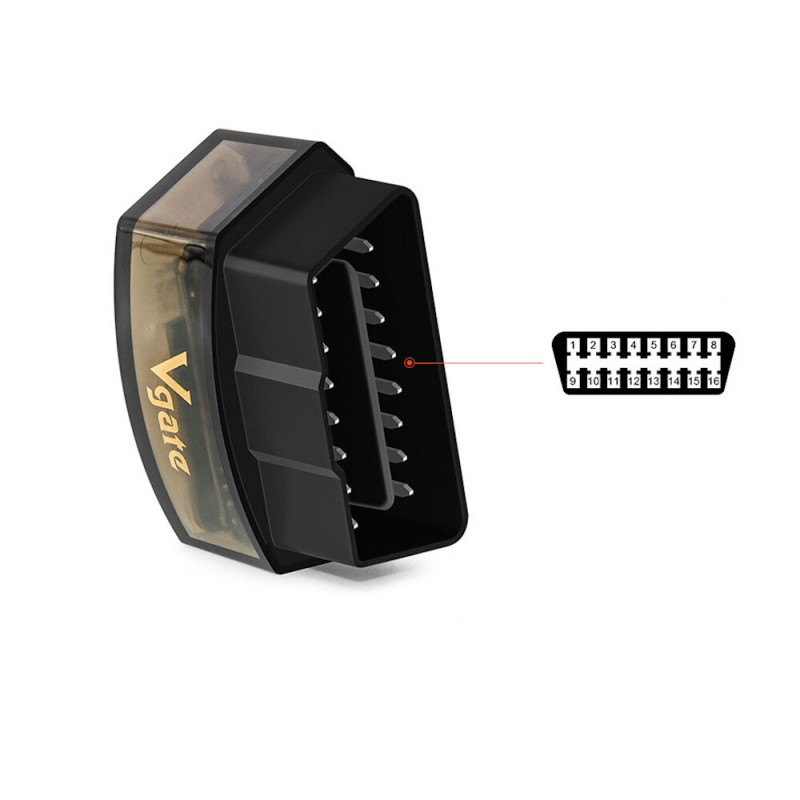

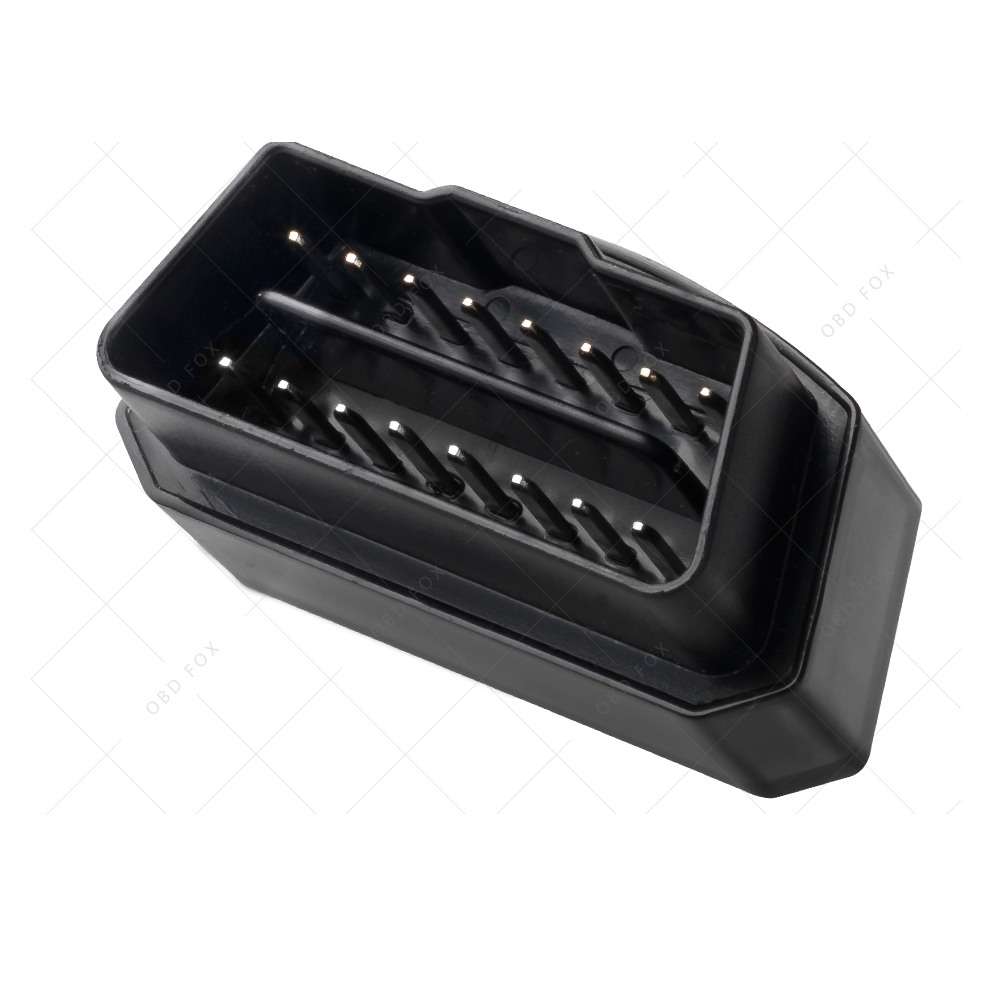

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link
Connector) under the dash and the Vehicle Emission Control Information
Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle
under the hood in the engine compartment that clearly states "OBD II compliant or certified".
Package list:

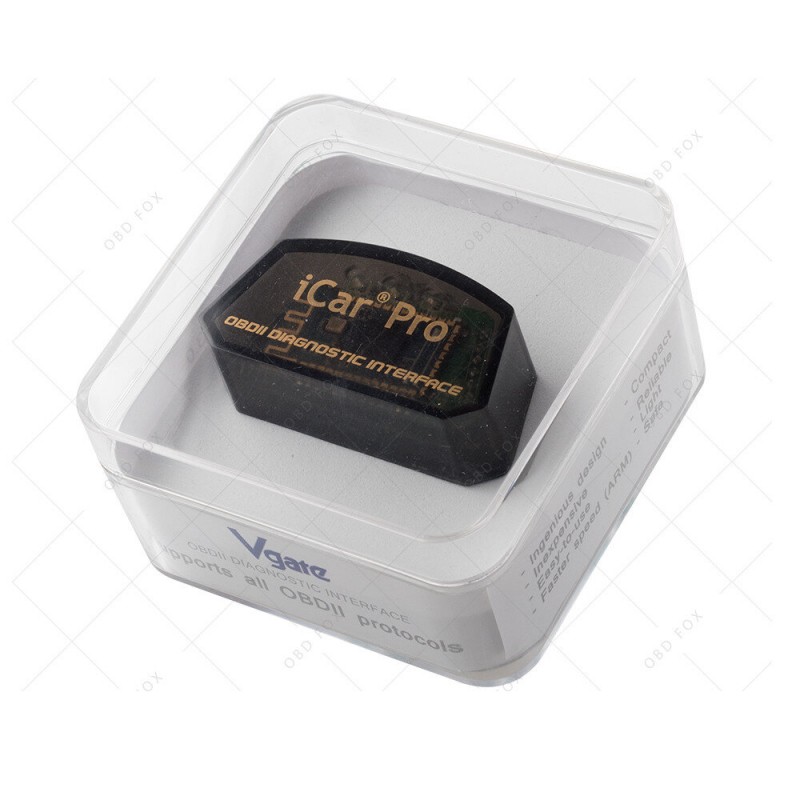

1*Vgate iCar OBDII adapter
1*User manual
