Pro ELM327 V2.1 bluetooth 4.0 Car OBDII EOBD Diagnostic Scanner Tool OBD2 Code Reader Adapter 16Pin Interface For Android/IOS
$30.32
- Product Code: ED0006747
- Availability: In Stock
- Ex Tax: $30.32

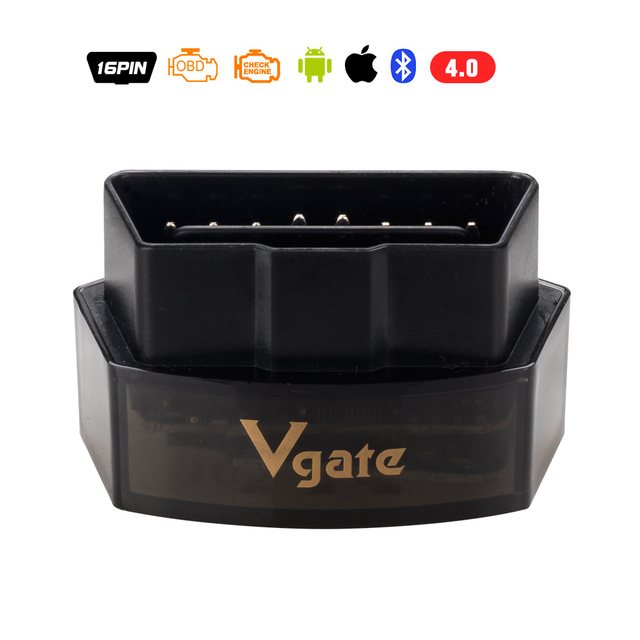

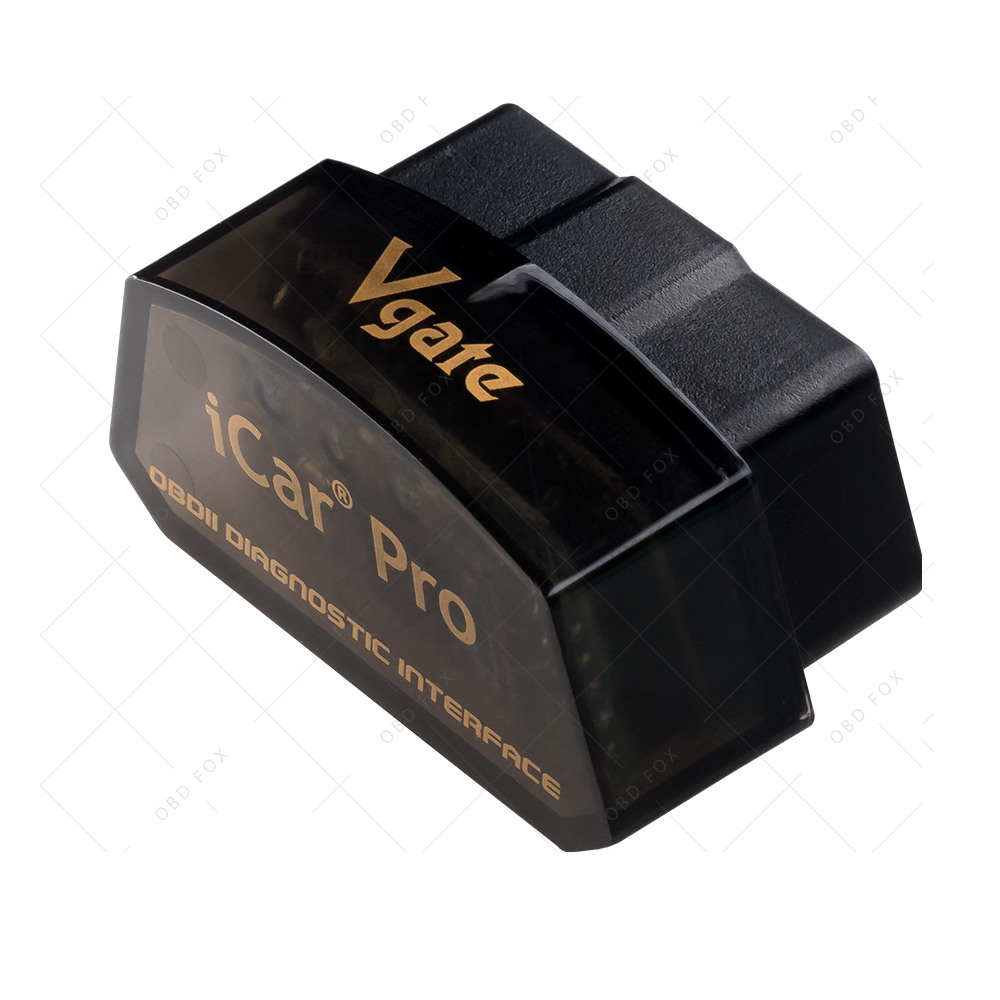

Vgate iCar Pro ELM327 V2.1 bluetooth 4.0 Car OBDII EOBD Diagnostic Scanner Tool OBD2 Code Reader Adapter 16Pin Interface For Android/IOS

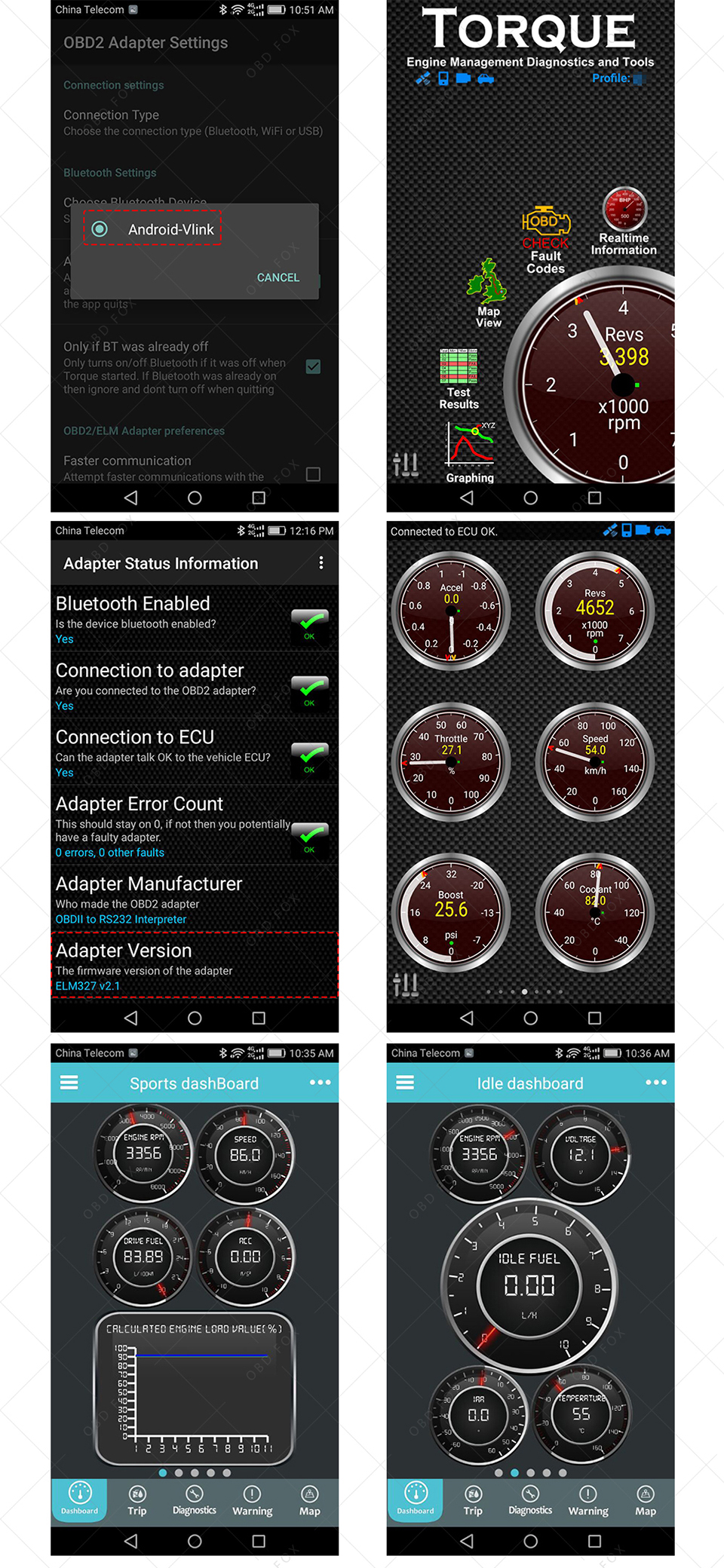

Vgate iCar Pro OBD-II adapter is a powerful car diagnostic tool. It is compliant with full OBD II/EOBD specifications. Various wireless connection modes* to connect your smartphone or pad. It reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption.It support a variety of OBD II apps.
Electrical Specification:
Supply Voltage:11.5V-15V
Supply Current:<200Ma

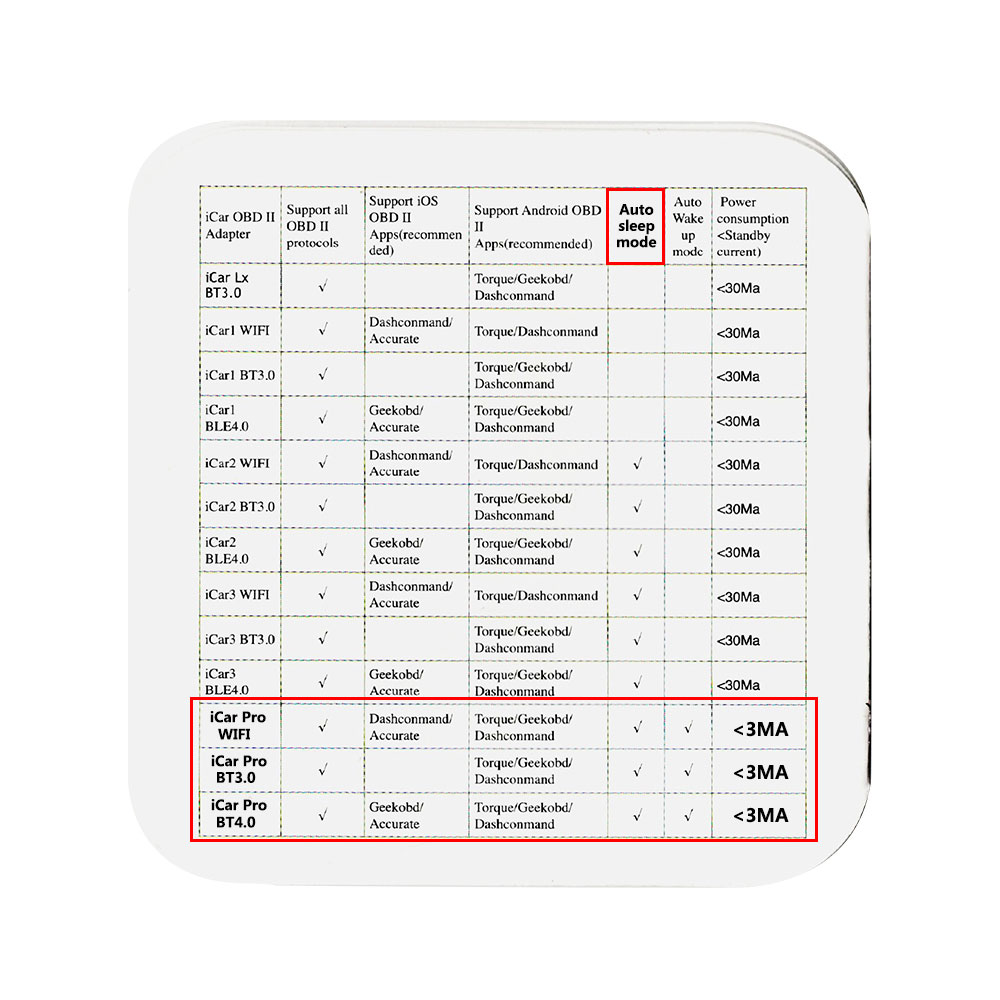

Standby Current:<30Ma ( TONWON Pro =<3Ma )
Operating Temperature: -40C--85C
Operating Humidity :5%--95%RH Non-Dewfall
Vgate iCar OBD II adpater is a high-quality automotive scanning tool, supports all OBD-II protocols :
SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO9141-2(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250* Kbaud)
USER1 CAN(11*bit ID,125* Kbaud)
USER2 CAN(11*bit ID,50* kbaud)
*default settings (user adjustable)

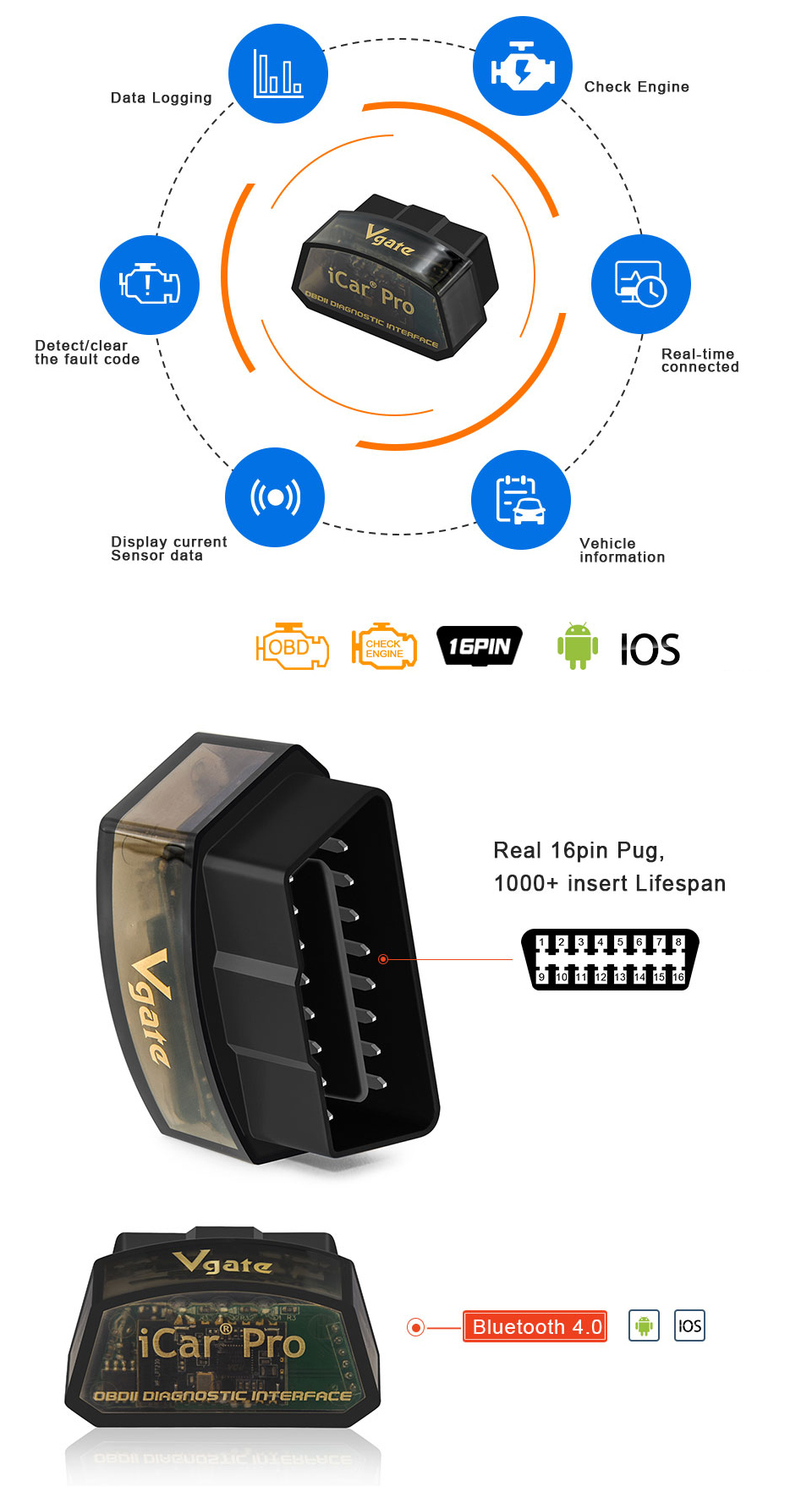

Features:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
-Clear trouble codes and turn off the MIL ("Check Engine" light)
-Engine RPM
-Calculated Load Value
-Coolant Temperature
-Fuel System Status
-Vehicle Speed
-Short Term Fuel Trim
-Long Term Fuel Trim
-Intake Manifold Pressure
-Timing Advance
-Intake Air Temperature
-Air Flow Rate
-Absolute Throttle Position
-Oxygen sensor voltages/associated short term fuel trims
-Fuel System status
-Fuel Pressure
-Many others
Vehicle Coverage:
Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe).
Note:

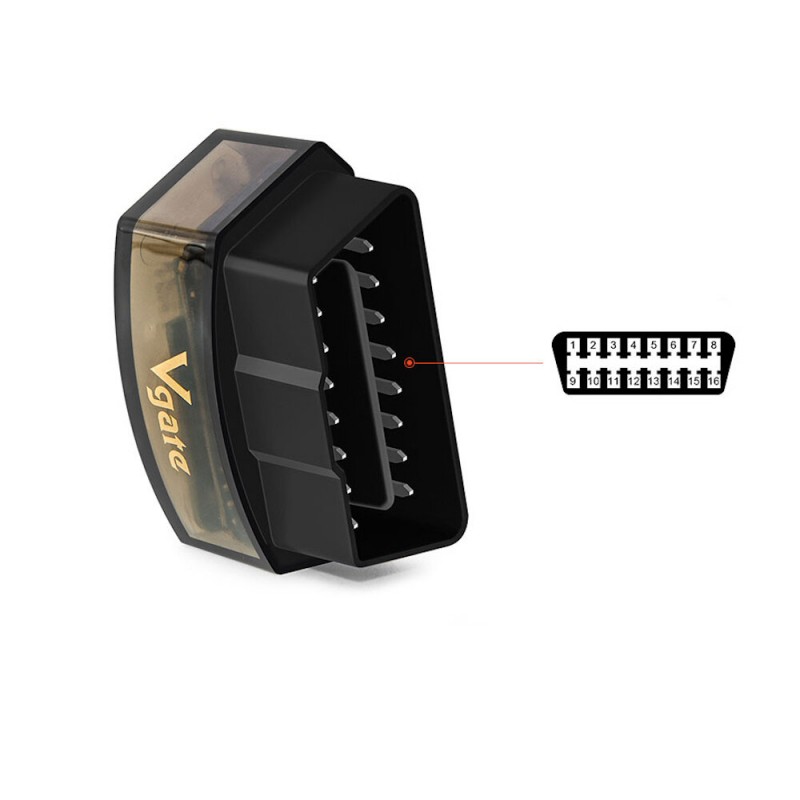

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information
Package list:
1* Vgate iCar OBDII adapter
1 * User manual
