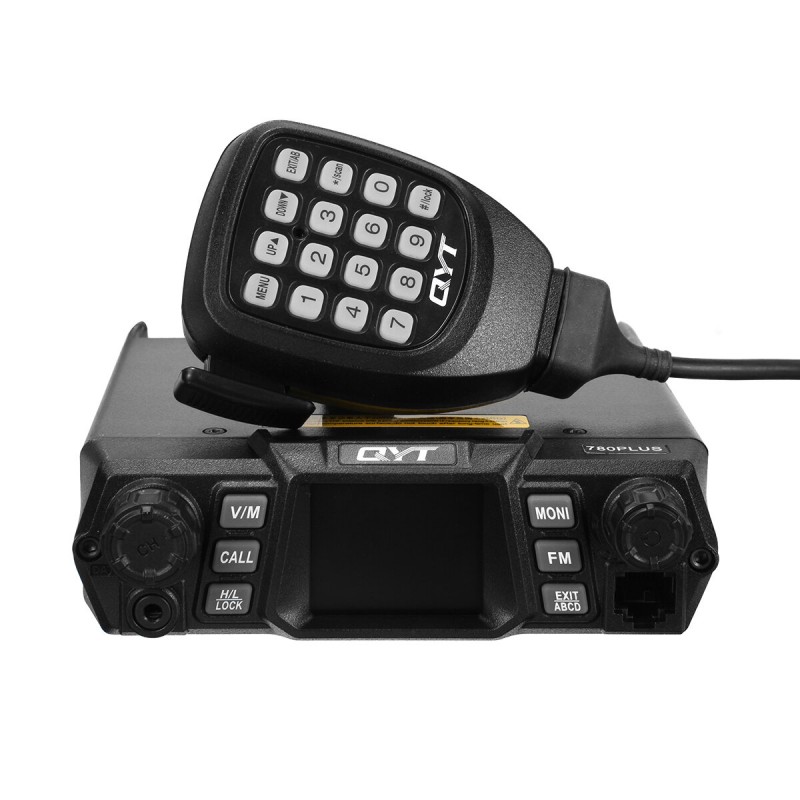

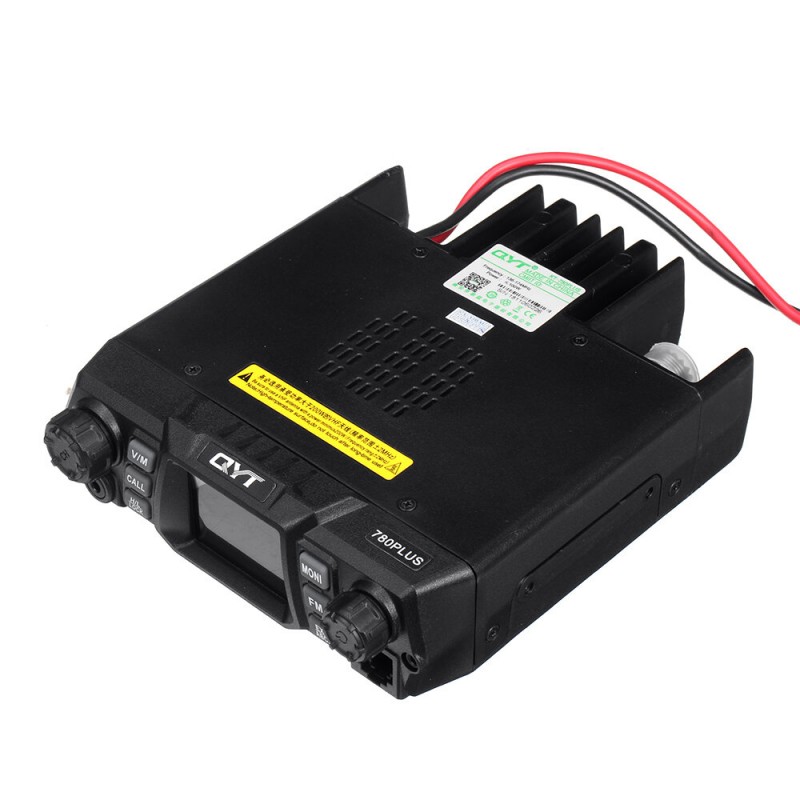

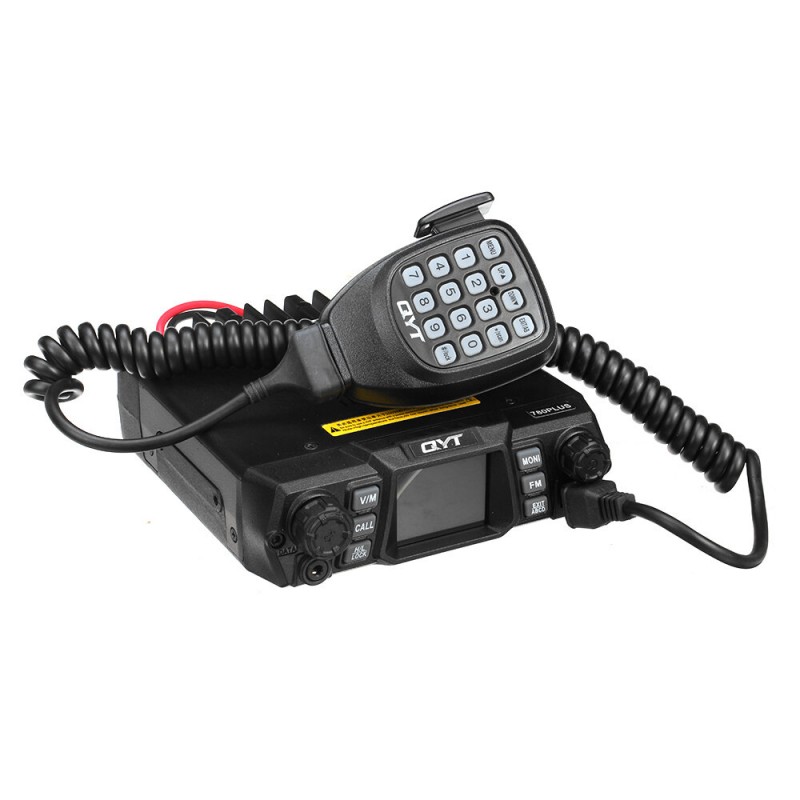

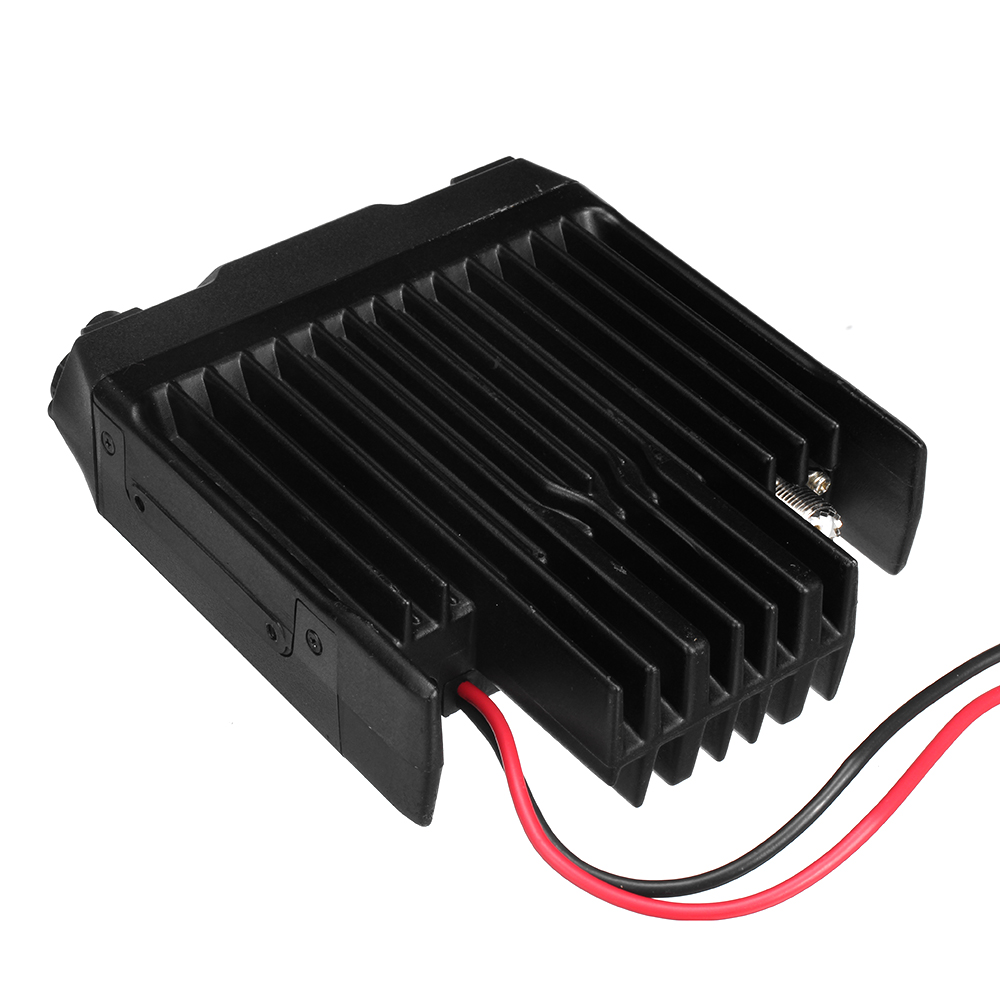

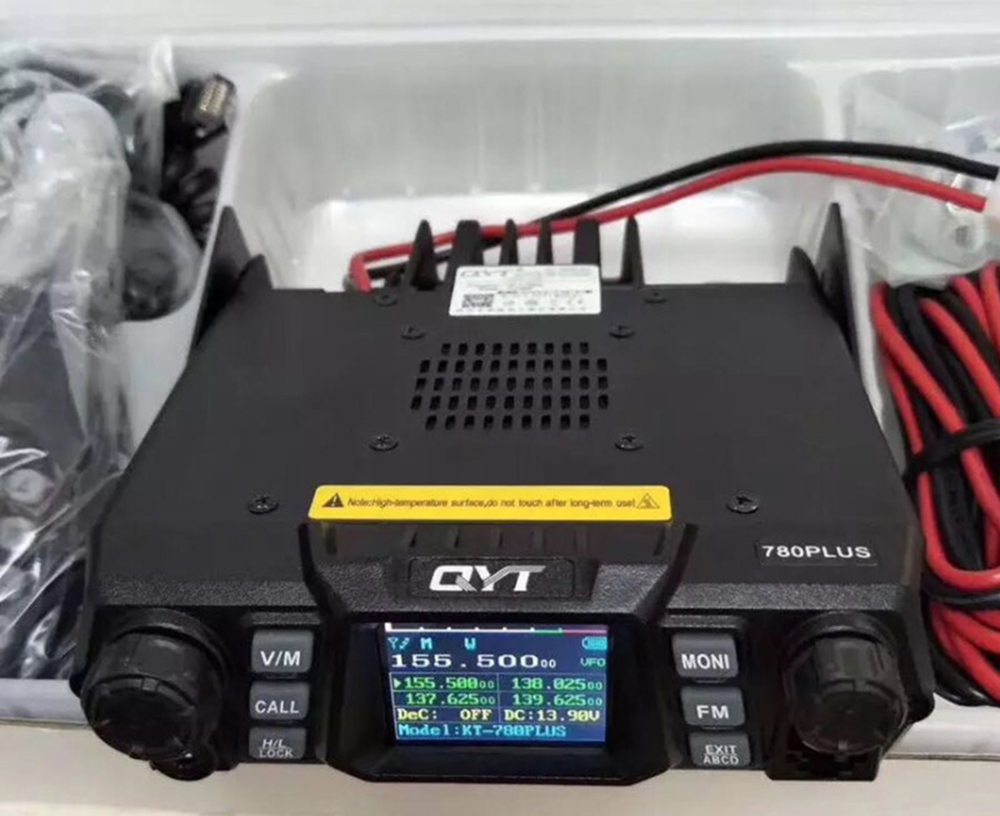

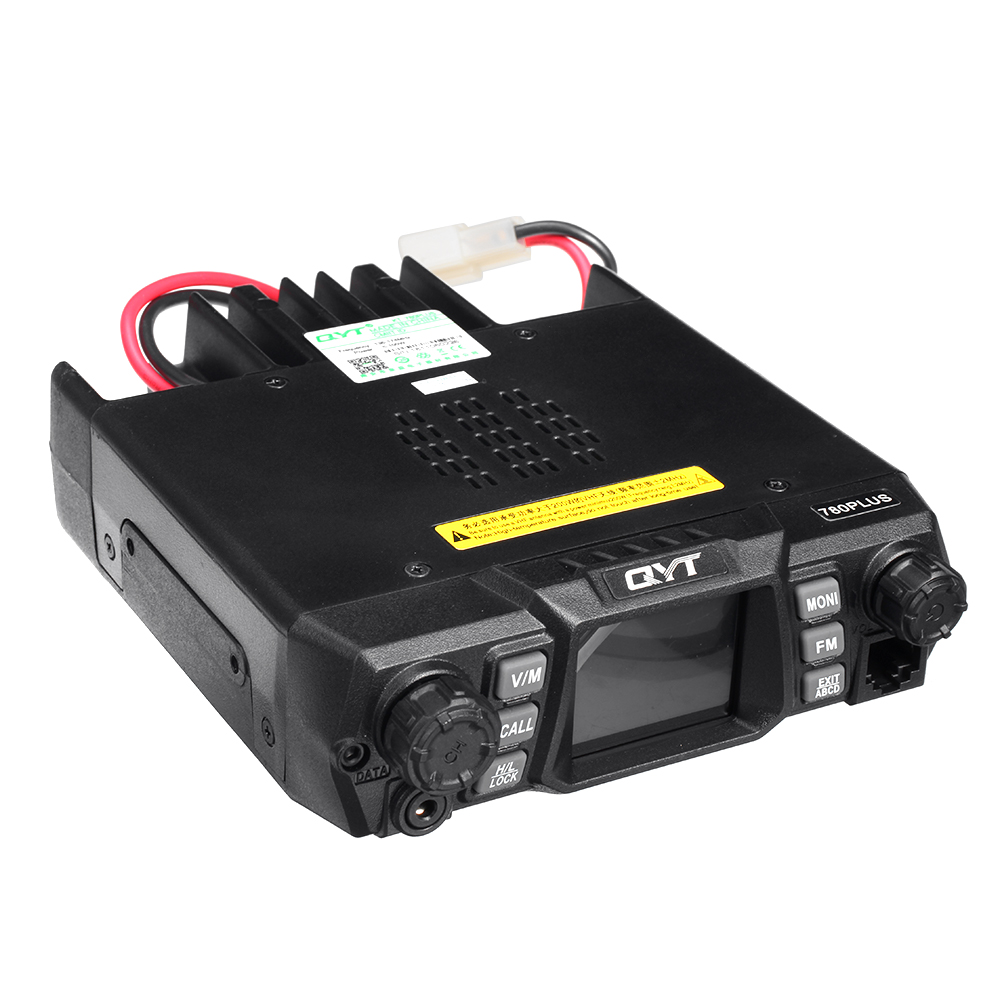

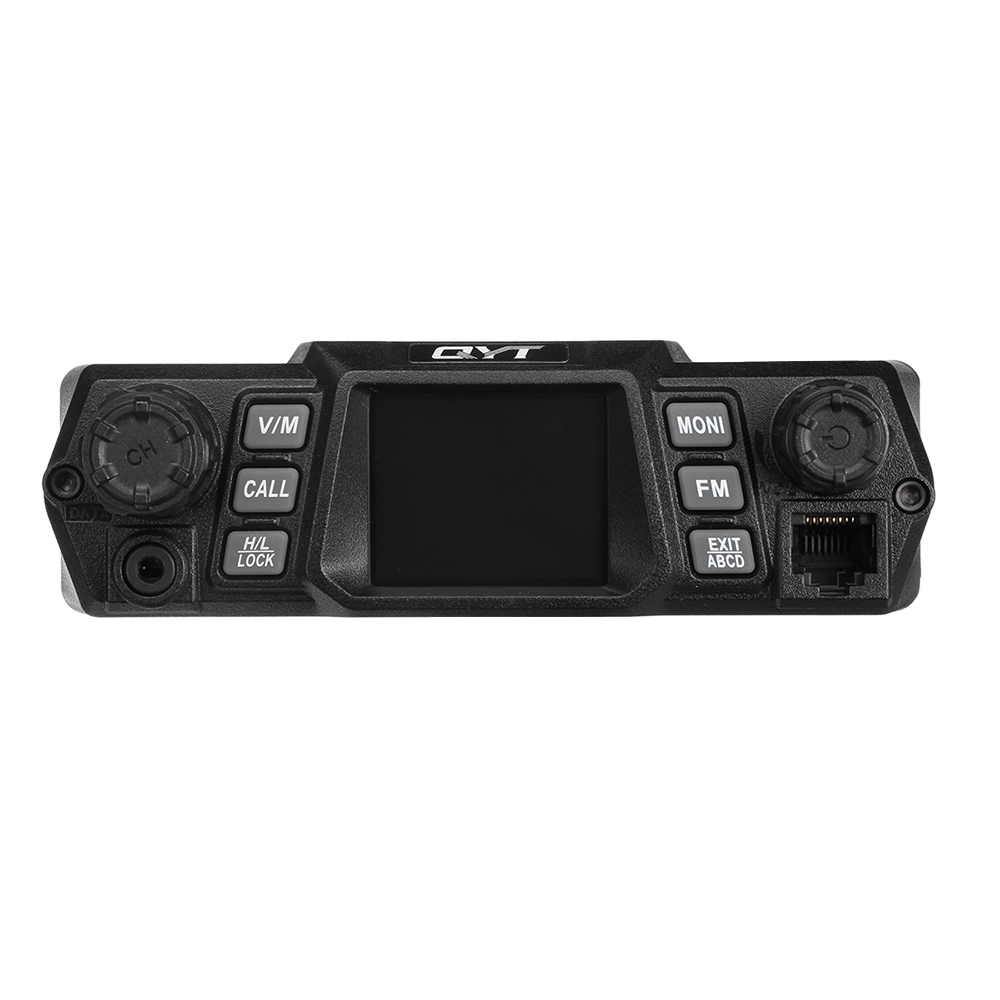

KT-780PLUS 100W Marine Car Radio Interphone High Power VHF Intercom
$183.99
- Product Code: ED0020934
- Availability: In Stock
- Ex Tax: $183.99
Description:
1.PC program
2.DTMF function, 2 tones, 5 tones
3.ANI (Caller ID)
4.FM Radio
5.Single / Quad Band Standby
6.DTMF function, 2 tones, 5 tones
7.Remote control, remote wake-up, remote wake-up
8.Long distance communication
9.100W output power
Specification:
Frequency range |
VHF: 136~174MHz |
Output power |
100W (VHF) |
Number of channels |
200 channels |
Channel spacing |
25KHz (wideband) 20K (midband) 12.5 (narrowband) |
Phase lock step |
2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 25KHz |
Working voltage |
13.8V DC±15% |
Squelch method |
Carrier/CTOSS/DOS/5Tone/2Tone/DTMF |
Frequency stability |
±2.5ppm |
Working temperature |
-20 to +60℃ |

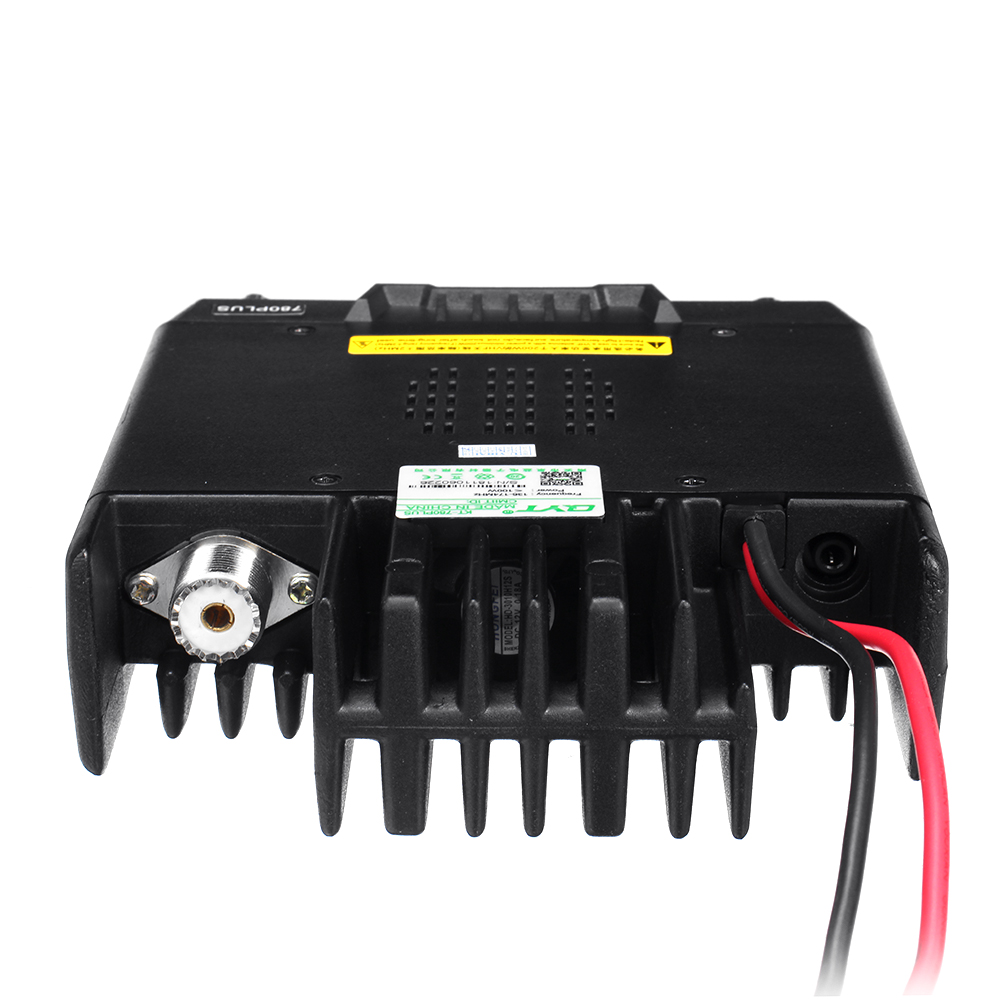

Antenna interface |
M type |

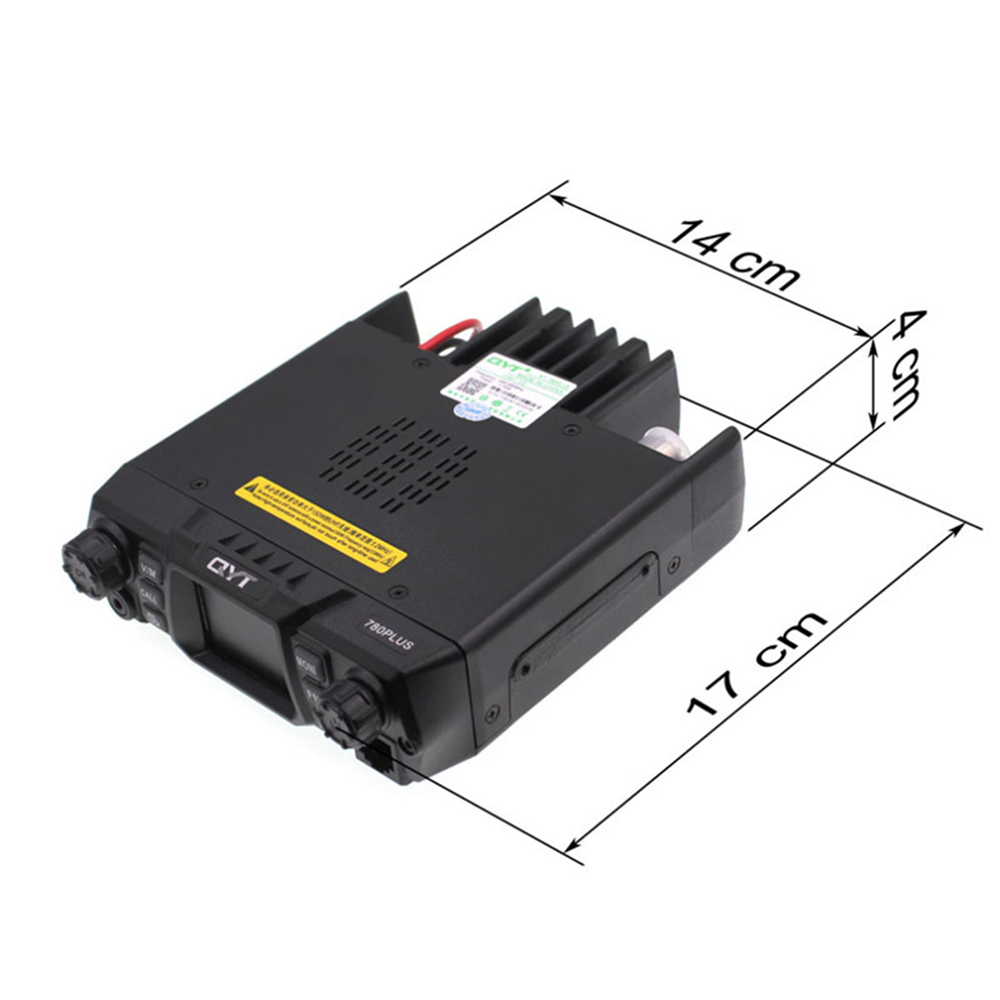

Dimensions |
140(W) x 43(H) x 172(D)mm. |
Weight |
1.03kg |
Receiving part (tested by ETSI EN 300 086 standard)
|
Broadband |
Narrowband |
Sensitivity (12dB SINAD) |
≤0.25μV |
≤0.35μV |
Adjacent channel selectivity |
≥70dB |
≥60dB |
Intermodulation |
≥65dB |
≥60dB |
False signal response |
≥70dB |
≥70dB |
Audio response |
+1~-3dB (0.3~3KHz) |
+1~-3dB (0.3~2.55KHz) |
Signal to noise ratio |
≥45dB |
≥40dB |
Audio distortion |
≤5% |
|
Audio output power |
≥2W@10% |
|
Transmitting part (tested by ETSI EN 300 086 standard)
|
Broadband |
Narrowband |
Output power (current) |
VHF H 100W (16A) M 50W (9A) L 20W (6A) |
|
Modulation method |
16KФF3E |
11KФF3E |
Adjacent channel selectivity |
≥70dB |
≥60dB |
Signal to noise ratio |
≥40dB |
≥36dB |
Parasitic and harmonic |
≥60dB |
≥60dB |
Audio response |
+1~-3dB (0.3~3KHz) |
+1~-3IB (0.3-2.55KHz) h |
Audio distortion |
≤5% |
|

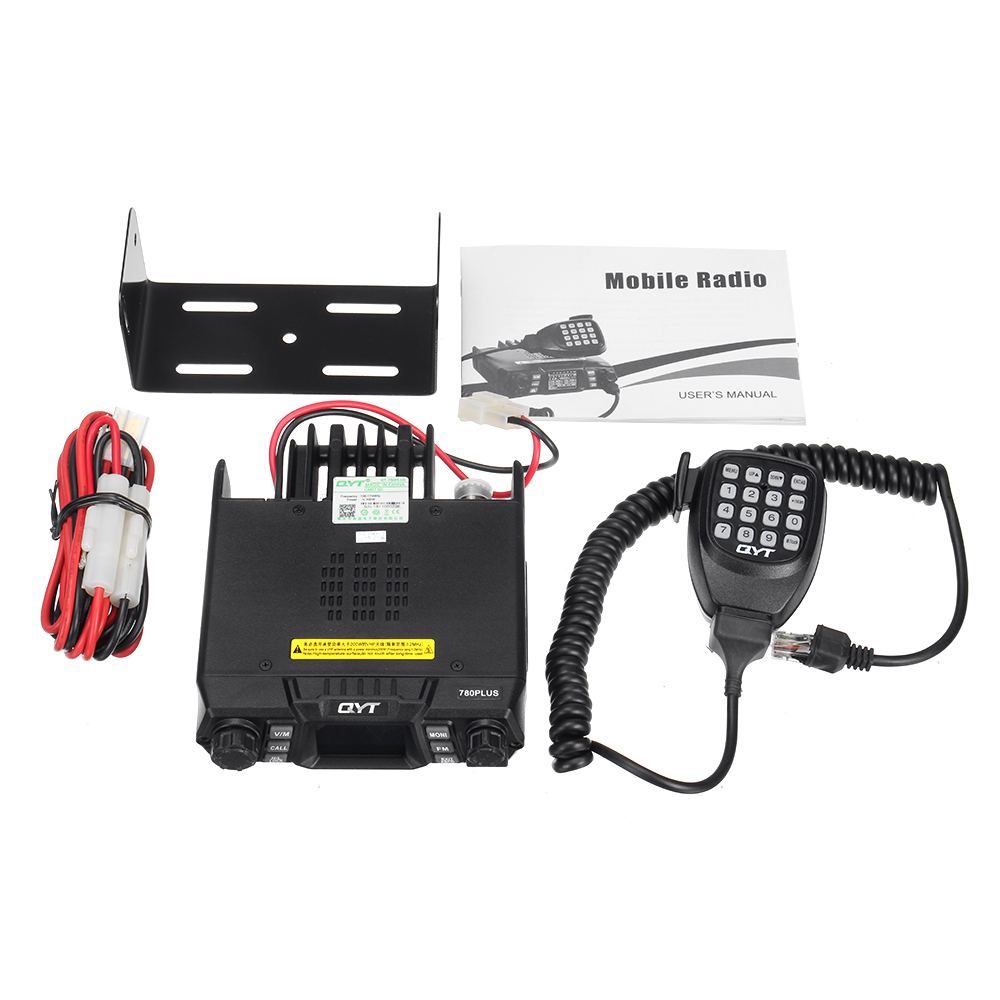

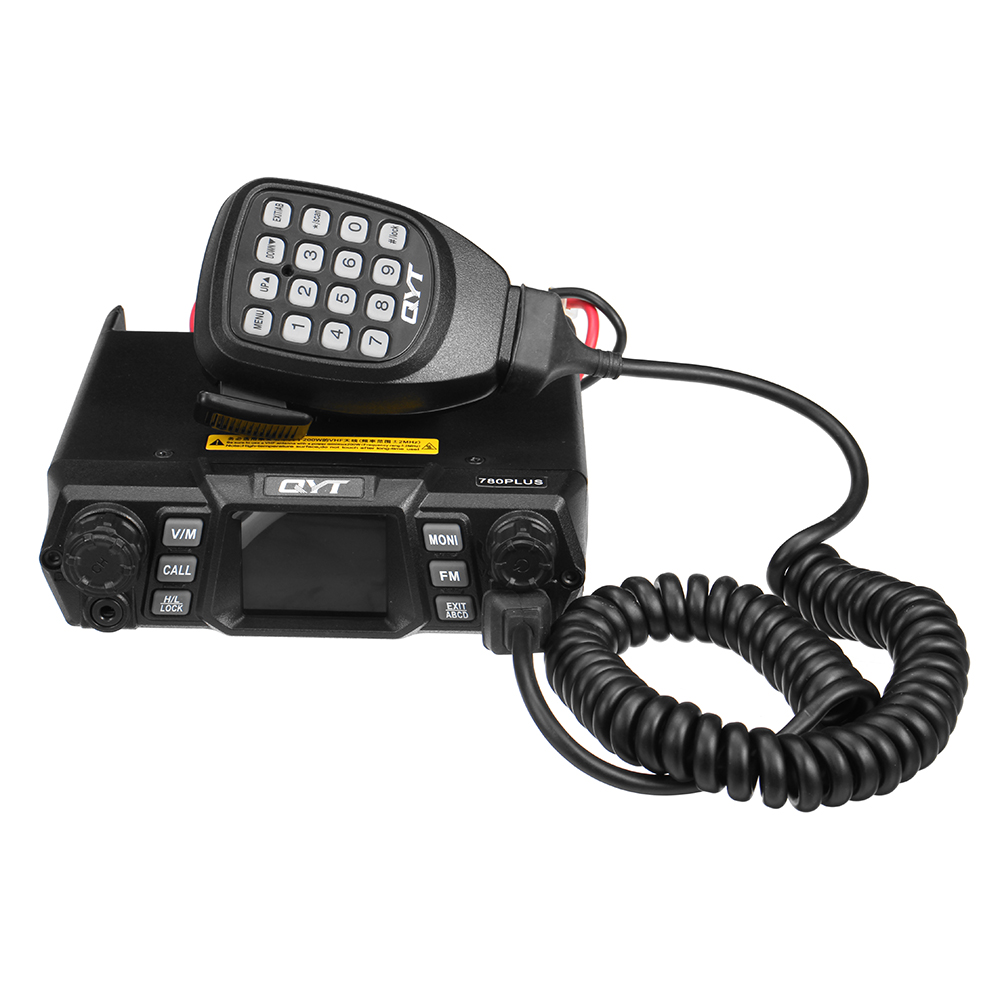

Package Included:
1 X |
KT-780Plus Mobile Radio |
1 X |
Microphone |
1 X |
Power Cord |
1 X |
Mounting Bracket |
1 X |
Screw Sets |
1 X |
User Manual |
