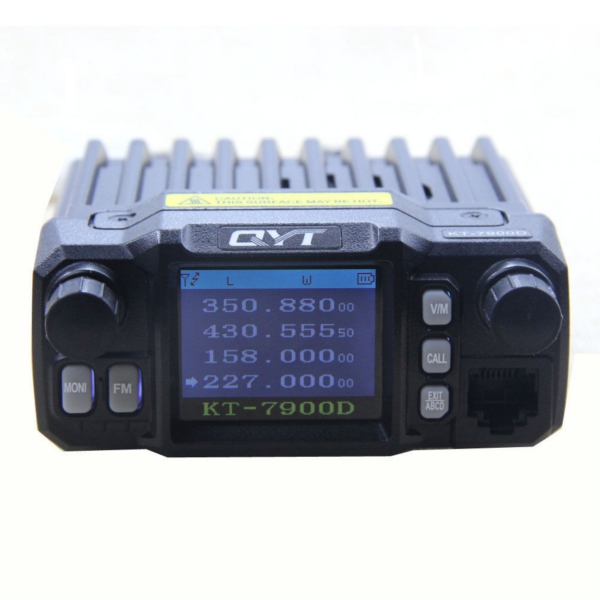

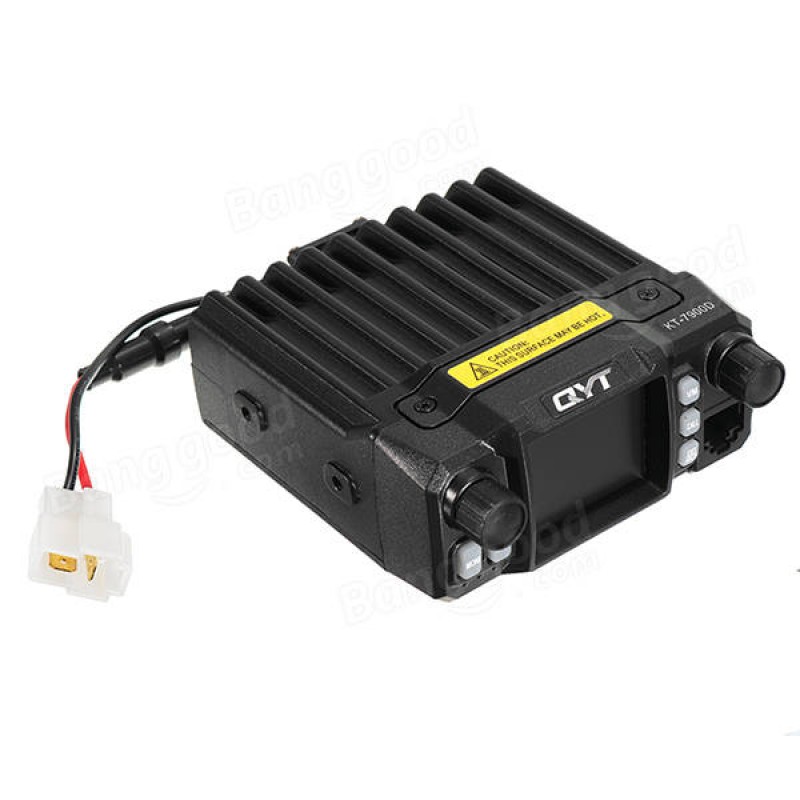

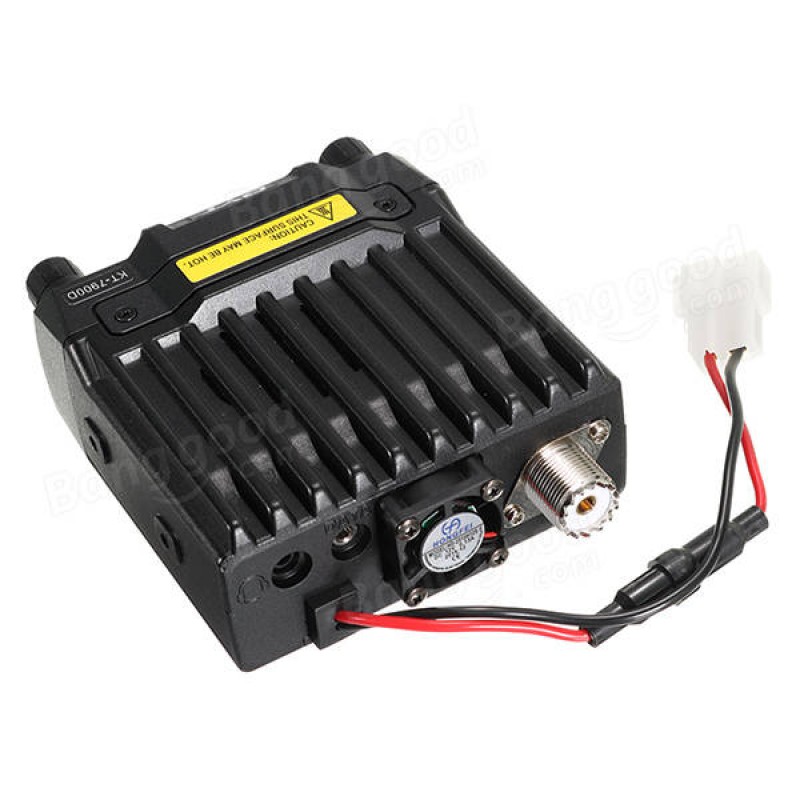

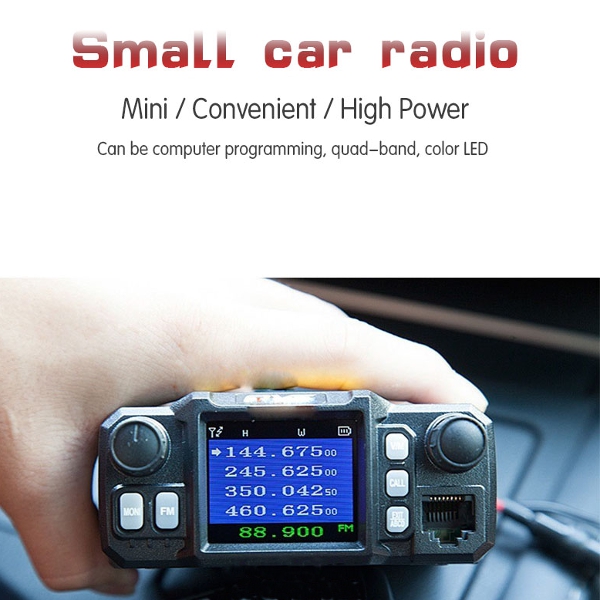

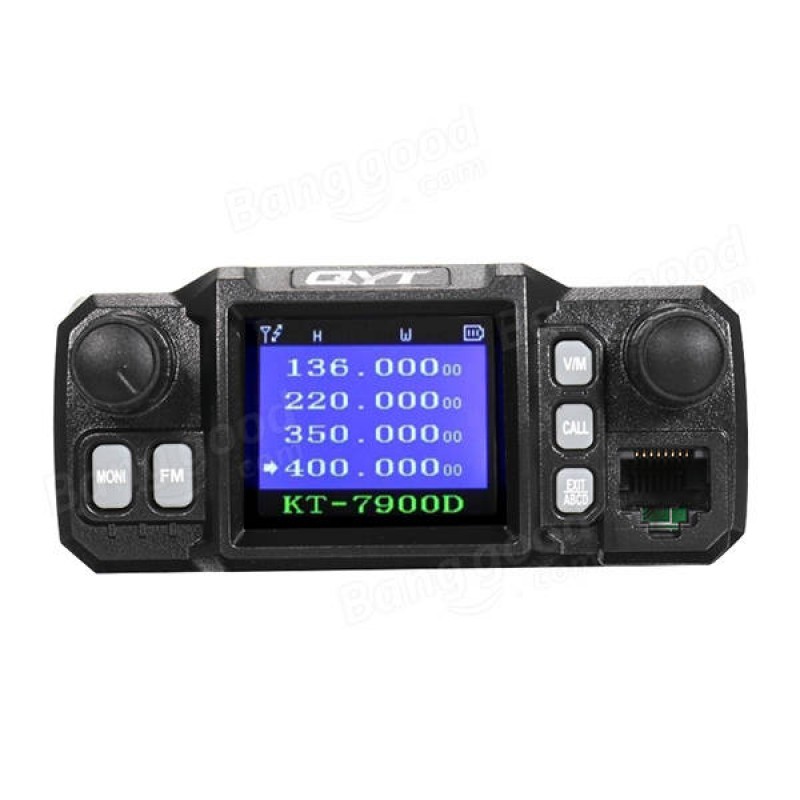

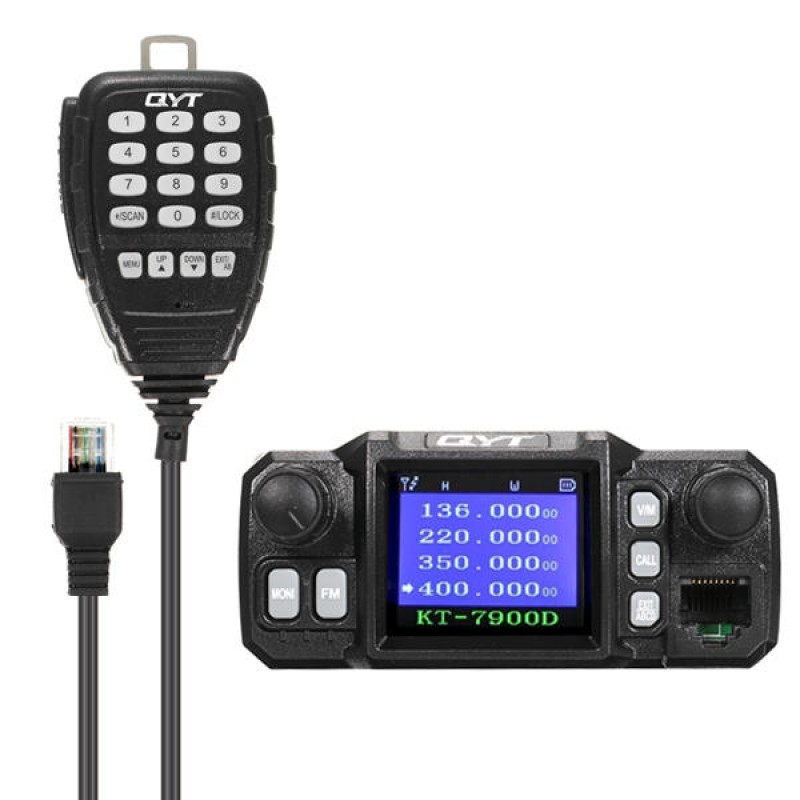

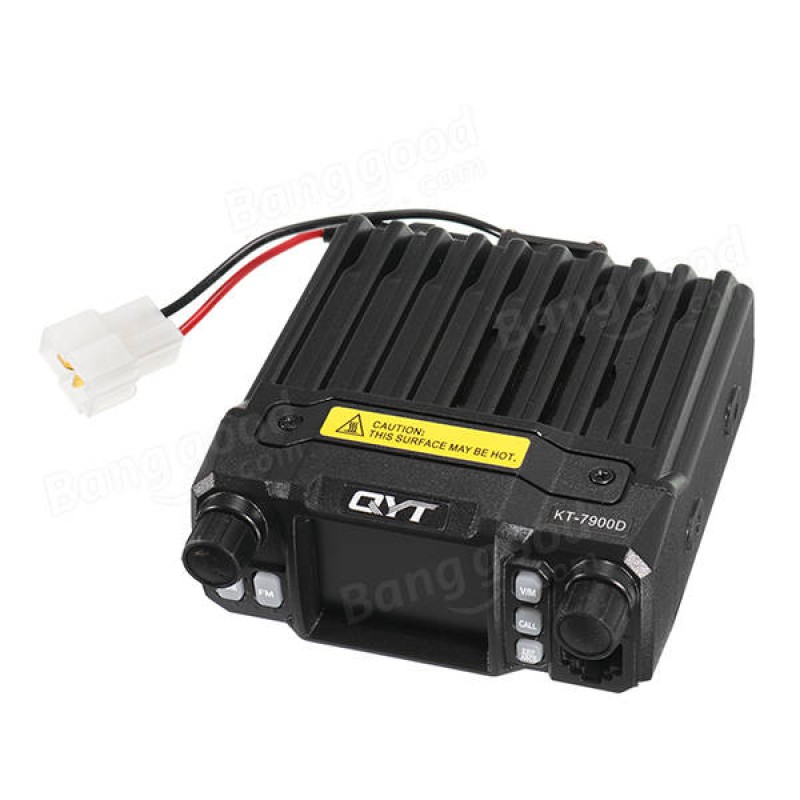

KT-7900D 25W Quad Band 144/220/350/440 MHZ Min Car Mobile Radio
$113.47
- Product Code: ED0002233
- Availability: In Stock
- Ex Tax: $113.47
Feature:

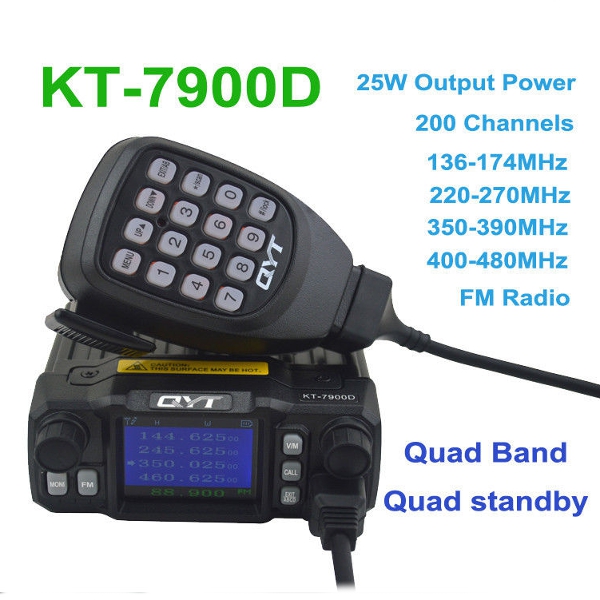

1.Frequency Range: VHF 136-174MHz/220-270MHz UHF 350-390MHz/400-480MHz
2.Output Power: VHF 25Watt, UHF 20Watt
3.MSK/5Tone/2Tone/DTMF/CTCSS/DCS
4.FM Radio Function
5.PTT ID
6.Auto Lock

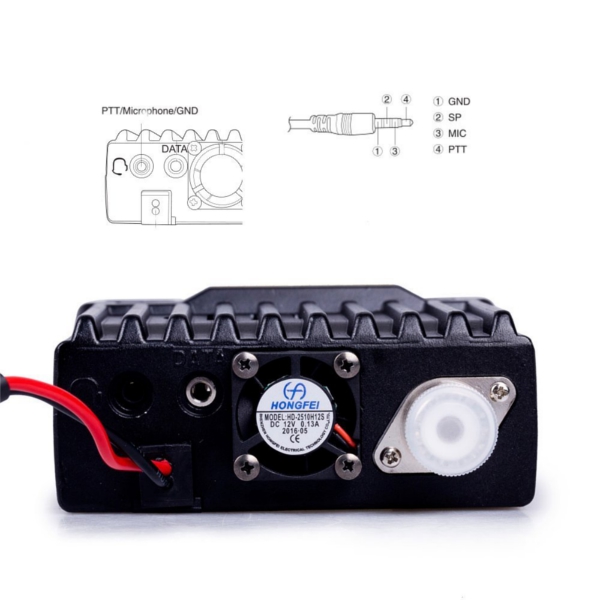

7.External-Speaker/PTT Number of Channel :200
Specification:
Channel Spacing: 25KHz 20K 12.5
Frequency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%

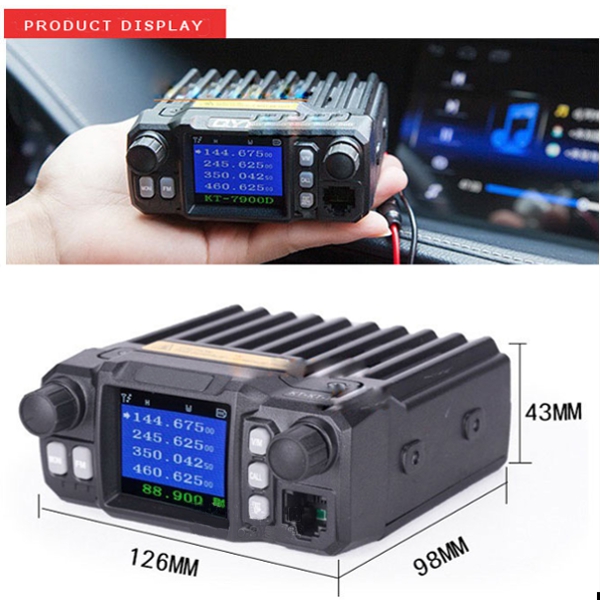

Dimension (HxWxD): 98(W)*43(H)*126(L)
Weight (with bracket): 1.05kg
Receiver
Sensitivity: 0.25V/0.35V
Channel choice: ≥70dB/≥60dB
Intermodulation: ≥65dB/≥60dB
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Rejection: ≥70dB/≥70dB
Audio Distortion: ≤5%
Audio output power:≥2W@10%
Package Included:
,,,,
1.Frequency Range: VHF 136-174MHz/220-270MHz UHF 350-390MHz/400-480MHz
2.Output Power: VHF 25Watt, UHF 20Watt
3.MSK/5Tone/2Tone/DTMF/CTCSS/DCS
4.FM Radio Function
5.PTT ID
6.Auto Lock
7.External-Speaker/PTT Number of Channel :200
Specification:
Channel Spacing: 25KHz 20K 12.5
Frequency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension (HxWxD): 98(W)*43(H)*126(L)
Weight (with bracket): 1.05kg
Receiver
Sensitivity: 0.25V/0.35V
Channel choice: ≥70dB/≥60dB
Intermodulation: ≥65dB/≥60dB
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Rejection: ≥70dB/≥70dB
Audio Distortion: ≤5%
Audio output power:≥2W@10%
Package Included:

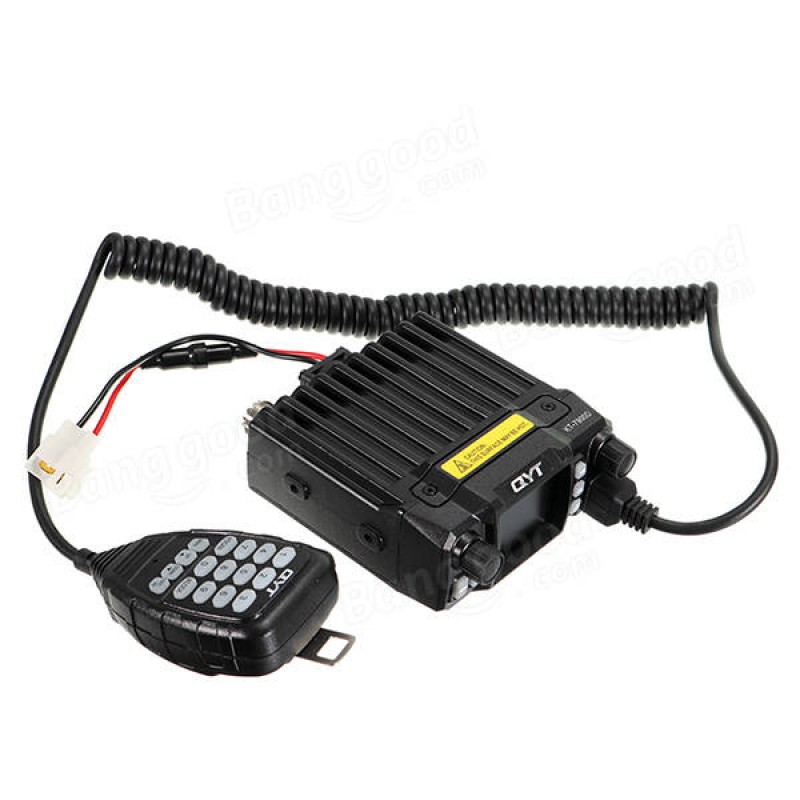

| 1 X Mobile Transceiver | 1 X Microphone with DTMF Keypad |
| 1 X Car Charger | 1 X Mounting Bracket(Fuse and Screws included) |
| 1 X User Manual |
,
,
,
,
