R&D TC100 Automobile Thickness Gauge Car Paint Tester Coating Meter Ultra-precise 0.1micron/0-1300 Fe&NF

$79.56

  • Product Code: ED0006758
  • Availability: In Stock
  • Ex Tax: $79.56

Available Options

Tags: Thickness Gauge, TC100

Description:

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.

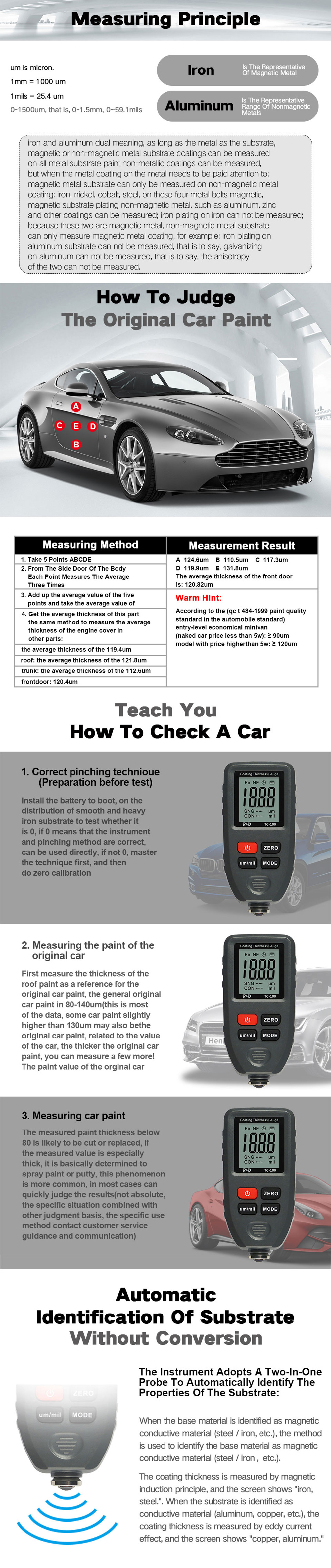

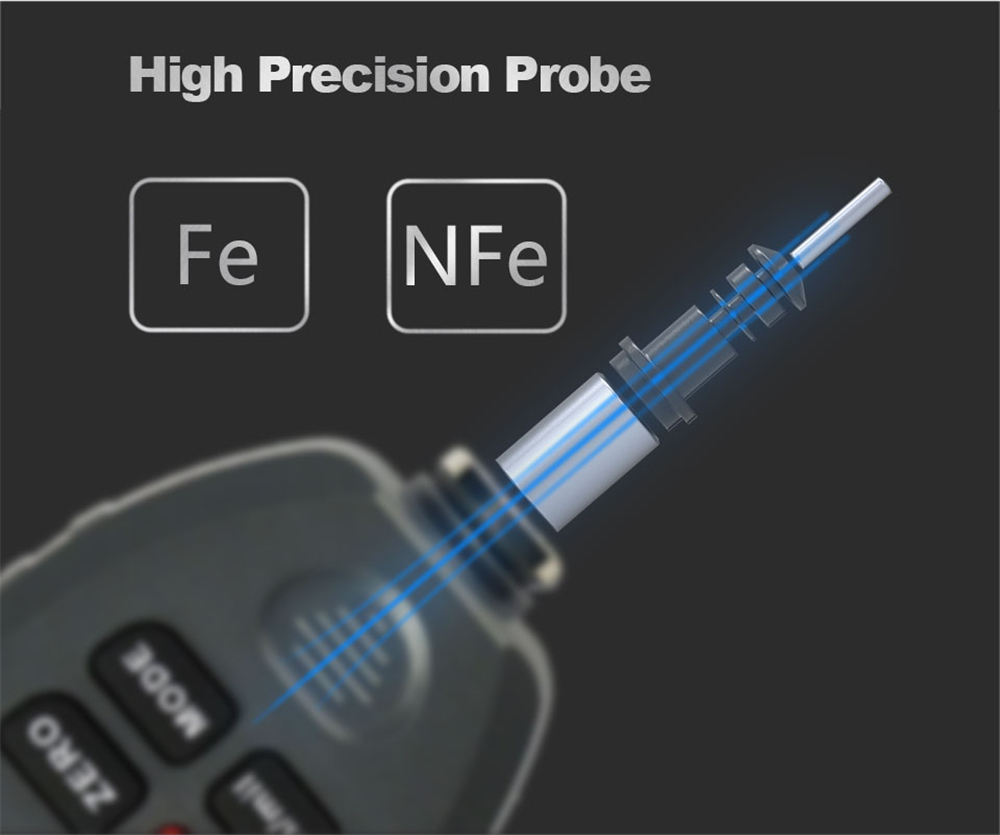

The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

Feature:

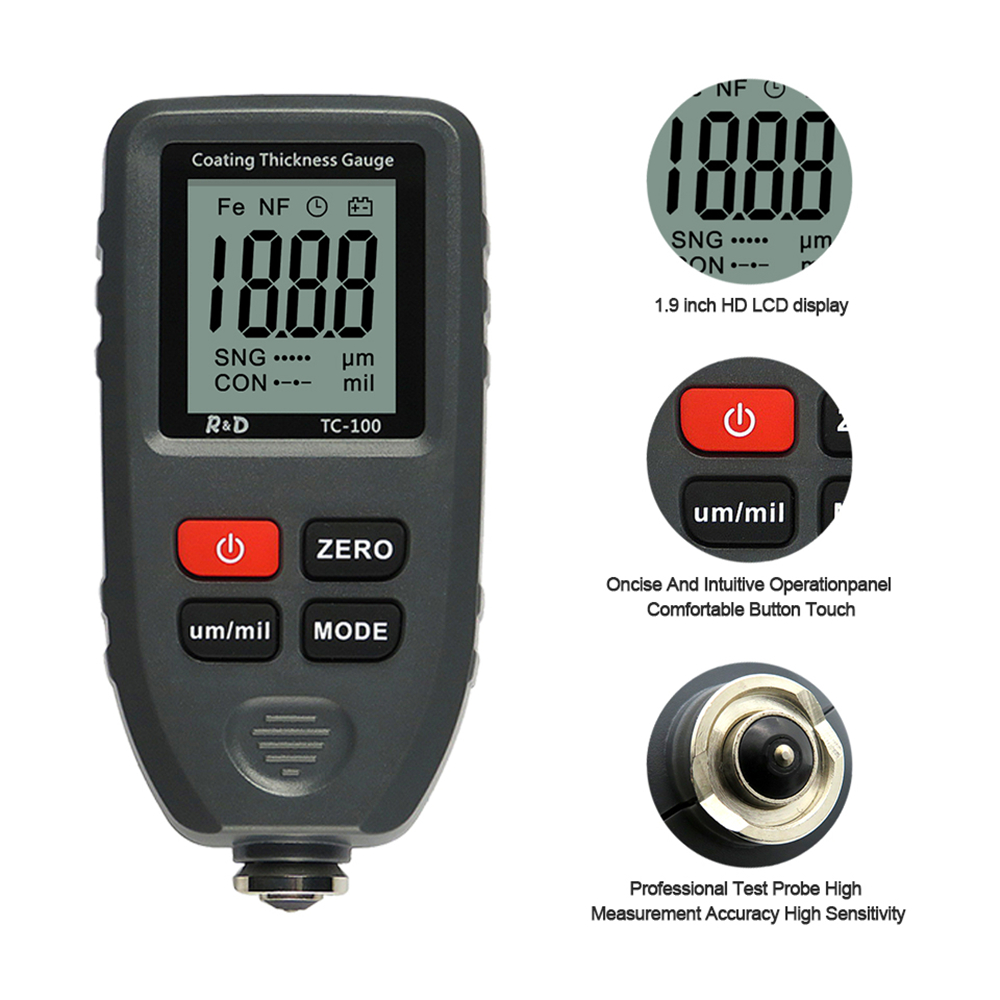

1.Full viewing angle large-screen LCD display.

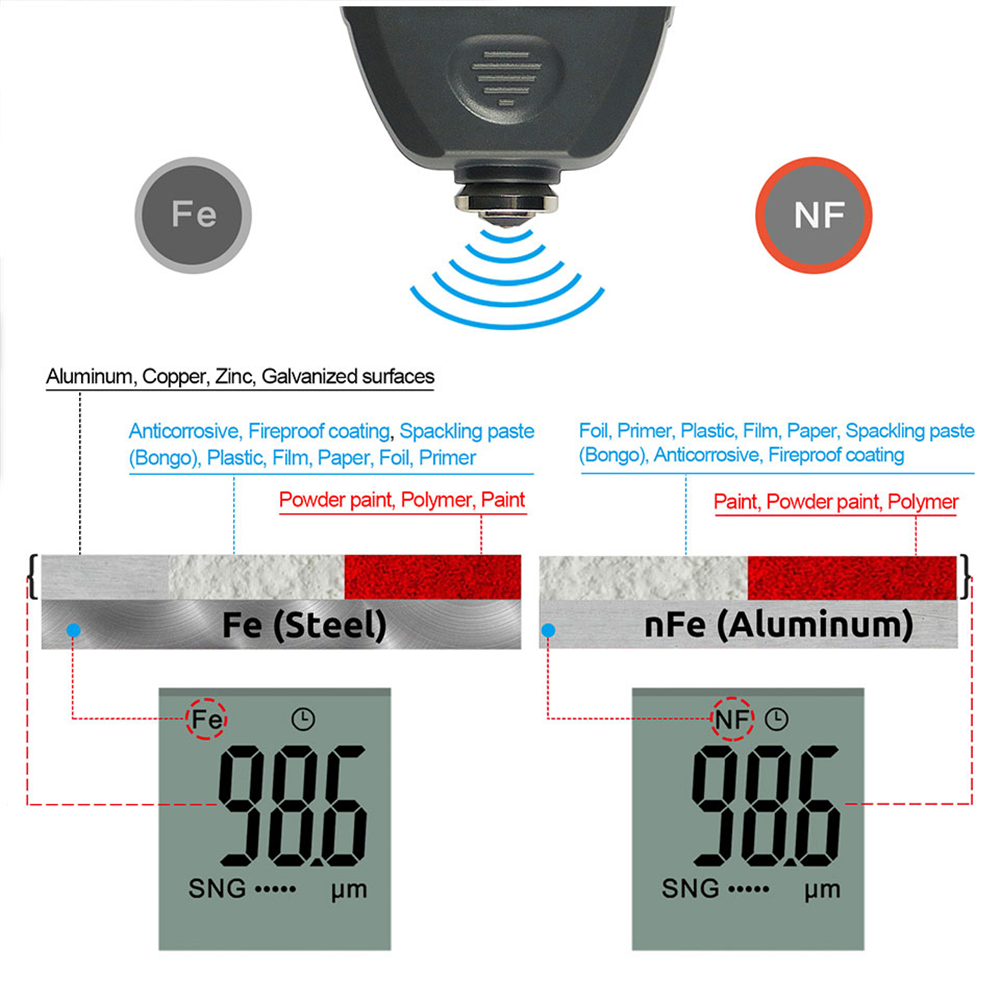

2. The F&NF integrated probe can automatically measure the iron-based surface coating and aluminum and other non-magnetic substrates.

3. The design on both sides of the fuselage makes it feel strong.

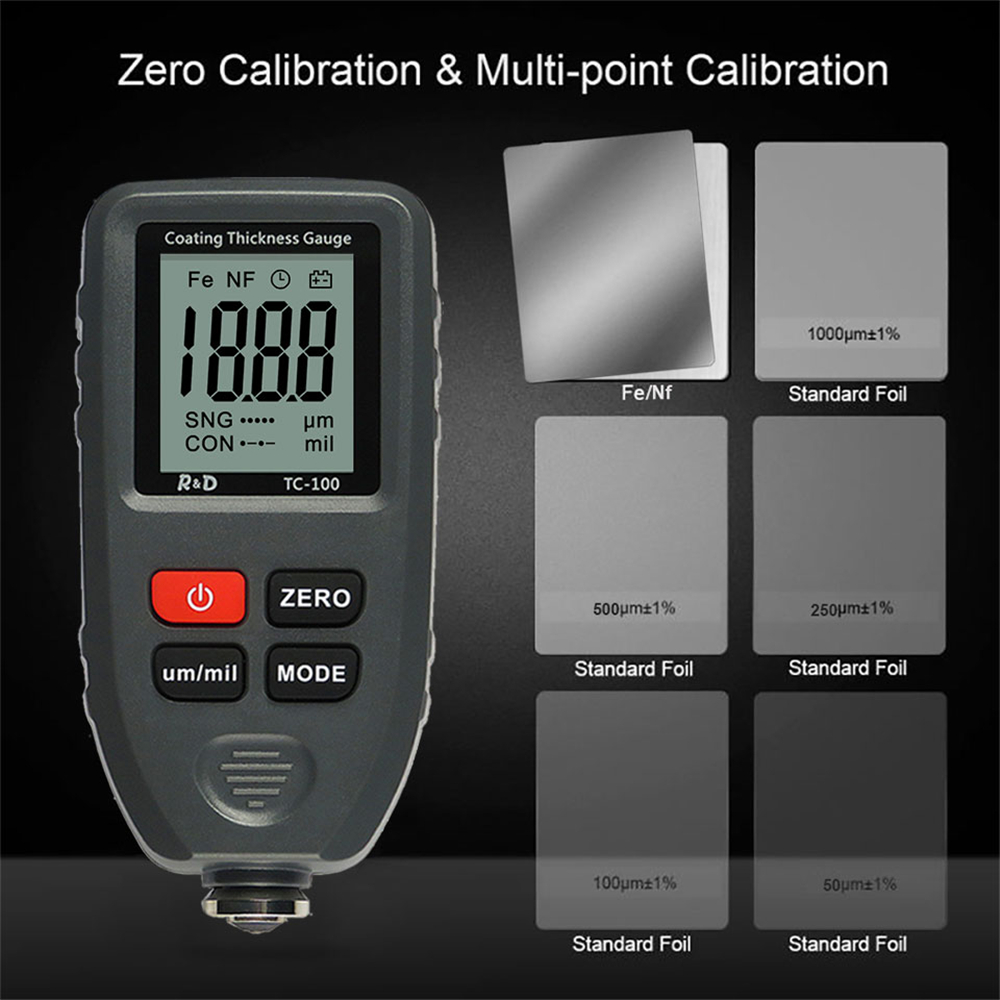

4. There are 6 calibration points, 0/50/100/250/500/1000um, it is very convenient to adjust.

5. With automatic shutdown and power saving function, 15 minutes of no operation will automatically shut down to save power.

Specification:

Probe F

Probe N

Principle

Magnetic Induction

Eddy Current

Range

0~ 1300um

0~51.2mil

0~ 1300um

0~51.2mil

Accuracy

(3%+2um)

(3%+0.08mil)

(3%+2um)

(3%+0.08mil)

Resolution

0.1um/0.01mil

0.1um/0.01mil

Calibration

Points: ZERO/50/ 100/250/500/1000um

Units

um, mil

Minimum curvature radius convex: 1. 5mm

Minimum curvature radius concave: 25mm

Minimum measuring area: Diameter 6mm

Minimum thickness of substrate

0.5mm(0.02")

0.3mm(0.012")

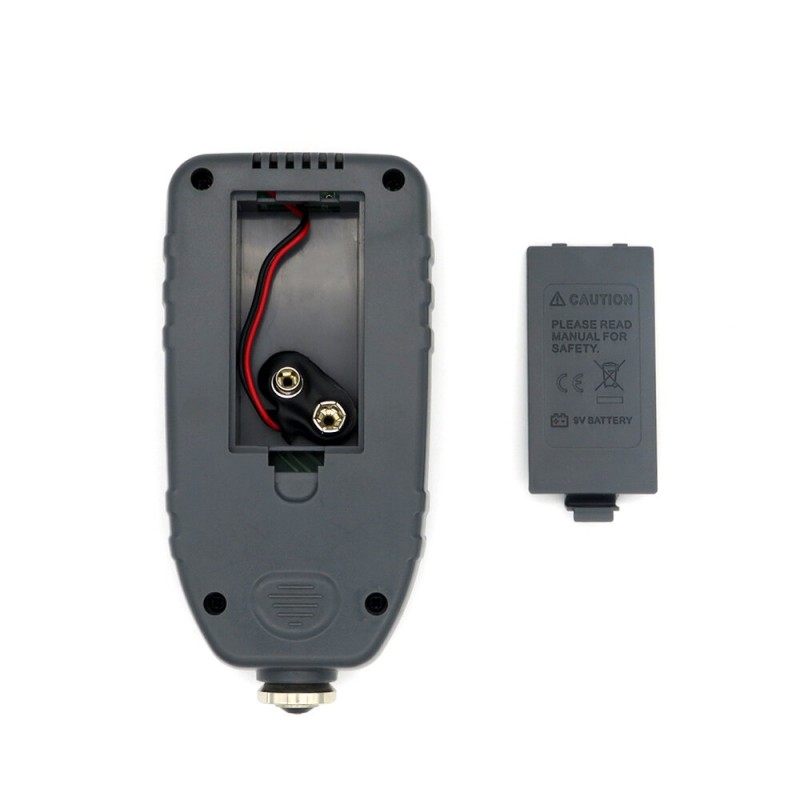

Power

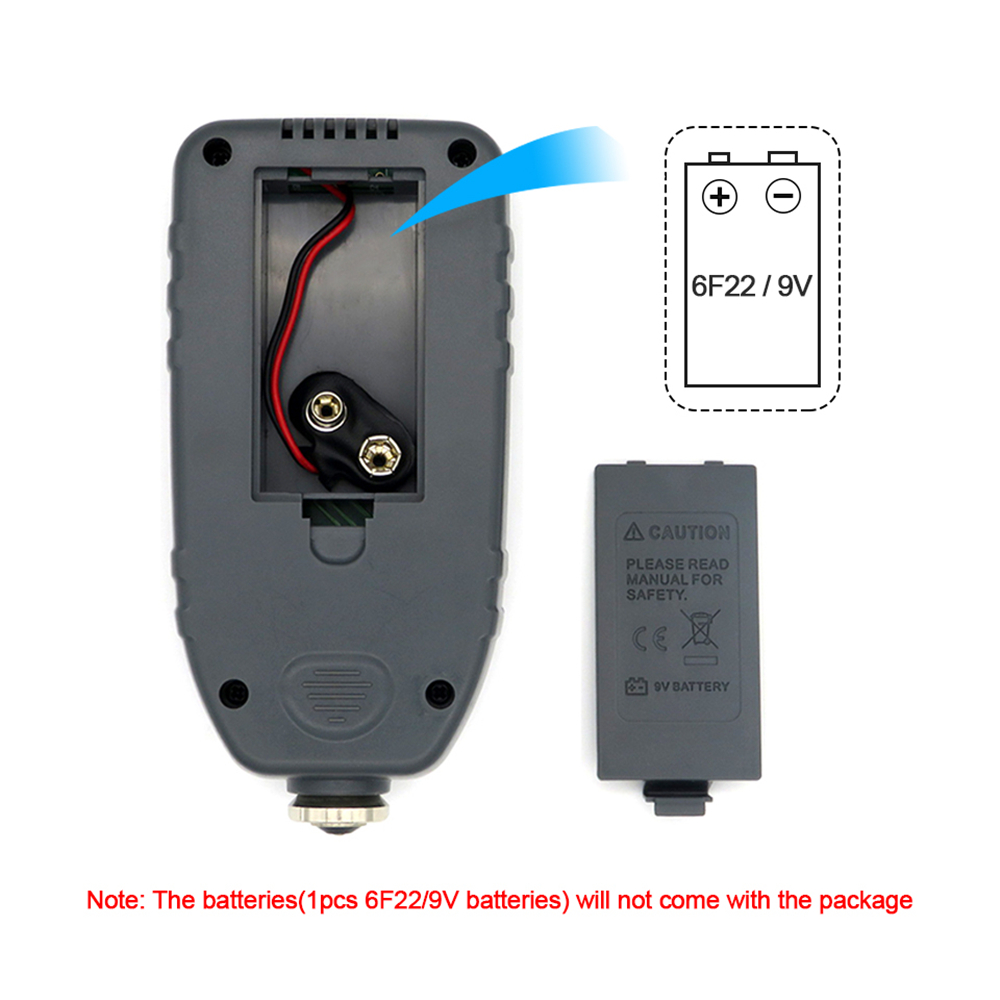

One 9V 6F22 battery

Operation Environment

Temperature:0~40℃(32~104°F) Humidity:20%~90%RH

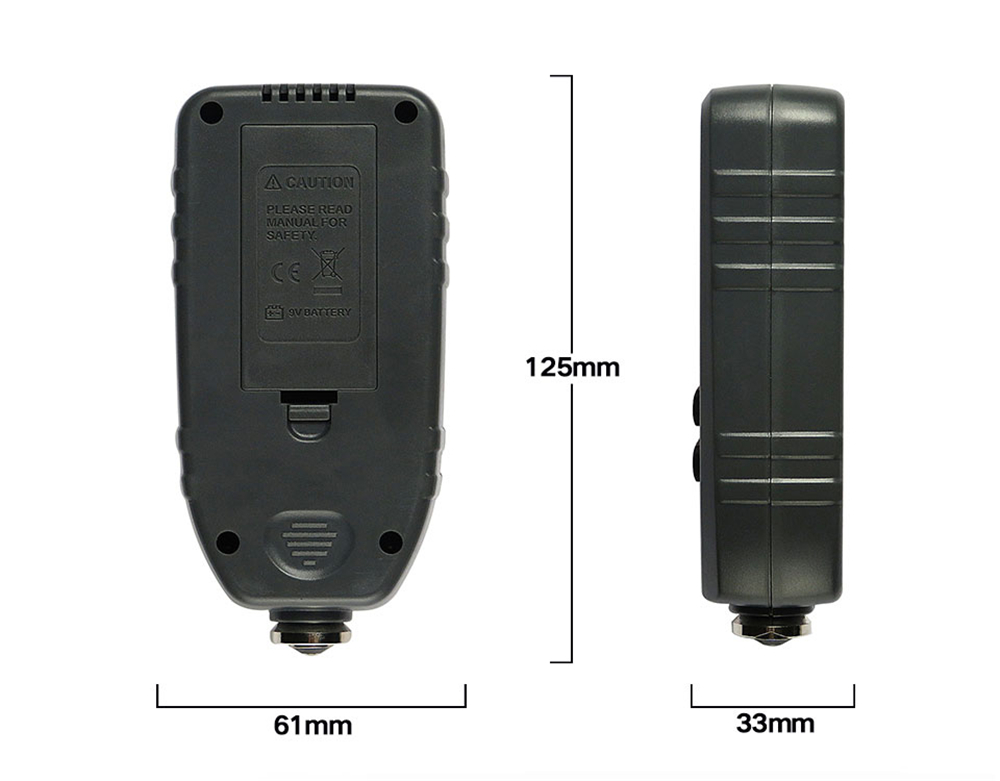

Size

130mm X 62mm X 32mm

(4.88" x 2.44"x 1.26")

Weight

100g(3.53oz)

Color

Black, Grey, Red, White

Application:

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

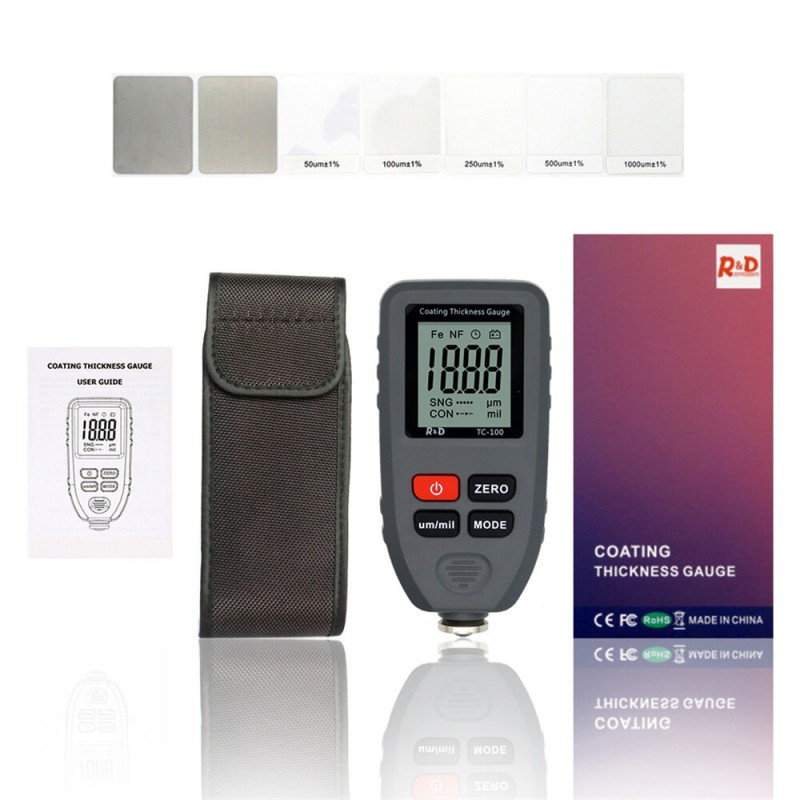

Package Included:

1 X

TC100 Coating Thickness Gauge

1 X

Protective Case

1 X

Lron Substrate

1 X

Aluminum Substrate

1 X

English Manual (Click Here)

5 X

Standard Foil

Batteries not included

FAQ:

Question 1: Are the TC100, GM998, and TC200 thickness gauges iron and aluminum dual-purpose models?

Answer: Yes, it can automatically identify the iron or aluminum substrate, the screen quickly displays the substrate material, Fe stands for ferromagnetic substrate, and NF stands for non-ferromagnetic materials, such as aluminum, aluminum alloy, copper, etc.

Question 2: Can TC100, GM998, TC200 thickness gauges measure the thickness of metallic paint

Answer: Yes, whether it is ordinary paint or metallic paint, the paint thickness can be accurately measured.

Question 3: What is the resolution and range of the TC100, GM998, and TC200 thickness gauges?

Answer: The minimum resolution is 0.1um, and the resolution above 100um is 1um. Range: 0.1 ~ 1500um.

Question 4: Does the TC100, GM998, TC200 thickness gauge have a backlight function?

Answer: TC100 does not have backlight, GM998 and TC200 have backlight function.

Question 5: Are the TC100, GM998, and TC200 thickness gauges equipped with dry batteries?

Answer: Due to the restrictions of international logistics, there is no battery, and the battery needs to be purchased by the customer.

Question 6: Can TC100, GM998, TC200 thickness gauges measure the thickness of galvanized layer, nickel plated layer, gold plated layer, metal oxide layer, anodized layer, etc.?

Answer: Yes, please rest assured to buy.

Question 7: Can TC100, GM998, TC200 thickness gauges measure the thickness of paint on plastic surfaces?

Answer: No, the thickness of the electroplated layer on the plastic surface or the thickness of the paint requires other types of instruments to measure. It is not in the scope of application of the coating thickness gauge. I hope I can help you, thank you.
