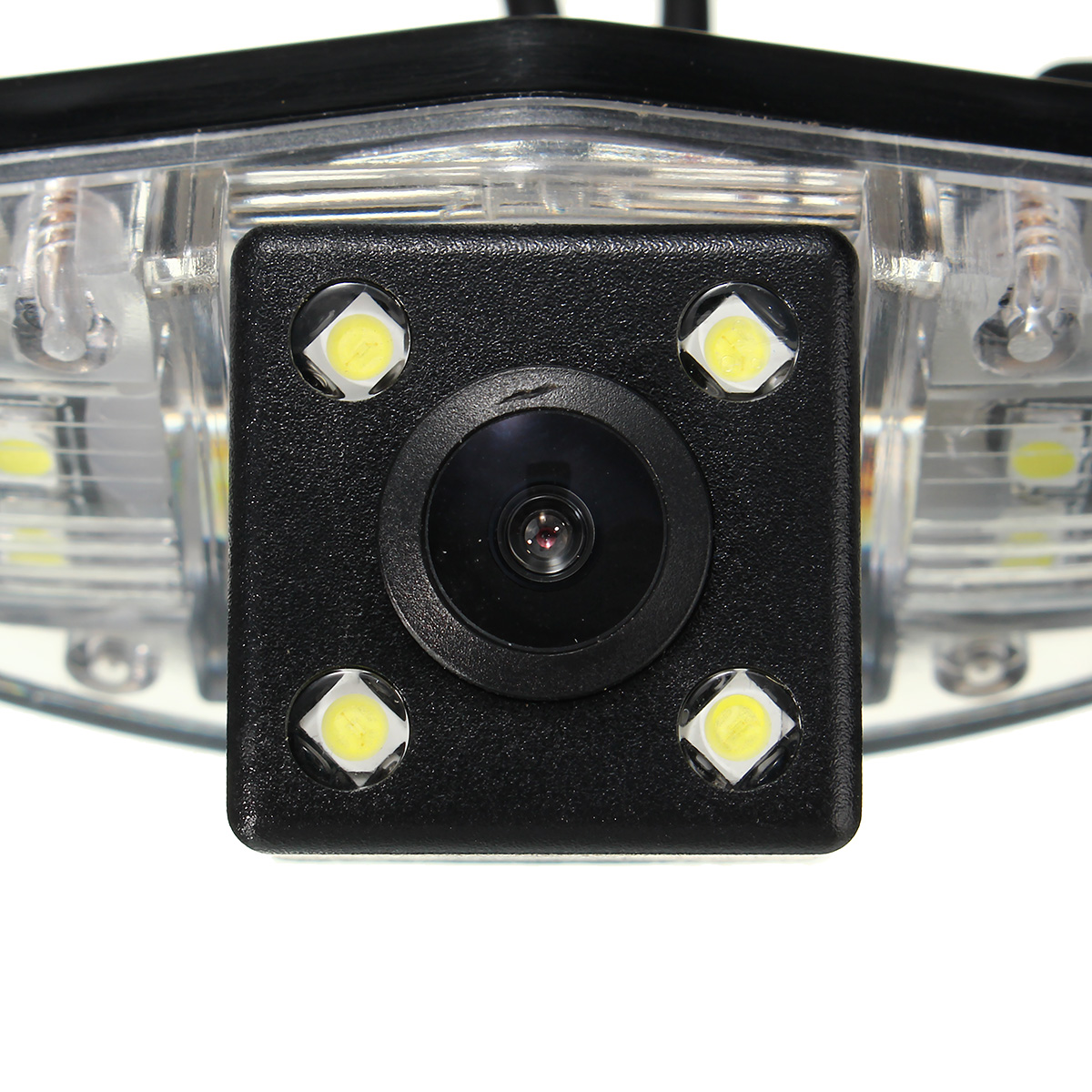

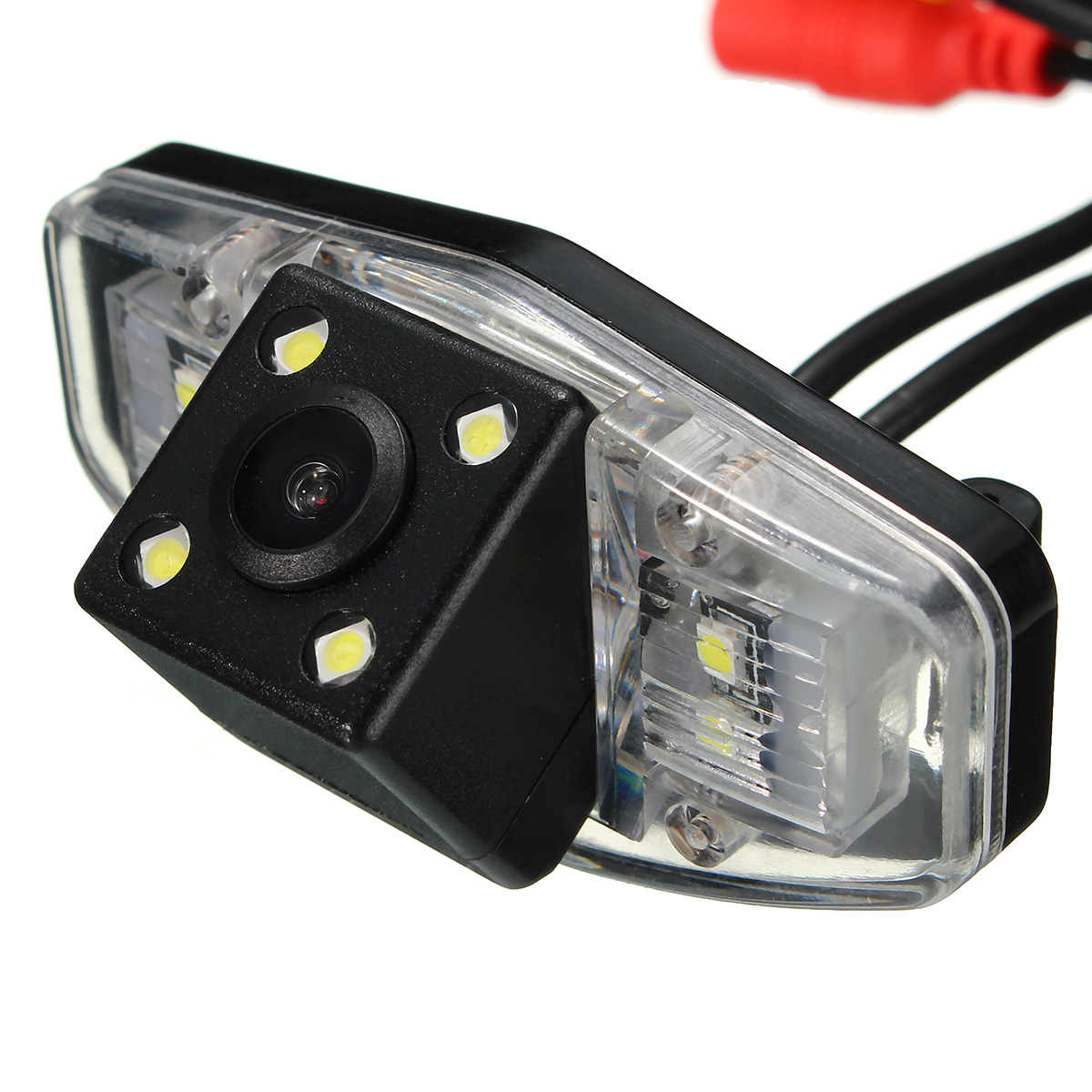

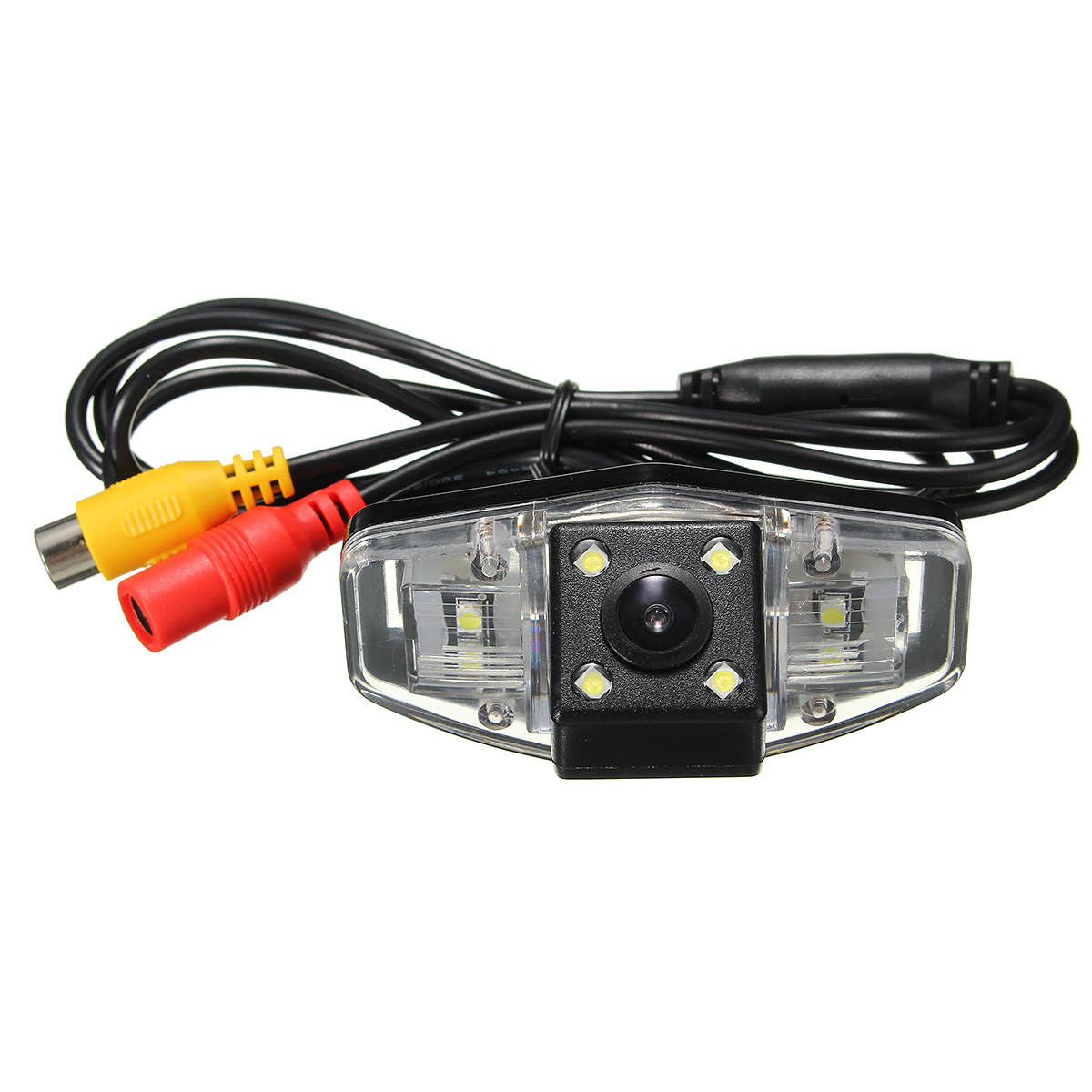

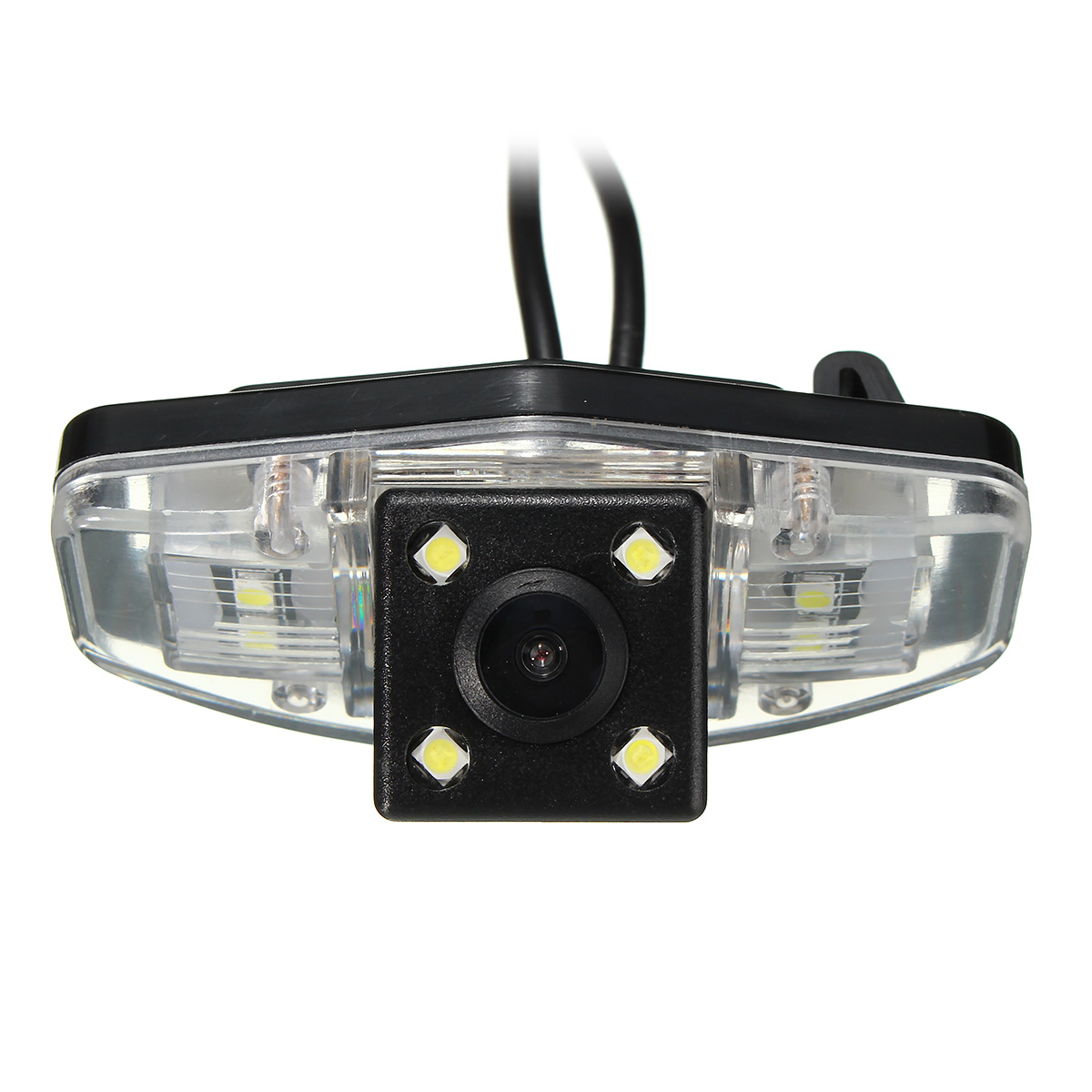

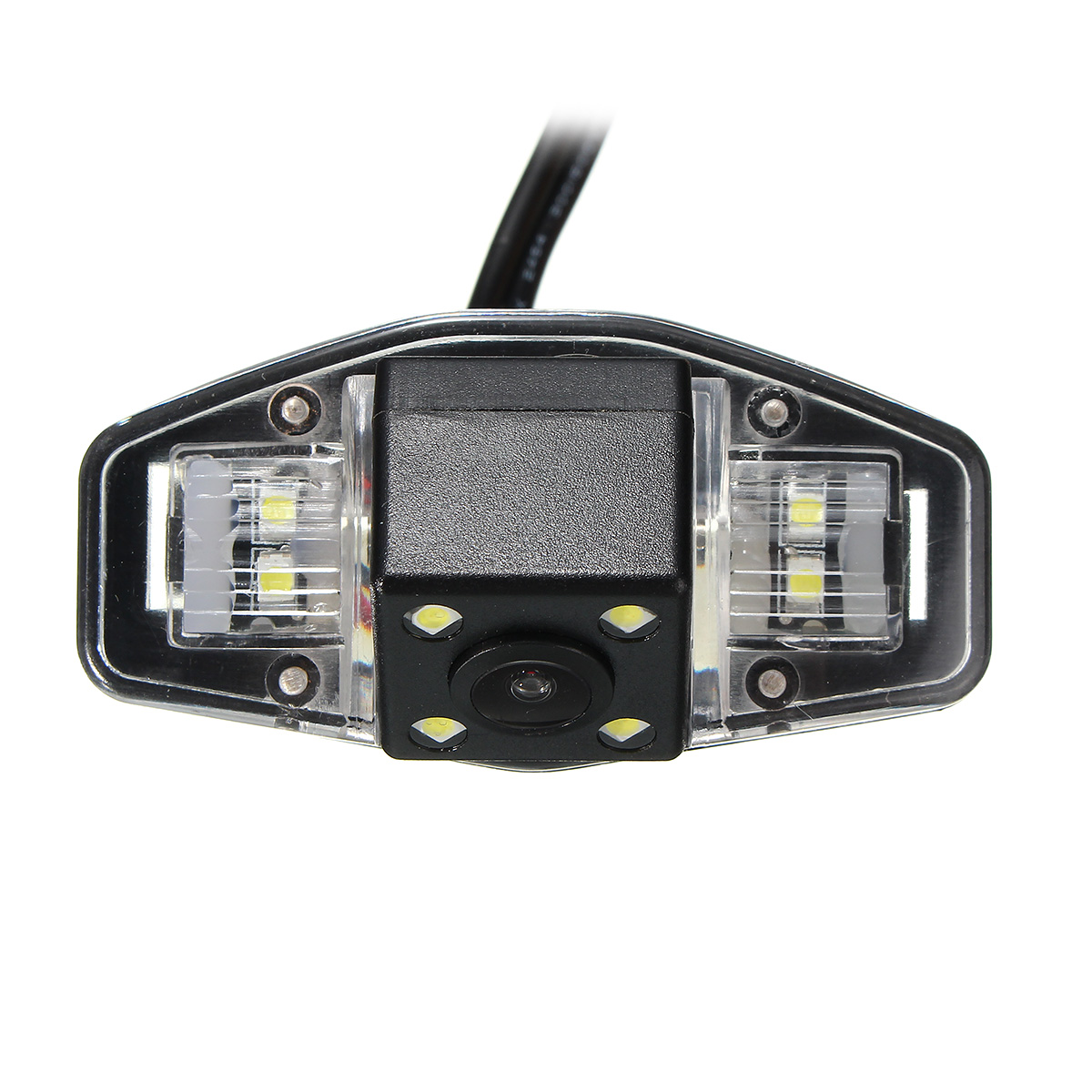

Rear View Parking Backup Camera For Honda Accord Pilot Civic Odyssey/Acura TSX
$19.75
- Product Code: ED0001050
- Availability: In Stock
- Ex Tax: $19.75
Feature:
1.With waterproof function, durable.
2.Easy install and simple operation.
3.High clear CCD camera read out, high-definition and wide viewing angles.
4.Ensure your safe driving, to avoid any vehicle accidents.
Installation Guide:
1. Take out your stock license plate light at the back of your car
2. Fix the camera to where the stock license plate light was
3. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
4. Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative
5. Connect the video cable of the camera to the extension cord
6. Connect the extension cord to your car monitor
7. You will see the images when your car is in reverse shift.
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

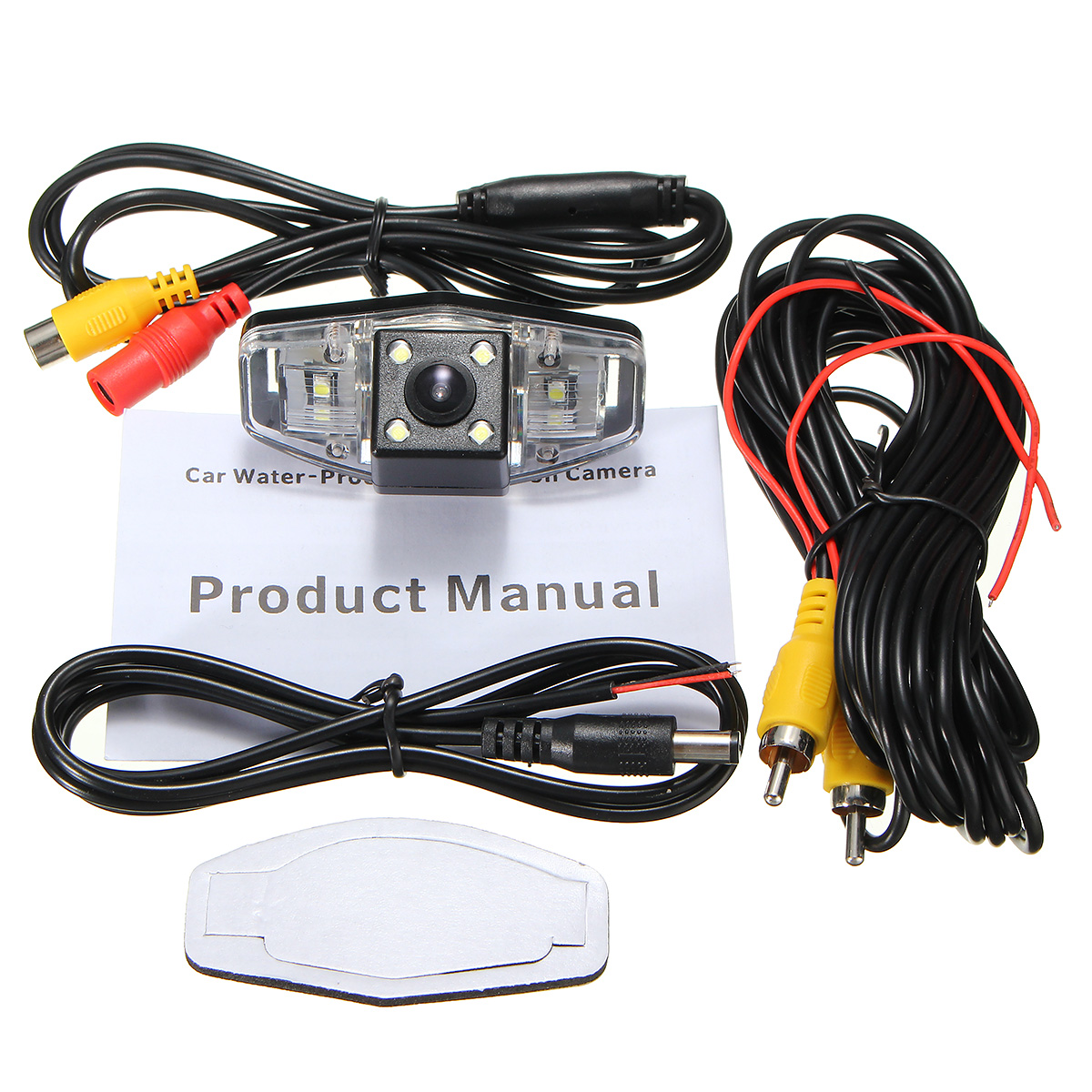

Package Included:

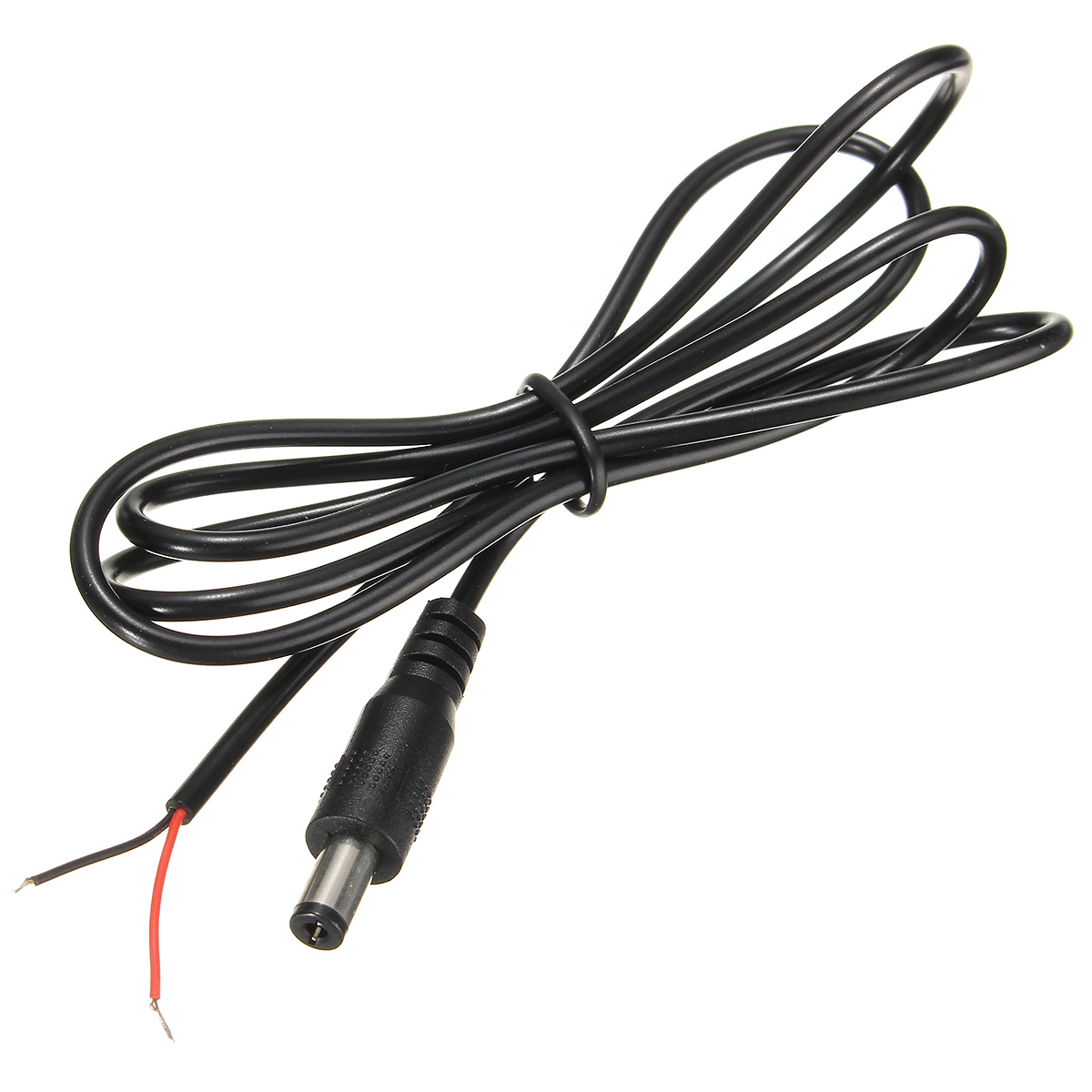

| 1 X CCD Car Rear View Camera | 1 X Power Cable |

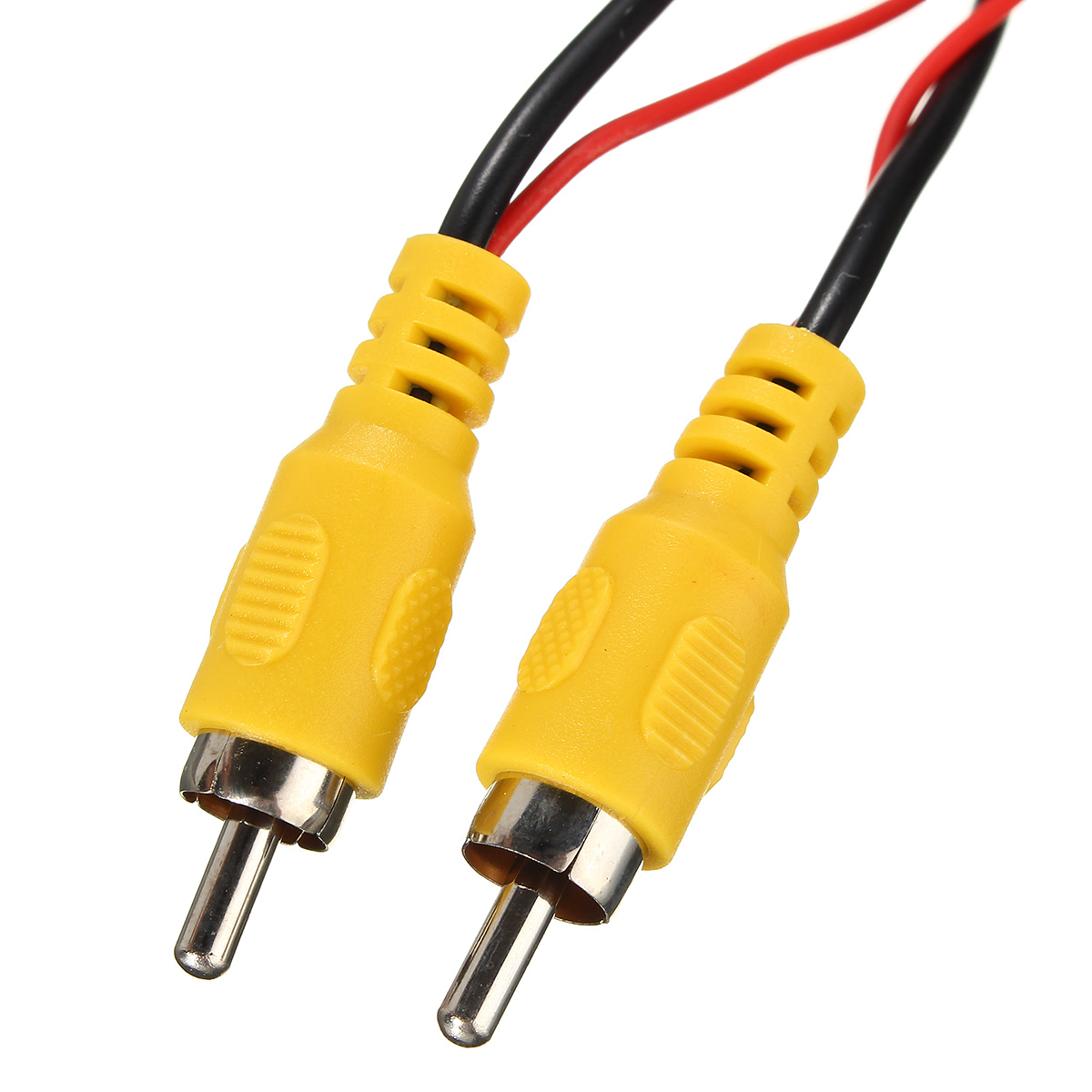

| 1 X Extension Cable | 1 X User Manual |
Specification:
| Color | Black |
| Video Color | Colorful |
| Camera Dimension | 69*12*35mm |
| Sensor | CCD |
| Effective Pixels | 720*540 |
| Resolution | 520TV lines |
| Lens Angle | 170° |
| Working Power (DCV) | 12V |
| Operation Temperature | -20°C+60°C RH95% Max |
| Storage Temperature | -30°C+60°C RH95% Max |
| Current Consumption | No more 300mA |
| TV System | NTSC 60HZ/PAL 50HZ |
| Night Vision View | Support |
| Waterproof | IP67-68 |
| Fitment |
Acura TSX (2004-2011)
Honda Accord (1998-2011)
Honda Pilot (2003-2011)
Honda Civic EK (1999-2000)
Honda Civic FD (2006-2011)
Honda Odyssey (1999-2003)
(FOR REFERENCE)
|
