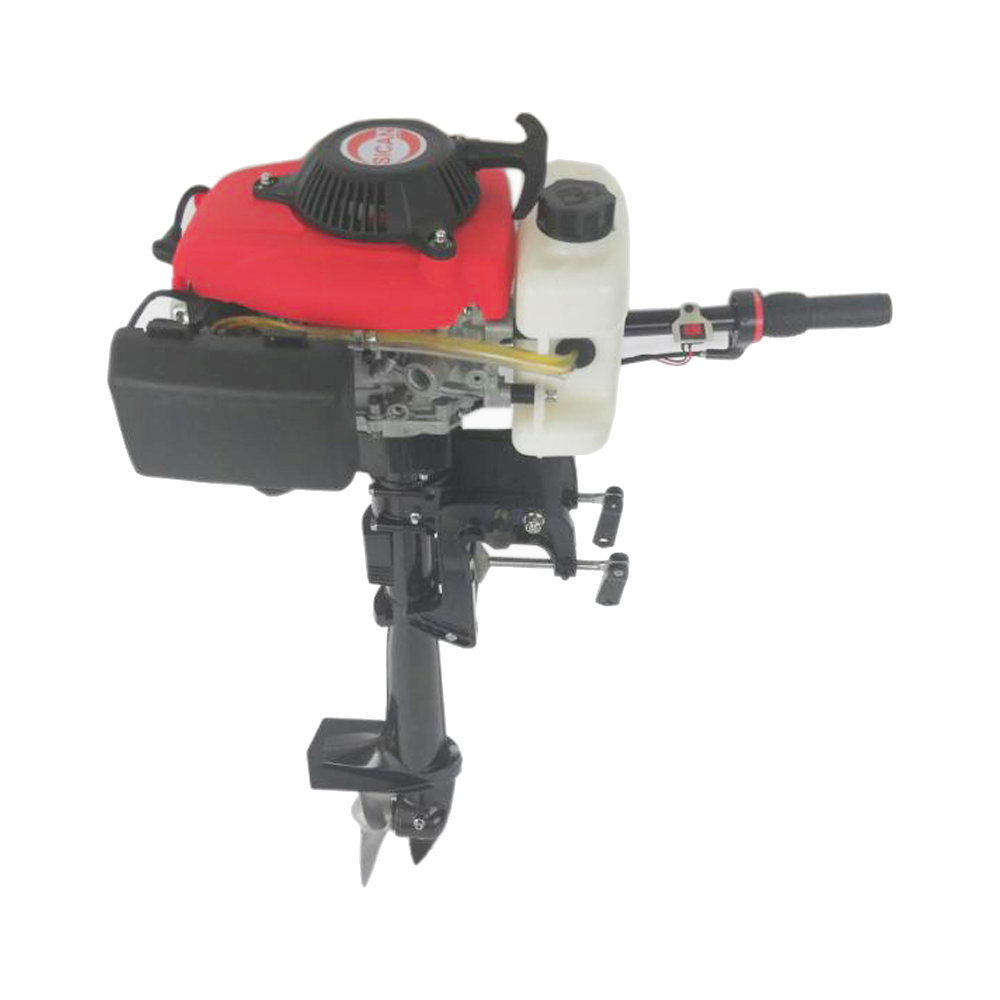

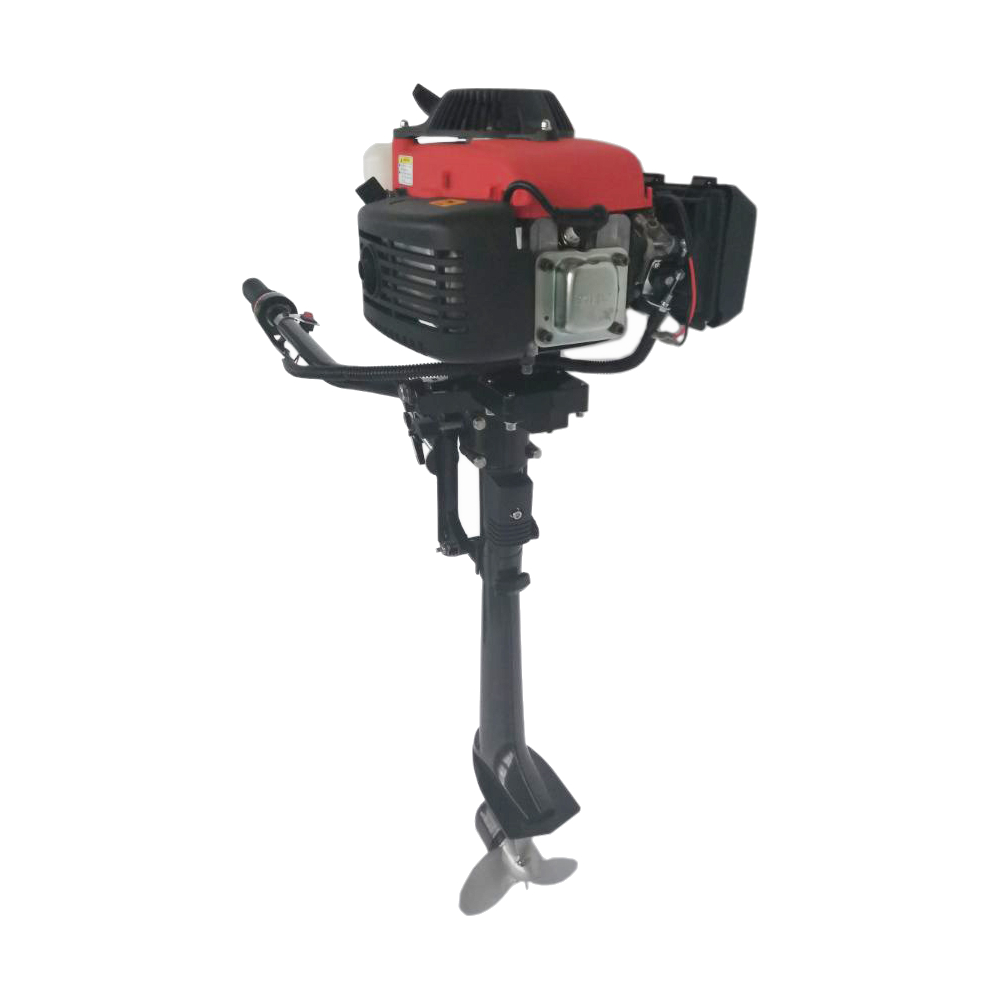

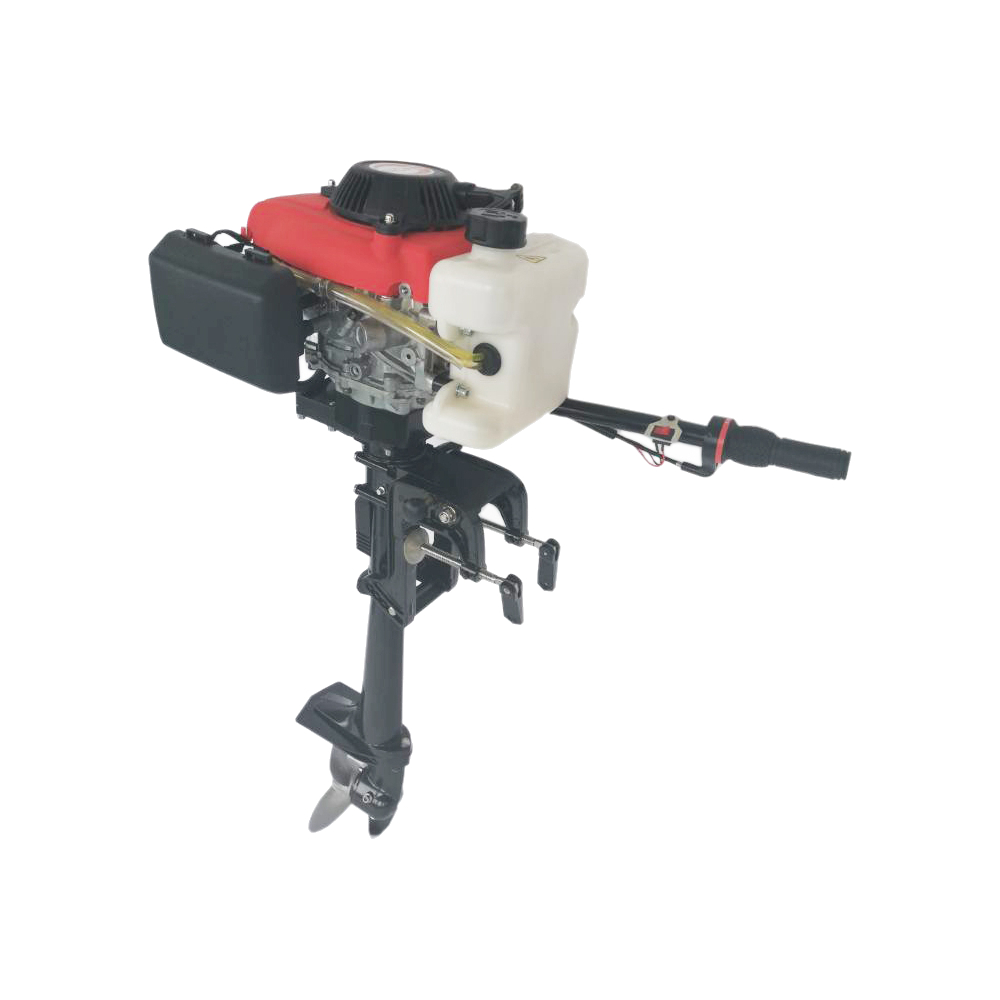

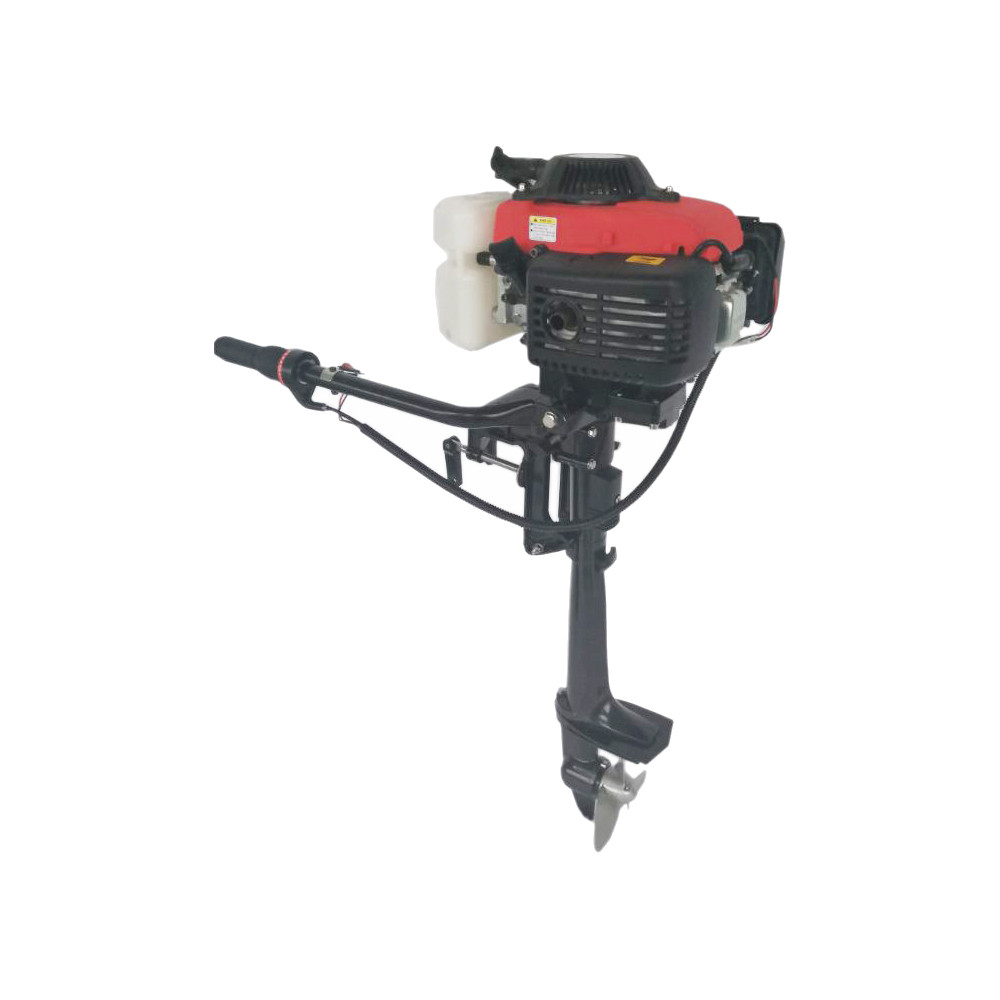

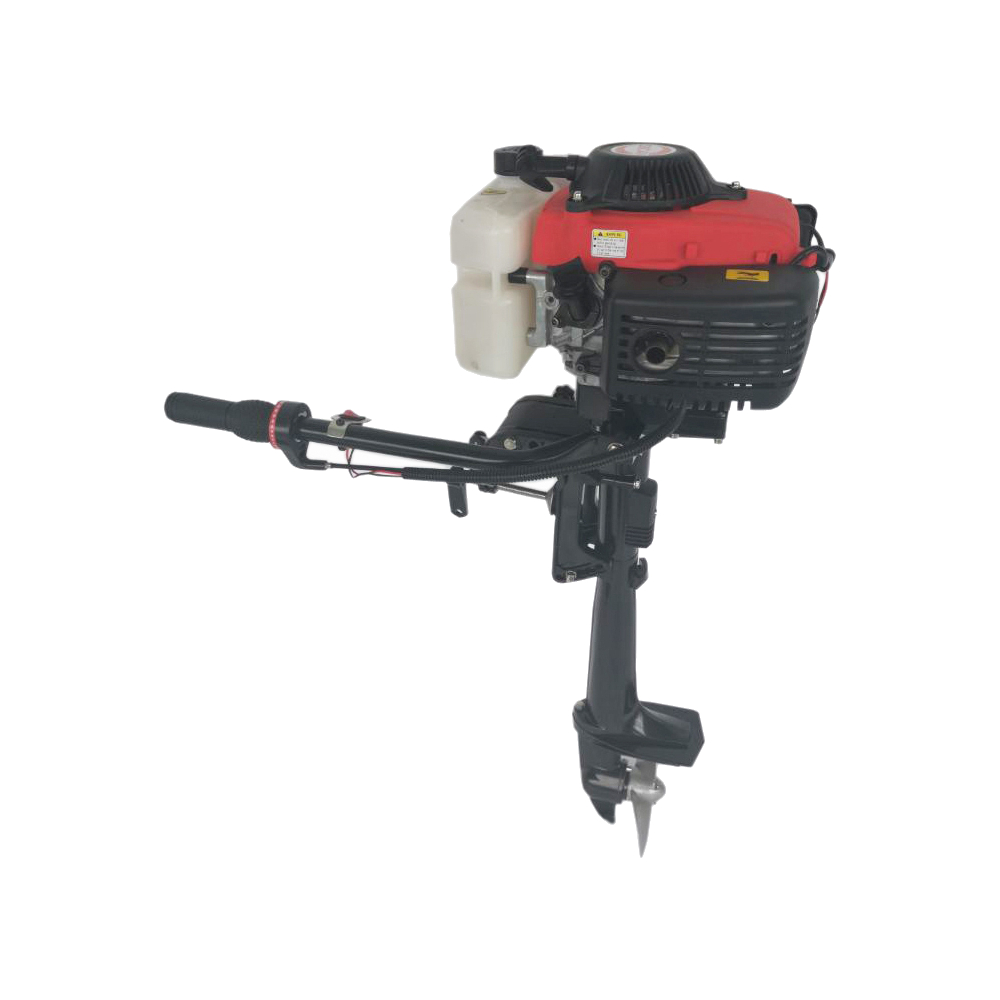

Sc-440c Outboard Engine 4-Stroke 4.0 HP Air Cooled Hand Start
$439.99
- Product Code: ED0020725
- Availability: In Stock
- Ex Tax: $439.99
Description:
1.The four-stroke design is easy to repair
2.Low Noise Design(Less Than 85db)
3.Enhance Gear Design
Specifiction:
| Model |
4 Stroke 4.0HP |
| Displacement |
55CC |
| Gear Ratio |
2.08 (27:13) |
| Cylinder |
1 |
| Max. Speed |
4500-5500 r/min |
| Max. Output Power |
2.9KW |
| Gear Positions |
Clutch Control |
| Ignition System |
CDI |
| Cooling System |
Air-Cooling |
| Control System |
Tiller Control |
| Starting Way |
Manual Start |
| Recommended Fuel |
#92 Lead-free Gasoline |
| Recommended Propeller Size |
3-7 1/4" x 5" |
| Recommended Engine Oil |
Four Stroke Engine Oil |
| Transom Plate Height |
440mm |
| Trim and Tilt System |
Manual Tilt |
| Bore x Stroke |
44 x 33mm |
| Separating Fuel Tank |
1.4L |
| Dimensions |
365 x 220 x 920mm (L*W*H) |
| N.W. |
12.5kg |
Installation Instructions:
1.Install the air cover, pay attention to the sponge inside, in order to filter impurities
2.The sump fuel tank is separate and does not require a proportioning oil
3.The type of oil to be added must be in strict accordance with the specifications on the instructions for use
Special Attention:
Be sure to add oil before starting the engine. Pay attention to the oil content, not exceed the upper limit of the oil scale, not less than the lower limit of the oil scale
Note:
1.Before using our outboard engine, please read this manual carefully to understand the proper use of your unit.Keep this manual handy.Before start-up, manually pump the oil to reach the carburetor port
2.When the manual pump oil is pressed,observe whether the transparent bubble is completely filled.
If there is oil in the tubing to reach the carburetor port, it may be pressed five or six times
3.After the start is started, the switch starts and the long press is turned off
4.Always check the amount of oil in the sump before each use

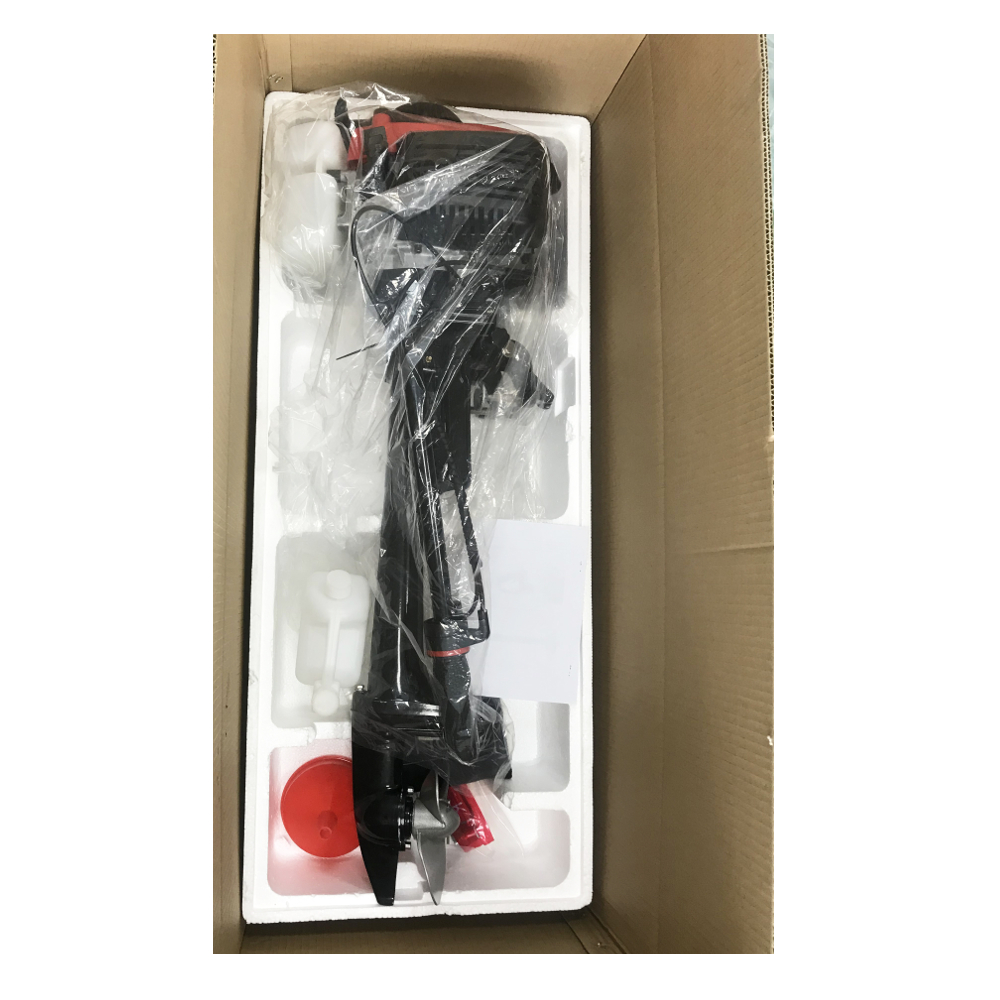

Package Included:
| 1 X | Outboard Machine ＆ Accessories |
| 1 X | The Instructions |
