Universal Car PKE Keyless Entry System Engine Push Start Button Remote Control Alarm System
$57.28
- Product Code: ED0005930
- Availability: In Stock
- Ex Tax: $57.28
Product Description:
Material:Plastic

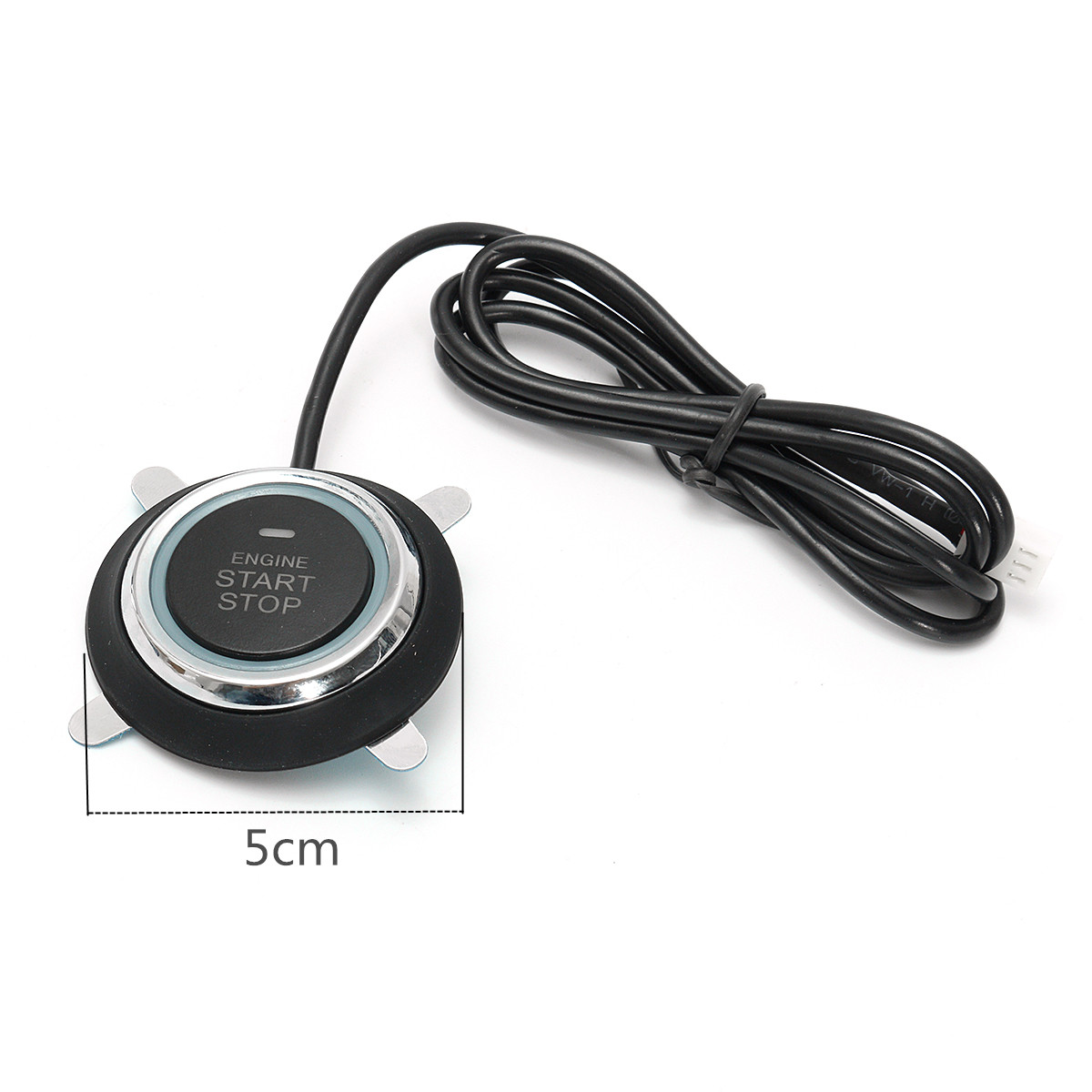

Engine start stop Size: 5cm

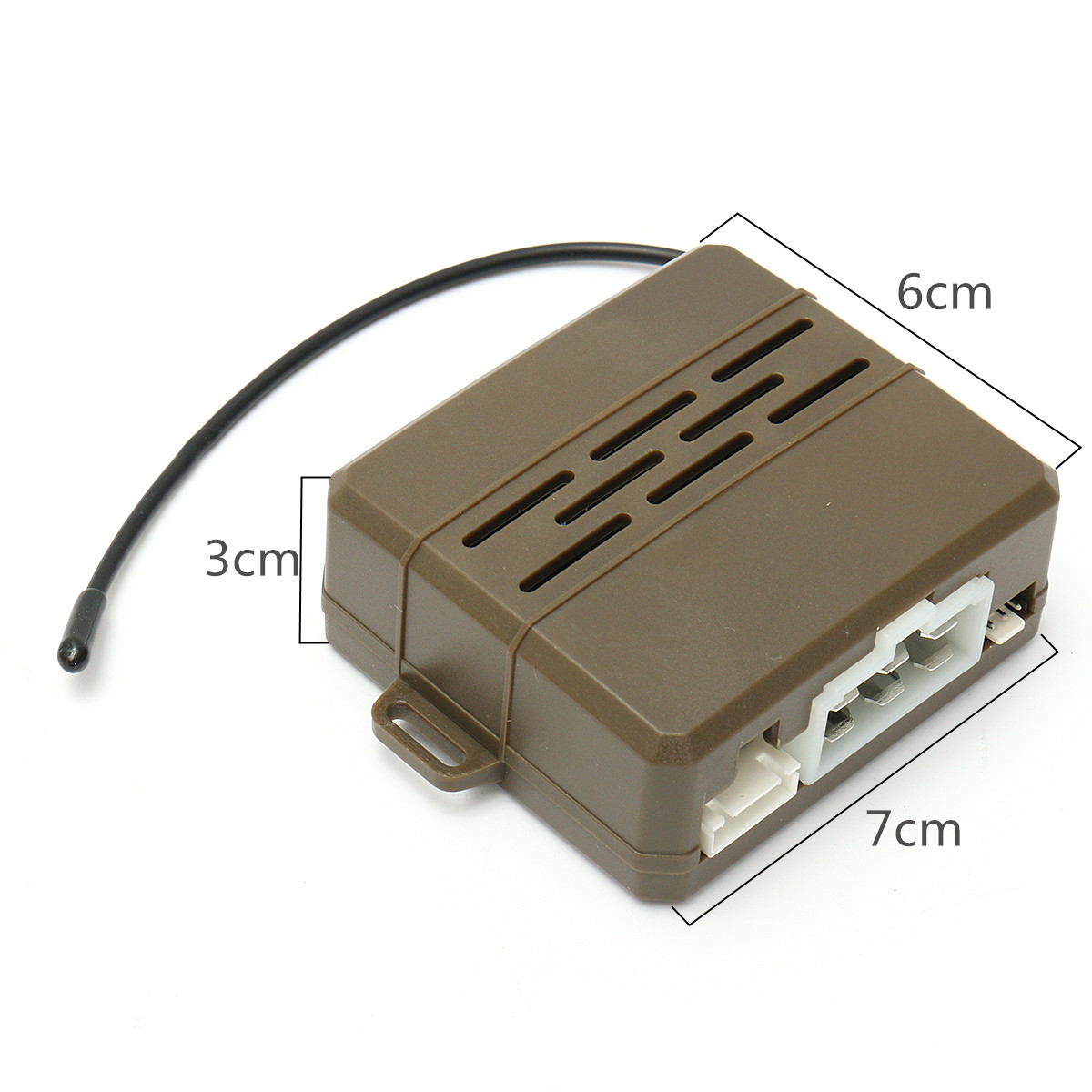

Host Size: 7x6x3cm
Working Voltage: +12v+2V
Working Current: 6mA
Remote control frequency: 433MHZ
Receive frequency :433MHZ
Features:
*Audible alarm
* High-quality high-quality wiring harness, to ensure smooth operation of the current,
Remote operation
Long press the lock button for 5 seconds, start the vehicle remote control, but also remote flameout

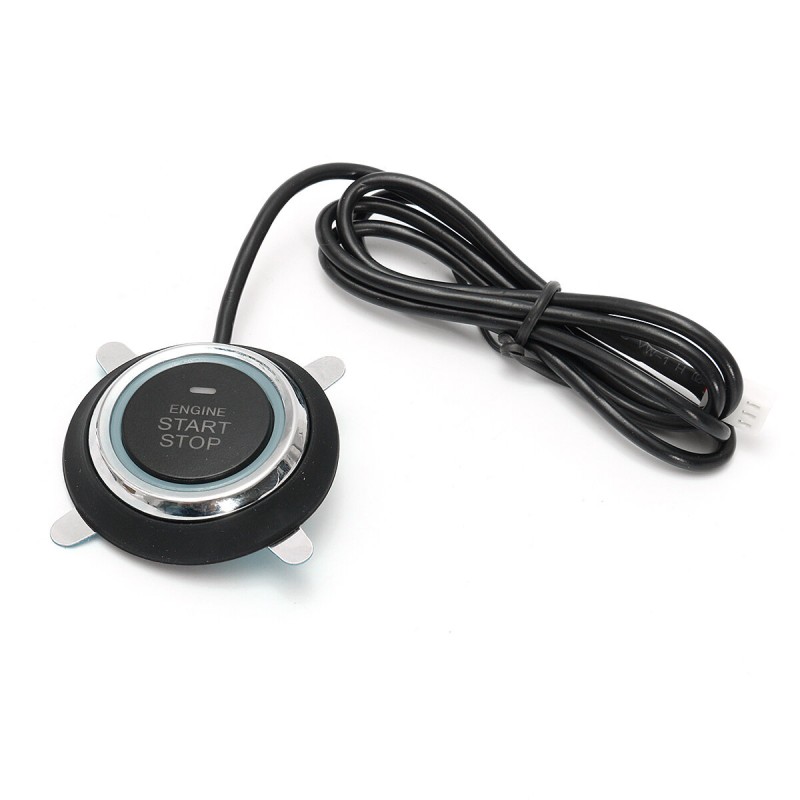

Introduction to Startup Keys
Material: Use conductive adhesive
Maximum outside diameter: 40mm
Button Thickness:
Internal lighting: blue, red and yellow
4 conductive contacts, do not use the current old mechanical key switch, the use of the effective number of 30 million times, without replacement
Installation method 1: directly remove the lock and use the buckle of the installation
Installation method 2: Remove the button behind the iron, using the paste installation method
Remote start function:
1. To ACC, ON file first power supply, and then start the car
2. Long press 5 seconds to start the remote control button
3. Remote start detection handbrake, do not pull the hand brake remote start is invalid,
4. 10 minutes after the start of remote control without operation is automatically turn off, the brake on the car to stop the flame function is canceled
Sensing mode switching function:
Method:
1. Open the ACC bar first
2. At the same time press the remote control unlock key and lock key 1 seconds after release
3. Horn sound that open the induction function
Emergency car function:
When the induction remote control is lost or damaged, then want to use the car according to the following methods: Use the spare key to open the door, find the host open and long press
The host code on the switch for 5 seconds, then the speaker chirp 3, it means that anti-theft lock function will be lifted, the vehicle can use
Remote start automatically locks the door function:
After each remote start or close the remote start, the system will automatically lock the door to ensure vehicle safety

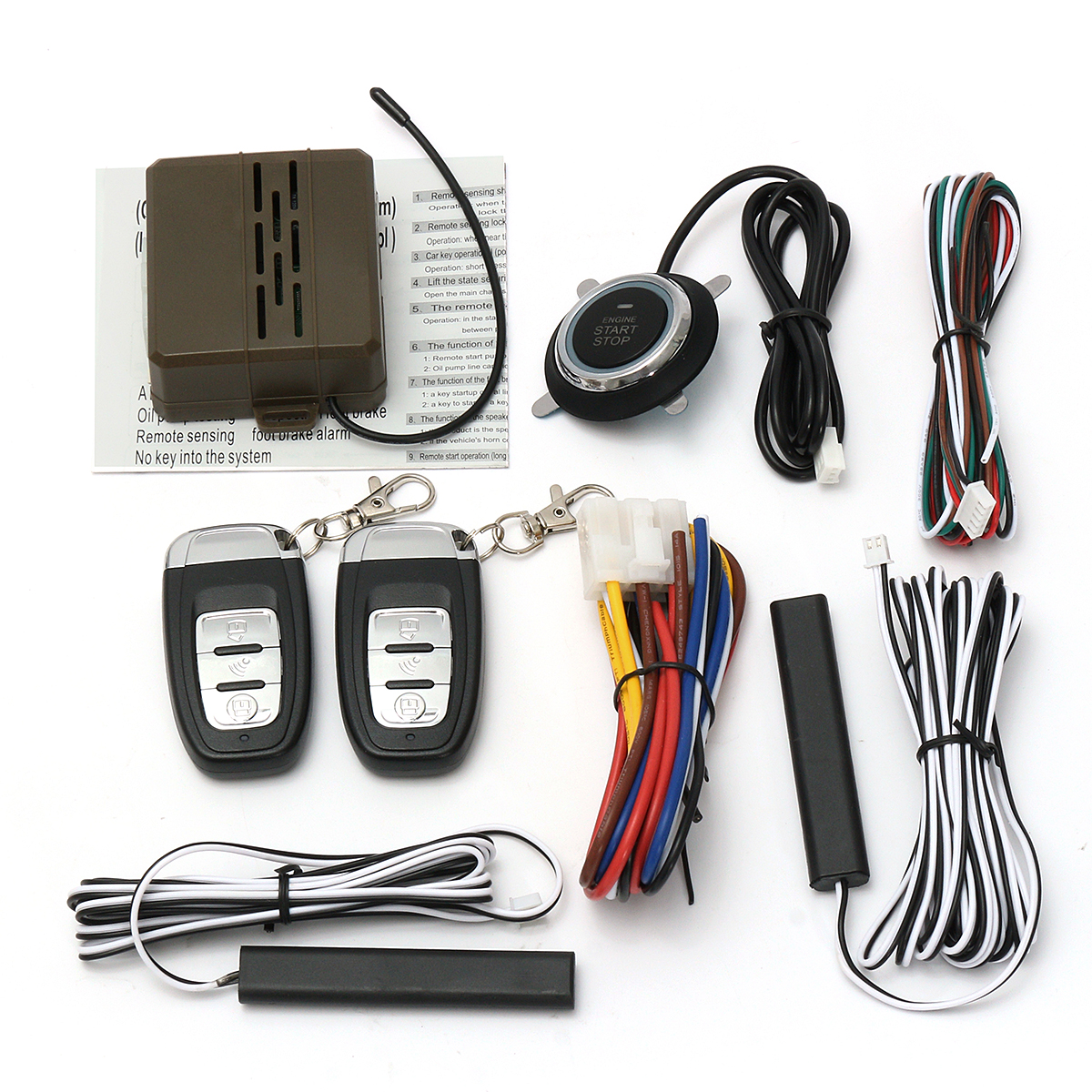

Package include:
1 x Car engine start button（Host）
1 x Start button

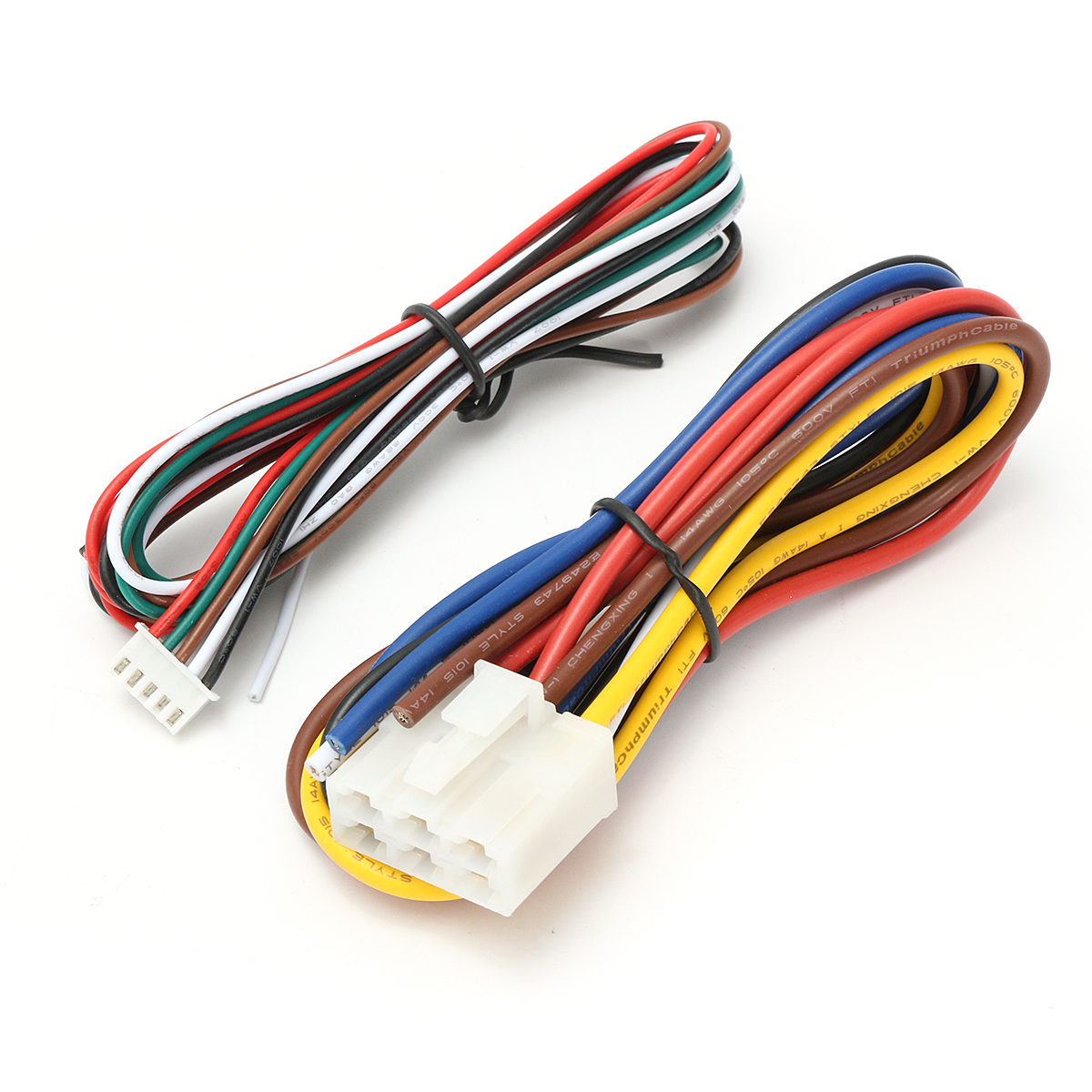

1 x Poutput line
1 x 6P output cable
2 x Smart remote control

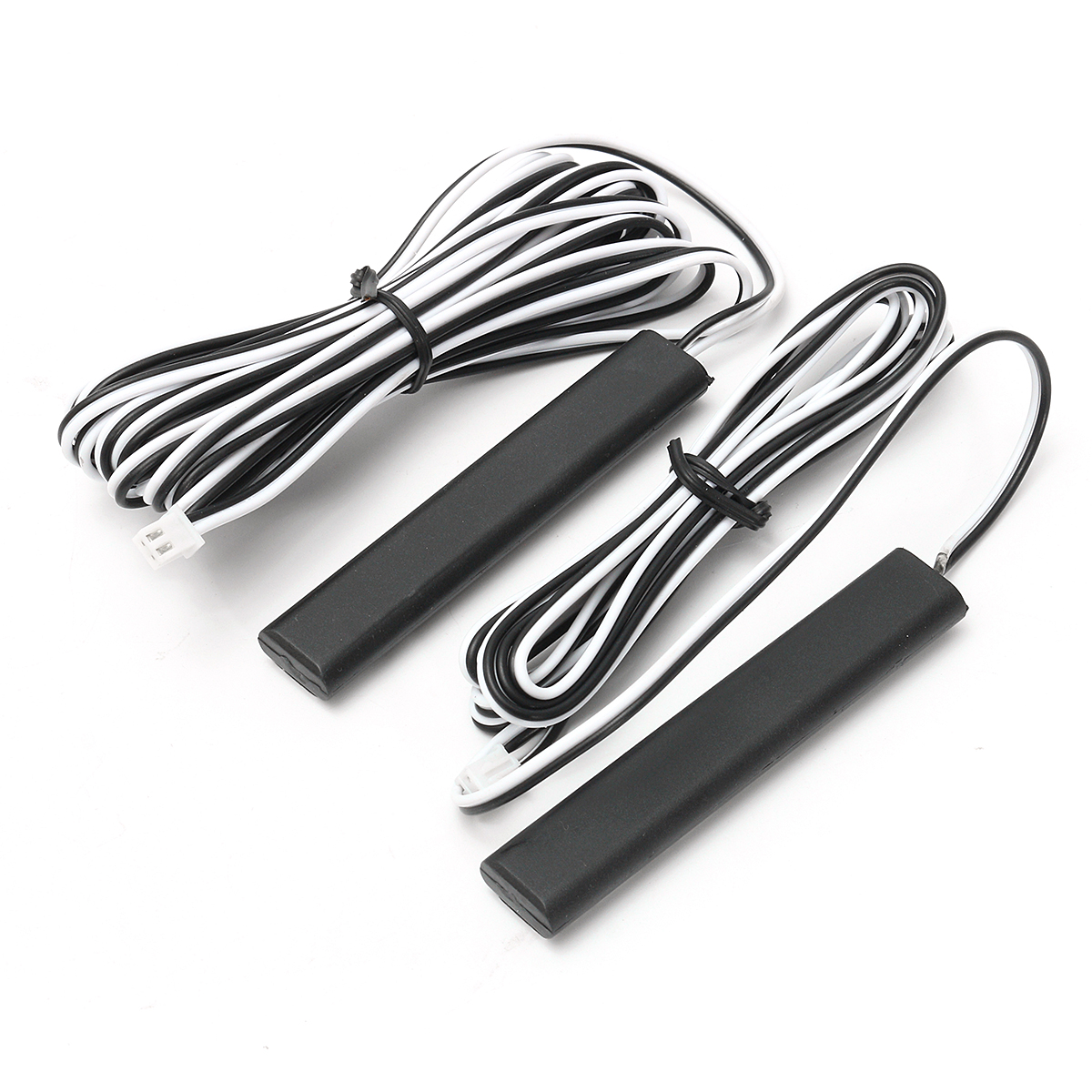

2 x Antenna
1 x Manual
Note: When the system host into the anti-theft state, if the illegal car door, the car will be long tweet warning.
Tips: This product requires a certain technical basis for the installation, it is best to find relevant professionals to install
