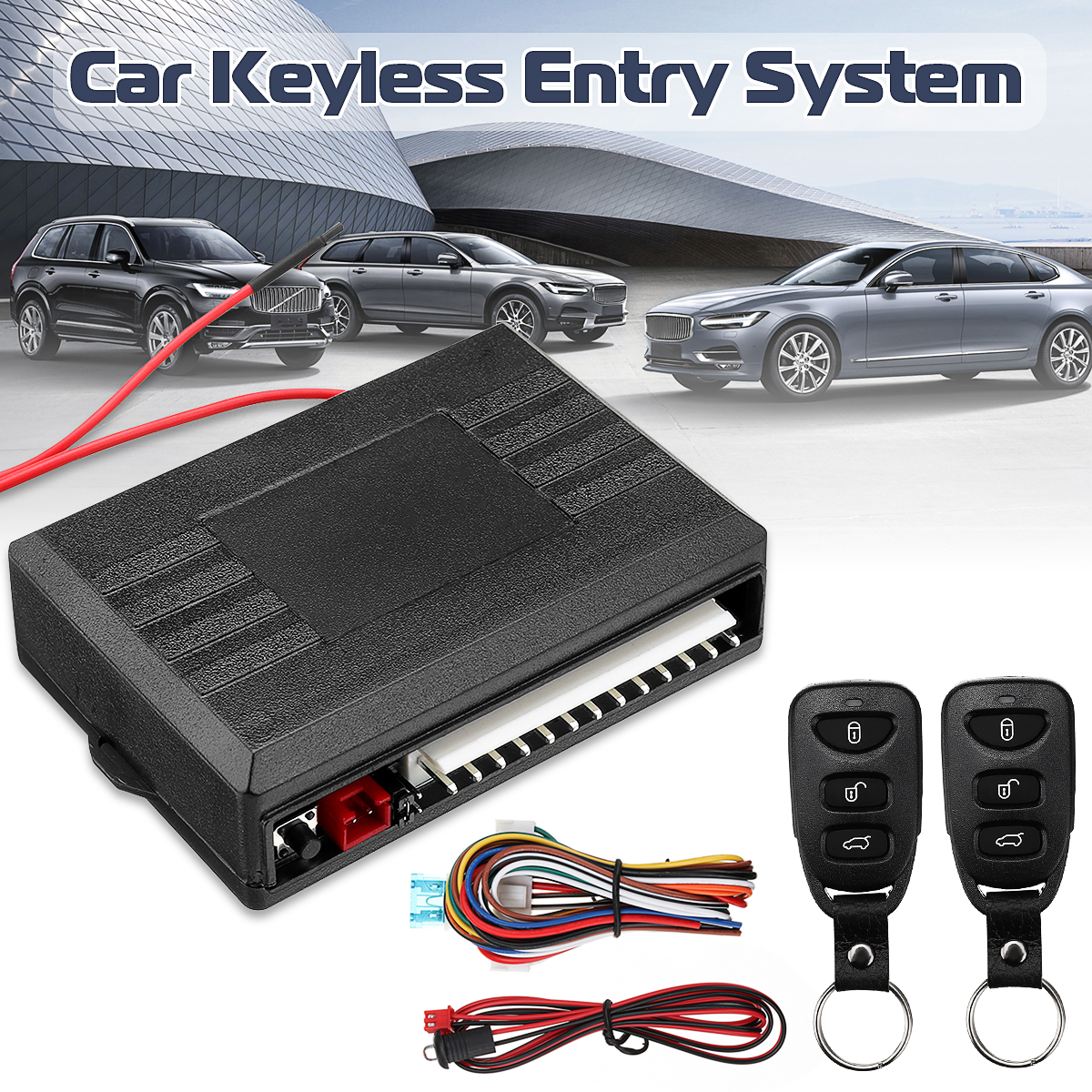

Universal Car Remote Control Central Door Lock Kit Locking Keyless Entry System
$14.38
- Product Code: ED0001560
- Availability: In Stock
- Ex Tax: $14.38
Specification:
Color:Black
Color:Black
Material:Plastic
Quantity:1 Set
Model Number:B89724
Product Name: 433.92MHz Keyless Entry System

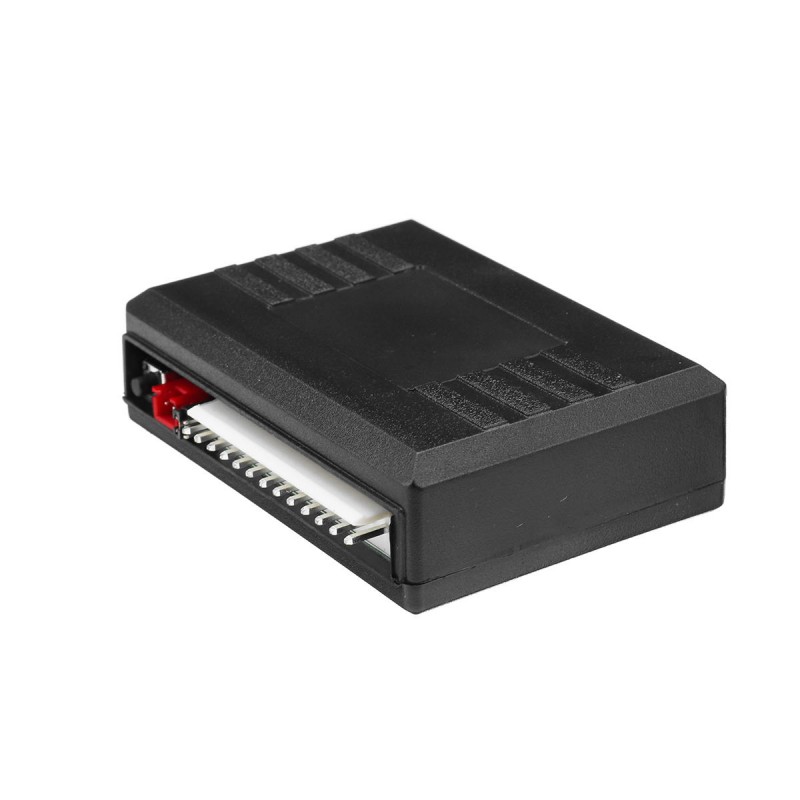

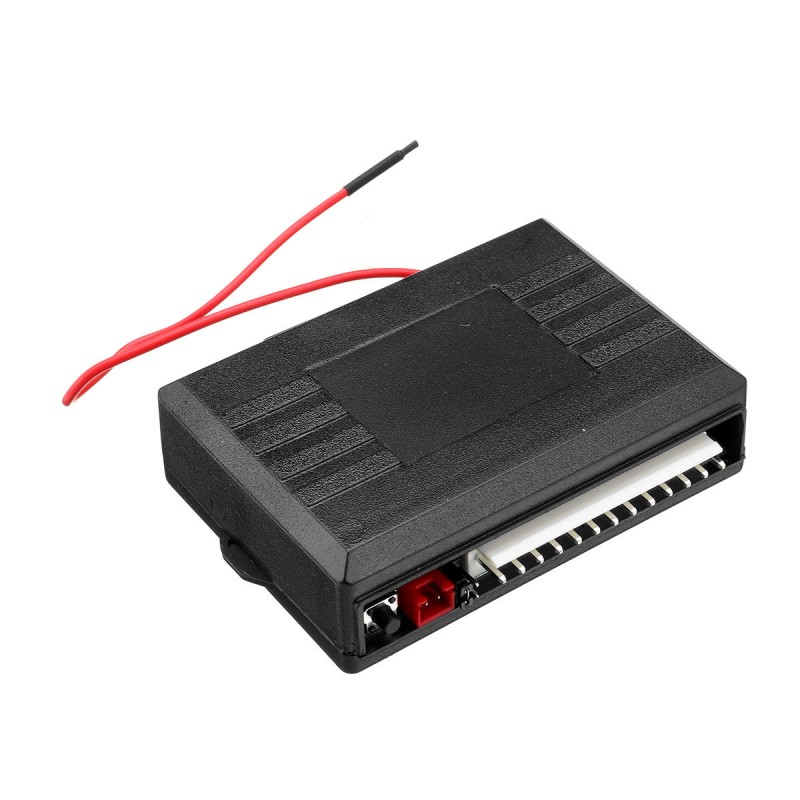

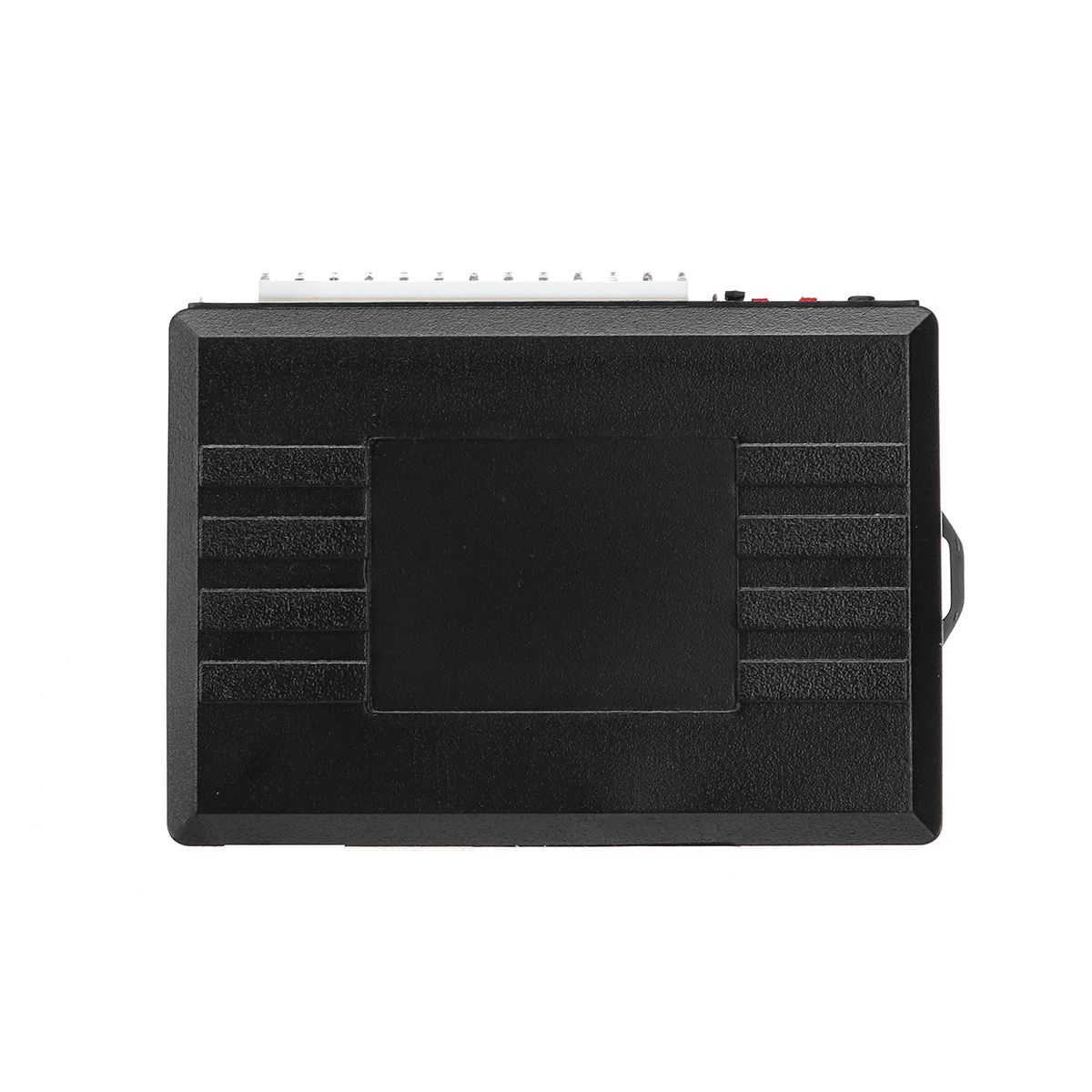

Main unit:
1.Voltage: 12V±2V
1.Voltage: 12V±2V
2.Coding:Learning code
3.Frequency:433.92MHz
4.Shock sensor current:<1mA
5.Indicator current:20mA intermittently
4.Shock sensor current:<1mA
5.Indicator current:20mA intermittently

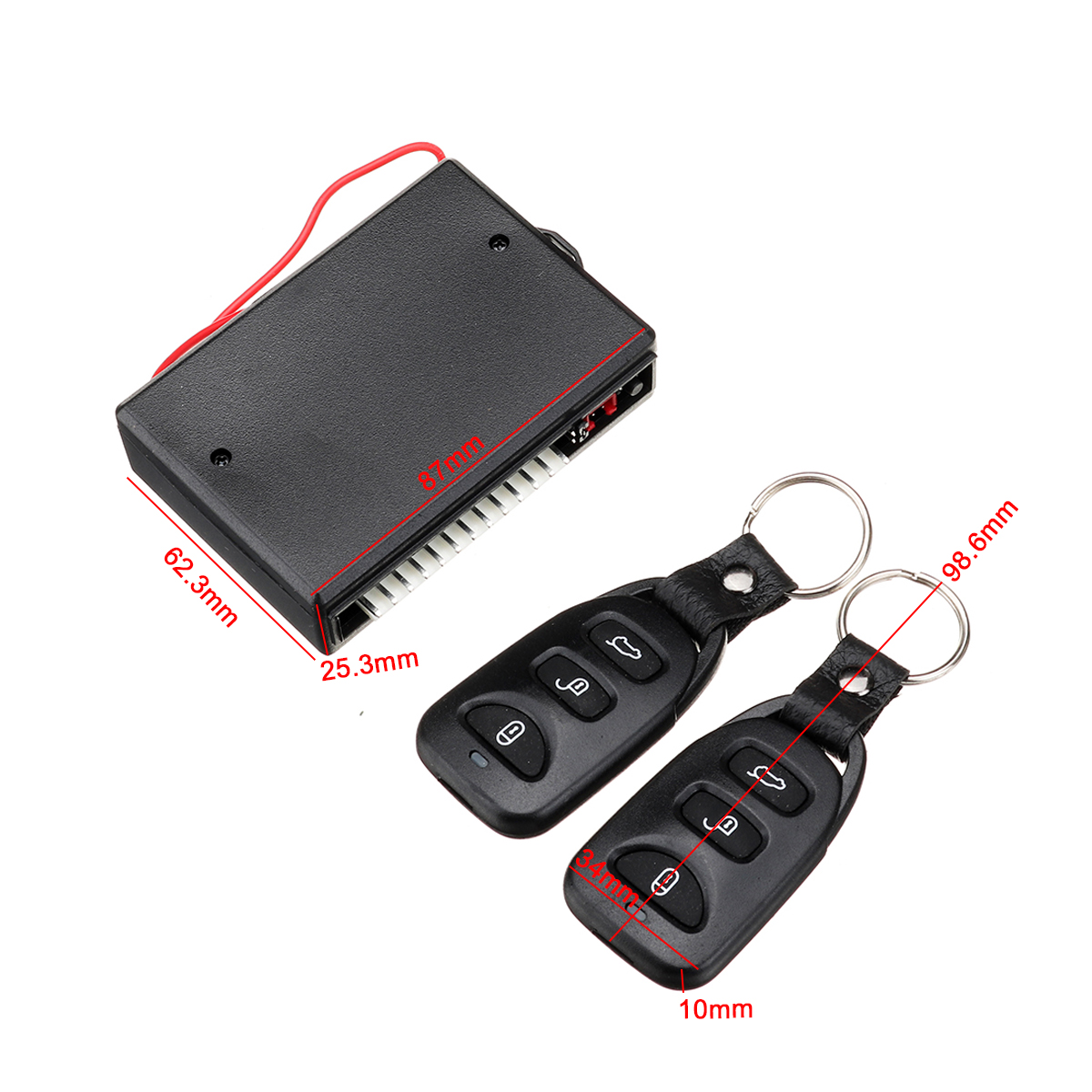

6.Size: 87 x 62.3 x 25.3mm (L x W x H)
7.Static Current: <15mA (except indicator,sensor)
8.Output current: signal light:5A*2,siren 10 A,central lock 10 A

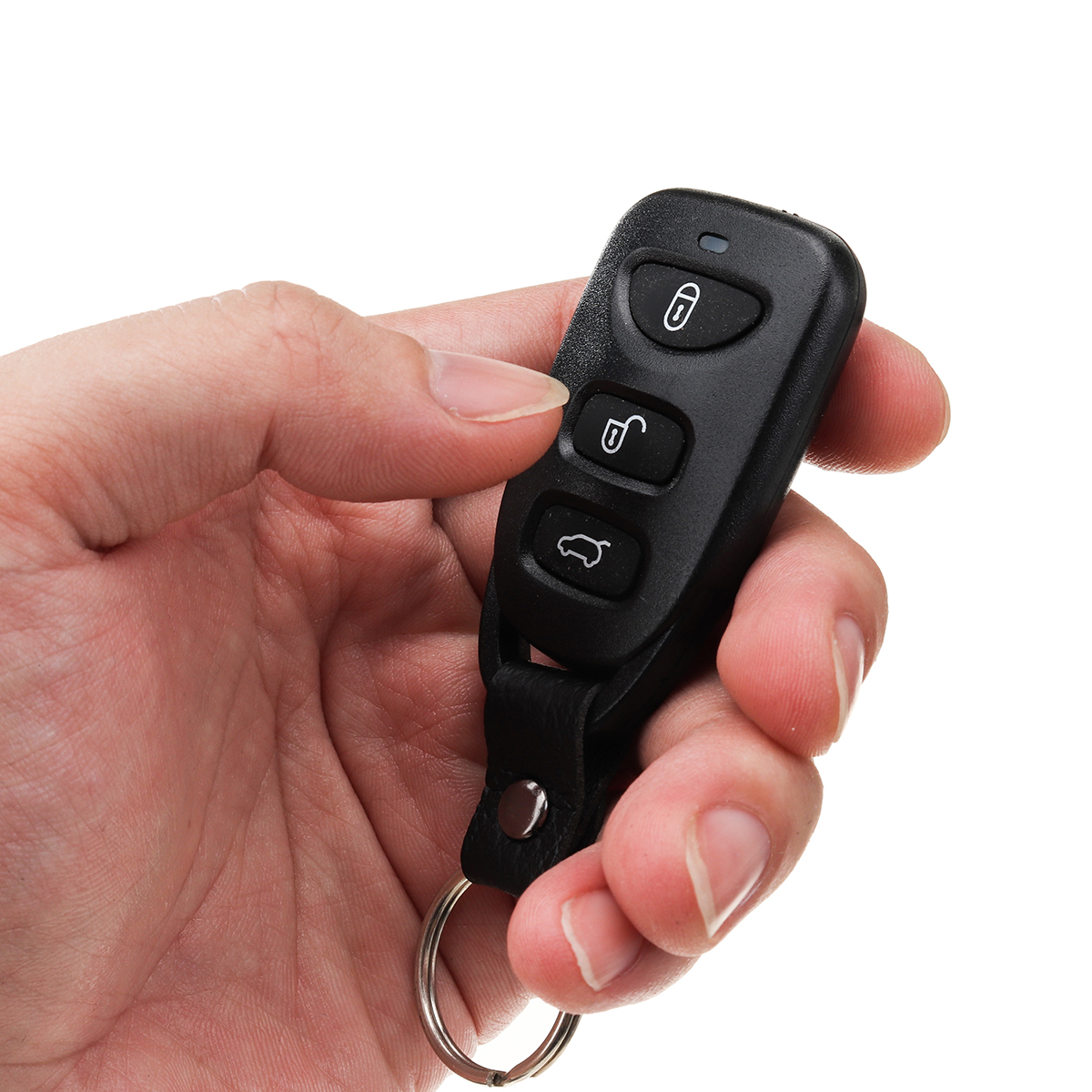

Remote Control:
1.Battery:3V
2.Voltage: 12V
1.Battery:3V
2.Voltage: 12V
3.Static Current: 0mA
4.Code Times:>million
5.Coding:Learning code
7.Size: 98.6 x 34 x 10mm (L x W x H)
5.Coding:Learning code
7.Size: 98.6 x 34 x 10mm (L x W x H)
Features:
1.LED indicator.
2.Direction light flashing.
1.LED indicator.
2.Direction light flashing.
3.Remote trunk release.
4.Universal for any cars.
5.Remotely lock and unlock your car.
6.Remote car location,can find your car easily.
Function Description:
- LOCK
Press Lock on the remote control. Direction light will flash once and the door will be locked. LED indicator will start to flash.
Note: When power window signal is programmed as Siren Output, the siren will beep once after door is locked.
- UNLOCK
Press Unlock on the remote control. Direction light will flash twice and the door will be unlocked.
Note: When power window signal is programmed as Siren Output, the siren will beep twice after door is unlocked.
TRUNK RELEASE
Press and hold Trunk button on the remote control for 3 seconds, direction light will flash twice and the trunk will be released.
Press and hold Unlock button on the remote control for 3 seconds, direction light will flash twice and the trunk will be released.
CAR FIND
A. Press Car Find button, the direction light will flash. Press any button to exit Car Find mode. Press Unlock button will disarm the system (3-button remote control does not have this feature.)
B:Press LOCK button and after 4 seconds press it again, system will enter Car Find mode.

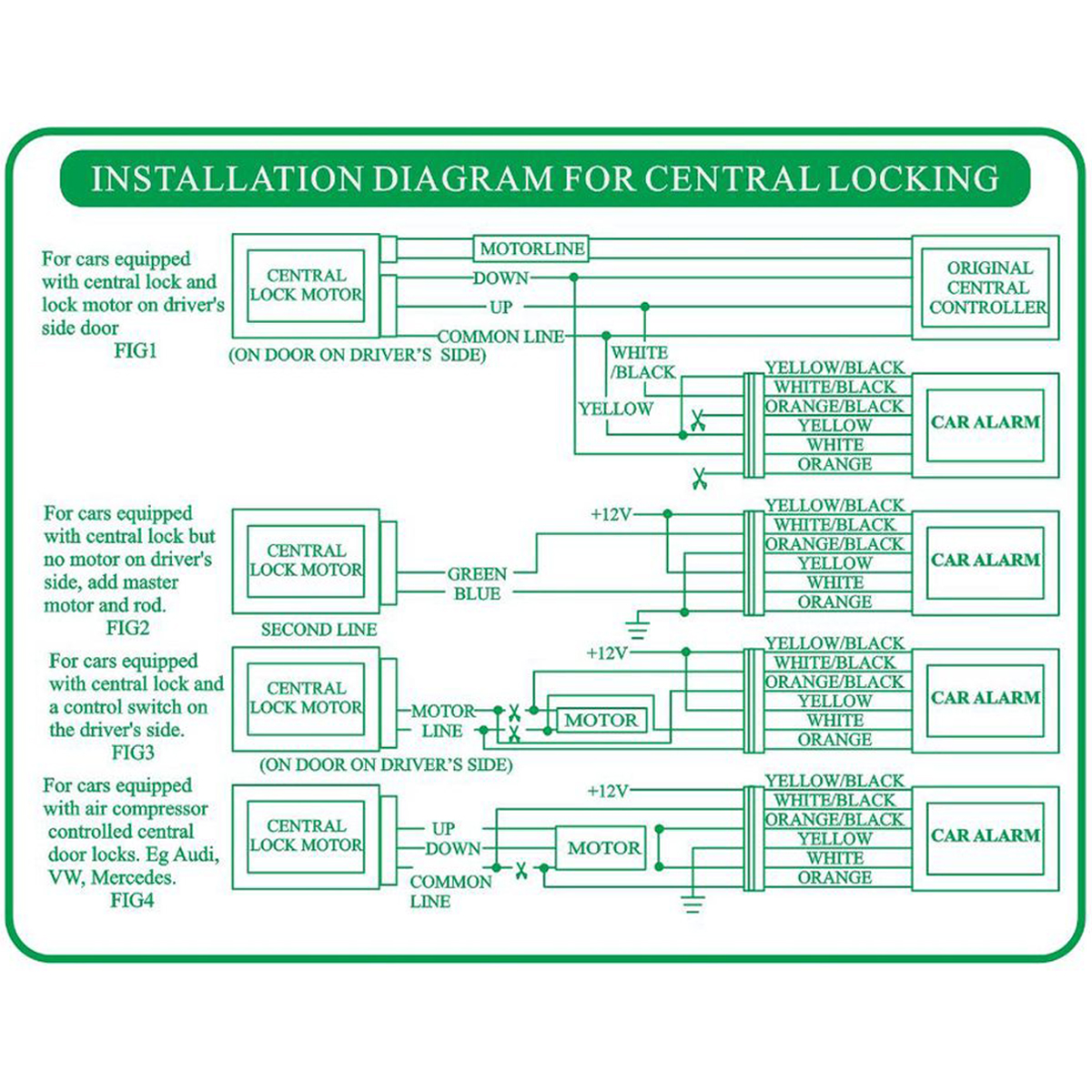

Electronic / Vacuum Central Lock Option
Electronic central lock is 0.5 seconds and 5 seconds for vacuum central lock.
Factory default is electronic central lock.
POWER WINDOW
Press the LOCK button on the remote control, the main unit will give a 25-second power window negative signal to rise the windows.
Auto Central Lock
ACC turn to ON: central lock will lock automatically.
ACC turn to OFF: central lock will unlock automatically.
ACC turn to ON, press LOCK button the remote control: central lock will lock automatically.
ACC turn to ON, press UNLOCK button the remote control: central lock will unlock automatically.
LEARNING CODE

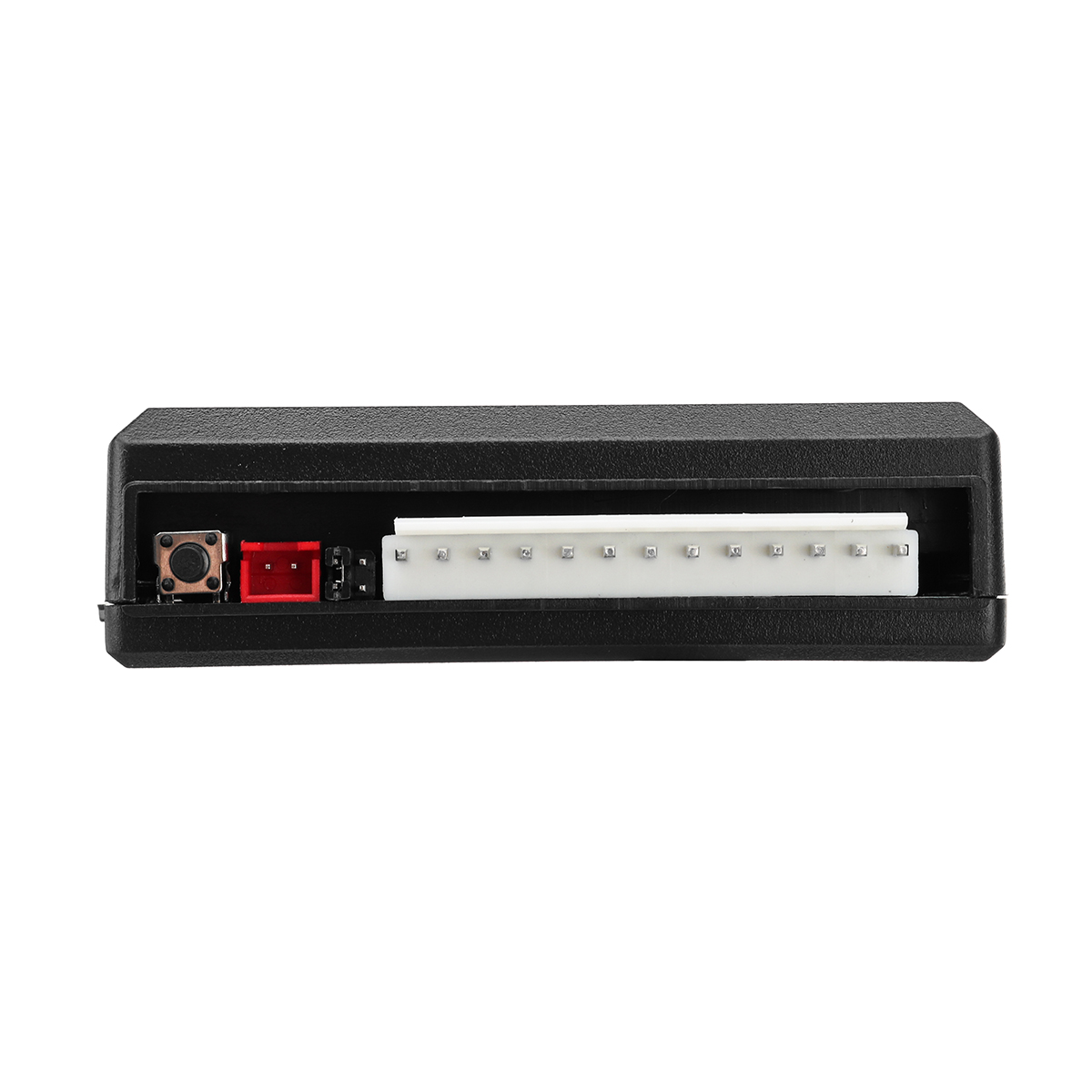

Hold and press the learning button inside the main unit, the direction light will be on and then it will enter the learning mode.
Press any button on 1st remote control, the direction light will flash once means the learning code is successful.
Press any button on 2nd remote control, the direction light will flash once means the learning code is successful.
After 2 remote controls are successfully learned, the system will exit learning mode automatically.
PROGRAMMING
1.Power window / Siren signal feature programming
Within 10 seconds that the main unit is connected to the power, hold and press the LOCK or UNLOCK button on the remote control to program the features.
LOCK: power window negative by default
UNLOCK: Siren negative
2.Auto central lock programming
Within 10 seconds that the main unit is connected to the power, turn ACC to ON, hold and press LOCK and UNLOCK button for 2 seconds, direction light will be turned on, and then press the remote control button to program:
Press LOCK button: ACC turned to ON and door will be locked automatically.

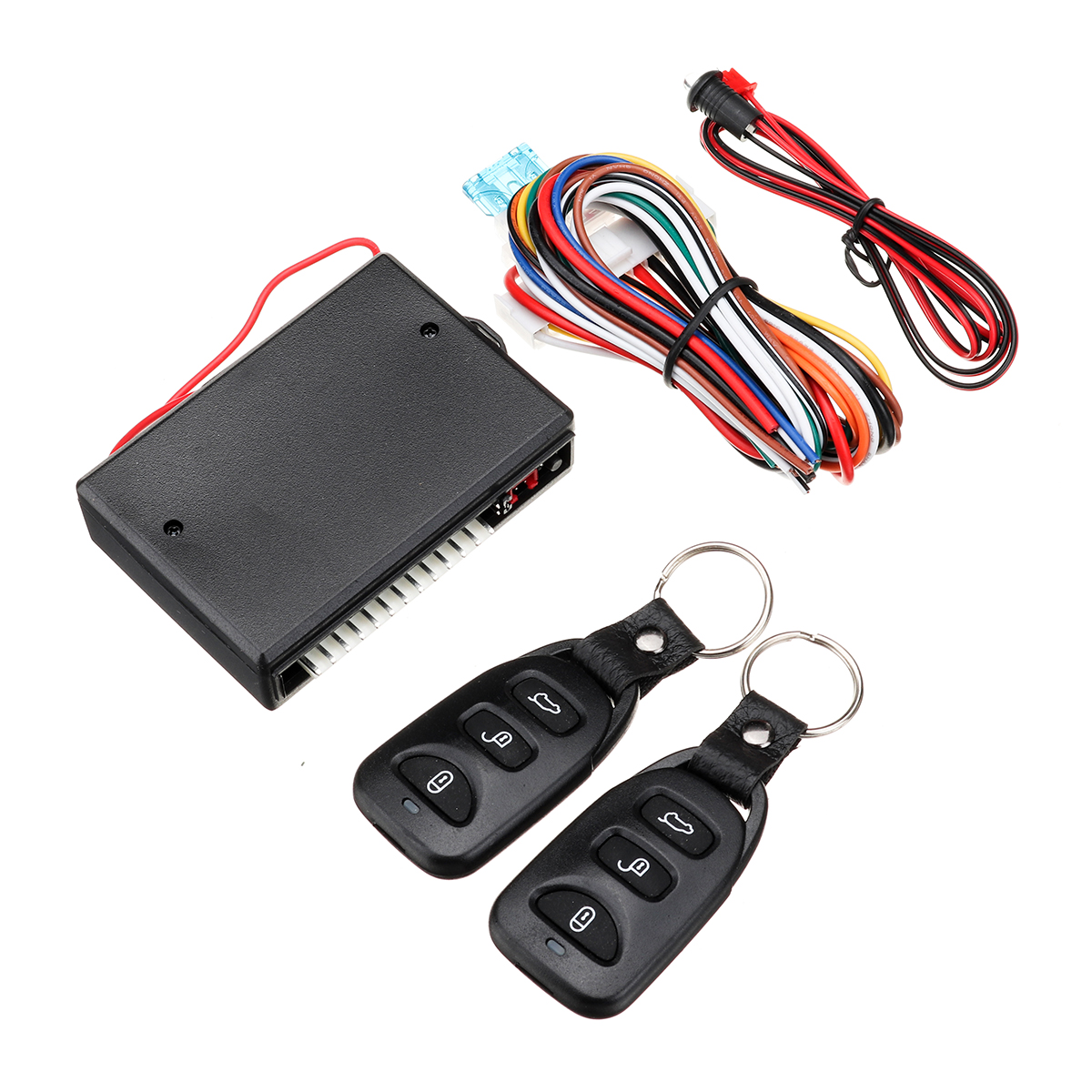

Package included:
1 x Wire
1 x Wire
1 x Control box
1 x LED connection wire
1 x English Operation instruction
2 x Remote Control (Including battery)
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3.Instruction is not included.Professional Installation Is Highly Recommended!!If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.
