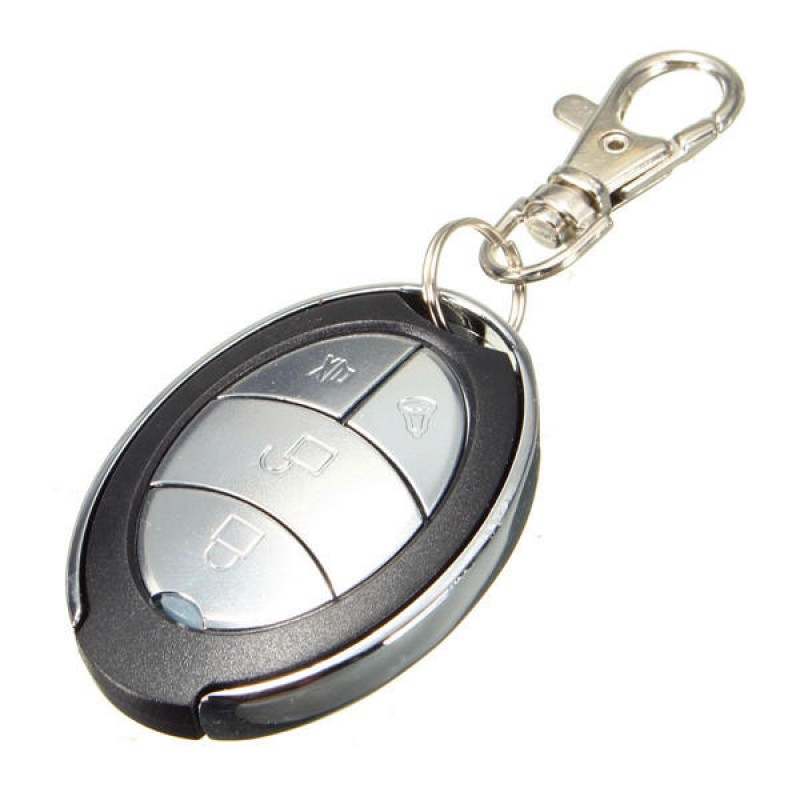

Universal Four Keys Electric Gate Garage Door Fob 433mhz Cloner Remote Control
$8.02
- Product Code: ED00010519
- Availability: In Stock
- Ex Tax: $8.02
Feature:
1.100% Brand new and high quality.
2.This paragraph remote control the appearance of new, when you use it you can feel very comfortable.
3.Circuit design of high electromagnetic conversion efficiency, transmission power, low power consumption
4.Use of SAW devices (SAW) frequency stabilization, 6.5G ultra high frequency transistor
5.Compact, elegant appearance
6.SAW frequency stabilization, stable performance
7.Frequency variety, cost-effective
Specification:
1.Operating voltage: 6V
2.Reference distance: 50-100 meters, depending on the actual needs of specific working environment (geographical environment, electromagnetic environment, receiver sensitivity, etc.)
3.Operating frequency: 433MHz
4.Standby current: 0mA
5.Working Current: 16mA
6.Encoding: fixed code / learning code (2260 / eV1527 / PT2240B chip)
7.Transmission distance:> 100m (open field sensitivity at -103dBm receiver board over distance)
8.Output Power: 9dBm (8mW)
9.Transfer rate: <10mbps
10.Modulation: OOK (AM)
11.Working temperature: -10 ℃ ~ + 70 ℃
12.Color:black
Apply for:
It can be widely used in remote control switch, remote control socket, remote control LED, remote audio, remote control electric doors, garage door remote control, remote control retractable doors, remote control rolling gates, sliding door, remote control door opener, and other closed door control system, remote control curtains, alarm host, alarm, remote control motorcycle, electric remote control cars, remote control lights, remote control cars, security and other remote areas of civil and industrial facilities, as well as remote control motor reversing and other remote areas.
Encoder IC compatibility list
EV1527, HS1527, SCL1527, FP1527, PT2240, HS2240,PT2260, SC2260, PT2262, SC2262,PT2264, SMC5326P-3,SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SCT527
How to use:
Step-1 Clear the history code from duplicator
1. Press first and second button continuously until LED flash 3 times
2. Release button B (Keep pressing button A),and press button B Slowly for 3 times, LED flash
3. Release button A,finish code clearance.
If code clearance done properly, short press any button. Light won't flash at all.
If light flash when short press any button clearance process done wrong. Please repeat clearance process again.
Step-2 Copy code from original transmitter
Place the cloner remote and the original remote close together side by side. Make sure they are touching.
1. Simultaneously press a button on your original remote and one of the buttons on the clone remote and hold until the LED on the clone remote flashes steadily. The Blue LED will first flash 3 times quick, then stops for a second, then flashes steadily.
2. Release both buttons. Programming is successful. Copy other buttons in same way.
Note:

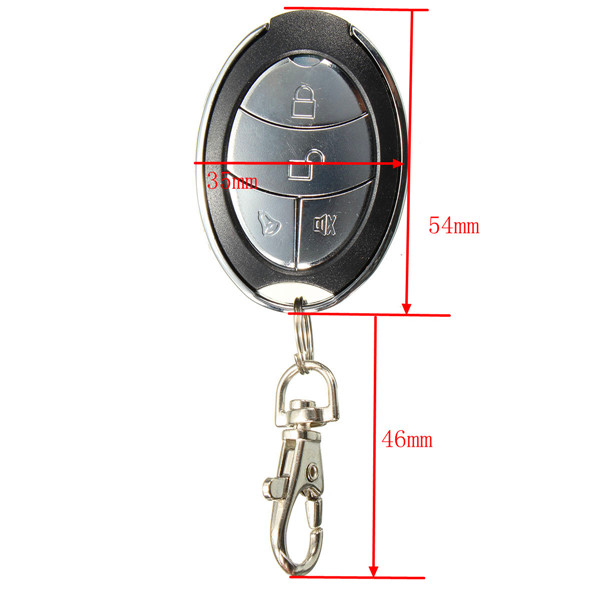

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. Instruction is not included.
Package included:
1 x 4-channel Remote Control Key
,,,
