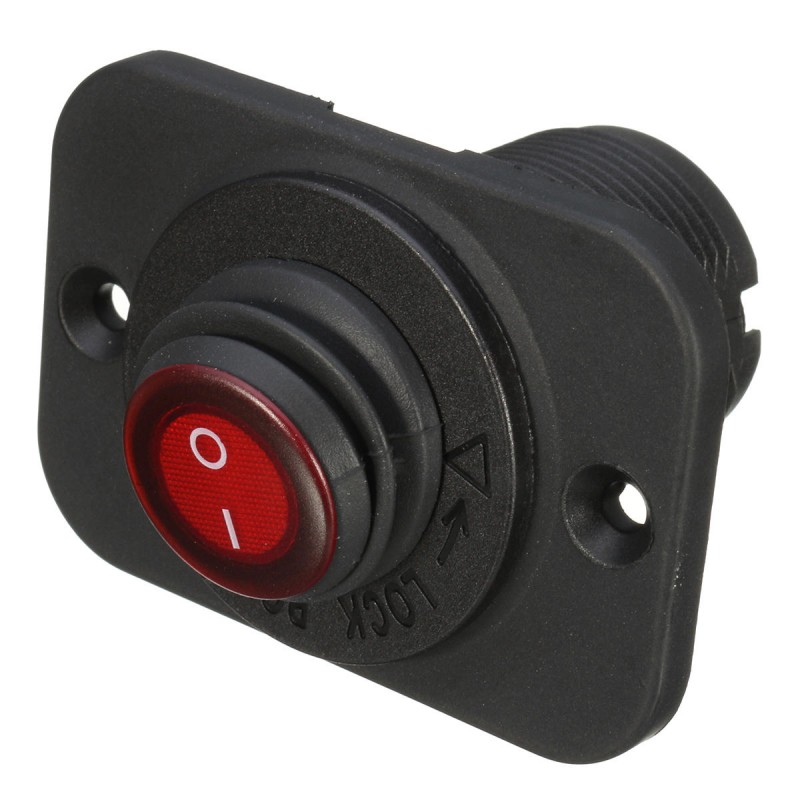

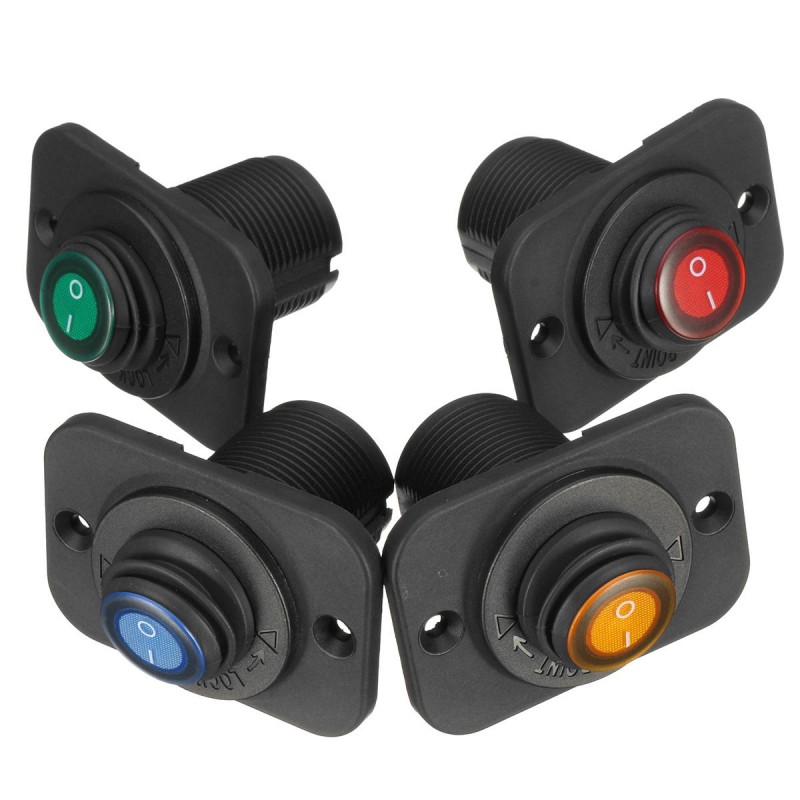

Waterproof Round Rocker Toggle Switch Panel Socket SPST Marine CAR On-Off 12V
$11.99
- Product Code: ED0021008
- Availability: In Stock
- Ex Tax: $11.99
Available Options
Description:
New and improved rubber front bellows seal that protects the switch from water. Positive feel when switch toggles.

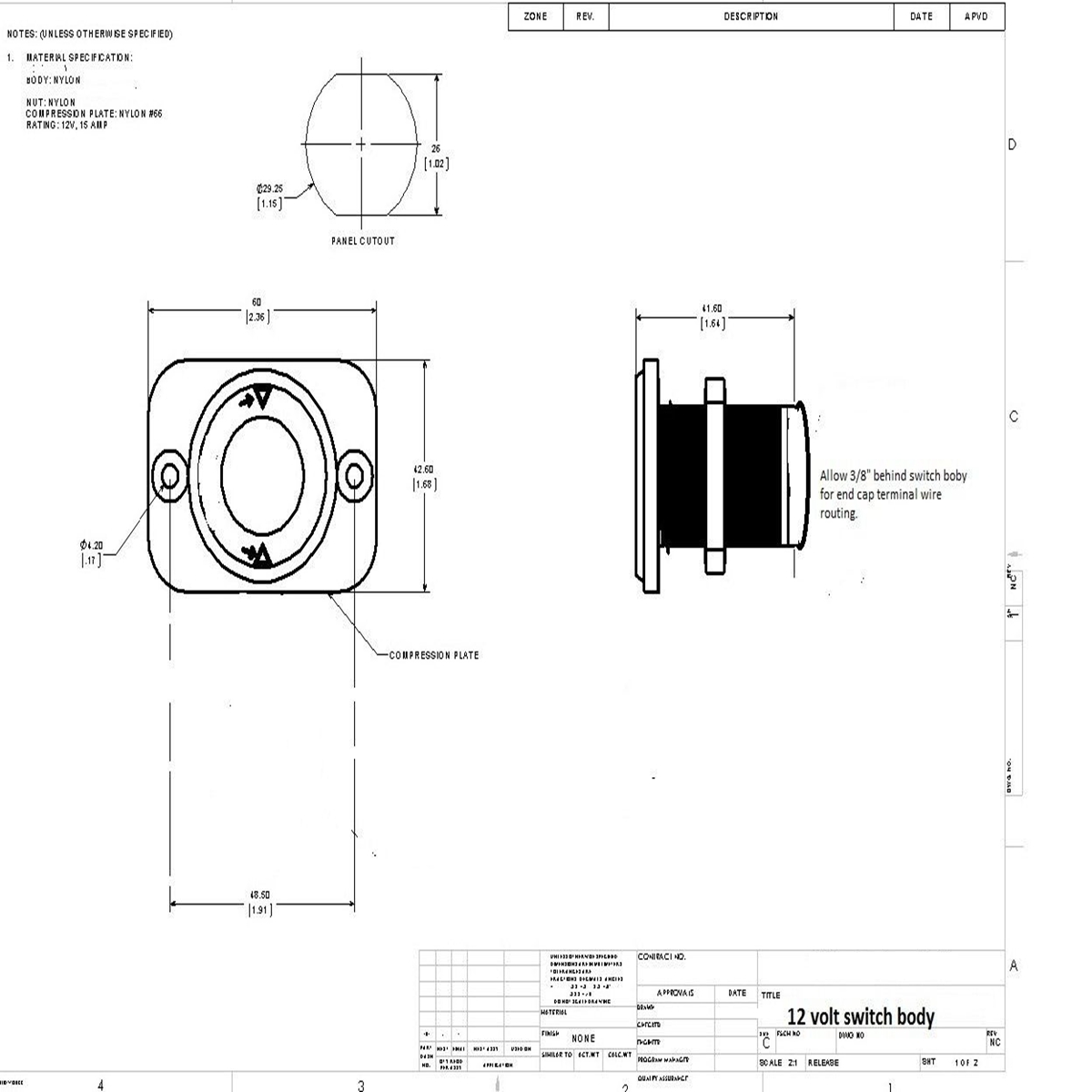

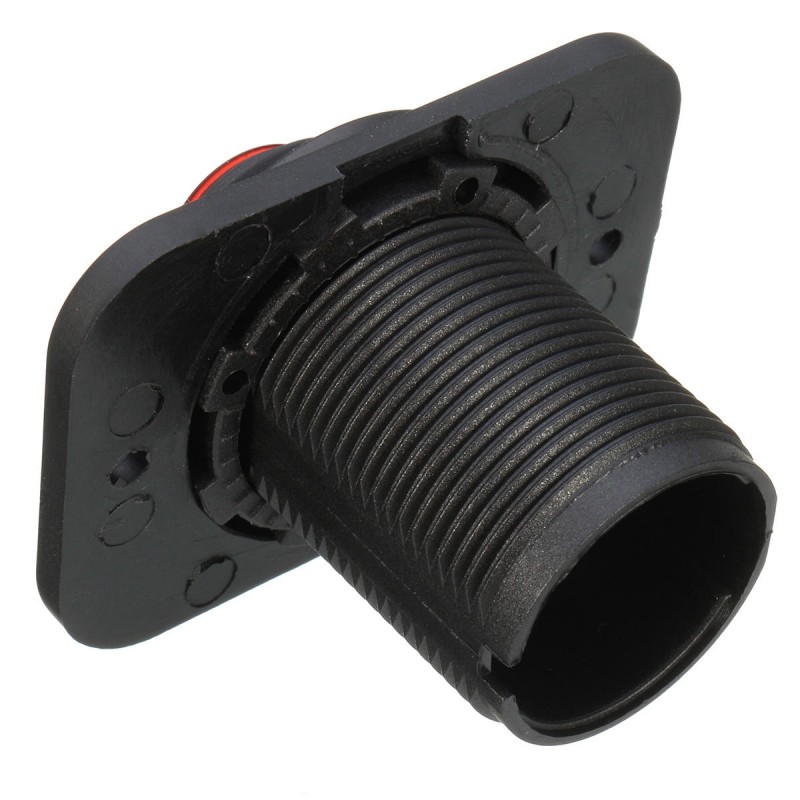

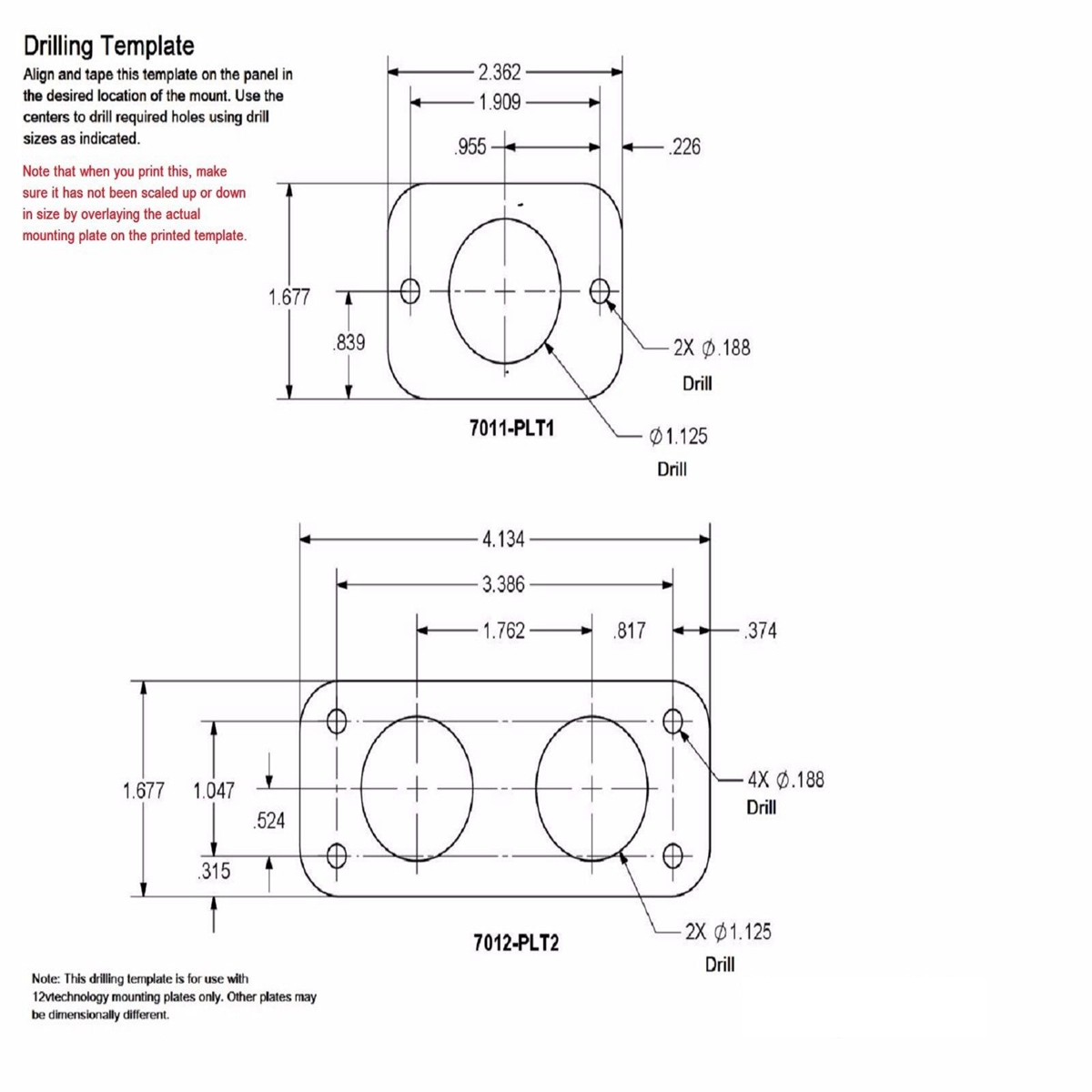

Nylon threaded switch housing mount in a 1-1/8” hole.
Can be mounted in panels or dashboards up to 1-1/4” thick with the retaining nut and in panels of unlimited thickness with the mounting plate.
Can be mounted in panels or dashboards up to 1-1/4” thick with the retaining nut and in panels of unlimited thickness with the mounting plate.
12 volt operation: Rated for 16 amps at 12 volts.
Has male ¼” crimp style disconnect terminals.
Two wire connection black wires switch load.

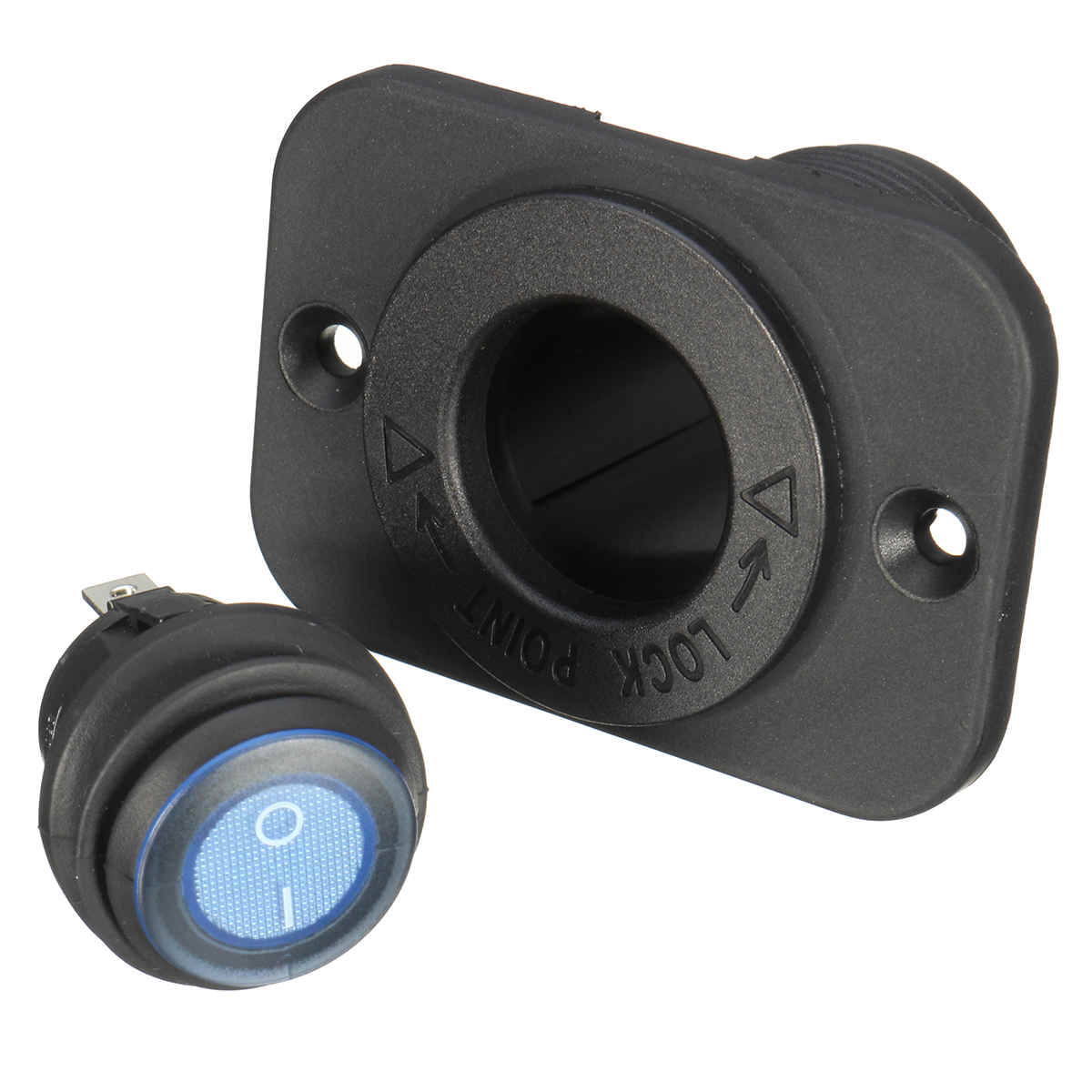

Repairable replaceable switch. Can be removed from the housing front.
Specification:
Model Number: 569682
Product Name: Waterproof Toggle Switch

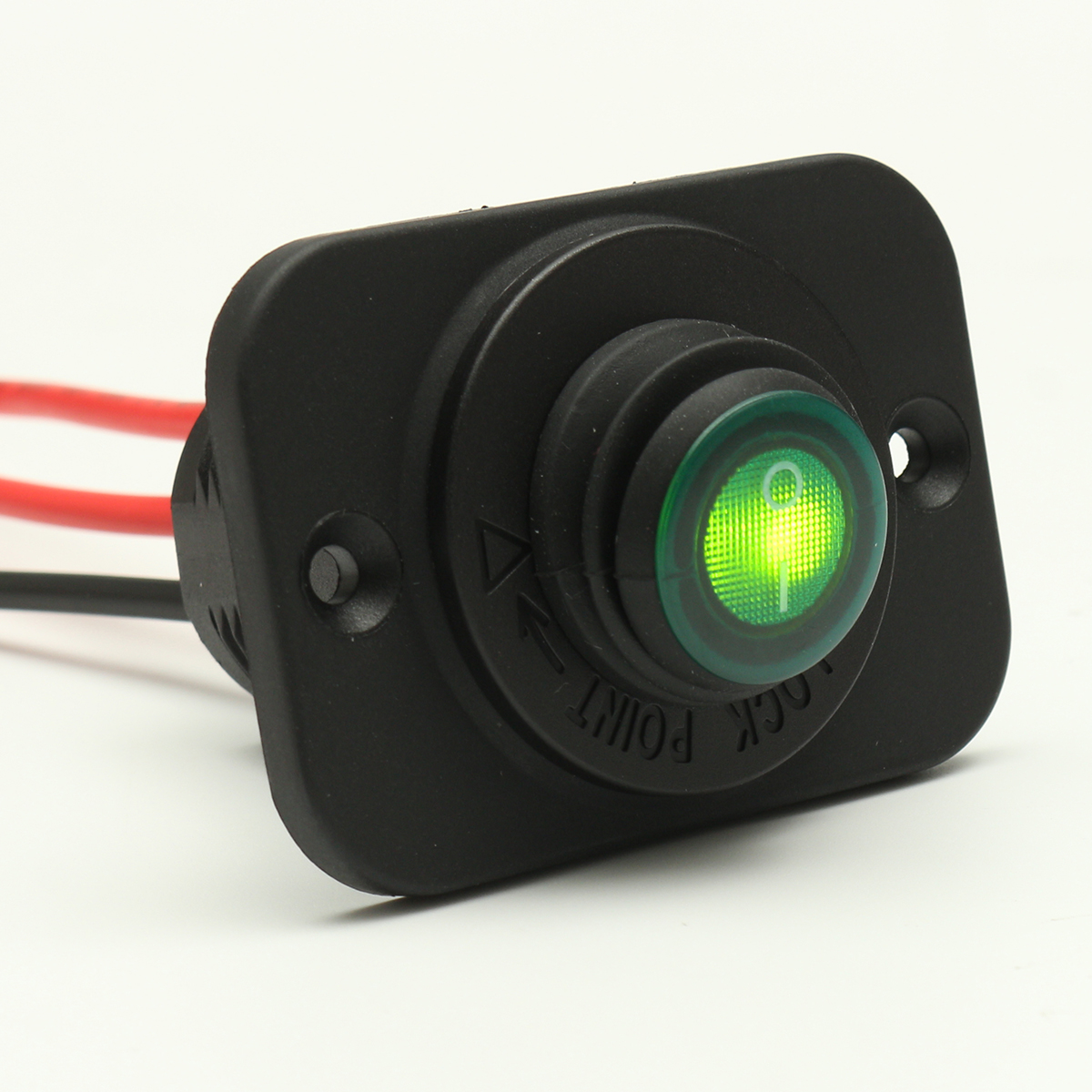

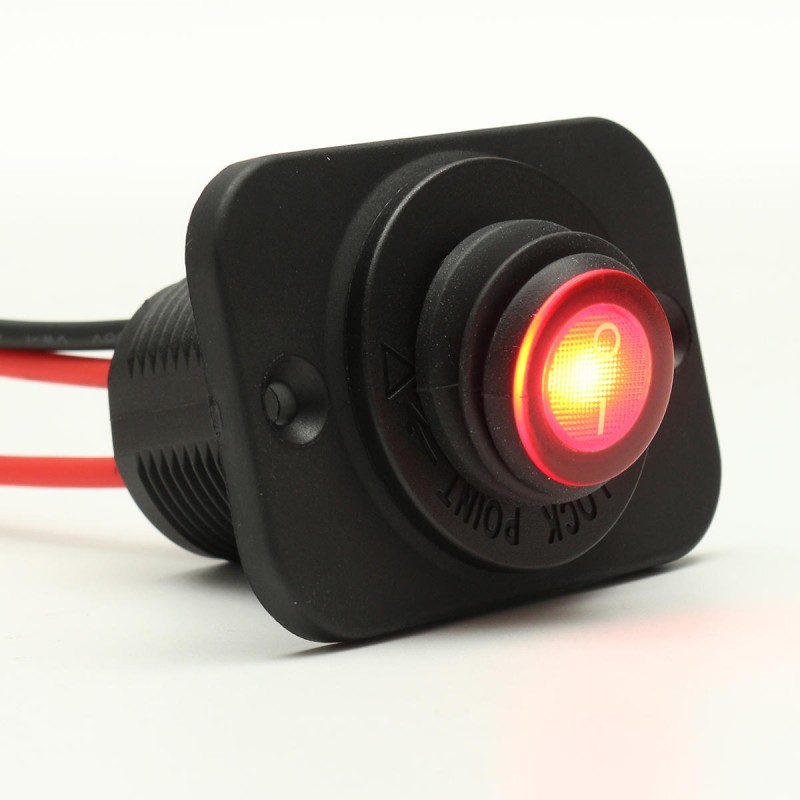

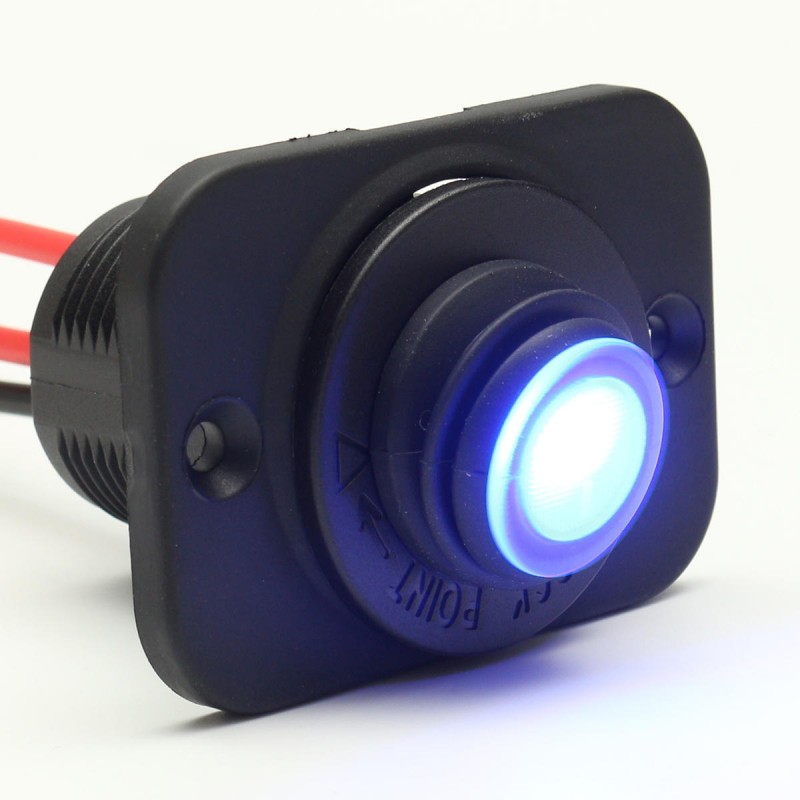

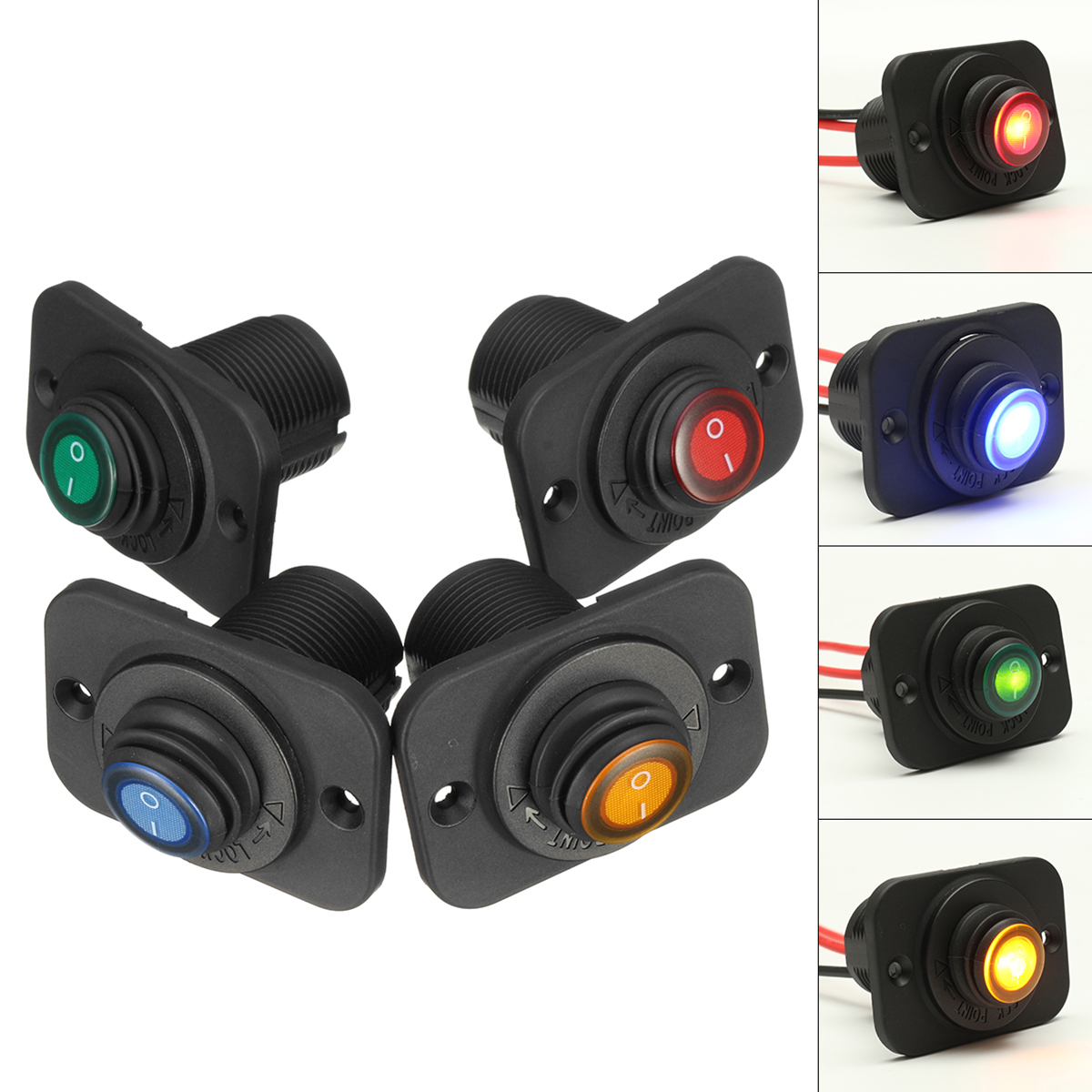

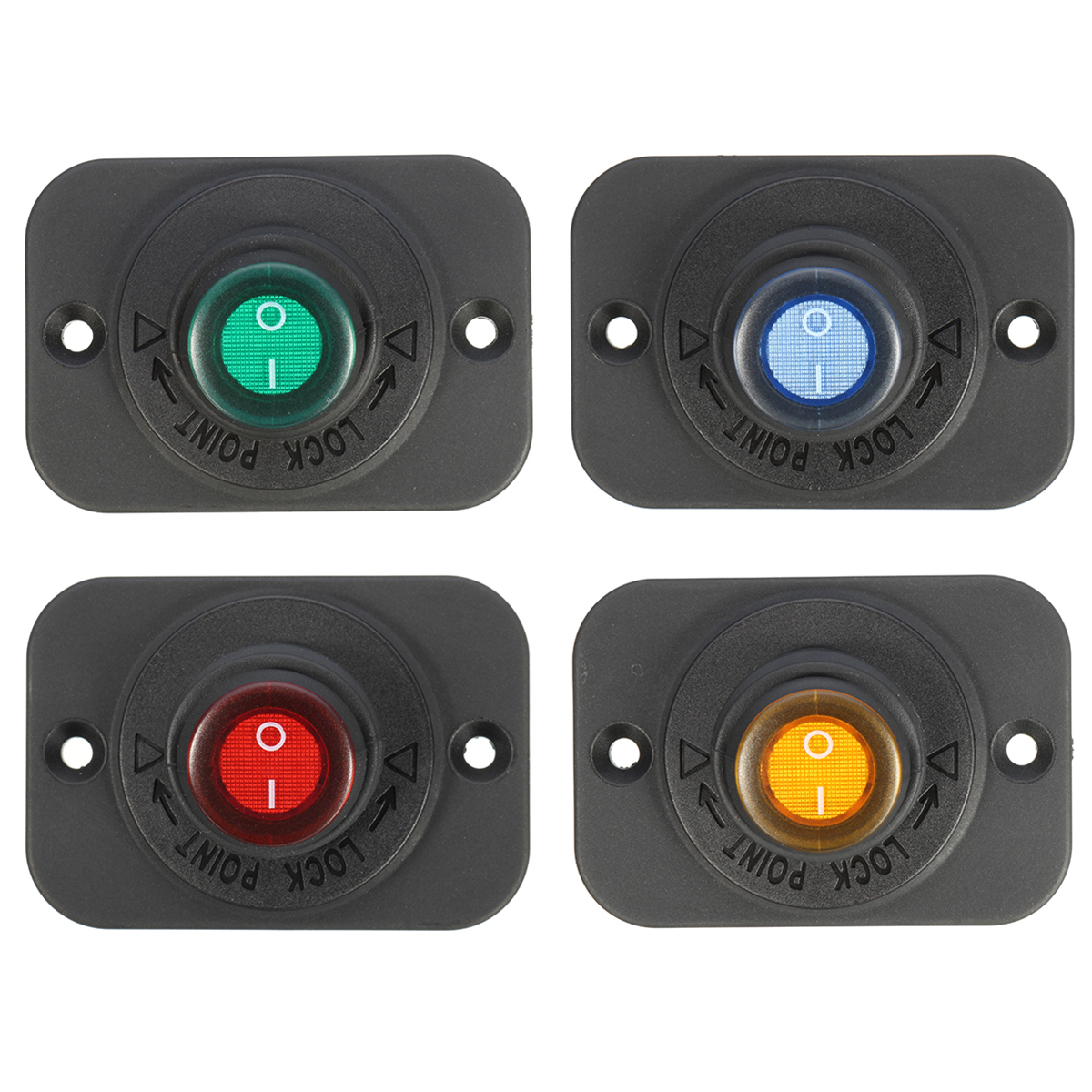

Switch Color: Red, Blue, Yellow, Green
Material: Nylon
Installation:

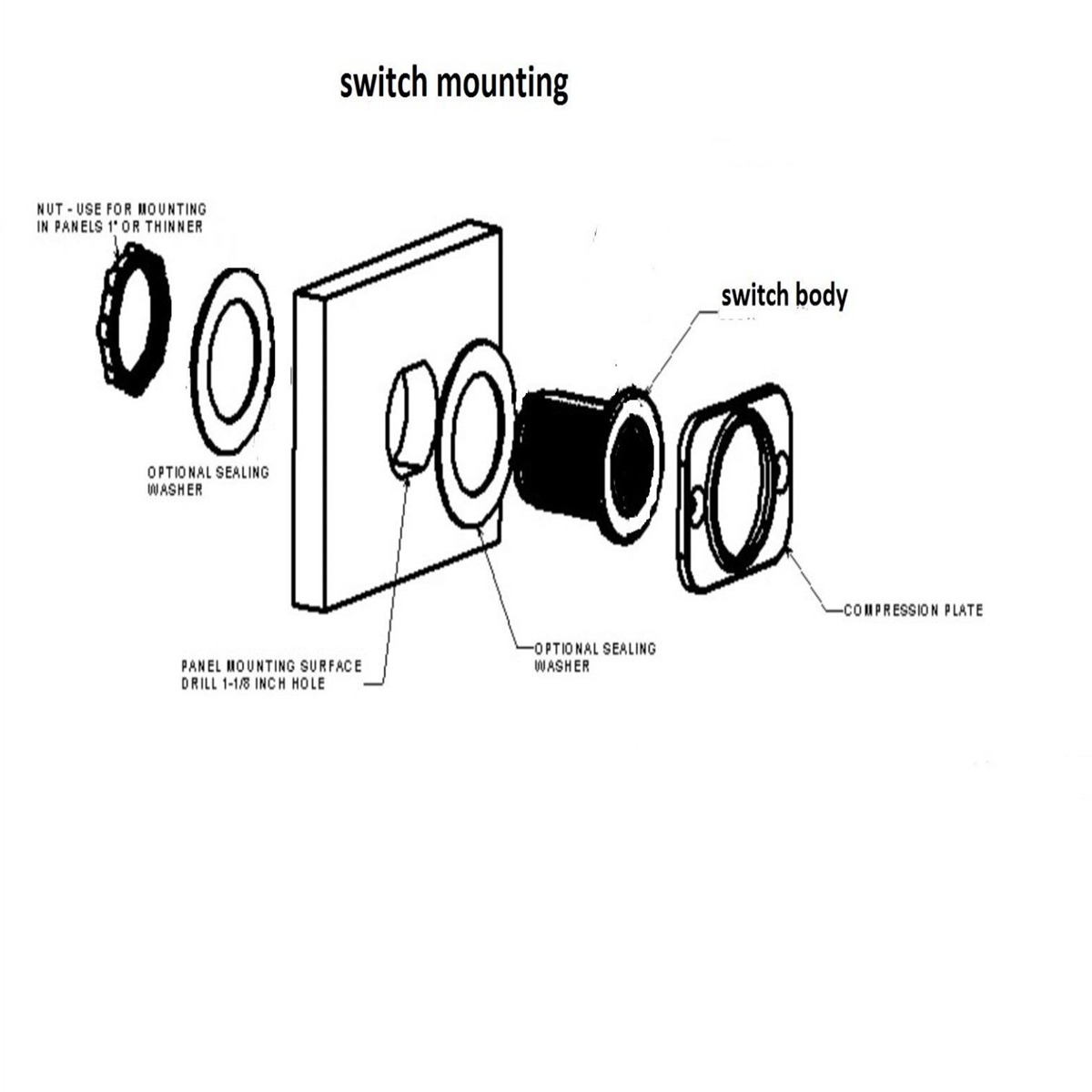

Add a rubber occlusive sealing socket washer. Makes an extra waterproof seal when mounting the socket against a panel. The washer goes between the socket flange or nut, and the panel to seal the assembly.
Add wires with a fused 60 inch (5ft) wire harness to your socket assembly. The harness comes with of a fuse holder and fuse, and red and black wire connectors to attach to your socket and battery.
Note:
We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

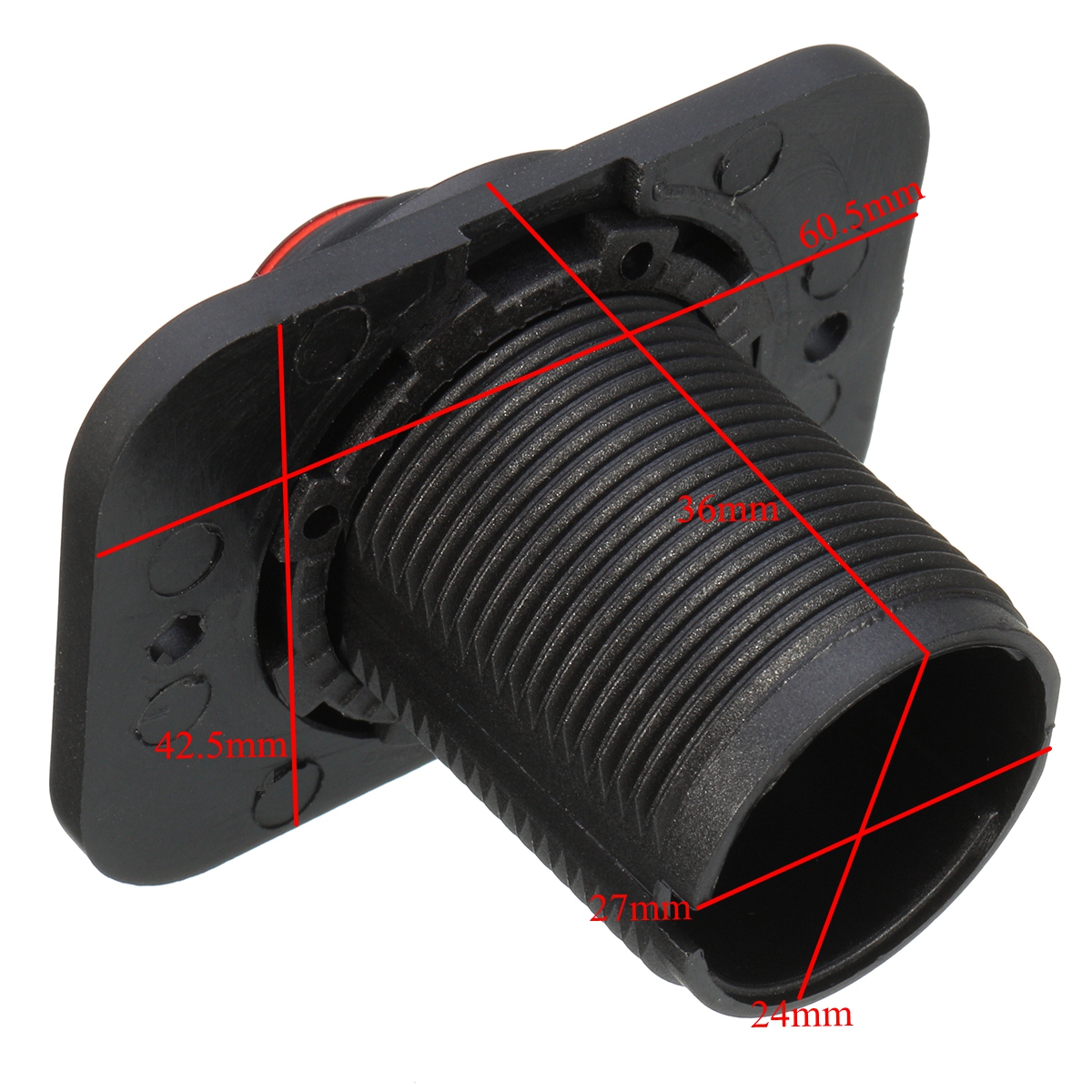

All dimensions are measured by hand, Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm).
Please let us know the color you’d like.You can LEAVE THE MESSAGE ON YOUR PAYPAL NOTE to tell us. Otherwise we’ll send them at random.
There Are No Instructions Included In This Kit.Professional Installation Is Highly Recommended!

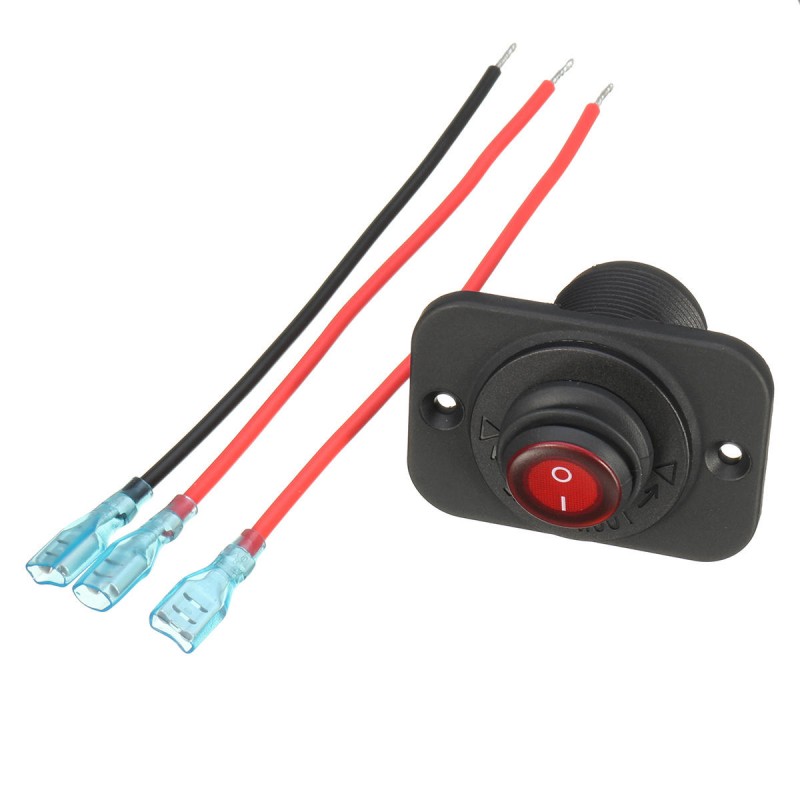

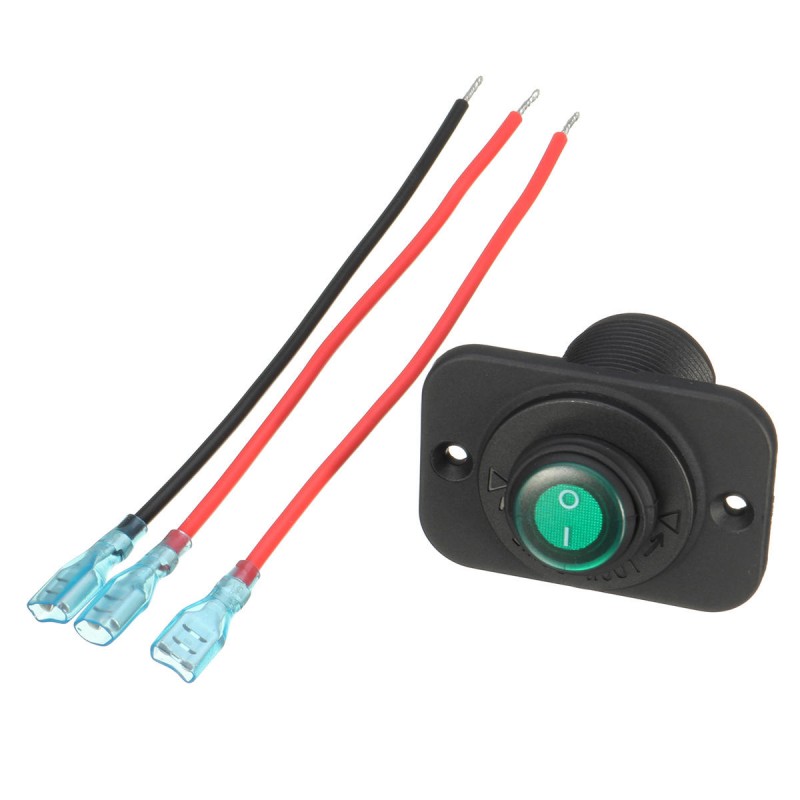

Package Included:
1 X Switch
1 X Panel

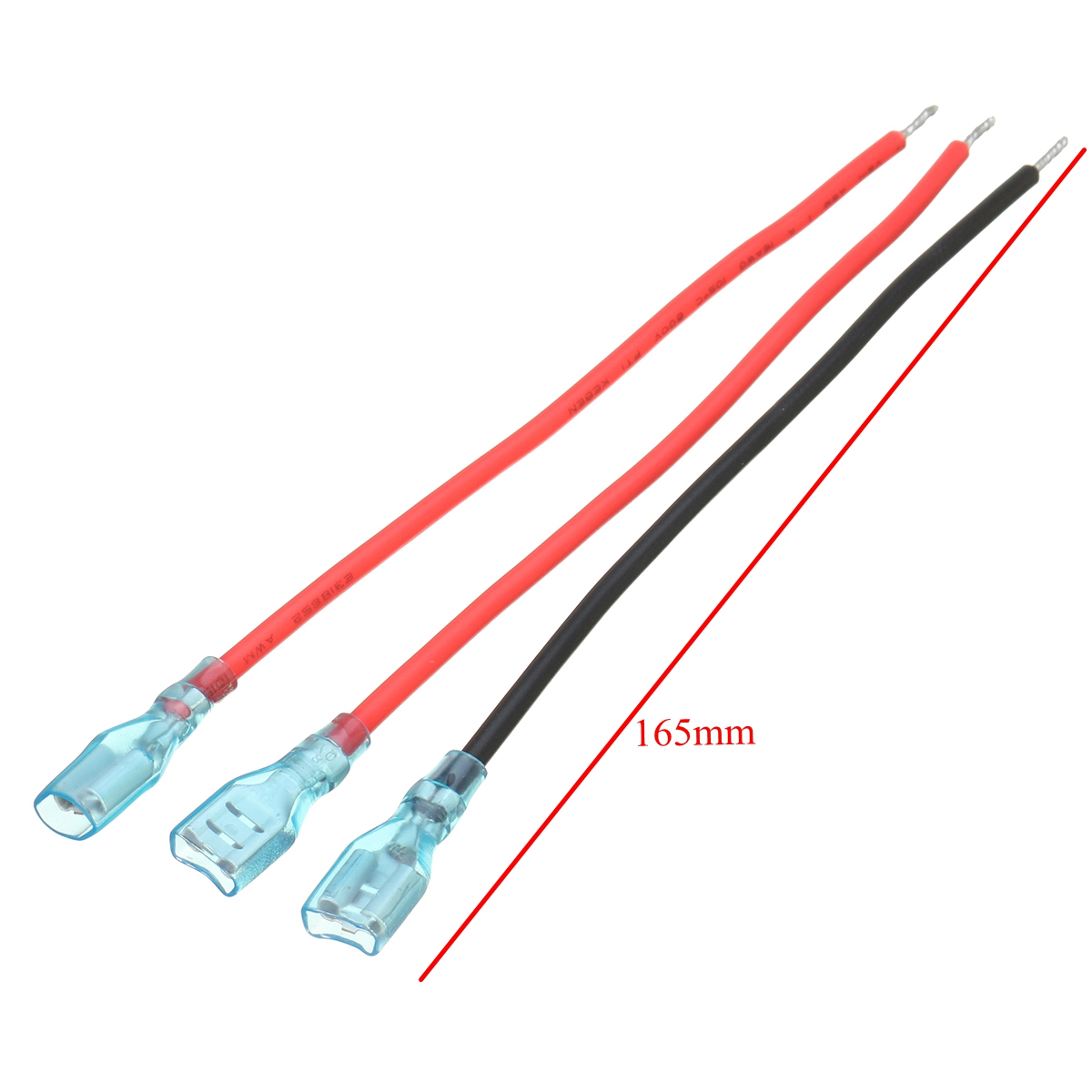

3 X Wires
