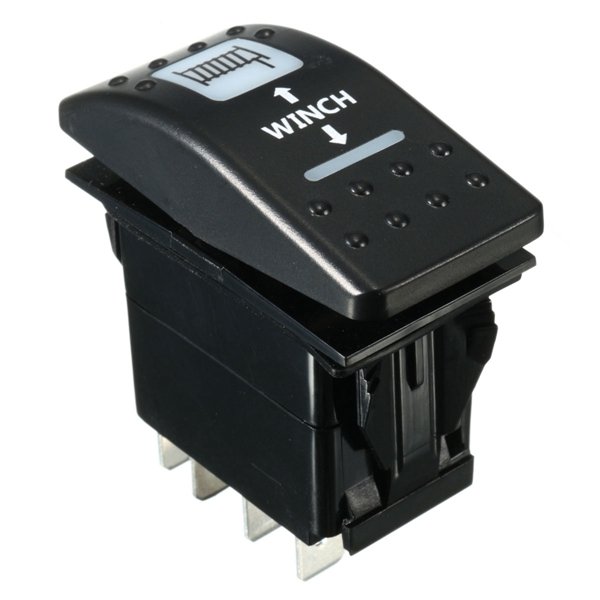

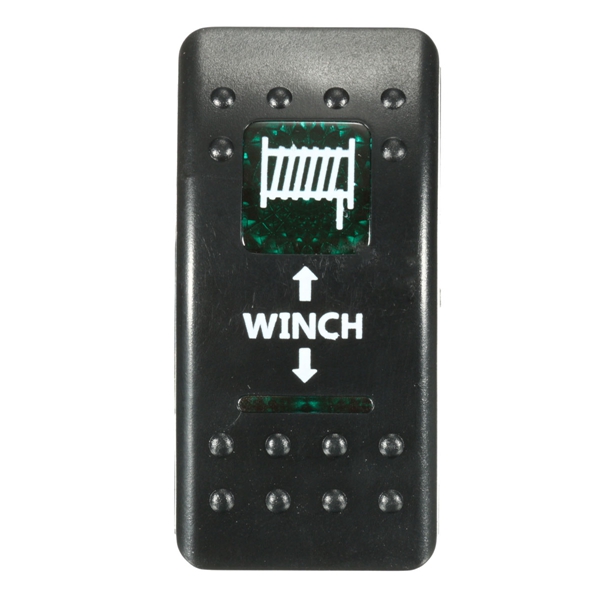

Winch In Winch Out Rocker Switch Dual LED Signal Light For Caravan UTE Marine Boat 7Pin
$10.99
- Product Code: ED0020762
- Availability: In Stock
- Ex Tax: $10.99
Available Options
Description:
Black hard surface rocker
Laser etched WINCH IN WINCH OUT Legend
Single upper light
Single lower light
Upper light is ON when the switch is pressed UP
Lower light can be wired to separate dash light circuit
Waterproof rating of IP66
No rear barriers between terminals
Wiring diagram is not supplied
Specification:
Color: Black

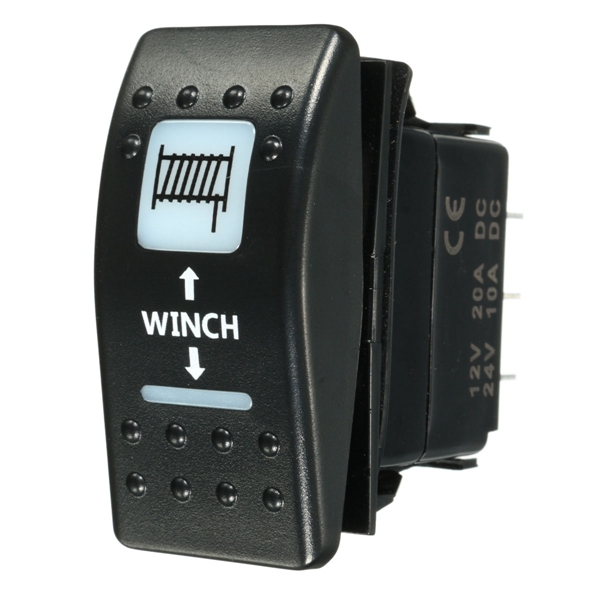

Rated: 12V 20A / 24V 10A DC
Pin Number: 7 Pins

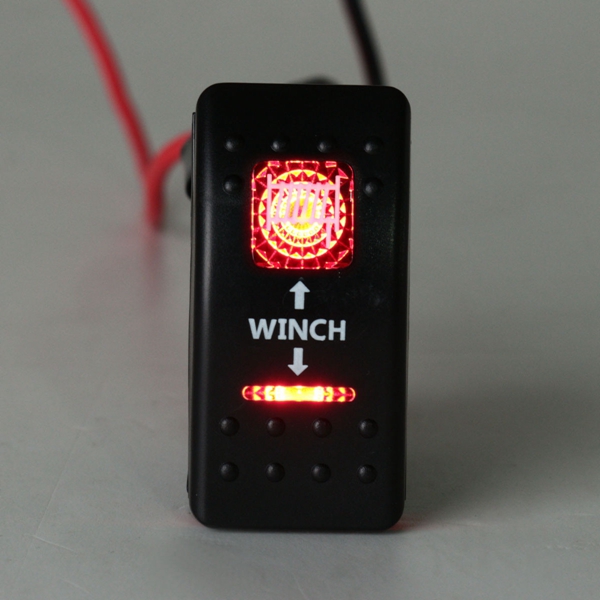

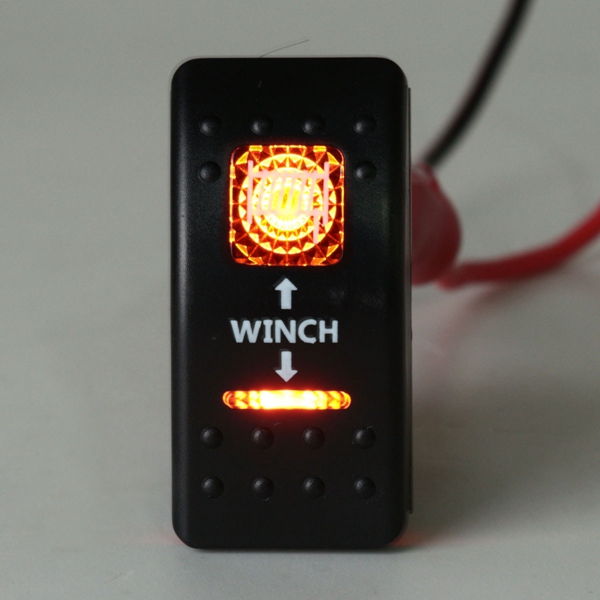

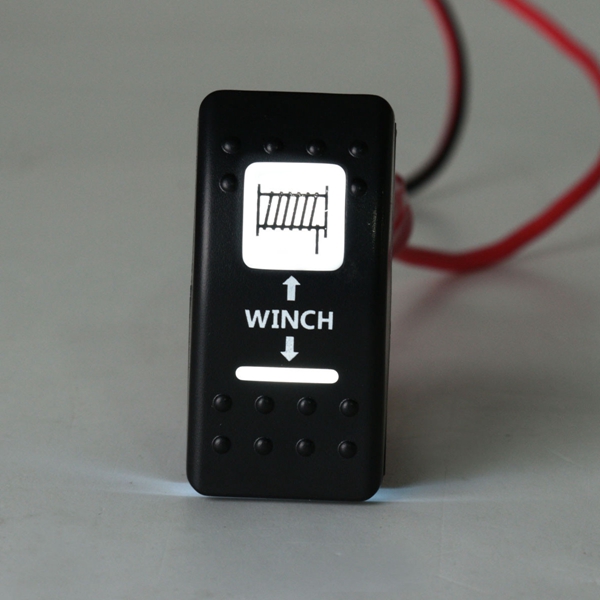

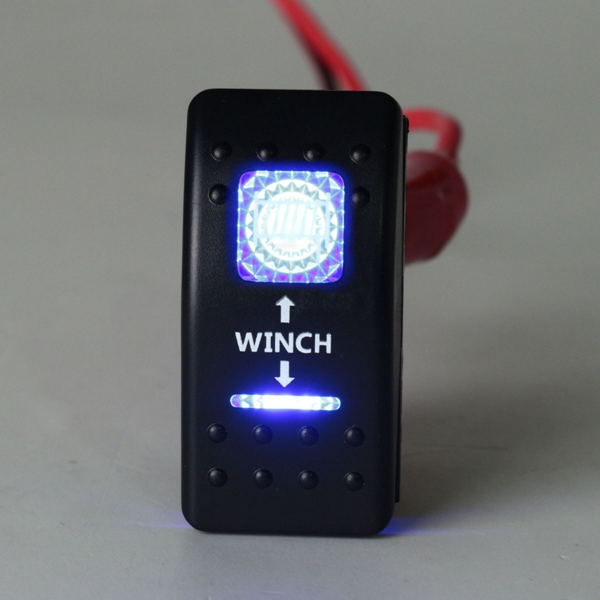

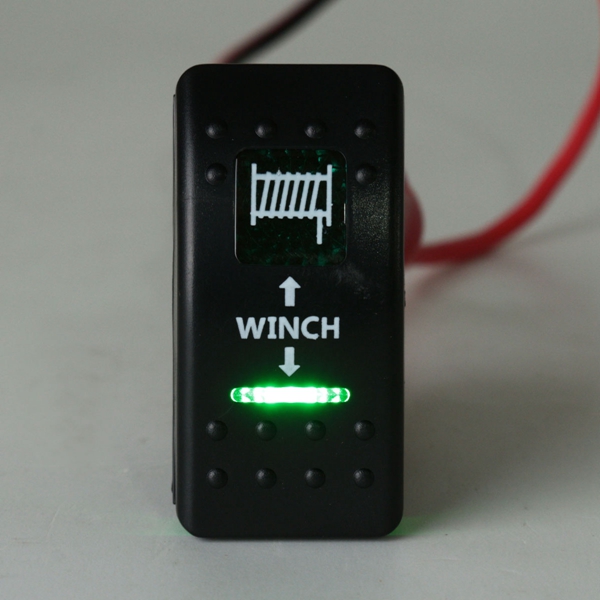

Light Color: Green, Orange, Blue, Red, White
Type: (ON) - OFF - (ON) switch
Cutout dimensions are 0.83" by 1.45"(21mm x 36.83mm)
Face surface size: 0.90'' x 1.92''(49mm x 23mm)
Package included:
1 x Rocker Switch
