6-32V RV Boat Battery Selector Switch Four Speed Battery Switch For RV Boat Motor
$46.99
- Product Code: ED0020531
- Availability: In Stock
- Ex Tax: $46.99
Description:
It can work normally under a battery power supply, and it can also save an auxiliary battery. When the power is low, you can turn on the switch in both positions and connect 2 batteries to use.
Specification:
Product material |
ABS plastic, copper, etc. |
Product voltage |
6V-12V-24V-32V |
Continuous current |
175A |
Maximum current |
300A |
Terminal switch |
3 |
Thread diameter |
10mm |
Product function |
4 position adjustment |
Application range |
175A continuous or 300A intermittent at 12V DC, suitable for 6V, 12V, 24V, 32V boat / RV supply system |

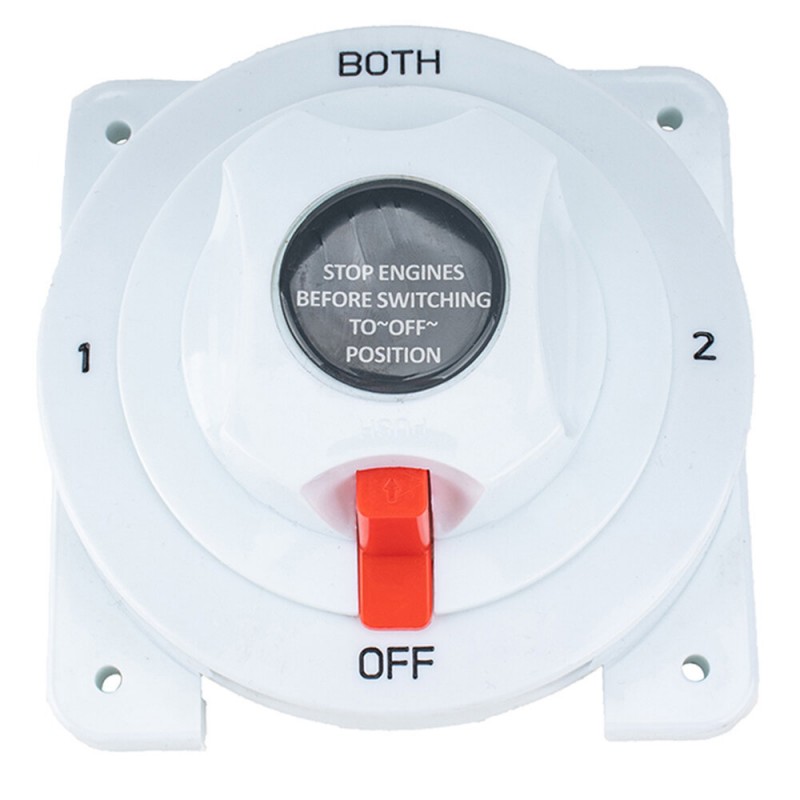

Introduction Position:
The 4-position adjustment can control two batteries at the same time.
1 means to control the battery number 1 to supply power.
2 means it controls the number of Battery 2 to supply power.
Both means that battery No. 1 and No. 2 supply power at the same time.
Off means turn off the power.
Note:
1. There may be slight differences in size due to manual measurement, different measurement methods and tools.
2. The picture may not reflect the actual color of the item due to different photography light, angle, and screen monitor.
Package Included:
1 X |
Battery Switch |
