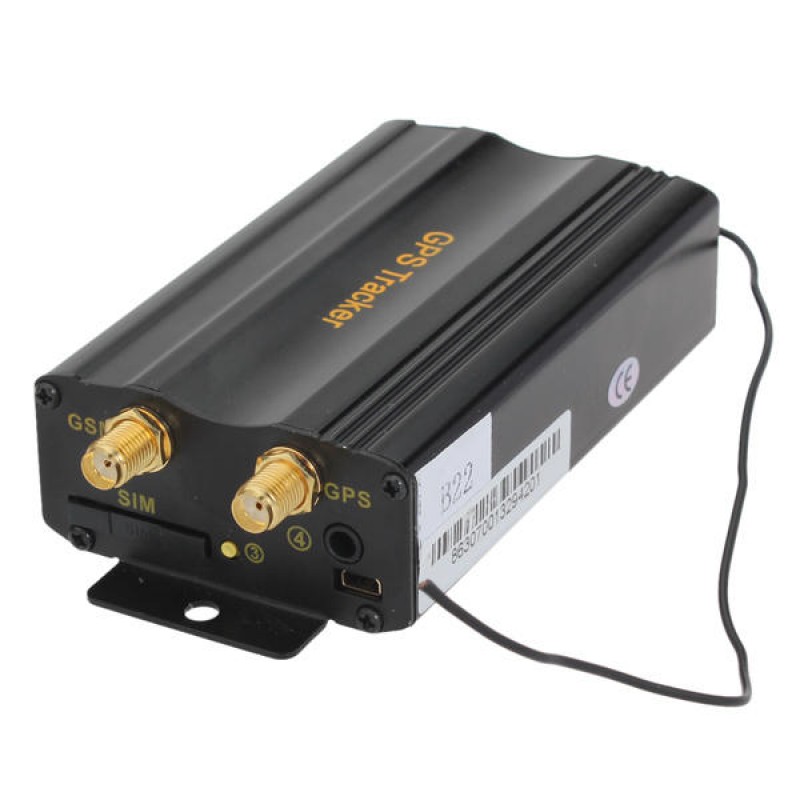

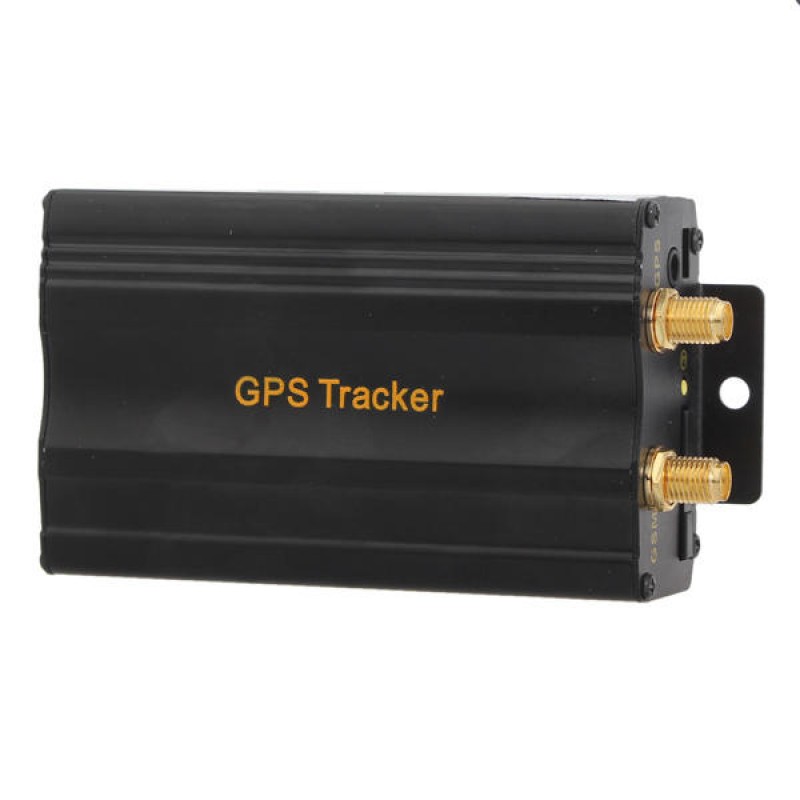

Vehicle Car GPS Tracker 103A Car Alarm System


  • Product Code: ED0003581
  • Availability: In Stock
  • Ex Tax: $51.09
GPS/GSM station positioning.
SMS/GPRS/internet network data transfer.
Point-to-point, point to group, group-to-group monitoring.
Continuously auto track upon different time and distance intervals.
Absolute street address with GSM network.
SD card for data logging.
Support 9-36V, so it can be installed on Bus, taxi, truck ,personal car, business car etc.
Maximum 5 cell phone numbers are allowed to admin the tracker.
Other functions: SOS, Geo-fence, movement alarm, over speed alarm, accident alarm, voice monitoring etc.
Cut off the oil and power system.
The on-line web page tracking software has one month free trial, after that it is about 10USD per year.
Shock sensor and siren.
Note: the optional accessories are not include, to purchase them, please visit the specific links.

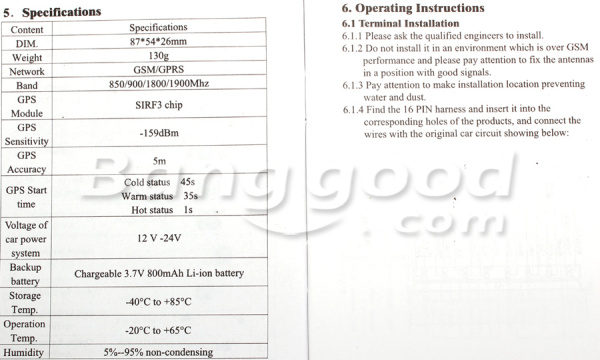

Network : GSM/GPRS
Band: 850/900/1800/1900Mhz
GSM/GPRS module: SIM900B
GPS module: SIRF3 chip
GPS sensitivity: -159dBm
GPS accuracy: 5m
GPS start time:Cold status 45s,Warm status 35s,Hot status 1s
Voltage of car power system 12V ~ 24V
Backup battery.
Rechargeable and changeable 3.7V 800mAh Li-ion battery
Storage Temperature: -40°C to +85°C
Operation Temperature : -20°C to +65°C
Humidity: 5% ~ 95% non-condensing
Item size : 10.5 * 5.5 * 2.5cm
Item weight: 112g/4oz
Package weight: 617g/1.4Lbs

Item Includes:

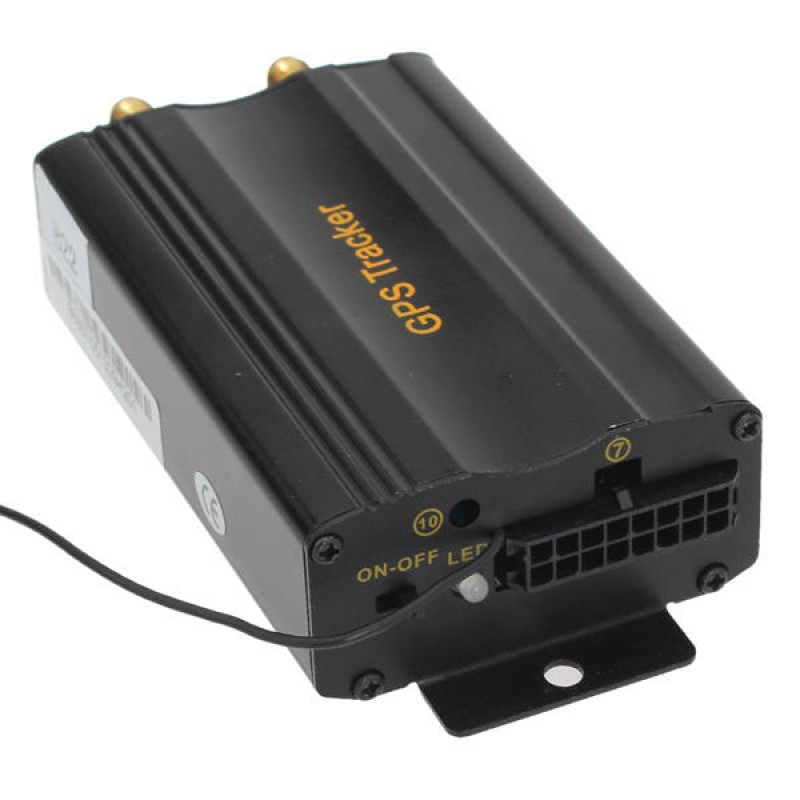

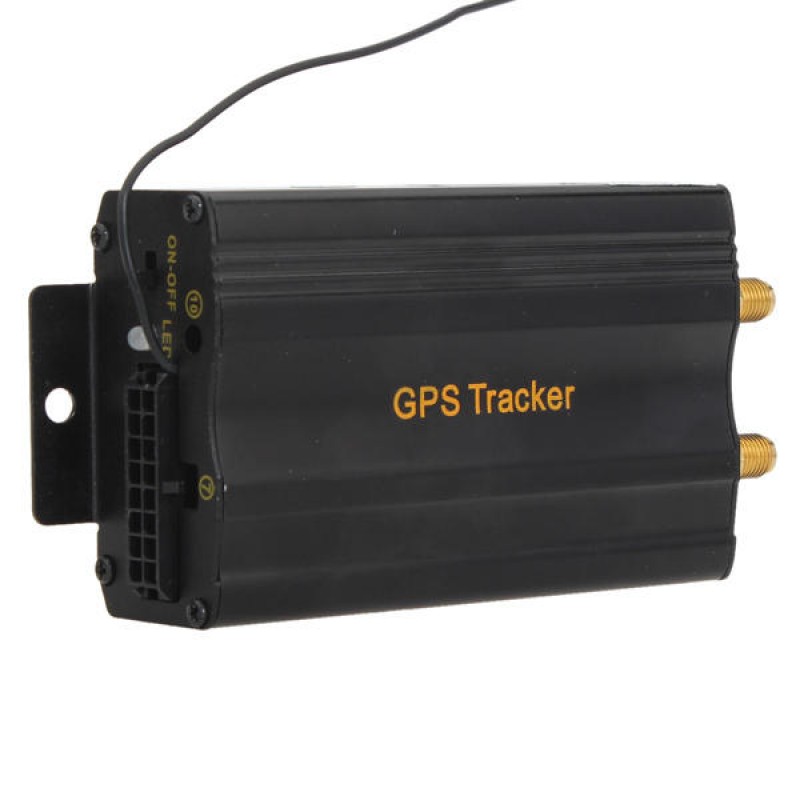

1 X GPS Tracker

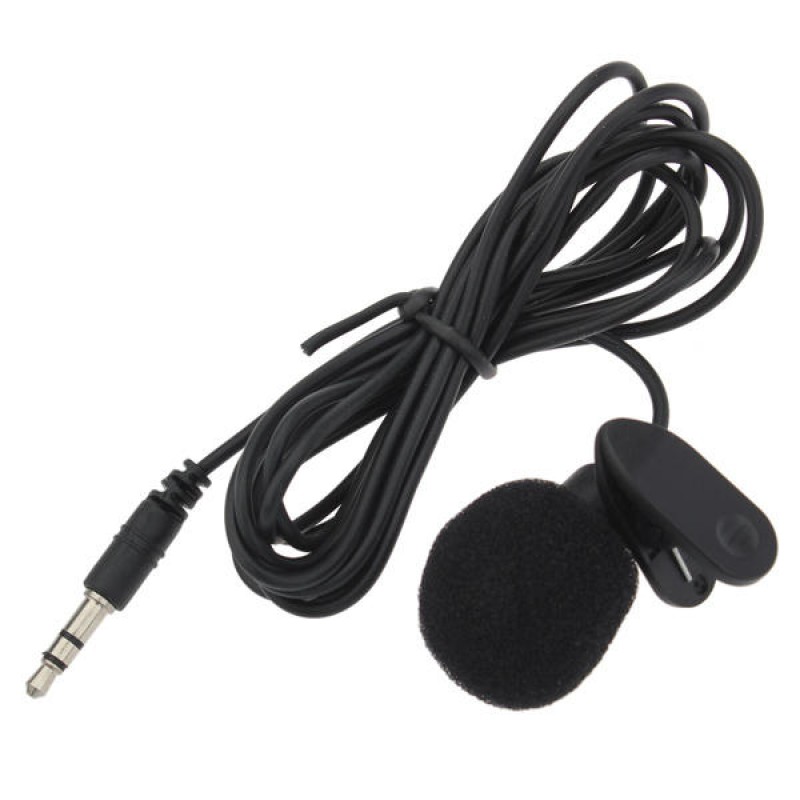

1 X Microphone (1.5 meters)
1 X GSM Antenna (3 meters)
1 X GPS Antenna (3 meters)

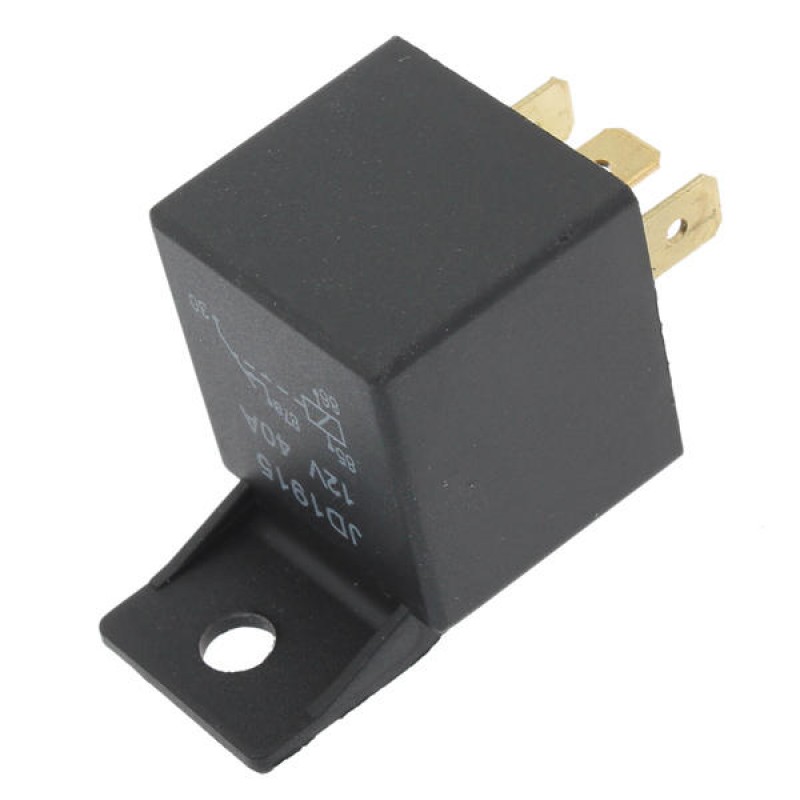

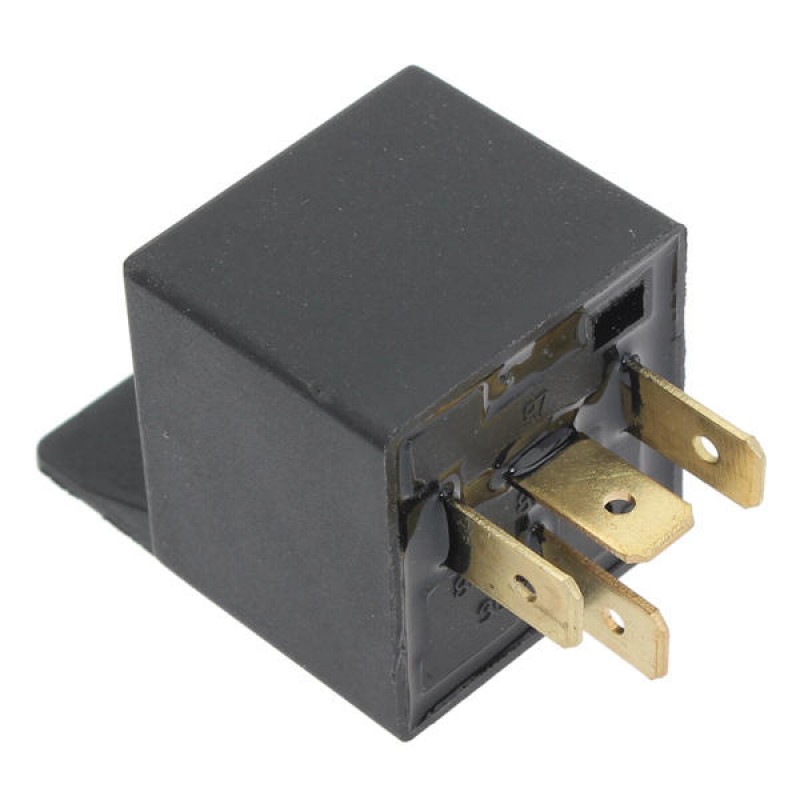

1 X Relay (12V/40A to 24V/40A according to vehicles)
1 X Harness (10 Pin)
